Inside SWF at Printwear 2019: MAS-12, K-Series Dual Function, KS 1200 SPM—and the Real Shop Lessons Behind the Hype

When you walk a trade show floor, everything looks fast, clean, and profitable—until you get back to your shop and reality shows up: hooping takes longer than you planned, operators hesitate to start the next job, thread breaks stack up, and “maintenance” becomes a once-a-week panic instead of a daily habit.

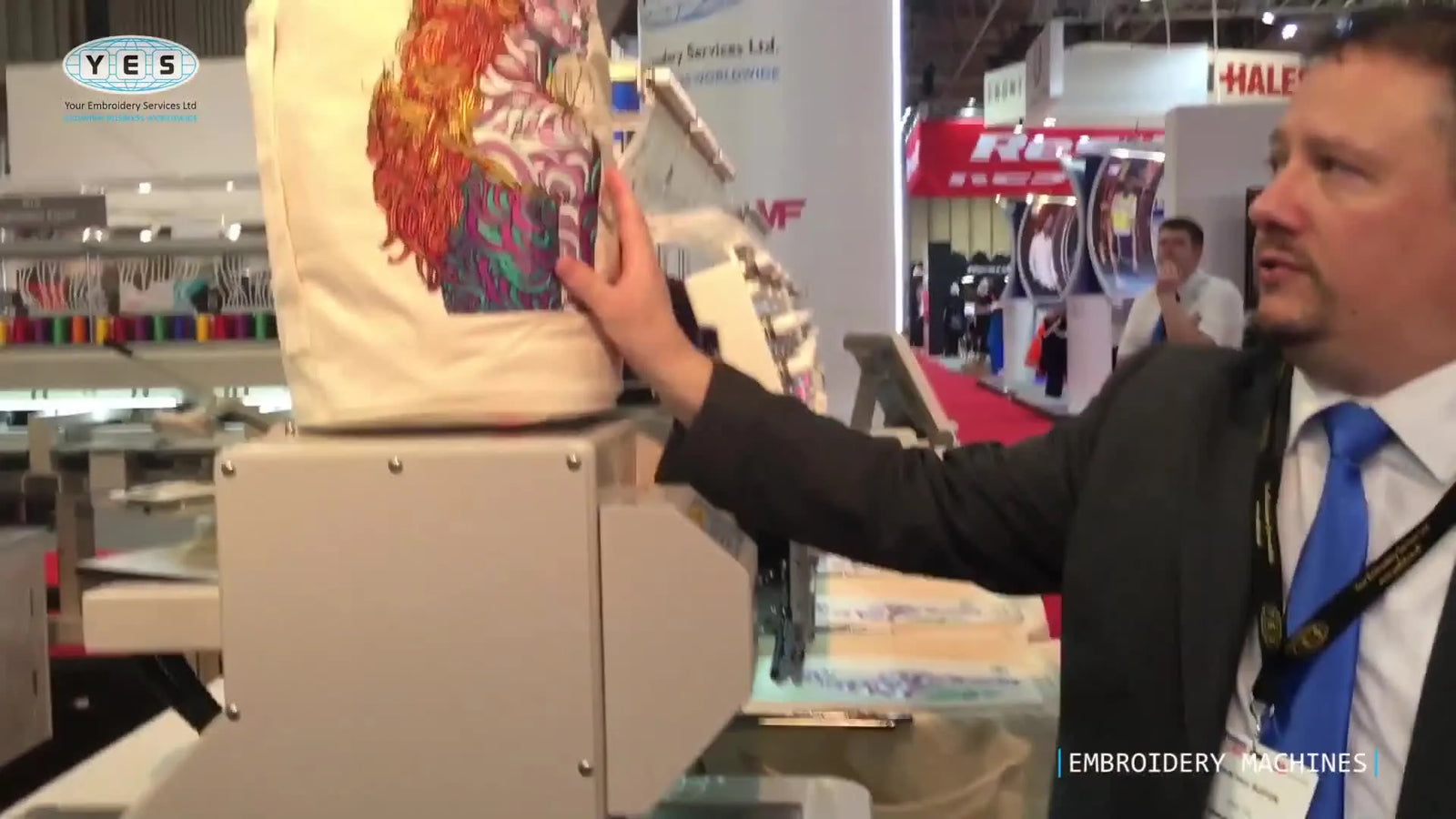

This tour from YES (Your Embroidery Services Ltd) at Printwear & Promotion 2019 is worth watching because it’s not just a machine lineup—it’s a snapshot of how modern commercial embroidery and DTG shops are trying to win: faster changeovers, measurable operator performance, and fewer excuses for downtime. But as any veteran will tell you, the machine is only as good as the hands operating it.

Calm the Panic: What This Printwear & Promotion 2019 Walkthrough Really Tells a Shop Owner

If you’re a commercial shop owner, you’re not watching this kind of video for entertainment—you’re watching because you’re trying to answer one question: “What will actually move my throughput without creating new headaches?”

The presenter (John-Paul Burton) shows a lineup designed to tackle specific production bottlenecks:

• Transfer printing (Print Wizard) on different substrates.
• The SWF MAS-12 single head running at a theoretical 1000 SPM with a KS-series style screen.
• The compact SWF EN series tackling the notorious 3D cap embroidery.
• The SWF K-Series Dual Function machine running two different jobs simultaneously (beanie hats on one side, a detailed canvas bag on the other), utilizing a large 39 by 49 frame.
• A one-pull oiling lever that aims to solve the "forgotten maintenance" issue.
• SENS (SunStar Embroidery Network System) for brutal honesty regarding runtime, downtime, and thread breaks.
• The SWF KS straight machine clocking in at 1200 SPM.
• DTG printers (G4, QM8, M2) and an ink-saving profile called Colour iOS.

The hidden lesson here is critical: speed is only valuable if your workflow can feed the machine. In real production, hooping, changeover, and “micro-stops” (thread breaks, trims, operator hesitation) decide your profit more than the headline SPM number. If you can't hoop a bag in under 45 seconds, a 1200 SPM machine is just waiting faster.

The “Hidden” Prep Before You Touch a Touchscreen: Hoops, Backing, Thread, and a 60-Second Reality Check

Before you get excited about 1000–1200 SPM, do the prep that prevents the ugly stuff: puckering on bags, cap distortion, and thread breaks that turn a fast machine into a slow one. This is about "Pre-Flight" discipline.

Prep checklist (do this before the first job of the day)

• Hoop Selection: Confirm you have the correct hoop type. Tubular hoops for bags, cylindrical/cap drivers for beanies/caps. Check: Are the adjustment screws stripped? Do the brackets click firmly into the pantograph?
• Surface Inspection: Run your finger along the inner ring of the hoop. Sensory Check: If you feel rough burrs or sticky adhesive residue, clean it. These imperfections cause "hoop burn" or fabric drag.
• Stabilizer Matching:
  • Canvas Bags: Heavy Cutaway (2.5oz+). Why: Canvas is heavy; if the backing is too light, the design will distort (pucker) as the fabric fights the needle.
  • Knits/Beanies: Cutaway Mesh + Solvy Topping. Why: Prevents stitches sinking into the fuzz.
• Thread Path & Needle:
  • Tensile Test: Pull the thread through the needle eye manually. Sensory Check: It should feel smooth, with consistent resistance similar to pulling dental floss. If it jerks, check for lint in the tension disks.
  • Needle Sanity: If you can’t remember when it was changed, change it. A $0.50 needle protects a $20 garment.
• The "Listen Test": Run the machine at low speed (400 SPM) for 5 seconds. Auditory Check: You want a rhythmic "thump-thump." A sharp metallic "clack" or grinding noise is an immediate stop signal.
• Hidden Consumables Check: Do you have temporary spray adhesive, fabric markers, and sharp snips within arm's reach? Searching for scissors kills momentum.

Warning: Needles, trimmers, and moving heads can injure you fast. The torque on a commercial machine is unforgiving. Power down before reaching under the head, near the needle bar, or around the hook area, and keep fingers strictly clear of the "pinch zone" when testing frames or cap drivers.

Pro tip from the shop floor: If your operator claims “the design is bad/digitizing is wrong,” check the hooping tension first. 90% of "digitizing problems" are actually physical movement problems caused by loose hooping.

SWF MAS-12 at 1000 SPM: Why a Compact Single Head Can Still Be a Production Weapon

The MAS-12 is shown as a compact single-head machine with a KS-series style screen system, running at 1000 stitches per minute. It is designed to switch between caps, tubular, and flat applications.

Here’s how to interpret the specs like an owner versus a salesperson:

• The Speed Reality: While it can run at 1000 SPM, the "Sweet Spot" for quality on a single head is often 750-850 SPM for flats and 600-700 SPM for caps. Running at 85% capacity usually yields better stitch registration and fewer thread breaks.
• Role in the Shop: A single head isn't just for small businesses. In a large shop, this is your "Sniper." It handles high-margin utilization: samples, personalization (names), and rush orders, keeping your multi-heads free for bulk production.

If you are currently researching swf mas 12-needle embroidery machine reviews, look for user feedback on the control panel's "cognitive load." Does it take 3 taps to load a design, or 10? The speed of the machine matters less than the speed of the setup.

SWF EN Series Running 3D Caps: The Cap Setup That Separates Pros From “Almost”

The EN series is shown running 3D cap embroidery on a black cap. 3D foaming on caps is the "final boss" of embroidery difficulty.

3D caps are unforgiving because the structure fights you: foam height, cap buckram stiffness, and the curve of the cap all amplify small setup mistakes.

A practical cap workflow for 3D Foam:

1. Preparation: Use a 3mm or 4mm foam. Heat gun trick: Keep a heat gun nearby to shrink excess foam fuzz after stitching.
2. Hooping (The Critical Step): The cap band must be tight against the gauge. Sensory Check: When you tap the front panel of the hooped cap, it should sound like a drum. If it's soft or spongy, the needle won't penetrate cleanly, leading to needle breaks.
3. Operation: Increase the presser foot height slightly to accommodate the foam thickness.

When you’re choosing a cap hoop for embroidery machine, judge it by repeatability. Can two different operators mount the cap and get the exactly same center alignment? If you struggle with cap alignment, standardizing your "hooping station" protocol is the first fix.

SWF K-Series Dual Function: Running Beanies and Bags at the Same Time Without Losing Your Mind

The K-Series Dual Function demo is the heart of the video: one side runs beanie hats while the other runs a detailed canvas bag design. The presenter emphasizes that you can press start on the left side independently.

This addresses the "Mixed Order Nightmare." Usually, if you have a 2-head machine, both heads must do the same thing.

• Real World Application: You can run a complex, high-stitch-count bag design (20 mins) on Head 1, while Head 2 runs four cycles of simple beanie logos (5 mins each).
• The "Safety Interval": You can stop one head to fix a thread break without halting production on the other.

If you’re evaluating a swf dual function embroidery machine, ask yourself: "How often do I have mixed product types in the same day?" If the answer is "constantly," dual function repairs your workflow efficiency.

Setup checklist (K-Series dual jobs)

• Isolation: Verify Frame A (Cylindrical) and Frame B (Tubular) settings in the software before loading the design.
• Clearance Check: The bag frame (39x49) is large. manually move the pantograph to the limits to ensure the bag handles won't catch on the machine body.
• Speed Limits: Run the Beanie side slower (600 SPM) to handle the stretch, and the Bag side faster (800 SPM) if stabilization is solid.
• Start Protocol: Establish a visual rule—e.g., "Green Light means Setup is Done." Never press start while looking at the other head.

Watch out: Dual jobs divide operator attention. If one side breaks thread repeatedly, it can distract the operator, causing them to neglect the quality check on the smooth-running side.

The One-Pull Oiling Lever: Daily Maintenance That Actually Gets Done

The presenter demonstrates an inbuilt oiling system: one pull/flip of a lever and the machine is oiled for the whole day.

Maintenance is where machines go to die. Complex oiling charts are ignored until a bearing seizes.

• The Human Factor: If maintenance takes 10 minutes and requires a screwdriver, it happens monthly. If it takes 2 seconds and a lever pull, it happens daily.
• The Sign of a Dry Hook: Sensory Check: If your rotary hook makes a dry "hissing" sound rather than a quiet hum, it's starving for oil. This causes friction, which melts thread (especially polyester) and leads to shredding breaks.

SENS Production Analytics: The Uncomfortable Truth About Downtime, Thread Breaks, and Operator Habits

SENS (SunStar Embroidery Network System) tracks stitching time, thread breakage, downtime, and operator efficiency.

Data removes the emotion from management.

• Scenario: Operator A produces 20% less than Operator B.
• Without Data: "Operator A is lazy."
• With Data (SENS): "Operator A has 3x more thread breaks on Head 2."
• Diagnosis: The tension spring on Head 2 is worn out, or the needle is burred. It's a mechanical issue, not a personnel issue.

If you’re running swf industrial embroidery machines, using analytics changes you from a "boss" to a "process engineer."

SWF KS Series at 1200 SPM: Speed Is Real—But Only If Your Workflow Can Feed It

The KS straight machine is presented as running at 1200 stitches per minute.

The Speed Trap: 1200 SPM is vibrant marketing, but dangerous in practice for novices.

• Friction Heat: At 1200 SPM, the needle heats up significantly. On synthetic technical fabrics or adhesives, this can melt the material onto the needle, causing "gummy" thread breaks.
• Vibration: Higher speeds require rock-solid stabilization.
• The Rule of Thumb: Start a new design at 800 SPM. Only accelerate if the first 1,000 stitches are perfect. Most professionals cap out at 1000 SPM for sustainability.

If you’re shopping swf commercial embroidery machine options, compare not just maximum SPM, but the acceleration curve—how fast does it get back to top speed after a trim? That is where time is actually saved.

DTG Digital G4 and QM8: What the Embroidery Shop Owner Should Notice (Even If You “Don’t Do DTG”)

The video highlights the DTG Digital G4 (self-leveling bed) and the industrial QM8 (450 shirts/hour).

Why discuss printing in an embroidery guide? Because it teaches us about Standardization. The massive throughput of DTG comes from fixed platen sizes and digital files. To match this efficiency in embroidery, we must standardize our hooping surfaces and file parameters.

Colour iOS Ink Saving: A Reminder That Consumables Quietly Decide Your Margin

The presenter claims Colour iOS saves up to 30% ink.

In embroidery, your "ink waste" is Stabilizer and Time.

• Over-stabilizing: Using 3 layers of backing because you are afraid of puckering costs money and makes the garment stiff.
• Under-stabilizing: Leads to ruined garments (100% loss).
• The Goldilocks Zone: Testing is cheaper than guessing.

Decision Tree: Pick the Right Stabilizer and Hooping Method

Use this Logic Flow to reduce distortion and rework.

1) What is the Fabric Structure?

• Structured (Caps/Jackets/Canvas):
  • Goal: Physical Grip.
  • Action: Use Firm Tearaway or Cutaway. Hoop TIGHT.
  • Pain Point: Hoop burn/marks on delicate areas? -> Consider Magnetic Hoops.
• Unstructured/Stretchy (Performance Knits/Beanies/Polos):
  • Goal: Stabilization (Stop the stretch).
  • Action: No-Show Mesh Cutaway + Solvy Topping. Do NOT stretch fabric within the hoop (creates "donut" puckering when released).
  • Pain Point: Fabric slipping? -> Use Spray Adhesive or Sticky Backing.

2) Are you doing a Production Run (50+ items)?

• Yes:
  • Set up a dedicated hooping station with a jig.
  • Use the exact same brand of thread for the whole run to avoid color variance.
• No (One-offs):
  • Double-check hoop path clearance before every start.

The Upgrade Path That Actually Pays: When to Add Better Thread, Better Backing, and Magnetic Hoops

In commercial embroidery, upgrades should be triggered by a specific bottleneck—not by hype. Here is the Commercial Logic for upgrading.

Scenario-triggered upgrade logic (tools, not sales pitches)

Scenario A: "I can't hoop fast enough to keep the machine running."

• Diagnosis: Your hooping process is the bottleneck. The machine is idle 40% of the time.
• Level 1 Fix: Buy a Hooping Station to standardize placement.
• Level 2 Upgrade (Tool): Switch to Magnetic Hoops (such as Sew Tech Magnetic Frames).
  • Why: They snap on instantly without adjusting screws. They hold thick items (Carhartt jackets/bags) without "popping" loose. They eliminate hoop burn on sensitive fabrics.
  • ROI: If you save 30 seconds per hoop on a 100-piece run, you save nearly an hour of labor.

Scenario B: "I have too many orders, I'm working weekends."

• Diagnosis: Capacity Bottleneck. You cannot stitch faster than physics allows.
• Level 1 Fix: Outsource 20% of work (cuts into margin).
• Level 2 Upgrade (Yield): Optimize thread paths and use premium needles to reduce breaks.
• Level 3 Upgrade (Scale): This is the trigger for a Multi-Needle or Multi-Head Machine (like SEWTECH industrial solutions).
  • Why: Moving from a single needle to a 12/15 needle machine eliminates thread change time. Moving to multi-head multiplies output by X.

Warning: Magnetic Hoops use extremely powerful industrial magnets. Keep them away from pacemakers, implanted medical devices, and mechanical watches. They represent a serious "pinch hazard"—fingers can get caught if you let the magnets snap together uncontrolled. Handle with respect.

Troubleshooting: Symptoms → Likely Causes → Fixes You Can Apply Today

If you are seeing consistent registration issues on generic frames, standardizing to high-quality swf hoops or compatible magnetic equivalents can mechanically solve the slip.

Operation Checklist: The “Keep It Stitching” Routine for Mixed Jobs

This is the checklist I’d want on the wall next to a dual-function station to prevent the "Monday Morning Crash."

Operation checklist (end of each run / before the next start)

• Next Item Staged: Is the next blank garment + stabilizer sitting 1 foot away? (Don't walk across the room).
• Hoop Verification: Visually confirm the hoop limits on screen match the physical swf embroidery frames currently snapped in.
• Bobbin Check: Visual Check: Is the bobbin thread getting low? (Change before it runs out on a valid run).
• Thread Path: Quick glance at the thread tree—no tangles or loops caught on the guide poles.
• The "First 100 Stitches": Watch the start. Most breaks happen at the tie-in. Don’t walk away until the machine settles into rhythm.






The Real Takeaway: Machines Don’t Create Profit—Systems Do

This Printwear 2019 tour shows impressive equipment: compact single-head capability (MAS-12), cap-ready compact machines (EN), true workflow flexibility (K-Series Dual Function), and headline speed (KS 1200 SPM).

However, the "Upgrade Path" that actually pays starts with Process:

1. Stabilize: Master your stabilizer and hooping first.
2. Measure: Use analytics (like SENS) to find the truth about downtime.
3. Upgrade: Solve physical pain points with Magnetic Hoops, and solve volume pain points with scalable equipment like SEWTECH multi-needle machines when your current single-head setup is maxed out.

That’s how you turn trade-show excitement into reliable, scalable profit.

FAQ

• Q: How do I perform a daily pre-flight check on an SWF multi-needle embroidery machine to prevent puckering and thread breaks before the first job?
  A: Use a 60-second pre-flight routine before speed testing to catch the causes of puckering, hoop burn, and early thread breaks.
  • Confirm hoop type for the job (tubular for bags, cap driver for caps/beanies) and inspect hoop inner ring for burrs or adhesive residue; clean if needed.
  • Match stabilizer to the product (canvas bags: heavy cutaway 2.5oz+; knits/beanies: no-show mesh cutaway + Solvy topping).
  • Rethread and do a manual pull through the needle eye; change the needle if the change date is unknown.
  • Run a 5-second listen test at low speed (about 400 SPM) before production.
  • Success check: Thread pull feels smooth and consistent (like dental floss), and the machine sound is a steady rhythmic “thump-thump,” not a sharp metallic “clack.”
  • If it still fails: Stop and check for lint in tension disks and inspect for a dry rotary hook sound before running faster.
• Q: What is the correct hooping tension standard for SWF cap driver setup when running 3D foam cap embroidery on an SWF EN Series embroidery machine?
  A: Hoop the cap band tight against the gauge so the front panel is “drum tight,” because 3D foam amplifies small alignment and penetration errors.
  • Mount the cap so the band is firmly seated against the cap gauge before locking the driver.
  • Tap the hooped cap front panel to verify firmness before stitching.
  • Increase presser foot height slightly to accommodate foam thickness.
  • Success check: When tapping the front panel, the hooped cap sounds like a drum (not soft or spongy).
  • If it still fails: Slow the cap speed into the 600–700 SPM range and re-check centering repeatability between operators.
• Q: How do I stop birdnesting (thread clumping under fabric) on an SWF commercial embroidery machine when starting a run on bags or knits?
  A: Rethread completely and confirm the upper thread is correctly seated, because birdnesting commonly comes from mis-threading or too-loose top tension.
  • Power down and rethread from cone to needle, ensuring the thread passes through the take-up lever and sits between the tension disks.
  • Pull the thread by hand through the needle eye to feel for smooth, even resistance.
  • Start the design and watch the first 100 stitches closely before walking away.
  • Success check: No thread clump forms under the fabric, and the stitch start settles into a stable rhythm without sudden slack.
  • If it still fails: Inspect for lint buildup in the tension area and verify the hoop is stable (fabric movement can trigger repeated nesting).
• Q: How do I fix thread shredding on an SWF industrial embroidery machine when running high speed (1000–1200 SPM) on synthetic fabrics?
  A: Reduce friction first—change the needle, confirm the rotary hook is properly oiled, and only increase speed after the first 1,000 stitches run clean.
  • Change the needle first (a burred needle is a common shredder).
  • Listen for a dry hook “hissing” sound and oil per the machine’s daily routine if the hook sounds dry.
  • Start a new design at about 800 SPM and only accelerate after clean early stitching.
  • Success check: Thread no longer looks “fuzzy” or frayed at the needle, and breaks stop occurring during steady runs.
  • If it still fails: Test a different thread cone and keep speed in the sustainable range (often 1000 SPM or below) until the root cause is confirmed.
• Q: What safety steps should operators follow on an SWF multi-needle embroidery machine when checking needles, trimmers, or frames near the needle bar and hook area?
  A: Treat the head area as a pinch-and-cut zone—power down before reaching in, and keep fingers clear during any frame or cap driver testing.
  • Power down before placing hands under the head, near the needle bar, or around the hook area.
  • Keep fingers out of the pinch zone when snapping frames in or testing cap drivers.
  • Do clearance checks by moving the pantograph manually, not by “holding” fabric or handles near moving parts.
  • Success check: Hands never cross into moving/head travel space while power is on, and all checks are completed without forcing parts.
  • If it still fails: Stop the process and retrain the start protocol (no start command until setup is visually confirmed complete).
• Q: What are the magnetic hoop safety risks for Sew Tech Magnetic Frames used on commercial embroidery machines, and how can operators handle the magnets safely?
  A: Industrial magnets can pinch fingers and can affect medical implants and watches—control the snap, keep clearances, and store magnets responsibly.
  • Keep magnetic hoops away from pacemakers, implanted medical devices, and mechanical watches.
  • Close magnetic frames slowly with two-hand control; never let magnets “slam” together.
  • Keep fingertips out of the closing gap and designate a safe placement area on the hooping table.
  • Success check: Frames close without a sudden snap, and no one’s fingers enter the gap during closure.
  • If it still fails: Pause use and assign one trained operator until a consistent safe handling routine is in place.
• Q: How do I choose between process optimization, magnetic hoops, and upgrading to a SEWTECH multi-needle or multi-head embroidery machine when hooping is the bottleneck in a commercial shop?
  A: Diagnose the bottleneck first—fix workflow and hooping consistency, then upgrade tools (magnetic hoops) for changeover speed, and only upgrade machines when capacity is truly maxed.
  • Measure the symptom: If the machine sits idle because hooping is slow, treat hooping/changeover as the constraint.
  • Apply Level 1: Standardize placement with a hooping station/jig and stage the next garment + stabilizer within arm’s reach.
  • Apply Level 2: Use magnetic hoops when screw-hooping is slow, thick goods pop loose, or hoop burn is frequent.
  • Apply Level 3: Upgrade to a SEWTECH multi-needle or multi-head machine when orders exceed available stitching hours (working weekends/constant backlog).
  • Success check: Idle time drops, operators hesitate less between jobs, and the first 100 stitches run clean more consistently.
  • If it still fails: Track downtime drivers (thread breaks, micro-stops) and address the highest-frequency cause before adding more speed or heads.
