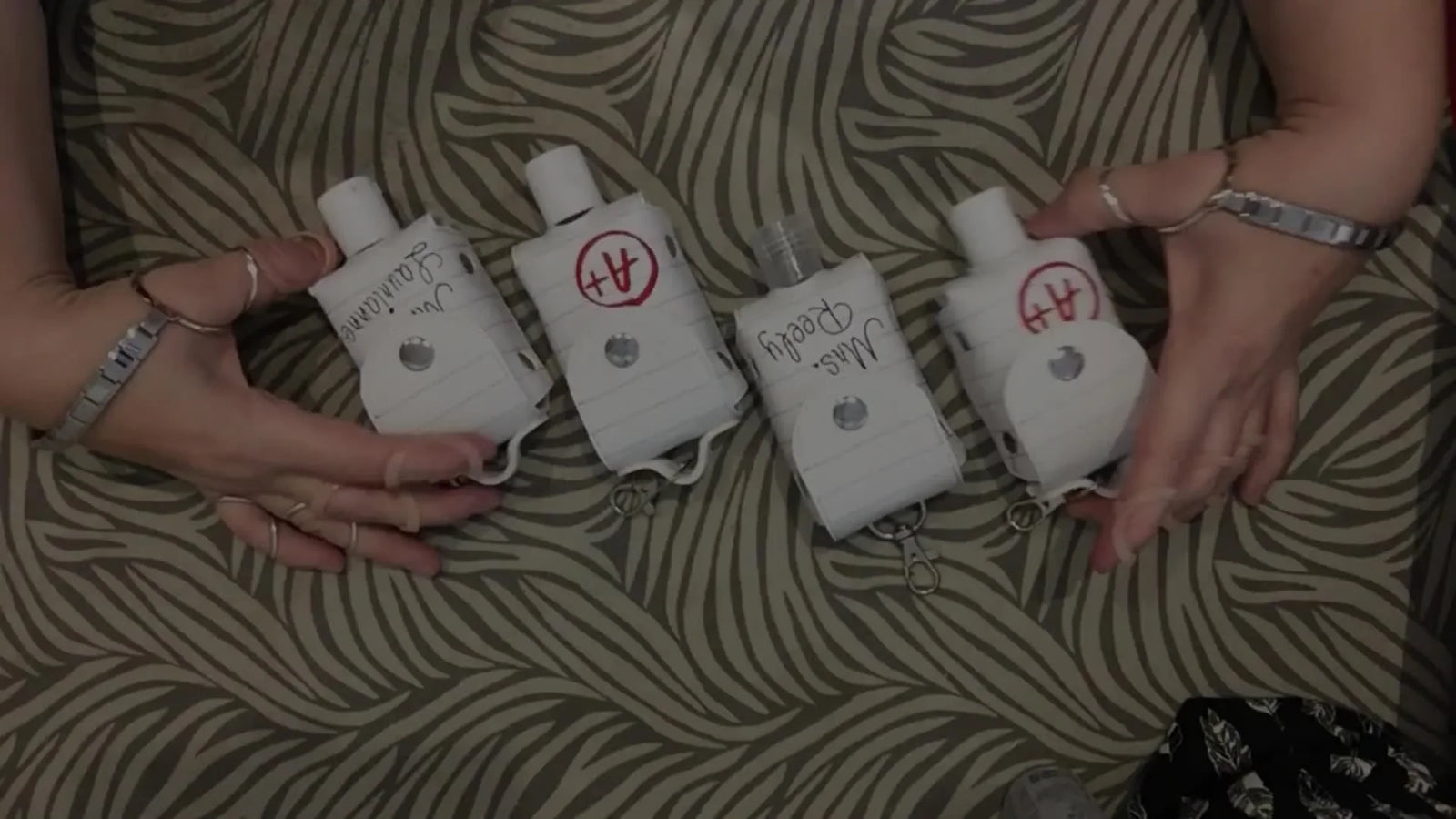

ITH Hand Sanitizer Holder on Marine Vinyl: Clean Placement Stitches, Neat Lining, and Hardware That Won’t Pop Off

If you have ever watched a perfectly stitched ITH (In-The-Hoop) project fall apart at the assembly table, you know the specific sting of "almost perfect." Vinyl is an unforgiving medium—it remembers every needle puncture, snaps are notoriously finicky about millimeter-level thickness, and a single alignment error can turn a profitable craft fair batch into a pile of scraps.

This tutorial rebuilds the workflow for a Marine Vinyl Hand Sanitizer Holder. However, we are moving beyond basic steps. We are applying a production-studio mindset, focusing on the "invisible" physics of tension, material density, and hardware mechanics that separate hobbyist outcomes from professional, sellable goods.

The Hook: Why This ITH Hand Sanitizer Holder Is Easy—Right Up Until Vinyl Shifts or Snaps Fail

This project is engineered for standard 2 oz / 60 ml bottles (fitting comfortably on Purell bottles and snugly on rounder generics). The stitch count is low, making it deceptively simple. However, the "failure points" are specific and physical:

1. Hooping Integrity: If the vinyl doesn't fully cover the placement line by at least 5mm, the final satin stitch will fall off the edge.
2. Lining Drifting: Floating felt on the back is blind work. If it shifts 2mm, your bobbin thread will expose raw adhesive.
3. Hardware Tolerance: Snap posts and rivet posts must match the compressed thickness of your vinyl, not just the loose thickness.

If you are scaling this for a market, consistency is your currency. You need the 50th item to look identical to the 1st.

The “Hidden” Prep: Marine Vinyl + Felt + Stabilizer Choices That Prevent Wrinkles, Skips, and Hoop Marks

Material selection in embroidery is engineering. The video demonstrates white marine vinyl for the face, felt for the lining, and medium-weight tear-away stabilizer. Here is the Why behind this combination:

• Marine Vinyl: It has a knit backing that stabilizes the needle penetration. Unlike thin craft vinyl, it won’t perforate like a stamp roll.
• Felt Lining: It provides friction. This prevents the bottle from slipping out, while hiding the bobbin nest.
• Stabilizer Choice: Tear-away is standard, but ensure it is a high-quality 2.5oz density. Cheap stabilizer turns to mush under satin stitching, causing the outline to deform.

Expert Note on "Hoop Burn": Marine vinyl is susceptible to permanent crushing from standard hoop rings. If you tighten the screw too much, you will see a "ghost ring" that heat guns cannot remove.

• Level 1 Fix: Float the vinyl (don't hoop it), as shown in this tutorial.
• Level 2 Solution: If you are doing dozens and need speed, magnetic embroidery hoops are the industry standard for vinyl. They use vertical magnetic force rather than friction/distortion to hold the material, eliminating hoop burn entirely and saving your wrists.

Warning: Magnetic Hoop Safety. High-strength magnetic hoops are powerful industrial tools. They can pinch fingers severely if handled carelessly. Never place them near pacemakers or sensitive electronics. Always slide the magnets off rather than pulling them directly apart.

Prep Checklist (Do this BEFORE you stitch)

• Stabilizer: 2.5oz Tear-away, cut 1.5" larger than the hoop on all sides.
• Vinyl: Cut with a generous 1" margin beyond the design size (don't skimp here; variance costs more than vinyl).
• Needle: 75/11 Sharp or Topstitch needle. Avoid Ballpoint needles on vinyl—they tear the material rather than piercing it.
• Adhesive: 505 Temporary Spray OR Paper tape (Painter’s tape).
• Hidden Consumables: A lighter (to seal thread ends), silicone spray (if needle gets gummy), and a backup bobbin.
• Hardware Stage: Match your rivet post length (8mm or 9mm) to your vinyl thickness.


Hooping Tear-Away Stabilizer in a 5x7 Hoop: The Placement Stitch Is Your Contract—Don’t Break It

The process begins by hooping only the stabilizer. This creates your foundation.

The Sensory Check: When you tap the hooped stabilizer, it should sound like a snare drum—tight and resonant. If it sounds like a dull thud or feels spongy, re-hoop. Loose stabilizer causes the "trampoline effect," where the needle bounces the material, leading to skipped stitches and loops.

Run the Placement Stitch directly on the stabilizer. This is your "Design Contract." It shows you exactly where the material must live.

For Higher Volume: If you find yourself spending 3 minutes hooping for a 5-minute stitch out, your ratio is off. Tools like a hoop master embroidery hooping station are designed to standardize this step, ensuring the stabilizer is tensioned identically every single time, which is critical for uniformity in batch production.

Locking Down the Front Vinyl with 505 Spray: Cover Every Placement Stitch or You’ll Chase Misalignment Later

Once the placement line is stitched, apply a light mist of 505 adhesive to the back of your vinyl.

The Application Rule: Spray the vinyl, not the hoop. Overspray on your hoop rings makes them sticky and collects lint later.

Place the vinyl over the stitched outline. Visual Check: Run your finger over the vinyl. You should be able to feel the ridge of the placement stitches underneath. Ensure the vinyl extends 0.5" to 1" past that ridge on all sides.

Tape vs. Spray: Spray is faster, but tape is more secure against the "push-pull" friction of the presser foot. For your first attempt, use both. Spray the center, and tape the corners.

Stitch the “Paper Lines” and Any Name/Text Now: Once the Lining Goes On, Your Options Shrink Fast

This is your creative window. The machine will stitch the decorative elements (the "paper lines," the "A+," or similar).

Machine Physics - The Speed Limit: Do not run your machine at 1000 stitches per minute (SPM) on vinyl. The friction heat can melt the adhesive on the needle, causing thread shredding.

• Sweet Spot: Set your machine to 600 - 700 SPM. You will hear the machine hum rhythmically rather than scream.

Customization Logic: If you are adding a name, do it now. If you wait until after the lining is attached, the bobbin thread for the name will show inside the holder, looking messy and scratching the sanitizer bottle.

Color Management: If you are running a batch of 50 holders with different names, a single-needle machine becomes a bottleneck due to constant re-threading. This is the criteria threshold where many hobbyists upgrade to SEWTECH multi-needle embroidery machines. The ability to have the "Paper Blue," "Grade Red," and "Text Black" all threaded simultaneously shifts you from "Labour" to "Management."

Flip the Hoop and Float the Felt Lining: Hide Bobbin Stitches Without Adding Bulk Where Snaps Go

Remove the hoop from the machine, but do not unhoop the material. Flip the hoop over to expose the underside.

The "Floating" Maneuver: Center your felt piece over the stitched area on the back. Tape it securely at all four corners. Use masking tape or painter's tape—something that holds but peels cleanly.

The Risk: The feed dogs (or the motion of the embroidery arm) can drag this floating felt if it isn't secured.

• Tactile Check: Press the felt down firmly. If it bubbles, the tape is too tight. If it slides, the tape is too loose. It should sit flat and neutral.

Professional shops often use embroidery hoops magnetic here because they allow you to pop the magnets off, adjust layers, and snap them back on without disturbing the main stabilizer tension. It converts a 45-second struggle into a 5-second adjustment.

The Final Construction Stitch: Watch the Perimeter, the Bottle Opening Circle, and the Closure Tab in One Pass

This is the most critical operation. The machine will stitch the final "Construction Bean Stitch" or Satin Stitch that sandwiches the Vinyl, Stabilizer, and Felt together.

Action Required:

1. Reduce Speed: Drop to 500 SPM. This stitch is going through three layers + adhesive.
2. Babysit the Machine: Use a stylus or a chopstick (keep fingers away!) to gently hold the vinyl down if you see it lifting near the tab.
3. Listen: You want a consistent thump-thump-thump. If you hear a sharp CRACK, you likely hit a thick spot or the needle deflected. Stop immediately.

Troubleshooting "Creep": If the vinyl creates a "wave" in front of the foot, your foot pressure is too high, or the vinyl wasn't adhered well enough. Pause, smooth it out backwards, and secure with extra tape if necessary.

Setup Checklist (Verification Before Unhooping)

• Perimeter Check: Look at the back. Did the bobbin thread catch the felt 100% around the edge?
• Loop Check: Inspect the tab/handle area. This is a high-stress point. Are the stitches tight?
• Registration: Is the decorative stitching still centered within the outline?
• Safety: Remove all tape before tearing away stabilizer to avoid ripping stitches.

Warning: Needle Safety. Never place your fingers under the needle area to hold the vinyl while the machine is active. If you must guide the fabric, use a designated tool (like a purple thang/stylus) or the eraser end of a pencil. A needle going through a finger at 600 SPM causes serious bone damage.

Cutting Out the Holder Cleanly: Leave a Small Margin and Don’t Nick the Stitch Line

Unhoop the project. You now have a raw sandwich of materials.

The 3mm Rule: Using sharp embroidery scissors (Kai or similar serrated blades are best for vinyl), trim around the perimeter.

• Goal: Leave a consistent 2.5mm to 3mm margin of vinyl outside the stitching.
• Why: If you cut flush to the stitches, the vinyl will eventually pull away and the stitches will unravel. Vinyl does not fray, but it does stretch. The margin acts as a structural buffer.

Stabilizer Removal: Gently tear the stabilizer away from the stitches. Support the stitches with your thumb so you don't distort the satin edge.

Punching Holes in Vinyl: Japanese Screw Punch for Rivets, Larger Punch for the Bottle Opening

Clean holes are the secret to professional hardware installation.

Tools:

• Japanese Screw Punch: Ideal for the small hardware holes. It cuts by rotating, leaving a pristine edge.
• Manual Drive Punch + Rubber Mallet: Best for the large bottle opening.

Technique: Place a self-healing mat or a thick piece of scrap leather under your project.

• Bad Sound: A metallic CLANK. This means you hit the table or granite.
• Good Sound: A dull THUD. This means the tool cut through the vinyl and bit into the cutting mat.
• Visual: The resulting hole should be a perfect circle, not an oval. Avoid using rotary leather punches on soft vinyl if possible, as they tend to stretch the material before cutting.


Installing Spring Snaps with a Hammer and Anvil: The Post Length Must Match Your Vinyl Stack

Hardware failure usually happens because of incorrect Post Length.

The Physics of the Snap: The post must go through the vinyl layers and protrude enough to be "peened" (curled) over, but not so much that it bends sideways.

• The Golden Ratio: You want about 2mm to 3mm of the post visible above the material.

Installation:

1. Insert Post through back.
2. Place Socket/Stud over Post.
3. Use the setting tool and anvil.
4. Strike firmly with a hammer. You are not trying to smash it flat; you are trying to roll the metal. Multiple medium taps are better than one giant swing.

Testing: Snap and unsnap it 10 times. If it feels loose or pops off, the post was likely too long and crushed sideways inside the cap.

The Dremel Fix for Snap Posts That Are Too Long: Shorten the Post Safely Before Setting

If your snap posts are too long (common with "standard" kits on thin vinyl), you must shorten them.

The Modification: Hold the snap post with pliers. Use a Dremel with a grinding wheel to shave 1-2mm off the tip.

Warning: Hot Metal Hazard. Grinding creates friction heat. The tiny post will become searing hot instantly. Do not touch it with bare skin for at least 2 minutes. Wear eye protection to guard against metal filings.

Setting Double-Cap Rivets (9.2 mm Cap, 9–10 mm Post): Make the Handle Loop Strong, Not Bulky

For the strap that holds the d-ring or clasp, we use Double-Cap Rivets.

Specifications:

• Cap: 9.2mm (Standard aesthetic size).
• Post: 9mm-10mm. Verify this against your specific vinyl thickness.

The Upgrade - Hand Press: While you can set rivets with a hammer, a Green Hand Press (Kam Press) applies verified vertical pressure.

• Why convert? Hammering is loud and varies with your arm strength. A press implies consistent pressure every time. If you move to production, a press is mandatory to save your hearing and your reject rate.


Operation Checklist (The Quality Assurance Pass)

• Snap Action: Does it click firmly? Does it release without tearing the vinyl?
• Rivet Security: Try to rotate the rivet caps. They should be tight and immobile.
• Bottle Fit: Insert a 2oz bottle. It should slide in with slight resistance (friction fit) but not distort the side stitching.
• Cleanliness: Are all jump threads trimmed? Are there any visible adhesive spots (wipe with a damp cloth)?

“My File Says It’s Too Large for the Frame”—The 5x7 Hoop Reality Check That Saves Hours of Frustration

If your machine refuses the file, do not panic. This is a logic error, not a mechanical one.

1. Check Orientation: Some machines require the design to be rotated 90 degrees to fit the digital definition of the hoop.
2. Check Hoop Selection: Ensure the machine knows you have the 5x7 hoop attached.
3. Hoop Mapping: Understand that a brother 5x7 hoop and a generic 5x7 hoop might focus their printable areas differently. Always center the design in your software before exporting.

A Simple Stabilizer Decision Tree for Vinyl ITH Projects (So the Holder Stays Flat and Sells Well)

Stop guessing. Use this logic flow to determine your setup.

1. START: Analyze Friction & Stretch

• Is the front material sticky/grippy (Marine Vinyl)?
  • Yes: Float the material Use 505 Spray. Hoop only the Stabilizer.
  • No (Fabric/Canvas): You can hoop it directly.
• Is the material stretchy (Knits/Thin pleather)?
  • Yes: Use Cut-Away Stabilizer. Tear-away will result in drifting outlines.
  • No (Stiff Vinyl): Tear-Away is acceptable.

2. DECISION: Volume & Tooling

• Am I making 1 for a gift?
  • Path: Standard Hoop + Tap/Spray/Float.
• Am I making 50 for a Craft Fair?
  • Path: magnetic embroidery hoop.
  • Why: Speed. Eliminates the "unscrew, hoop, tighten, screw" cycle. Saves approx. 45 seconds per unit.
  • Path: hooping station for embroidery.
  • Why: Repeatability. Ensures the design lands in the exact same spot on the vinyl every time.

The Upgrade Path: When Magnetic Hoops, Better Thread, and a Multi-Needle Machine Actually Pay Off

This Hand Sanitizer Holder is a "Gateway Project." It is easy to make one, but hard to make 100 perfectly. Your frustration points are actually indicators that it is time to upgrade your infrastructure.

The Diagnostic Upgrade Cycle:

• Symptom: "My hands hurt from tightening hoops, and I keep marking the vinyl."
  • The Prescription: Magnetic Hoops. They snap on instantly, hold thick vinyl without crushing it, and protect your joints.
• Symptom: "I spend more time changing thread colors than stitching."
  • The Prescription: Multi-Needle Machine. If you are doing 3+ color changes on a production run, a single-needle machine is costing you profit. SEWTECH multi-needle embroidery machines allow you to set the colors once and let the machine run the batch non-stop.
• Symptom: "My placement is always slightly crooked."
  • The Prescription: Hooping Systems. Professionals use terms like hoopmaster and hooping stations because "eyeballing it" is not a business strategy. Mechanical alignment guarantees standard results.

By respecting the physics of the materials and upgrading your tools when the volume demands it, you turn a frustrating craft into a streamlined manufacturing process.

FAQ

• Q: How do I prevent permanent hoop burn marks on marine vinyl when stitching an ITH hand sanitizer holder in a 5x7 hoop?
  A: Float the marine vinyl and hoop only the tear-away stabilizer to avoid crushing the vinyl surface.
  • Hoop: Tighten only the stabilizer in the 5x7 hoop, then stitch the placement line on stabilizer first.
  • Secure: Lightly mist 505 on the back of the vinyl (not the hoop), place vinyl to fully cover the placement line, then tape corners.
  • Reduce: Avoid over-tightening any hoop screw against vinyl; let adhesive + tape do the holding.
  • Success check: No “ghost ring” is visible after unhooping, and the satin edge fully lands on vinyl all the way around.
  • If it still fails: Switch from friction-style hoops to magnetic embroidery hoops to hold vinyl with vertical force instead of ring pressure.
• Q: How can I tell if tear-away stabilizer is hooped tight enough for a vinyl ITH project (so the outline doesn’t deform and stitches don’t skip)?
  A: The hooped stabilizer should feel drum-tight before running the placement stitch.
  • Tap: Flick the stabilizer in the hoop and listen for a snare-drum sound, not a dull thud.
  • Re-hoop: If the stabilizer feels spongy or bouncy, re-hoop before stitching anything.
  • Confirm: Run the placement stitch on stabilizer first and treat it as the fixed boundary for material coverage.
  • Success check: The placement stitch line looks smooth (not wavy) and the stabilizer stays flat without “trampoline” bounce during stitching.
  • If it still fails: Use higher-quality 2.5 oz tear-away; low-density sheets can turn mushy under satin stitching and distort the perimeter.
• Q: What is the correct needle type for stitching marine vinyl on an ITH hand sanitizer holder to avoid tearing and skipped stitches?
  A: Use a 75/11 Sharp or Topstitch needle and avoid ballpoint needles on vinyl.
  • Install: Fit a 75/11 Sharp (or Topstitch) needle before starting the placement and satin/bean stitches.
  • Slow: Run vinyl steps at reduced speed (about 600–700 SPM for decorative stitching, then drop to about 500 SPM for final construction).
  • Clean: If adhesive builds on the needle, pause and clean (a light silicone spray can help if the needle gets gummy).
  • Success check: Needle penetrations look clean (no torn holes), and the stitch line runs without shredding or repeated skips.
  • If it still fails: Recheck stabilizer tightness and reduce speed again—vinyl + heat + adhesive can amplify thread and needle issues.
• Q: How do I stop the felt lining from drifting when floating felt on the back of an ITH vinyl hand sanitizer holder?
  A: Tape the felt securely at all four corners after flipping the hooped stabilizer, without unhooping the project.
  • Flip: Remove the hoop from the machine, keep everything hooped, and turn the hoop over to the underside.
  • Center: Place felt over the stitched area, then tape all four corners with painter’s/masking tape.
  • Press: Smooth felt flat so it sits neutral—no bubbles and no sliding.
  • Success check: After the final construction stitch, the bobbin thread has caught the felt 100% around the perimeter.
  • If it still fails: Add more tape near high-motion areas, and consider magnetic embroidery hoops for faster layer adjustments without disturbing stabilizer tension.
• Q: What should I do when vinyl “creeps” or forms a wave in front of the presser foot during the final construction stitch on an ITH vinyl holder?
  A: Pause immediately, smooth the vinyl backward, and secure it better before continuing.
  • Reduce: Drop to about 500 SPM for the final pass through vinyl + stabilizer + felt + adhesive.
  • Stabilize: Add extra tape where lifting starts (especially near the closure tab/handle area).
  • Guide: Use a stylus/chopstick to gently hold vinyl down—keep hands away from the needle area.
  • Success check: The perimeter stitch stays evenly spaced with no ripples, and the decorative stitching remains centered inside the outline.
  • If it still fails: Re-apply adhesive more evenly (spray vinyl, not the hoop) and reassess pressure/drag sources—vinyl creep is usually grip/hold-down related.
• Q: What is the safe way to guide vinyl near the needle area at 600 SPM when stitching an ITH marine vinyl project?
  A: Never use fingers under the needle area; use a tool to guide vinyl and stop the machine if anything feels wrong.
  • Use: Guide with a stylus, “purple thang,” chopstick, or pencil eraser end—hands stay clear.
  • Listen: Stop immediately if a sharp “CRACK” happens; that often signals a thick spot or needle deflection.
  • Verify: Keep speed moderate (about 600–700 SPM on earlier vinyl steps; about 500 SPM on the final construction pass).
  • Success check: Stitching sounds like a consistent thump-thump-thump, with no sudden impact noises or visible needle strikes.
  • If it still fails: Re-check layer thickness at the tab/handle area and remove/reposition tape to prevent stacked bulk.
• Q: What magnetic embroidery hoop safety rules should be followed when using high-strength magnetic hoops for vinyl production work?
  A: Treat magnetic embroidery hoops as industrial tools—slide magnets off and keep them away from medical devices and electronics.
  • Slide: Remove magnets by sliding them apart, not pulling straight up, to reduce pinch risk.
  • Protect: Keep fingers out of the pinch zone when seating magnets onto the hoop.
  • Separate: Never place magnetic hoops near pacemakers or sensitive electronics.
  • Success check: Magnets seat and release in a controlled motion without finger pinches, and material stays held without hoop burn.
  • If it still fails: Slow the handling process and set magnets down on a stable surface—most injuries happen when magnets snap together unexpectedly.
• Q: When does upgrading from standard hoops to magnetic embroidery hoops—or to a SEWTECH multi-needle embroidery machine—make sense for batch-making ITH hand sanitizer holders?
  A: Upgrade when the bottleneck is repeatability, hooping time, vinyl marking, or constant color changes—not when stitching skill is the only issue.
  • Level 1 (Technique): Float vinyl, hoop only stabilizer, use 505 + tape, and run reduced speed for vinyl.
  • Level 2 (Tooling): Move to magnetic hoops if hoop burn, wrist fatigue from tightening, or frequent layer adjustments are slowing production.
  • Level 3 (Capacity): Move to a multi-needle machine if frequent thread re-threading for names/multi-color batches becomes the main time loss.
  • Success check: The 50th holder matches the 1st in alignment, edge coverage, and snap-ready thickness consistency.
  • If it still fails: Add a hooping station for standardized stabilizer tension and placement—repeatability issues are often hooping-process issues first.
