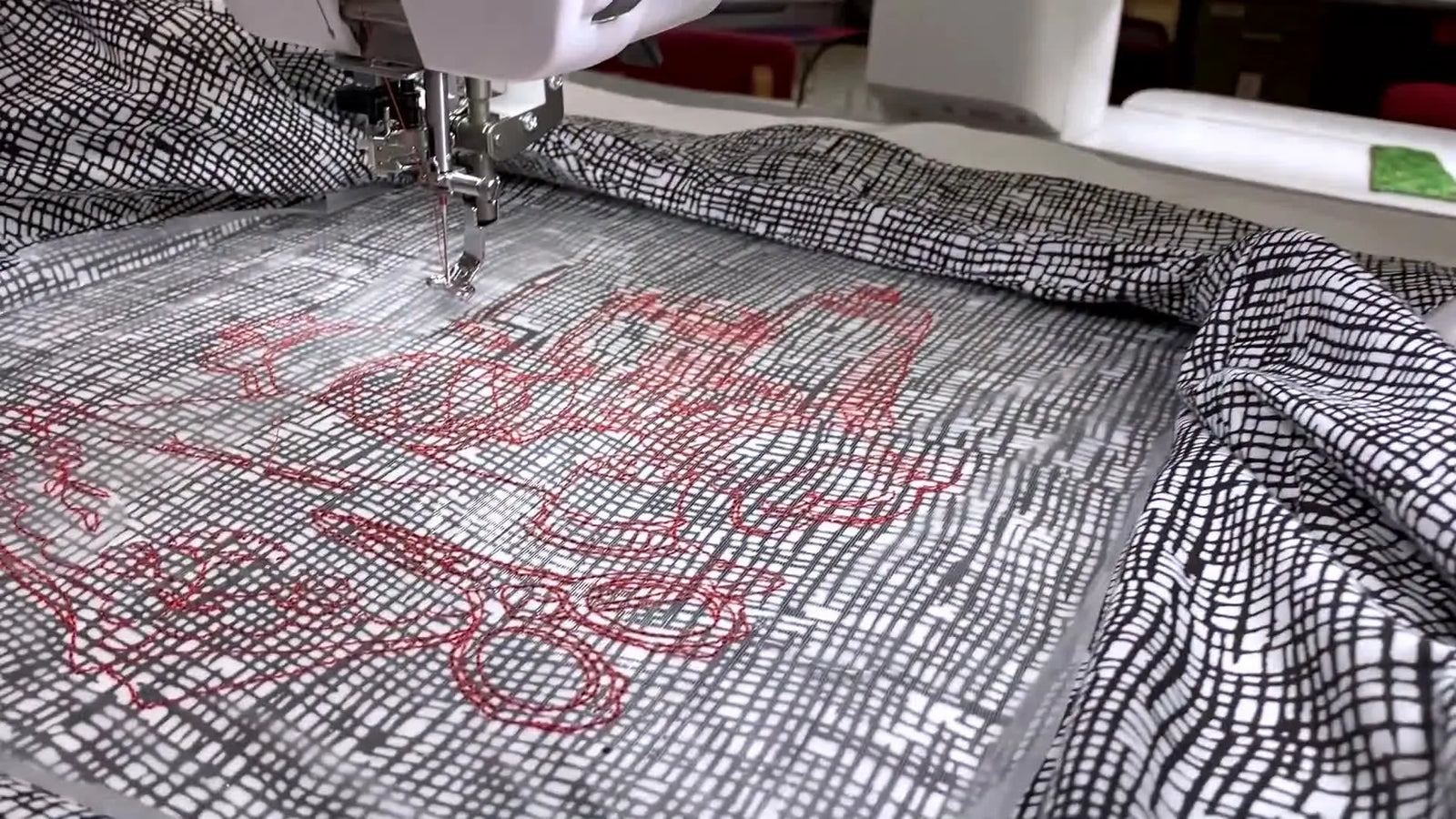

Janome Continental M17 Redwork on Silk: Stabilizer Choices, Laser Placement, and Why Hoop Rigidity Changes Everything

Don’t Panic—The Janome Continental M17 Is Fast, Not “Out of Control” (and Your Silk Isn’t Ruined Yet)

If you have ever stood in front of a high-end embroidery machine, watched the needle blur at 1,000+ stitches per minute, and felt a knot of anxiety tighten in your stomach thinking, "That is going to shred my silk blouse," take a deep breath. You are experiencing RPM Anxiety, and it is the number one reason beginners under-utilize their equipment.

In this demonstration, we see the Janome Continental M17 executing a monochromatic redwork design on delicate silk at 700 stitches per minute (SPM). To a novice, this looks aggressive. To a seasoned professional, this is the "Sweet Spot."

Why 700 SPM? While machines often boast speeds of 1,200 or 1,500 SPM, physics dictates that delicate fabrics like silk or satin suffer from "flagging"—bouncing up and down with the needle—at ultra-high speeds.

• The Safety A/B Test:
  • Under 500 SPM: The dwell time is too long; you risk heat buildup or thread nesting.
  • Over 800 SPM: The force of the needle penetration can cause micro-tears in delicate fibers.
  • 700 SPM: This provides the perfect balance of momentum and gentleness.

However, speed is just a number. The real secret isn't the motor; it is the foundation. As I tell every technician I train: You cannot software-correct a physics problem. If your hooping is loose, your design will pucker, no matter how slow you go.

Make Redwork on a Silk Blouse Look Crisp: Water Soluble Topper + Perfect Stick (Without Hoop Burn)

The demo features a "high-stakes" garment: a wearable silk blouse. There is no "undo" button on silk. Once a needle hole is made, it is permanent. To survive this, Linda uses a specific stabilizer cocktail: a Water Soluble Topper on top and Perfect Stick (adhesive tearaway) underneath.

The "Floating" Technique: Visual & Tactile Logic

Why this combination? Silk hates friction. Traditional hooping requires you to clamp two plastic rings together tightly, which crushes the delicate fibers, leaving a permanent white ring known as "Hoop Burn."

The Professional Solution:

1. Don't hoop the fabric. Instead, hoop only the sticky stabilizer (release paper up).
2. Score and Peel. Use a pin to lightly score the paper (listen for a papery scratch, don't slice the backing) and peel it away to reveal the adhesive.
3. Float the Blouse. Press the silk onto the sticky surface. It should hold firm, like a post-it note, not like duct tape.
4. Top it off. Lay the water-soluble topper over the area to keep the stitches from sinking into the fabric grain.

If you are shopping for a janome embroidery machine or similar high-end setup, understanding this "floating" capability is critical. It allows you to embroider velvet, silk, and leather without ever crushing the pile.

Warning (Mechanical Safety): Keep your fingers, thread snips, and seam rippers at least 4 inches away from the needle bar while the machine is running. A generic 75/11 embroidery needle moving at 700 SPM carries enough kinetic energy to puncture bone. Always press the "Stop/Lock" button before trimming jump stitches.

Read the Janome M17 Screen Like a Pro: Speed 700 SPM, Stitch Count 8716, and What Those Numbers Really Mean

The screen displays data that is often ignored, but these numbers are your flight instruments.

• Stitch Speed: 700 SPM (The "Safe Mode" for Silk).
• Stitch Count: 8716 stitches.
• Hoop: 12 x 12 inch (SQ28d).

The "20% Rule" for Density

An 8,716-stitch design looks manageable, but context is king.

• Visual Check: Look at the design preview. Is it a dense fill (tatami) or an open running stitch (redwork)?
• Physics: Redwork (open lines) puts very little stress on the fabric. If this were a solid brick of 8,000 stitches in a 2-inch square, you would likely cut a hole in the silk.

Pro Tip: When you see a 12x12 inch hoop being used for a 10x9 inch design, observe the margin. You have over an inch of clearance on all sides. Never crowd the edge of your hoop. Stability drastically decreases the closer you get to the metal frame.

Use the Janome M17 Laser Pinpoint Placement to Avoid the “Pocket Disaster” Before the First Stitch

The "Pocket Disaster" is a rite of passage: you embroider a logo beautifully, only to realize it is sewn shut through the pocket lining, or crooked by 3 degrees. Linda demonstrates the Laser Guide to trace the design boundary (basting box).

The "Dry Run" Protocol

Before you commit:

1. Activate the Laser. Point it at your starting crosshair.
2. Trace the Hull. Watch the laser move around the perimeter of the design.
3. The "Seam Check": visually confirm the laser does not cross over thick seams or pockets that shouldn't be stitched.

If your machine lacks a laser, you can manually lower the needle (hand wheel only!) at the four corners to verify. This 30-second habit prevents the heartbreak of unpicking thousands of stitches.

The Carbon Fiber Hoop (RE-Hoop) Reality Check: Why the Gantry Driver Arm Feels So Stable

Linda explicitly points out the Carbon Fiber Hoop and its gantry-style driver arm. This isn't just marketing fluff; it is materials science.

The "Trampoline Effect"

Standard plastic hoops are flexible. When the machine jerks the hoop left and right rapidly:

• A plastic hoop bends slightly (deflection).
• This causes the fabric to bounce like a trampoline.
• Result: Your outline stitches don't line up with your fill stitches (registration error).

Carbon fiber is rigid. It has zero flex. The gantry connection (attaching at two points or a broad base rather than a flimsy clip) ensures that when the motor says "move 1mm left," the fabric moves exactly 1mm left. If you are struggling with blurry outlines on large designs, your hoop's flexibility is likely the culprit, not your digitizing.

Big Hoop, Big Fabric, Big Risk: How to Keep Large Janome Embroidery Machine Hoops From Shifting Mid-Run

The demo shows a massive 11.3 x 18.2 inch field. Large hoops are dangerous for beginners because they act like sails—they catch drag.

Production Friction Analysis

When a large hoop moves, the excess fabric of the blouse hangs off the side.

• The Problem: Gravity pulls the heavy fabric down. If the hoop moves North, the heavy fabric drags South. This creates "Shift."
• The Fix: You need to manage the bulk. Roll the excess fabric gently and clip it out of the way (using embroidery clips, not heavy clamps that add weight). Rest the weight of the garment on the table, so the hoop engine isn't fighting gravity.

If you are comparing embroidery machine hoops, always check the connection mechanism. A single-point connection on a 14-inch hoop is a recipe for vibration.

Clean Finishing on Silk: Peel Water Soluble Topper First, Then Deal With the Sticky Backing

The finish is where you can snatch defeat from the jaws of victory. Linda’s sequence is non-negotiable for delicate fabrics.

1. Remove Topper First: Gently tear away the water-soluble film.
   • Sensory Check: Tear it horizontally, keeping your hand close to the stitches. Do not pull "up." Pulling up generates lift on the thread, which can cause looping.
2. Remove Backing Second: Flip the hoop.

The "Washable" Conundrum

Linda notes that for expensive designer silk (dry-clean only), you cannot use water to dissolve the remaining topper bits. In that case, you must switch to a "Heat and Stay" or a heat-away film.

• Rule of Thumb: Match the chemistry of your stabilizer to the cleaning method of the garment.
  • Will it be washed? -> Water Soluble.
  • Will it be ironed? -> Heat Away.
  • Neither? -> Tearaway.


Thread Weight Choices That Actually Show Up: Floriani 40wt vs 28wt for Redwork and Quilting

Linda selects Floriani 40 weight thread.

• 40wt: Standard embroidery thread. Good coverage, fine detail.
• 28wt: Thicker, rope-like.

Why choose one over the other? For Redwork (line art), 40wt looks like a pen drawing—elegant and subtle. 28wt looks like a marker drawing—bold and rustic.

• Implementation Note: If you switch to 28wt thread, you must upgrade your needle size (usually to a Topstitch 90/14) and slightly loosen your top tension. If you try to force fat thread through a skinny needle, it will shred (you will see "fuzz" accumulating at the eye).


Samples Tell the Truth: Why Monochrome Embroidery Can Look Premium (and Sell Better)

Monochrome (single color) designs are the secret weapon of profitable embroidery businesses.

1. Efficiency: Zero thread changes means the machine never stops.
2. Aesthetics: A single color (like red on white, or white on black) looks curated and high-end, often perceived as "artistic" rather than "commercial."
3. Risk Reduction: Fewer stops mean fewer chances for the machine to lose registration or snag a thread.

If you are starting a business, a collection of elegant monochrome designs is the fastest way to build inventory with minimal labor costs.

The Woven Fabric Trick That Stops Bias Stretch Cold: Heat and Stay Fusible Tearaway

Woven fabrics (like quilting cotton or twill) have a secret weakness: The Bias.

• Physics: Pull a cotton napkin North-South? Rigid. East-West? Rigid. Diagonally (45 degrees)? It stretches like rubber.

Linda introduces Heat and Stay, a fusible tearaway stabilizer.

• The Logic: By ironing the stabilizer onto the back of the fabric, you temporarily bond the fibers. You physically prevent the diagonal weave from distorting.
• The Result: Perfect circles. Without fusible support, circles on woven fabric often turn into ovals because the bias stretches during stitching.

If you are researching a hooping station for embroidery, remember that even the best station cannot fix fabric that stretches internally. Fuse it first.

Do the “Bias Pull Test” Before You Stitch: A 10-Second Check That Saves Hours

Before you hoop, you perform the Bias Pull Test.

The Action:

1. Fuse your stabilizer to the fabric.
2. Grab the fabric combo with two hands, diagonally.
3. Tug gently.

The Sensory Success Metric:

• Fail: It feels spongy or gives way. (Action: Add a second layer or switch to Cutaway).
• Pass: It feels crisp and paper-like, with zero give.

Decision Tree: Stabilizer & Hoop Selection

Use this logic flow to stop guessing:

1. Is the fabric Elastic (T-shirt/Polo)?

• Yes: MUST use Cutaway Stabilizer.
• Hoop: Magnetic Hoop recommended to avoid stretching while clamping.

2. Is the fabric Woven but delicate (Silk/Satin)?

• Yes: Float with Adhesive Tearaway + Water Soluble Topper.
• Hoop: Standard hoop (floating) or Magnetic Hoop (clamping).

3. Is the fabric Woven and sturdy (Denim/Canvas)?

• Yes: Tearaway Stabilizer.
• Hoop: Standard hoop is fine.


The “Snap-In” Moment: Fast Hoop Mounting Is Nice—But Consistent Mounting Is the Real Win

Linda shows the hoop snapping into the machine. While this looks like a convenience feature, "Snap-In" capability is vital for Repeatability.

• In production, you are often hooping the next garment while the current one stitches.
• You need to swap hoops in under 5 seconds to keep the spindle turning.

If you are looking at janome embroidery machine hoops, assess the locking mechanism. Does it click audibly? A silent lock is a dangerous lock because you might think it's engaged when it isn't, leading to a mid-stitch catastrophe.

One-Touch Needle Plate Removal on the Janome M17: Convenient, Yes—But Treat the Warning Seriously

The video highlights the "One-Touch" needle plate removal. The screen restricts operation until the plate is secure.

Why change plates?

• Standard Plate: Has a wide oval hole. Good for zig-zag or wide embroidery stitching.
• Straight Stitch Plate: Has a tiny round hole. Essential for lightweight fabrics to prevent them from being pushed down into the machine (birdnesting).

Warning: Never ignore a "Check Needle Plate" sensor. If the plate is slightly ajar, the needle will strike the metal on its downstroke. This sends shrapnel flying toward your eyes. Always ensure you hear the mechanical CLICK when seating a plate.

“Lost Design Position” After You Stop Mid-Run: How to Recover Without Guessing

We have all been there: The thread breaks, or usage error causes you to exit the design screen. Panic sets in. Do not manually move the hoop.

The Recovery Protocol:

1. Do not unhoop.
2. Reload the design on the screen.
3. Use the "Stitch +/-" or "Resume" function.
4. Advance through the design to the stitch count where you left off.
5. Visual Check: Drop the needle manually to see if it aligns with the last hole.

This precise digital recovery is why upgrading to a computerized system pays off. Guesswork ruins garments.

The Hidden Prep That Makes the Janome M17 Feel “Effortless”: Fabric Control, Not Just Features

The M17 is a beast, but you don't need a $15,000 machine to get good results. You need Control. The "effortless" feeling Linda describes comes from eliminating variables.

• She eliminated slip (Adhesive stabilizer).
• She eliminated sink (Topper).
• She eliminated bias stretch (Fusible).

If you are fighting your machine, stop buying new designs and start investing in your prep work.

Setup Checklist (The "Pre-Flight" Check)

• Needle Check: Is it new? (Use 75/11 Sharp for Woven, Ballpoint for Knits).
• Bobbin Check: Is the bobbin area clean of lint? Is the bobbin thread tail cut to 1cm?
• Hoop Check: Perform the "Tambourine Tap." Tap the hooped stabilizer—it should sound like a drum.
• Design Check: Is the design centered? Is the correct foot installed (Embroidery P foot)?
• Consumables: Do you have your applique scissors and water-soluble pen within reach?


When Magnetic Hoops Make Sense (and When a Rigid Hoop Like Carbon Fiber Is the Better Play)

Here is the brutal truth about standard hoops: They hurt your wrists, and they leave marks. This creates a specific pain point for users doing production runs.

The Upgrade Path:

• The "Hoop Burn" Victim: If you are tired of scrubbing visible rings out of velvet or polo shirts, a magnetic hoop is the industry standard solution. The magnets hold the fabric flat without the "crush" of a friction ring.
• The "Volume" Stitcher: If you are doing 50 left-chest logos, screw-tightening a hoop 50 times takes ~2 minutes per shirt. Magnetic frames take ~10 seconds. That is over an hour of labor saved.
• The "Rigid" Need: For massive full-back designs (like the demo), you prioritize rigidity. Here, the Carbon Fiber hoop is king. But for everything else? Magnets win on ergonomics.
• Commercial Reality: If you find yourself limited by the single-needle changes, consider that professional shops use SEWTECH multi-needle embroidery machines to run 10+ colors without stopping. But before you spend thousands on a new machine, a $100-$200 investment in better hoops is often the smartest first step.

Warning (Magnet Safety): High-quality magnetic hoops use industrial Neodymium magnets. They are incredibly strong. Pinch Hazard: Do not place your fingers between the hoops as they snap together. Medical: Keep them at least 6 inches away from pacemakers. Electronics: Do not rest them on your laptop or design tablet.

The “Operator’s Finish” That Makes Redwork Look Expensive: Clean Topper Removal + Flat Pressing

Linda finishes by peeling the topper. But the job isn't done until it is pressed. The "Hover Steam" Technique: For silk or velvet, never press the iron directly on the embroidery face. It will flatten the thread and kill the shine.

1. Place the garment face down on a fluffy towel.
2. Steam deeply from the back.
3. This relaxes the fibers and makes the embroidery "pop" outward.

Operation Checklist (During Stitching)

• Listen: A rhythmic thump-thump is good. A loud clack-clack means a needle is dull or hitting metal.
• Watch: Keep an eye on the "feed" of the thread. Is it jerking? (Check the spool cap).
• Pause: If you hear a birdnest forming (crunching sound), stop IMMEDIATELY. Do not hope it gets better.


The Takeaway: Better Stabilizers + Smarter Hooping Beat “More Speed” Every Time

Speed is vanity; Quality is sanity. Linda’s demo proves that with the right "sandwich" (Topper + Adhesive + Silk), even a domestic machine can produce couture results.

Your Action Plan:

1. Stop fearing the speed. Set your machine to a safe 600-700 SPM.
2. Respect the bias. Use fusible stabilizers on wovens.
3. Upgrade your hold. If you are fighting hoop burn or hand fatigue, look into magnetic hoops for janome embroidery machines. They are the bridge between hobbyist frustration and professional flow.

Embroidery is 20% machine, 40% digitizing, and 40% physics. Master the physics using the right stabilizers and hoops, and the machine will do the rest.

FAQ

• Q: What stitch speed should a Janome Continental M17 use for embroidery on delicate silk to avoid shredding or fabric damage?
  A: Use a controlled 600–700 SPM as a safe working range for silk, with 700 SPM shown as a proven sweet spot in the demo.
  • Set speed to 700 SPM before the first stitch and avoid pushing past 800 SPM on delicate silk.
  • Keep the fabric stable with proper stabilization; slowing down alone will not fix loose holding.
  • Success check: Stitches look clean with no micro-puckers, and the silk is not showing obvious stress around needle penetrations.
  • If it still fails: Re-check fabric control (floating method + stabilizer combo) before reducing speed further.
• Q: How can a Janome Continental M17 embroider redwork on a silk blouse without hoop burn using the “floating” technique?
  A: Float the silk on adhesive tearaway and use a water-soluble topper so the fabric is never crushed by a tight hoop.
  • Hoop only the adhesive tearaway with the release paper facing up.
  • Score and peel the paper to expose adhesive, then press the silk blouse onto the sticky surface gently.
  • Add water-soluble topper on top before stitching to prevent stitches from sinking into the fabric grain.
  • Success check: No white hoop ring on the silk after stitching, and the fabric stays flat without shifting.
  • If it still fails: Reduce handling friction and confirm the fabric is held “post-it note firm,” not sliding or overly stretched.
• Q: How do I know if a Janome Continental M17 hooping and stabilizer setup is tight enough before stitching starts?
  A: Use the “Tambourine Tap” test on the hooped stabilizer and confirm the design is not crowded near the hoop edge.
  • Tap the hooped stabilizer and aim for a drum-like sound rather than a dull thud.
  • Verify the design has margin clearance inside the hoop and is not close to the frame edge.
  • Keep the garment weight supported on the table so the hoop drive is not fighting gravity.
  • Success check: The hoop feels firm, sounds tight when tapped, and the fabric does not bounce during the first stitches.
  • If it still fails: Switch to a more stable holding method (better stabilization or upgraded hoop rigidity) rather than only lowering speed.
• Q: How can a Janome Continental M17 prevent large embroidery hoops from shifting mid-run on a blouse with lots of excess fabric?
  A: Manage fabric drag by rolling and clipping excess fabric and supporting garment weight so the hoop movement is not pulling against gravity.
  • Roll excess fabric neatly and clip it out of the hoop’s travel path using embroidery clips (avoid heavy clamps).
  • Rest the garment bulk on the table to remove downward pull while the hoop moves.
  • Keep the hoop path clear so nothing catches as the hoop moves north/south/east/west.
  • Success check: The design stays aligned (no registration drift) and the hoop motion sounds smooth, not strained.
  • If it still fails: Re-evaluate the hoop connection rigidity and reduce drag further before changing digitizing settings.
• Q: What is the safest way to trim jump stitches on a Janome Continental M17 running at 700 SPM to avoid needle-bar injuries?
  A: Stop the machine and use the Stop/Lock function before bringing hands or tools near the needle area.
  • Press Stop/Lock before trimming; do not reach in while the needle is moving.
  • Keep fingers, thread snips, and seam rippers at least 4 inches away from the needle bar during operation.
  • Trim only when the machine is fully stopped and the needle bar is not cycling.
  • Success check: Trimming feels controlled with zero “near misses,” and tools never enter the needle zone while running.
  • If it still fails: Slow the workflow down and reposition lighting/tools so trimming is done deliberately, not reactively.
• Q: What does “Check Needle Plate” risk on a Janome Continental M17, and how should the needle plate be seated safely?
  A: Treat any needle plate warning as critical—seat the plate until a clear mechanical click confirms it is locked.
  • Remove and reinstall the plate carefully and confirm it sits fully flush.
  • Listen and feel for the mechanical CLICK when the plate seats correctly.
  • Do not run the machine if the screen restricts operation or the plate feels even slightly ajar.
  • Success check: The plate is flush, the lock engagement is obvious, and the warning clears before stitching resumes.
  • If it still fails: Stop immediately and re-seat again; do not “test stitch” through a warning condition.
• Q: When should an embroiderer upgrade from standard hoops to magnetic hoops or a multi-needle embroidery machine for hoop burn and production speed problems?
  A: Start with technique fixes, then upgrade to magnetic hoops for hoop burn and time savings; consider a multi-needle machine only when thread-change stops limit throughput.
  • Level 1 (technique): Float delicate fabrics on adhesive stabilizer + topper to avoid crushing and reduce rework.
  • Level 2 (tool upgrade): Use magnetic hoops to reduce hoop burn and cut hooping time dramatically on repeat jobs (e.g., left-chest logos).
  • Level 3 (capacity upgrade): Move to a multi-needle embroidery machine when frequent color changes are the main bottleneck.
  • Success check: Hoop marks reduce, hooping becomes faster and repeatable, and registration issues drop due to steadier holding.
  • If it still fails: Prioritize fabric control and stabilization first—equipment upgrades cannot correct unstable prep.
• Q: What magnet safety rules should embroiderers follow when using strong magnetic embroidery hoops?
  A: Handle magnetic hoops like industrial tools—avoid pinch points and keep magnets away from medical devices and sensitive electronics.
  • Keep fingers out of the closing gap as the magnets snap together (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Do not rest magnetic hoops on laptops, tablets, or other electronics.
  • Success check: Hoops close without finger contact in the pinch zone, and magnets are stored away from devices when not in use.
  • If it still fails: Slow down the hooping motion and adopt a two-hand placement routine that never puts fingertips between the frames.
