The Janome Memory Craft Owner’s Field Guide: From "Box Panic" to Perfect Stitches

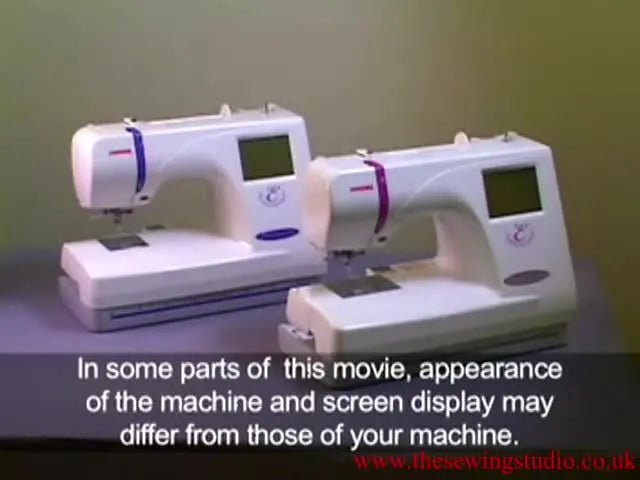

If you’ve just unboxed your Janome Memory Craft—or stared at it for three months afraid to turn it on—let me validate that feeling. That isn't incompetence; it’s respect for the machinery. Embroidery is an unforgiving "experience science." One missed thread guide, one sloppy hooping job, or a single guess on tension can turn a beautiful digital design into a "bird’s nest" disaster.

This guide is your flight school. We are going to rebuild the standard video tutorial into a shop-tested workflow. I will teach you not just what buttons to press, but how the machine should sound, feel, and behave when you do it right.

1. Powering Up: The "Clean Current" Protocol

The video covers the basics, but experienced operators know that power delivery is the heartbeat of your machine. A surge can reset your motherboard mid-stitch, ruining a garment.

The Correct Sequence (Do Not Skip)

1. Safety First: Ensure the machine’s power switch is physically toggled to OFF.
2. Connection: Plug the power supply cable into the machine first, then into the wall outlet.
   • Pro Tip: Use a dedicated surge protector. Your Janome has a worldview auto-voltage system (100–240 volts), but it cannot protect itself from dirty power spikes during a thunderstorm.
3. Ignition: Flip the power switch ON.

Know Your Cockpit (Touch Points & Tactile Cues)

You need to build muscle memory for these parts. Don't just look at them; feel them.

• Spool Pin & Holder: This isn't just a stick. It controls how thread leaves the spool. If the holder is too tight, the thread drags; too loose, it snags.
• Bobbin Winder Spindle: Listen for a "click" when you engage it. If it feels mushy, it’s not engaged.
• Hand Wheel: Always turn this toward you (counter-clockwise). Turning it backward can tangle internal threads.
• Start/Stop Button: Your primary driver. Green means "Ready," Red means "Error" or "Running."
• Thread Cutter: A convenience tool, but use it wisely. If your thread shreds, stop using the auto-cutter and switch to manual scissors to inspect the blade.

If you are researching a reliable setup for a janome embroidery machine, mastering these physical touchpoints is the difference between fighting the machine and flowing with it.

2. Bobbin Winding: Ending the "It Runs… Then Quits" Curse

A common newbie frustration mentioned in comments is the bobbin winder starting, spinning three times, and halting. This is almost always a tension engagement error, not a motor failure.

The "Snap-Tight" Winding Method

1. Spool Prep: Place your thread on the spool pin.
   • Crucial Decision: Use the Large Spool Holder for standard spools and the Small Holder for narrow spools. If the spool rattles, the winding will be loose.
2. The Tension Lock: Pull the thread around the bobbin winding tension knob. You must feel it snap.
   • Sensory Check: Hold the thread on both sides of the knob and "floss" it in. If there is no resistance, there is no tension, and you will get a squishy bobbin that causes jams later.
3. Threading the Core: Insert the thread end through the bobbin hole from inside to outside.
4. Engagement: Place the bobbin on the spool pin and push the spindle to the right. Listen for the machine to shift modes (the LCD often changes).
5. The Anchor Step: Hold the free thread tail firmly. Press Start/Stop. Let it wind 5-10 rotations only. STOP.
6. The Trim: Cut that tail flush with the bobbin top. If you leave this tail, it will whip around and snag your bobbin case later.
7. Completion: Press Start again. Let it wind until it slows or stops automatically. Push the spindle left, remove, and cut.

Warning: Physical Safety
Keep long hair, necklaces, and loose sleeves tied back. The bobbin winder spins at thousands of RPM. It can catch a stray hair strand and pull your head toward the machine in a split second.

Why Did It Stop? (Expert Diagnosis)

• Symptom: Winder spins but thread is loose? Cause: You missed the tension disk "snap."
• Symptom: Winder stops immediately? Cause: The spindle wasn't pushed fully to the right.

Loading the Bobbin (The "P" Rule)

1. Slide the hook cover release; remove the plate.
2. The "P" Test: Hold the bobbin so the thread hangs down. It should look like the letter "P" (unwinding counter-clockwise). If it looks like a "q", flip it.
3. The Tension Path: Drop it in. Guide the thread into the front notch.
4. The Resistance Check: Pull the thread left through step 2 (the blades). You should feel a slight drag—like pulling a hair through a comb. This is your lower tension.
5. Tail Management: Leave exactly a 6-inch tail to the back.

3. Upper Threading: The "Presser Foot Up" Rule

This is the single most common reason for the dreaded "Bird's Nest" (a giant knot of thread under the fabric).

The Golden Rule: You MUST thread the machine with the Presser Foot RAISED.

• The Physics: When the foot is up, the tension discs open (release). When the foot is down, they close (clamp). If you thread with the foot down, the thread sits on top of the discs, never entering them. You will have zero tension.

The Threading Pathway

1. Raise Presser Foot.
2. Raise Needle: Use the hand wheel to bring the needle to its highest point (the silver take-up lever must be visible at the top).
3. Follow the Numbers: Guide thread through points 1 through 5.
   • Sensory Check: At the top turn (the take-up lever), give the thread a little tug back and forth. You should ensure it creates a sharp angle inside the metal eyelet.
4. Needle Bar Guide: Don't miss the small hook just above the needle. This aligns the thread for the eye.


Using the Built-in Threader (Don't Force It!)

The needle threader is delicate. It is made of thin wire and bends easily.

1. Lower the lever all the way down.
2. Hook thread under the guide and across.
3. Release SLOWLY. If you let it snap back, it will fray the thread.


Pull Up the Bobbin Thread

While modern machines can start without this, I recommend the "Old School" method for clean starts:

• Hold the needle thread. Press the "Needle Up/Down" button twice (or turn handwheel).
• Pull the needle thread to fish up a loop of bobbin thread.
• Tuck both 1-inch tails under the foot to the back.

4. Tension Mastery: Reading Your Stitches

Stop guessing. Tension is a mechanical balance, not magic.

The H-Test (Visual Inspection)

Flip your embroidery over. You want to see the One-Third Rule:

• 1/3 top thread color on the left.
• 1/3 white bobbin thread in the center.
• 1/3 top thread color on the right.

Diagnostic & Fix Table

Expert Note: 90% of "Tension" problems are actually Threading problems. Before you touch the dial, re-thread the top machine with the presser foot UP.

5. Screen Settings: The "Safe Mode" for Beginners

The Janome screen offers control, but beginners often default to maximums. Let's dial that back for safety.

Why Speed Kills (Quality)

The video shows speed adjustments from 400–650 stitches per minute (SPM).

• My Advice: When learning, or using metallic/delicate threads, cap your speed at 400-500 SPM.
• High speed increases vibration and friction. Slowing down resolves 50% of thread break issues instantly.

Eco Mode & Sound

• Eco Mode: Set this to roughly 10-15 minutes. It saves the screen backlight. Touching the screen wakes it up without losing your design position.
• Sound: Keep it audible. You need to hear the warning beeps if a thread breaks.

6. The "4x4 vs 5x7" Myth: Understanding Hoop Sizes

Nothing confuses online shoppers more than hoop sizing. The video clarifies the actual stitch fields:

• Standard Hoop A: 12.6 cm x 11 cm (approx 5" x 4.3") — This is your workhorse.
• Large Hoop B: 20 cm x 14 cm (approx 7.9" x 5.5") — For larger backs or heavy text.


Pro Clarification: When you search online for janome mc400e hoops or janome memory craft 500e hoops, be careful. A "5x7" design file might physically fit inside a 5x7 hoop, but if the machine's strict limit is 126mm, and the design is 127mm, the machine will refuse to sew. Always check the millimeter limits of your specific machine model.

7. The Science of Stabilizers: The "Sandwich" Strategy

The video states a fundamental truth: "All embroidery projects require stabilizer." Fabric is flexible; embroidery is rigid. If you sew rigid thread onto flexible fabric without support, it puckers.

Decision Tree: What goes underneath?

Use this logic to stop wasting money on test runs.

1. Is the fabric stretchy? (T-Shirts, Hoodies, Knits)
   • Video Suggestion: Iron-on (Fusible) Stabilizer.
   • Expert Upgrade: Use Cutaway Stabilizer. Even better, use a Fusible Mesh Cutaway. Stretchy fabrics need a permanent backing that stays with the garment forever to prevent the design from distorting in the wash.
2. Is the fabric stable? (Denim, Canvas, Towels)
   • Choice: Tear-away Stabilizer. It supports the stitches during sewing but tears away cleanly for a neat back.
3. Is the fabric fluffy/textured? (Towels, Velvet, Sherpa)
   • The Secret Weapon: You need a Water Soluble Topping (film) on top of the fabric. This prevents stitches from sinking into the fluff.

Hidden Consumable Checklist:

• Temporary Spray Adhesive (to stick fabric to stabilizer).
• Water Soluble Pen (for marking centers).
• Spare Needles (Ballpoint for knits, Sharp for wovens).

8. Hooping: The "Drum Tight" Nuance

Bad hooping causes "gapping" (white spaces between borders and fill).

The Standard Screw Method (As Shown)

1. Loosen the outer hoop screw.
2. Lay stabilizer, then fabric.
3. Insert inner hoop (Matching L and R marks).
4. Tighten screw while creating tension.


The "Skin vs. Drum" Distinction

The video says "Drum Tight."

• For Wovens (Canvas): Yes, like a drum. Tapping it should make a sound.
• For Knits (T-Shirts): CAUTION. If you stretch a T-shirt "drum tight," you will stretch the fibers. When you un-hoop it, the fabric snaps back, and your perfectly round circle becomes an oval pucker.
• Correct Feel: Taut, flat, but not stretched. Use a hooping station for machine embroidery if you struggle to keep hands steady while tightening.

9. When to Upgrade: The Hooping Pain Point

If you are a hobbyist doing one shirt a week, the standard plastic hoops included with your Janome are fine.

However, you will hit a wall if:

1. You are doing production runs (10+ shirts).
2. You are struggling with thick items (Carhartt jackets, tote bags).
3. You are getting "Hoop Burn" (shiny ring marks) on delicate fabrics.
4. Your wrists hurt from tightening screws constantly.

The Problem: Mechanical Friction

Traditional hoops rely on friction and muscle power. This is slow and physically demanding.

The Solution: Technology Upgrade

This is where professionals switch to magnetic embroidery hoops.

• Why: Instead of screws, they use powerful magnets to clamp fabric instantly.
• Benefit: Zero hoop burn, no wrist strain, and 5x faster speed.
• Compatibility: Many operators search for how to use magnetic embroidery hoop on domestic machines. Brands like SEWTECH make specific magnetic frames compatible with Janome single-needle lines.

The Evolution of a Sticker:

• Level 1: Master your standard hoops.
• Level 2 (Speed): Upgrade to Magnetic Hoops for your Janome.
• Level 3 (Scale): If you are turning away orders because the Janome is too slow (threading colors manually), investigate multi-needle machines (like SEWTECH models) which auto-change colors and run at 1000+ SPM.

Warning: Magnet Safety
Magnetic hoops are industrial tools. They define "strong."
* Pinch Hazard: Do not get your fingers between the magnets. They snap together instantly.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards and hard drives.

10. The Ultimate Pre-Flight Checklists

Print these out. Tape them to your wall. They are your insurance policy.

Phase 1: Preparation (The Setup)

• Power Check: Surge protector on?
• Needle Check: Is the needle straight? Is it the right type (Ballpoint for knits)?
• Bobbin Check: Does the thread unwind Counter-Clockwise? Is the tail trimmed to 6 inches?
• Stabilizer: Have I matched the stabilizer to the fabric stretch correctly?

Phase 2: Loading (The Critical Path)

• Threading Rule: Was the Presser Foot UP when I threaded?
• Take-Up Lever: is the thread securely in the eye of the metal lever?
• Hoop Check: Is the inner hoop right-side up? Is the fabric taut?
• Clearance: Is there anything behind the machine (wall, coffee cup) that the hoop will hit when it moves?

Phase 3: Go (The Launch)

• Speed: Have I lowered the max speed to 400-500 SPM for this first run?
• Tension Audit: Did I do a quick test stitch on scrap fabric?
• Sound Check: Does the machine sound smooth, or is it "clunking"? (Clunking = Stop immediately).

Final Thoughts: Consistency beats Perfection

The Janome Memory Craft is a capable workhorse. The difference between a "hobby" result and a "pro" result isn't usually the machine—it's the prep work.

Standardize your winding. Respect the threading path. Listen to the machine. And when the manual labor of hooping becomes the only thing slowing you down, you know it's time to let better tools (like magnetic frames) handle the heavy lifting.

Now, go thread up (foot up!) and make something beautiful.

FAQ

• Q: Why does the Janome Memory Craft bobbin winder start spinning and then stop after a few turns?
  A: This is usually a bobbin-winding engagement or tension-path issue, not a motor failure.
  • Push the bobbin winder spindle fully to the right until it clearly “clicks” into winding mode.
  • Floss the thread into the bobbin winding tension area and make sure it feels “snap-tight,” not loose.
  • Hold the thread tail for the first 5–10 rotations, stop, trim the tail flush, then restart to finish winding.
  • Success check: the bobbin winds firmly and evenly, and the machine keeps winding until it slows/stops automatically.
  • If it still fails: re-seat the spool and match the spool holder size (large vs small) so the spool does not rattle or drag.
• Q: How do I stop Janome Memory Craft bird’s nest tangles under the fabric during embroidery?
  A: Re-thread the Janome Memory Craft with the presser foot UP—this fixes most bird’s nests immediately.
  • Raise the presser foot before threading so the tension discs are open.
  • Raise the needle to the highest point so the take-up lever is fully up and the thread can seat correctly.
  • Follow the numbered threading path carefully and do not miss the small needle-bar guide above the needle.
  • Success check: stitches form cleanly with no “shaggy loops” or thread piles on the underside.
  • If it still fails: re-check bobbin insertion direction using the “P” rule and re-seat the bobbin thread into the notch and tension path with slight, consistent drag.
• Q: What is the correct Janome Memory Craft bobbin loading direction, and how can I verify the lower tension path is correct?
  A: Load the bobbin so the thread unwinds counter-clockwise (the “P” shape), then seat it through the notch and tension path.
  • Hold the bobbin and confirm the hanging thread forms a “P” (counter-clockwise); if it looks like a “q,” flip the bobbin.
  • Drop the bobbin in and guide the thread into the front notch, then pull it left through the next step (blade/tension path).
  • Leave a clean 6-inch tail to the back to prevent short-tail pull-ins at the start.
  • Success check: pulling the bobbin thread through the path feels like slight drag (not free-falling, not jerky).
  • If it still fails: remove the bobbin and re-seat it again—mis-seating by one notch commonly causes jams and inconsistent stitches.
• Q: How can I check Janome Memory Craft embroidery tension using the “H-test” and what adjustment fixes the most common symptoms?
  A: Use the one-third rule on the underside first; only adjust the dial after confirming correct threading.
  • Flip the embroidery over and look for 1/3 top thread color, 1/3 bobbin thread, 1/3 top thread color across the stitch line.
  • If white bobbin thread shows on TOP: loosen top tension by turning the dial to a LOWER number.
  • If loops/shaggy thread appears on the BOTTOM: confirm correct top threading (presser foot up), then tighten by turning the dial to a HIGHER number if needed.
  • Success check: underside shows a balanced “centered bobbin” look rather than top-thread dominance or loose loops.
  • If it still fails: re-thread the upper path again—threading errors commonly mimic “tension problems.”
• Q: What Janome Memory Craft speed settings help reduce thread breaks for beginners and for metallic/delicate thread?
  A: Cap the Janome Memory Craft speed around 400–500 SPM while learning or when using fragile threads.
  • Reduce max speed in screen settings instead of trying to “ride the pedal” (if applicable) or hoping it behaves at high speed.
  • Keep sound alerts on so thread breaks are caught immediately instead of sewing long sections incorrectly.
  • Use Eco Mode (about 10–15 minutes) if desired to save the screen without losing design position when it sleeps.
  • Success check: the machine sounds smooth with less vibration, and thread break frequency drops noticeably.
  • If it still fails: review threading, needle choice, and hooping/stabilizer support—speed reduction helps, but it cannot compensate for mis-threading or poor stabilization.
• Q: What stabilizer should I use on stretchy knits vs stable wovens on a Janome Memory Craft embroidery machine?
  A: Match stabilizer to fabric behavior: knits generally need cutaway support; stable wovens often work well with tear-away; textured fabrics need topping.
  • Choose cutaway (often a safe starting point is fusible mesh cutaway) for T-shirts/hoodies/knits so the design stays supported after washing.
  • Choose tear-away for stable fabrics like denim/canvas when you want a cleaner removal on the back.
  • Add water-soluble topping on towels/velvet/sherpa to prevent stitches from sinking into the pile.
  • Success check: the finished design lays flat without puckers, distortion, or “sinking” detail loss on textured materials.
  • If it still fails: add better fabric-to-stabilizer control (temporary spray adhesive and accurate center marking) and re-evaluate hooping tension for the fabric type.
• Q: What are the key safety rules for using magnetic embroidery hoops/frames on a Janome Memory Craft setup?
  A: Treat magnetic embroidery hoops as industrial-strength clamps—prevent finger pinch injuries and keep magnets away from sensitive devices.
  • Keep fingers completely clear of the magnet closing zone; let the magnets “snap” together without guiding between them.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Keep magnetic hoops away from credit cards and hard drives to avoid damage.
  • Success check: fabric is clamped quickly and evenly without screw-tightening strain, and there are no shiny hoop-burn rings on delicate fabric.
  • If it still fails: step back to standard hooping to confirm stabilizer and tension are correct first, then reintroduce magnetic hoops to solve speed/strain/hoop-mark pain points.
