Flat embroidery is all about translating a clean digital design into crisp stitches on fabric—reliably, repeatably, and without mid-run surprises. This walk-through shows the full four-step flow on a JINYU multi-head machine, from choosing a design to pressing Start and watching perfect stitches land.
What you’ll learn
- How to load a design from the on-machine library and verify its details.
- How to assign your color sequence to specific needles in the correct order.
- How to confirm your design fits the physical working area and why centering matters.
- How to trace the border to validate placement before any stitch happens.
- How to start cleanly and monitor the first inches of stitching for quality.
Primer: What & When Flat embroidery is the foundation of machine work: stitching a design directly onto hooped fabric using a flat frame. On a multi-head JINYU, you’ll perform the same core actions across heads, so a disciplined setup saves time and thread across the entire run. The process in this guide follows a simple, robust four-step order: select, verify, sequence, and fit—then trace and start. embroidery machine
Why the order matters
- Select: Locks in the exact design you’ll stitch.
- Verify: Confirms colors, stitches, and dimensions to avoid surprises.
- Sequence: Maps each design color to the correct needle for clean automatic color changes.
- Fit: Ensures the design sits fully within the working area of your frame—no clipped edges.
- Trace (safety check): Validates physical placement on fabric before committing to stitches.
Pro tip Keep the same step order every time. On multi-head lines, a consistent sequence reduces rework across all heads.
Prep: Files, Fabric, and Workspace Before you touch the screen, make sure your setup supports smooth stitching.
What you need
- Machine: JINYU multi-head embroidery machine with touchscreen control.
- Fabric: Hooped flat and secure on the frame.
- Threads: The colors your design requires.
- File: The embroidery design accessible in the machine’s library (e.g., a DST such as jin126.DST, as shown in the workflow).
Environment checks
- Heads clear: Nothing obstructing the frame’s movement.
- Fabric flat: Hooped firmly and free of slack.
- Visual alignment: The area on the fabric where the design will land is clear and accessible.
Decision point
- If your fabric is already hooped on the correct frame, proceed to load and verify the design.
- If you need to re-hoop for a different size, do that first so your working area matches your design’s dimensions. embroidery frame
Quick check Gently press the fabric near the frame edges. It should feel firm and evenly tensioned, with no ripples.
Prep checklist
- Fabric hooped flat and secure.
- Correct frame mounted on the machine.
- Thread cones ready for the planned colors.
- Design file available in the on-machine library.
Setup: Load, Inspect, and Map Colors to Needles This setup gets your design from library to a ready-to-stitch state.

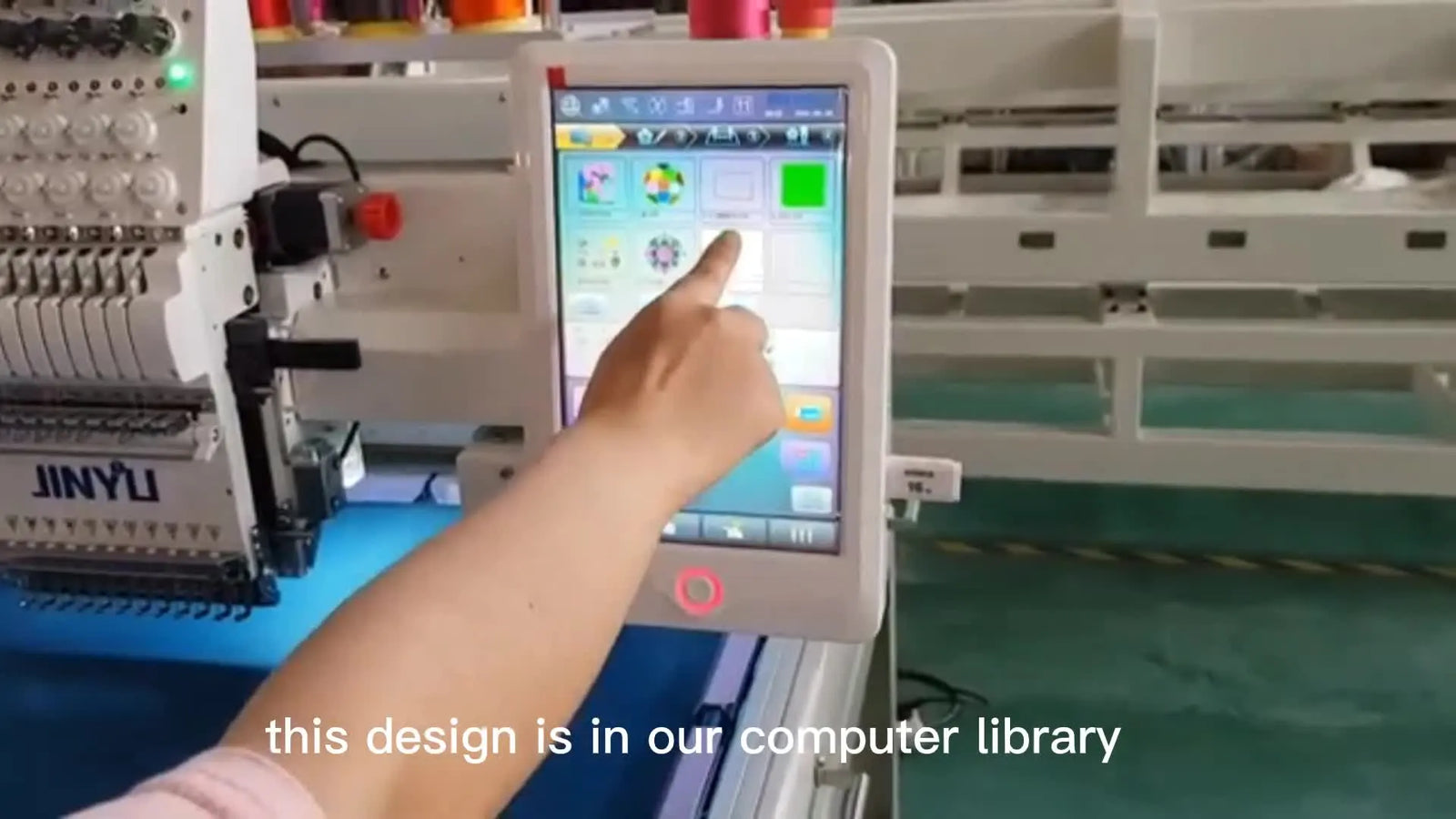

Step 1: Select the design from the library On the touchscreen, open your library and tap the design you intend to run. Confirm the correct thumbnail is highlighted. Expected result: the chosen design loads and displays on the main screen.
Watch out Avoid tapping similar thumbnails by mistake—many libraries store variations of the same art. Confirm the exact file name before proceeding. machine embroidery hoops
Step 2: Verify design parameters (stitches, colors, dimensions) Open the design information panel and review:
- Colors: How many the design uses.
- Stitches: Total stitch count.
- Width/Height: The physical stitch area.
If anything looks off, stop here and select or adjust a different design. Expected result: parameters match your plan.
Quick check Ask yourself: Will these width/height values comfortably fit the frame on the machine right now? If not, address sizing or frame choice before moving forward. hooping stations
Setup checklist
- Correct design highlighted and loaded.
- Colors, stitches, width, and height reviewed and accepted.
Configuring Color Sequences and Needles Color sequencing tells the machine which needle to use for each color in the design—vital for hands-off color changes during stitching.
Matching threads to your design On the color/needle mapping screen, assign each design color to a specific needle:
- Example sequence shown: Color 1 → Needle 1; Color 2 → Needle 4; Color 3 → Needle 1; Color 4 → Needle 4. This locks the machine’s automatic changes in a predictable order.
Expected result: all design colors have an assigned needle number, clearly listed in the sequence.
Pro tip Keep related shades on needles that minimize head travel on your particular layout. It reduces small, cumulative time losses during color changes across a multi-head run.
Quick check Cycle through the color list and verify each one shows the intended needle. Watch the machine indicators or the on-screen highlights to confirm the mapping is acknowledged.
Watch out If a color is left unassigned, the machine will not know which needle to use, halting the run at that point.
Final pass Make the last assignment(s) and confirm your full sequence is present end-to-end.
Setup checklist
- Every design color assigned to a specific needle.
- Sequence order reviewed from first stitch to last.
Ensuring Perfect Design Fit on Your Fabric Now link the digital working area to your physical frame and fabric.
Troubleshooting “design not fit” indications Look at the on-screen working area overlay. If the design appears in pink, it’s currently outside the permissible bounds of the frame working area. Expected result before adjustment: design displays in pink, clearly indicating a fit problem.
Pro tip Think of the working area as a hard fence. If any part of the design crosses it (pink), the machine is warning you to re-position before you stitch.
Centering and confirming fit Use the on-screen control to send the design to the center of the working area. When correctly placed, the display changes from pink to white, indicating the design fits within the frame. Expected result after adjustment: design appears white, confirming fit.
Quick check Verify that both the digital working area and the physical frame on the table correspond to the same boundaries. This consistency ensures the on-screen fit reflects reality.
Fit checklist
- Design color went from pink to white on-screen.
- Design sits fully within the displayed working area.
Operation: The Four-Step Run Here’s the complete sequence that ties the workflow together.
1) Select design from library Action: Navigate and tap the desired design. Outcome: The design loads into the main view, ready for inspection.
2) Verify design parameters Action: Open design info; confirm number of colors, stitch count, and width/height. Outcome: You’re confident these values align with your plan.
3) Set color sequence for needles Action: Assign each design color to a specific needle (e.g., Color 1 → Needle 1; Color 2 → Needle 4; etc.). Outcome: A clear, complete color-to-needle list is set for the entire design.
4) Confirm fit inside the working area Action: Check the on-screen working area overlay; if pink, center the design to bring it within bounds. Confirm when the design turns white. Outcome: The design fits the frame’s working area, suitable for stitching.
Safety check: Trace the design border Action: Use the command to move the frame around the design border. Outcome: Physical tracing confirms placement and clearances on the hooped fabric.
Start embroidery Action: Exit setup and press Start. The machine begins stitching, making automatic color changes per your mapping. Outcome: Your design starts cleanly; thread feeds smoothly and the first color lands crisply.
Operation checklist
- Design selected and visible.
- Parameters verified (colors, stitches, width/height).
- Color-to-needle sequence set for all colors.
- Fit confirmed (white on-screen).
- Border traced without collisions.
- Start pressed; first stitches verified.
Quality Checks: Fit, Trace, and First Stitches Fit confirmation
- Good: Design shown in white within the working area overlay after centering.
- Bad: Any pink areas—recenter before proceeding.
Trace verification
- Good: Frame moves smoothly around the design border with no obstructions.
- Bad: Any contact with clamps or edges—stop and reposition.
First-stitch inspection
- Good: Smooth thread feed, consistent penetration, design edges starting clean and accurate to the preview.
- Bad: Immediate misalignment or snagging—stop, correct, and restart.
Quick check Glance at the screen’s real-time progress overlay to ensure the stitched area matches the highlighted region and color.
Results & Handoff: Finish and Reset As the run proceeds, your machine will follow the color sequence you set, changing needles at the correct times and building the design layer by layer. You’ll see the fabric fill with the first color, followed by the next, following your mapping.
After the last stitch
- Stop: The machine completes the design and stops automatically.
- Inspect: Check overall registration and edges against the on-screen result.
- Prepare next: If running multiple heads or repeats, keep the same sequence and fit checks to maintain consistency.
From screen to stitch With good sequencing and a verified fit, the on-screen plan and the physical embroidery align—what you see is what you stitch.
Troubleshooting & Recovery Symptom: Design shows in pink on-screen
- Likely cause: Part of the design sits outside the working area.
- Fix: Use the center function to reposition. Confirm it turns white.
Symptom: The frame trace indicates a collision path
- Likely cause: Design is too close to an edge or obstruction.
- Fix: Re-center or slightly reposition the design within the working area. Re-trace until the path is clear.
Symptom: Wrong color starts stitching
- Likely cause: A color wasn’t assigned to the intended needle.
- Fix: Reopen color mapping, correct the assignment, and restart from a safe point.
Symptom: Stitches begin off-target relative to the preview
- Likely cause: Fit confirmed digitally but not physically validated.
- Fix: Always run the border trace and confirm clearances before pressing Start. magnetic hoops for embroidery machines
Quick recovery test Make a tiny test patch using the same four steps—select, verify, sequence, fit—then trace and start. Small tests reveal mapping or fit issues fast with minimal material.
Why this method scales on multi-head lines
- One clean checklist: Repeatable across heads.
- Minimal rework: Sequencing once prevents mid-run stops on any head.
- Visual parity: Digital fit checks plus a border trace ensure every head lands the same placement.
Notes on frames and working area Your frame defines the machine’s safe stitch zone. If you ever change frame size, revisit the verify and fit steps before running again. This four-step discipline holds regardless of the frame style you use. magnetic hoops for embroidery
Industry context Operators often standardize on a consistent step order and a short test stitch for new art. This keeps the library-to-stitch path predictable, reduces avoidable stops, and gives confidence before long runs. embroidery hoops magnetic
Final reassurance Once your design is white on-screen, your border trace is clean, and the color-to-needle sequence looks right, you can press Start with confidence and watch the design come to life in orderly passes across the fabric.
