Make Flat Designs Look Sculpted: Carving Stamp Textures in Bernina Embroidery Software 6 (Plus a Clean Stitch-Out on Garments)

Mastering Relief Textures: How to Turn "Flat" Designs into 3D Art (Without Redigitizing)

If you’ve ever stitched a “nice” design that still looked a little flat on fabric, you’re not imagining it—most stock designs rely on clean linework and simple fills, and the fabric does the rest. But professional embroidery often engages the sense of touch. The good news: Bernina Embroidery Software V6 gives you a fast way to fake depth convincingly with the Carving Stamp tool, and you can do it without redrawing the whole design.

In this workflow, we’ll take an existing OESD koi fish design (NB706-48), remove the original flat scale texture, rebuild the body as a Step Fill object, and then “carve” in realistic scales using a predefined stamp (Satin-Quilt pattern #508). After that, we’ll digitize custom stamp lines for the fins, switch those fin textures to Satin for a raised look, and stitch it out on a black shirt dress.

Don’t Panic: The Carving Stamp Tool Isn’t “Magic”—It’s Controlled Texture You Can Predict

Relief effects feel intimidating because they look advanced, but the logic is simple: you’re adding repeatable stitch geometry on top of a stable base object. When it goes wrong, it’s usually for one of three reasons:

1. The base fill object wasn’t built cleanly.
2. The stamp scale/orientation doesn’t match the shape.
3. The garment wasn’t stabilized/hooped to resist the extra stitch stress.

If you’re planning to stitch on ready-to-wear (like a shirt dress), treat this as both a software lesson and a production lesson. A textured fill adds needle penetrations and directional pull—so your hooping and stabilization matter more than they would for a simple outline.

The “Hidden” Prep Before You Touch Carving Stamp: Clean Layers, Clean Objects, Clean Results

The workflow starts with an existing OESD design and a deliberate cleanup: you select the existing scale texture layer inside the fish body and delete it. That’s not optional—stamps need a clean target area.

What you’re preparing (from the video)

• Open the OESD design NB706-48.
• Select the existing scale texture layer within the fish body.
• Delete it so the fish body becomes a clean canvas for the new relief effect.

Why this prep matters (expert reality check)

Carving stamps behave best when they’re applied to a single, well-defined fill object. If you leave old textures underneath, you can end up with:

• Uneven density stacking: This breaks needles.
• Stitch direction conflicts: Causes fabric warping.
• “Thread noise”: A busy texture that looks messy rather than crisp.

If you’re doing this for client work, this is also where you decide whether the design is worth modifying at all. Some stock designs are already optimized for a specific fabric; once you add relief, you’re changing the stitch load and the risk profile.

Prep Checklist (do this before digitizing anything)

• Verify Design ID: Confirm you are editing NB706-48 or a similar file.
• Delete Old Texture: Ensure the fish body area is visually "blank" where scales used to be.
• Target Fabric Check: Decide your fabric now (e.g., shirt dress) to plan stabilization.
• Hooping Strategy: If you plan to stitch heavily textured designs on garments often, consider a workflow upgrade like a hooping station for embroidery so your hooping tension is repeatable across jobs.


Rebuild the Fish Body with Closed Object + Step Fill (This Is the Foundation the Stamp Needs)

Once the old texture is removed, the video uses the Closed Object tool to trace the fish body area and create a new Step Fill object. This is the “floor” your stamp will sit on.

What to do (exactly as shown)

1. Choose the Closed Object tool.
2. Manually trace the outline of the fish body where the scales were.
3. Create a solid fill object (the video describes it as a solid grey/default fill appearing inside the outline).

Expected outcome checkpoint

• Visual Check: You should see a single, solid fill area inside the fish body outline.
• Selectability: That fill object must be selectable as one piece—this matters when you stamp.

Expert tip: Keep your outline honest

When you trace, don’t “cut corners” too aggressively. A stamp pattern repeats; if your base shape has wobbly edges, the stamp will exaggerate it. Generally, a smoother base outline produces a more believable relief texture.

Color First, Then Texture: Assign Light Yellow So You Can Read the Relief While You Work

The video changes and assigns colors using the color bar at the bottom of the window, choosing light yellow for the fill color.

Why this matters more than it sounds

Color isn’t just aesthetics—it’s visibility. When you’re judging stamp scale and spacing, you need contrast and clarity. A light fill makes the stamped relief lines easier to evaluate on-screen. Dark colors often hide the "depth" simulation on monitors.

The Carving Stamp Docker + Artistic View: The One Switch That Makes People Think the Tool “Isn’t Working”

In the video, there’s a key operational detail: stamps are only visible in Artistic View, so you must switch back to Artistic View to see what you’re doing.

Then you open the Carving Stamp docking window (docker) on the right-hand side. If it’s not already set up, you reopen it from the toolbar and anchor it in place.

Watch out (common frustration)

If you stamp and nothing appears, don’t assume the software failed—first confirm you’re in Artistic View and that the correct object is selected.

Build Realistic Fish Scales with Satin-Quilt Stamp #508 (And Control It Like a Pro)

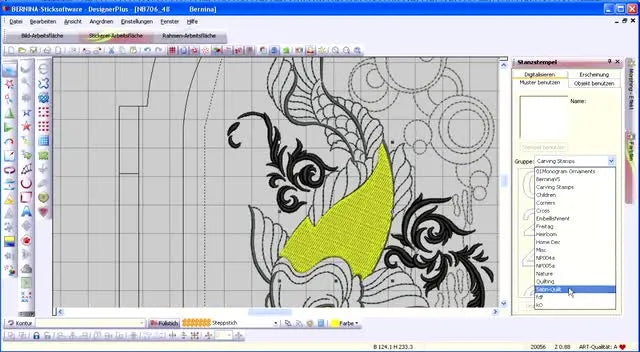

This is the heart of the tutorial: selecting a predefined stamp and applying it to the Step Fill body area.

What the video does

1. In the Carving Stamp docker, choose pattern #508 from the Satin-Quilt category.
2. Select the fish body fill area.
3. Right-click to place the first anchor point of the stamp (the video notes it places it in mirror-image).
4. Hold Shift while moving the mouse to adjust the stamp size.
5. Left-click to place the stamp permanently.
6. Repeat to build the scale texture across the fish body.


Expected outcome checkpoint

• Visual Check: The yellow fish body becomes covered in curved relief lines that clearly read as scales.

Expert insight: Stamp scale is a “readability” decision

Generally, scales that are too small can turn into visual mush once stitched—especially on textured fabric or garments that move. Scales that are too large look cartoonish. The “right” scale is one that still reads clearly from a normal viewing distance (arm's length).

If you’re aiming for consistent results across garments, this is where a stable hooping method matters. A magnetic embroidery hoop can reduce fabric distortion during hooping, which helps the stamped texture stitch out closer to what you see on-screen.

Custom Relief for Fins: Digitize Your Own Stamp Lines (Corners Left-Click, Curves Right-Click)

For the fins, the video doesn’t reuse the koi body stamp. Instead, it digitizes a custom stamp shape—a wavy line—so the fin texture follows the fin’s natural flow.

What to do (as shown)

1. Create areas for the fins (the video notes “create areas from fins once again”).
2. In the Carving Stamp window, choose Start Digitizing.


3. Digitize the line:
   • Left-click creates a corner point.
   • Right-click creates a curve.
4. Press Enter twice to finish/close/finalize the shape.

Pro tip (from years of digitizing headaches)

When you digitize a stamp line for texture, you’re designing a repeatable mark. Keep it clean and intentional. A stamp that looks “artsy” as a single line can become chaotic when repeated.

If you’re doing this kind of work often, you’re already in the world of digitizing embroidery texture—meaning your results will depend as much on object quality and stitch direction as on the artwork.

Stamp the Fin Texture, Then Switch Stitch Type to Satin for a Raised Relief Look

Now you apply the custom stamp to the fin areas multiple times, adjusting size and rotation so it follows each fin’s curve.

What the video does

1. Use the Stamp button to project/place the custom line onto the fin areas.
2. Use the stamp offset multiple times in a row (repeating placements).
3. Adjust size and orientation for each placement.
4. Change the fin stitch type to Satin.


Expected outcome checkpoint

• Texture: The fins gain a wavy textured pattern.
• Loft: The Satin stitch choice makes the fin texture look more raised and “relief-like” compared to a tatami fill.

Watch out: Stitch direction may need altering

The video explicitly notes it may be necessary to alter stitch direction. That’s not a minor tweak—direction controls sheen, pull, and how the texture reads.

• If the fin looks “stripy” in a bad way, direction is likely fighting the shape.
• If the fin edge starts to distort, stitch pull may be working against your stabilization.

One Fin Isn’t Like the Next: Digitize Separate Stamps When Size and Shape Change

The video calls out a detail many people skip: because each fin differs in size and shape, you digitize a separate stamp for each fin.

That’s the difference between “software demo” and “professional finish.” Reusing one stamp everywhere is faster, but it often looks generic and misaligned. If you’re chasing a true Embroidery relief effect, custom stamps per fin are the shortcut regardless of the extra work.

The Color Film Reality Check: Re-Sequence Colors So the Stitch-Out Behaves

Before exporting, the video reorders colors in the proper sequence using Color Film.

This step is easy to underestimate. In production, sequencing is where you prevent:

• Unnecessary trims.
• Jump stitches across open areas.
• Stitching delicate details before stable base areas.

Save to USB, Load the Bernina Machine, and Stitch on a Black Shirt Dress (Garment Hooping Matters Here)

The video saves the design to a USB stick, inserts it into the side port of the Bernina machine, hoops the shirt dress cleanly, and stitches out while watching distinct color changes.

What to do (as shown)

1. Save the finished design to a USB stick.
2. Insert the USB stick into the side port of the Bernina embroidery machine.
3. Hoop the black shirt dress cleanly.
4. Stitch out, monitoring color changes (yellow body, then red fins, etc.).




Warning: Needles, scissors, and moving frames don’t forgive distractions

Warning: Keep fingers clear of the needle area and moving hoop/frame, and never trim jump stitches while the machine is running—pause/stop first and use proper embroidery scissors.

Expert hooping insight (physics, not superstition)

Textured fills increase stitch count and directional pull. On garments like shirt dresses, that pull can translate into puckering or distortion if the fabric isn’t stabilized and held evenly.

This is a classic "pain point" for embroiderers. If you frequently stitch on ready-to-wear and hate hoop marks, a bernina magnetic embroidery hoop can be a practical upgrade path. It reduces clamp pressure lines (hoop burn) on delicate black fabric while still holding it securely.

Stabilizer Decision Tree for Textured Fills on Garments

The video doesn’t specify stabilizer, but relief textures generally benefit from stronger stabilization than a simple outline.

Decision Tree: Fabric → Stabilizer Strategy (for stamped relief textures)

1. Is the garment fabric stable (woven, minimal stretch)?
   • Yes: Use a firm cut-away or a strong tear-away. Generally, cut-away resists distortion better for heavy textures.
   • No (knits/stretch): Must use Cut-away. No exceptions for dense textures.
2. Is the surface textured or prone to stitch sink (fleece, pique)?
   • Yes: Add a topping (water-soluble film) to keep relief lines crisp.
   • No: Topping is optional.
3. Is this a “one-off” or production run?
   • One-off: Test the stamp density on scrap fabric first.
   • Production: Stick to the "Sweet Spot" density (usually 0.40mm - 0.45mm spacing for Satin) to prevent thread breaks.

Setup Checklist (Verify Before Stitching)

• View Check: Are you in Artistic View?
• Object Check: Is the fish body a single, clean Step Fill object?
• Pattern Check: Is Stamp #508 applied evenly without huge gaps?
• Fin Check: Are fins set to Satin stitch? (Tatami won't give the same relief).
• Color Check: Is the Color Film sequence logical (avoiding excessive jumps)?
• Consumables: Do you have your stabilizer, topping (if needed), and temporary spray adhesive ready?

Troubleshooting the “Scary” Stuff: What to Fix When Relief Textures Don’t Stitch Cleanly

Even though the video shows a perfect result, here are the real-world failure modes I see most with stamped textures.

Symptom: “My stamp texture doesn’t show on screen.”

• Likely Causes: You are not in Artistic View.
• Quick Fix: Click the Artistic View icon (the video emphasizes this).

Symptom: “The fins look bulky or ropey.”

• Likely Causes: Satin stitch density is too high or direction conflicts with the shape.
• Quick Fix: Reduce density slightly or alter stitch direction to flow with the fin.

Symptom: “Puckering / Fabric warping around the fish.”

• Likely Causes: Insufficient stabilization or the fabric slipped in the hoop.
• Quick Fix: Switch to Cut-away stabilizer and use spray adhesive.

Symptom: “Hoop burn (shiny marks) on the black dress.”

• Likely Causes: Tightening the hoop screw too much or leaving it hooped too long.
• Prevention: Steam the marks gently after (don't iron directly). For future prevention, consider embroidery hoops magnetic designed to minimize fabric crushing.

The Upgrade Path: When Better Tools Actually Save Time and Garments

If you only do occasional projects, the stock oval hoop and careful technique are enough. But if you’re stitching textured designs on garments regularly, the bottleneck usually becomes hooping consistency—not the software.

Here’s a practical way to think about upgrades:

• If hooping is slow or misalignment is common: A repeatable station setup (often searched as a hoop master embroidery hooping station) can reduce re-hooping frustration.
• If "hoop burn" is costing you garments: Magnetic hoops are the industry standard solution for ready-to-wear items like the black dress in this video.
• If you’re moving to production: A multi-needle platform (like a SEWTECH machine) allows you to preset all colors (Yellow body, Red fins, Outlines) without stopping for manual thread changes, drastically increasing profit per hour on complex textured designs.

Warning: Magnetic hoops are powerful—Safety First

Warning: Magnetic hoops contain strong magnets. Keep them away from pacemakers/medical implants and sensitive electronics. Never let the magnets snap together uncontrolled—pinch injuries are real and painful.

Operation Checklist (During the Stitch-out)

• First 100 Stitches: Watch closely. Is the bottom thread catching? Is the fabric flagging (bouncing)?
• Sound Check: Listen for a rhythmic "thump-thump." A sharp "slap" or grinding noise means stop immediately.
• Transition Check: When the machine moves from the body to the fins, ensure the presser foot doesn't catch on the raised satin stitches.
• Final Inspection: Trim jump stitches carefully and remove backing. The relief should be visible to the eye and touch.

The final result in the video is exactly what you want from this technique: a decorative embellishment that looks sculpted and intentional—an eye-catcher on black fabric.

FAQ

• Q: Why does the Bernina Embroidery Software V6 Carving Stamp texture not appear after stamping the Step Fill object?
  A: Switch to Artistic View first—Carving Stamp textures are only visible in Artistic View.
  • Click the Artistic View icon, then reselect the Step Fill fish body object.
  • Reopen the Carving Stamp docker and confirm a stamp pattern is selected before stamping again.
  • Success check: stamped relief lines become visible immediately on the filled area on-screen.
  • If it still fails: delete any leftover old texture layers and ensure the target is one single, clean fill object (not multiple pieces).
• Q: What preparation steps in Bernina Embroidery Software V6 prevent broken needles and messy texture when using Carving Stamp on the OESD NB706-48 koi fish design?
  A: Remove the original scale texture layer so the stamp applies to a clean, single target object.
  • Delete the existing scale texture layer inside the fish body before adding any new stamp texture.
  • Rebuild the fish body as one Closed Object + Step Fill so the stamp has a stable “base.”
  • Success check: the fish body is selectable as one solid fill area and looks visually “blank” where the old scales used to be.
  • If it still fails: look for uneven density stacking (multiple fills on top of each other) and remove extra layers before stamping again.
• Q: How can Bernina Embroidery Software V6 users control the size and placement of Satin-Quilt Carving Stamp pattern #508 to avoid “mushy” koi fish scales?
  A: Resize and lock in the stamp deliberately before repeating it across the fish body.
  • Choose Satin-Quilt pattern #508, then right-click to place the first anchor point.
  • Hold Shift while moving the mouse to adjust stamp size, then left-click to place it permanently.
  • Repeat placements across the body instead of trying to force one oversized stamp to cover everything.
  • Success check: the fish body shows clear, readable curved scale lines at normal viewing distance on-screen.
  • If it still fails: reduce visual clutter by re-stamping with fewer placements and more consistent spacing/orientation.
• Q: Why do Bernina Embroidery Software V6 koi fish fins look bulky or ropey after switching fin texture to Satin stitch?
  A: Satin fins usually look ropey when density is too high or stitch direction fights the fin shape.
  • Reduce Satin density slightly (a small change often helps) and re-preview the fin texture.
  • Alter stitch direction so the Satin flows with the fin, not across it.
  • Digitize separate stamp lines for each fin when the fin size/shape changes instead of reusing one stamp everywhere.
  • Success check: the fin texture looks raised but smooth, without thick “cord-like” ridges.
  • If it still fails: switch back and refine the stamp line (simplify curves) so repeated marks do not stack into chaos.
• Q: How do Bernina embroidery users stop puckering and fabric warping when stitching Carving Stamp relief textures on a ready-to-wear shirt dress?
  A: Use stronger stabilization and prevent fabric slip, because relief textures add stitch count and directional pull.
  • Choose cut-away stabilizer for dense/textured fills on garments (especially on knits/stretch fabrics).
  • Add temporary spray adhesive to keep the garment and stabilizer from shifting in the hoop.
  • Add a water-soluble topping if the fabric surface is textured or stitches tend to sink.
  • Success check: the fabric around the koi fish stays flat after stitching, with minimal rippling when the hoop is removed.
  • If it still fails: reduce texture load (fewer stamp placements) and re-check hooping consistency to prevent movement during stitching.
• Q: What causes hoop burn (shiny hoop marks) on black garments when embroidering textured designs on a Bernina embroidery machine, and how can it be prevented?
  A: Hoop burn usually comes from too much hoop screw pressure or leaving the garment hooped too long.
  • Tighten the hoop only enough to prevent slipping, not to “crush” the fabric.
  • Remove the garment from the hoop soon after stitching instead of letting it sit clamped.
  • Steam the marks gently afterward (avoid pressing hard directly on the shiny area).
  • Success check: the fabric shows minimal shiny ring marks once unhooped and lightly steamed.
  • If it still fails: consider moving to a magnetic hoop setup for ready-to-wear garments, because it often reduces clamp-pressure lines while keeping hold stable.
• Q: What is the safe workflow for trimming jump stitches on a Bernina embroidery machine when stitching raised Satin relief textures?
  A: Stop or pause the Bernina embroidery machine before trimming—never cut while the hoop/frame is moving.
  • Pause/stop the machine and wait until the needle and frame fully stop moving.
  • Keep fingers clear of the needle area and moving frame path, then trim with proper embroidery scissors.
  • Resume stitching and watch the next transitions, especially when moving onto raised Satin areas.
  • Success check: no accidental snags, no finger contact near the needle zone, and no trimmed thread ends pulled back into the stitching path.
  • If it still fails: slow down and re-check the design sequence in Color Film to reduce unnecessary jumps that create excessive trimming points.
• Q: When should embroidery businesses upgrade from technique-only fixes to magnetic hoops or a multi-needle SEWTECH embroidery machine for textured relief designs on garments?
  A: Upgrade when hooping consistency and color-change downtime become the bottleneck, not the software.
  • Level 1 (technique): improve stabilization (cut-away + topping as needed) and correct stitch direction/density to reduce puckering and thread issues.
  • Level 2 (tool): move to magnetic hoops if hoop burn, fabric shifting, or slow re-hooping is costing garments and time on ready-to-wear.
  • Level 3 (capacity): move to a multi-needle SEWTECH machine if frequent manual thread changes (yellow body/red fins/outlines) are limiting profit per hour on complex textured designs.
  • Success check: fewer re-hoops and garment losses, and more predictable stitch-outs with less operator intervention.
  • If it still fails: run a small production-style test on the target garment fabric to confirm the design’s stitch load is realistic before scaling up.
