Watch the video: “How to Thread the Meistergram Gem PR-1500” by Meistergram
Set up your PR-1500 like a pro. This hands-on walkthrough follows the exact path shown in the video—from cone to eyelet, through the pre-tensioner and thread tube, around detection and tension systems, into the take-up lever, and finally through the needle and presser foot. If you’re new to multi-needle threading, this guide keeps you step-by-step and stress-free.
What you’ll learn
- How to route thread from the cone holder through every guide to the needle
- Where the pre-tensioner, thread tube, and clamps fit in the path
- How to set the take-up lever correctly (right to left) and finish at the presser foot
- When to thread clockwise vs. counterclockwise on the main tensioner
- Where to locate the bobbin case on the PR-1500

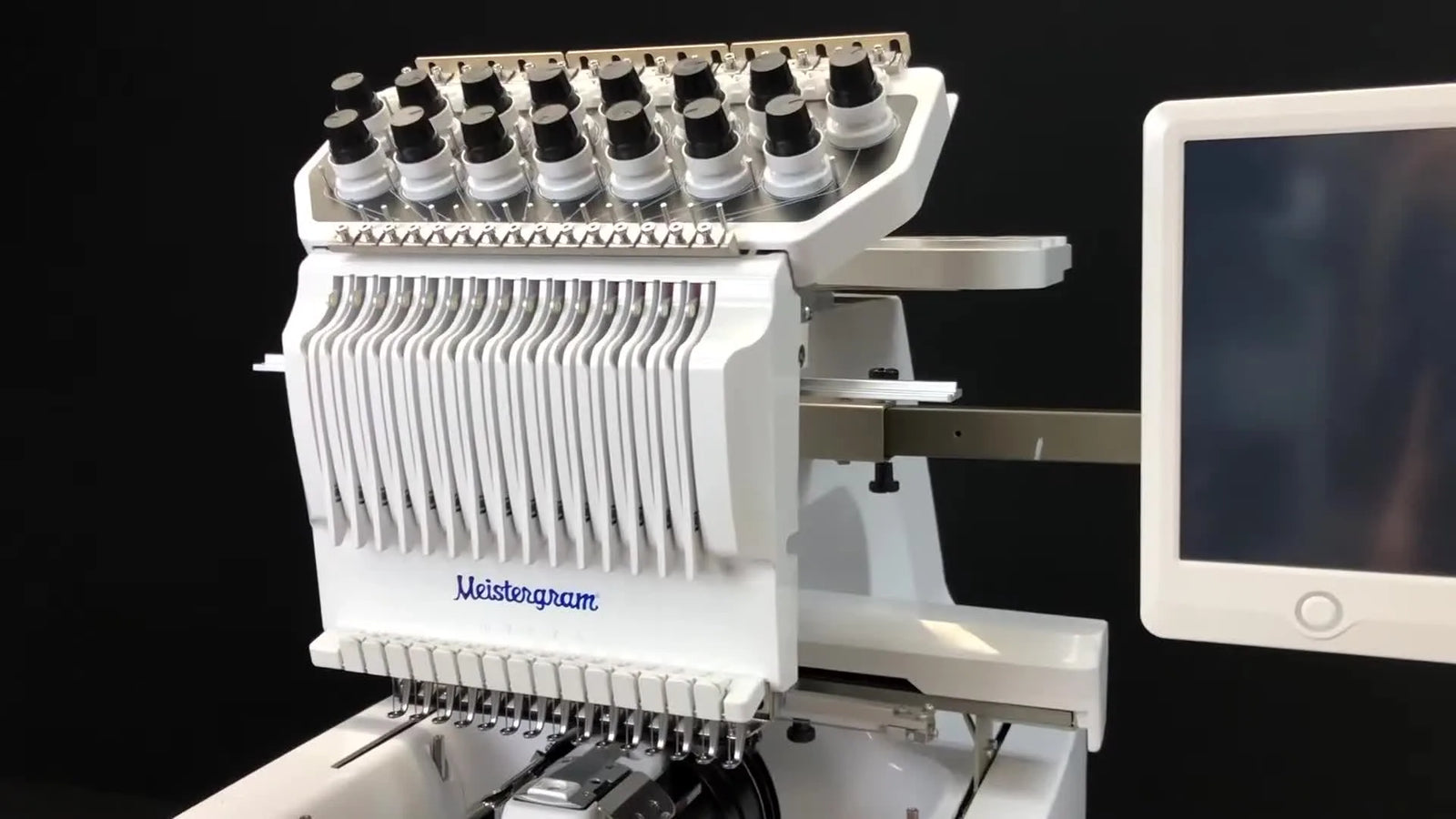

Getting Started: The Meistergram Gem PR-1500 Overview The Meistergram Gem PR-1500 is a 15-needle embroidery machine, and the video demonstrates threading a single needle path that you’ll repeat for all 15. Take a moment to visually map the front of your machine—thread stand and guides up top, tension base and pegs on the front, take-up lever in the middle, and the needle area with presser foot at the bottom.
Quick check
- Confirm your thread cone sits on the correct cone holder for the needle you’re threading (the stand has indicators for needle numbers).
- Ensure the bobbin is present; the video notes a bobbin is pre-installed and shows how to access it later.
Pro tip If you’re brand-new to multi-needle threading, label a scrap thread with the target needle number and follow it through the path before committing your actual thread. This reduces confusion when you repeat the process across all 15 needles. For absolute beginners comparing equipment, many shops start on approachable platforms often searched as embroidery machine for beginners.
Step-by-Step Threading: From Cone to Pre-Tensioner Placing Your Thread Cone Start by placing your thread cone on the cone holder for needle 1. The video begins here to establish the supply path. Stability matters—seat the cone so it won’t wobble or hop during operation.
Watch out A loose cone can jump and cause intermittent tension hiccups. If you notice wobble, re-seat the cone firmly.
Navigating the Top Thread Stand Eyelets Feed the thread from bottom to top through the eyelet for your target needle on the top thread stand. This orientation matters—it sets the thread in the correct vertical alignment from the start.
Next, bring the thread forward, laying it into the designated thread guides on top of the stand. Use the stand’s numeric indicators to confirm you’re in the correct lane for your needle. This keeps the thread in order as it travels from stand to machine face.
Engaging the Pre-Tensioner for Optimal Control Guide the thread between the pre-tensioner’s two plates. Then lift and locate the wedge: the thread should sit in this wedge so it can’t slip out easily. Gently tug the thread to confirm it’s captured. This early tension step keeps the feed consistent downstream.
From the comments A viewer asked whether the bobbin case is needed when embroidering shirts. The video doesn’t specify this directly; it shows that the bobbin is pre-installed and demonstrates how to access and remove the bobbin case. The tutorial implies normal operation with the bobbin and case present, but it does not explicitly state requirements.
Mastering the Thread Tube and Clamps Utilizing the Threading Tool for the Thread Tube The included threading tool makes quick work of the thread tube. Insert the tool through the tube, hook the thread to the end, and pull it back through until the thread emerges. This ensures a clean, internal route without snagging.
Install the top of the thread tube back onto the stand, then repeat for the other end so the tube is firmly in place. The thread should move freely with no scraping or drag.
Securing Thread with the Thread Clamps Lift the first thread clamp and slide the thread underneath. This clamp holds the path steady as the thread heads toward the detection wheel and tension base. A secure clamp helps prevent momentary slack that could affect detection or tension consistency.
The Role of the Thread Break Detection Wheel Feed the thread clockwise around the thread break detection wheel for one full turn, exiting to the left of the lower post. The full wrap is important—partial wraps may not reliably detect breaks.
Pro tip If you see inconsistent thread break detection, first verify a complete, clockwise wrap on this wheel. Small path errors here can mimic tension or sensor issues.
Fine-Tuning Tension and Take-Up Clockwise vs. Counter-Clockwise: Main Tensioner Details Thread the main tensioner with a full wrap. For needles 1 through 8, the video shows a clockwise rotation. For needles 9 through 15, the video states the direction switches to counterclockwise—refer to the diagram on the tension base. Direction matters because it determines how the thread engages the tension system.
Quick check
- Confirm a full, smooth wrap around the tensioner.
- Double-check the needle number to choose clockwise (1–8) or counterclockwise (9–15) per the video’s instruction and the on-machine diagram.
Guiding Thread Through Tensioner Pegs After the main tensioner, place the thread to the right of the first peg and over to the left of the second peg. This guided S-path helps stabilize thread position before it enters the second clamp and take-up system.
Pro tip If you notice inconsistent stitch formation or tiny loops on top, audit these pegs first—skipping one can change the path geometry enough to affect stitch balance. If you’re exploring accessory ecosystems in general, searches like embroidery machine hoops can help you compare options for hooping workflows (not specific to this model).
Threading the Take-Up Lever System Thread the second thread clamp to anchor the path before the take-up lever. Then feed the thread into the vertical groove next to the take-up lever for your active needle.
Rotate the thread following the on-machine arrow and bring it back to the top, then thread the take-up lever from right to left. This right-to-left pass is called out explicitly in the video.
Bring the thread straight down through the same groove. This completes the take-up segment and sends the thread toward the lower guides and needle.
The Final Touches: Needle, Presser Foot, and Bobbin Precision Needle Threading Thread the lower thread eyelet corresponding to your active needle, then the guide directly above the needle. Finally, pass the thread through the needle front to back. This front-to-back direction is shown explicitly in the video.
Passing Through the Presser Foot After the needle, route the thread through the presser foot from top to bottom. Catch the tail on the small spring above the needle to secure it. You can trim any excess with the built-in trimmer. Securing the tail helps prevent stray loops catching on the needle or material as you begin stitching.
Understanding Your Machine’s Bobbin System The video notes the bobbin is pre-installed before shipping. To locate it, lower the cover to reveal the bobbin case. To remove, pull the case out using its latch. While the video demonstrates access and removal, it does not specify additional adjustments or settings here—simply that the bobbin is in place and how to access it.
Watch out Handle the bobbin case by the latch as shown in the video to avoid dropping it. Re-seat carefully so it aligns smoothly when you close the cover.
Tips for Success and Troubleshooting Common Issues Repeating the Process for All 15 Needles Once you’ve threaded one needle from cone to presser foot, repeat the same steps for the remaining 14 needles. The video specifically reminds you that the main tensioner direction changes for needles 9–15 (counterclockwise), while 1–8 are clockwise. This detail is crucial—mixing directions can cause inconsistent tension from needle to needle.
Quick check
- Confirm each needle path follows the same sequence: cone holder → top eyelet → top guides → pre-tensioner → thread tube → first clamp → detection wheel (clockwise, one full turn, exit left of lower post) → main tensioner wrap (direction depends on needle number) → pegs (right of first, left of second) → second clamp → take-up lever groove → take-up lever (right to left) → down the same groove → lower eyelet → guide above needle → needle (front to back) → presser foot (top to bottom) → tail secured on spring.
Identifying and Correcting Threading Errors
- Missed guide or clamp: Re-seat the thread into the missing point. The symptoms can look like tension problems or random thread breaks.
- Detection wheel wrap: Ensure a full clockwise rotation with the correct exit path to the left of the lower post.
- Main tensioner direction: Re-check which needle you’re on; 1–8 are clockwise, 9–15 are counterclockwise per the video.
- Take-up lever direction: Right to left is specified; flipping direction may alter how the thread feeds during stitch formation.
Pro tip If you’re setting up a production workflow and researching hooping solutions generally (not specific to this model), you’ll encounter terms like magnetic embroidery hoops. These can streamline handling bulky items, but compatibility varies by brand and model—always verify with the manufacturer.
Maintaining Optimal Threading for Quality Embroidery
- Before each run, gently pull each thread to feel for smooth movement through the entire path. Any snag or scrape calls for a quick path audit.
- After threading, secure and trim tails as shown so they don’t get caught at start-up.
- When switching needles, glance at the tensioner direction diagram on the machine to avoid mixing clockwise/counterclockwise wraps.
From the comments Question: “Do you need the bobbin case when embroidering shirts?” Answer based on the video: The tutorial does not state this explicitly. It shows a pre-installed bobbin and demonstrates how to locate and remove the bobbin case by using the latch. The demonstration implies normal operation with the bobbin and case present, but the video does not provide additional guidance about operating without it.
Watch out Avoid improvising alternative thread paths not shown in the video. Even small deviations—skipping a peg or reversing a wrap—can lead to inconsistent tension or undetected thread breaks.
Pro tip Building a reference card helps. Jot down “1–8 clockwise; 9–15 counterclockwise” and keep it near the machine. Over time, this becomes second nature.
Beyond Threading: Planning Your Hoop Workflow (General Considerations) The video focuses squarely on threading and bobbin access, not on hoops or attachments. If you’re mapping a broader shop setup, you may research hoop options from across the industry to understand what’s possible on different platforms. Searches often include terms such as snap hoop monster and mighty hoop. These references are general and not specific to the PR-1500; always verify compatibility with your exact machine before purchase or use.
Similarly, some operators explore accessories described under general phrases like magnetic embroidery frame or embroidery frame. These can be helpful for stabilizing bulky or tricky projects, but again—consult official documentation for compatibility and settings.
If you’re deciding where to start on your embroidery journey in general, you’ll find a lot of buyer’s guides using phrases such as best embroidery machine for beginners. While that kind of research is helpful for comparing features and learning terminology, the threading steps in this guide come strictly from the PR-1500 video and are specific to this machine’s path and controls.
Troubleshooting Snapshot
- Thread keeps popping out near start: Re-secure the tail on the spring above the needle and trim excess as shown.
- Random thread break warnings: Re-check the detection wheel wrap (clockwise, one full turn) and ensure the exit is to the left of the lower post.
- Uneven tension on a few needles only: Verify the main tensioner direction for those specific needles and double-check the pegs and clamps in that lane.
Quick check A fast visual audit before your first stitch:
- Cone stable and matched to needle number
- Eyelet fed bottom to top
- Top guides engaged along the correct numbered lane
- Pre-tensioner plates and wedge engaged
- Thread tube installed and free-moving
- Clamps engaged (both)
- Detection wheel: full clockwise wrap, exit left of lower post
- Main tensioner: correct direction for the needle number, full wrap
- Pegs: right of first, left of second
- Take-up lever groove and right-to-left pass
- Lower eyelet + guide above needle
- Needle front to back
- Presser foot top to bottom; tail caught; trim if needed
Closing Thoughts With a consistent sequence and a couple of critical direction checks, threading the Meistergram Gem PR-1500 becomes a repeatable routine. Follow the video’s order, pay attention to clockwise vs. counterclockwise on the main tensioner, and secure tails before you start. Repeat the process across all 15 needles, and you’ll be ready for clean, reliable stitching.
As you refine your overall setup, you might explore general-market hooping tools and terms like magnetic embroidery hoops and snap hoop monster for broader context—just remember to verify compatibility specifically for the PR-1500 before applying anything shown outside this threading video.
