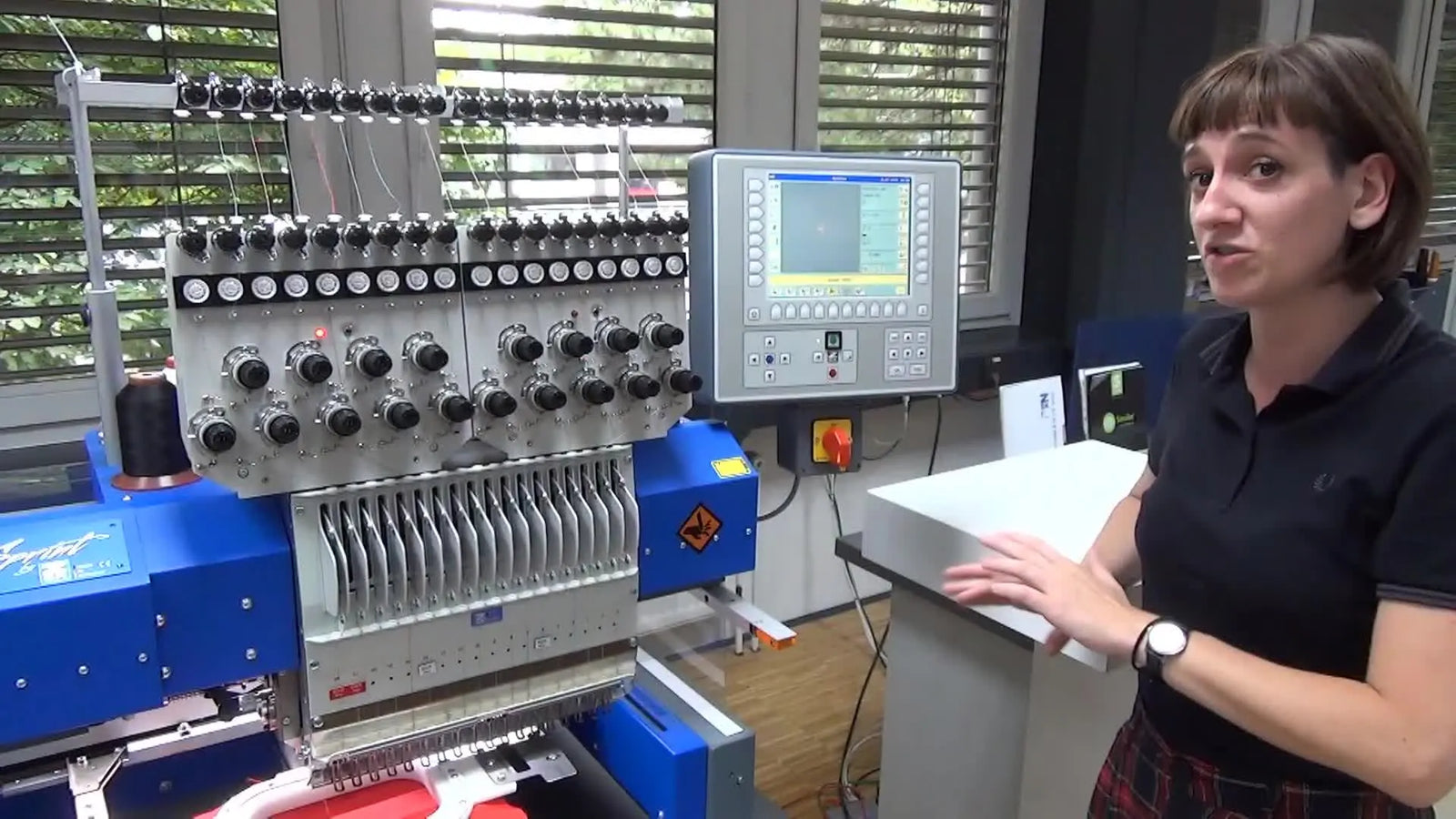

Micro-Lettering Under 4mm on a ZSK Sprint Embroidery Machine: The BasePac 10 Settings That Keep Stitches From “Disappearing”

Small lettering is where even good digitizers get humbled.

If you’ve ever watched a 3.6 mm font look perfect on-screen—then come out on the machine as fuzzy blobs, uneven heights, or “missing” strokes—you’re not alone. The panic is real, especially when the customer is waiting, and the letters are already smaller than the thickness of your usual thread.

Most beginners try to solve this by tightening tension or slowing the machine to a crawl, only to see the thread break or the letters distort further.

This post rebuilds Britta’s full workflow for lettering under 4 mm: what she changes in BasePac 10, what she overrides on the ZSK Sprint control panel, and exactly what she physically adjusts (needle, tension, backing, topping, speed) to ensure micro-text stays readable. We will move beyond theory into the sensory details of "how it should feel" and "what it should sound like."

The Calm-Down Truth About <4mm Text: Your ZSK Sprint Embroidery Machine Isn’t “Broken”—It’s Being Protective

Micro-stitches are a special case. When you digitize tiny lettering correctly, you intentionally create very short stitches and tight geometry. However, many industrial machines are programmed to interpret incredibly short stitches (under 0.5mm or 0.6mm) as "noise" or data errors. They try to “help” by filtering them out.

So, if your design looks like it lost details (like the dot on an 'i' or the serif of a 'T') after loading, don’t start re-digitizing blindly. First, assume the machine is optimizing away the very stitches you need.

One more reality check: an experienced operator pointed out that manual punching can often outperform built-in lettering. That’s a fair take—tiny text is unforgiving, and auto-lettering isn’t magic. But the workflow below is exactly how you push software lettering much closer to “punched” cleanliness without adding bulk.

The Hidden Prep Pros Do Before BasePac 10: Thread Choice, Test Mindset, and a “No-Bulk” Rule

Before you touch parameters, you must make a physical choice. You cannot force standard 40 wt thread into a 3 mm hole space without creating a "bulletproof vest" effect—stiff, raised, and illegible.

Britta’s first decision is thread thickness. This is non-negotiable physics:

• 60 wt: Slightly thicker than 75 wt, but much thinner than standard 40 wt. Good for visibility.
• 75 wt: Even thinner, creates extremely sharp definition but requires delicate handling.

If you’re running a production shop, this is also where you decide whether you’re in “one-off perfection mode” or “repeatable production mode.” Micro-text that works once but fails on the next garment is not a win.

If you’re setting up a job on a zsk sprint embroidery machine, treat the first run as a controlled test: same fabric, same backing stack, same needle, same speed, and only one variable changed at a time.

Prep Checklist (Do this before digitizing)

• Target Definition: Confirm final letter height (Britta works at 3.6 mm).
• Thread Selection: Choose 60 wt (Sharper) or 75 wt (Sharpest). 40 wt is forbidden here.
• The No-Bulk Rule: Commit to removing all knots, heavy underlay, and distinct pull compensation.
• Consumables Check: Locate 60/8 or 65/9 needles (do not use standard 75/11).
• Stabilizer Strategy: Plan for a "sandwich" that includes Water Soluble Topping (Solvy) regardless of fabric texture.

BasePac 10 Micro-Text Setup: Resizing TrueType to 3.6 mm Without Creating a Stitch Mess

Britta imports her design elements, switches to monogram mode, and uses a TrueType font she has already converted and checked letter-by-letter—because at this scale, one bad character can ruin the whole word.

She resizes the text to 3.6 mm height. Visual Check: Zoom in to 400%. If the columns of the letters look like they are touching on screen, they will definitely bunch up on fabric. Center your modules so alignment is perfect before you fine-tune behavior.

The Density & Underlay Combo That Makes 3.6 mm Letters Hold Their Shape in BasePac 10

Here’s the core physics problem: Thinner thread covers less fabric surface. To avoid seeing the fabric through the ink, you usually increase density (bringing stitches closer). But, tiny letters have no room for bulky foundations.

Britta changes density from a standard value (she references ~4.0) down to significantly tighter values to account for the thin thread:

• Density 2.8 for 60 wt (Note: In ZSK/BasePac, lower numbers often mean tighter spacing. In other software like Wilcom, you might increase stitches/mm).
• Density 2.0–2.5 for 75 wt (depending on shape).

Then she makes the underlay decision that separates clean micro-text from chunky blobs:

• No fill underlay (Tatami): There is simply no space in 3.6 mm letters.
• No Edge Run: This adds too much width.
• Center Line Run Only: Use a single running stitch down the center to anchor the fabric.




Preventing “Stitches Falling Out”: Cap the underlay stitch length

She notices a long underlay stitch that could physically fall out of the letter column if the satin stitch doesn't cover it perfectly. Her fix is to shorten the maximum stitch length to 3.8 mm.

This is one of those small settings that saves you from a big failure: when geometry is tiny, long underlay jumps can land outside the column and unravel the look.

If you’re chasing zsk embroidery machine micro-text quality, this underlay-length cap is a quiet hero—because it improves stability without adding thickness.

The “Don’t Trim” Rule: Using Stitch-in-Connection So Fixing Stitches Don’t Bulge Your Letters

Most beginners rely on auto-trims to keep text clean. Britta explains the opposite for micro-text.

The Logic:

1. Every trim adds fixing stitches (lock-knots).
2. Fixing stitches create bulk (bumps).
3. Bulk is the enemy when your entire letter height is only 3.5–3.6 mm.

Her Solution:

• Set trimming parameters so it only trims/fixes when elements are > 1.0 mm apart.
• Enable “Stitch in connection” (Running Jump). This forces the machine to sew a travel stitch into the fabric between letters rather than floating and trimming.

This is especially important between close letters (like “m” to “u”) and for small details like the dot of an “i,” where a trim knot would be larger than the dot itself.

Warning: Physical Safety
When you reduce trims and rely on connection stitches, the machine makes rapid movements without stopping. Keep hands away! Micro-text often uses very thin needles (60/8). If you attempt to trim a tail with scissors while the machine is moving, a deflection can snap the needle instantly, sending metal shards flying.

Fixing the “O vs N” Height Problem: End Direction as a Push–Pull Equalizer

Britta points out a classic micro-lettering visual illusion caused by push-pull compensation:

• Closed shapes like O tend to "shrink" vertically (Pull).
• Open-ended letters like N tend to "push" out in the direction of the stitch.

Her correction in extended parameters:

• She shortens the N-direction columns using End Direction = 0.1 mm.

This removes the last fraction of stitches at the ends so the letters visually match the height of the closed letters.

Loading the File on the ZSK Control Panel: “Optimize With User Defined Values” or Your Micro-Stitches May Vanish

Now comes the hardware-side trap that causes “missing details.”

When Britta loads the design, she does not accept default optimization. Default settings protect the machine from breaking thread on short stitches. She explicitly chooses:

• Optimize with user defined values

She then navigates to Cleaning settings. The standard behavior:

• Cleaning by 5 increments (All stitches shorter than 0.5 mm get deleted).

For micro-text, a 0.5 mm stitch might be the serif of your font! She changes Cleaning to:

• 3 increments (Only deletes stitches under ~0.3mm).

That keeps the necessary micro-detail intact.

If you’ve ever loaded a design and thought, “My digitizing is wrong,” but the preview looked fine—this is the first place I’d check on a zsk machine workflow.

Needles 60/8 vs 65/9, Tension “Almost Off,” and Why Slower Wins at 700 SPM

Britta’s physical setup is straightforward, but it requires you to ignore your instincts to "tighten up" for precision.

1) Thread tension: Go much looser than normal

Thin thread snaps easily under standard tension. She takes tension “rather off,” loosening significantly—close to “no tension at all,” letting it flow freely.

• Sensory Anchor (Tactile): Pull the thread through the needle eye by hand. It should not feel like flossing teeth (resistance). It should feel like pulling a single hair—barely any drag, just a smooth glide.
• Sensory Anchor (Visual): Turn the fabric over. You should see a little more top thread looping to the back than usual (60/40 ratio rather than standard 33/66) because the bobbin pulls harder relative to the top.


2) Needle choice: Match the thin thread

Do not use a standard 75/11 needle. The hole it punches is too big for the thin thread to fill.

• For 60 wt: Use Needle 65/9 or 60/8.
• Check Point: Ensure the needle scarfs are facing correctly.


3) Stabilization: Stiff fabric is easy; knits need layers

She uses a rather stiff fabric in the demo. However, for real-world pique or elastic fabrics:

• Minimum two layers of tearaway backing.
• Ideally, use Cutaway for knits (even if you hate cutting it) because it stops the fabric from collapsing.
• Weblon (fusible mesh) is excellent for stability without board-like stiffness.

4) Speed: The "Sweet Spot" is 700 SPM

The thinner needle (60/8) is flexible. At 1000 SPM, it deflects. At 400 SPM, you lose momentum.

• Britta recommends 700 stitches per minute.
• Sensory Anchor (Auditory): The machine should sound rhythmic and "happy"—a steady hum. If you hear sharp clacks or thumping, you are going too fast for the stabilizer stack.


If you’re running zsk machines germany production standards, this is the mindset: micro-text is not where you chase maximum speed; it’s where you chase repeatability.

Setup Checklist (Before you press start)

• Needle Audit: Installed 60/8 or 65/9? Is it brand new? (Micro-burrs destroy micro-text).
• Tension Feel: Top thread pulls with minimal resistance (simulating "almost off").
• Bobbin Check: Clean bobbin case, no lint.
• Speed Limit: Set max speed to 700 SPM.
• Software Flag: Confirmed "User Defined Optimization" (Cleaning = 3).
• Hidden Consumable: Spray adhesive (temporary) is handy to keep backing fused if not using magnetic hoops.

Water-Soluble Foil Topping: The “Sharpness Cheat Code” for Textured or Structured Fabrics

Britta calls topping the big secret to success for small lettering.

She places water-soluble foil (Solvy) over the hooped fabric before starting. Why it helps:

1. It lifts the stitches up, so they sit on top of the fabric weave rather than sinking in.
2. It prevents the thin 60 wt thread from getting lost in the texture of pique or fleece.


If you’re teaching staff or building a repeatable workflow, write this into your job ticket: “Micro-text = Topping Required.” It’s one of the cheapest ways to buy clarity.

Hooping Reality: Keeping the Fabric Flat So 3.6 mm Letters Don’t Turn Into Wavy Mush

Britta uses a standard tubular frame with stiff fabric hooped.

At this scale, hooping is not just about holding the fabric; it's about controlling distortion. A shift of 0.5mm ruins a 3.6mm letter.

• Too loose: Fabric "flags" (bounces), causing registration errors.
• Too tight: You stretch the fabric fibers open; when released, they shrink back, crushing the text.

The "Hoop Burn" Bottleneck If your team is spending too long on hooping for embroidery machine jobs to avoid marks, or if you struggle to hoop thick garments consistently, this is your signal that your tools are limiting your skill.

• The Trigger: You dread small text jobs on delicate items because standard hoops leave "shine marks" or "hoop burn."
• The Criteria: If you are doing production runs of 50+ shirts, or dealing with difficult placements (cuffs, collars).
• The Solution Level 2 (Tool Upgrade): Magnetic Embroidery Hoops.
  • For Home Users: Magnetic frames allow you to "float" stabilizers and adjust fabric without un-hooping.
  • For Pros: SEWTECH Magnetic Hoops hold fabric firmly and automatically adjust to different thicknesses without the need to adjust screws, reducing operator fatigue and completely eliminating hoop burn.

Warning: Magnet Safety
If you upgrade to Magnetic Hoops, be aware they generate powerful force.
* Pinch Hazard: They can snap from several inches away. Keep fingers clear.
* Medical Device Safety: Keep magnets away from pacemakers and insulin pumps.

The Stitch-Out Moment: What “Good” Looks Like While It’s Running

When the machine starts stitching through the foil, use your senses:

• Sight: The thread should feed smoothly without "snapping" taut. You shouldn't see loops, but the thread passage should look relaxed.
• Sound: Listen for a rhythmic purr. A "dry" or "slapping" sound usually means the thread is too dry or tension is still too high.
• Stability: The fabric should be flat as a drum skin. No waves.


This is also where experienced operators use sensory feedback: if the machine sounds harsh, stop immediately. Small needles don’t forgive abuse—they bend, hit the hook, and break.

A Practical Decision Tree: Fabric Type → Backing & Topping Stack for Small Lettering

Use this logic flow before every job under 4 mm:

1. Is the fabric stiff and smooth (e.g., Denim, Twill)?
   • YES: Use Tearaway (1-2 layers). Topping is optional but recommended for crispness.
   • NO: Go to step 2.
2. Is it Pique, Knit, or Stretchy (e.g., Polo, T-Shirt)?
   • YES: Required: Cutaway Stabilizer (1 layer) + Tearaway (1 layer) OR fusible mesh. Topping: Mandatory water-soluble foil.
   • NO: Go to step 3.
3. Is the surface textured/coarse (e.g., Towel, Fleece)?
   • YES: Required: Heavy Cutaway. Topping: Heavy water-soluble topping or "Knockdown Stitch" first.
   • NO: Proceed with standard setup.

Troubleshooting Micro Text on ZSK + BasePac 10: Symptoms → Causes → Fixes

Comment-driven pro tips

• “My software is different (Wilcom/hatch).” The physics remain the same. Find your "Small Stitch Filter" setting and turn it down. Use "Center Run" underlay.
• “Use a 60/8 Needle.” It cannot be overstated. A 75/11 needle creates a hole that the 60wt thread cannot fill, leading to ugly gaps.

The Upgrade Path: When Micro-Text Becomes a Business, Not a One-Time Flex

If you only stitch tiny lettering occasionally, Britta’s workflow will get you clean results with careful manual setup.

But if micro-text is becoming a core part of your business—uniform names, small chest logos, security badges—your bottleneck will shift from "how do I do this?" to "how do I do this fast?"

• Consistency Bottleneck: If hooping is slow or inconsistent, SEWTECH Magnetic Hoops provide the clamp consistency that human hands can't match.
• Capacity Bottleneck: If single-needle color changes describe your day, a SEWTECH Multi-Needle Machine allows you to keep 60wt thread loaded on Needle 1 permanently, eliminating setup time.
• Quality Bottleneck: Upgrading to premium High-Tenacity 60wt Thread reduces breakage frustration significantly.

And if you’re building a repeatable station, pairing a stable hooping workflow with a hooping station mindset (standardized placement, consistent tension) is what turns “it worked once” into “it works every time.”

Operation Checklist (Post-Run Audit)

• Watch the Start: Did the first 20 stitches form correctly? (Most failures happen instantly).
• Topping Check: Did the foil stay flat? If it tore early, use spray adhesive next time.
• Edge Inspection: Remove topping (tear/wash). Inspect edges with a magnifier. Are they crisp?
• Measurement: Use a ruler. Is the text actually 3.6mm, or did it shrink? Adjust size by 5% if needed.
• Document: Write down the specific Tension/Speed/Stabilizer combo that worked on the back of the swatch for future reference.




If you master these settings once and document them, you’ll stop fearing small lettering—and start selling it confidently.

FAQ

• Q: Why do ZSK Sprint control panel settings delete tiny strokes when loading micro-lettering under 4 mm?
  A: Set the ZSK Sprint load option to “Optimize with user defined values” and reduce the Cleaning threshold so the machine stops filtering out micro-stitches.
  • Select: “Optimize with user defined values” when loading the design.
  • Navigate: Cleaning settings and change from 5 increments (~0.5 mm deletion) to 3 increments (~0.3 mm deletion).
  • Re-load: The same file and compare preview vs stitch-out.
  • Success check: Small details like the dot on an “i” and thin serifs remain visible after loading and during sew-out.
  • If it still fails: Inspect the digitizing for ultra-short stitches that are below the reduced cleaning threshold.
• Q: What is the correct ZSK BasePac 10 density and underlay setup for 3.6 mm lettering using 60 wt or 75 wt thread?
  A: Use tighter density with thin thread, but keep underlay minimal—center run only—so the letters don’t turn into blobs.
  • Set: Density to 2.8 for 60 wt thread, or 2.0–2.5 for 75 wt thread (depending on shape).
  • Disable: Fill underlay (tatami) and Edge Run underlay for micro-text.
  • Enable: Center Line Run underlay only to anchor without adding width.
  • Success check: Letters hold their shape with clean edges, without bulky raised “pillows” inside strokes.
  • If it still fails: Reduce trims and use stitch-in-connection to avoid knot bulk between small elements.
• Q: How do ZSK BasePac 10 trimming and “Stitch in connection” settings prevent bulky micro-lettering under 4 mm?
  A: Avoid frequent trims because fixing stitches create bumps that are bigger than the letter details; use stitch-in-connection unless elements are truly far apart.
  • Set: Trimming so it only trims/fixes when elements are more than 1.0 mm apart.
  • Enable: “Stitch in connection” (running jump) to travel between letters instead of trimming.
  • Plan: Letter spacing so travel stitches stay hidden inside or between strokes.
  • Success check: Letter tops look flat and smooth—no raised knots between characters (especially around “i” dots and tight letter pairs).
  • If it still fails: Re-check density and thread choice (40 wt will still look bulky at this size).
• Q: How do ZSK Sprint tension and needle selection prevent thread breaks on 60 wt micro-text at 700 SPM?
  A: Use a smaller needle and run the top tension much looser than normal; micro-text breaks are often “too tight tension + too big needle,” not speed alone.
  • Install: Needle 60/8 or 65/9 (do not use 75/11 for 60 wt).
  • Loosen: Top tension to “almost off” so the thread feeds freely.
  • Set: Speed to 700 stitches per minute to reduce needle deflection while keeping momentum.
  • Success check: By hand, the top thread pulls through the needle eye with barely any drag, and the machine sound is a steady, “happy” rhythm (no sharp clacks).
  • If it still fails: Replace the needle with a brand-new one and clean lint from the bobbin area before changing other variables.
• Q: What stabilizer and water-soluble topping stack works best for ZSK Sprint small lettering on knit, pique, or textured fabrics?
  A: Use a stabilizer “sandwich” plus water-soluble topping; topping is the fast way to keep 60 wt stitches sitting on top instead of sinking in.
  • For knits/pique: Use cutaway (1 layer) + tearaway (1 layer) OR fusible mesh, plus water-soluble foil topping.
  • For stiff/smooth fabrics: Use 1–2 layers tearaway; topping is optional but often improves crispness.
  • For textured surfaces (towel/fleece): Use heavy cutaway and heavier topping (or a knockdown approach if needed).
  • Success check: Satin columns look sharp on top of the fabric texture, not buried; edges read clearly at normal viewing distance.
  • If it still fails: Improve hooping stability (fabric must stay flat with no “flagging”) before changing digitizing.
• Q: What safety precautions are required when using “Stitch in connection” on a ZSK Sprint for micro-lettering with 60/8 needles?
  A: Keep hands completely away during fast travel movements—micro-needles snap easily if bumped, and needle fragments can fly.
  • Do: Let the machine finish the travel stitches before reaching in to trim any tails.
  • Do: Use the correct small needle (60/8 or 65/9) and treat it as fragile at speed.
  • Don’t: Try to cut threads with scissors while the head is moving.
  • Success check: No needle deflection events, no sudden needle break, and the stitch run stays uninterrupted.
  • If it still fails: Reduce unnecessary trims in the design so the machine stops less and moves more predictably—but only if the operator area is clear.
• Q: When should embroidery shops upgrade to SEWTECH Magnetic Embroidery Hoops or a SEWTECH multi-needle machine for under-4 mm text production?
  A: Upgrade when the real bottleneck is no longer digitizing, but repeatability and throughput—especially hooping consistency and setup time.
  • Trigger: Frequent hoop burn/shine marks, slow hooping, or inconsistent holding on delicate/thick garments.
  • Criteria: Production runs around 50+ pieces, or difficult placements like cuffs and collars where small text fails from tiny shifts.
  • Options: Start with Level 1 (optimize stabilizer/topping, needle 60/8–65/9, 700 SPM, user-defined cleaning), then Level 2 (SEWTECH Magnetic Hoops for consistent clamping and reduced hoop burn), then Level 3 (SEWTECH multi-needle machine to keep 60 wt loaded and cut changeover time).
  • Success check: Operators hoop faster with fewer rejects, and micro-text results look the same from the first garment to the last.
  • If it still fails: Standardize a job ticket (same fabric, backing stack, needle, speed) and change only one variable per test run.
