Monogramming a Backpack Flap on the Brother Persona 100 (PRS100): The Fast Frames “Float” Method That Saves Your Sanity

Bag flaps are the "final boss" of the beginner embroidery world. They look deceptively easy on Instagram—flat, accessible canvas—until you try to hoop one. Suddenly, you realize the bag is fighting you with bulky seams, the strap is getting in the way, and the fabric refuses to lie flat.

If you have ever stared at your Brother Persona 100 (PRS100) and thought, “How am I supposed to secure this without crushing the structure, leaving permanent hoop burn, or stitching a crooked monogram?” take a deep breath. You are in the right place.

This masterclass rebuilds a real-time stitch-out workflow for monogramming a patterned canvas backpack flap. We will use a tubular free-arm approach (the Persona’s specialty) and basic shop tricks. However, I will overlay my 20 years of production experience to add the "invisible safety rails" needed to prevent common disasters: shifting fabric, thread nesting, bobbin run-outs, and that heart-sinking moment when the needle strikes a binder clip.

The Cognitive Shift: Why Bag Monogramming Feels Hard (And How to Fix It)

Monogramming a bag flap is a “hostile environment” for embroidery. You are dealing with variable thickness, gravity pulling the bag down, and a flap that wants to twist as the machine arm moves.

In the video source, the bag is "floated" on a metal frame so the rest of the backpack hangs freely below the free arm. This is the critical mechanical advantage of the PRS100 over a standard flatbed machine. Your goal here is not "drum-tight tension" achieved by brute force; it is controlled support.

If you are currently searching for tutorials on hooping for embroidery machine technique, here is the mindset shift you need for bags: Stop trying to force the bag into a standard hoop. Instead, focus on stabilizing the stitching field while letting the rest of the bag exist outside the clamping zone.

Phase 1: The "Hidden" Prep (Do This Before Touching the Machine)

Professional embroiderers spend 60% of their time on prep and 40% on stitching. If you reverse those numbers, you will break needles. Before you mount anything, we must execute a "Pre-Flight Check."

1. Dimension & Orientation Logic

• Physical Space Check: The video starts by selecting a 3-letter scroll monogram. You must physically measure the usable flat area of the flap, excluding thick seams or binding tape. A design might technically fit the flap but hit the edge binding, causing a needle deflection.
• Inversion Logic: This project requires the bag to be loaded upside down (straps facing the user) so the bulk hangs down. This means your design must be rotated 180 degrees. Write this on a sticky note and put it on your screen: "ROTATE 180."

2. The Stabilizer Decision (Don't Guess)

In the video, the creator notes she does not use backing/stabilizer for this thick canvas bag. She gets away with it because the canvas is extremely rigid. However, as an educator, I consider this a "high-risk" move for beginners.

Here is the physics: Embroidery stitches pull the fabric in. If the fabric (canvas) is stronger than the pull force of the thread, you are fine. If the fabric has any give, the lack of stabilizer will cause puckering or "dishing" (where the letters cup inwards).

The Decision Tree:

• Scenario A: Thick, stiff canvas (like a LL Bean tote) + Low density thread count. -> Risk Acceptable: No Stabilizer.
• Scenario B: Softer fashion backpack / Quilted cotton / Standard density satin stitch. -> Requirement: Medium Weight Tear-Away or Cut-Away.
• Scenario C: Stretchy or knit panel. -> Requirement: Fusible Cut-Away (Mesh).

3. Hidden Consumables

To succeed here, gather these often-overlooked tools:

• New Needle: A Size 75/11 Sharp (for woven canvas) or 90/14 (if very thick).
• Thread Net: Essential for preventing snags on fast-unspooling cones.
• Binder Clips (Small): The "poor man's" clamp.
• Mini Ruler: For precise centering.

Prep Checklist (Clear implies Go):

• Confirm the monogram style (3-letter scroll used here).
• Measure the design width against the usable flap space (leave 0.5" buffer).
• Inspect the flap for hidden rivets, snaps, or zipper pulls in the stitch path.
• Crucial: Decide on stabilizer based on fabric stiffness (when in doubt, use Tear-Away).
• Verify the bag straps can hang freely without snagging on the table edge.


Phase 2: Mounting System & The "No-Hoop" Setup

The tutorial utilizes a Fast Frames metal frame system. This arm slides onto the machine’s bracket and clicks into place. This falls into the category of "Floating Systems."

If you find yourself comparing options like fast frames for brother embroidery machine, use this practical standard: Does the system allow the bag to hang vertically without distortion? The PRS100’s open architecture is wasted if you use a frame that requires the bag to be bunched up.

The Loading Strategy

Slide the flap carefully over the metal frame arm. The bulk of the backpack must hang below the free arm.

• Sensory Check: Wiggle the bag body. Does it swing freely? If it feels caught or tight, the weight of the bag will drag your design off-center during the stitch-out.

Warning (Mechanical Safety): Keep straps, plastic buckles, and zipper pulls strictly secured away from the moving carriage. Use masking tape to tape the straps to the bag body if necessary. A loose strap catching on the pantograph arm mid-stitch can snap a needle bar or destroy the garment.

Phase 3: The 180° Flip & On-Screen Editing

Because gravity dictates the bag hangs upside down, the design orientation is the single biggest failure point.

On the Brother Persona screen:

1. Enter the embroidery editing menu.
2. Select Rotate.
3. Press the 90-degree rotation button twice.
4. Visual Confirmation: Look at the screen. Is the top of the letter pointing toward the user (you)? Perfect.


Fixing "The Kerning Trap"

The creator notices the scroll letters are touching—a common issue with pre-set fonts. She corrects the spacing directly on the machine.

• Action: Select specific letters and use directional arrows to nudge them apart horizontally.
• Data Check: The final design size becomes 3.14" x 5.17". The stitch count is 8585 stitches.
• Speed Settings: The machine is set to 600 SPM (Stitches Per Minute).
• Experience Note: For bulky bags, 600-700 SPM is the "Sweet Spot." Running at 1000 SPM increases vibration and the risk of the bag swaying, which ruins registration. Slow down to speed up (by avoiding mistakes).


The Screen vs. Reality Problem

The video highlights a critical lesson: Letters can look perfectly spaced on the small LCD screen but stitch out with visible gaps.

• Pro Tip: If you are doing this for a paying customer, do your layout in embroidery software on a PC/Laptop first. The resolution is higher, and you can measure the gap in millimeters. Using the machine screen for fine editing is risky for perfectionists.

Phase 4: Stabilization Hacks (Binder Clips & Physics)

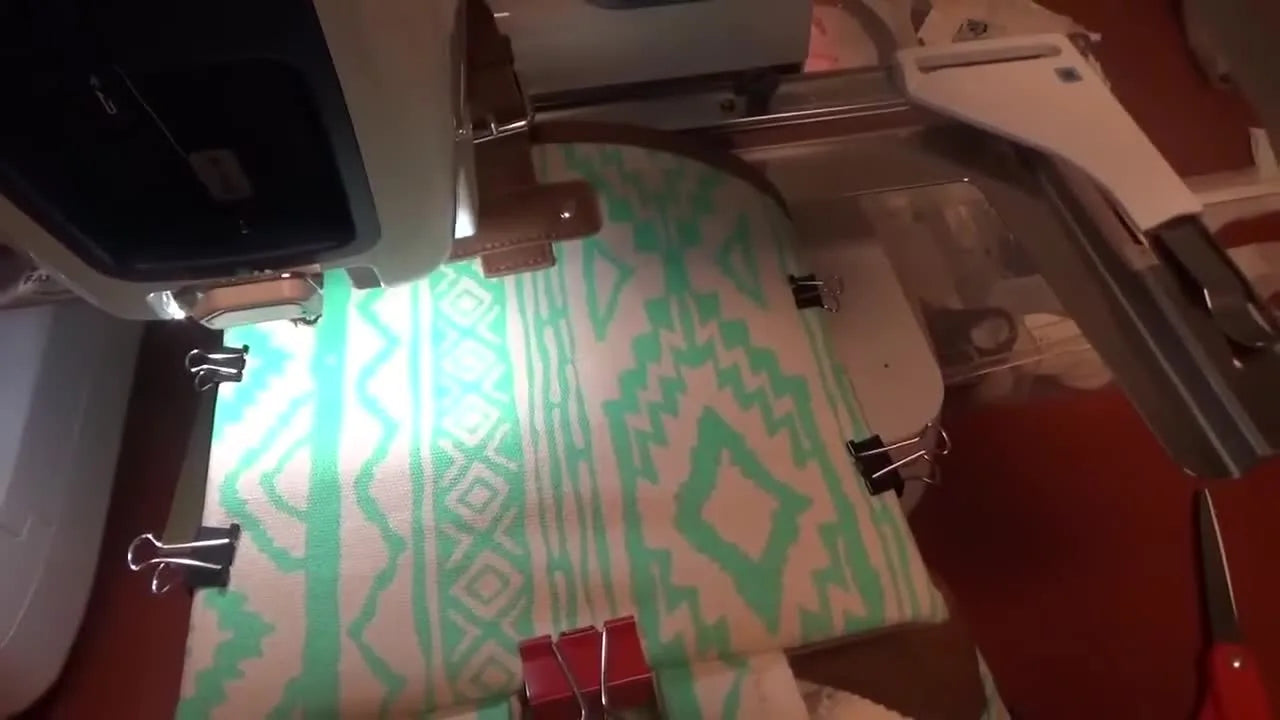

To secure the bag flap to the metal frame without a hoop, the creator uses binder clips on the sides and bottom.

• The Physics: This creates distinct tension points. It prevents the flap from "creeping" (walking) as the needle pounds it.
• The Texture: You want the fabric to feel taut, like a bedsheet tucked in tight—not drum tight, just smooth.


Watch-out: The Collision Course

Binder clips are effective, but they are solid metal obstacles. If your needle bar hits a clip, you will knock the machine out of timing. You must clip outside the maximum travel range of the needle.

Phase 5: Precision Placement

The creator uses a ruler to measure from the edge of the bag flap to the needle position. She references "two lines before the one [inch mark]." This caution is what keeps bag work profitable—measure twice, stitch once.

Why Bags are Unforgiving

On a t-shirt, a 3mm rotation is invisible. on a bag flap, the edge of the flap acts as a hard horizontal ruler for the eye. Any crookedness is immediately obvious. If you are setting up a workspace, consider creating a dedicated embroidery hooping station—even a makeshift one with tape markings on your table—to ensure you measure from the same reference point every time.

Phase 6: Threading Rituals & The "Friction" Factor

The video demonstrates manual threading: guide the thread through the tension disks, take-up lever, and needle bar.

• Crucial Tip: Snip the end of the thread clean before threading. A frayed thread end can miss the tension disk, resulting in "loops" on the back of the design.


The "Three Wraps" Myth (Busted)

Commenters noted the creator originally wrapped the thread around the tension pre-tension post three times, creating massive friction. She later corrected this.

• The Science: Excessive wrapping increases drag. If the drag is too high, the thread snaps. If too low, you get birdnesting.
• Sensory Check (The "Floss" Test): Before stitching, pull the thread through the needle eye. You should feel a smooth, consistent resistance, similar to pulling dental floss between teeth. If it yanks or jerks, your threading is wrong.

Phase 7: The Thread Net Solution

The creator adds a white mesh thread net over the cone.

• Troubleshooting Logic: Large rayon or poly cones are slippery. The thread serves to "puddle" at the base of the cone and then snag.
• The Fix: The net creates just enough drag to keep the thread feeding vertically. If you see thread whipping around violently as it enters the first guide, install a net immediately.


Phase 8: The Trace (The Collision Avoidance System)

Never skip this step. The creator uses the machine's Trace/Outline function.

• Action: The machine physically moves the frame to the four corners of the design box without stitching.
• Visual Check: Watch the needle (or LED pointer). Does it come dangerously close to your binder clips? Does it fall off the edge of the flap?
• Correction: If it hits a clip, move the clip. Do not hope for the best.


Phase 9: Final Centering with the LED Pointer

The PRS100 features an LED drooping pointer. The creator uses on-screen arrows to nudge the design until the red dot lands exactly on her center mark. This is the advantage of modern tech—trust the laser, not just your eye.

Setup Checklist (The "Point of No Return"):

• Confirm design is rotated 180°.
• Verify speed is set to 600-700 SPM.
• Crucial: Ensure binder clips are well outside the Trace boundary.
• Perform the Trace/Outline test to verify physical clearance.
• Check bobbin supply (start with a full bobbin for large monograms).

Phase 10: The Stitch-Out & Production Reality

Press the Lock button, then the Start button.

• Sensory Focus (First 30 Seconds): Do not walk away. Listen. A rhythmic "thump-thump-thump" is good. A harsh "clack-clack" or a grinding noise means stop immediately.
• Visual Focus: Watch the underlay stitches. Is the canvas rippling? If yes, stop. You need stabilizer.


The Bobbin Crisis

Mid-stitch, the bobbin runs out. The creator switches to a mismatched rust/brown color to finish.

• The Business Perspective: For a personal project, this is fine. For a client? It’s a reject. The underside of a flap is visible when opened.
• Pro Tip: Always use a pre-wound bobbin for production runs. They hold more thread and feed smoother than self-wound bobbins.

Phase 11: Results & Review

The clips come off, and the bag is removed. The placement is solid.

However, the spacing inconsistency remains—one gap is wider than the other. This confirms our earlier lesson: Machine screens lie about kerning. Always software-edit for precision.

Troubleshooting Guide: The "Why" Behind the Errors

The Upgrade Path: When to Ditch the Binder Clips

If you are doing one bag a month, the method above is perfect. But if you are doing five bags a week, binder clips become a liability. They hurt your fingers, they slip, and they risk machine damage.

Here is the professional progression for improving your workflow:

Phase 1: Stabilization Upgrade (The Consumable Fix)

• Trigger: Canvas is rippling or letters are sinking.
• Upgrade: Use a high-quality Heavy Tear-Away or Sticky Stabilizer.

Phase 2: The Tool Upgrade (Speed & Safety)

• Trigger: You are tired of wrestling binder clips and fearing needle strikes. Or, you notice "hoop burn" (shiny rings) on delicate fabrics.
• Upgrade: Switch to magnetic embroidery hoops for brother.
  • Why: Magnetic hoops (like the MaggieFrame) hold thick bags instantly without force-clamping. There are no screws to tighten, and the hold is uniform, reducing fabric distortion.
  • Search Strategy: Many users look for brother persona prs100 hoops specifically designed for magnetic attachment. This cuts your loading time from 3 minutes to 30 seconds.

Phase 3: The Scale Upgrade (Profitability)

• Trigger: You have orders for 20 backpacks and cannot afford to change thread colors manually for every bag.
• Upgrade: This is where a multi-needle platform (like SEWTECH’s multi-needle solutions) becomes necessary. It allows you to set up 6-10 colors at once and run continuous production.

Warning (Magnetic Safety): Magnetic hoops use industrial N52 magnets. They are incredibly strong. Keep them away from pacemakers, automated medical devices, and credit cards. Always watch your fingers—they can pinch severely if snapped together carelessly.

Final Thoughts: The Finished Standard

A "sellable" bag monogram is defined by three things:

1. Dead-Center Alignment: Use the ruler and laser.
2. Clean Spacing: Use software, not just the screen.
3. Flat Integrity: No puckers around the letters (use stabilizer if in doubt).


Operation Checklist (Post-Game):

• Inspect the underside: Are there loops? (Tension issue).
• Inspect the front: Are letters touching? (Spacing issue).
• Clean the bobbin case: Canvas sheds lint. Blow it out before the next run.

Mastering the bag flap on the PRS100 is about respecting the physics of the bag. Support the weight, clear the path, and use the right tools for the grip. Once you get the "feel" for it, this will become your most profitable niche.

FAQ

• Q: What needle size should be used for monogramming a canvas backpack flap on a Brother Persona PRS100 tubular free arm?
  A: Start with a new 75/11 Sharp for woven canvas, and move up to a 90/14 if the canvas or seams are very thick.
  • Install: Replace the needle before the job (a slightly bent needle is a common cause of thread breaks on bags).
  • Match: Use 75/11 for firm woven canvas; choose 90/14 when the needle must cross bulky seam areas.
  • Slow: Reduce speed when approaching heavy seams if the bag starts “thumping” harder than normal.
  • Success check: The needle penetrates cleanly with a steady “thump-thump,” without deflecting or shredding thread.
  • If it still fails: Run a Trace/Outline check and re-position to avoid seam edges and hardware in the stitch path.
• Q: How do you decide whether to use stabilizer when embroidering a bag flap on a Brother Persona PRS100?
  A: Use stabilizer whenever the flap fabric has any “give”—skip stabilizer only when the canvas is extremely stiff and the design is low density.
  • Test: Flex the flap with your hands; if it bends easily, plan on medium tear-away or cut-away support.
  • Choose: Use medium tear-away/cut-away for softer backpacks or standard satin density; use fusible cut-away mesh for stretchy/knit panels.
  • Stitch: Watch the first underlay stitches and stop early if the flap starts rippling.
  • Success check: Letters sit flat with no “cupping/dishing” and no ripples radiating around the monogram.
  • If it still fails: Add more support next run (often sticky stabilizer helps with floating setups) and reduce stitch speed.
• Q: How do you prevent a Brother Persona PRS100 bag-flap monogram from stitching upside down when the backpack hangs below the free arm?
  A: Rotate the design 180° on the Brother Persona PRS100 screen before stitching because the bag is loaded upside down for gravity control.
  • Edit: Open the on-screen Rotate function and press the 90° rotation button twice.
  • Confirm: Visually verify the letter tops point toward the operator (toward the user) on the screen.
  • Label: Write “ROTATE 180” on a note near the machine to avoid muscle-memory mistakes.
  • Success check: The design preview orientation matches how the flap will be viewed when the backpack is worn.
  • If it still fails: Stop before stitching and re-check how the bag is loaded over the arm (straps facing the user means the design must be flipped).
• Q: How do you keep binder clips from causing needle strikes when floating a backpack flap on a metal frame for a Brother Persona PRS100?
  A: Use the Brother Persona PRS100 Trace/Outline function every time and move binder clips outside the design’s maximum travel area.
  • Clip: Place binder clips on sides/bottom where they tension the flap but are clearly away from the stitch field.
  • Trace: Run Trace/Outline to move the frame around the design boundary without stitching.
  • Reposition: If the needle/LED pointer comes close to any clip, move the clip—do not “chance it.”
  • Success check: Trace completes with visible clearance between the design boundary and every binder clip.
  • If it still fails: Reduce design size or change placement so the stitch box no longer approaches clip locations.
• Q: How do you stop embroidery thread from jumping off a large cone and wrapping the spindle during Brother Persona PRS100 bag embroidery?
  A: Install a thread net on the cone to add controlled drag and keep the thread feeding smoothly.
  • Add: Slide a mesh thread net over the cone so the thread cannot “puddle” and snag at the base.
  • Watch: Observe the thread path into the first guide; violent whipping is a sign a net is needed.
  • Recheck: Pull thread by hand to feel consistent resistance before starting.
  • Success check: Thread feeds vertically and evenly with no sudden slack loops or wraps around the spindle.
  • If it still fails: Try a standalone thread stand and rethread the top path to ensure the thread is seated correctly in guides.
• Q: How do you prevent thread snapping caused by too much friction in the Brother Persona PRS100 upper threading path?
  A: Rethread the Brother Persona PRS100 exactly per the manual and avoid excessive wraps around the pre-tension post.
  • Cut: Snip the thread end cleanly before threading so it seats properly in the tension discs.
  • Rethread: Follow the standard path through tension discs and take-up lever; avoid “extra wrap” habits that add drag.
  • Test: Perform the “floss test” by pulling thread through the needle eye; it should feel smooth and consistent.
  • Success check: The machine runs without repeated snaps, and the thread pull feels even (no jerks).
  • If it still fails: Inspect for missed guides and confirm the cone is controlled (often a thread net stabilizes feeding).
• Q: When should a Brother Persona PRS100 user upgrade from binder-clip bag embroidery to magnetic embroidery hoops or a multi-needle machine for backpack monograms?
  A: Upgrade when safety risk, hoop-burn concerns, or production volume makes binder clips slow or unreliable—optimize technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (technique): Slow to about 600–700 SPM for bulky bags and always Trace/Outline to prevent collisions.
  • Level 2 (tool): Choose magnetic embroidery hoops when finger fatigue, clip slipping, or hoop burn becomes a recurring problem (magnetic clamping is faster and more uniform).
  • Level 3 (capacity): Choose a multi-needle machine when frequent color changes and higher order volume make single-needle workflow too slow.
  • Success check: Load time drops, stitch-outs stay centered, and needle-strike anxiety disappears during Trace.
  • If it still fails: Reassess stabilizer choice and bag support so the backpack can hang freely without dragging the stitch field.
