No More Re-Hooping: Stitching a Quilted Heirloom Blanket on a Bai Mirror 1501 with a 12x15 Magnetic Hoop (Without Frame Strikes)

The "Don’t-Panic" Guide to Embroidering Heavy Heirloom Blankets on a Multi-Needle Machine

If you have ever tried to embroider a bulky heirloom blanket and felt that spike of adrenaline in your chest—“This thing is too heavy, it’s going to shift, drag, or smack the machine arm”—you are experiencing a rational fear.

Quilted blankets are the "final boss" of flat embroidery. They are heavy (gravity fights you), textured (they hide stitches), and expensive (one mistake ruins a $60+ item).

In this masterclass, we are breaking down a real-world project: stitching a large “My 1st Christmas” design onto a buffalo plaid-trimmed quilt using a Bai Mirror 1501 (15-needle machine) and a 12x15 magnetic hoop.

The secret isn’t just the machine; it is the physics of fabric Management. We will move beyond basic instructions and teach you how to feel the weight, hear the machine, and secure your workpiece like a structural engineer.

The Core Strategy: The "Anti-Drag" Protocol

A quilted blanket looks soft, but to a machine, it behaves like a lead weight. If that weight isn't managed, it pulls against the pantograph (the moving arm), causing registration errors where borders don't line up with fills.

To succeed with high-value items on a bai embroidery machine or similar multi-needle setup, you must control three variables:

1. Orientation Logic: Loading the hoop so the bracket fits the machine arm before you trap the fabric.
2. Gravity Management: Neutralizing the blanket’s weight so the pantograph “floats.”
3. Texture Control: Using stitches (Knockdown) to tame the quilt's loft.

Sean’s workflow in this project is a textbook intermediate-to-production approach: heavy magnetic hooping, tearaway stabilizer, and strict physical support.

Phase 1: Preparation & The "Hidden" Consumables

Before you touch the hoop, you must prep the environment. Sean uses a 20-inch wide roll of tearaway stabilizer. This minimizes waste while ensuring the entire hoop area is covered.

Why Tearaway? (And when to switch) Sean uses tearaway because the quilt itself is thick and multi-layered, providing its own stability.

• The Stability Test: Pull on the blanket corner diagonally (bias). Does it stretch significantly?
  • No Stretch: Tearaway is safe.
  • High Stretch: Switch to Cutaway or Polymesh. If the fabric moves, your design will distort.

The "Hidden" Consumables Experienced operators know that stabilizer isn't enough. You need:

1. Lint Roller: Essential. Quilted fabrics from factories are covered in invisible "micro-dust" and loose threads.
2. New Needles: 75/11 Sharp points are preferred for cutting through quilt layers and batting.
3. Craft Felt: For test stitching.

The "Test Stitch" Mindset

Do not guess. Sean emphasizes a critical rule for commercial embroidery:

• Routine Design: Run it.
• New/Resized Design: Test it.

If you don't have scrap quilt fabric, use Craft Felt. It mimics the density of a blanket better than woven cotton. A felt test reveals density issues, thread pathing errors, and aggressive tie-offs that could jam the machine.

Pro Tip: Keep a "Test Bin" near your station containing felt squares and scrap denim. Searching for test fabric kills your momentum; having it ready saves your sanity.

Prep Checklist (Verify before Hooping):

• Action: Insert a fresh 75/11 needle (titanium coated is best for thick quilts).
• Action: Check the bobbin—it should be full. Heavy quilts eat thread.
• Sensory Check: Run a lint roller over the target area. It should feel tacky and come up clean.
• Decision: If the design is new, run a test on felt.
• Safety: Ensure embroidery foot height is raised (roughly 2-3mm) to clear the quilt thickness.


Phase 2: The Hooping Strategy (Precision & Safety)

This is the step that separates calm operators from those who ruin garments. We are using a magnetic hoop. If you are learning how to use mighty hoop or similar magnetic systems, the rules of engagement change compared to traditional plastic hoops.

The "Lip" Orientation Trap

On the Bai 1501 (and many commercial heads), the hoop bracket only fits one way.

1. Identify the Bracket: Find the metal metal mounting bracket on the hoop.
2. Mental Rotation: Before you lay the blanket down, orient the bottom ring so the bracket is on the Right Side (or whichever side your specific machine arm requires).
3. Hoop: Only then do you place the stabilizer and blanket.

If you hoop first and check later, you will be un-hooping and re-hooping—which weakens the stabilizer.

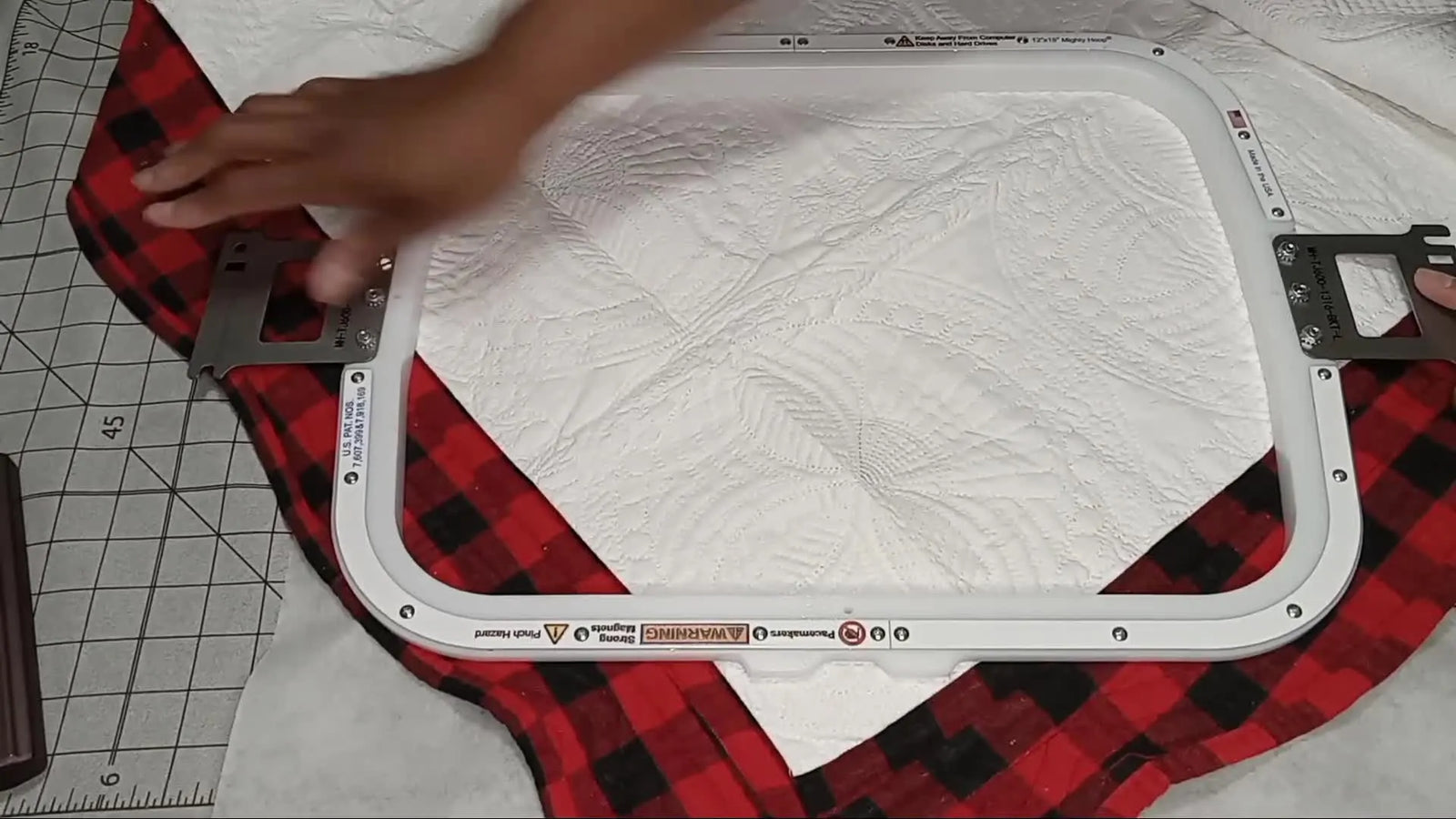

The Diagonal Load

Sean places the blanket diagonally in the 12x15 hoop. Why? The plaid border creates a strong visual frame. By angling the blanket, she ensures the design fits logically into a corner or specific quadrant without fighting the bulk of the blanket against the machine head.

The Magnetic Snap (Sensory Focus)

Sean floats the top magnetic ring over the sandwich. She aligns edges, pauses, and then lets it snap.

• Listen: You want to hear a solid, singular CLACK. A muted thud suggests fabric is bunched between the magnets.
• Feel: Run your hand over the hooped area. It should feel taut like a drum skin, but not stretched to the point of distorting the plaid pattern.




Warning: Magnetic Safety
Magnetic hoops use rare-earth magnets with crushing force.
Pinch Hazard: Keep fingers strictly on the outside* handles, never between the rings.
* Electronics: Keep these hoops at least 12 inches away from pacemakers, credit cards, and machine screens.

Setup Checklist (The "No-Return" Point):

• Visual Check: Is the hoop bracket on the correct side for your machine arm?
• Alignment: Is the blanket positioned casually, or is the plaid trim symmetrical in the hoop?
• Tension: Is the fabric drum-tight? (Pull gently on edges before the final snap).
• Clearance: Are there any thick seams (like the plaid join) directly under the magnet path? (Avoid this; it weakens the grip).

Phase 3: Loading & Gravity Management

Once the hoop is on the machine, you face the biggest enemy of quality: Drag. If a 2lb blanket hangs off the front of the hoop, it pulls the needle off-center.

The Stool Trick

Sean uses a simple shop stool placed immediately under the machine arm. The Physics: The stool supports the bulk of the blanket, keeping the "hooped" area neutral. The weight should rest on the stool, not hang from the pantograph.

The "Flap" Fold

She folds the excess blanket bulk back and pins it.

• Risk: A loose flap of quilt can vibrate into the needle path, getting sewn to the back of your design.
• Fix: Fold it back, clip it, or pin it.


Warning: Needle vs. Pin
If you use pins to hold fabric back, place them far outside the hoop area. A machine needle striking a steel pin at 800 stitches per minute can shatter the needle hook, requiring a $200+ repair.

Phase 4: The Digital Twin (Tracing Logic)

Never press "Start" without a trace. Sean uses the Needle Bar #1 Method. She manually lowers Needle Bar #1 (without piercing) to act as a visual pointer, then runs the machine's trace function.

The Two Types of Tracing:

1. Box Trace: Shows the outer square limits. Good for general clearance.
2. Contour Trace (Float): Moves around the actual shape of the design. Essential for tight fits like this triangular corner placement.


The "Parameter Error" Panic

Sean encounters a common issue: The machine thinks she is in a 10x10 hoop, but she is using 12x15. The machine refuses to move. The Fix: She enters settings and selects the correct hoop size (or "Other/Flat"). Lesson: If your magnetic embroidery hoops are larger than your standard plastic ones, you must tell the machine computer, or it will protectively lock you out.

Phase 5: The Stitch-Out

The Knockdown Stitch

Sean adds a "Knockdown" (or Nap-Tack) stitch first. This is a light net of stitching that matches the fabric color. Start with this if:

• The quilt batting is very puffy.
• The fabric has a pile (velvet, fuzzy fleece).

The knockdown stitches mat down the fibers so your sharp lettering sits on top of the quilt, rather than sinking into it.

Speed Control: The Safe Zone

She runs the machine at 600 SPM (Stitches Per Minute). Could the machine go faster? Yes. Should it? No. On a heavy quilt, high speed creates momentum (inertia). When the pantograph tries to reverse direction, the heavy blanket wants to keep moving. This causes "flagging" (bouncing fabric) and poor registration. Rule of Thumb: heavy Fabric = Lower Speed.

Troubleshooting the "Twisting Thread"

Sean shares a DIY hack for threads that crisscross and break. She uses cut-off Arizona Tea bottles to guide the thread vertically. The Engineering Principle: Thread needs to leave the cone straight up. If it whips sideways, it kinks. While the tea bottle is a clever patch, the preventative fix is ensuring your thread mast is fully extended and using thread nets on slippery cones.

Troubleshooting: The "Why is this happening?" Table

When things go wrong on a blanket job, use this logic:

Feature: Decision Tree for Stabilizer & Hooping

Use this mental flowchart before starting your next quilt project:

1. Is the blanket stretchy?

• YES: Use Meshy/Poly-mesh Cutaway stabilizer. (Tearaway will fail).
• NO: Tearaway is acceptable (as used in this project).

2. Is the design dense (25,000+ stitches)?

• YES: Use Cutaway regardless of fabric type. High stitch counts act like a saw blade on tearaway.
• NO: Tearaway is fine.

3. Production Volume?

• Single Gift: Take time to trace slow. Use clamps/pins.
• 50+ Units: You need a magnetic hooping station and a standardized preset on your machine to ensure every logo hits the exact same plaid square.

The Finish & Tooling Up

Sean checks the final result while still hooped. The placement is balanced relative to the plaid trim, the letters are crisp (thanks to the knockdown stitch), and the outlines match the fill.

This project highlights a crucial transition point for many embroiderers. When you start accepting jobs like heavy blankets, horse sheets, or jackets, standard plastic hoops become a liability. They cause hand strain (Carpal Tunnel is real in this industry) and often leave "hoop burn" (crushed fabric marks).

The Upgrade Path: When to invest?

• Symptom: You are declining heavy items because hooping them hurts your wrists.
  • Solution: Magnetic Hoops. They remove the manual force required to hoop thick items.
• Symptom: You spend 30 minutes changing thread colors for a single blanket.
  • Solution: Multi-Needle Platform. Machines like the Bai or SEWTECH multi-needle embroidery machine series allow you to set up 12-15 colors at once, turning a babysitting job into a "press start and walk away" job.

Operation Checklist (Final Go/No-Go):

• Support: Is the stool under the blanket?
• Clearance: Is all excess fabric pinned back and away from the needle bar?
• Trace: Did you watch the laser/needle confirm the design is inside the frame?
• Speed: Is the machine limited to 600-700 SPM?
• Sound: Listen for the first 100 stitches. A rhythmic "hum" is good. A harsh "clack-clack" means the needle is hitting the needle plate or hook—STOP immediately.

By controlling the weight, securing the hoop, and respecting the physics of the fabric, you turn a high-anxiety heirloom project into a repeatable, profitable service.

FAQ

• Q: Which stabilizer should be used for embroidering a heavy quilted heirloom blanket on a Bai Mirror 1501 multi-needle embroidery machine: tearaway, cutaway, or poly-mesh?
  A: Use tearaway only when the quilt has low stretch; switch to cutaway or poly-mesh when the fabric moves or the design is very dense.
  • Action: Do the bias “stability test” by pulling the blanket corner diagonally to see if it stretches.
  • Action: Choose tearaway if the blanket does not stretch much; choose cutaway or poly-mesh if the blanket stretches or distorts.
  • Action: Use cutaway when stitch count is high (dense designs can act like a saw on tearaway).
  • Success check: The hooped area stays flat during tracing and the design does not skew as stitching begins.
  • If it still fails: Slow the machine down and add better physical support to eliminate drag before changing more materials.
• Q: How can a 12x15 magnetic hoop be oriented correctly on a Bai Mirror 1501 so the hoop bracket fits the machine arm without re-hooping a heavy blanket?
  A: Rotate the bottom ring first so the metal mounting bracket matches the Bai Mirror 1501 arm direction, then place stabilizer and blanket.
  • Action: Identify the metal mounting bracket on the hoop before any fabric touches the ring.
  • Action: “Dry fit” the orientation in your head (or at the arm) so the bracket ends up on the required side for the Bai Mirror 1501.
  • Action: Hoop only after bracket orientation is confirmed to avoid weakening stabilizer from re-hooping.
  • Success check: The hoop mounts smoothly on the machine with no forced twisting and the blanket remains evenly clamped.
  • If it still fails: Stop and re-orient immediately—forcing a wrong orientation risks poor registration and wasted stabilizer.
• Q: How do you know the fabric tension is correct when hooping a thick blanket with a magnetic embroidery hoop, and what does the “CLACK” sound mean?
  A: The magnetic ring should snap with a single solid “CLACK,” and the hooped area should feel drum-tight without distorting the blanket pattern.
  • Action: Float the top ring, align edges, pause, then let the magnets snap down cleanly.
  • Action: Smooth the hooped area by hand and check that thick seams are not sitting under the magnet path.
  • Action: Gently pull edges before the final snap to remove slack without stretching the plaid/trim.
  • Success check: One crisp snap sound (not a dull thud) and a smooth, even surface with no bunching ridges.
  • If it still fails: Re-hoop and relocate away from thick seam junctions that weaken magnetic grip.
• Q: What is the safest way to manage gravity drag when embroidering a heavy quilt on a Bai Mirror 1501 multi-needle machine to prevent shifted outlines?
  A: Support the blanket’s weight with a stool under the machine arm so the hooped area stays neutral and “floats.”
  • Action: Place a stool directly under the machine arm and rest the bulk of the blanket on it.
  • Action: Fold excess blanket into a controlled “flap” and clip/pin it back so nothing can vibrate into the needle path.
  • Action: Lower speed to a safer range for heavy fabric (600 SPM is a proven safe zone in this workflow).
  • Success check: During stitching, the blanket does not tug the hoop and outlines stay aligned with fills (no creeping registration).
  • If it still fails: Reduce speed further and re-check that no part of the blanket is hanging off the front pulling the pantograph.
• Q: What should be done on a Bai Mirror 1501 when a “parameter error” happens because the machine thinks the hoop is 10x10 but a 12x15 magnetic hoop is installed?
  A: Select the correct hoop size (or an “Other/Flat” option) in the machine settings so the Bai Mirror 1501 will allow tracing and movement.
  • Action: Stop the job and enter the hoop/frame settings menu on the Bai Mirror 1501.
  • Action: Change from the smaller hoop selection to the actual 12x15 (or the closest approved flat/other setting your control offers).
  • Action: Re-run a contour trace before pressing Start.
  • Success check: The machine completes trace without locking out and the traced path stays inside the physical hoop opening.
  • If it still fails: Confirm the design size truly fits the selected frame and re-check that the correct frame type is selected, then consult the machine manual for frame limits.
• Q: How can pin use be kept safe when folding back a bulky quilt “flap” on a Bai Mirror 1501 multi-needle embroidery machine?
  A: Pin only far outside the hoop path (or use clips) so the Bai Mirror 1501 needle cannot strike metal at speed.
  • Action: Fold the excess blanket back away from the needle area before stitching starts.
  • Action: Place pins well outside any possible trace path, or use clips to eliminate the strike risk.
  • Action: Always trace (box and/or contour) after securing the flap to confirm clearance.
  • Success check: The trace runs without any near-misses and no loose fabric can drift into the needle bar area.
  • If it still fails: Remove pins immediately and switch to clipping farther away; do not “chance it” at production speed.
• Q: What is the “upgrade path” when thick blanket embroidery causes hoop burn, wrist pain, or slow color changes, and when should magnetic hoops or a SEWTECH multi-needle machine be considered?
  A: Start with technique fixes, move to magnetic hoops to reduce hooping force and marks, and consider a multi-needle platform like SEWTECH when color changes and supervision time become the bottleneck.
  • Action: Level 1 (Technique): Add a support stool, fold/secure the flap, trace every time, and keep speed around 600–700 SPM for heavy quilts.
  • Action: Level 2 (Tool): Use magnetic hoops when thick items are painful to hoop or plastic hoops leave hoop burn/crush marks.
  • Action: Level 3 (Capacity): Move to a multi-needle setup (such as SEWTECH multi-needle embroidery machine series) when frequent thread changes turn one blanket into a long babysitting session.
  • Success check: The job becomes repeatable—stable registration, less operator strain, and fewer stops for re-hooping or re-threading.
  • If it still fails: Standardize a preset (hoop size + speed + tracing habit) and test stitch new/resized designs on felt before committing to heirloom items.
