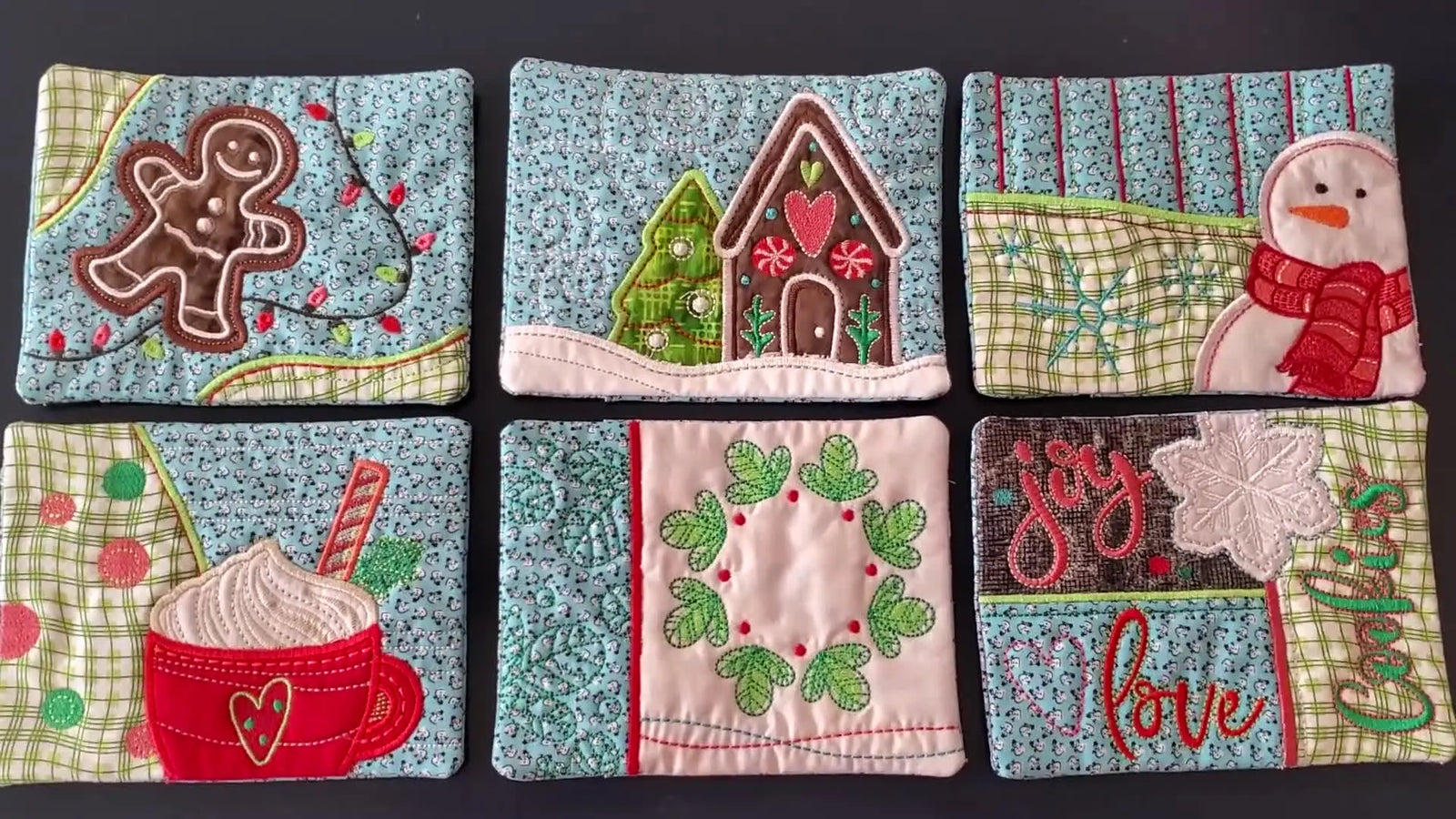

OESD “Warm & Cozy” ITH Mug Rugs on a Brother Luminaire XP1: Clean Corners, No-Pucker Quilting, and a Faster Hooping Workflow

The "Midnight Mug Rug" Survival Guide: Mastering ITH Projects from Hobbyist to Pro Production

Holiday mug rugs look deceptively “simple.” That is, until you are on Mug Rug #6 at midnight, fighting fabric puckers, soft corners, and the repetitive strain of re-hooping.

Michele’s video demonstrates why OESD’s “Warm and Cozy Mug Rugs” collection is a perennial bestseller: the projects are genuinely In-The-Hoop (ITH), the finished size is substantial, and the detailing feels expensive. However, watching a demo and running a production line of 12 gifts are two very different realities.

As someone who has trained operators on everything from single-needle home machines to 12-head industrial monsters, I have rebuilt this project into a studio-ready workflow. Below is the "Industry Whitepaper" version of this project—designed to eliminate cognitive friction, ensure safety, and help you produce a consistent, professional set without the common beginner traps.

1. The "Zero-Fail" Pre-Flight Check: Requirements & Reality

Michele correctly identifies the non-negotiable requirement: an 8x12 hoop or larger. The finished dimensions (approx. 7.25" x 6.25") place this item in the "Unforgiving Zone" for smaller hoops. It is too big for a 5x7, and trying to resize a dense ITH file to fit is a guaranteed recipe for broken needles and bulletproof density.

The "Safe Zone" Verification

Before you cut a single piece of fabric, perform this physical check on your machine:

1. Open the design on your screen.
2. Visually verify the margins: Ensure there is at least 10-15mm of clearance between the design edge and the plastic hoop frame.
3. Check your actual sew field: If you are shopping for a new machine or upgrading, specifically look for a brother embroidery machine with 8x12 hoop capacity (or similar). Note that "Hoop Size" and "Sewable Area" are often different; trust the sewable area.


2. Material Science: The "Hidden" Prep That Dictates Quality

Michele shows the finished samples, but she glosses over why they look good. In embroidery, Input = Output. If you feed the machine unstable ingredients, you will get a distorted result.

The "Hidden Consumables" List

Beginners often miss these, but pros rely on them:

• Temporary Spray Adhesive (e.g., Odif 505): Crucial for holding batting flat without pinning.
• Curved Appliqué Scissors: Essential for trimming fabric close to the tack-down stitch without snipping the threads.
• New Needles: Start a large project with a fresh Topstitch 90/14. The larger eye protects the thread during high-speed friction.

Prep Checklist: The "Mise-en-place"

• Hoop Check: 8x12 minimum verified.
• Fabric Strategy: Pre-cut all 12 blocks. Use a rotary cutter for exact 90-degree corners.
• Stabilizer Selection: Do not use Tear-Away for the main structural hoop. Use Medium Weight Cut-Away (2.5oz). Why? The density of ITH quilting will perforate tear-away, causing the design to separate from the stabilizer during the run.
• Safety Protocol: Remove jewelry/loose sleeves to prevent snagging on the moving pantograph.

If you are new to hooping for embroidery machine mechanics, remember: Hooping is construction. For ITH projects, the hoop acts as the foundation of a house. If the foundation (stabilizer) is loose, the walls (fabric) will crack (pucker).

3. The Physics of the "Envelope Back"

When Michele turns the mug rug inside out, she reveals the mechanical magic of ITH. The "Envelope Back" relies on precise layering.

The "Drum Skin" Sensory Anchor

When you hoop your stabilizer, tap it.

• Audio Check: It should sound like a dull thud (thump-thump), not a high-pitched ping (too tight/stretched) and not a rattle (too loose).
• Tactile Check: It should feel taut but have a tiny bit of "give" if you press firmly.

Why Puckering Happens (The Science)

Puckering is physics. As the machine adds thousands of stitches, it pushes fabric around. If your fabric is stretched during hooping, it will try to shrink back to its original state once removed, trapping the stitches in ripples.

• The Rule: Hoop the stabilizer tight; float or spray-baste the fabric neutral (flat, not stretched).


4. Operation: Speed Limits & Safety Zones

Michele stitches on a Brother Luminaire XP1. While these machines can stitch fast, high speed is the enemy of precision in ITH projects involving layers.

The "Beginner Sweet Spot" Settings

• Speed: Cap your machine at 600 - 700 SPM (Stitches Per Minute).
  • Why? Slower speeds reduce hoop vibration and give the top layer time to settle between needle penetrations, resulting in cleaner text and sharper outlines.
• Tension:
  • Visual Check: Look at the back of the embroidery. You should see about 1/3 bobbin thread (white) centered between 2/3 top thread colors.

Warning: NEVER use your fingers to smooth fabric inside the hoop while the machine is running. If a needle hits bone, it can shatter, requiring surgery to remove fragments. If fabric needs holding, use painter's tape or a eraser-tipped pencil to gently guide it—keeping hands at least 6 inches from the needle bar.

If you are using a brother luminaire magnetic hoop, the strong magnetic clamping force often eliminates the need to "hold" fabric entirely, making the process significantly safer for your hands.

5. Finishing: The "Crisp Corner" Technique

The difference between "Homemade" (lumpy corners) and "Handmade" (crisp corners) lies in bulk management. Michele uses a point turner, but we need to prep the corner before turning.

The Trimming Algorithm

1. Remove project from hoop and tear away excess stabilizer.
2. Trim edges to 1/4 inch seam allowance.
3. The Critical Step: Clip the corners at a 45-degree angle, getting close to—but not cutting—the stitch line. Then, trim the sides of the corners slightly to reduce the "dog ear" bulk.
4. Turn & Push: Insert the point turner. You should feel a satisfying "pop" as the corner squares out.

Do not force the tool. If you have to stab at it, you have too much bulk left inside. Turn it back and trim more batting away.

6. Logic Gate: Fabric & Stabilizer Decision Tree

One size does not fit all. Use this logic tree to determine your "Sandwich" recipe to prevent warping.

START: What is your main top fabric?

1. Quilting Cotton (Woven, Stable)?
   • Foundation: Medium Weight Cut-Away (2.5oz).
   • Topping: None usually needed.
   • Note: This is the easiest path for beginners.
2. Flannel or Textured Cotton?
   • Foundation: Heavy Cut-Away or Poly-Mesh.
   • Topping: Water Soluble Topping (Solvy).
   • Why? The topping prevents stitches from sinking into the fuzz (nap) of the flannel.
3. Stretchy Material (Knits)?
   • Foundation: Fusible No-Show Mesh (Poly-Mesh).
   • Action: Iron the stabilizer to the fabric BEFORE hooping to stop stretch.
   • Note: Highly challenging for coasters; test first.
4. Contains Vinyl Elements?
   • Foundation: Standard Cut-Away.
   • Action: SLOW DOWN. Vinyl creates friction. Run machine at 500 SPM to prevent needle heat from melting the material.

For volume production involving thick layers, professional magnetic embroidery hoops can standardize the pressure applied to these different "sandwiches," ensuring that a thick flannel sandwich is held as securely as a thin cotton one without adjusting screws.

7. The Production Bottleneck: Hooping Fatigue & "Hoop Burn"

If you are making one gift, standard hoops are fine. If you are making 12, the Screw-and-Grid method becomes a nightmare. This is the "Commercial Trigger Point."

The Pain Point: "Hoop Burn" (shiny crushed rings on fabric) and wrist strain from tightening screws. The Criteria: Are you doing production runs of more than 5 items? The Solution: Upgrade your tooling.

This is where a magnetic hoop for brother or similar system becomes an ergonomic necessity, not just a luxury.

Why Upgrade to Magnetic Frames?

• Zero Hoop Burn: Because they clamp vertically rather than wedging fabric into a ring, they leave almost no marks.
• Speed: Hooping time drops from ~2 minutes to ~10 seconds.
• Layering: They handle the bulk of batting + backing + top fabric without popping open.

Warning: MAGNETIC SAFETY. These are industrial-strength neodymium magnets. They can pinch fingers severely (blood blister risk) and must be kept away from pacemakers, MRI components, and magnetic strip cards. Always slide the magnets off; never pry them up.

If you are searching for how to use magnetic embroidery hoop tutorials, focus on "floating" techniques. The magnet allows you to float the stabilizer and stick the fabric on top effortlessly.

8. Color Theory: "The Palette Rule"

Michele suggests customizing colors. To keep your set looking like a cohesive "expensive" bundle:

1. The 60-30-10 Rule:
   • 60% Main Color (Background Fabric).
   • 30% Secondary Color (Thread/Applique).
   • 10% Accent Color (High contrast thread/Sparkle).
2. Thread Weight: Use 40wt Polyester for the main construction (strength/no fade) but consider Rayon for the satin stitches if you want a softer, silkier sheen on the decorative elements.


9. Batching Strategy for Efficiency

Michele shows the finished set. To get there without losing your mind, use "Batch Processing." Do not make one rug from start to finish then start the next.

The Workflow:

1. Cut ALL fabric for 12 rugs.
2. Thread the machine with the first common background color.
3. Stitch all 12 "Placement Lines" and "Tack Downs" (if possible within your file sorting). Note: For distinct designs, group them by thread color. Stitch all "Snowmen" today; stitch all "Gingerbread" tomorrow.

This approach minimizes thread changes—the #1 time killer in single-needle embroidery. Efficient makers often look into magnetic hoops for embroidery machines specifically to speed up the transition between these batched runs.

10. The "Wall Hanging" Hack

Michele’s tip on reusing designs for a wall hanging is brilliant for ROI (Return on Investment).

• Technique: Instead of finishing the envelope back, stop the machine after the quilting/design phase. Remove from hoop. Trim to a square block. Center these blocks into a quilt top.
• Stabilizer Note: If making a wall hanging, switch to a lighter stabilizer (Poly-Mesh) so the final quilt isn't stiff as a board.

If you are using a hooping station for machine embroidery, you can ensure every block is centered perfectly, which is critical when sewing blocks together later.

11. Troubleshooting Matrix: structured Problem Solving

When things go wrong, do not panic. Follow this diagnostic path (Low Cost to High Cost).

12. The Path to Pro: Scaling Your Studio

Michele frames these as fun projects. But if you begin selling them, you need to think about Production Ergonomics.

Level 1: The Hobbyist

• Equipment: Single Needle Machine, Standard Hoops.
• Focus: Learning, patience, manual trimming.

Level 2: The Enthusiast (Batching)

• Equipment: Upgraded Stabilization, Magnetic Hoops (Home).
• Focus: Speed, preventing hoop burn, reducing wrist strain.
• Tool: When you graduate to a hoop master embroidery hooping station, you are paying for consistency.

Level 3: The Production Studio

• Equipment: Multi-Needle Machine (e.g., SEWTECH).
• Focus: Profitability.
• Why? A multi-needle machine changes threads automatically (saving 20+ minutes per set) and uses tubular hoops that make ITH backing simpler. If you are producing 50+ sets for a holiday market, a single-needle machine is a bottleneck; a multi-needle is an employee.

Final Operational Checklists

Setup (Pre-Stitch):

• Bobbin is full (checking mid-design is a pain).
• Needle is fresh (90/14 Topstitch).
• Hoop path is clear of obstacles (walls, coffee cups).
• Appliqué scissors and Tape are within arm's reach.

Execution (During Stitch):

• Listen: A rhythmic "chug-chug" is good. A slapping or grinding noise requires an immediate STOP.
• Watch: Keep eyes on the feed for the first minute to ensure no fabric enters the throat plate.
• Safety: Hands in lap or on table—never near the needle.

By following this structured approach, you move from "hoping it works" to "knowing it will work." Happy stitching!

FAQ

• Q: How can a Brother Luminaire XP1 user verify an 8x12 hoop design will not hit the hoop edge during an ITH mug rug stitch-out?
  A: Verify the sewable-area margins on-screen before stitching, and keep at least 10–15 mm clearance from the hoop frame.
  • Open the design on the machine screen and check the full boundary box.
  • Confirm the design edges sit at least 10–15 mm inside the plastic hoop frame on all sides.
  • Re-center the design if any side looks tight before the first stitch.
  • Success check: The needle path “runs” without any point approaching the hoop frame, and the design boundary looks evenly spaced.
  • If it still fails: Stop immediately and re-hoop/reposition—needle breakage is often caused by the design being too close to the hoop edge.
• Q: What stabilizer should be used for dense ITH quilting mug rugs, and why should Tear-Away stabilizer be avoided?
  A: Use medium weight cut-away (2.5 oz) for the main hooping because dense ITH quilting can perforate tear-away and cause separation mid-run.
  • Hoop medium weight cut-away as the “foundation” layer.
  • Float or spray-baste the fabric layers on top instead of stretching fabric in the hoop.
  • Avoid using tear-away as the main structural stabilizer for this project style.
  • Success check: The project stays bonded to the stabilizer throughout stitching with no shifting or “pulling free” during quilting.
  • If it still fails: Reduce speed and re-check hooping tightness on the stabilizer (taut, not overstretched).
• Q: How can an embroidery operator tell if stabilizer hooping tension is correct using the “drum skin” test?
  A: Hoop the stabilizer taut so it feels like a drum with slight give—tight enough to support stitches but not stretched hard.
  • Tap the hooped stabilizer and listen to the sound.
  • Aim for a dull thud (thump-thump), not a high-pitched ping (too tight) and not a rattle (too loose).
  • Press firmly with a fingertip to confirm it is taut with a tiny bit of “give.”
  • Success check: The stabilizer surface is smooth and stable, and stitching does not distort or ripple as the design builds.
  • If it still fails: Re-hoop the stabilizer tighter (without stretching) and float the fabric neutral instead of hooping fabric under tension.
• Q: What machine speed and tension check are a safe starting point for ITH mug rugs on a Brother Luminaire XP1?
  A: Cap stitching speed around 600–700 SPM and confirm balanced tension by checking the back for roughly 1/3 bobbin thread centered between 2/3 top thread.
  • Lower the machine speed to reduce hoop vibration and improve precision on layered ITH work.
  • Stitch a short section, then flip the piece and inspect the underside.
  • Adjust only if the bobbin thread is not centered or if top thread is being pulled through excessively.
  • Success check: The back shows about 1/3 bobbin thread centered, and outlines/text look cleaner with less wobble at the slower speed.
  • If it still fails: Re-thread the top thread completely first (many “bobbin-looking” issues start with top threading).
• Q: How can a Brother or home embroidery machine user fix birdnesting (thread clumps under the throat plate) during ITH stitching?
  A: Re-thread the TOP thread first—most birdnesting comes from the top thread not being seated in the tension disks.
  • Stop the machine and remove the hoop to clear the clump safely.
  • Completely re-thread the top path with the presser foot up (so the tension disks can open), then re-seat the thread.
  • Restart and watch the first minute closely to ensure the top thread is feeding smoothly.
  • Success check: The underside no longer forms a clump and the stitch line lays flat with normal tension.
  • If it still fails: Replace the needle and slow down (high speed plus friction can worsen shredding and nesting).
• Q: What are the safest handling rules for magnetic embroidery hoops to prevent finger pinches and magnetic hazards?
  A: Treat magnetic hoops as industrial-strength magnets: slide magnets off (never pry) and keep them away from pacemakers and magnetic-strip cards.
  • Slide the magnetic clamps sideways to release—do not pull straight up.
  • Keep fingertips out of the closing gap to avoid severe pinches (blood blister risk).
  • Store magnets away from pacemakers, MRI environments, and credit cards/hotel keys.
  • Success check: Magnets release smoothly with controlled sliding and no snapping onto fingers or fabric folds.
  • If it still fails: Slow down the handling process and reposition the fabric first so magnets can be placed without force.
• Q: How can an embroidery business reduce hoop burn and wrist strain when producing 12+ ITH mug rugs, and when is it time to upgrade equipment?
  A: Start with workflow and stabilization fixes, then consider magnetic hoops for faster, gentler hooping, and move to a multi-needle machine when single-needle batching becomes the bottleneck.
  • Level 1 (Technique): Batch cut fabrics, batch stitch common steps/colors, and avoid over-tightening screw hoops that crush fabric.
  • Level 2 (Tooling): Use magnetic hoops to reduce hooping time (~2 minutes to ~10 seconds) and minimize hoop burn on delicate fabrics.
  • Level 3 (Capacity): Upgrade to a multi-needle machine when frequent thread changes and re-hooping time prevent profitable volume output.
  • Success check: Hooping becomes fast and repeatable, fabric shows minimal or no shiny rings, and batch output feels sustainable without wrist pain.
  • If it still fails: Track the time lost to thread changes and hooping—if those dominate production time, capacity (multi-needle) is often the limiting factor.
