PE Design 11 Appliqué Wizard: The Real Difference Between Single-Needle “Replace” and Multi-Needle “Add” (Plus Hole Sewing + ScanNCut Offsets)

Appliqué in PE Design 11 can feel deceptively simple—right up until the Wizard greys out an option you swear you used yesterday, or your machine’s satin stitch lands 2mm to the left, leaving a raw fabric edge staring back at you.

I have spent 20 years in embroidery production, and I have watched that exact panic play out in studios worldwide. Appliqué is not just about software buttons; it is a physical negotiation between fabric, thread tension, and stabilizer.

We are going to slow this process down and rebuild the workflow the way Terry demonstrates it, but with the added layer of industrial best practices. We will cover what changes when you switch machine contexts, how to handle the critical “Add vs. Replace” decision, and how to physically guarantee your fabric doesn’t shift.

The “Scissors Icon” Moment in PE Design 11 Appliqué Wizard: Why Your Menu Changes Overnight

When you draw a simple shape and open the Appliqué Wizard, the interface might look different than the tutorial you are watching. The culprit is rarely the shape itself; it is the machine context.

In PE Design 11, look for the scissors icon or the machine type selector on your design page. This setting tells the software if you are designing for a single-needle home machine or a multi-needle production machine.

This is a critical distinction that changes your available tools:

• Multi-needle context: Exposes options for a cutting blade accessory (if supported). It assumes you might have hardware attached to the machine to slice fabric.
• Single-needle context: Relies on the running stitch method for placement. It assumes you will remove the hoop to trim fabric by hand with appliqué scissors.

If you have ever thought, “Why can’t I select that cutting option?”, check your Design Page Settings immediately. You are likely in the wrong machine mode.

The “Hidden” Prep Before You Digitize Appliqué in PE Design 11 (So the Stitch-Out Doesn’t Humiliate You)

Terry starts with shapes, but in the professional world, the success of appliqué is 80% preparation and only 20% digitizing. If your fabric moves inside the hoop, no amount of software tweaking will fix the gap in your satin stitch.

One rule governs all embroidery: If your fabric can move, it will.

Before you digitize, you must establish a hooping for embroidery machine routine that provides "drum-tight" tension without distorting the fabric grain.

Hidden Consumables You Need:

• Double-curved Appliqué Scissors: Essential for trimming close to the tackdown line without snipping the base fabric.
• Temporary Spray Adhesive (e.g., Odif 505): To hold the appliqué fabric flat during the placement phase.
• Heat-Away or Water-Soluble Topping: If using high-pile fabric (like minky or towels) to keep the satin stitch from sinking.

Prep Checklist (The "Pre-Flight" Safety Check):

• Fabric Pre-Shrink: Have you washed/steamed your appliqué fabric? (If not, it will shrink under the satin stitch, revealing a gap later).
• Stabilizer Selection: Are you using a Cutaway stabilizer for knits? Test: Pull the hooped stabilizer. It should sound like a drum skin when tapped.
• Needle Check: Are you using a fresh 75/11 needle? Burrs on old needles will drag fabric and ruin alignment.
• Hoop Tension: Are you tightening the screw precisely? Sensory Check: You should not be able to pull the fabric edges through the closed hoop without significant force.

Multi-Needle Appliqué Wizard in PE Design 11: Cutting Blade vs Running Stitch (What Terry Actually Clicks)

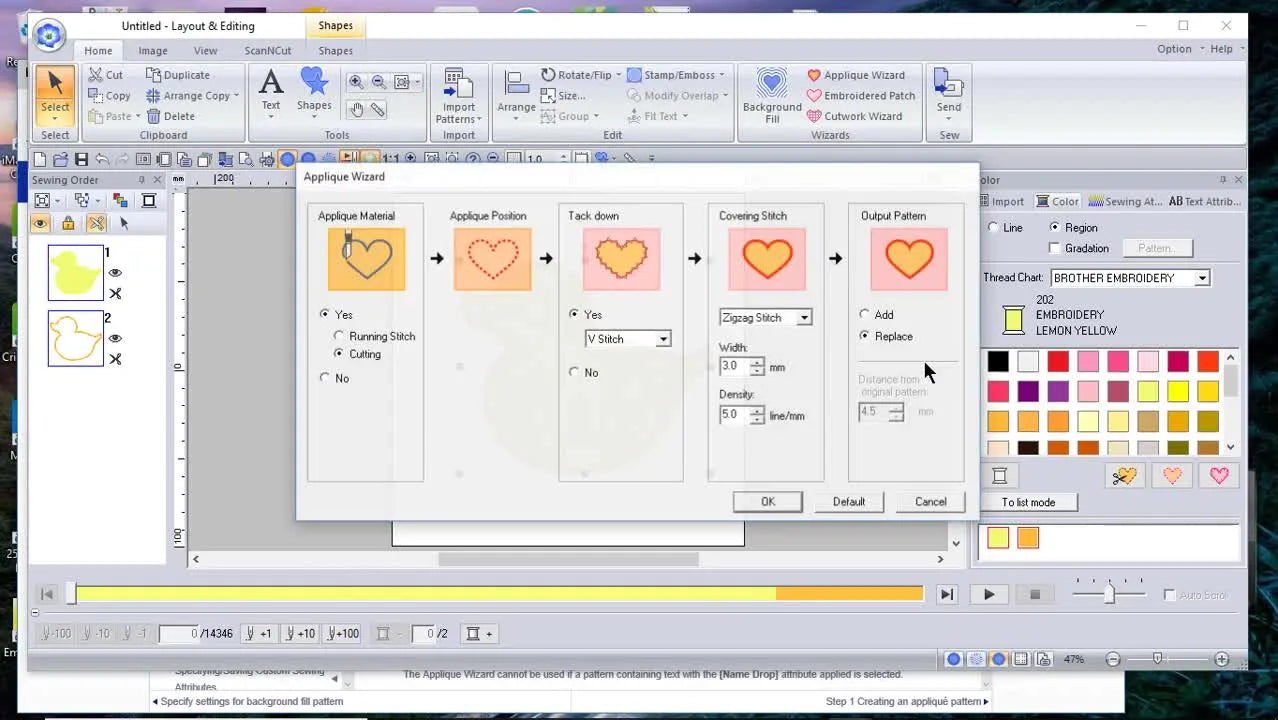

Terry selects the shape and opens the Appliqué Wizard. In the multi-needle mode, the Wizard offers a choice between a cutting blade method and a running stitch method.

Here is the operational difference:

• Cutting Blade Method: Generates a path for a specialized blade tool. This is rare for most users.
• Running Stitch Method: The industry standard. The machine stitches an outline, stops, and waits for you to place fabric or trim.

Warning: If you are lucky enough to use a machine with a cutting blade attachment, never touch the hoop area while the machine is active. These blades are surgical-grade sharp. Keep hands clear to avoid severe injury.

Terry notes a real-world limitation: Not all profiles accept the cutting tool. Even if the software invites you to click "Cutting," your hardware profile might block it. When in doubt, the Running Stitch method is the universal language of appliqué.

“Add” vs “Replace” in PE Design 11 Appliqué Wizard: Patch Production vs Pure Appliqué (Pick the Right One)

This is the most common failure point for beginners. The "Add" vs. "Replace" tick box determines the physics of your final product.

When Terry chooses **Add** (The "Patch" Workflow)

Terry shows that Add preserves the original embroidery fill inside the shape.

1. Stitch Simulation: The complex interior design stitches first.
2. Appliqué Border: The machine runs a cutting line around the finished embroidery.

Use Case: You are making a standalone patch to iron onto a jacket later.

When Terry chooses **Replace** (The "Classic" Appliqué)

Terry selects Replace and the interior fill vanishes. The software understands you want the fabric to provide the color, not thread.

1. Placement Stitch: A running stitch showing you where to put the fabric.
2. Tackdown Stitch: A zigzag or running stitch to lock the fabric.
3. Satin Border: The final cover stitch.


Pro Tip: If you are struggling with "hoop burn" (permanent ring marks on delicate items) during this multi-step process, upgrading to a magnetic embroidery hoop can be a game-changer. Unlike friction hoops that require force, magnetic hoops clamp fabric flat without crushing the fibers, making the "trim and replace" motion of appliqué much faster and safer for the garment.

Reading the Sewing Order Panel in PE Design 11: The Icons That Tell You What Will Happen Next

Terry pauses to inspect the Sewing Order panel. You must learn to read this like a map.

• Scissor Icon: Appliqué Material (The "Position" step).
• Zigzag/Running Icon: Tackdown (The "Lock" step).
• Satin Icon: The Cover Stitch (The "Finish" step).


Setup Checklist (Software Validation):

• Verify Sequence: Does the placement stitch happen before the tackdown?
• Color Stops: Does the software insert a "Stop" (color change) between placement and tackdown? Visual Check: Look for a hand icon or a "Stop" command in the simulator. Without this, the machine will not pause for you to place the fabric.
• Machine Speed: Experience Data: For the placement and tackdown steps, lower your machine speed to 400-600 SPM (Stitches Per Minute). High speed here causes fabric to ripple.

The “Exposed Fabric Edge” Problem: Why Your Satin Stitch Seems to Sew Inward

A novice user asked why their satin stitch "sews inwards," leaving the cut raw edge visible. This is rarely a software error; it is a mechanical variance issue.

Embroidery machines have "Push" and "Pull." As the needle penetrates, it pushes fabric away. If your fabric is not stabilized perfectly, the tackdown line moves.

The Solution Hierarchy:

1. Stabilize Better: Use a heavier Cutaway (2.5oz or 3.0oz).
2. Increase Overlap: In PE Design settings, look for "Appliqué Width" or "Coverage." Standard is often 3.0mm. Expert Advice: Bump this to 3.5mm or 4.0mm for high-pile fabrics (like fleece) to ensure the edge is covered.
3. Upgrade Hooping: If you are doing volume production (e.g., 50+ uniform shirts), manual hooping inconsistency is your enemy. A hooping station for embroidery machine combined with magnetic frames ensures that every single shirt is held at the exact same tension, eliminating the "drift" that causes exposed edges.

Warning: Magnetic Hoop Safety. Commercial magnetic hoops use industrial-grade magnets (Neodymium). They are incredibly strong.
1. Pinch Hazard: They can crush fingers if snapped together carelessly.
2. Medical Device Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.

Hole Sewing in PE Design 11: The Donut Appliqué Trick That Saves You From “Why Did It Fill the Center?”

Terry’s hole sewing demo addresses a massive time-waster: The "Donut Problem." If you put a small circle inside a large circle, the software sees two solids, not a rigid ring.

The Workflow:

1. Draw Large Circle.
2. Draw Small Circle inside.
3. Select BOTH (Hold Shift).
4. Go to Modify -> Modify Overlap -> Set Hole Sewing.




Only after setting the hole do you activate the Appliqué Wizard. Now, the software knows the "dough" is the appliqué, and the "hole" is empty.

Why this matters: If you don't do this, the machine will drop thousands of stitches in the center, creating a stiff, "bulletproof" patch on the chest that feels terrible to wear.

When PE Design 11 Greys Out “Cutting” in Appliqué Wizard: The Fast Fix

If the "Cutting" option is greyed out, do not reinstall your software.

Troubleshooting Logic:

1. Check Context: Are you in Single-Needle mode? (Switch to Multi-Needle).
2. Check Profile: Does your selected machine model support a cutter?
3. Fallback: Use the Running Stitch method. It is cleaner and offers more control for manual trimming anyway.


ScanNCut Export from PE Design 11: The 1–2 mm Offset Rule That Prevents Appliqué Lift

If you own a Brother ScanNCut, you can bypass manual trimming entirely. Terry navigates to the ScanNCut tab and clicks Export.

The Critical Number: Terry recommends an offset of 1.0mm to 2.0mm.

• Why? When you embroider the placement stitch, the base fabric shrinks slightly. If you cut your appliqué fabric to the exact size of the line, it will be too small by the time it lands on the hoop.
• The Sweet Spot: Set offset to 1.5mm. This gives the tackdown stitch enough fabric to "bite" into without leaving excess material sticking out of the satin border.


To ensure that your pre-cut fabric matches the hoop position perfectly, professional shops often use magnetic hoops for brother machines. The magnetic clamping mechanism prevents the "hoop distortion" that warps the placement line, ensuring your precision-cut fabric fits the stitched outline exactly.

“How Do I Know the Measurements of What I Create?”—A Practical Answer for PE Design 11 Users

A user asked how to verify measurements. PE Design does not always flash dimensions in your face.

The Professional Verification Method:

1. Grid Lines: Turn on the grid (View -> Grid) and set it to 10mm (1cm) squares.
2. Design Page Info: Look at the bottom status bar; it often displays the bounding box size of the selected object.
3. The "Paper Test": Before sewing on a $50 jacket, print a 1:1 scale paper template from the software. Place it on the garment to verify size.

For shops doing repeatable logo placements (Left Chest), standardizing your workflow with a hoop master embroidery hooping station or similar jig system removes the distinct need to measure every single time—you simply rely on the jig for consistent placement.

“I Only Want the Final Satin Border, No Appliqué”—What Terry Suggests

You don't always need the Appliqué Wizard. If you just want a satin shape:

1. Draw the shape.
2. Set the Line Sew attribute to Zigzag or Satin.
3. Set the Region Sew attribute to None.

This is faster and results in a lighter file than stripping down an appliqué macro.

Importing an Outline and Turning It Into Appliqué: What’s Possible (and What Usually Trips People)

Terry clarifies that you can turn imported vector files (SVG/FCM) directly into appliqué steps.

• Vector Files: Recommended. Clean lines convert perfectly to appliqué paths.
• Stitch Files (PES/DST): Difficult. The software perceives them as thousands of needle points, not a "shape." You must trace them or convert to blocks first.

Fabric Control During Appliqué: A Simple Decision Tree for Stabilizer + Hooping Choices

Use this logic flow to determine your setup. Getting this wrong is the #1 cause of design failure.

Decision Tree: Fabric Type → Setup Strategy

1. Structure: Is the fabric Stretchy (T-Shirt/Performance Wear)?
   • YES: You must use Fusible Mesh or Cutaway Stabilizer. Tearaway will fail. Do not pull the fabric when hooping. Recommendation: Use magnetic embroidery hoops for brother or similar systems to clamp the knit fabric gently without stretching the grain.
   • NO: Proceed to step 2.
2. Texture: Is the fabric High Pile (Towel/Fleece)?
   • YES: Use a Water-Soluble Topping (Solvy) to keep stitches on top. Increase Satin Width to 4.0mm.
   • NO: Standard setup applies.
3. Volume: Are you sewing 1 item or 100?
   • 1 Item: Manual hooping is fine. Take your time.
   • 100 Items: Manual hooping will cause fatigue and errors. Upgrade to a magnetic hoop workflow for speed and consistency.

The Upgrade Path (Without the Hype): When Tools Actually Save You Time and Rework

If you are a hobbyist doing one shirt a month, the standard hoops included with your machine are sufficient. However, if you are hitting specific pain points, it is time to look at your infrastructure.

• Pain Point: "My fabrics are marked/burned by the hoop ring."
  • Solution: Magnetic Hoops. Zero friction, zero burn.
• Pain Point: "I spend more time changing thread than sewing."
  • Solution: Multi-Needle Machine (SEWTECH/Brother/etc.). The ability to set 6-10 colors and walk away dramatically increases your hourly profit.
• Pain Point: "I can't hoop thick items like backpacks or pockets."
  • Solution: Industrial-style brother 4x4 embroidery hoop clamps or small magnetic frames designed for tight spaces.

Operation Checklist: The Stitch-Out Routine That Prevents 80% of Appliqué Mistakes

Before you press "Start," run this final check:

• Context: Is PE Design set to the correct Machine Type?
• Type: is it "Add" (Patch) or "Replace" (Appliqué)? Verified in Simulator?
• Holes: If using a donut shape, did you use "Set Hole Sewing"?
• Speed: Is the machine slowed down to 600 SPM for the tackdown phase?
• Offset: If using ScanNCut, is the offset set to +1.5mm?
• Hoop: Is the fabric drum-tight (but not stretched) in the hoop?

Follow Terry’s logic, but back it up with these industrial safeguards, and your appliqué will transition from "stressful experiment" to "reliable product."

FAQ

• Q: Why is the “Cutting” option greyed out in Brother PE-Design 11 Appliqué Wizard when using a multi-needle appliqué workflow?
  A: The “Cutting” option is usually greyed out because the machine context or machine profile does not support a cutter—switch context first, then use Running Stitch as the reliable fallback.
  • Switch: Open Design Page Settings and change from Single-Needle to Multi-Needle context (the scissors/machine type selector).
  • Verify: Confirm the selected machine model/profile supports a cutting blade accessory.
  • Use: Choose the Running Stitch method if the cutter remains unavailable (it works on essentially all setups).
  • Success check: The Appliqué Wizard shows Running Stitch steps and the Sewing Order displays a clear placement/tackdown/cover sequence.
  • If it still fails: Re-check that the correct machine profile is selected; do not reinstall software as a first move.
• Q: What is the correct “Add” vs “Replace” setting in Brother PE-Design 11 Appliqué Wizard for classic appliqué versus patch-style production?
  A: Use Replace for classic appliqué (fabric becomes the fill), and use Add for patch-style work (original interior stitching stays).
  • Choose: Select Replace when the goal is placement stitch → tackdown → satin border over fabric.
  • Choose: Select Add when the goal is to keep the original interior embroidery and add an appliqué border afterward (patch workflow).
  • Confirm: Inspect the Sewing Order panel to ensure the expected steps appear in the correct order.
  • Success check: In Replace, the interior fill disappears and the first step is a placement outline; in Add, the interior stitches remain and sew before the appliqué border.
  • If it still fails: Re-open the Wizard on the correct selected shape (not grouped/incorrect object) and re-apply the setting.
• Q: How do I stop Brother PE-Design 11 appliqué satin borders from leaving an exposed raw fabric edge because the satin stitch “sews inward”?
  A: This is commonly caused by fabric shift (push/pull) and insufficient coverage—stabilize first, then increase appliqué coverage width.
  • Upgrade: Use a heavier cutaway stabilizer (the blog suggests 2.5 oz or 3.0 oz when drift is happening).
  • Adjust: Increase appliqué satin coverage/width from a typical 3.0 mm up to 3.5–4.0 mm for high-pile fabrics (like fleece).
  • Control: Slow machine speed during placement/tackdown to about 400–600 SPM to reduce rippling and movement.
  • Success check: After stitching, the satin border fully covers the trimmed edge with no fabric “peek-out” around curves.
  • If it still fails: Improve hooping consistency; for volume work, consistent clamping (often via magnetic frames + a hooping station) may reduce drift.
• Q: What is the “drum-tight” success standard for hooping appliqué fabric and stabilizer so Brother PE-Design 11 placement and tackdown stitches stay aligned?
  A: The hooping must be firm enough to resist movement without stretching the fabric grain—alignment problems usually start at hooping, not in the software.
  • Prep: Pre-shrink appliqué fabric (wash/steam) to prevent later shrink gaps under satin stitches.
  • Hoop: Tighten the hoop screw so fabric is secure but not distorted; do not pull/stretch knits while hooping.
  • Support: Match stabilizer to fabric (cutaway for knits is emphasized) and keep layers flat (temporary spray adhesive can help during placement).
  • Success check: Tap the hooped stabilizer/fabric— it should feel and sound “drum-like,” and fabric edges should not slide through the closed hoop without significant force.
  • If it still fails: Replace the needle (a fresh 75/11 is recommended in the blog) and re-check stabilizer weight and fabric handling.
• Q: What hidden consumables should be used before running Brother PE-Design 11 appliqué to prevent trimming mistakes and stitch sink on towels or minky?
  A: Use the right scissors, temporary hold, and topping—these three items prevent most “humiliating” stitch-outs.
  • Trim: Use double-curved appliqué scissors to cut close to the tackdown without nicking the base fabric.
  • Hold: Use temporary spray adhesive to keep appliqué fabric flat during placement and before tackdown.
  • Cover: Add heat-away or water-soluble topping for high-pile fabrics so satin stitches don’t sink into the pile.
  • Success check: After trimming and stitching, the edge is clean (no base fabric cuts) and the satin border sits on top of the fibers, not buried.
  • If it still fails: Increase satin width (the blog suggests up to 4.0 mm for high-pile) and slow the tackdown phase.
• Q: What is the safe operating warning for a cutting blade attachment in Brother PE-Design 11 multi-needle appliqué workflows?
  A: Keep hands completely clear of the hoop area when a cutting blade method is active—treat the cutter as a serious injury hazard.
  • Stop: Do not touch the hoop, fabric, or blade path while the machine is running or positioning.
  • Wait: Let the machine fully stop before reaching into the sewing field for trimming or fabric handling.
  • Prefer: Use the Running Stitch method if operator safety or uncertainty is a concern.
  • Success check: All fabric handling happens only during a confirmed stop/pause, not while the head is moving.
  • If it still fails: Disable cutter usage in your workflow and run manual trimming with appliqué scissors.
• Q: What is the magnetic embroidery hoop safety rule when using industrial-strength neodymium magnetic frames for appliqué production?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices—handle magnets slowly and deliberately.
  • Handle: Separate and bring magnetic parts together carefully to avoid snapping and finger crushing.
  • Protect: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps (as noted in the blog).
  • Control: Place the hoop on a stable surface during loading to prevent sudden shifts.
  • Success check: The frame closes smoothly without snapping, and fabric is clamped flat without ring marks or crushed fibers.
  • If it still fails: Switch back to standard hoops for delicate handling tasks, then revisit magnetic hoop technique once safe handling is consistent.
