Shell Tuck Trim on a Brother Sewing Machine: The Tension Trick That Makes a Waffle-Weave Spa Robe Look Boutique

The goal of a waffle-weave spa robe is "effortless luxury." The reality of sewing one, however, is often a battle against physics. Waffle weave is a dimensional, unstable fabric that loves to ravel, shift, and swallow embroidery stitches whole.

This guide takes the core methodology from Joanne Banko’s spa robe project and reconstructs it with the rigorous safety checks and industrial insights of a professional embroidery floor. We will move beyond "hope it works" and into "know it works," utilizing precise machine parameters, sensory cues, and the right tooling to guarantee boutique-quality results.

1. Material Physics: The "Hidden" Prep Before You Cut

Waffle weave is cozy because of its honeycomb structure. That same structure makes it a nightmare for stability. It behaves like a loose weave: it distorts on the bias, and raw edges disintegrate into lint if looked at wrong.

Before you make a single cut, we need to establish Quality Control (QC) protocols.

The "Three-Second" Identification Rule

Textured fabrics can deceive the eye. Joanne Banko’s rule is golden: "If it takes longer than three seconds to tell the right side from the wrong side, it probably doesn't matter by look—but it matters for construction."

Once you cut, you lose the grainline reference.

• Action: Immediately mark the Wrong Side (WS) of every piece.
• Tool: Use low-tack painter's tape or a water-soluble fabric pen. Do not rely on memory.

Planning for the "Crush Factor"

If you plan to embroider a monogram later, you are facing a specific threat: Hoop Burn. Traditional plastic hoops require friction and pressure to hold fabric. On a lofty waffle weave, this pressure flattens the honeycomb texture, leaving a permanent ring that no amount of steam will fully remove.

• Pro Insight: This is where hooping for embroidery machine setups fail most often. If you can see the hoop ring before you start stitching, you have already compromised the garment. We will discuss magnetic solutions in the embroidery section, but maintain this awareness now: Preserve the loft.


Pre-Flight Checklist: Material Prep

• Fabric Direction: Confirmed "nap" or texture direction is consistent across all pieces.
• Side Marking: Wrong Side (WS) marked with tape on every cut piece.
• Needle Selection: Size 75/11 or 80/12. Ballpoint is safer for the weave; Universal is okay if sharp.
• Consumables: Water-soluble topping (Solvy) and Tear-away stabilizer prepared.
• Pattern Safety: Pattern pieces pinned to fabric until the moment of sewing to prevent swapping mirrored parts.


2. Pattern Engineering: The 3/8" Reduction Formula

A standard commercial pattern uses a 5/8" (1.5cm) seam allowance. While safe for structural seams, this is catastrophic for trim insertion. A 5/8" bulk inside a delicate flat-piping or shell-tuck band creates a lump that screams "homemade."

We must perform surgery on the pattern before cutting the fabric.

The Algorithm

1. Identify: Locate the band area on the paper pattern.
2. Measure: Mark a line 3/8" inside the cutting edge.
3. remove: Cut that strip away.
4. Result: 5/8" (original) - 3/8" (removed) = 1/4" (final SA).

This leaves a narrow, professional margin that allows the trim to sit perfectly flat.

3. The Shell Tuck Protocol: Calibrating the "Pull"

The signature detail of this robe used a "Shell Tuck" (or Scallop) stitch. This is not a passive decorative stitch; it is an active mechanical manipulation of the fabric edge.

The Physics of the Stitch

The machine takes several stitches on the fabric (forming the shell body) and then swings the needle off the raw edge. The tension thread then yanks the fabric edge inward, creating the scallop effect.

The Variable: Thread Tension. A standard tension (usually 4.0) is too weak; it leaves a flat zigzag. To get the scallop, you must drastically increase the upper tension to pull the fabric. Joanne suggests a setting of 8.0.

Warning: Needle Deflection Hazard.
Increasing tension to 8.0 puts immense stress on the needle.
* Do not pull the fabric manually while sewing.
* Do not stitch at max speed. Limit speed to 400-600 SPM (Stitches Per Minute).
If you hear a sharp SNAP* or a grinding noise, stop immediately. You are bending the needle into the throat plate.

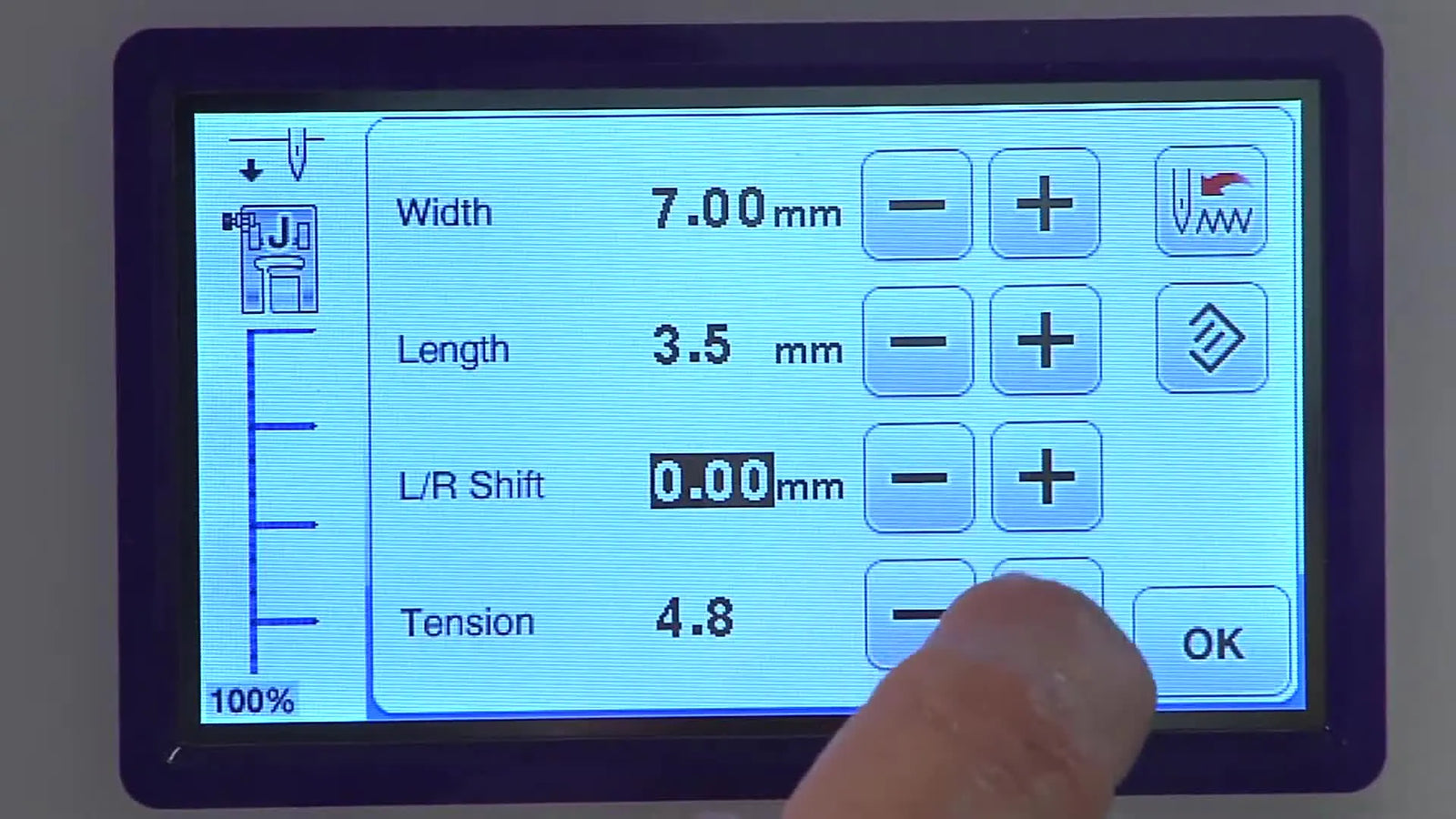

Machine Setup Data (Brother Platform Reference)

• Stitch: Heirloom / Shell Tuck (e.g., 2-04).
• Width: Max (7.0mm).
• Length: 3.5mm (Longer length = deeper scallop).
• Tension: 7.0 - 8.0 (Start at 7.0 and test).
• Foot: Standard "J" Foot (Flat bottom). Do not use an Open Toe foot. The flat bottom is required to pin the fabric down so the tension can do its job.






Sensory Check: Am I Doing It Right?

• Visual: Watch the needle swing to the left. It should land clearly off the fabric edge (in the air).
• Tactile: The folded bias binding should feel slightly curled due to the thread tension.
• Auditory: The machine will sound slightly tighter/louder than a straight stitch. A rhythmic thump-thump is normal; a sharp metallic clack is not.








4. Construction: Serging with the Tape-Guide Hack

Because waffle weave unravels aggressively, a straight stitch finish is insufficient. The seam will fail after three wash cycles. You must encase the edge.

The Tape Guide Method

Joanne’s serger trick creates a neat finish without needing a coverstitch machine:

1. Sew the structural seam at 5/8" with your sewing machine.
2. Move to the serger. Place a strip of low-tack tape 5/8" from the left needle.
3. Feed the fabric so the raw edge creates an imaginary line with your tape.
4. Let the serger knife trim the excess (converting it to ~1/4") while wrapping the edge.








5. Embroidery on Waffle Weave: The Danger Zone

This is the step where most beginners ruin the project. You have a finished, expensive robe. You want to add a monogram.

The Problem:

1. Texture Sinking: Stitches disappear into the waffle valleys.
2. Distortion: The fabric stretches under the needle.
3. Hoop Burn: Traditional hoops crush the texture permanently.

The Stabilizer Formula

Use the "Sandwich Method" to suspend the stitches:

• Bottom: Tear-away stabilizer (or Cut-away if the weave is very loose/stretchy).
• Middle: The Waffle Weave Fabric.
• Top: Water-Soluble Topping (Solvy). This acts as a bridge, preventing thread from sinking.


The Tool Upgrade: Why Professionals Use Magnets Here

If you are struggling with hoop marks, this is the trigger point to consider a magnetic embroidery hoop. Unlike screw-tightened hoops which grind fabric layers together, magnetic frames use vertical clamping force.

Why upgrade?

• Zero Hoop Burn: The flat magnets hold the fabric without crushing the waffle structure.
• Speed: No unscrewing or wrestling with thick folded layers.
• Precision: You can slide the fabric to micro-adjust alignment without un-hooping.

For owners of specific machines, finding a brother magnetic embroidery frame or a universal compatible magnetic frame is often the secret to handling textured fabrics like towels, velvet, and waffle weave.

Warning: Magnetic Safety Alert.
Industrial-strength magnets are not fridge magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with intent.
* Medical Safety: Keep away from pacemakers/ICDs (at least 6-12 inches).
* Electronics: Do not place directly on top of USB drives or computerized machine screens.

Decision Tree: Hooping Strategy for Waffle Weave

Learning the Magnetic Workflow

If this is your first time, searching for tutorials on how to use magnetic embroidery hoop is vital. The key technique is "Slide and Snap":

1. Place the bottom frame.
2. Lay stabilizer and fabric.
3. "Roll" the top magnet onto the frame rather than dropping it flat to avoid pinching spacing.

6. Business Insight: From Hobby to Production

If you are making one robe, you can fuss with pins and floating stabilizers. But if you plan to sell these (bridal parties, spa sets), efficiency is your profit margin.

Many professionals search for an embroidery magnetic hoop not just for quality, but for speed. The ability to hoop a thick robe in 10 seconds vs. 60 seconds adds up when doing a batch of 12.

Furthermore, if this project sparks a desire to do bulk personalization, this is the natural limit of a single-needle machine. The constant thread changes for multi-color logos and the struggle with tubal garments (sleeves/pockets) are solved by upgrading to a multi-needle platform (like the SEWTECH ecosystem).

• Level 1 (Hobby): Standard Hoop + Floating Stabilizer.
• Level 2 (Pro-sumer): Magnetic Hoop + Single Needle Machine.
• Level 3 (Business): Magnetic Hoop + Multi-Needle Machine (for tubular arm capability).

Operation Checklist: Final Quality Assurance

• Shell Tuck: Scallops are distinct and curved, not flat zigzags.
• Trim Insertion: Band feels flat; no internal bulk from excess seam allowance.
• Embroidery: No hoop burn visible on the waffle texture.
• Toip: All Solvy topping removed (dab with wet Q-tip or steam).
• Structure: Interface (if used in baskets/collars) feels soft (Fleece/Foam), not cardboard-stiff.

By respecting the physics of the fabric and upgrading your tooling where the risk is highest (hooping), you turn a chaotic project into a repeatable, luxurious product.

FAQ

• Q: Which needle size and needle type should be used on waffle-weave spa robes for Brother sewing/embroidery machines to prevent holes and runs?
  A: Use a 75/11 or 80/12 needle, and choose a Ballpoint needle first when the waffle weave is prone to snagging.
  • Action: Start with a 75/11 Ballpoint; switch to 80/12 only if stitches look weak or the fabric is very thick.
  • Action: Reduce speed when the fabric wants to shift or snag (a safe target is staying around 600 SPM during tricky stitching).
  • Success check: The needle penetrations look clean with no pulled loops or “runs” forming along the honeycomb texture.
  • If it still fails: Re-test with a fresh needle and stabilize more firmly (switch backing from tear-away to a cut-away option for stretchier/looser waffle weave).
• Q: How can Brother shell tuck (scallop) stitches be calibrated on waffle weave bias binding when the stitch stays flat instead of forming a true scallop?
  A: Increase the upper thread tension significantly and test at controlled speed so the stitch can “pull” the edge inward.
  • Action: Set the Shell Tuck stitch to max width (7.0 mm), length about 3.5 mm, and raise upper tension gradually from 7.0 toward 8.0.
  • Action: Sew without pulling the fabric, and keep speed conservative (about 400–600 SPM) to avoid needle deflection.
  • Success check: Visually confirm the needle swings clearly off the fabric edge, and the binding edge curls inward into a distinct scallop (not a flat zigzag).
  • If it still fails: Stop and re-check foot choice (use a flat-bottom standard “J” foot, not an open-toe foot) and confirm the folded edge is positioned correctly at the swing point.
• Q: What is the needle deflection safety risk when setting Brother upper tension to 8.0 for shell tuck stitches, and how can the risk be reduced?
  A: High tension can bend the needle into the throat plate, so slow down and let the machine feed the fabric without manual pulling.
  • Action: Limit speed to roughly 400–600 SPM and keep hands guiding only—never tug the fabric to “force” the scallop.
  • Action: Stop immediately if a sharp SNAP, grinding, or metallic clack occurs and replace the needle before continuing.
  • Success check: The machine sound is a steady, slightly tighter rhythm (a normal “thump-thump”), not a sharp metal-on-metal clack.
  • If it still fails: Back tension down slightly (toward 7.0), re-test on scraps, and confirm stitch selection/width/length match the shell tuck settings being used.
• Q: How does the low-tack tape guide method help serge waffle weave seams after sewing a 5/8" seam, and how can the serger cut be kept consistent?
  A: Use tape as a fixed visual fence so the serger trims consistently while wrapping the unravel-prone edge.
  • Action: Stitch the structural seam at 5/8" on the sewing machine first.
  • Action: Apply low-tack tape on the serger bed positioned 5/8" from the left needle, then feed the fabric edge along that tape line.
  • Success check: The serger knife trims evenly and the seam edge is fully encased with no loose waffle fibers shedding from the cut edge.
  • If it still fails: Reposition the tape (it may have drifted) and verify the fabric is feeding straight rather than being pushed into the knife.
• Q: What stabilizer stack prevents sunken monogram stitches on waffle weave robes when embroidering on Brother single-needle embroidery machines?
  A: Use a sandwich stack with water-soluble topping on top to bridge the texture so stitches don’t sink.
  • Action: Place tear-away (or switch to cut-away if the waffle weave is very loose or stretchy) as the bottom layer.
  • Action: Lay the waffle weave fabric as the middle layer and add water-soluble topping as the top layer.
  • Success check: The monogram sits on top of the texture with clear, full satin columns (not thin lines disappearing into the “valleys”).
  • If it still fails: Increase design density slightly (about 10%) and re-check hooping stability to prevent stretch distortion.
• Q: How can permanent hoop burn marks be prevented on waffle weave spa robes when using traditional screw-tightened embroidery hoops on Brother embroidery machines?
  A: Stop using high-friction, high-pressure hooping on the robe texture and switch to a lower-crush holding method.
  • Action: If a hoop ring is visible before stitching, reduce pressure immediately—visible ring is an early warning that the loft is being crushed.
  • Action: Move to a magnetic embroidery hoop/frame to clamp vertically instead of grinding fabric layers together, or use a float method with adhesive stabilizer.
  • Success check: After unhooping, the waffle texture rebounds with no shiny or flattened circular ring.
  • If it still fails: Change backing to a more supportive cut-away (such as poly-mesh cut-away) to reduce the need for aggressive hoop tension.
• Q: What safety precautions should be followed when using industrial-strength magnetic embroidery hoops/frames for robe monogramming to avoid finger injuries and device interference?
  A: Treat embroidery magnets as pinch hazards and keep them away from medical implants and sensitive electronics.
  • Action: “Roll” the top magnetic piece into position instead of dropping it flat, and keep fingers out of the closing gap.
  • Action: Keep magnetic hoops away from pacemakers/ICDs by at least 6–12 inches, and avoid placing magnets directly on electronic screens or USB drives.
  • Success check: The frame closes with controlled contact (no sudden snap onto fingers) and the fabric remains aligned without needing excessive force.
  • If it still fails: Slow the workflow down and re-practice the placement sequence on scrap fabric/stabilizer before hooping the finished robe.
