SmartStitch S-1001 Review (10 Needles, 1200 SPM): What It Really Takes to Stitch Fast Without Wrecking Delicate Fabric

If you’re shopping for a multi-needle machine—or you’ve just unboxed one—your real question usually isn’t “How fast is it?”

It’s: Can I run fast, stay consistent, and not lose my mind on hooping, thread changes, and re-dos?

The SmartStitch S-1001 is positioned as a compact, business-friendly 10-needle machine with a 7-inch touchscreen, built-in designs, and a cap system included. The video is a quick overview, but there’s enough there to build a practical operating plan—especially if you’re aiming for small-batch production (logos, hats, towels, uniforms) from a home studio.

But let's be honest: moving from a domestic single-needle to a commercial multi-needle beast is intimidating. The physics change, the sounds change, and the stakes feel higher. This guide will walk you through the transition with the safety rails on.

Calm the Panic: What the SmartStitch S-1001 10-Needle Head Actually Changes in Daily Production

A 10-needle head isn’t just “more needles.” It changes your workflow in three very specific ways:

1. You load multiple colors at once, so multi-color designs don’t force constant stop-and-rethread cycles. You gain flow.
2. You switch colors through the machine’s color sequence, not by physically swapping spools every time. The machine handles the logistics.
3. Your consistency becomes more about setup discipline (thread path, hooping, stabilization, speed choices) than about “operator heroics.”

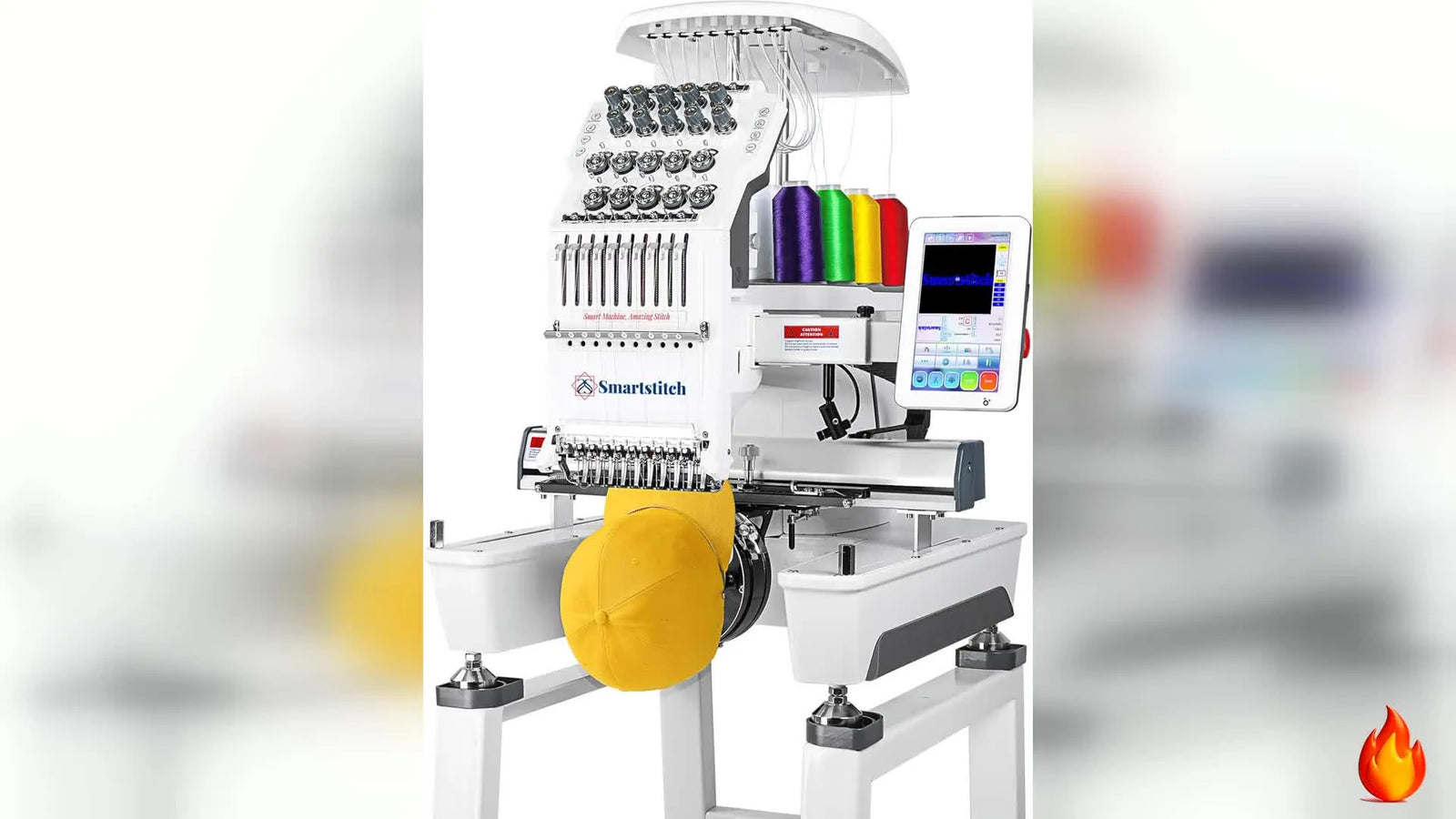

In the video, the S-1001 is shown on a wheeled stand with a cap loaded, and the core promise is clear: multi-color efficiency with a maximum speed of 1200 stitches per minute (SPM).

The Sensory Shift: If you’re coming from a single-needle home machine, the sound is different. A home machine hums; a multi-needle machine clicks and thumps. This is the sound of solenoids and trimmers working. Do not panic when you hear a loud "CLUNK" during a thread trim—that is the sound of success, not breakage.

The mental shift is this: your bottleneck moves from stitching time to preparation time—especially hooping and job setup.

One keyword you’ll see people search when they’re making that jump is 10 needle embroidery machine, and it’s usually because they’re trying to stop babysitting thread changes and start running repeatable orders.

Measure Twice, Roll Once: SmartStitch S-1001 Dimensions, Weight, and Why Your Stand Setup Matters

The video calls out the physical specs and footprint. Let's look at the reality of those numbers:

• Machine weight: 42 kg / 92.6 lb (This is a two-person lift. Do not try this alone.)
• Machine height: 25.5 in
• Stand height: 30.3 in
• Machine width/depth shown: 18.9 in (as displayed)

Those numbers aren’t trivia. They tell you two practical things:

1. Ergonomics: The embroidery head is roughly at chest height when sitting, or waist height when standing. You need to position it where you can hoop a garment and slide it onto the arm without twisting your spine.
2. The Physics of Vibration: 1200 SPM creates significant kinetic energy. If your floor is uneven or the stand is wobbly, that energy goes into shaking the needle bar, which causes "loopies" and poor registration.

The Vibration Test: Place a half-full glass of water on the stand's shelf. Run the machine at 800 SPM. If the water is rippling violently, your stand isn't locked down.

From a studio-operator perspective, here’s the rule I’ve seen hold up for 20 years: if your machine is on casters (like the video shows), lock the wheels before every run and ensure the stand doesn't "walk" across the floor during dense designs.

Do the Unsexy Prep: Accessories Inventory (Cap Driver, Cap Hoop, Tubular Hoops, Flat Table) Before Your First Stitch

The video shows a “free accessories included” grid. This is your "Mise en place"—the chef's prep. Missing one screw or driver here stops you dead.

Included accessories shown:

• Cap drive system (shaft/driver), cap hoop, cap stand (Crucial: Keep these stored together in a specific bin so parts don't migrate.)
• Tubular hoops: 9.4 × 9.4 in, 7.9 in, 4.7 in (Standard sizes for left-chest logos to large jacket backs).
• Flat embroidery table: 14.4 × 9.8 in (For heavy items like blankets).
• Tool box.

The Hidden Consumables: The box puts you in business, but to stay in business, you need things the video might impliedly gloss over. Before you start, ensure you have:

• 75/11 Ballpoint Needles: Ideally Titanium coated. The stock needles are fine, but generic ones wear out fast.
• Machine Oil: A pinpoint oiler is essential for the hook assembly.
• Temporary Spray Adhesive (505): For floating fabrics.
• Stabilizer stash: Cutaway (2.5oz) and Tearaway (1.5oz).


Prep Checklist (Do this once, then repeat it every time you change product type)

• Inventory Check: Confirm existence of cap driver/shaft, cap hoop, cap stand, tubular hoops (all sizes), flat table, and tool kit.
• Needle Check: Run your finger gently down the installed needles. If you feel a burr, replace it immediately. A $0.50 needle can ruin a $50 jacket.
• Bobbin Prep: Wind at least 5 bobbins. Never start a production run with a "maybe enough" bobbin.
• Test Material: Select a scrap piece of denim or sturdy cotton. Do NOT learn on a slippery performance polo.
• Maintenance Read: Locate the oiling points in the manual. One drop on the rotary hook race is usually required daily.

Warning: Safety First. Keep fingers, hair, jewelry, and loose sleeves away from the needle area and moving frame. Unlike home machines, this machine does not stop if you bump it. The pantograph moves fast and with force—a hoop strike can break a finger.

Make the Touchscreen Work for You: 7-Inch LCD Controls That Prevent Costly Misalignment

The video highlights the 7-inch LCD touchscreen and calls out key UI functions:

• Design preview
• Color sequence menu
• Needle switch
• Frame-moving key

That last one—frame movement—is a quiet hero. On multi-needle machines, most expensive mistakes are placement mistakes (logo too high, too close to a seam, off-center on a cap).

The "Trace" is Your Best Friend: Before you stitch, hit the Trace button (often an icon of a square with arrows). Watch the needle #1 bar move around the area.

• Visual Check: Does the plastic presser foot foot hover over the plastic hoop ring? If yes, the design is too big or not centered.
• Clearance Check: Does it hit the metal clips on the cap driver?

The video also states you can import designs via USB.

• Pro Tip: Format your USB stick to FAT32 and keep it under 8GB if possible. Some industrial-style boards struggle with massive 64GB drives filled with non-embroidery files.

One practical caution from the shop floor: resizing on-screen is convenient, but big size changes call for big density changes. If you shrink a design by 20% on-screen, the stitch count often stays the same, making the embroidery bulletproof-hard. Only resize +/- 10% on screen. For anything else, use software on your PC.

Setup Checklist (Before you press start)

• Hoop Arms: Ensure the hoop clicks firmly into the pantograph arms. Give it a gentle tug. It should not wiggle.
• Thread Path: Check the "Antenna" (thread tree) at the top. The thread should flow straight up and over, not tangled around the pole.
• Trace: Run the trace function. No hoop strikes.
• Color Map: Does Needle #1 actually have the color the screen says it does?
• Bobbin Check: Open the bobbin door. Is the pigtail tail about 2-3 inches long?

Don’t Let 1200 SPM Bully You: Speed Choices for Cotton, Denim/Canvas, Towels, and Caps

The video states the SmartStitch S-1001 can run up to 1200 SPM, and it also gives the most important caveat: delicate fabrics may require more careful attention.

Here is the "Sweet Spot" reality for new owners:

• Expert: 1000 - 1200 SPM (Requires perfect tension and stabilization).
• Beginner Safe Harbor: 600 - 800 SPM.

Why slow down? Friction. At 1200 SPM, thread heats up. Needles deflect. Stabilizer tears. Running at 800 SPM might add 1 minute to the run time, but it saves you 20 minutes of fixing a thread break.

A practical fabric → stabilizer decision tree (Print this out)

Start here to avoid the most common "why does it look bad" questions:

1. Is the fabric stretchy (T-shirts, Performance Polos)?
   • Stabilizer: Cutaway (No exceptions).
   • Action: Do not pull the fabric tight in the hoop; stick it to the stabilizer using spray spray or use a magnetic hoop.
   • Speed: Limit to 800 SPM.
2. Is the surface textured or lofty (Towels/Fleece)?
   • Stabilizer: Tearaway (Back) + Water Soluble Topping (Front).
   • Action: The topping prevents stitches from sinking into the pile.
   • Speed: 700 SPM.
3. Is the fabric heavy (Denim/Canvas)?
   • Stabilizer: Tearaway (2 layers).
   • Action: Ensure the hoop screw is tight. Use a larger needle (90/14) if the canvas is thick.
   • Speed: 900-1000 SPM (These fabrics handle speed well).
4. Is it a Cap/Hat?
   • Stabilizer: Cap Tearaway (stiff).
   • Action: Use clips to hold the backing.
   • Speed: 600 SPM. Never run caps at max speed until you are an expert. The "flagging" (bouncing) of the cap causes needle breaks.

The Stitch Quality Slide Isn’t Magic: What “Denser” Output Usually Means (and How to Get It Consistently)

The video shows a side-by-side stitch comparison: “Normal stitch by other machine” versus “Smart stitch by our machine.”

"Quality" usually comes down to fighting Physics. Fabric wants to move. The needle wants to push fabric down. The hoop wants to create "Hoop Burn" (those shiny rings left on the fabric).

A multi-needle machine gives you a stable platform, but the Hoop is often the weak link.

• Traditional Issue: Plastic hoops require hand strength to tighten. If you tighten too much, you crush the fabric fibers (Hoop Burn). If too loose, the fabric slips, and the design outlines don't match the fill.
• The Pro Fix: This is why professionals eventually migrate to Magnetic Hoops. They use magnetic force to clamp the fabric automatically. This eliminates "Hoop Burn" on delicate items and solves the issue of varying fabric thickness (like zippers or seams) automatically adjusting.

If you are struggling with outlines not lining up, 90% of the time it is hooping error, not machine error.

Warning: Magnetic Hazard. If you upgrade to magnetic hoops, keep magnets away from pacemakers/medical implants. Keep fingers clear when closing—the "snap" is powerful enough to pinch skin severely.

Thread Management on a 10-Needle System: Prevent Breaks Before They Start

The video shows the machine with multi-colored threads loaded.

The Tactile Tension Test: Before you thread the needle, pull the thread through the tension knobs at the top.

• Too Loose: Feels like pulling a stray hair. (Result: Birds nests on the back).
• Too Tight: Feels like pulling a heavy shoelace. (Result: Snapped thread).
• Just Right: It should feel like pulling dental floss out of the container. Smooth, consistent resistance.

The Thread Path: On a 10-needle, you have 10 paths to manage.

1. Uniformity: Seat thread in every guide the same way every time.
2. Spool Caps: If using home spools, use the caps. If using cones, no caps needed.
3. The Auto-Threader: The video mentions the automatic needle threading mechanism. Use it. But watch it. If the hook is bent, it won't work. If it misses, check if your needle is inserted all the way up.

If you are searching for upgrades, terms like smartstitch embroidery hoops often appear because users want accessories that match the precision of the machine head.

Caps and Hats Without Tears: Using the Cap Driver + Cap Hoop System the Right Way

The video lists cap attachments. Let's be real: Caps are the hardest thing to master.

Why? Because you are sewing on a sphere (the cap) that is fighting to be flat.

The "Flagging" Risk: When the needle pulls out of a cap, the cap fabric tends to bounce up (flagging). If it bounces too high, it hits the needle when it comes back down. Snap.

• The Fix: Use the cap clips included with the driver. Keep the stabilizer tight. And Slow Down.

If you’re sourcing or upgrading cap tooling, the phrase cap hoop for embroidery machine matters because quality varies. A cheap cap hoop slips. A professional one locks.

And yes, people will also look for smartstitch hat hoop to ensure native compatibility, which is crucial for the connection points on the driver arm.

Built-In Designs, USB Imports, and On-Screen Editing: Use Convenience, But Don’t Create New Problems

The video states:

• You can edit on-screen (resize/rotate/mirror).
• There are 200+ built-in designs.

The "Test File" Rule: Never running a new design on a customer's garment first. Create a "Shop Standard" test file (e.g., a 2-inch circle with text). Run this every morning on a scrap piece of felt.

• If the text is crisp: Your tension is good.
• If the white bobbin thread shows on top: Top tension is too tight.

This daily ritual saves more garments than any other trick.

Noise, “Machine Feel,” and Maintenance: What to Listen For When You Run Fast

The video notes the S-1001 operates relatively quietly.

Auditory Diagnosis:

• Rhythmic "Chug-Chug": Healthy.
• High-pitched "Squeak": Needs oil on the needle bars.
• Sharp "Click-Clack": Needle hitting the throat plate? Bobbin case loose? STOP IMMEDIATELY.

Sensory Feedback on Heavy Materials: When sewing through thick seams on caps:

• Listen for the motor straining (pitch drop).
• If you hear it, slow speed by 200 SPM.

Two Common Problems the Video Mentions—Plus the Fixes That Actually Stick

The video includes two troubleshooting points (Suboptimal results on delicate fabrics & Setup difficulty). Here is a more robust breakdown:

Troubleshooting Table (Symptom → Likely Cause → The Fix)

If you’re scaling beyond hobby pace, the biggest “hidden” upgrade is reducing hooping time. Many operators compare systems like smartstitch mighty hoop-style solutions because magnetic systems allow you to hoop a shirt in 5 seconds vs 30 seconds.

The Real Upgrade Path: When Hooping Speed Becomes Your Bottleneck

Once you have a 10-needle machine, your production math changes:

• Stitching gets faster.
• Color changes get easier.
• Hooping becomes the obstacle.

If you are running 50 shirts, and it takes 2 minutes to hoop each one, that's 100 minutes of downtime.

The Solution Ladder:

1. Level 1 (Technique): Use a hooping station for embroidery machine. This ensures the logo is in the same spot on every shirt (e.g., 7 inches down from shoulder seam).
2. Level 2 (Tooling): Upgrade to a generic or smartstitch magnetic hoop compatible system. This reduces wrist strain and eliminates hoop burn on polo shirts.
3. Level 3 (Scale): If you are consistently maxing out the S-1001, look at adding a second machine before trying to run this one at unsafe speeds.

Run Your First Job Like a Pro: A Simple Operating Routine That Prevents 80% of Re-Dos

Here’s the routine to get clean results quickly on the S-1001.

1. Select Attachment: Flat table or Cap driver? Screw it in tight.
2. Hooping: Hoop the fabric neutral (taut, not stretched). Tactile check: Drum on the fabric. It should sound like a dull drum, not a high-pitched snare.
3. Load Design: Import via USB.
4. Trace: Confirm placement. Check clearance.
5. Thread Check: Pull tails. Correct colors assigned?
6. Slow Start: Watch the first 100 stitches at 400 SPM. If it looks good, ramp up to 800 SPM.


Operation Checklist (End every run this way)

• Visual Inspect: Check the back. Is the white bobbin thread roughly 1/3 of the width of the satin column? (The "1/3 Rule").
• Hoop Mark Check: Did the hoop leave a ring? (If yes, steam it out, and use less tension or upgrade hoops next time).
• Clean: Use the brush to sweep lint out of the bobbin case area. Lint is the enemy of tension.
• Park: Return caps/drivers to their dedicated bin.

Final Take: Who the SmartStitch S-1001 Fits—and Who Should Slow Down

Based on what the video shows, the SmartStitch S-1001 is a workhorse for the "Pro-sumer"—the bridge between hobby and business.

It gives you the capacity for production (10 needles, caps, speed), but you must provide the discipline.

• Start slow.
• Use the right stabilizer.
• Respect the physics of the machine.

And if you find yourself spending more time fighting hooping than stitching, remember: that's not a failure, that's a growing pain. That is the moment to look at upgrading your workflow with magnetic hoops and dedicated stations to turn that frustration into profit.

FAQ

• Q: What hidden consumables must be ready before the first SmartStitch S-1001 embroidery run to avoid thread breaks and re-dos?
  A: Prepare needles, oil, adhesive, and stabilizers before powering into production—missing any one of these commonly causes early failures.
  • Stock: Install 75/11 ballpoint needles (titanium-coated is often a safe choice) and replace any needle that feels burred.
  • Prepare: Wind at least 5 bobbins and do not start with a “maybe enough” bobbin.
  • Set: Keep machine oil (pinpoint oiler), temporary spray adhesive (505), and both cutaway (2.5 oz) + tearaway (1.5 oz) stabilizers on hand.
  • Success check: The first test stitch on scrap denim/sturdy cotton runs without shredding, looping, or repeated thread breaks.
  • If it still fails: Re-check threading through every guide and verify daily hook-area oiling points in the manual.
• Q: How can SmartStitch S-1001 owners confirm correct hooping tension to prevent hoop burn and design misalignment on shirts?
  A: Hoop fabric neutral (taut, not stretched) and validate the hoop hold before stitching—most outline misalignment is hooping error, not machine error.
  • Hoop: Place fabric flat and avoid pulling/stretching after it is in the hoop.
  • Verify: Tug the hoop after mounting—SmartStitch S-1001 hoop arms should click firmly and not wiggle.
  • Slow-start: Watch the first 100 stitches at 400 SPM before ramping to 800 SPM.
  • Success check: The fabric “drums” with a dull sound (not snare-tight), outlines match fills, and no shiny hoop ring remains after unhooping.
  • If it still fails: Reduce hoop pressure, switch to the correct stabilizer (cutaway for stretch), or move up to a magnetic hoop to eliminate hoop burn variability.
• Q: How do SmartStitch S-1001 operators use the Trace function to prevent hoop strikes and costly placement mistakes?
  A: Run Trace before every job to confirm clearance and placement—this prevents the most expensive multi-needle mistakes.
  • Tap: Use the SmartStitch S-1001 frame-move controls and activate Trace to outline the design boundary.
  • Watch: Confirm the presser foot does not hover over the plastic hoop ring and does not contact cap driver hardware/clips.
  • Correct: Re-center the design or re-hoop before pressing start if any contact risk appears.
  • Success check: The traced path clears hoop edges and cap driver parts with visible space at all corners.
  • If it still fails: Choose a larger hoop/attachment or reduce on-screen resizing (keep changes within about ±10% and do larger edits in software).
• Q: How can SmartStitch S-1001 thread tension be checked quickly to reduce birdnesting under the throat plate?
  A: Re-thread and confirm thread is seated correctly in the tension discs—birdnesting commonly happens when top tension is effectively “zero.”
  • Pull-test: Perform the tactile tension test at the top tension knobs; resistance should feel like pulling dental floss smoothly.
  • Re-thread: Completely re-thread the SmartStitch S-1001 thread path, ensuring thread “clicks” into the tension discs.
  • Check: Confirm thread is routed through every guide uniformly across all needles.
  • Success check: The next run forms clean stitches without a thread ball under the throat plate and without looping on the underside.
  • If it still fails: Inspect for missed guides, thread caught on a spool nick, or a bent auto-threader hook; then test again on scrap fabric.
• Q: What is the fastest fix for SmartStitch S-1001 puckering on T-shirts and performance polos during embroidery?
  A: Stop stretching fabric in the hoop and use cutaway stabilizer—puckering is often caused by hooping tension and the wrong backing.
  • Switch: Use cutaway stabilizer for any stretchy fabric (no exceptions in the decision tree).
  • Stabilize: Attach fabric to stabilizer with temporary spray adhesive instead of pulling the knit tight.
  • Slow: Limit speed to about 800 SPM for delicate/stretch garments.
  • Success check: After stitching, the design lies flat and the shirt returns to its natural shape with minimal rippling around the fill.
  • If it still fails: Re-evaluate hooping neutrality or consider a magnetic hoop to prevent stretch during clamping.
• Q: What SmartStitch S-1001 cap embroidery settings reduce needle breaks from cap “flagging” when using the cap driver and cap hoop?
  A: Slow down and secure the cap firmly—cap flagging is a common cause of snapped needles on first-time cap runs.
  • Clip: Use the cap clips included with the driver and keep the stabilizer tight.
  • Slow: Run caps at about 600 SPM until fully dialed in (avoid max speed early on).
  • Monitor: Listen for motor strain (pitch drop) over thick seams and reduce speed by about 200 SPM when heard.
  • Success check: The cap stays stable with minimal bounce and completes a color without needle breaks or skipped stitches.
  • If it still fails: Replace the needle (fresh titanium is a safe starting point), check cap hoop lock/security, and re-run at lower speed.
• Q: What safety rules should new SmartStitch S-1001 owners follow to prevent finger injuries during hoop movement and trimming?
  A: Treat the SmartStitch S-1001 as an industrial system—keep hands and loose items away because the pantograph moves fast and the machine may not stop if bumped.
  • Clear: Keep fingers, hair, jewelry, and loose sleeves away from the needle area and moving frame at all times.
  • Pause: Stop the machine before reaching near the hoop, needle, or cap driver hardware.
  • Respect: Expect loud trim “clunks” as normal, but stop immediately for sharp click-clack sounds that suggest contact or looseness.
  • Success check: No contact occurs between hands and moving parts, and operation stays controlled during starts/stops and trims.
  • If it still fails: Re-position the stand/working height for safer access, and use Trace and slow-start routines to reduce rushed hand placement.
