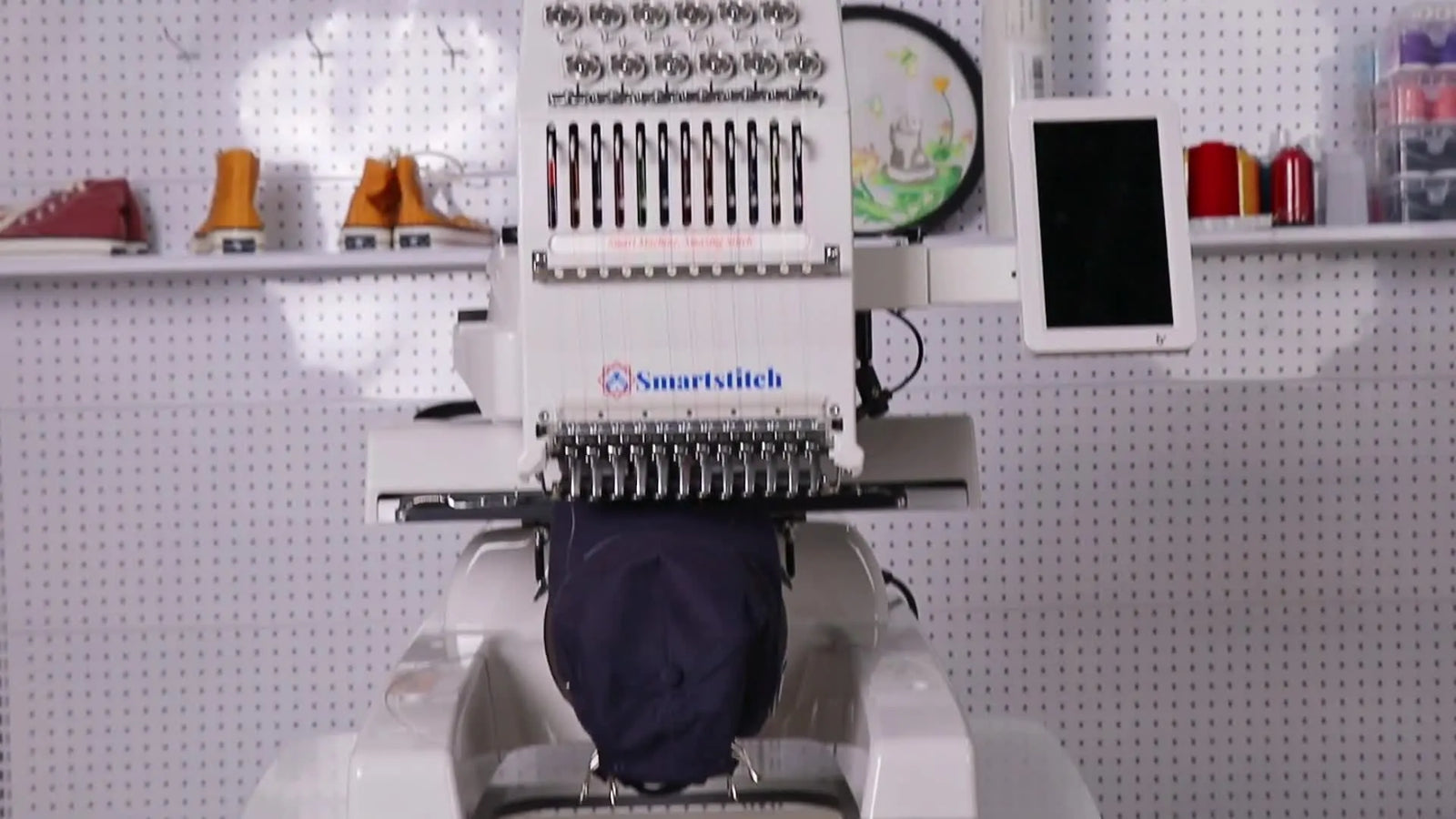

Smartstitch S1201: The No-Panic Changeover from Cap Driver to Flat Embroidery (Threading, Hooping, Bobbin, Settings)

The "No-Panic" Guide to Smartstitch S1201 Setup: From Cap Mode to Perfect Flat Embroidery

Switching a commercial machine like the Smartstitch S1201 from cap mode to flat mode is the number one source of anxiety for new operators. It feels like one wrong screw or one forgotten setting could result in a "CRASH"—the sound of a needle striking metal that every embroiderer dreads.

Here is the truth: The machine is robust, but it requires order.

This guide is not just a checklist; it is a workflow rebuilt from twenty years of shop-floor experience. We will combine the mechanics of the S1201 with the "sensory checks" (what it should look, feel, and sound like) to guarantee your safety and stitch quality. By the end, you won't just hope it works; you will know it works.

The "Why" Behind the Hardware Swap

Embroidery machines operate on a coordinate system. In "Cap Mode," the machine expects a cylindrical driver to rotate. In "Flat Mode," it expects a pantograph sash to move X and Y on a flat plane.

If you physically install the flat sash but leave the software in cap mode, the machine will try to rotate a cylinder that isn't there, leading to frame limits errors or physical binding. Rule #1: The physical hardware determines the software setting. Never disconnect one without changing the other.

Part 1: The "Clean Zone" Prep & Tie-On Threading

Before you pick up a wrench, we establish a clean work environment. Trying to swap hardware while fighting tangled threads is how mistakes happen.

Hidden Consumables & Tools

You need more than just the machine parts. Gather these before starting:

• The 4mm Allen Wrench: Essential for the frame supports.
• Precision Scissors or Snips.
• The "Sensory" Check: Your fingertips.
• Stabilizer & Test Fabric: Ready for immediate testing.


The Tie-On Method: Efficiency Without Risk

Retreading a 12-needle machine from scratch takes 20 minutes. The "Tie-On" method takes 2. However, this is where tension issues are born if you rush.

The Action:

1. Cut the old thread at the spool pin (top).
2. Swap the spool.
3. Tie the new strand to the old end using a square knot (tight and small).
4. The Sensory Check: Pull the thread from the needle end (bottom). Use steady, even pressure.


Critical Experience Note: As the knot passes through the tension disks, you will feel a momentary "catch." DO NOT Yank.

• If you pull too fast: The knot tightens and jams inside the disk.
• Correct Technique: Helping the knot through the disk with your finger, then feeling the tension return to smooth resistance (like pulling floss through teeth).
• Cut Before the Eye: The knot is too big for the needle eye. Cut the knot when it reaches the needle bar, then thread the eye manually.

Part 2: Hardware Conversion (The Mechanical Safety Zone)

Warning: Mechanical Safety
Ensure the machine is in a stopped state. Keep fingers, loose sleeves, and jewelry away from the needle bar area and the moving pantograph arms. Even during manual setup, accidental engagement of the main shaft can cause pinch injuries or needle punctures.

Removing the Cap Driver

We must clear the "runway" for the flat sash.

1. Unlock: Rotate the cap frame to access the release button.
2. Disengage: Flip the two black joystick levers on the drive shaft. This disconnects the driver from the motor.
3. Remove: Slide the entire driver unit to the left. It should glide. If it resists, check the levers again—never force it.


4. Stabilizer Bar: Unscrew the thumb screws on the locking device and remove the cylindrical stabilizer bar.


Installing Frame Supports & Sash

Now we build the bridge for your flat hoops.

The Support Bars: These are marked Front and Back. This is not a suggestion; swapping them creates a subtle angle that will cause hoops to pop out during high-speed stitching (800+ SPM).

• Action: Align the bars. Use the 4mm Allen wrench.
• Technique: Start all screws by hand to ensure no cross-threading. Tighten them firmly. A loose support bar is the #1 cause of "shaky" satin stitches.

The Frame Holder Sash: This is the sliding rail that holds the brackets.

• Action: Install the brackets on the left and right.
• The "Click" Test: Ensure the brackets are screwed down tight. Any play here translates directly to design registration errors (gaps between outlines and fill).

Part 3: The Art of Hooping (Where Quality Lives)

Machine setup is science; hooping is physics. Your goal is "Drum Tight," but without stretching the fabric fibers.

Decision Tree: Fabric vs. Stabilizer

Hooping failure usually happens because the stabilizer doesn't match the fabric's elasticity.

The Commercial Upgrade Path: Solving "Hoop Burn"

Standard plastic hoops work well for general tasks, but they rely on friction and high pressure, which can leave shiny "burn" rings on delicate garments. If you are struggling with wrist pain from repetitive hooping, or if your production is blocked by hoop marks, this is a trigger to look at equipment upgrades.

Many professionals transition to a magnetic embroidery hoop system. Unlike traditional hoops that force fabric between rings, magnetic hoops use vertical magnetic force to hold fabric without bruising the fibers. This is particularly effective for thick items (winter jackets) or delicate performance wear.

Additionally, using a dedicated hooping station for embroidery ensures that every chest logo is placed in the exact same spot, reducing the specific "human error" of crooked designs.

Warning: Magnetic Safety
If you utilize Mighty Hoops or similar magnetic frames, handle them with extreme care. The magnets are industrial-strength and can pinch fingers severely. Keep them away from anyone with a pacemaker and keep credit cards/phones at a safe distance.

Part 4: Bobbin Logic & Final Assembly

The Clockwise Rule

A bobbin inserted backward creates zero tension, resulting in "looping" on the top of the fabric.

1. Drop In: Hold the bobbin case.
2. Direction: The thread must unwind CLOCKWISE. (Think: The thread forms the shape of a "P").
3. The Tension Check: Pull the thread under the tension leaf.
4. The Drop Test: Hold the thread end and let the bobbin case hang. Shake your hand gently. The case should drop 1-2 inches and stop. If it slides to the floor, it's too loose. If it doesn't move, it's too tight.

Mounting the Frame

Slide your hooped fabric into the holder brackets.

The Sensory Check: You should feel a tactile verification—the arms are fully seated in the slots. Give the hoop a gentle "tug" toward you. It should not move. A hoop that isn't fully seated will fly off the machine at stitch #1.

Part 5: The "Digital Handshake" (Control Panel)

Now that the hardware is Flats, the software must match.

1. Frame Selection: On the Smartstitch touchscreen, navigate to Frame Settings. Select the icon that resembles your flat hoop (Square/Rectangle).
2. Design Orientation: Ensure your design is rotated correctly (usually 0 or 180 degrees depending on how you hooped).
3. Speed Limits: For your first run after a hardware change, cap your speed at 600-700 SPM. Do not jump straight to 1000 SPM until you verify the setup.


Troubleshooting: The "First Run" Reality

Even with perfect setup, things happen. Use this logic flow before calling support.

Conclusion: When to Upgrade?

Mastering the standard S1201 frames is your foundation. However, as your business scales, you will encounter the limits of standard tooling.

If you find yourself searching for terms like mighty hoop for smartstitch or investigating compatible smartstitch embroidery hoops, it usually means you have outgrown the manual friction hoops. This is a positive sign—it means your volume is increasing.

For serious production runs where speed and consistency are profit, upgrading to magnetic framing systems or even adding a magnetic hooping station is not an expense; it is an investment in speed. And when the single-head capacity limits your turnaround time, moving to the SEWTECH multi-head ecosystem effectively multiplies your hands, allowing you to run bulk orders while prototyping new designs on your S1201.

Setup Checklist (Do Not Start Until All Are Checked)

• [ ] Clean Zone: Cap driver removed and rail area is free of debris.
• [ ] Hardware Security: Frame support bars (Front/Back) and sash brackets tightened with 4mm Allen wrench.
• [ ] Bobbin Protocol: Bobbin case loaded Clockwise; Drop Test passed.
• [ ] Software Match: Touchscreen Frame setting matches the physical hoop installed.
• [ ] Clearance: Hoop is centered; trace the design (Trace Button) to ensure the needle does not hit the plastic frame.
• [ ] Speed: Machine speed set to a safe range (600-700 SPM) for the first run.

FAQ

• Q: What tools and consumables should be ready before converting a Smartstitch S1201 from cap mode to flat embroidery mode?
  A: Prepare the small essentials first so the Smartstitch S1201 hardware swap stays controlled and mistake-free.
  • Gather: 4mm Allen wrench, precision scissors/snips, stabilizer, and test fabric.
  • Clear: Remove loose thread/tangles around the needle bar and frame area before touching screws.
  • Use: Fingertips as a “sensory check” while pulling thread—steady resistance is the goal.
  • Success check: All parts and test materials are within reach, and the rail area is clean with no thread tails to snag.
• Q: How can Smartstitch S1201 operators use the tie-on threading method without causing tension jams in the tension disks?
  A: Tie on safely by pulling from the needle end slowly and never yanking the knot through the tension disks.
  • Cut: Cut old thread at the spool pin, swap spool, and tie a small square knot.
  • Pull: Pull from the needle end with steady, even pressure; guide the knot through the tension area with a finger.
  • Cut: Cut off the knot before the needle eye, then thread the eye manually.
  • Success check: After the knot passes, the thread pull feels smooth again with consistent resistance (not stuck, not suddenly free).
  • If it still fails: Rethread that needle path and confirm the thread is properly in the take-up lever before sewing.
• Q: What is the safest way to remove the Smartstitch S1201 cap driver without forcing the mechanism?
  A: Disengage the drive correctly so the cap driver glides off—never force the Smartstitch S1201 cap driver assembly.
  • Stop: Confirm the machine is fully stopped and keep hands clear of needle bar and pantograph arms.
  • Flip: Flip the two black joystick levers on the drive shaft to disconnect the driver from the motor.
  • Slide: Slide the driver unit to the left; if it resists, re-check the levers instead of pushing harder.
  • Success check: The cap driver moves smoothly with light hand pressure and no binding or scraping feel.
• Q: How do Smartstitch S1201 operators prevent shaky satin stitches and registration gaps after installing flat frame supports and the sash?
  A: Tighten and align the Smartstitch S1201 frame supports and sash brackets correctly—looseness translates directly into stitch instability and gaps.
  • Match: Install the support bars in the correct orientation (Front bar in Front, Back bar in Back).
  • Start: Start screws by hand first to avoid cross-threading, then tighten firmly with the 4mm Allen wrench.
  • Check: Perform the “click test” on the sash brackets—no play or wobble should exist.
  • Success check: The installed sash/brackets feel rigid by hand, and outlines/fills align without visible gaps during a test stitch.
  • If it still fails: Re-check for bracket movement and review stabilizer choice if fabric is shifting inside the hoop.
• Q: How can Smartstitch S1201 users confirm the bobbin is installed correctly to avoid looping and top-side thread problems?
  A: Load the Smartstitch S1201 bobbin so the thread unwinds clockwise and pass the bobbin “drop test” before stitching.
  • Insert: Hold the bobbin case and insert the bobbin so thread unwinds CLOCKWISE (thread forms a “P” shape).
  • Seat: Pull thread under the tension leaf.
  • Test: Do the drop test—case should drop 1–2 inches and stop when gently shaken.
  • Success check: The bobbin case drops slightly then stops (not sliding freely to the floor and not stuck).
  • If it still fails: Clean lint from the bobbin case area, then re-test before adjusting anything else.
• Q: What should Smartstitch S1201 operators do when needle breaks at the start of a flat embroidery run?
  A: Stop immediately on the Smartstitch S1201—needle breaks at startup usually mean a hoop clearance or hoop-selection mismatch.
  • Stop: Hit stop as soon as the needle breaks or contacts anything.
  • Verify: Confirm the correct hoop/frame size is selected on the Smartstitch touchscreen Frame Settings.
  • Reseat: Re-mount the hoop and confirm the arms are fully seated in the holder bracket slots.
  • Success check: A trace run completes with clear clearance and no contact between needle path and hoop/frame.
• Q: When hoop burn and wrist strain keep happening on Smartstitch S1201 flat embroidery, what is a practical upgrade path?
  A: Start with technique, then move to magnetic hoops if marks and fatigue persist; upgrade production capacity only when volume demands it.
  • Optimize (Level 1): Match stabilizer to fabric (knits: cut-away; slippery performance: cut-away plus spray/sticky) to reduce fabric movement and over-tight hooping.
  • Upgrade tooling (Level 2): Switch from standard friction hoops to magnetic hoops to reduce pressure rings and repetitive strain on high-volume hooping.
  • Standardize (Level 2): Add a hooping station to repeat placement and cut crooked-chest-logo rework.
  • Scale (Level 3): Consider a multi-head setup when single-head throughput becomes the bottleneck.
  • Success check: After changes, the garment shows reduced hoop rings and placement is repeatable without rehooping.
• Q: What magnetic hoop safety rules should Smartstitch S1201 operators follow to avoid pinch injuries and device damage?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from sensitive medical devices and electronics.
  • Handle: Keep fingers clear when closing magnets; control the closing motion instead of letting magnets snap together.
  • Separate: Keep magnetic hoops away from pacemakers and keep credit cards/phones at a safe distance.
  • Stage: Set hoops down on a stable surface before positioning fabric to avoid sudden jumps and pinches.
  • Success check: Magnetic frames close without finger contact, and operators can open/close repeatedly without near-miss pinches.
