Stop Hunting USB Sticks: Set Up Wilcom Embroidery Connect with Hatch Embroidery 3 (and Keep Your Brother Innov-is 750E Running Smooth)

Wireless transfer is supposed to feel like freedom—until the setup stalls, the LEDs don’t look “right,” or your design never shows up on the machine. If you’re staring at a Wilcom Embroidery Connect dongle and thinking, “Please don’t let this be another gadget that lives in a drawer,” take a breath.

This failsafe guide is written not just to get you connected, but to integrate wireless transfer into a professional production workflow. We will cover the exact setup flow shown in the video: configuring the device on your main PC inside Embroidery Hub – Hatch Edition, moving it to your embroidery machine (the demo machine is a Brother Innov-is 750E), and sending a design from Hatch Embroidery 3.

However, we will go deeper. I will add the "Chief Education Officer" checks—the sensory cues and physical preparations—that experienced shops use to avoid the two most common pain points:

1. Setup that “never finishes” because the device wasn’t fully booted.
2. Transfers that fail because the software bridge (Embroidery Hub) isn't running.


Wilcom Embroidery Connect + Hatch Embroidery 3: the “no-USB-stick” workflow you actually want

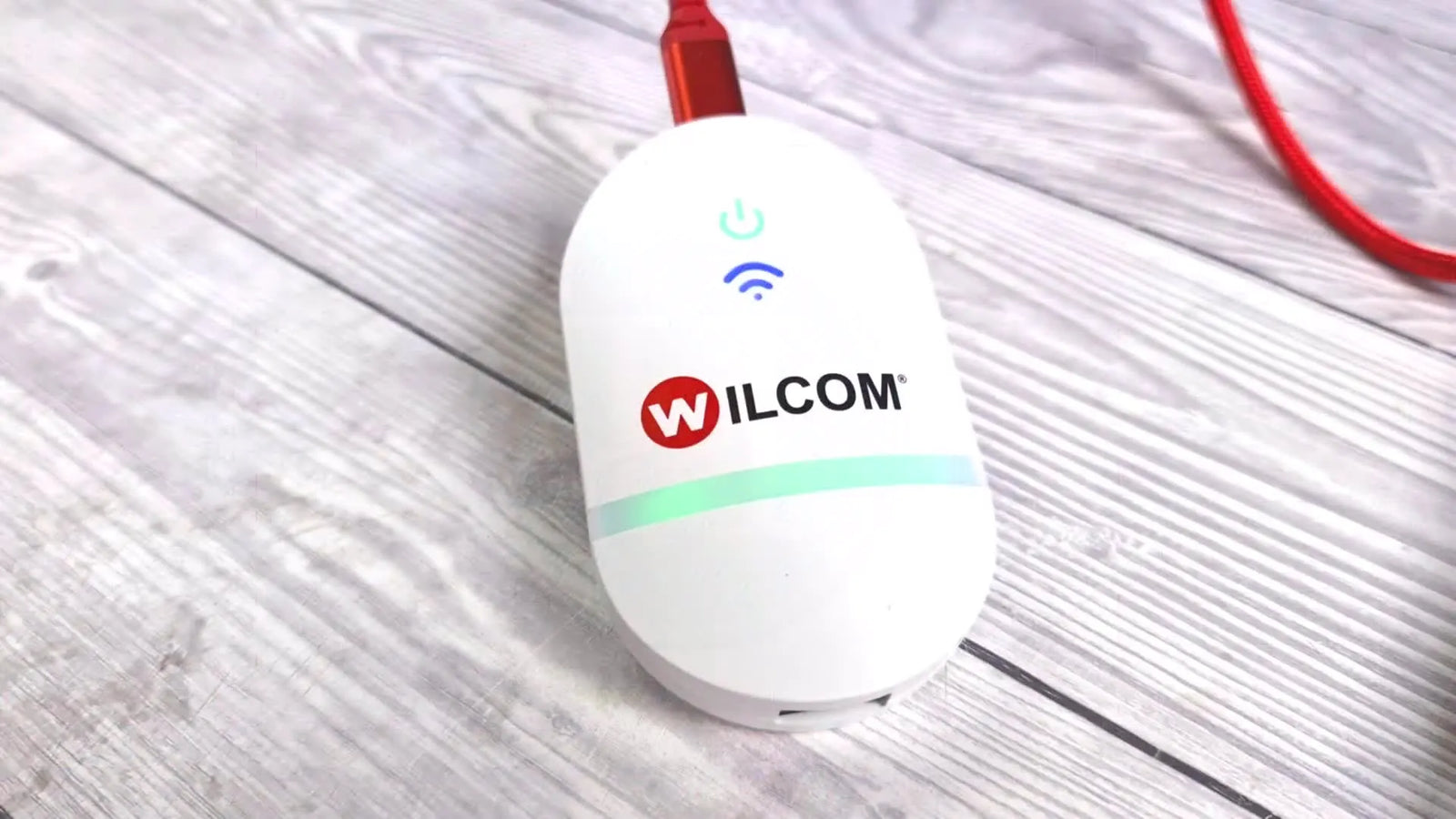

Wilcom Embroidery Connect is a palm-sized Wi-Fi device that acts as a bridge. It allows a standard USB-enabled embroidery machine to receive designs wirelessly from Hatch Embroidery software. In the video, the device is set up with Hatch Embroidery 3 (compatible with version 3.1 or later). Once configured, it behaves exactly like external USB media on your machine—except you’re sending files over the air rather than walking a thumb drive across the room.

If you run a multi-machine shop, the video makes a key point: while you can use one device on multiple machines by physically moving it (plug into Machine A, unplug, utilize on Machine B), this is a "hobbyist" workflow. In a high-volume production environment, physically moving dongles creates a bottleneck.

The Reality Check: Some users express frustration that this device costs money when many modern machines describe themselves as “Wi-Fi enabled.” Here is the professional judgment: What matters is friction. Does your current setup reliably move the right file format to the right machine in under 30 seconds? If this device removes the daily friction of finding USB drives or formatting them correctly, it pays for itself in saved labor hours—especially when you are batching custom orders.

The “Hidden Prep” before you click Add New Embroidery Connect (Embroidery Hub – Hatch Edition)

The video is clear that setup is easy—if you do the prep work. Setup supports the process, but prep guarantees the result.

Here is the "Pre-Flight" preparation I insist on in real shops. This prevents the specific frustration of getting halfway through a wizard and realizing you are missing a password or a cable.

The "Hidden Consumables" List
Before you start, gather these physical items that beginners often forget:
* Isopropyl Alcohol (70%+): To clean the USB port contacts on your machine if it's old/dusty.
* Notepad: To write down the specific "Device Name" you choose (e.g., "Brother-Left-Station").
Your Wi-Fi 2.4GHz Password: Crucial Note:* Many IoT devices struggle with 5GHz networks. Ensure you have the credentials for your 2.4GHz network handy.

Prep checklist (do this once, save yourself hours later)

• Software Version: Confirm you have Hatch Embroidery 3 installed (update to 3.1+ if needed).
• Hub Availability: Confirm Embroidery Hub – Hatch Edition is accessible (it installs automatically with Hatch).
• Master Station: Use your main PC for setup. This PC will act as your design server.
• Connectivity: Ensure an active internet connection is live during the wizard (checking for firmware updates).
• Credentials: Have your Wi-Fi network name (SSID) and password written down.
• Format Logic: Identify your machine’s required output file type (for the Brother Innov-is 750E, we need *.PES).
• Naming Convention: Decide on a device name based on location, not just a cute nickname.

If you are building a small production workflow, this is also the moment to think about physical layout. Create a "Golden Triangle": PC, Machine, and Hooping Station should be accessible by swiveling a chair, not walking across a room.

Start the Setup Wizard in Embroidery Hub: “Add New Embroidery Connect” without missing the one thing that matters

In the video, setup begins inside Embroidery Hub by clicking the first tab labeled “Add New Embroidery Connect.” You will see a “Let’s Get Started!” list, followed by clicking Next.

Sensory Check: Look at the screen. Is the interface responsive? Two practical notes from the transcript that matter later:

1. Persistence: When you return to this screen in the future, your device should appear strictly listed here.
2. Signal Strength: The device must be able to access your Wi-Fi network during setup. Do not attempt this in a Wi-Fi dead zone (like a basement corner).

Expert Tip on Naming: If you plan to scale, name the device based on the machine logic. “Brother750E-LeftBench” is infinitely superior to “Stitchy” once you buy your second machine.

The red USB-C cable connection: seat it firmly so you don’t chase phantom boot problems

The physical connection shown in the video is straightforward, but it introduces a mechanical point of failure:

• Insert the USB-C end of the red cable into the top of the Embroidery Connect device.
• Plug the USB-A end into your laptop/PC.

Tactile "Click" Test: USB-C ports can be stiff when new. Push the cable in until you feel a distinct tactile "snap" or resistance change. If the connection feels loose or "mushy," it is likely not seated, and the device will not draw enough power to boot. Phantom boot problems are almost always loose cables.

Warning: Mechanical Safety
While we are discussing physical setup near machines: Keep fingers, loose hair, and hoodie drawstrings away from the moving needle bars and uptake levers. When testing new tech, operators tend to lean in close to "watch it work," forgetting that a machine receiving a wireless design can sometimes be triggered to start or move the frame unexpectedly.

Read the LEDs like a technician: the 2-minute boot sequence that prevents “setup not completing”

The video provides a specific checkpoint, but let's add the sensory details of a healthy boot sequence.

• Wait time: Approximately 2 minutes.
• Visual Anchor: Booting is complete ONLY when the Power LED is solid green and the Wi-Fi LED is flashing blue.

The "Patience Gap": If your setup seems stuck, do not keep clicking Next. The software cannot "see" the device until the firmware has loaded. A common mistake is clicking "Next" at the 30-second mark.

• Solid Red? Power issue or boot failure.
• No Light? Check that tactile USB-C connection again.

A “shop habit” I recommend: When training staff, teach them to call out the LED state before touching the keyboard. "I see Solid Green, Flashing Blue." It sounds redundant, but it eliminates "I thought it was ready" errors.

Enter Wi-Fi credentials in Embroidery Hub: pick the right network, then commit to it

In the wizard, you select your preferred available Wi-Fi network (the video example shows WP4), choose the security type, and enter the password.

Expert Nuance: The Metal Cage Effect Embroidery rooms are hostile environments for Wi-Fi. They are filled with steel machine frames, metal hoops, and shelving. A signal that is strong at your PC may be weak at the machine needle.

• Diagnosis: If transfers are inconsistent later, do not blame the dongle immediately. Check your phone's Wi-Fi signal at the exact location of the machine.
• Fix: You may need a Wi-Fi extender if your machine is in a "metal shadow."

stable Wi-Fi is not optional; it is part of your production infrastructure, just like sharp needles and good backing.

Name the device + lock the file format: why *.PES matters for Brother Innov-is 750E

In the video, the device is personalized:

• Device name: “Stitchy”
• Output file type: Brother/BabyLock/Deco (*.PES)
• Machine model: innov-is 750e


The ".PES" Standard: From a digitizing perspective, file format is not a suggestion. A brother embroidery machine requires a clean .PES file to interpret density and trims correctly. The video notes that file type outputs can be changed later, but in production, you want this locked down.

You will also see options to automatically rotate the design.

• Config Tip: If you frequently use 5x7 hoops that are oriented vertically, set the auto-rotate here so you don’t have to edit files at the machine screen.


Move the Embroidery Connect device from PC to the Brother Innov-is 750E: do it cleanly, do it once

Once setup is complete, the video shows the physical transfer:

• Unplug the red cable from the laptop.
• Plug it into the side USB port of the Brother Innov-is 750E.




The transcript adds another LED checkpoint: Upon plugging into the machine, the device starts up (wait for the green power) and connects to Wi-Fi, confirmed by a solid blue Wi-Fi LED.

• Flashing Blue: Searching for Wi-Fi.
• Solid Blue: Connected and ready.

The "Wear and Tear" Factor: Every time you unplug and replug a USB device, you risk port wear. In a professional shop, we buy one device per machine. It is cheaper to buy a second dongle than to replace a worn-out motherboard USB port on a $2,000 machine.

Send a design wirelessly from Hatch Embroidery 3: the one background app you must not close

The video’s send flow is:

1. Open the design in Hatch.
2. Click Send in the top row.
3. Choose the device (e.g., “Stitchy”).
4. Confirm output file type.
5. Click Send.




The "Bridge" Metaphor: Here is the "gotcha" that causes failure: Embroidery Hub needs to remain active. Creating a habit is essential here: Hatch is your "Studio," and Embroidery Hub is your "Delivery Truck." If you close the truck (Hub app) to clear your desktop, the design cannot leave the studio.

Comment-based pro tip: “Does it only transfer from Hatch?”

A viewer asked whether it only transfers designs from Hatch. The answer is yes, this is a proprietary workflow. If your expectation is "drag and drop from Windows Explorer," you will be disappointed. This ecosystem relies on the Hatch-to-Hub cleanliness to ensure the file header is written correctly for the machine.

Load the file on the Brother Innov-is 750E: treat it like a USB stick (because it is, to the machine)

On the machine side, the video shows:

• The device is recognized as external USB media.
• You navigate to the USB folder icon.
• Select the new file.

The demo design shows a stitch count of 1094 stitches.

At this point, you have achieved the win. The design is there. No thumb drives lost.

The “Why it works” (and why it sometimes doesn't): Wi-Fi transfer, file formats, and production reality

Understanding the mechanics helps you troubleshoot when things go wrong.

1. Impersonation: The device pretends to be a USB stick. The machine does not know it has Wi-Fi; it just sees storage.
2. Traffic Control: Embroidery Hub is the traffic controller. It buffers the file and pushes it to the IP address of the dongle.
3. Physical Limitations: Wireless transfer solves the logistics of data. It does not solve stitch quality. A wirelessly transferred design can still pucker if your stabilization is poor.

Setup checklist (after configuration, before your first real job)

Use this "Go/No-Go" list right after you finish the wizard.

• PC Side: Power LED is Solid Green, Wi-Fi LED was Flashing Blue during setup.
• Machine Side: Wi-Fi LED is Solid Blue (Connected).
• Recognition: Machine screen shows the USB icon is active.
• Software: Embroidery Hub is running in the system tray.
• Format: The file inside the folder is definitely a .PES (for Brother).

Troubleshooting Wilcom Embroidery Connect: symptoms → likely cause → fix

When something fails, don't guess. Follow this decision matrix.

The real productivity upgrade after wireless: fix hooping speed, hoop marks, and operator fatigue

Once wireless transfer is working, you will likely discover the next bottleneck immediately: Hooping.

You can send designs in 10 seconds—but if hooping takes 5 minutes, or if your fabric slips and ruins the garment, your "wireless speed" is wasted. In my consulting experience, this is the moment to upgrade your physical tools to match your digital speed.

Decision tree: choose a stabilizer + hooping approach based on fabric behavior

Use this logic to categorize your jobs:

• Scenario A: Standard Woven (Cotton/Twill)
  • Stabilizer: High-quality Tear-away.
  • Hoop: Standard hoop is acceptable.
  • Goal: focus on even tension.
• Scenario B: Stretchy Knits (Polos/T-Shirts)
  • Stabilizer: Cut-away (Mandatory). Knits require permanent support.
  • Constraint: Standard hoops often stretch the fabric, causing "puckering" (ripples) around the design.
  • Solution: This is where precision hooping matters.
• Scenario C: Delicate Fabrics / Bulk Production
  • Pain Point: "Hoop Burn" (shiny rings left by tight frames) or wrist fatigue from doing 20+ shirts.
  • Solution: Upgrade to magnetic embroidery hoops.

Why magnetic hoops can be a “workflow multiplier”

In a production environment, hooping is a repetitive strain entry point. Magnetic systems, such as the industry-trusted SEWTECH line, solve three specific problems:

1. Safety for Fabric: No friction-burn from forcing an inner ring into an outer ring.
2. Speed: You simply lay the fabric over the bottom frame and "snap" the top frame on.
3. Tension Control: The magnets hold fabric taut without distorting the grain.

If you are running a Brother 750E (or similar) and struggling with thick items like towels, searching for a specific magnetic hoop for brother is the logical Level 2 upgrade. It allows you to hoop items that are physically impossible to frame with plastic hoops.

Warning: Magnetic Field Safety
SEWTECH magnetic hoops are industrial-strength tools.
1. Pinch Hazard: Keep fingers clear of the mating surface when snapping frames together.
2. Medical: Keep magnets at least 6 inches away from pacemakers or implanted medical devices.
3. Electronics: Do not place the magnetic hoop directly on top of your laptop or the embroidery machine LCD screen.

A practical “upgrade ladder” (Criteria -> Tool)

• Level 1 (The Hobbyist): Standard hoops + Wireless Transfer. Good for 1-5 items a week.
• Level 2 (The Side Hustle): magnetic embroidery frame + Wireless Transfer. Essential if you are doing 10+ items or thick materials (towels/jackets).
• Level 3 ( The Business): Multi-needle machine + hoop master embroidery hooping station systems. If you need repeatable placement on 50+ shirts by using consistent station logic.

Many professionals initially search for how to use magnetic embroidery hoop videos because they are tired of hoop burn destroying their profit margin on delicate polo shirts. The investment in a magnetic magnetic hoops for embroidery machines setup acts as insurance against ruined garments.

Operation checklist (your first stitch-out after wireless transfer)

Before you hit Start, execute this final discipline. This separates the amateurs from the pros.

• Design Match: Confirm the stitch count (e.g., 1094 stitches) matches your software.
• Path Clearance: Ensure the hooping area is clear. embroidery machine hoops move fast; ensure they won't hit a wall or a coffee cup.
• The "Fox Pull" Test: Pull your top thread gently near the needle. It should feel like pulling dental floss through teeth—some resistance, but smooth. If it's loose, re-thread.
• Bobbin Check: Visual check—do you have enough bobbin thread for the job?
• Watch the First 100: Do not walk away. Watch the first 100 stitches to ensure the stabilization holds and the wireless file data is tracking correctly.

The takeaway: wireless is step one—repeatable production is the real goal

The video’s workflow is solid: set up in Embroidery Hub, wait for the green/blue LED boot state, lock in .PES, and keep the Hub open.

Once that data is flowing, look at your hands. If they hurt from hooping, or if your fabric is marked by rings, it is time to upgrade the physical side of your shop with magnetic frames and proper stabilizers. Wireless transfer gets the design to the machine; smart hooping keeps the design on the shirt.

FAQ

• Q: What items must be prepared before starting Wilcom Embroidery Connect setup in Embroidery Hub – Hatch Edition on a main PC?
  A: Gather the “hidden consumables” first, because missing one item is the #1 reason the wizard stalls halfway.
  • Confirm Hatch Embroidery 3 is installed (and updated to 3.1+) and Embroidery Hub – Hatch Edition opens on the main PC.
  • Write down the 2.4GHz Wi-Fi SSID and password (many devices struggle on 5GHz).
  • Identify the required machine output format (for Brother Innov-is 750E, use .PES) and decide a location-based device name.
  • Clean the machine USB port contacts if needed (use 70%+ isopropyl alcohol on older/dusty ports).
  • Success check: you can start the wizard with the Wi-Fi credentials and file format ready—no pauses to “go find” anything.
  • If it still fails: move the setup closer to strong Wi-Fi and ensure the PC has an active internet connection during the wizard.
• Q: How do you confirm Wilcom Embroidery Connect has fully booted during setup (Power LED and Wi-Fi LED status)?
  A: Wait about 2 minutes and only proceed when the Power LED is solid green and the Wi-Fi LED is flashing blue.
  • Stop clicking Next repeatedly; let the device finish booting before the software tries to detect it.
  • Reseat the USB-C cable firmly (push until it feels fully seated) if the lights look wrong.
  • Success check: solid green + flashing blue is the “ready for setup” state.
  • If it still fails: treat solid red or no light as a power/connection problem and re-check the cable seating and USB port condition.
• Q: What is the most common cause when Wilcom Embroidery Connect setup in Embroidery Hub “never finishes,” and how do you fix it?
  A: The most common cause is starting the wizard before Wilcom Embroidery Connect is fully booted.
  • Wait the full boot cycle until Power LED = solid green and Wi-Fi LED = flashing blue.
  • Avoid doing setup in a Wi-Fi dead zone; the device must reach the network during configuration.
  • Success check: the wizard proceeds only after the device is detectable and the LED state matches the checkpoint.
  • If it still fails: redo the USB-C “click/seat” check and try a different USB port on the PC.
• Q: Why does Hatch Embroidery 3 wireless send fail or time out with Wilcom Embroidery Connect when the design looks ready to send?
  A: Transfers commonly fail because Embroidery Hub – Hatch Edition (the bridge) is not running in the background.
  • Re-open Embroidery Hub – Hatch Edition and keep it active (system tray is fine).
  • In Hatch Embroidery 3, click Send, select the correct device name, confirm the output type, then send again.
  • Success check: the design appears on the embroidery machine as external USB media shortly after sending.
  • If it still fails: verify Wi-Fi strength at the machine location (metal frames/shelving can block signal).
• Q: Why does a Brother Innov-is 750E show “no file” after sending with Wilcom Embroidery Connect, and what should be checked first?
  A: Check the machine is viewing External USB media and the output format is set to Brother/BabyLock/Deco (.PES).
  • Navigate on the Brother Innov-is 750E to the USB folder icon (external USB) rather than internal memory.
  • In Embroidery Hub device settings, confirm the output file type is .PES (not another format).
  • Success check: the file is visible in the USB list and shows details (the demo example displayed 1094 stitches).
  • If it still fails: reseat the dongle on the machine side and check the USB side port for lint or a loose connection.
• Q: What Wi-Fi LED status confirms Wilcom Embroidery Connect is connected when plugged into a Brother Innov-is 750E USB port?
  A: On the machine, solid blue Wi-Fi LED means connected; flashing blue means it is still searching.
  • Plug the device into the side USB port on the Brother Innov-is 750E and give it time to start.
  • Watch the Wi-Fi LED transition: flashing blue → solid blue once connected.
  • Success check: solid blue Wi-Fi LED plus the machine recognizing it as external USB.
  • If it still fails: test Wi-Fi signal at the machine’s exact location and consider repositioning or adding a Wi-Fi extender if the room has heavy metal “shadowing.”
• Q: What safety rules should be followed during Wilcom Embroidery Connect setup and when using SEWTECH magnetic embroidery hoops in production?
  A: Treat setup as a live shop task: prevent needle-bar accidents and handle strong magnets as pinch hazards.
  • Keep fingers, loose hair, and hoodie drawstrings away from moving needle/lever areas when leaning in to watch the machine.
  • Keep fingers clear when snapping SEWTECH magnetic hoops together; magnets can pinch hard.
  • Keep magnetic hoops at least 6 inches away from pacemakers/implants and avoid placing magnetic hoops on laptops or the embroidery machine LCD.
  • Success check: operators can perform setup/hooping without hands entering moving zones and without finger pinches during frame mating.
  • If it still fails: pause the process, re-brief the safety steps, and only continue when the work area is clear and controlled.
• Q: After Wilcom Embroidery Connect wireless transfer is working, how do you decide between hooping technique changes, upgrading to SEWTECH magnetic hoops, or moving to a multi-needle machine workflow?
  A: Use a simple ladder: fix hooping basics first, then add magnetic hoops for speed/mark reduction, then upgrade machines when volume demands it.
  • Diagnose the bottleneck: if sending designs takes seconds but hooping takes minutes (or causes hoop burn/puckering), hooping is the constraint.
  • Try Level 1: match stabilizer to fabric (knits generally need cut-away) and focus on even tension and first-100-stitches monitoring.
  • Upgrade to Level 2: use SEWTECH magnetic hoops when hoop burn, thick items (like towels), or operator fatigue is causing rejects or slowdowns.
  • Consider Level 3: move to a multi-needle + station-based workflow when you need repeatable placement and higher throughput (volume-driven).
  • Success check: cycle time drops without increasing rejects (less hoop burn, fewer fabric distortions, less re-hooping).
  • If it still fails: standardize naming conventions, device-per-machine practice, and improve Wi-Fi coverage so production is repeatable, not “lucky.”
