Stop Scaling the Hard Way: When a Single-Head Embroidery Machine Beats a Multi-Head (and When It Absolutely Doesn’t)

You’re not crazy for feeling stuck on the “single-head vs. multi-head” decision—most shop owners hit that wall right when orders start getting real. One day you’re doing a few personalized pieces, and the next day someone asks for 24 jerseys with names, or 100 hats with the same logo, and suddenly your current setup feels like it’s fighting you.

This is the core truth the video nails, but I want to take it deeper into the "physics" of your shop floor: it’s not an either/or answer. The shops that scale cleanly usually run both—because each machine type is optimized for a different kind of mechanical stress and workflow logic.

Single-head embroidery machine vs multi-head embroidery machine: the difference that decides your turnaround time

A single-head embroidery machine runs one item at a time. In the video, it’s positioned as the workhorse for sampling and one-offs. But let’s look at the sensory experience of this. When running a single head, you have total auditory and visual control. You can hear the specific rhythm of the needle bar, and if something goes wrong, you stop one shirt, not six.

This makes the single head perfect for:

• Small-batch personalization: (Monograms, names).
• Sampling: "Proofing" a design on fabric before risking expensive blanks.
• High-risk items: Expensive jackets where you need to watch every stitch.

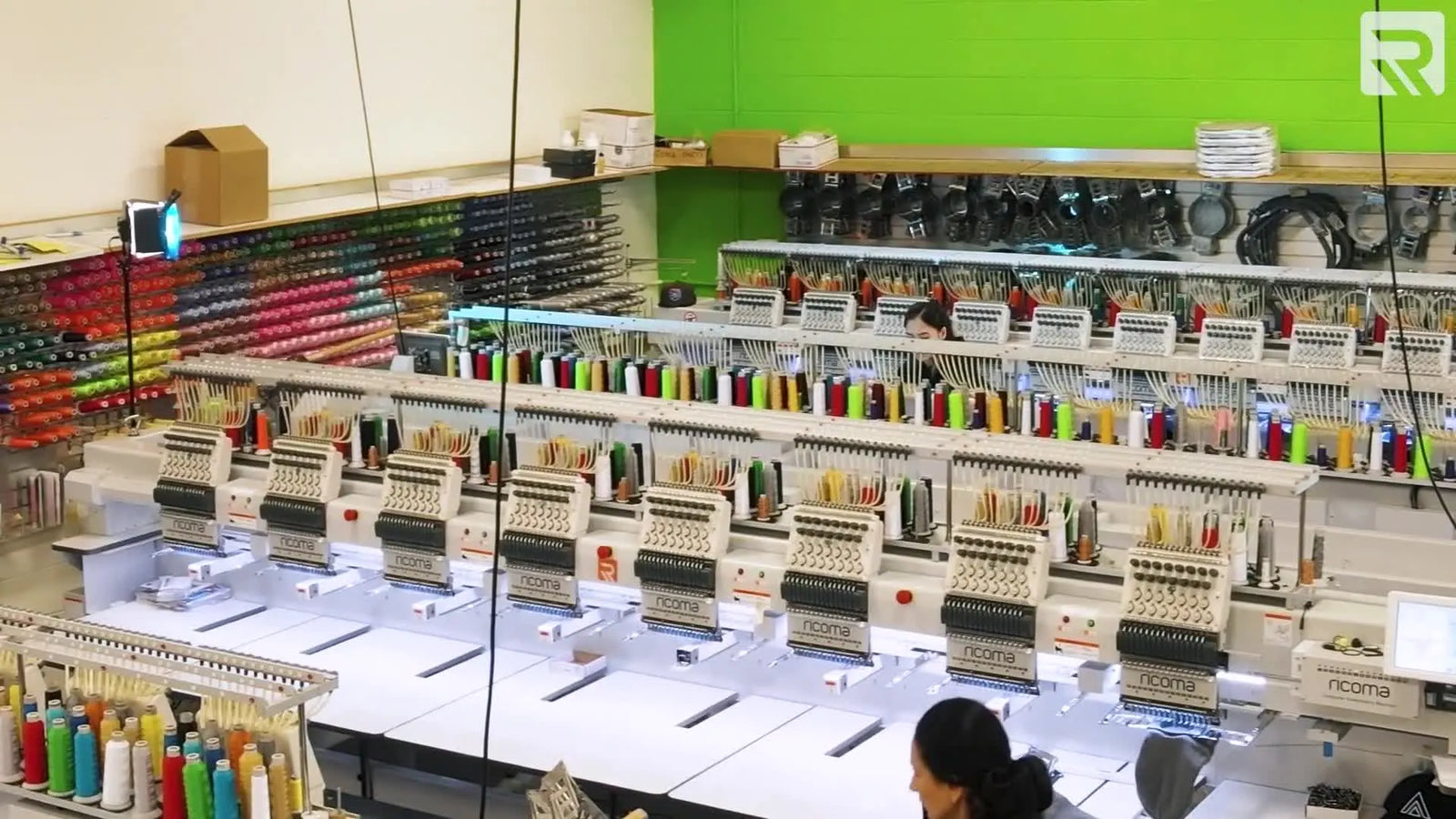

A multi-head machine runs multiple items at once—but only if they’re running the same design. That’s the friction point beginners misunderstand.

If you’re currently shopping or budgeting, anchor your thinking like this:

• Single head = Agility (Changing files instantly, different names, handling emergency rush jobs).
• Multi-head = Throughput (The sound of production: a rhythmic, synchronized "thump-thump" of multiple heads laying down the exact same 5,000 stitches simultaneously).

And yes—multi-head machines can range from 2, 4, 6 heads up to 8 and 12 heads, as shown in the video.

The multi-head “same design” rule: why you can’t just run different names on each head

A viewer asked a question I hear constantly in my workshops: why not “enable” a multi-head to stitch different designs on each head?

Ricoma’s reply is technically correct (synchronization), but let's explain the engineering reality. A multi-head machine is like a rowing team. Everyone must row at the exact same time, in the exact same direction. The distinct "pantograph" (the bar moving the hoops) is a solid mechanical unit connecting all heads.

Here’s the practical shop-floor translation (the part that saves you money):

• Mechanical Sync: All heads share an X/Y motor system. If Head 1 moves 2mm to the right, Head 4 must move 2mm to the right.
• Color Change Sync: If Head 1 cuts thread and switches to Needle 3 (Red), Head 4 must also cut and switch to Needle 3.

If you tried to run "Dave" on Head 1 and "Sarah" on Head 2, the machine would have to stop Head 2 while Head 1 stitches the "D", then stop Head 1 while Head 2 stitches the "S". You would spend 90% of your time in silence, waiting for the machine to toggle.

So the “same design” rule isn’t a limitation you hack around—it’s the reason multi-head production is stable and repeatable.

The “proof first” habit: sampling on a single head before you risk a full production run

The video calls this proofing, and in the industry, we call it "insurance."

I recommend a strict "Touch and Feel" protocol:

1. Hoop a scrap piece: Use the exact same fabric and backing/stabilizer you intend to use for the job.
2. Run the design on the single head: Watch for thread breaks or density issues.
3. The Tension Test: Look at the back. You should see 1/3 white bobbin thread down the center of satin columns. If you feel "birdsnesting" (a wad of thread) underneath, stop immediately.
4. Client Approval: Send a photo or get a sign-off on the physical sew-out.

That last point prevents the most painful kind of loss: finishing a full batch of 50 caps and then discovering the customer wanted the logo 1 inch higher.

Prep Checklist (Do this BEFORE you stitch a single “real” item)

• File Verification: Is the design oriented correctly? (Rotate 180° for caps?).
• Bobbin Audit: Do you have enough pre-wound bobbins for the entire run? (Rule of thumb: 1 bobbin ≈ 25,000-40,000 stitches depending on density).
• Needle Check: Run your fingernail down the needle tip. If it catches, the needle is burred—replace it. A $0.50 needle can ruin a $50 jacket.
• Hidden Consumables: Do you have temporary adhesive spray (spray adhesive) and a fresh water-soluble pen for marking centers?
• Hoop Inspection: Check the inner ring of your hoop. Is it smooth? Rough spots can snag delicate performance wear.

The 24-jersey baseball order: the cleanest way to split bulk logos and variable names

The video’s “Baseball Jersey Scenario” is the perfect real-world test of your workflow logic.

You have 24 jerseys:

• The team logo is identical on all 24.
• The player names are different on every jersey.

The efficient split is:

• Phase 1 (The Factory Mode): Run the team logo on the multi-head. This utilizes the machine's ability to replicate work.
• Phase 2 (The Custom Mode): Run the player names on the single head.

This keeps production flowing. Your multi-head stays busy doing what it’s best at (repeating), while the single head handles the high-touch "one-off" nature of names.

Why this split works (the physics and the business math)

If you ran names on a 4-head machine, you would have to turn off Heads 2, 3, and 4 to run a name on Head 1. You are effectively paying for the electricity and depreciation of a 4-head machine but only getting the output of a single needle.

This is the "Efficiency Trap." If you’re trying to scale profitably, the goal is not “own bigger equipment.” The goal is keep the right equipment running on the right kind of work.

Warning: Mechanical Safety
Keep fingers, snips, and loose sleeves away from the needle bars and take-up levers while the machine is running. A multi-head machine doesn't "feel" obstruction—it will drive a needle through a finger instantly. Never reach into the sewing field of Head 2 while fixing thread on Head 1 without engaging the emergency stop.

Control panel + USB workflow on a multi-head: how variable data quietly kills efficiency

The video shows the operator inserting a USB drive. On the screen, you see files like:

• CAT.DST at 35,569 stitches
• FLOWER-1.DST at 38,724 stitches

Experienced operators don't just read these numbers; they interpret them.

The "Density Danger" Check: If you see a small chest logo (typically 3.5 inches wide) that has 35,000 stitches, pause. That is incredibly dense. It will likely cause bulletproof stiffness and needle breaks. A standard chest logo is usually 5,000 to 10,000 stitches. Seeing 38k suggests someone resized a full-back design down to a chest size without re-digitizing. Do not sew this without checking.

The key warning here is operational: repeatedly loading new files (names) via USB on a multi-head stops the entire production line.

The “hidden” setup that prevents puckering: hooping tension + stabilizer choices that match the job

Most scaling problems look like “I need more machines,” but 70% of the time, they are actually hooping and stabilization problems.

The video shows standard tubular hoops (green). In a production environment, traditional hooping is the biggest bottleneck. It requires hand strength to tighten the screw, and if you tighten it too much, you get "hoop burn" (a crushed ring on the fabric that won't iron out). If it's too loose, the fabric ripples.

The Solution for Volume: If your team is losing time to slow clamping or dealing with wrist fatigue, this is the trigger point to upgrade to magnetic embroidery hoops.

• Why? They snap typically together automatically, adjusting to the fabric thickness without turning a screw.
• The Result: You eliminate "hoop burn" and reduce hooping time by 10-15 seconds per shirt. On a 100-shirt run, that's nearly half an hour of labor saved.

Warning: Magnetic Safety
Magnetic frames (like Mighty Hoops or SEWTECH equivalents) use industrial-strength neodymium magnets. They snap together with enough force to pinch fingers severely. Never place them near cardiac pacemakers, credit cards, or sensitive electronics. Always store them with the provided spacers.

Stabilizer Decision Tree (Stop Guessing)

Use this logic to prevent puckering.

1) Is the fabric Stretchy or Stable?

• Stretchy (Performance wear, T-shirts, Polos): You MUST use Cutaway stabilizer. Tearaway will eventually pull apart, and the stitches will distort.
• Stable (Denim, Canvas, Twill): Tearaway stabilizer is usually fine.
• Napped/Textured (Towels, Fleece): Use Tearaway/Cutaway on the back + Water Soluble Topping (Solvy) on top to keep stitches from sinking into the pile.

2) Is the design heavy (High Stitch Count)?

• > 10,000 stitches: Use two layers of stabilizer or a specialized heavy-weight backing.
• Design outlines not lining up? Your fabric is shifting. Switch to a sticky stabilizer or fuse the backing to the fabric.

The efficiency trap that burns new shop owners: turning off heads on a multi-head machine

The video shows a graphic where certain heads are “greyed out.”

This is the moment many owners realize why they feel behind even with a big machine. If you buy a 6-head machine but run it as six individual single-heads for names, you have bought a very expensive, very inefficient single-head fleet.

The Rule: A multi-head machine should run "All Heads Active" for at least 80% of its operating time. If you drop below that, you need more single heads, not more multi-heads.

Patch businesses are the niche exception: when multiple single heads beat one multi-head

The video makes a brilliant point about patches. If your business model is selling custom tactical or morale patches where every customer orders one unique patch, a multi-head machine is the wrong tool.

In this specific "Patch Niche":

• Scalability: Having 4 single-head machines is better than one 4-head machine.
• Redundancy: If one machine goes down for repair, you still have 3 running.
• Workflow: You can run a red patch, a blue patch, and a green patch simultaneously.

Consumable Note for Patches: Patches require a very stiff stabilizer (often 2 layers of heavy cutaway) and a sharp needle (75/11) to penetrate the dense border. Standardize your hooping for embroidery machine process using a dedicated station to ensure every patch is centered exactly the same way.

Setup Checklist (Lock your workflow before you hit “start”)

• Lane Assignment: Which machine does what? (Bulk = Multi / Variable = Single).
• Needle/Thread Match: Are you using the right needle point? (Ballpoint for knits/polos, Sharp for woven caps/patches).
• Orientation Check: Is the design rotated 180° for caps? (A classic error).
• Clearance Check: Manually "trace" the design (using the machine's trace button) to ensure the needle won't hit the hoop frame. Listen for the hoop moving—it should sound smooth, not grinding.
• Thread Path: Check that thread isn't caught on the thread stand (the "tree"). This is the #1 cause of false tension issues.

The file-list sanity check: using stitch count and dimensions to prevent expensive mistakes

When you are scrolling through files on your control panel, treat those numbers as your "Pre-Flight Instruments."

• Dimension Check: If you are hooping a 100mm x 100mm pocket, but the file says 120mm wide, you will hit the hoop.
• Stitch Count Reality:
  • Hats: Ideally < 7,000 stitches per front panel.
  • Left Chest: Ideally < 8,000 stitches.
  • Full Back: 30,000 - 60,000+ stitches.

If the numbers don't look right, don't sew it. Go back to the digitizer.

The “upgrade path” that doesn’t waste money: tools that buy back time in real production

Scaling is about removing bottlenecks. In embroidery shops, money is usually lost in three places: Hooping time, Thread breaks, and Rework.

Here is a logical upgrade path based on your volume:

1) Start with Consumables (The $20 Fix)

Before buying new machines, upgrade your needles (Titanium coated for longevity) and thread (high-tensile polyester). If you are fighting breaks, check your stabilizer quality. Cheap backing leads to expensive rework.

2) The Hooping Upgrade (The $200-$500 Fix)

If you are doing 50+ shirts a week, standard hoops are slowing you down. Moving to magnetic hoops for embroidery machines (compatible with your specific machine brand) is the highest ROI upgrade you can make. It protects your wrists and ensures flat, burn-free hooping. This applies to both home machines and industrial setups.

3) The Capacity Upgrade (The $10k+ Fix)

Only buy a multi-head when you have consistent orders of 12+ pieces of the same design. Until then, a second single head embroidery machine offers more strategic flexibility.

4) The Station Upgrade

Consistency is key. A dedicated hooping station for embroidery machine ensures that "Center Chest" is in the exact same spot for every shirt, regardless of which employee hoops it.

Troubleshooting the real-world scaling problems (Symptom → Cause → Fix)

When things go wrong, use this hierarchy. Start with the "Physical" (cheap/fast) before moving to "Digital" (complex).

The production mindset shift: keep the multi-head running, keep the single head flexible

The best takeaway from the video is a mindset shift:

• The Single Head is your "Lab" and "Special Ops": It handles the tricky stuff, the samples, and the names.
• The Multi-Head is your "Factory": It should be boring. It should run the same file, over and over, making you profit with every synchronized stitch.

When you respect the mechanics of both, you stop "scaling wrong." You stop buying capacity that sits idle.

Operation Checklist (The Pilot's Scan)

• The "First 100 Stitches" Watch: Never walk away at the start. Watch the first minute to ensure the bobbin catches and the tension looks right.
• Listen to the Rhythm: A happy machine has a consistent, rhythmic mechanical purr. A sharp "clacking" or irregular "grinding" means stop immediately—check the hook area for stray threads.
• Bobbin Management: Don't wait for a run-out. If you are starting a 20,000-stitch back design, put in a fresh bobbin. Use the half-used ones for small left-chest logos later.
• Hooping flow: While the machine is running Hoops 1-4, you should be hooping garments 5-8. Keep the machine hungry.

The “tool upgrade” that pairs perfectly with hybrid workflow

Once you establish this hybrid workflow, you'll find that your machine speed isn't the limit—your hands are.

If you find yourself searching for terms like ricoma embroidery hoops or looking for faster ways to frame garments, it's a sign you are ready for magnetic solutions. Whether you use Ricoma, Tajima, or Brother, the industry is moving toward magnetics (like the ricoma mighty hoops style systems or SEWTECH equivalents) because they decouple the operator's skill from the hooping quality. A beginner can hoop perfectly with magnets; traditional hoops take months to master.

For those starting out, looking into a ricoma mighty hoop starter kit or similar bundled magnetic sets for your specific machine model can be the bridge between "hobby" speed and "production" speed.

If you take nothing else from this: don’t let a machine purchase substitute for a workflow. Proof on the single head to ensure safety, produce on the multi-head to ensure profit, and upgrade your tools (hoops and stabilizers) to save your sanity.

FAQ

• Q: Why does a Tajima multi-head embroidery machine force the “same design on all heads” rule when running names on jerseys?
  A: A Tajima multi-head embroidery machine is mechanically synchronized, so different names would force constant stopping and make production inefficient.
  • Keep one file running across all active heads for bulk logos.
  • Move variable names to a single-head embroidery machine to avoid disabling heads.
  • Success check: The machine runs with a steady, uninterrupted rhythm instead of frequent pauses for file changes.
  • If it still fails: Review whether the job is truly “same design” work or variable-data work and reassign the phase to the correct machine type.
• Q: How do I do a “proof first” sew-out on a Brother single-head embroidery machine before running a full order?
  A: Use a Brother single-head embroidery machine to sew a test on matching scrap fabric and backing before you risk expensive blanks.
  • Hoop scrap fabric using the exact stabilizer/backing planned for the order.
  • Run the design and watch closely for thread breaks or density problems.
  • Check tension by inspecting the back of satin columns.
  • Success check: The back shows about 1/3 white bobbin thread centered in satin columns, with no thread wad underneath.
  • If it still fails: Stop immediately and re-check threading and stabilizer choice before approving production.
• Q: What is the correct embroidery tension check on a Ricoma single-head embroidery machine when birdnesting appears under the fabric?
  A: When a Ricoma single-head embroidery machine birdnests underneath, the quickest fix is a full re-thread because top tension is often effectively zero or the take-up lever was missed.
  • Re-thread the entire top path with the presser foot UP (so tension discs open).
  • Confirm the thread is correctly seated through the take-up lever and guides.
  • Sew a short test run and inspect the underside immediately.
  • Success check: No “wad” of thread forms under the fabric, and the underside looks controlled instead of tangled.
  • If it still fails: Check for other causes listed in troubleshooting (needle condition, bobbin status, or thread path snagging).
• Q: How often should I change needles on a Barudan multi-needle embroidery machine to stop thread shredding after using spray adhesive?
  A: If a Barudan multi-needle embroidery machine starts shredding or fraying thread, change the needle first—especially if spray adhesive residue or a burred tip is suspected.
  • Replace the needle (a safe production habit is changing needles every 8–10 operating hours).
  • Feel the needle tip with a fingernail; if it catches, the needle is damaged and must be replaced.
  • Reduce adhesive buildup by keeping the needle area clean and avoiding overspray.
  • Success check: Thread runs smoothly without fuzzy shredding at the needle during the first minute of stitching.
  • If it still fails: Check the thread path for snags on the thread stand and confirm the design is not excessively dense for the fabric.
• Q: How do I prevent puckering on stretchy performance polos when using a Tajima tubular hoop and stabilizer?
  A: To prevent puckering on stretchy polos, pair firm hooping with cutaway stabilizer (tearaway usually fails on stretch fabric).
  • Switch to cutaway stabilizer for performance wear and T-shirts.
  • Hoop to a “drum skin” feel—tight enough to prevent shifting but not crushed.
  • Increase stabilization for heavy designs (often add a second layer when stitch count is high).
  • Success check: After stitching, the fabric lies flat with no rippling around the design and outlines stay aligned.
  • If it still fails: Move to sticky stabilizer or fuse the backing to the fabric to reduce fabric shifting.
• Q: What safety steps should operators follow when fixing thread on Head 1 of a Tajima multi-head embroidery machine while other heads are running?
  A: Stop the Tajima multi-head embroidery machine before reaching into the sewing field, because the needle bars and take-up levers can injure fingers instantly.
  • Hit the emergency stop before placing hands near any needle bar area.
  • Keep snips, loose sleeves, and fingers away from moving take-up levers and needle bars.
  • Restart only after verifying the sewing field is clear across all heads.
  • Success check: No hands enter the sewing area until all motion fully stops and the machine is safe to access.
  • If it still fails: Train a strict “stop-before-reach” rule for every operator—multi-head machines do not sense obstructions.
• Q: What safety rules should I follow when using SEWTECH magnetic embroidery hoops near electronics or medical devices?
  A: Treat SEWTECH magnetic embroidery hoops as industrial-strength magnets that can pinch fingers and interfere with sensitive items.
  • Keep magnetic hoops away from cardiac pacemakers, credit cards, and sensitive electronics.
  • Use the provided spacers for storage and handling to reduce snap force.
  • Keep fingers out of the closing path when the frame snaps together.
  • Success check: The hoop closes securely without finger pinches, and storage is controlled with spacers in place.
  • If it still fails: Slow down the closing motion and re-train handling—magnetic pinch injuries usually come from rushed alignment.
• Q: When should a shop upgrade from standard tubular hoops to magnetic hoops versus upgrading to a SEWTECH multi-head embroidery machine for 100-shirt runs?
  A: Upgrade in layers: fix hooping speed and consistency first with magnetic hoops, then add multi-head capacity only when the shop has steady same-design volume.
  • Level 1: Optimize workflow with a proof sew-out, correct stabilizer, and tension checks to reduce rework.
  • Level 2: Upgrade to magnetic hoops if hooping is slow, causes wrist fatigue, or creates hoop burn; this often saves 10–15 seconds per garment in hooping time.
  • Level 3: Upgrade to a SEWTECH multi-head embroidery machine when orders consistently include 12+ pieces of the same design and the machine can run “all heads active” most of the time.
  • Success check: The shop spends less time re-hooping and reworking, and the production machine stays running with minimal stoppages.
  • If it still fails: Re-audit where time is actually lost (hooping time, thread breaks, or rework) and address the biggest bottleneck first.
