Master the Grid: A Professional Guide to Batching Ornaments on Brother Machines

You are likely here because you have watched your machine tediously stitch one full ornament, cut the thread, move three inches, and start the next one from scratch. You aren’t doing anything “wrong”—but you are taking the scenic route. In commercial embroidery, this is known as "killed production time."

As an embroidery educator with two decades of floor experience, I often see talented creators bottlenecked not by their creativity, but by their workflow. When you are making one gift, efficiency doesn’t matter. When you are making fifty ornaments for a craft fair or client order, efficiency is your profit margin.

In this comprehensive guide, I will walk you through the exact workflow—demonstrated on a Brother Luminaire but applicable to the Stellaire, V3, XV, V5, and V7 series—using the built-in Border/Matrix tool. We will move beyond simple button-pushing and discuss the physics of batching, the sensory cues of a safe setup, and the tooling upgrades that stabilize your production.

The “Why Is My Brother Stitching One-by-One?” Moment (and the Calm Fix)

When a student tells me, "the penny has dropped," it usually means they have discovered the difference between COPYING and ARRAYING.

On Brother machines, the method of duplication dictates the stitching logic. If you use the standard Add button to load the same file three times, the machine interprets this as three distinct, unrelated jobs. It will finish Job A (the first gingerbread man) completely before it even thinks about Job B. Use your ears: you will hear the machine slow down, the trimmer snip (a distinct clunk-swish sound), and the pantograph move repeatedly. That sound is the sound of wasted time.

However, when you use the Border/Matrix function (the Rubik’s cube icon), you are telling the machine’s processor: “This is a single entity composed of repeated elements.” This unlocks Color Sorting (or "Smart Stitching"). The machine will stitch all placement lines for all ornaments in one pass, then stop for your fabric placement.

The Commercial Reality: This doesn't just save time; it ensures consistency. By stitching all outlines at once, you lock the fabric to the stabilizer across the entire hoop immediately, reducing the chance of the fabric shifting later in the process.

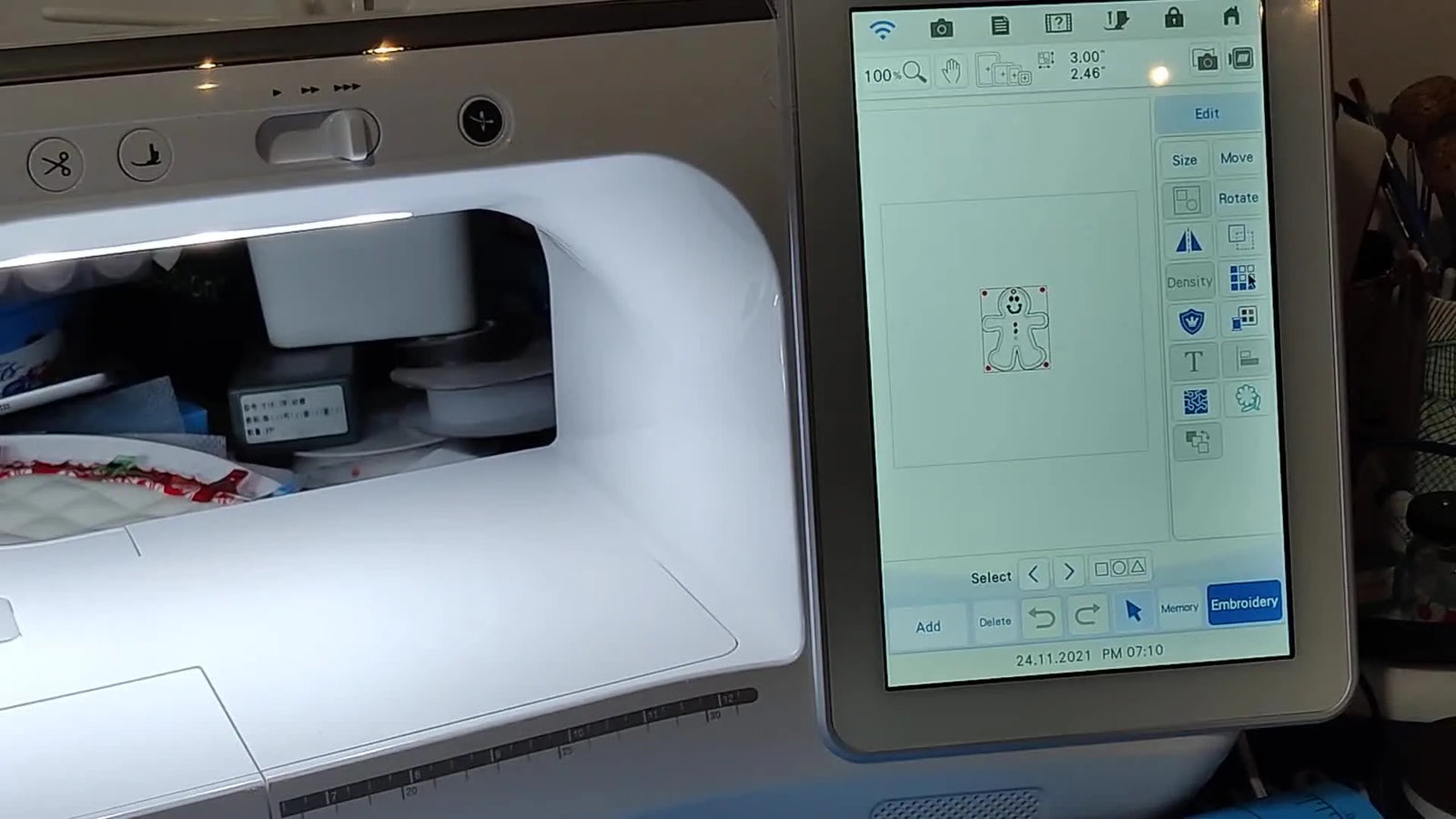

Find the Rubik’s Cube Icon on Brother Luminaire / Stellaire / Brother V3 (It’s Not Where You Expect)

To access this "Production Mode," you must load your initial design and enter the Edit screen. On the Luminaire and Stellaire, look for the icon resembling a multi-colored Rubik’s cube or a 4-square grid.

It is crucial to distinguish this from the standard "Add" button. The specific location varies by model. For instance, if you are navigating the interface of a brother v3, the icon often sits lower on the edit screen, but the function remains identical.

Pro Insight: Why does Brother "hide" this? It's not hidden; it's segregated. This tool changes the fundamental logic of the stitch file, so they keep it separate to prevent beginners from accidentally merging complex designs that shouldn't be merged.

The “Hidden” Prep Before You Multiply Designs (So the Grid Actually Stitches Clean)

The software side is easy. The physics side is where 90% of beginners fail. When you stitch a grid of 6 or 8 dense designs, you are putting immense stress on your fabric. The "Push and Pull" effect—where stitches distort the fabric—is multiplied. If your first ornament is perfect but the sixth one is distorted, your prep was insufficient.

Before you touch the screen, you must pass this physical inspection:

Prep Checklist: The "Zero-Failure" Protocol

• The Drum Test: hoop your base fabric and stabilizer. Tap on it. It should sound like a tight drum skin (thump-thump), not a dull thud. However, do not over-tighten to the point of stretching the fabric weave, or it will pucker when unhooped.
• Stabilizer Density: For a full hoop of ornaments, a single layer of tearaway is rarely enough. Use a medium-weight Cutaway stabilizer to support the high stitch count of a full grid.
• Needle Freshness: A grid of ornaments might equal 50,000 stitches. Start with a fresh needle. Check the tip by dragging it lightly across an old pair of nylons or the back of your hand—if it snags, trash it.
• Bobbin Capacity: Check your bobbin. If you can see the plastic core or have less than 1/3 left, change it now. Running out of bobbin thread on ornament #5 of a batch is a workflow killer.
• Hidden Consumable: Keep a can of temporary spray adhesive or a glue stick handy. For batching, adhesion between stabilizer and fabric is critical to prevent "flagging" (bouncing fabric).

Warning: Physical Safety
When working with large grids, the embroidery arm travels to its absolute limits. Keep your hands, hair, and spare thread cones strictly clear of the moving pantograph area. A machine moving at 800 stitches per minute (SPM) has significant torque and can cause injury.

Build a Clean Grid with Brother Border/Matrix: Vertical + Horizontal Duplication That Actually Fits the Hoop

Once physically prepped, we build the digital layout.

1) Duplicate vertically (top/bottom)

In the Matrix menu, locate the controls with squares stacked vertically. Tap the arrow to add rows.

As the gingerbread men multiply, watch the bottom edge of your hoop indicator on the screen.

2) Duplicate horizontally (left/right)

Use the adjacent horizontal controls to fill the width of the hoop.

The Sweet Spot: Do not try to fill every millimeter of the hoop. If the design touches the safety boundary (the red or grey line), the machine may refuse to sew or beep at you. Leave a "breathing room" margin of at least 10mm around the outer edge.

Spacing for Ribbon Loops and Cutting: The Gap Controls That Save Your Sanity

This step separates the amateurs from the pros. A grid that fits on screen might be impossible to cut out with scissors later. You need Physical Clearance.

In the Matrix menu, use the spacing arrows (indicating outward expansion) to push the designs apart.

You are balancing three factors here:

1. Cutting Space: You need enough gap for your scissors (approx. 15mm-20mm) to navigate between ornaments without snipping the neighbor's arm.
2. Ribbon Hardware: As shown in the video, check the top of the gingerbread man's head. Is there room for the ribbon loop or hardware?
3. Fabric Stability: Designs that are too close can pull on each other, causing the fabric to bunch up in the narrow channel between them.


Expert Rule of Thumb: Place your pinky finger on the screen (if scale is 1:1) or visualize a 1/2 inch gap. If it looks tighter than that, add spacing or remove one column. It is better to sew 6 perfect ornaments than 8 ruined ones.

Center the Whole Layout in the Hoop (So Your Edges Don’t Get Clipped)

After establishing your grid and spacing, you must re-center. The expansion often pushes the grid off-center.

The Visual Check: Look at the gap between your design and the hoop boundary on all four sides. Is it symmetrical? If the grid is skewed left, the left-most ornaments might suffer from "Hoop Shadow"—where the presser foot hits the hoop frame, potentially knocking the alignment off.

The Payoff: Brother Color Sorting in the Stitch Simulator (Batch Placement Lines First)

Press "Embroidery" or "Sewing" to process the file. Now, verify the magic.

Look at the color timeline. You should see a massive block of "Color 1" (Placement Line).

• Old Way: Placement (1), Tackdown (1), Satin (1) -> Placement (2), Tackdown (2), Satin (2)...
• New Way: Placement (1, 2, 3, 4, 5, 6) -> Stop -> Place Fabric -> Tackdown (1, 2, 3, 4, 5, 6)...

Speed Calibration: For a batch run, I recommend lowering your top speed slightly. If your machine can do 1050 SPM, run the batch at 800 SPM. The friction and heat generated by a long continuous run can cause thread breaks. A steady 800 SPM without thread breaks is infinitely faster than 1050 SPM with three stops to re-thread.

The Trap: Using “Add” to Duplicate Designs (Why It Looks Right but Stitches Slow)

To reinforce the learning, let's look at the failure mode. If you use the standard "Add" button:

The screen looks similar, but the data structure is different. The stitch simulator will reveal the truth: the machine isolates each design.

The Cost: If each ornament has 5 thread colors and you sew 6 ornaments:

• Matrix Method: 5 color changes total.
• "Add" Method: 30 color changes total.
• Time differences: potentially 20+ minutes of manual labor saved per hoop.

If you made this mistake, do not try to fix it. Delete the screen and start over using the correct icon.

Setup Checklist: My “Before You Press Start” Routine for Multi-Design Hoops

Batching multiplies your output, but it also multiplies the cost of errors. A mistake here ruins 6 ornaments and a square yard of fabric.

Setup Checklist (The "Pilot's Check")

• Matrix Verification: Did I use the Rubik's Cube icon? (Check stitch simulation for grouped step 1).
• Boundary Safety: Is the entire grid centered with at least 1/2 inch clearance from the plastic hoop edge?
• Scissor Space: Is there a perceptible gap between designs for cutting?
• Material Volume: Do I have enough applique fabric prepared to cover the entire hoop at once?
• Thread Path: Is the thread fully seated in the tension disks? (Pull the thread near the needle; you should feel resistance like flossing teeth).

For home single-needle users, alignment is the hardest part. Many enthusiasts eventually invest in an embroidery hooping station to ensure that when they hoop that large piece of fabric, the grain line stays perfectly straight.

A Practical Decision Tree: Stabilizer + Hooping Choices for Batch Ornaments

The video shows the screen, but the screen doesn't hold the fabric. Use this logic flow to determine your physical setup.

Decision Tree: Calibrating for Batch Stability

1. Is your base material thick/stable (e.g., Quilted Layer, Felt, Vinyl)?
   • YES: Use Medium Tearaway (2.5oz). The material supports itself.
   • NO: Go to step 2.
2. Is your base material thin, stretchy, or woven (e.g., Cotton, Knit, Linen)?
   • YES: You must use Cutaway Stabilizer (Mesh or Heavy). The fabric cannot support a grid of stitches without deforming.
3. Are you stitching Free-Standing Lace (FSL) or significant edge satin?
   • YES: Use Water Soluble Stabilizer (Fibrous type, not the thin film). Double layer it.
4. Are you producing more than 10 hoops?
   • YES: Stop using "whatever scraps are around." Standardize your stabilizer and hooping method immediately to ensure Ornament #1 matches Ornament #100.

The Upgrade Path: When Better Hoops and Better Hooping Pay for Themselves

As you move from "making one" to "making many," your equipment will reveal its limitations. The standard plastic hoops that come with Brother machines are excellent for general use, but they rely on friction and screw tension, which can be inconsistent or painful for repetitive batch work.

Level 1: Solving the "Hoop Burn" and Wrist Pain

When you are hooping 20 times a day, tightening that screw becomes a health hazard for your wrists, and the friction can leave permanent "burn" rings on delicate fabrics (like velvet or performance wear). This is where professionals switch to magnetic embroidery hoops for brother.

• The Physics: Instead of friction, they use vertical magnetic force to clamp the fabric. This eliminates hoop burn and drastically speeds up the hooping process.
• Selection Criteria: If you look for a magnetic hoop for brother, ensure it is rated for your specific machine arm width.

Warning: Magnetic Field Safety
Magnetic hoops use industrial-grade magnets. They are incredibly strong.
1. Pinch Hazard: Do not let the two frames snap together without fabric in between; they can pinch fingers severely.
2. Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Store them away from credit cards and machine LCD screens.

Level 2: Solving Alignment and Speed

If your bottleneck is getting the fabric straight, a hooping station for machine embroidery creates a standardized jig. You set it up once, and every subsequent shirt or fabric square is loaded in the exact same spot.

• Commercial shops often use systems like a hoop master embroidery hooping station to de-skill this process, allowing new employees to hoop perfectly on day one.

Level 3: Scaling Capacity

If you are consistently running batches of 10+ hoops, your single-needle machine is the limiting factor. This is the natural trigger point to look at multi-needle machines (like the SEWTECH commercial line). The ability to set up 10 colors and walk away, rather than changing thread 60 times for a batch of ornaments, is what transforms a hobby into a business.

Troubleshooting: Symptoms → Likely Cause → Fix

If things go wrong, do not panic. Use this diagnostic table based on the workflow we just built.

Operation Checklist: How to Run the Batch Without Losing Time on the “Little Stuff”

You have prepped, leveled up your tooling, and set the matrix. Now, execute the run.

Operation Checklist (The "In-Flight" Monitor)

• The First Stitch: Watch the very first placement stitch. Does the layout match your mental map?
• The "Travel": Watch the machine move between Ornament 1 and Ornament 2. Is the thread catching on the presser foot? (Trim jump stitches if your machine doesn't auto-trim).
• Stage Management: While the machine is stitching the 10-minute Tackdown phase, use that time to prep your next hoop or trim the previous batch. Do not just watch the machine; that is passive time.
• Listen: Learn the sound of your machine. A rhythmic hum is good. A slap or grind means stop immediately—usually a thread path issue.


Mastering the Border/Matrix tool is your first step toward embroidery mastery. It shifts your mindset from "sewing a picture" to "manufacturing a product." Combine this software skill with the right physical tools—correct stabilizers, sharp needles, and ergonomic magnetic hoops—and you will see your production timeline shrink while your quality consistency skyrockets.

FAQ

• Q: Why does a Brother Luminaire/Stellaire/V3 machine stitch one ornament completely before moving to the next when duplicating a design?
  A: Use the Brother Border/Matrix (Rubik’s cube / 4-square grid) tool instead of the Add button, because Add creates separate jobs that stitch one-by-one.
  • Rebuild the layout from one loaded design in the Edit screen, then duplicate using Border/Matrix.
  • Verify the stitch order in the simulator before sewing (look for grouped steps by color).
  • Avoid “fixing” an Add-built screen—delete and start over to prevent wasted trims and travel.
  • Success check: The color timeline shows one big block of the first color (e.g., all placement lines for all ornaments) before the next step.
  • If it still fails: Confirm the duplication was done inside Border/Matrix (not multiple manual loads) and re-check the simulator sequencing.
• Q: What is the minimum stabilizer and hooping setup to keep a full Brother Border/Matrix grid from warping or distorting by ornament #5 or #6?
  A: For dense multi-ornament grids, a single layer of tearaway is often not enough—use a medium-weight cutaway stabilizer and hoop “drum tight” without stretching the fabric.
  • Hoop fabric + stabilizer so it passes the drum test (tight “thump-thump,” not a dull thud).
  • Upgrade stabilizer to cutaway when the base fabric is thin, stretchy, or woven and the grid is high stitch count.
  • Add temporary spray adhesive or a glue stick to improve bonding and reduce flagging during long runs.
  • Success check: The fabric stays flat across the hoop and does not “bubble” in the channels between ornaments as stitching progresses.
  • If it still fails: Reduce the number of ornaments per hoop or increase spacing so designs don’t pull against each other.
• Q: How can a Brother Luminaire/Stellaire Border/Matrix layout be spaced so scissors can cut ornaments cleanly and ribbon loops fit without ruining neighbors?
  A: Increase spacing in the Border/Matrix spacing controls until there is practical physical clearance for cutting and hardware.
  • Adjust the outward spacing arrows in the Matrix menu rather than squeezing designs to “max capacity.”
  • Leave enough gap for scissors travel (the blog’s target is roughly 15–20 mm) and room near the top for ribbon loops/hardware.
  • Keep at least about 10 mm “breathing room” between the outermost designs and the hoop boundary to avoid beeps/refusals.
  • Success check: You can visually confirm a consistent gap between every ornament, and nothing touches the hoop’s safety boundary line.
  • If it still fails: Remove one column/row instead of forcing tighter spacing near the hoop edge.
• Q: What should be checked on a Brother Luminaire/Stellaire/V3 before pressing Start on a multi-design Border/Matrix hoop to avoid mid-run failures?
  A: Treat the run like a “pilot check”: start with fresh consumables, confirm grouped stitch order, and ensure enough materials for the entire hoop.
  • Replace the needle before a long batch (a grid can be ~50,000 stitches) and don’t start with a questionable tip.
  • Change the bobbin early if it is below about 1/3 (running out on ornament #5 is a workflow killer).
  • Confirm the thread is seated in the tension path (you should feel resistance when pulling near the needle).
  • Success check: The first placement stitches land exactly where expected across the whole grid, and the machine runs with a steady rhythmic hum.
  • If it still fails: Slow the run (the blog recommends ~800 SPM for batch stability) and re-check hoop tightness + stabilizer strength.
• Q: What does “hoop burn” or wrist pain from repeated hooping on Brother machines suggest, and when should Brother users consider magnetic embroidery hoops?
  A: If repeated screw-tightening causes marks on fabric or wrist strain, magnetic embroidery hoops are a practical upgrade because they clamp with magnetic force instead of friction.
  • Identify the trigger: frequent hooping sessions where the screw hoop leaves rings or tightening becomes painful.
  • Switch to magnetic hoops to speed hooping and reduce fabric marking on delicate materials.
  • Confirm the hoop is rated for the specific Brother machine arm width before purchase/use.
  • Success check: The fabric is held securely without visible friction rings, and hooping time per piece drops noticeably.
  • If it still fails: Reassess stabilizer and adhesive—magnetic clamping helps, but weak stabilization can still allow shifting in dense grids.
• Q: What are the key magnetic embroidery hoop safety rules when using strong magnets for Brother hooping?
  A: Treat magnetic hoops like industrial clamps: prevent snap-together pinch injuries and keep magnets away from medical devices and sensitive electronics.
  • Keep fingers clear and never let the frames snap together uncontrolled (pinch hazard is real).
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Store magnetic hoops away from credit cards and LCD screens/electronics.
  • Success check: The frames close in a controlled manner with fabric between them, with no sudden “slam” or finger risk.
  • If it still fails: Stop using the hoop until handling is controlled—use slower placement and a clear work surface to manage the magnetic pull.
• Q: What is the safest way to prevent injury when running large Brother Border/Matrix grids where the embroidery arm travels to the hoop limits?
  A: Keep hands, hair, and loose items completely out of the pantograph travel area because the machine moves with high speed and torque during full-hoop runs.
  • Clear the entire arm path before pressing Start, including thread cones, tools, and excess fabric.
  • Do not reach into the hoop area while the machine is stitching or traveling between elements.
  • Use listening as a safety trigger: stop immediately if you hear a slap or grind instead of a steady hum.
  • Success check: The arm can reach its extreme positions without contacting anything, and the run proceeds without sudden impacts.
  • If it still fails: Pause/stop the machine, re-route or remove obstructions, and re-start only after confirming full clearance.
