Stop Your Melco EMT16X From Smacking the Brim: Clean Hat Hooping, Low Logo Placement, and the Tweezer Trick That Saves Runs

Hat embroidery is one of those jobs that looks easy—until a customer asks for the logo low, right near the bill. That’s when the machine starts “complaining”: the sewing head bumps the brim, the pressure foot can’t tame the thickness at the seam, and you get those maddening false thread-break detections.

This post rebuilds the exact workflow shown on a Melco EMT16X, using a Richardson 112 trucker hat and an EMS Hoop Tech (Gen 2 style) cap frame. I’ll keep the steps practical, but I’ll also explain why these problems happen—because once you understand the mechanics, you stop fighting hats and start running them.

When the Melco EMT16X Sewing Head Hits the Hat Bill, Don’t “Force It”—Change the Geometry

The video nails the core truth: if the logo is placed too low, the back of the sewing head can physically hit the bill, and the machine simply can’t stitch where you want it.

Here’s the mindset I want you to adopt: this isn’t a “my machine is weak” problem. It’s a clearance problem. Caps are a 3D object, and the bill is a hard lever sitting right in the travel path.

In practice, you have three levers you can pull:

1. Reduce how low the design sits (most reliable).
2. Reduce how much the bill sticks up into the head path (the rope trick).
3. Reduce how much the cap “flags” upward during stitching (the tweezer assist).

If you’re running a melco emt16x embroidery machine, treat brim clearance like a safety check, not a “we’ll see what happens” gamble—because one collision can mean a bent needle, a damaged presser foot, or a ruined cap.

The 2" × 4–5" Rule for Richardson 112 Logo Size (So You Can Go Low Without Regret)

The presenter gives a sizing guideline that’s worth writing on the wall:

• Ideal hat logo height: about 2.0 to 2.25 inches maximum.
• Ideal hat logo width: about 4 to 5 inches.

That size range isn’t just about aesthetics—it’s about staying in the “safe zone” of the crown before the curve gets too steep and the bill area gets too thick.

What to measure (exactly like the video)

Use a flexible measuring tape against the front panel:

• Measure Vertically: Start from the button down to about 0.5" - 0.75" above the bill. That is your hard ceiling and hard floor.
• Measure Horizontally: Visualize how the design wraps. If it goes too wide, the distortion on a 6-panel cap seam will ruin your straight lines.




Why this sizing works (The Physics)

As you approach the bill seam, you’re stacking problems:

• The cap structure (buckram) is stiffer.
• The seam adds thickness (often 4-6 layers of fabric + glue).
• The curvature increases, so the fabric wants to spring away from the needle plate (Flagging).

That spring-back is what sets up the next issue: flagging and false thread breaks.

The “Hidden” Prep Before You Hoop a Hat: Backing Choice, Seam Reality, and a 30-Second Sanity Check

Before you clamp anything, do the prep that prevents 80% of hat failures. The video mentions cap backing/stabilizer and shows the real-world thickness near the bill; I’m going to turn that into a repeatable routine.

Hidden Consumables List

Don't start until you have these within arm's reach:

• 75/11 Titanium Sharp Needles: (Ballpoints often struggle to penetrate hard buckram).
• Heavy Tear-Away Cap Backing: (3.0 oz restricted is standard).
• Spare Bobbin: (Don't run out mid-cap).
• Fine-tip Metal Tweezers: (The hero tool).

Decision Tree: Choose Stabilizer Based on Cap Behavior

Caps are not "one size fits all." Use this logic to choose your backing:

• Scenario A: Structured Cap (Richardson 112) + Standard Logo
  • Solution: 1 Layer of 3.0 oz Tear-Away Cap Backing.
  • Why: The buckram provides primary support; the backing prevents perforation.
• Scenario B: Unstructured/Soft Cap ("Dad Hat")
  • Solution: 2 Layers of Stabilizer (Cross-grain) OR 1 Layer of Cutaway.
  • Why: The fabric has no skeleton; you must build one with stabilizer to prevent puckering.
• Scenario C: High-Density Design Near the Bill (The Risk Zone)
  • Solution: 1 Layer 3.0 oz Backing + New Titanium Needle.
  • Why: A dull needle will push the fabric down rather than piercing it, causing deflection.

If you’re experimenting with different melco embroidery hoops or third-party cap drivers, remember: hooping pressure can’t replace stabilization. It only controls movement; it doesn’t change how the needle penetrates a thick seam.

PREP CHECKLIST: Failure Prevention

• Clearance Check: Is the design at least 0.5" up from the bill seam?
• Needle Check: Is the needle straight and sharp? (Run a fingernail down the tip to check for burrs).
• Bobbin Check: Is the bobbin thread level visible and sufficient for the run?
• Backing Check: Is the stabilizer long enough to be clamped by the driver teeth?


Hooping a Richardson 112 on a Cap Driver: Tighten Like You Mean It (Without Warping the Hat)

The video shows the practical hooping sequence on the cylindrical gauge. Hooping is a tactile skill—you must feel the tension.

Step-by-Step Hooping Routine

1. Seat the Hat: Slide the hat onto the cylinder/gauge. Ensure the sweatband is flipped out properly (or tucked, depending on your driver style—usually flipped out for strap drivers).
2. Align the Spine: Ensure the center seam of the hat matches the red line/center mark on your hoop.
3. Swing & Latch: Bring the strap over the bill seam area. Latch the hook.
4. The "Push" Maneuver: Before tightening the final wing nuts, push the hat down firmly against the gauge curve.
5. Final Torque: Tighten the wing nuts/latch mechanism until the hat does not rotate when you try to twist it by hand.


The Physics Behind “Push It Down”

When the hat sits higher on the driver, there is an air gap between the buckram and the needle plate. This acts like a trampoline. As the needle strikes, the fabric bounces (flags). By pushing the hat down during hooping, you "pre-load" the tension, minimizing that gap.

If you’re using a melco hat hoop, the goal is consistent grip on the sweatband area so the cap doesn’t creep during the run. Creep is subtle at first—then your outline is suddenly off by 1–2 mm and the job is trash.

SETUP CHECKLIST: The "Shake" Test

• Seating: Is the hat fully seated against the metal gauge without "floating"?
• Center Alignment: Is the center seam perfectly vertical?
• Tension Test: Try to rotate the cap on the driver. If it moves, it's too loose.
• Bill Clearance: Look at the bill from the side. Is it bowed correctly?

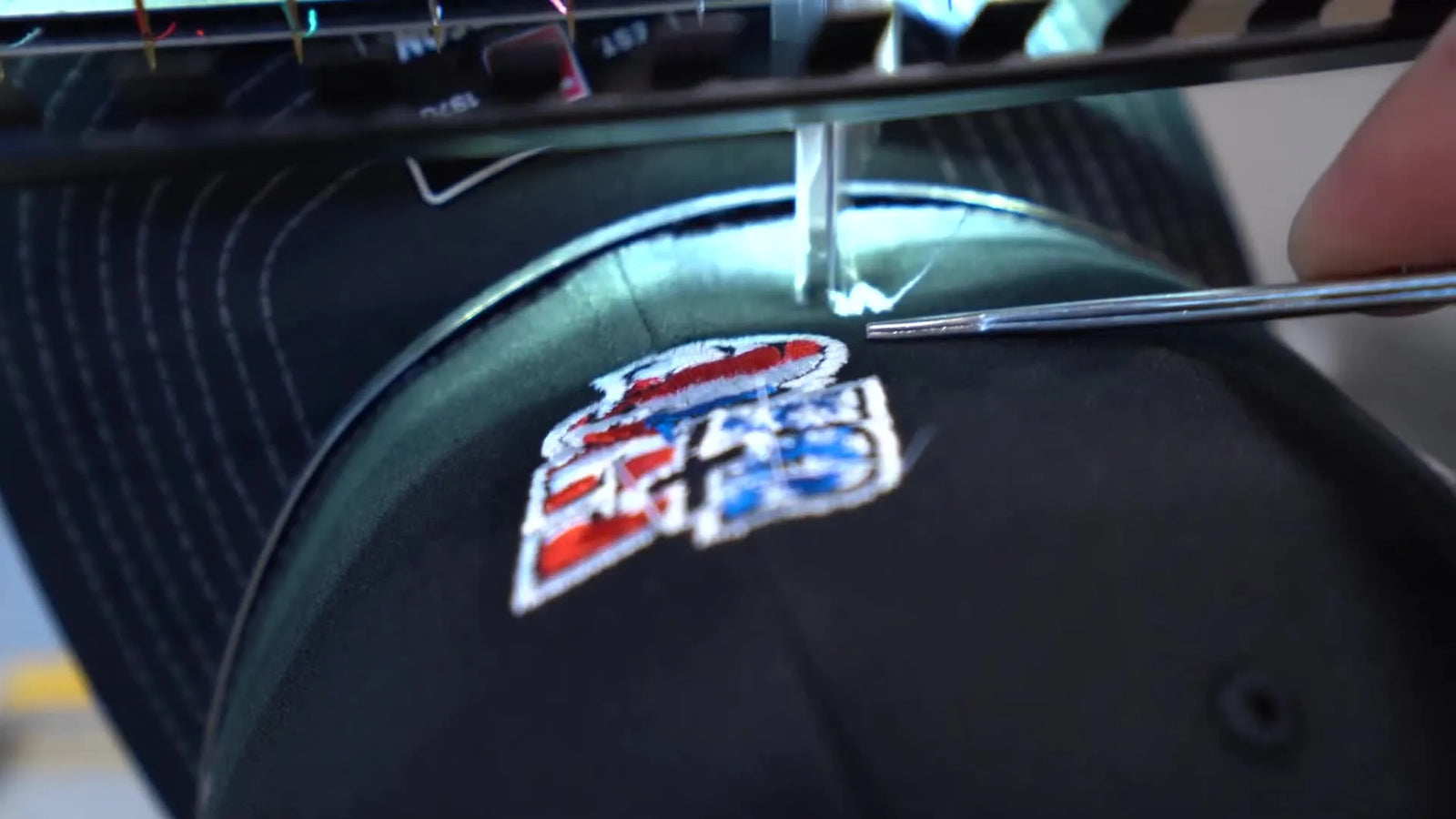

The Tweezer Assist: How to Stop Flagging and False Thread Break Detections Near the Bill

This is the signature move in the video: while the machine is running, the operator uses the tip of metal tweezers to press down the hat fabric/structure just ahead of the needle.

Why is this necessary? Near the brim, the layers are thick. The machine's presser foot relies on a spring. If the hat is stiff, the presser foot cannot compress it enough. The fabric lifts up with the needle (Flagging). This creates a slack loop in the thread, which the machine's sensor misinterprets as a broken thread.

How to Execute the Tweezer Assist Safely

1. Lower Your Speed: If you usually run at 1000 SPM, drop to 600-700 SPM for the bottom section of the design.
2. Tool Choice: Use a long, blunt-tip object (like a specialized wand) or the back end of tweezers.
3. The Zone: Apply light pressure on the cap front, about 1 inch away from the active needle. You are just trying to dampen the vibration.
4. Rhythm: Hold steady pressure; do not “peck” at the hat.

Warning: DANGER OF INJURY. Never put tweezers, fingers, or tools directly under or in the path of the needle. If the needle hits the tweezers, it can shatter, sending metal shrapnel into your eyes or face. Always wear protective eyewear when monitoring close-up, and keep hands well clear of the sewing head.

OPERATION CHECKLIST: In-Flight Monitoring

• Listen: A rhythmic "thump-thump" is good. A harsh "slap" sound means flagging.
• Watch: Is the presser foot compressing the fabric, or is the fabric bouncing the foot up?
• Speed: Are you running slow enough for the difficult sections (bottom)?
• Thread Path: Is the thread feeding smoothly off the cone without tangling?


The Rope Hack on an EMS Hoop Tech Cap Frame: Pull the Bill Forward So the Head Clears

The video shows a simple but effective modification: attach a loop of cord/rope (shown as a green wire/rope) to the front tensioning point of the metal EMS Hoop Tech frame.

What This Changes in Real Life

• Geometry Shift: The rope loops over the bill and pulls it downward and outward.
• Clearance Gain: By mechanically bending the bill down, you create an extra 5mm-10mm of space for the sewing head.
• Safety: It prevents the bill from "creeping" up and hitting the needle case.

Warning: MAGNET SAFETY. If you decide to upgrade to magnetic systems (mentioned later) to solve hoop burn issues, be aware that industrial magnets are incredibly powerful. They can pinch skin severely and interfere with pacemakers. Keep them away from sensitive electronics and medical devices.

Where Upgrades Fit (Without Wasting Money)

The presenter compares durability: the EMS Hoop Tech frames are built like tanks. If you’re constantly replacing straps or fighting inconsistent grip on standard melco embroidery hoops, that’s your signal to evaluate a sturdier cap frame.

However, for shops scaling beyond “one hat here and there,” manual hacks like the rope trick eventually become bottlenecks. This is where looking at specialized "Gen 2" frames or magnetic systems pays off in labor savings.

“Not All Richardson 112 Hats Are the Same”: How to Avoid the Batch-to-Batch Fit Trap

The video calls out something every production shop learns the hard way: manufacturing tolerances. A Richardson 112 made in Vietnam might fit differently than one made in Bangladesh.

The Fix:

• Calibrate Daily: Don't assume yesterday’s hoop tension setting works for the new box you just opened.
• Batch Sorting: Try to run hats from the same box/batch together to minimize adjustment time.

This is why hooping stations matter. If you are using a hoop master embroidery hooping station, the benefit is repeatability. A station keeps the angle and placement identical, hat after hat, removing operator error from the equation.

The Weak Strap Problem on Standard Cap Drivers

The presenter points to a common weak point: the corners of the standard strap/clasp area can bend, fatigue, and break.

Practical Shop Advice

• Inspect Corners: Check the metal corners of your cap straps weekly. If you see stress fractures or bending, replace them before they snap mid-production.
• Spare Parts: Keep an extra strap assembly in your drawer. They always break on a Friday afternoon rush.

This is where the conversation about tools naturally leads to hooping stations and advanced frames—uniform pressure reduces the wear and tear on your hardware compared to "muscling" a hat into place by hand.

Tweezers Aren’t Just for the Tweezer Trick: Fast Re-Threading

Near the end, the video shows using tweezers to grab the thread tail.

Pro Tip: Keep two pairs of tweezers:

1. The "Clean" Pair: Only for threading needles and grabbing bobbin tails.
2. The "Dirty" Pair: For picking adhesive, removing lint, or the "Tweezer Assist" trick.


Troubleshooting Hat Embroidery Near the Bill: Symptoms → Causes → The Fix

Use this logic flow to solve problems fast without guessing.

The Upgrade Path: From Struggle to Scale

If you’re only doing occasional caps, the video’s techniques (smart sizing, tight hooping, tweezer assist, rope hack) will get you through the job.

But if specific pain points are killing your profit margin, here is your upgrade logic:

1. Pain Point: Hoop Burn & Hooping Fatigue
   • The Upgrade: Terms like magnetic embroidery hoops are your gateway to easier clamping. While widely used for flats to prevent hoop burn and speed up production, specific magnetic innovations are also reaching cap systems to reduce the physical strain of ratcheting straps.
2. Pain Point: Inconsistent Placement & Rejects
   • The Upgrade: Invest in a dedicated Hooping Station. The ROI comes from zero "crooked logo" refunds.
3. Pain Point: Capacity Bottlenecks (Can't keep up)
   • The Upgrade: If your single-head machine is running 24/7, upgrading to SEWTECH Multi-Needle Machines creates true scalability. More needles mean fewer manual color changes, and industrial-grade cap drivers are designed to handle the torque of 1000 hats without the "strap bending" issues mentioned above.

Even for home users, finding a compatible cap hoop for brother embroidery machine or similiar consumer models can allow you to practice these techniques, but remember: the physics of clearance and stabilization remain the same regardless of the brand.

Final Thought: Don't fear the hat. Respect the geometry, stabilize heavily, and listen to your machine. It will tell you when you're too close to the edge.

FAQ

• Q: How do I stop a Melco EMT16X sewing head from hitting the hat bill when stitching a low logo on a Richardson 112 trucker hat?
  A: Treat the collision as a clearance/geometry issue and move the design up or pull the bill down—never force the run.
  • Stop the machine immediately and inspect for a bent needle or presser-foot contact before restarting.
  • Reposition the design so the bottom edge sits at least 0.5"–0.75" above the bill seam.
  • Use a rope/cord loop on an EMS Hoop Tech (Gen 2 style) cap frame to pull the bill forward/down to gain clearance.
  • Slow down for the lowest part of the design (a safe starting point is 600–700 SPM) to reduce vibration near the brim.
  • Success check: With the cap mounted, visually confirm a safe gap between the bill and the back of the sewing head through the lowest stitch area.
  • If it still fails: Reduce design height/width to stay in the crown “safe zone” and re-check cap seating on the driver gauge.
• Q: What is the recommended logo size for a Richardson 112 hat to avoid distortion and brim interference on a cap frame setup?
  A: Keep most Richardson 112 front logos around 2.0–2.25" tall and 4–5" wide to stay in the safe stitching zone.
  • Measure vertically from the top button down, and set the design bottom so it remains about 0.5"–0.75" above the bill seam.
  • Measure horizontally and avoid pushing width so far that the design wraps into strong curvature or seam distortion.
  • Choose a smaller height first if the customer demands a lower placement near the bill.
  • Success check: The design preview and physical placement do not approach the bill seam, and straight elements do not “pull” at the 6-panel seam.
  • If it still fails: Move the design slightly higher or narrow the width to reduce wrap-related distortion.
• Q: What cap backing and needle setup should be used before hooping a Richardson 112 structured hat for embroidery near the bill seam?
  A: Start with 1 layer of 3.0 oz tear-away cap backing and a fresh 75/11 titanium sharp needle for structured caps, especially near the risk zone.
  • Stage consumables first: 75/11 titanium sharp needles, heavy tear-away cap backing (3.0 oz restricted), spare bobbin, and fine-tip metal tweezers.
  • Match backing to cap behavior: Use 1 layer tear-away for structured Richardson 112; use 2 layers cross-grain or 1 cutaway for unstructured “dad hats.”
  • Replace the needle if stitching density is high near the bill seam or penetration feels inconsistent.
  • Success check: Backing is long enough to be clamped by the driver teeth, and the needle penetrates cleanly without deflecting at the seam.
  • If it still fails: Re-check hoop tightness and cap seating to reduce movement and flagging.
• Q: How tight should a Richardson 112 be hooped on a cap driver to prevent cap slippage and crooked logos?
  A: Hoop “push-down tight” so the cap cannot rotate on the driver, without warping the hat.
  • Seat the hat fully on the cylinder/gauge and align the center seam to the driver’s center mark.
  • Swing/latched strap over the bill seam area, then push the hat down firmly against the gauge curve before final tightening.
  • Perform the twist test by trying to rotate the cap by hand; retighten until it does not creep.
  • Success check: The cap feels locked to the driver (no rotation), and the hat is not “floating” above the gauge.
  • If it still fails: Re-hoop from scratch and verify backing is clamped properly; consider a hooping station for repeatable placement.
• Q: How do I stop false thread breaks and birdnesting on hat embroidery near the bill caused by flagging on a Melco-style cap driver workflow?
  A: Reduce flagging by tightening seating, slowing down, and using a safe tweezer-assist press ahead of the needle.
  • Slow the machine for the bottom area (commonly 600–700 SPM) where thickness and curvature spike.
  • Press lightly on the cap front about 1" ahead of the active needle using the back end of tweezers or a blunt tool—do not “peck.”
  • Re-check that the cap was pushed down during hooping to remove the trampoline-like air gap.
  • Success check: The sound becomes a steady “thump-thump” (not a harsh slap), and the presser foot visibly compresses instead of bouncing.
  • If it still fails: Stop, clear the nest, re-hoop tighter, and verify needle condition (dull/burred needles increase deflection and looping).
• Q: What needle safety rules should be followed when using the tweezer assist during hat embroidery near the brim?
  A: Keep tools and hands out of the needle path—needle impact can shatter metal and cause injury.
  • Use only a long, blunt-tip object or the back end of tweezers and apply pressure about 1" away from the needle, never under it.
  • Reduce speed before entering the thick brim-area stitches to improve control and reaction time.
  • Wear protective eyewear when monitoring close-up work near the needle.
  • Success check: The tool never enters the needle’s travel zone, and there is no contact between needle and metal during stitching.
  • If it still fails: Stop and re-hoop/reposition the design; do not continue “hands-on” forcing in the danger zone.
• Q: What magnet safety precautions are required when upgrading to industrial magnetic embroidery hoops to reduce hooping fatigue and hoop burn?
  A: Treat industrial magnets as pinch hazards and medical-device risks, and keep them away from sensitive electronics.
  • Keep fingers clear when closing magnetic frames; magnets can snap shut and pinch skin severely.
  • Keep magnetic hoops away from pacemakers and other medical devices, and do not store them near electronics.
  • Store magnets closed or with proper spacers so they cannot attract unexpectedly.
  • Success check: The frame closes in a controlled way without sudden snapping, and the work area stays clear of loose metal objects.
  • If it still fails: Pause magnetic hoop use and switch back to a mechanical frame until safe handling and storage practices are in place.
• Q: How should a hat embroidery shop choose between technique fixes, hoop upgrades, and upgrading to SEWTECH multi-needle machines when caps keep failing near the bill?
  A: Use a tiered approach: fix geometry and stabilization first, then upgrade clamping/placement tools, then upgrade machine capacity if throughput is the bottleneck.
  • Level 1 (Technique): Move the design up, use correct sizing, push-down hooping, slow down near the bill, and use the rope hack/tweezer assist as needed.
  • Level 2 (Tooling): Add a hooping station to reduce crooked placement and rejects; consider sturdier cap frames if straps/corners keep fatiguing.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine when a single head is running nonstop and manual steps (re-hooping, rethreading, color changes) are limiting output.
  • Success check: Reject rate drops (fewer crooked logos/false breaks), and cycle time per hat becomes consistent across batches.
  • If it still fails: Standardize hat batches (same production lot) and recalibrate hoop tension daily to account for fit differences.
