SWF KX-UH1504-45: The 4-Head, 15-Needle Reality Check (and How to Actually Profit From It)

The Commercial Embroidery Playbook: Mastering the SWF KX-UH1504-45 & The Science of Scalability

When you are scrolling through specs for a commercial multi-head machine, the glossy feature list is the easy part. The hard part—the part that keeps shop owners awake at night—is determining which features actually move the needle in production. Real profitability isn't about top speed; it’s about predictability: fewer thread stops, fewer rejects, faster hooping, and identical quality across a run.

This guide rebuilds the technical overview of the SWF KX-UH1504-45 into a practical operator’s playbook. We will move beyond "what the machine is" to "how you run it without losing your mind," focusing on the quiet preparation that prevents expensive mistakes like registration drift, tension surprises, and wasted garments.

Don’t Panic—A 4-Head SWF KX-UH1504-45 Is Built for Repetition, Not Babysitting

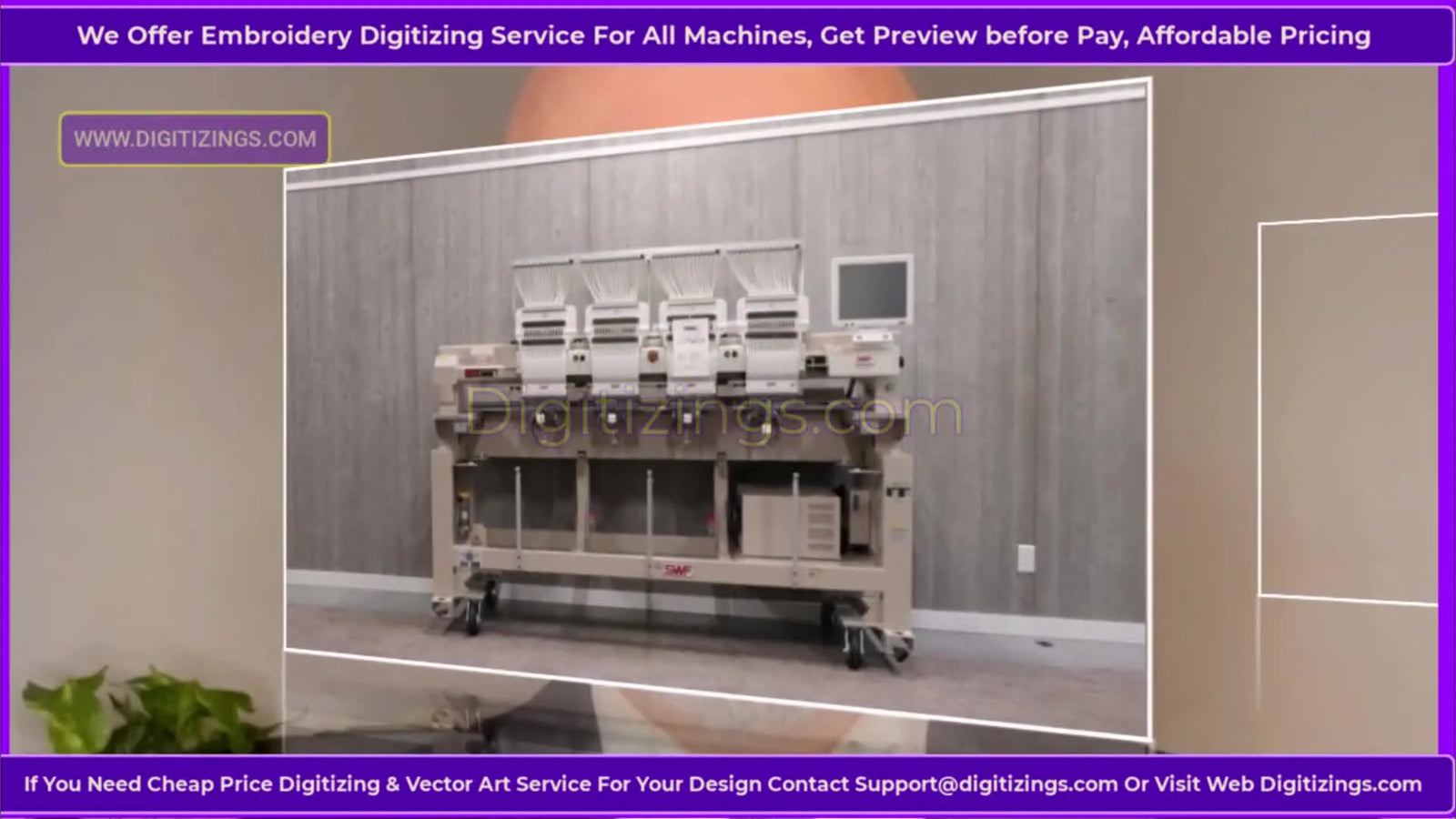

The video frames the SWF KX-UH1504-45 as a high-performance commercial unit designed for precision, speed, and versatility. It shows the full 4-head machine footprint on a wheeled stand. That is your first clue about the intended use: this isn’t a hobby machine you hover over anxiously; it is an industrial platform meant to run the same job repeatedly with near-identical results.

If you are transitioning from single-head or single-needle work, the emotional shift can be intense. Multi-head production often feels "high stakes" because one setup error multiplies across four garments instantly. Fear is normal here.

The good news is that the machine’s core promise—repeatability—works in your favor once your setup discipline is solid. Think of this machine less like an artist's canvas and more like a printing press. Once you dial in the variables, it does the heavy lifting.

The “Hidden” Prep Pros Do Before Power-On: Thread, Bobbin, and a Quick Reality Check

The video focuses on features, but in real shops, your day is won or lost before you hit the "Start" button. Multi-head machines amplify small inconsistencies. A thread path issue on Head #1 can pause the entire machine, stopping production on Heads #2, #3, and #4.

Here is the "Quiet Prep" protocol you should execute every time you prepare a batch on a swf commercial embroidery machine:

1. The Thread Audit

• Sensory Check: Pull a few inches of thread from the cone through the first guide. It should flow smoothy. If it jerks, check for "under-winding" on the cone.
• Lot Consistency: Ensure you have enough matching top thread cones for the full run. Mixed dye lots can look identical under shop lights but different in sunlight.

2. The Bobbin Case "Click"

• Auditory Anchor: When you insert the bobbin case, listen for a sharp, distinct 'CLICK'. No click means the case isn't seated, which guarantees a needle break or a bird’s nest within seconds.
• Visual Anchor: Look for the "H-Test." Flip a test stitch over; you should see 1/3 white bobbin thread down the center of satin columns.

3. The Garment Touch Test

• Tactile Check: Do a quick "touch test" on your garment stack. Are they all the same thickness? A batch of totes from two different suppliers can stitch like two different fabrics, requiring different stabilizer setups.

Warning: Physical Safety Hazard. Keep fingers, hair, jewelry, and loose sleeves away from the needle area and moving head/needle bar zone. A multi-head machine accelerates instantly; a moment of distraction can lead to a severe needle injury. Never change a bobbin while the machine is in 'Ready' mode.

Prep Checklist (Pre-Flight):

• Hidden Consumables Stocked: Spray adhesive, water-soluble toppings, and spare needles (size 75/11 is your standard start).
• Thread Staged: Matching top thread cones staged for all 4 heads.
• Bobbin Tension: Checked using a tension gauge (aim for 18g-22g) or the "Drop Test" (case holds weight but drops slightly when jerked).
• Path Verification: Thread paths visually confirmed on all heads—no threads crossed over guides.
• Needle Check: Run your finger (carefully) down the needle shaft to check for bends or burrs.


The 15-Needle Head Advantage: Fewer Stops, Cleaner Color Work, Less Operator Fatigue

The video highlights the 15-needle configuration and shows a close-up of the head with numbered tension knobs and thread guides. The practical takeaway is simple: Inventory Management.

Fifteen needles mean you can keep your standard colors (Black, White, Red, Navy, Royal, Gold) permanently threaded.

• The Benefit: dramatically reduces downtime.
• The Danger: complacency.

If you are evaluating a swf 15 needle embroidery machine, remember that every manual thread change you don't have to make is one less opportunity for human error. However, when you do change threads, ensure the thread tail is trimmed short. Long tails left in the thread rack can get sucked into the active needle, causing the dreaded "thread-up" disaster.

Four Heads, One Job: How the SWF 4-Head System Pays You Back (If Your Hooping Is Tight)

The video calls out the synchronized 4-head setup: four identical items embroidered simultaneously. This is the holy grail of profitability.

However, in practice, "uniformity" is earned, not automatic. The machine can stitch four items at once, but it cannot fix four poorly hooped items. Your biggest production bottleneck is no longer stitch speed; it is hooping speed.

The "Pain-Diagnosis-Solution" Loop

• Scene Trigger (The Pain): You are spending more time hooping than the machine spends stitching. Or worse, you see "Hoop Burn" (shiny ring marks) on delicate polos, or you are getting wrist fatigue from tightening screws 400 times a day.
• Judgment Standard (The Audit): If you are doing production runs of 50+ shirts, or if your hooping time > stitch time, manual plastic hoops are costing you money.
• Options (The Solution):
  • Level 1: Optimize your station with a static hooping aid.
  • Level 2 (Tool Upgrade): Switch to Magnetic Hoops/Frames. They self-adjust to different fabric thicknesses and snap shut instantly, reducing wrist strain and virtually eliminating hoop burn.

If you are running swf embroidery machines in a production environment, magnetic frames often pay back their investment within the first few large tote bag or uniform orders by simply cutting load time in half.

The 450mm Embroidery Area: Big Designs Are Great—Until Your Stabilizer Plan Is Wrong

The video specifies a 450mm embroidery area, positioning it as flexible for jacket backs or large bags.

Expert Reality Check: bigger field = bigger physics problems. As the design area increases, the fabric has more room to shift, push, and pull. A design that looks great on a left-chest size can turn into a puckered mess at 300mm wide if you don't adjust your stabilization.

Decision Tree: Fabric/Item → Stabilizer Strategy

Use this logical flow to stop guessing:

1. Is the fabric stretchy? (Polos, Performance Wear, Knits)
   • YES: You MUST use Cutaway stabilizer. Tearaway will eventually disintegrate, leaving the stitches unsupported.
   • Expert Tip: Use "No-Show Mesh" cutaway for lighter garments to avoid a heavy badge effect.
2. Is the fabric stable/heavy? (Canvas Totes, Denim, Caps)
   • YES: Tearaway stabilizer is usually sufficient.
   • Check: If the design is dense (>15,000 stitches), add a second layer of tearaway.
3. Is the fabric textured? (Towels, Fleece, Pique)
   • YES: You need a Water Soluble Topping layer on top to keep stitches from sinking into the pile.
4. Is the item un-hoopable? (Thick Backpacks, Belts)
   • YES: This is a hardware limit. Prioritize a clamp frame or magnetic frame that doesn't require "tubing" the item.


Automatic Thread Trimming: The Feature That Saves Minutes—And Prevents Messy Color Changes

The video lists a built-in automatic thread trimmer. In real production, trims save time, but they are also a diagnostic tool.

If your trimmer fails to cut, or if the thread pulls out of the needle eye after a trim, do not blame the blade immediately.

• Check Tension: Usually, the top tension is too tight, creating a "slingshot" effect when cut.
• Check the Picker: Look under the needle plate. Is there a bird's nest of thread preventing the knife from moving?

Pro Tip: Automation is great, but keep a small pair of curved snips (nips) on your machine table. Sometimes a manual trim is necessary to save a garment from a rogue thread tail.

1200 RPM on the Screen: Speed Is a Tool, Not a Flex (Finding the "Sweet Spot")

The video visually shows 1200 RPM on the control panel. This is a common marketing metric.

The Veteran Perspective: Speed is a variable, not a goal. Running at 1200 RPM on a complex design with metallic thread is a recipe for snaps and shatters.

• The Beginner Sweet Spot: 650 - 750 RPM. Start here. It sounds rhythmic and controlled.
• The Production Sweet Spot: 850 - 950 RPM. Most commercial shops run here for a balance of throughput and machine life.

Sensory Audit: Listen to the machine. A rhythmic "hum-thump-hum-thump" is good. A harsh, metallic "CLACK-CLACK" means you are running too fast for the specific tension/fabric combination.

If you are comparing a 15 needle embroidery machine to others, remember: high speed is only profitable if you don't have to stop every 3 minutes to re-thread a needle.

Touchscreen Control Panel: Your Best Habit Is Watching the First 60 Seconds

The video highlights the intuitive touchscreen interface. While modern screens are easy to use, they can induce a false sense of security ("Set it and forget it").

The 60-Second Rule: Never walk away during the first minute of a run. Watch the first few color changes.

• Visual Scan: Is head #3 registering correctly? Is the backing staying flat?
• Auditory Scan: Does the sound change when it moves to a satin stitch?

Setup Checklist (Pre-Run):

• Design Orientation: Is the design rotated correctly? (Double-check upside down vs. right side up).
• Speed Limit: Cap speed at 850 RPM for the first run of a new design.
• Color Map: Verify needle 1 is actually the color you think it is.
• Trace Function: ALWAYS run the "Trace" or "Frame Out" function to ensure the needle won't hit the hoop ring.


Automatic Thread Tension + Tension Knobs: The "Dental Floss" Standard

The video mentions tension features. This is where most beginners fail. Tension is not a static number; it uses physics.

How to set tension without a digital gauge:

1. Top Thread: Pull the thread through the needle eye. It should feel like pulling dental floss through teeth—consistent resistance, not loose, but not breaking your fingers.
2. Consistency: Pull thread on Head 1, then Head 2. They should feel identical. If Head 2 feels loose, check for lint in the tension disks.

Psychological Safety: You will get tension wrong sometimes. It happens to masters. Adjust in small increments (turn knobs like a clock face—15 minutes at a time) and test again.

Compact Tubular Design for Tote Bags: Where Hooping Technique Makes or Breaks You

The video shows the tubular arm and uses tote bags as an example. Tubular arms are essential for finished goods, but bags are notoriously difficult because of their thick canvas seams.

The Pain Point: Standard plastic hoops struggle to grip thick seams. You tighten the screw until your fingers hurt, and the hoop still pops off mid-stitch. This is dangerous for the machine (needle strike) and ruins the bag.

The Solution Path:

• Technique: Use a heavier cutaway.
• Tool Upgrade: This is the prime use case for High-Tension Magnetic Hoops. The magnets clamp over zippers and thick seams without forcing you to unscrew and re-screw the hoop mechanism.

If you are fighting clamp marks or slow loading with standard swf hoops, upgrading to magnetic frames is an immediate fix for hoop burn and hand fatigue.

Warning: Magnetic Safety. High-end magnetic hoops are incredibly powerful. They can pinch skin severely. Keep them away from pacemakers and sensitive electronics (credit cards, hard drives).

Durability and Longevity: Maintenance is the Price of Profit

The video emphasizes continuous use. Indestructibility is a myth, but longevity is a choice.

• Daily: Clean out the bobbin area. Lint is the enemy of tension.
• Weekly: One drop of oil on the rotary hook. (Just one drop! Too much oil stains garments).
• Monthly: Grease the moving bars according to the specific SWF manual.


Pricing and Value: The Real Cost Is Time, Not Just the Machine

The video mentions competitive pricing. But when calculating ROI (Return on Investment), do not just look at the invoice price.

The Profit Formula: $$ \text{Profit} = (\text{Selling Price}) - (\text{Material Cost} + \text{Labor Cost} + \text{Mistake Cost}) $$

• Material: Thread, Bobbin, Stabilizer (Buy quality here; cheap thread breaks and costs labor time).
• Labor: Hooping is 70% of the labor.
• Mistake Cost: If a machine creates fewer bird's nests, you save money on ruined garments.

If you are stuck on a single-needle machine and constantly turning away 50-piece orders, maximizing your efficiency with a multi-head (or even a high-speed single head from the SEWTECH ecosystem) changes your business model from "hobby craft" to "volume production."

The Questions People Usually Don’t Ask (But Should): Standardization

The Secret to Multi-Head Success: If Head 1 stitches perfectly and Head 4 is slightly off-center, you can't ship the order.

• Standardize Your Placement: Do not eyeball it.
• Consider a dedicated hooping station for embroidery. Using a station ensures that every logo is placed at exactly the same vertical distance from the collar, whether you are loading Head 1 or Head 4.


The Upgrade Path: From "It Runs" to "It Prints Money"

If you are running an SWF-style tubular multi-head setup, your next gains do not come from buying a faster machine, but from optimizing the workflow around it.

Your Upgrade Roadmap:

1. Level 1 (Foundation): Use premium embroidery thread and the correct stabilizer/backing for the specific fabric. (See Decision Tree above).
2. Level 2 (Workflow): Fix the hooping bottleneck. Search for embroidery hoops for swf that match your garment sizes, or jump straight to magnetic frames for speed.
3. Level 3 (Scale): When you are ready to expand but don't want another 4-head giant, consider adding agile single/multi-needle machines (like SEWTECH multi-needle models) to handle samples and small runs, leaving the SWF 4-head free for the big money bulk orders.

Operation Checklist (Post-Run):

• First Piece Inspection: Check registration and tension on the first run of 4.
• Tail Check: Ensure trimmers are cutting clean (no long tails to snip).
• Hoop Mark Check: Steam out any marks immediately (or switch to magnetic hoops for swf embroidery machine next time).
• Log It: Write down the speed, thread colors, and stabilizer used in your shop log for when the customer re-orders in 6 months.

By mastering the "Quiet Prep," respecting the physics of 15 needles, and investing in the right support tools (like magnetic system upgrades), you turn the SWF KX-UH1504-45 from an intimidating machine into a reliable profit center.

FAQ

• Q: What is the fastest pre-run “Quiet Prep” checklist for the SWF KX-UH1504-45 4-head commercial embroidery machine to prevent thread stops and rejects?
  A: Run a 2–3 minute thread/bobbin/needle audit on all 4 heads before pressing Start to prevent one small issue from stopping the entire machine.
  • Stage matching top thread cones for all 4 heads and pull a few inches to confirm smooth feed (no jerking from cone under-wind).
  • Seat each bobbin case until a sharp “click” is heard, then verify thread paths are not crossed over guides.
  • Feel-check the garment stack for thickness consistency so stabilizer choices don’t vary mid-run.
  • Success check: The first stitches run without an immediate stop on any head, and thread feeds smoothly by hand on every head.
  • If it still fails… isolate Head #1–#4 by re-checking the thread path and bobbin seating on the head that stops first.
• Q: How can operators judge correct bobbin seating and bobbin/top tension on the SWF KX-UH1504-45 to avoid bird’s nests and needle breaks?
  A: Treat the bobbin “click” plus a quick underside stitch check as the pass/fail standard before committing garments.
  • Insert the bobbin case and listen for a distinct “CLICK”; no click usually means the case is not seated.
  • Flip a test stitch and look for the “H-Test” target: about 1/3 white bobbin thread centered under satin columns.
  • Verify bobbin tension with a gauge (aim 18g–22g) or use a careful drop test (holds weight, drops slightly when jerked).
  • Success check: The underside shows balanced bobbin visibility (not fully white, not fully top color) and no instant nesting in the hook area.
  • If it still fails… clean lint from the bobbin area and re-check threading/tension consistency across heads.
• Q: What is the “60-second rule” for the SWF KX-UH1504-45 touchscreen control panel, and what should operators watch during the first minute of a run?
  A: Do not walk away for the first 60 seconds; use the first color changes to catch registration and stabilization problems early.
  • Run the Trace/Frame-Out function to confirm the needle path will not strike the hoop ring.
  • Cap speed around 850 RPM for the first run of a new design and verify the needle-to-color mapping is correct.
  • Watch whether one head (for example Head #3) drifts or the backing lifts as stitching begins.
  • Success check: No hoop strikes during trace, and the first color change completes with stable fabric/backing and consistent sound.
  • If it still fails… stop immediately and re-check hooping consistency and stabilizer choice for the specific fabric batch.
• Q: How do operators choose cutaway vs tearaway stabilizer (and water-soluble topping) for large 450mm designs on the SWF KX-UH1504-45 embroidery area?
  A: Match stabilizer to fabric physics first, because bigger designs magnify shifting and puckering.
  • Use cutaway for stretchy fabrics (polos, performance wear, knits); consider no-show mesh cutaway when a lighter finish is needed.
  • Use tearaway for stable/heavy items (canvas totes, denim, caps); add a second tearaway layer if the design is dense (e.g., over 15,000 stitches).
  • Add water-soluble topping for textured pile fabrics (towels, fleece, pique) to prevent stitch sink.
  • Success check: After stitching, the design lies flat without rippling/puckering and satin columns remain raised (not buried in texture).
  • If it still fails… reduce design size/density where possible and re-evaluate hooping grip and fabric batch consistency.
• Q: What should operators check first when the SWF KX-UH1504-45 automatic thread trimmer does not cut cleanly or pulls thread out of the needle eye?
  A: Check tension and hook-area obstruction before blaming the trimmer blade.
  • Reduce top tension slightly if trims “slingshot” thread out of the needle eye (too-tight top tension is a common cause).
  • Inspect under the needle plate for nesting that blocks the picker/knife movement and clear any thread buildup.
  • Keep curved snips at the table to safely rescue a garment when one tail must be trimmed manually.
  • Success check: After trimming, the thread remains correctly positioned for the next start and no long tails drag into the next color.
  • If it still fails… stop the run, clear the hook/needle plate area again, and confirm the machine is not trimming into a thread jam.
• Q: What operating speed is a safe starting point on the SWF KX-UH1504-45 (1200 RPM capable) to reduce thread breaks and harsh machine noise?
  A: Treat speed as a control knob: start around 650–750 RPM, then move toward 850–950 RPM only after the design runs stable.
  • Start new designs at the lower range (650–750 RPM) to confirm tension, stabilizer, and registration.
  • Increase toward 850–950 RPM for production once the first pieces stitch cleanly without frequent stops.
  • Use sound as feedback: rhythmic “hum-thump” is good; sharp metallic “CLACK-CLACK” usually means the setup is running too fast for the thread/fabric.
  • Success check: The run completes multiple color changes with consistent sound and without repeated re-threading.
  • If it still fails… slow down again and re-check top/bobbin tension balance and thread path friction.
• Q: What are the key safety rules for bobbin changes and high-tension magnetic hoops on a multi-head commercial embroidery machine like the SWF KX-UH1504-45?
  A: Prevent injuries by keeping hands away from the needle zone in Ready mode, and treat magnetic frames as pinch hazards with strict handling rules.
  • Keep fingers, hair, jewelry, and loose sleeves away from moving head/needle bar areas; multi-head machines can accelerate instantly.
  • Never change a bobbin while the machine is in “Ready” mode; stop and make the area safe first.
  • Handle magnetic hoops slowly and deliberately; keep magnets away from pacemakers and sensitive electronics (credit cards, hard drives).
  • Success check: Bobbin changes and hoop loading happen with the machine safely stopped, and no pinching occurs when magnets snap closed.
  • If it still fails… pause production and re-train the loading sequence so every operator follows the same safe routine every time.
• Q: When SWF KX-UH1504-45 4-head production is slowed by hooping time, hoop burn on polos, or wrist fatigue from tightening screws, what is the best upgrade path?
  A: Use a layered fix: improve the hooping station first, then upgrade to magnetic hoops if manual hooping remains the bottleneck.
  • Level 1: Add a static hooping aid and standardize placement so all four heads load identically.
  • Level 2: Switch to magnetic hoops/frames to speed loading, self-adjust to fabric thickness, reduce hoop burn, and reduce wrist strain.
  • Level 3: If order volume outgrows workflow gains, add capacity with additional machines so the 4-head stays dedicated to bulk runs.
  • Success check: Hooping time drops (often below stitch time), placement matches across all heads, and shiny ring marks become rare.
  • If it still fails… audit garment thickness variability and stabilizer strategy, because inconsistent materials can mimic “bad hooping” symptoms.
