1. Introduction to Slate Frames for Precision Embroidery
Slate frames are the gold standard for hand embroidery when you want flawless, drum-tight tension and distortion-free results. Used for centuries and still beloved today, these four-part wooden frames let you see your whole design at once, keep warp and weft aligned, and support advanced techniques like goldwork and silk shading. In this guide, you’ll learn what a slate frame is, how its components work, how to set one up step-by-step, how sizes are measured, and how it compares across makers—so you can stitch smarter from the start.
Table of Contents
- 1. Introduction to Slate Frames for Precision Embroidery
- 2. What is an Embroidery Slate Frame? Anatomy and Function
- 3. Mastering Slate Frame Setup: Step-by-Step Tension Techniques
- 4. Top Slate Frame Brands Compared: Materials, Craftsmanship & Value
- 5. Why Professionals Choose Slate Frames: Unmatched Advantages
- 6. Where to Buy and What to Look For
- 7. Maintenance and Advanced Customization
- 8. Conclusion: Elevating Your Embroidery with the Right Frame
- 9. Frequently Asked Questions
2. What is an Embroidery Slate Frame? Anatomy and Function
2.1 Core Components: Roller Bars, Slats and Securing Hardware
A slate frame is a four-piece wooden system engineered to hold fabric evenly on all sides: - Roller bars (top and bottom) - Purpose: secure the horizontal edges of your fabric and create vertical tension. - Attachment surface: commonly strong cotton webbing or twill tape that’s fixed to the bar with stainless steel staples; some makers (like TF Woodcraft) provide evenly spaced holes instead of webbing so you lace directly to the rollers on all four sides. - Profile: rounded center sections for smooth thread flow; square ends with oblong holes for assembly. - Stretcher slats (left and right) - Long, flat pieces with multiple drilled holes (the "cribbage" look) that set frame width and enable incremental tensioning. - Holes allow split pins to lock the position; place pins at mirrored positions on both sides for even tension. - Securing hardware - Stainless steel split pins or cotter pins are standard; some frames include rubber caps for comfort and safety. - Equal pin spacing on both sides prevents skewing and preserves alignment. - Construction materials and finish - Built from solid hardwoods—commonly beech or oak—to withstand significant tension without warping. - Premium makers finish the wood smoothly with durable lacquer or polyurethane so even fine silk threads won't snag. How it works: stitch (or lace) your fabric edges to the roller bars, insert the stretcher slats, pin them to set the width, then lace the sides to fine-tune tension. The result is a responsive, adjustable system that produces a taut, even stitching surface.2.2 Historical Evolution in Embroidery Traditions
Slate frames have roots as far back as the 1500s and were refined alongside the development of high-art needlework. Their core purpose—stable, consistent tension—made them indispensable for goldwork, silk shading, and ecclesiastical embroidery. Professional instruction still leans on this tradition: respected needlework schools teach slate-frame dressing and emphasize the same fundamentals artisans valued centuries ago—true grain alignment, even tension, and full-project visibility.2.3 Sizing Demystified: Webbing Width vs. Project Area
Slate frame sizing is based on the length of the webbing on the roller bars—not the overall length of the wood: - What the number means - A "12-inch" frame refers to 12 inches of webbing, which is the maximum fabric width you can attach horizontally. - Planning your design space - You need fabric margins on both sides for side lacing. As an example, a 15" frame typically yields about a 12" design width, leaving approximately 1.5" of spare fabric at each side for lacing. - Apply similar planning to other sizes: choose a frame whose webbing accommodates your fabric width plus the necessary margins. - Typical size ranges and support - Common webbing sizes include 8", 10", 12", 15", 18", and 24". - Smaller frames can be used with compact stands; larger frames are best supported on trestles for two-handed stitching comfort. Bottom line: select by webbing width, then subtract practical margins (e.g., 1.5" per side) to estimate your usable design area.3. Mastering Slate Frame Setup: Step-by-Step Tension Techniques
3.1 Fabric Preparation and Centering Methods
- Prep your ground fabric
- Cut on-grain and press flat.
- Create a 1/2" fold along both top and bottom edges; mark the center on each folded edge.
- Mark your frame once
- Mark the center point on the roller bar wood (above the webbing) and on the webbing’s edge. This becomes your reusable centering reference.
- Attach to the rollers
- Align fabric and webbing using the center marks; pin from center outward (professional guidance suggests using no more than 5–6 pins to avoid interference).
- Stitch through the fabric fold and webbing with a sharp needle (size 5 or 7) and buttonhole thread, securing the fold to the webbing.
- If your rollers have holes (no webbing)
- Follow the TF Woodcraft approach: lace the fabric directly to the roller bars through the evenly spaced holes. This turns setup into true four-sided lacing for superb control.
3.2 Achieving Drum-Tight Perfection: Assembly Process
- Assemble the frame
- After securing fabric to both rollers, insert stretcher slats through the oblong end-holes of the rollers.
- Place split pins through matching holes on both slats; mirror their positions left and right to keep tension even.
- Tension and lace the sides
- Push the roller bars apart to establish initial vertical tension.
- Lace the fabric sides to the stretcher slats for horizontal tension and precise control. Adjust lacing evenly along both sides.
- Test the tension
- Tap the fabric lightly—it should sound clear and resonant, like a harp string. Instructors often advise: when you think it’s tight, tighten a bit more.
- Keep alignment true
- Confirm that your fabric lies straight and your pin placements mirror each other. This preserves warp/weft alignment and prevents distortion.
3.3 Pro Tips for Long-Term Stability
- Reinforce delicate fabrics
- For fine grounds, sew a folded strip (like wide bias tape, folded in half) to the fabric’s long edges using herringbone stitch. Lace through these strips so they bear the stress, not your ground fabric. You can reuse the strips until they wear out.
- Expect an upfront time investment—and reap the rewards
- Complete setup typically takes 1.5–3 hours, but the payoff is substantial: after initial dressing, slate frames commonly hold tension for months (even up to a year), with at most a single re-tension during long projects.
- Maintain and store wisely
- Periodically check for loose pins, worn webbing (if applicable), and any shift in alignment.
- Before breaks or transport, cover the dressed fabric with acid-free tissue to protect your work.
- Keep pin positions mirrored and side lacing evenly tensioned to prevent skew over time.
Follow these methods and you’ll get the signature slate-frame result: a smooth, stable, drum-tight surface that elevates stitch quality—from the first stitch to the last.
4. Top Slate Frame Brands Compared: Materials, Craftsmanship & Value
4.1 Premium Craftsmanship: Ecclesiastical Sewing vs. Jenny Adin-Christie
When you’re investing in a slate frame that will live with you through years of ambitious projects, materials and finish matter.
- Ecclesiastical Sewing
- Wood and build: Ecclesiastical Sewing’s own articles describe beech hardwood construction finished and sanded smooth to prevent snagging. Their later sizing guidance notes the same traditional build with twill tape stapled to rounded roller bars and “cribbage” arms for incremental tensioning. Research summaries also mention their frames made by a Montana cabinet maker and note a transition to hickory as of 2022 due to supply constraints.
- Sizes and custom: Stock sizes commonly include 12", 18", and 24", with larger formats available by custom order—44", 48", 68" (with 32" arms), and 72" (with 32" arms). Ecclesiastical posts indicate custom orders typically require about 3–5 weeks. They also offer trestles for comfortable two‑handed stitching.
- Use cases and guidance: Their tutorials emphasize true, harp‑tight tension and RSN‑style dressing methods, reinforcing their focus on professional techniques like goldwork and silk shading.
- Jenny Adin‑Christie
- Wood and finish: Hand‑crafted from Polimier Beech with a dual‑layer, hard‑wearing satin lacquer. The finish is specifically designed to be smooth and thread‑safe.
- Hardware: Strong cotton webbing attached with stainless steel staples; stainless steel split pins with rubber protector caps. This combination supports even tension and safe handling.
- Sizing standards: Frame size refers to webbing width. For example, a 15" frame typically yields approximately 12" of design width, allowing a 1.5" margin on each side for lacing. Available sizes include 8", 10", 12", 15", 18", and 24".
- Durability positioning: The maker describes these frames as built to avoid warping under high tension and “designed to last for a lifetime of stitching.”
Bottom line: Both makers adhere to the traditional system (webbing on rollers + multi‑hole side slats + stainless hardware). Jenny Adin‑Christie stresses cabinet‑maker finishing and satin lacquer protection; Ecclesiastical Sewing brings long‑form teaching, large custom sizes, and trestles into a cohesive professional ecosystem.
4.2 Innovative Designs: TF Woodcraft's Custom Options
TF Woodcraft blends artisan woodworking with clever tweaks for modern dressing preferences.
- Wood species and finish
- Wide species choice: options include Purple Heart, Cherry, White Oak, Walnut, Maple, and more.
- Finish: five coats of polyurethane, sanded between coats with progressively finer grits for a glass‑smooth surface that won’t catch even fine silk threads.
- Direct‑fabric lacing system
- The rollers feature small holes along the main rails so you can sew directly to the roller without threads wrapping around the wood. Needle ’n Thread’s review highlights the benefit of true four‑sided lacing for even tension; it also suggests sewing heavy twill tape to those holes if you prefer a webbing‑like workflow without staples.
- Size flexibility and lead time
- TF Woodcraft offers made‑to‑order frames in multiple standard sizes and accommodates custom builds—research notes custom options up to 62". Production typically takes 3–4 weeks.
- Price positioning
- The shop lists a broad range (e.g., $35–$180 across sizes and species), making TF Woodcraft an approachable entry to bespoke craftsmanship.
If you want premium smoothness, direct‑to‑roller lacing, and the ability to tailor wood aesthetics to your studio, TF Woodcraft is a strong contender.
4.3 Budget-Friendly Alternatives on Etsy
Etsy, a popular online marketplace for embroidery shops, offers a wide lane for handmade slate frames—great for trying the format, but quality varies:
- Marketplace dynamics
- You’ll find traditional webbing‑based builds along with modern adaptations. Many listings note included shipping, but pay close attention to materials (species, hardware quality), finish smoothness, and user reviews.
- Lead times can vary significantly by maker and order volume; factor this into your project timeline.
- What to watch for
- Look for smooth finishes (no rough drill holes), sturdy hardwoods, stainless steel pins, and clear sizing based on webbing width.
- Read listings carefully for dressing instructions and included accessories; some budget frames may require you to source your own twill tape or lacing materials.
Etsy can be cost‑effective for experimentation or secondary setups. For long, complex projects, verify build details and shop feedback before committing.
5. Why Professionals Choose Slate Frames: Unmatched Advantages
5.1 Tension Superiority Over Hoops and Scroll Frames
Slate frames deliver consistent, drum‑tight tension that typical hoops and many scroll frames struggle to maintain. The rectangular geometry aligns naturally with fabric’s warp and weft, so you preserve grain integrity and avoid the distortion that happens when a circular embroidery hoop is shifted repeatedly across a large design. Once properly laced and tensioned, the fabric’s surface stays smooth and true—no creeping, no puckering, no constant re‑adjusting. A quick sound‑check (that bright, resonant “harp” note) confirms you’re ready to stitch precisely.
5.2 Specialized Applications: Goldwork and Silk Shading
Goldwork, silk shading, crewel, blackwork, whitework—these techniques demand a stable platform. That’s why slate frames are standard teaching tools in professional environments and are recommended by respected institutions. With a slate frame, metallic threads in goldwork lay properly without drifting; in silk shading, the micro‑control of thread lay and color transitions depends on a taut, unmoving ground. For large, months‑long compositions (including ecclesiastical and vestment work), the slate frame’s stability is not a luxury; it’s the foundation.
5.3 Time Efficiency Paradox: Setup vs. Long-Term Gains
Yes, dressing a slate frame takes time—commonly 1.5–3 hours for a careful setup. But the payoff is huge over the life of a project. Properly dressed frames can hold tension for months (even up to a year), and when re‑tensioning is needed, it’s typically a single, quick session. Contrast that with the interruptions and distortions that come with hoop re‑hooping: slate frames let you focus on stitching, not fighting the frame.
6. Where to Buy and What to Look For
6.1 Reputable Retailers and Custom Order Process
- Ecclesiastical Sewing
- Stock sizes often include 12", 18", and 24", with larger custom formats like 30", 36", 44", 48", 68" (with 32" arms), and 72" (with 32" arms).
- Expect custom lead times around 3–5 weeks. They also provide trestle stands and detailed education on sizing and dressing—ideal for long‑term, professional workflows.
- TF Woodcraft
- Hand‑made frames with multiple wood options and five‑coat polyurethane finishing. Offers standard and custom sizes (research notes options up to 62").
- Typical production time is 3–4 weeks. Clear, illustrated mounting instructions are included.
- Royal School of Needlework ecosystem
- The RSN offers traditional beech slate frames “handmade for the RSN,” reinforcing their use in professional instruction. If you value RSN‑aligned methods and sizes, these are a reliable benchmark.
Tip: Order by webbing width to match your fabric plus margins, and plan ahead for custom lead times.
6.2 Price Ranges and Investment Considerations
- Verified price points from leading sources:
- TF Woodcraft: approximately $35–$180 depending on size and species.
- The Artful Fox Freedom Frame (15"): $205 plus shipping, featuring a no‑sew slot‑and‑dowel mounting system.
- Jenny Adin‑Christie: £60–£90 across sizes (8"–24"), with premium satin‑lacquer finishing and stainless hardware.
- RSN‑associated traditional frames: commonly in the ~£98–£106 range by size.
- Extra‑large beech frames (e.g., West Pennine Workshop): roughly £229–£399 for 60"–72" formats.
- Value lens
- Traditional, well‑finished hardwood frames are frequently described as lifetime tools. The long‑term stability (and the quality it enables) often outweighs higher upfront cost—particularly for goldwork, silk shading, and large ecclesiastical pieces where precision is everything.
Consider your project scale, preferred dressing method (webbing vs. direct‑to‑roller lacing), and the finish quality that protects delicate threads.

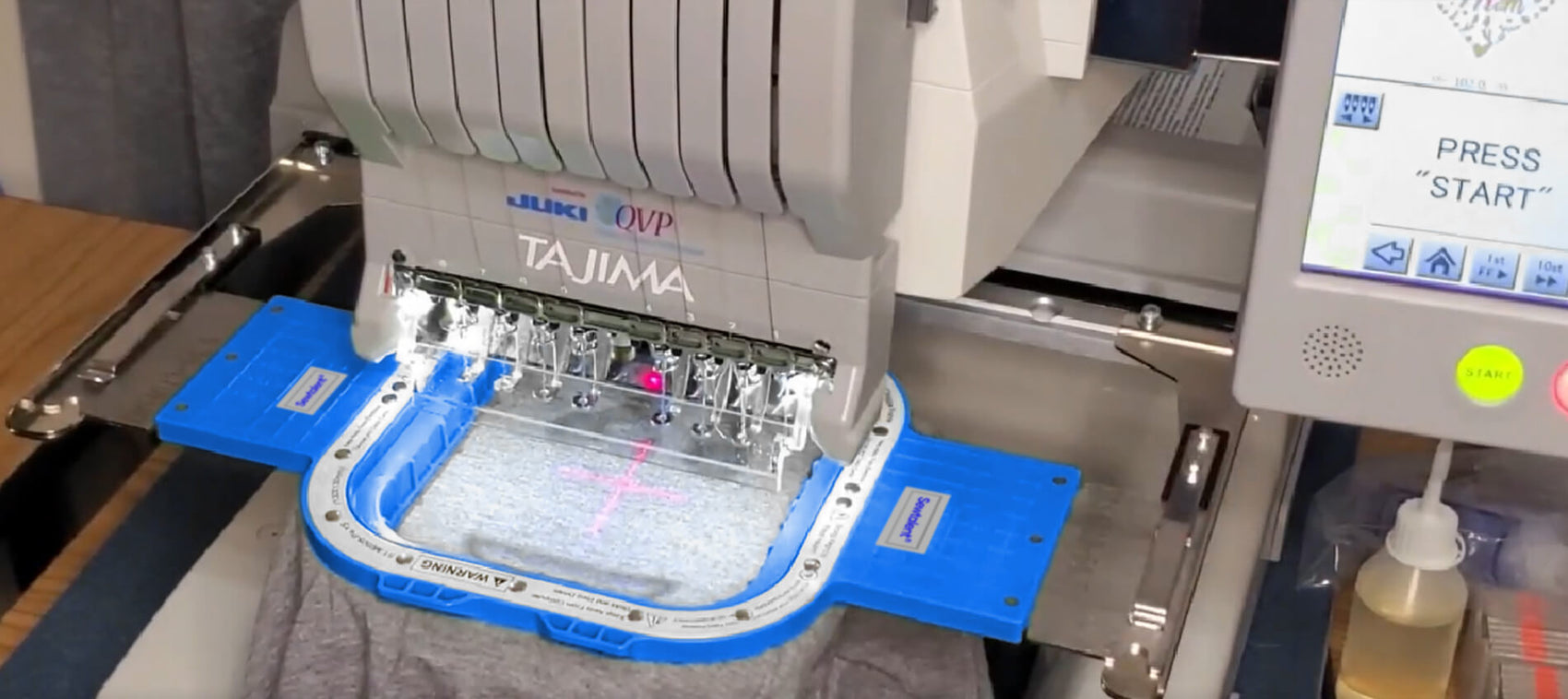

6.3 Modern Solutions for Machine Embroidery
Working on garments by machine? Magnetic machine embroidery hoops can complement your hand‑stitch slate frame practice by speeding up production without sacrificing tension consistency.
- Sewtalent magnetic hoops (garment‑only application)
- Designed to simplify hooping on shirts, hoodies, denim, towels, and more. The magnetic hooping system adapts to fabric thickness quickly, helping you achieve even tension while minimizing hoop marks.
- Time savings: moving from screw‑tightened hoops to magnetic hooping can reduce per‑garment hooping from about 3 minutes to roughly 30 seconds—up to 90% faster in repetitive workflows.
- Practical note: these magnetic hoops are for garment embroidery, not for cap/hat hooping.
- MaggieFrame magnetic hoops (garment embroidery)
- A widely used option with a large size range (from approximately 4"×4" up to 17"×16") and broad machine compatibility (e.g., Tajima, Brother, Barudan, Ricoma, ZSK, and other commercial brands via the appropriate brackets).
- Users highlight durable builds and an easy, reference‑line‑guided setup that supports accurate placement in production settings.
If you stitch by hand on a slate frame but run a machine for apparel orders, pairing a traditional slate frame for artistry with magnetic hoops for garment production gives you the best of both worlds: meticulous handwork when it matters, and speed plus consistency when throughput counts.
7. Maintenance and Advanced Customization
Slate frames are built to work hard for a very long time, but they benefit from mindful tuning, careful storage, and the occasional repair. Use the following diagnostics and fixes to keep tension true and your frame performing like a pro.
7.1 Troubleshooting Common Tension Issues
- Puckering inside the field
- Diagnosis: Insufficient vertical or horizontal tension.
- Fix: Move split pins outward in mirrored positions to increase vertical tension, then even up your side lacing for horizontal tension. Re‑check with a light tap—the surface should sound bright and resonant.
- Skewed or crooked fabric
- Diagnosis: Off‑center mounting or rolled fabric drift.
- Fix: Verify center marks on both the webbing/roller and the fabric. If needed, remove the securing stitches at the rollers, re‑center, and re‑stitch; re‑roll the ends carefully, or roll the opposite end to correct travel.
- Edge tearing or stress on delicate grounds
- Diagnosis: Fabric is bearing too much load at the attachment edge.
- Fix: Add a lightweight muslin or cotton backing and press them together before mounting. Distribute securing stitches (vary lengths rather than identical small stitches). For ongoing stress relief, use a sewn‑on reinforcement strip (e.g., a folded tape along the side edges) and lace through the strip instead of the ground fabric.
- Tension that drifts during a long project
- Diagnosis: Side lacing or pins have relaxed; uneven mirroring.
- Fix: Re‑mirror pin positions on both sides. Even up the side lacing; check for any stretch in your lacing cord (linen thread resists stretch well). Confirm straight grain and realign if needed.
Pro tip: Most tension problems trace back to setup. A careful, centered dress at the start prevents months of micro‑fixes later.
7.2 DIY Repairs and Component Replacement
- Replacing worn webbing (roller bars with stapled tape)
- Reality check: Staples must be pried out and new twill tape re‑stapled; this is fussy work and risks marring finished wood.
- Alternative: Some modern rollers feature evenly spaced holes instead of stapled tape. Needle ’n Thread notes you can stitch heavy twill tape through these holes for a reusable “webbing,” or lace fabric directly to the rollers for true four‑sided lacing.
- Side lacing and cords
- If your lacing stretches over time, switch to a low‑stretch option (linen thread is a solid choice highlighted by Needle ’n Thread).
- Hardware sourcing
- Stainless steel split pins (cotter pins) are standard on many premium frames (e.g., Jenny Adin‑Christie). If you replace pins, match the diameter to the stretcher slat holes; rubber caps improve safety and comfort.
- Modular parts and maker support
- Slate frames are inherently modular. Many makers sell individual replacement components; some studios even replace broken parts. Because rollers, arms, and pins are independent, one failed piece rarely means a full‑frame replacement.
- Warped wood: prevention first
- Keep frames disassembled and stored flat in a stable environment to minimize humidity and temperature swings. Premium makers design frames to resist warping, but if warping occurs, documented repair methods are limited. Consult the original maker for guidance or replace the affected component.
7.3 Building Custom Frames: Materials and Techniques
Considering a DIY build? The blueprint is simple in theory but demands precision in practice.
- Materials and layout
- Four hardwood pieces: two horizontal roller bars and two vertical stretcher slats (“cribbage arms” with multiple holes). Professional frames commonly use beech or other hardwoods; modern custom shops also offer species like walnut, cherry, maple, purple heart, and oak.
- Under ~40" formats, arms are typically the same length as the rollers.
- Tension system and hardware
- Two approaches for the rollers:
- Attach cotton webbing (centered, secured with robust staples).
- Drill evenly spaced holes along the rollers and lace fabric or sew reusable twill tape through those holes.
- Use stainless steel split pins or wooden pegs through the stretcher slat holes to incrementally increase tension.
- Two approaches for the rollers:
- Woodworking notes (from related techniques)
- Clean, even hole drilling on the stretcher slats is critical for smooth, incremental adjustment.
- Rabbet cuts and accurate 45‑degree miters are useful general techniques for frames with recessed or joined elements; meticulous sanding removes mill marks and breaks sharp edges.
- Finish to a thread‑safe smoothness; premium makers use satin lacquer or multi‑coat polyurethane, sanded between coats.
- Dressing tools and time
- Expect 1.5–3 hours for dressing. Useful tools include strong thread for securing to webbing, sturdy lacing string, an awl or stiletto, and appropriate needles. Mark centers and create 1/2" fabric folds before stitching to the rollers.
- Cost‑savvy workflow for large pieces
- You can work very large projects on smaller frames by rolling completed areas onto one roller while unrolling new areas from the other, as outlined in professional guidance.
- Reality check
- Publicly available, step‑by‑step DIY construction guides are limited. Reverse‑engineer a commercial example and study reputable makers’ designs for hole patterns, proportions, and finishing standards. Some makers document custom projects; for instance, personal blogs have chronicled building a slate frame as part of larger embroidery endeavors.
8. Conclusion: Elevating Your Embroidery with the Right Frame
Slate frames earn their reputation by delivering drum‑tight, stable tension that preserves grain and elevates stitch precision over months‑long projects. Choose by webbing width to match your fabric plus margins; prioritize hardwood construction, stainless hardware, and a smooth, thread‑safe finish. Whether you prefer webbing or direct‑to‑roller lacing, invest in a well‑made frame and careful setup—you’ll spend more time stitching beautifully and less time fighting tension.
