Thread Sketching on Watercolor Paper: Trevor Conquergood’s “Photo-Trace” Method Without Torn Edges or Hoop Marks

Trevor Conquergood’s live preview at All About Sewing (Mobile, Alabama) is the kind of demo that makes experienced embroiderers lean in—because it looks deceptively simple: a photograph becomes a “thread sketch,” stitched as airy run lines on watercolor paper.

If you’ve ever tried paper embroidery and ended up with a design that literally falls out like a perforated coupon, you’re not alone. Paper behaves nothing like fabric. It has zero elasticity, zero "memory," and zero tolerance for error. The usual hooping habits that work on cotton tees will ruin paper in seconds.

Below is the clean, repeatable workflow Trevor shows—overlaid with the safety protocols and “studio habits” necessary to keep paper crisp, flat, and frame-ready.

Don’t Panic: “Thread Sketching” Is Just Run Stitch + Smart Material Choices (Not Magic)

Trevor is very open about the secret sauce: he’s not freehand drawing from scratch—he’s tracing a photo inside digitizing software, then letting a "run stitch" path create that sketchy, light look.

To understand why this works, we need to look at the physics. A standard satin stitch or fill stitch creates a "column" or "block" of thread that pulls the material together. On paper, that tension acts like a saw, cutting right through the fibers.

A run stitch, however, is a single line of thread. It places zero lateral tension on the substrate. This means the project is less about artistic drawing talent and more about structural engineering:

• The Material: Choosing a paper that won’t shred under needle punctures (Cotton vs. Wood Pulp).
• The Foundation: Supporting it correctly with stabilizer so the paper floats rather than stretches.
• The Setup: Keeping the substrate flat without creasing using the right holding method.

If you’re already comfortable running a flatbed embroidery machine, this is an “intermediate” project mainly because paper is unforgiving. One wrong choice—specifically regarding density or clamping—and you will ruin the piece.

The Photo-Trace Workflow in Digitizing Software: Turn a Skyline Photo Into Sketchy Run Stitches

Trevor’s digitizing method is straightforward and accessible even for beginners in digitizing:

1. Import: Load a photograph into your digitizing software as a background.
2. Trace: Manually trace the architectural lines using the specific "Run Stitch" tool.
3. Restrain: Keep the result light. Avoid crossing over the same point more than 2-3 times.

He specifically describes it as tracing the photo on-screen, then stitching what you traced. The visual cue in the demo is a skyline image with pink line art overlaid on top.

Production Tip: If you are buying files rather than making them, look for designs labeled "Redwork," "Toile," or "Light Sketch." Avoid anything labeled "Full Fill" or "Appliqué" for paper projects.

If you’re building your own files, keep your mindset simple: you’re drawing a clean path for the needle to travel, not trying to “color in” the paper. The white space of the paper is part of the art.

The Paper Trap: Why Cardstock Tears and Watercolor Paper Survives Needle Punctures

Trevor calls out the biggest failure point clearly: avoid standard cardstock.

This is a matter of microscopic structure. Standard cardstock is usually made of short wood-pulp fibers. When a needle hits it:

• Cardstock: The fibers snap and break. A row of holes becomes a tear strip (like a checkbook perforation).
• Watercolor Paper: Usually contains cotton rag content with longer, stronger fibers. When the needle enters, the fibers are pushed aside rather than snapped, retaining structural integrity.

He shows a 140lb (300gsm) Cold Press Watercolor Paper (specifically the Canson XL blue cover pad). The "Cold Press" texture provides a "tooth" that grips the thread better than smooth hot-press paper.

The Golden Rule: If you only remember one sentence for paper embroidery, make it this: paper choice is structural, not aesthetic.

The “Hidden” Prep Before You Stitch Paper on a Brother Luminaire: What I Check Every Time

Paper projects fail before you press start. Because you cannot "steam out" a mistake or hooping crease later, your prep must be surgical.

Hidden Consumable Alert: You need Painter's Tape or Washi Tape (low tack). Do not use clear office tape or packing tape; they will rip the top layer of paper fibers when removed.

Prep Checklist (Pre-Flight Protocol):

• Needle Check: Install a fresh 75/11 Sharp Needle. (Do not use Ballpoint; ballpoint needles are designed to slide between knits, but on paper, they blow a messy, ragged hole. Sharps pierce cleanly).
• Presser Foot Height: Check your machine settings. If possible, raise the embroidery foot height slightly (to roughly 1.5mm - 2.0mm) to prevent the foot from dragging across the textured paper surface.
• Bobbin Inspection: Ensure your bobbin case is free of lint. A snag that increases tension will pucker the paper instantly.
• Paper Sizing: Cut your watercolor paper 1-inch larger than your active stitch field, but ensuring it fits within the physical inner hoop dimensions if floating.
• Thread Choice: Use standard 40wt rayon or polyester. Avoid thick cotton or metallic threads for your first attempt, as they add drag.

If you’re planning to stitch a batch of postcards, prep your paper sheets and stabilizer pieces first. The “stop-and-cut” rhythm is where paper gets bent, creased, or smudged by sweaty hands.

The No-Crease Method: Floating Watercolor Paper Over Cutaway Stabilizer (Trevor’s Exact Approach)

Trevor’s hooping method is the critical success factor. 90% of failures happen because users try to clamp paper inside the hoop rings.

Why clamping fails: Embroidery hoops hold by friction and compression. Compressing paper creates a permanent "ring of death" crease that destroys the art.

The Solution: Floating.

1. Hoop the stabilizer ONLY. Trevor uses Floriani Cutaway. Drum-tight integrity is mandatory here.
2. Float the paper. Lay the watercolor paper on top of the hooped stabilizer within the stitch area.

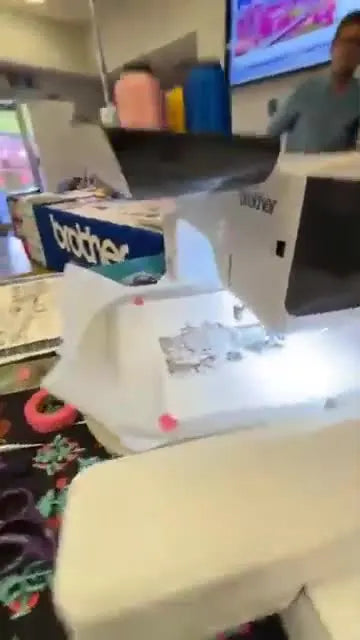

3. Anchor. Secure the corners with your low-tack tape (pink tape in the demo).

This illustrates why the concept of a floating embroidery hoop technique is not a shortcut—it’s the only professional way to manage non-textile substrates.

Why Cutaway? Trevor specifies cutaway stabilizer because it acts as a permanent skeleton. Tearaway stabilizer weakens with every needle perforation. If the stabilizer weakens, the paper takes the stress and rips. Cutaway absorbs the mechanical stress of the stitching process.

Stabilizer Decision Tree for Paper Embroidery: Pick the Backing That Prevents “Perforation Failure”

Confusion about stabilizers ruins more projects than bad digitizing. Use this logic flow to make the right choice every time.

Decision Tree (Substrate + Design → Stabilizer):

• Scenario A: Watercolor Paper + Run Stitch Sketch (The Trevor Method)
  • Selection: Medium Weight Cutaway.
  • Why: Maximum stability, prevents perforation tearing. Trim excess with scissors later.
• Scenario B: Cardstock (High Risk) + Very Low Density
  • Selection: Self-Adhesive Tearaway (Sticky Back) OR Cutaway with Spray Adhesive.
  • Why: You need 100% surface adhesion to prevent the cardstock from lifting, as it is stiffer than watercolor paper. Warning: High failure risk.
• Scenario C: Handmade/Textured Paper + Any Design
  • Selection: Mesh Cutaway (No-Show Mesh).
  • Why: Softer hand, less bulk, but retains the "skeleton" strength of cutaway.
• Scenario D: You want to use Tearaway because "it's cleaner"
  • Stop. The force required to tear the stabilizer away will warp or rip your stitched paper. Stick to Cutaway and trim neatly.

Setup That Saves Your Paper: Hoop Alignment, Tape Placement, and a Clean Stitch Field

Once your stabilizer is hooped and your paper is floated, your setup goal is simple: Zero Movement.

Tape Placement Strategy:

• Tape strictly at the corners.
• Run your fingernail lightly over the tape edge to bond it.
• Critical: Verify on your screen that the needle will not stitch through the tape. Gummed-up needles lead to shredded thread and ruined paper.

If you stitch paper often, you will find manual taping tedious. This is where tooling upgrades create commercial consistency. A dedicated hooping station for machine embroidery allows you to pre-set the position of your stabilizer and paper, reducing the "eyeball" errors that lead to crooked prints.

Setup Checklist (The "Green Light" Protocol):

• Hoop Tension: Tap the stabilizer. Does it sound like a drum? (Good). Does it sound like loose paper? (Re-hoop).
• Clearance: Perform a "Trace" or "Trial Key" function on your machine to ensure the design fits the paper and misses the tape.
• Surface Check: Wipe the machine bed. One drop of oil or coffee will wick into watercolor paper instantly.
• Speed Limiter: Reduce your machine speed to 600 SPM (Stitches Per Minute). Paper heats up due to friction; slower speeds reduce heat and needle deflection.

Warning: Mechanical Safety. Keep fingers, scissors, and tools away from the needle area once the machine starts. Paper projects tempt you to “hold it down” with your fingers during the stitch execution. Do not do this. The needle bar moves faster than your reaction time.

Stitching the Thread Sketch on a Brother Embroidery Machine: What “Normal” Looks Like Mid-Run

Trevor runs the stitch-out and notes the machine behavior. Because it’s a run-stitch sketch, you are looking for a smooth, flowing rhythm.

Sensory Diagnostics - What to watch and hear:

• Sound: You should hear a sharp "click-click" as the needle pierces. If you hear a loud "THUMP-THUMP," your needle is dull, or the paper is too dense. Stop immediately.
• Sight: Watch the bobbin thread. If white bobbin thread is pulled to the top (creating "railroad tracks"), your top tension is too tight. Reduce top tension by 1-2 points. Paper adds friction, so lower tension is often needed.
• Movement: The paper should stay perfectly flat. If it creates a "bubble" or "wave" in front of the foot, your stabilizer is too loose.

If you’re using a high-end machine like the Brother Luminaire Innov-is XP1 mentioned in the demo, the camera scanning features are incredible for aligning sketches on existing prints. However, the physics of needle-on-paper remain the same regardless of machine tier.

For users who struggle with tape residue or alignment, many eventually move to magnetic frames for embroidery machine. Because rigid substrates (paper, faux leather, thin plastics) cannot be bent into a standard hoop, the flat clamping force of magnets is the engineering solution to the "hoop burn" problem.

The “Why” Behind the Method: Hooping Physics, Fiber Structure, and Why Paper Shifts So Easily

Here’s what’s happening mechanically—explained in plain shop terms.

1. The "Cookie Cutter" Effect: Traditional embroidery relies on the fabric flexing to accommodate the thread. Paper is rigid. If you place 1000 stitches in a 1-inch square, you haven't embroidered it; you have effectively stamped it with a cookie cutter. The paper will fall out. This is why Trevor's design is "Open" and "Sketchy."

2. Compression vs. Suspension: Traditional hoops grip by compressing the material between rings. Paper fibers crush under compression and do not rebound. Floating suspends the paper on top of the stabilizer, ensuring the only force applied to the paper is the vertical needle puncture, not lateral crushing.

3. Fiber Direction: Machine-made paper has a "grain" similar to fabric. Stitching with the grain is generally safer than stitching across it. If you are cutting large sheets down, try to note the grain direction (usually the long dimension of the sheet).

When Paper Starts Tearing or Cutting Out: Fast Troubleshooting Based on Trevor’s Demo

Even with good prep, things go wrong. Use this rapid troubleshooting guide to save the project.

Symptom: The paper cuts out along the stitch line (The Perforation Effect).

• Cause: Stitch length is too short (putting holes too close together).
• Fix: Increase minimum stitch length in your machine settings or software to 2.5mm or longer. Never go below 2.0mm on paper.

Symptom: The paper tears at the corners where taped.

• Cause: The stabilizer is too loose (trampolining), causing the machine to drag the paper against the tape anchors.
• Fix: Re-hoop the cutaway stabilizer. It must be rock hard.

Symptom: Thread breaks constantly / Thread shredding.

• Cause: The paper contains adhesive or clay fillers (common in glossy photo paper) that gum up the needle eye.
• Fix: Switch to a Non-Stick (Teflon coated) Needle or wipe your needle with rubbing alcohol every 1,000 stitches. Switch to a standard 40wt Poly thread if using Rayon (Poly is stronger).

If you want the sketch look but your file is too busy, you must simplify. Paper rewards restraint.

Finishing Like a Pro: Frame-Ready Paper Embroidery Without Smudges, Waves, or Tape Damage

Trevor holds up a finished skyline and calls it “ready to frame.” That’s the correct mindset: paper embroidery is an art object, usually destined for glass or floating mounts.

The Finishing Workflow:

1. Release: Remove the hoop from the machine.
2. Tape Removal: Crucial Step. Do not pull the tape up. Pull the tape flat and away from the paper, at a sharp angle. This prevents lifting the surface fibers.
3. Trim: Flip the hoop over. Use sharp appliqué scissors (duckbill) or precision snips to cut the cutaway stabilizer close to the stitching on the back. Do not tear it.
4. Flatten: Place the finished piece under a heavy book for 24 hours. The moisture from the humidity and the thread tension can cause slight curling; weight fixes this.


Bonus Inspiration From Trevor’s “Captain Canada” Denim Jacket: Placement Tricks That Look Custom (Because They Are)

Trevor also shows his custom “Captain Canada” denim jacket, and while it's fabric, it teaches a masterclass in placement thinking that applies to paper cards too.

• He embroidered panels before construction to get details on reversible cuffs and collars.

The Lesson: Whether it's a jacket or a greeting card, plan your embroidery before the final fold or assembly. If you are making folded greeting cards, lay the paper flat, stitch the front panel, cover the back of the stitching with a glued liner insert, and then fold the card. This hides the messy bobbin work and stabilizer.

The Upgrade Path That Actually Makes Sense: When to Move From Tape to Magnetic Hoops (and When Not To)

Tape works—and Trevor proves it. But tape is also slow, inconsistent, and annoying when doing production runs of 50 holiday cards.

Here’s the practical framework for deciding when to upgrade your tools:

Level 1: The Hobbyist (Tape Method)

• Trigger: You stitch one or two cards for birthdays.
• Solution: Stick to Trevor's method: Hooped cutaway + floated paper + corner tape. It costs pennies and works.

Level 2: The Enthusiast / Etsy Seller (Magnetic Upgrade)

• Trigger: You are making sets of 10-20 cards. Taping is hurting your wrists or leaving residue. You are getting "hoop burn" on faux leather or cardstock.
• Solution: This is where magnetic embroidery hoops become a workflow necessity. The flat clamping mechanism holds paper firmly on all four sides without crushing the fibers or requiring tape.
• Compatibility: Many users specifically search for a magnetic hoop for brother to match their specific machine arm width. Ensure you check your machine's model compatibility before buying.

Level 3: The Production Studio (Speed & Scale)

• Trigger: You need to swap rigid substrates instantly.
• Solution: A high-end brother luminaire magnetic hoop or equivalent for your machine allowing you to "slap and stitch" without unscrewing outer rings.

Warning: Magnet Safety. Magnetic hoops use industrial strength magnets (often N52 Neodymium). They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Always slide the magnets apart; never try to pry them open.

Turning This Technique Into a Repeatable Product: Postcards, Framed Prints, and Small-Batch Efficiency

Trevor talks about postcards, framed pieces, and paper boxes. From a business standpoint, paper embroidery is highly profitable because:

• COGS (Cost of Goods Sold) is low: Paper is cheaper than high-end hoodies.
• Speed: Run-stitch sketches have low stitch counts (often under 5,000 stitches), meaning fast turnaround.

However, your bottleneck in this business model is hooping.

If you scale up, precision becomes difficult. That’s why professional shops usually pair a hoop master embroidery hooping station with their magnetic frames. It guarantees that the design lands in the exact same spot on Card #1 and Card #50.

The "Production Mode" Jump: If you find yourself with orders for 100+ cards, your single-needle machine will struggle to keep up (and you will struggle with constant thread changes). This is the inflection point where upgrading to SEWTECH Multi-Needle Machines makes financial sense. They offer faster speeds, auto-color changes, and robust frames designed for volume, freeing you from the slow "stop-rethread-start" cycle of home machines.

Operation Habits That Prevent Waste: The Small Things That Keep Paper Projects Clean

Paper embroidery punishes rushed habits. The best operators I’ve trained all adhere to strict hygiene protocols.

Operation Checklist (Running the Job):

• Clean Hands: Oils from your fingertips will yellow paper over time. Wash hands or wear cotton inspection gloves when handling the raw stock.
• The "One-Second" Watch: Watch the first few stitches like a hawk. If the paper lifts even 1mm, hit stop. It's better to re-tape now than ruin the sheet.
• Needle Discipline: Change your needle after every 4-5 hours of stitching on paper. Paper is abrasive (contain minerals/clay) and dulls needles faster than cotton fabric.

If you want to experiment creatively, Trevor mentions variegated thread as a fun option for run-stitch sketches.

• Tip: Use short-span variegated thread for small sketches so the colors change frequently enough to be noticed.


The Takeaway: Trace Light, Support Strong, Handle Gently—and You’ll Get Frame-Ready Results

Trevor’s demo is a powerful reminder that embroidery isn’t limited to fabric. With the right paper (cotton watercolor), the right support (cutaway stabilizer), and the right handling (float + tape), thread sketching becomes a reliable, high-margin technique.

Summary of the Winning Formula:

1. Design: Low density run stitches (Redwork style).
2. Material: 140lb/300gsm Cold Press Watercolor Paper.
3. Hold: Float over Cutaway Stabilizer.
4. Needle: 75/11 Sharp.

If you try it once and it fails, don’t blame your machine. Paper failures are almost always physics failures—usually density (too high) or stabilization (too loose).

And if you fall in love with paper embroidery and start producing it regularly, that’s when smart tool upgrades—especially magnetic frames and rigorous hooping stations—stop being “luxuries” and start being the infrastructure of your success.

FAQ

• Q: What needle should a Brother Luminaire Innov-is XP1 use for machine embroidery on 140lb (300gsm) cold press watercolor paper?
  A: Use a fresh 75/11 Sharp needle as the safest starting point for clean punctures on watercolor paper.
  • Install: Replace the needle before the run (paper dulls needles faster than cotton).
  • Avoid: Do not use a Ballpoint needle on paper because it can make ragged holes.
  • Set: If the machine allows it, raise embroidery foot height slightly (about 1.5–2.0 mm) to reduce dragging on textured paper.
  • Success check: Holes look crisp and round, and the machine sounds like a clean “click-click,” not a heavy “thump.”
  • If it still fails: Stop and check stitch density/minimum stitch length and stabilizer firmness before changing more settings.
• Q: How do I float watercolor paper correctly for paper embroidery on a Brother Luminaire Innov-is XP1 without getting hoop burn creases?
  A: Hoop the stabilizer only and float the watercolor paper on top—do not clamp paper inside the hoop rings.
  • Hoop: Hoop medium cutaway stabilizer drum-tight by itself.
  • Place: Lay the watercolor paper within the stitch field on top of the hooped stabilizer.
  • Tape: Anchor only the corners using low-tack Painter’s Tape or Washi Tape, and keep tape out of the stitch path.
  • Success check: The paper stays perfectly flat with zero shifting or “bubbling” during a trace/trial run.
  • If it still fails: Re-hoop the cutaway tighter; most paper shifting starts with stabilizer that is not drum-tight.
• Q: What stabilizer should I use for run-stitch “thread sketch” embroidery on watercolor paper to prevent the perforation effect?
  A: Medium-weight cutaway stabilizer is the most reliable choice because it acts like a permanent skeleton under the needle holes.
  • Choose: Use cutaway (not tearaway) for watercolor paper + run stitch sketches.
  • Avoid: Do not plan to tear stabilizer away from stitched paper; tearing can warp or rip the artwork.
  • Trim: Cut excess cutaway from the back with scissors after stitching instead of tearing.
  • Success check: The paper does not start “cutting out” along the stitch line, and the stitched area stays supported when lifted.
  • If it still fails: Simplify the file (reduce repeat passes) and increase minimum stitch length to spread holes farther apart.
• Q: How do I stop paper embroidery from cutting out like a perforated coupon when stitching run stitches on a Brother embroidery machine?
  A: Increase stitch length—paper needs holes farther apart to keep the fibers from turning into a tear strip.
  • Set: Increase minimum stitch length to 2.5 mm or longer; avoid going below 2.0 mm on paper.
  • Digitize: Avoid crossing the same point more than 2–3 times when tracing.
  • Slow: Reduce speed to about 600 SPM to reduce friction heat and needle deflection on paper.
  • Success check: The stitched path stays intact when gently flexed, with no “zipper tear” starting along the line.
  • If it still fails: Switch away from cardstock to 140lb (300gsm) cold press watercolor paper and keep the design lighter (redwork/toile style).
• Q: Why does watercolor paper tear at the tape corners during Brother Luminaire Innov-is XP1 paper embroidery, and how do I fix it?
  A: Corner tearing usually means the hooped stabilizer is too loose and the paper is being dragged against the tape anchors.
  • Re-hoop: Hoop the cutaway stabilizer tighter until it is rock hard.
  • Tape: Use only low-tack Painter’s Tape/Washi Tape and anchor only at the corners.
  • Check: Run a trace/trial key to confirm the needle path will not stitch into tape (adhesive can cause new problems).
  • Success check: The paper stays flat with no “trampoline” movement, and tape corners stay intact through the run.
  • If it still fails: Reduce speed and confirm presser foot height is not dragging on the paper surface.
• Q: What safety rules prevent finger injuries when stitching paper embroidery on a Brother Luminaire Innov-is XP1?
  A: Never hold paper down with fingers while the machine is running—secure the paper before starting and keep hands out of the needle zone.
  • Secure: Float paper on hooped stabilizer and tape corners before pressing start.
  • Verify: Use the machine trace/trial function so there is no need to “guide” the paper by hand.
  • Clear: Keep scissors and tools away from the needle area during stitching.
  • Success check: The job runs without any need to touch the substrate once stitching begins.
  • If it still fails: Stop the machine and re-tape/re-hoop—do not attempt mid-run hand correction near the needle.
• Q: When should paper embroidery workflow upgrade from tape-floating to magnetic embroidery hoops or SEWTECH multi-needle machines for small-batch postcards?
  A: Upgrade based on the bottleneck: optimize technique first, then upgrade holding consistency, then upgrade production speed when volume demands it.
  • Level 1 (Technique): Use hooped cutaway + floated paper + corner tape when making a few cards.
  • Level 2 (Tooling): Move to magnetic embroidery hoops when taping becomes slow, inconsistent, or leaves residue during 10–20 piece runs.
  • Level 3 (Capacity): Consider SEWTECH multi-needle machines when 100+ pieces or frequent thread changes make a single-needle workflow too slow.
  • Success check: Placement repeatability improves (Card #1 matches Card #50) and setup time per piece drops.
  • If it still fails: Add a hooping station to reduce alignment errors before investing in faster machines.
