Thread the Brother Stellaire Without the Drama: The 1–7 Path, the Auto-Thread Button, and a Fast Color-Change Tie-Off

If your Brother Stellaire is sitting there looking expensive and intimidating, you’re not alone. Threading feels “basic” until the thread snaps, the needle threader refuses to catch, and you’re suddenly questioning every guide and groove on the machine.

This post rebuilds confidence the way a seasoned shop tech would: we’ll verify the design on-screen, install the spool correctly, follow the Stellaire’s printed threading numbers (1–7), use the automatic needle threader the way it actually likes to be used, and then finish with a time-saving color-change tie-off that avoids a full re-thread.

Read the Brother Stellaire LCD Screen First—The "Flight Plan" Before Takeoff

Before you touch thread, touch the screen. Just as a pilot checks their instruments before the runway, you must verify your embroidery "flight plan."

On the Brother Stellaire interface shown in the tutorial, the design is a two-color heart. The machine display provides critical telemetry:

• Design size: 2.69" x 3.20" (Check: Can your hoop handle this with at least 0.5" clearance on all sides?)
• Stitch count: 894 stitches
• Estimated time: 2 minutes
• Color changes: 2

That tiny “spec check” is not busywork—it’s how you prevent the most common beginner mistake: starting to stitch without realizing you’re about to do multiple color layers.

The "Production Mindset" Shift

If you are planning to stitch more than one item, this screen is where you decide your strategy.

• Hobby Mode: You do one shirt, re-thread slowly, and inspect every stitch.
• Production Mode: You are doing 10 shirts. Shaving 60–90 seconds off each thread change using the "Tie-off Method" (explained below) adds up to 15 minutes of saved time.


Lock the Spool Down: Physics of Thread Delivery

The video uses a horizontal spool pin with a spool cap. This isn't just about holding the thread; it's about controlling tension spikes.

Here’s the exact sequence for stability:

1. Slide the red thread spool onto the horizontal pin.
2. Press the spool cap firmly against the spool.


The “Why” Behind the Spool Cap (Sensory Check)

Thread doesn’t just unwind; it accelerates and decelerates violently as the take-up lever jerk upwards. If the spool has room to wobble, the thread creates a "whip" effect.

Sensory Anchor: When the spool cap is on correctly, try to wiggle the spool. It should feel solid, with zero lateral movement. If it clicks or slides, the cap is too loose or the wrong size. A loose spool leads to:

• Random tension spikes (loops on the back).
• Thread unspooling too fast and tangling around the pin.
• Sudden snaps that feel like they came out of nowhere.

Prep Checklist: The "Pre-Flight" Safety Check

Perform this 30-second audit before every project:

• Data Verification: Confirm design size fits the hoop and stitch count matches your time budget.
• Spool Security: Cap is pressed tight; no spool wobble ("The Shake Test").
• Consumables Check: Fresh needle installed? (Rule of thumb: Change every 8 hours of stitching).
• Tool Readiness: Sharp embroidery scissors (like snips or double-curved) within arm's reach.
• Workflow Audit: If you have 50 items to do, stop and ask: Is my current hooping method the bottleneck? This is the stage where setting up a dedicated hooping station for embroidery machine stops being a luxury and starts being a necessity for consistency.


The Threading Path (1–6): Creating Controlled Drag

The Stellaire’s casing shows a numbered path. The host follows it in order, and so must you. The machine relies on friction points to tension the thread properly.

The upper threading path is non-negotiable:

1. Under guide 1
2. Down channel 2
3. Wrap/U-turn at 3
4. Up to the take-up lever at 4
5. Down channel 5
6. Behind the needle bar guide at 6




Expert Insight: The "Flossing" Sensation

You can't just lay the thread on the machine; you must seat it in the machine.

• Visual Check: At step 4 (Take-up Lever), visually confirm the thread is inside the eyelet of the metal lever.
• Tactile Check: When you pull the thread down through channel 5, you should feel a slight, smooth resistance—similar to pulling dental floss. If it feels completely loose, you missed the tension discs at step 3. Rethread immediately.

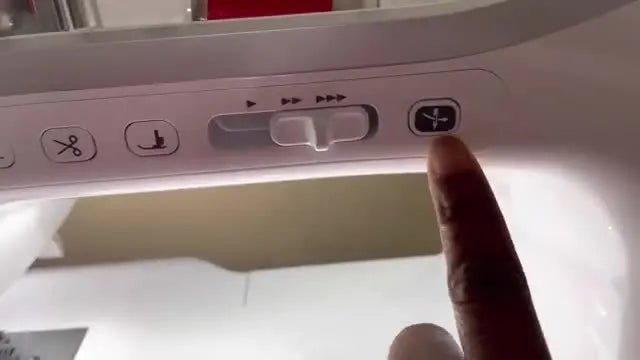

Master the Automatic Needle Threader (Guide 7)

In the video, after the thread is routed to guide 7, the host cuts it on the side cutter, then presses the automatic threading button. The button lights up, and you hear a mechanical whir-click.

Troubleshooting the "It Didn't Catch" Moment

The video shows a real-world failure: “It didn’t catch… it just snapped my thread.” This is the #1 frustration for new owners.

The Physics of Failure: The auto-threader uses a tiny hook that passes through the eye of the needle to grab the thread. If the thread isn't held under slight tension exactly across the front of the needle via Guide 7, the hook misses.

Corrective Action:

1. Don't Panic: It’s not the machine; it’s usually alignment.
2. Check Guide 7: Ensure the thread is firmly clicked into the plastic guide above the needle.
3. Check the Cut: Use the side cutter. If you cut it with scissors and leave the tail too long, the thread creates a loop that misses the hook.
4. The "Finger Press": Gently hold the thread against Guide 7 with your finger as you press the button (keep finger away from the moving needle bar).

Warning: Physical Safety
Keep fingers, long nails, and loose jewelry away from the needle area when pressing the automatic threader button or the Start button. The mechanism moves with surprising speed and force. A punctured finger is the fastest way to ruin a garment with bloodstains.

Setup Checklist: The "Final Approach"

Do this right before the green light:

• Path Integrity: Visual trace from spool to needle—no loops, no snagged guides.
• Needle Bar Guide: Thread is behind the small metal Hook (Step 6) before going to the needle eye.
• Guide 7: Thread is securely seated in the cleft of Guide 7.
• Tail Trim: Thread tail is cut using the built-in cutter (ensures correct length for the auto-threader).
• Workflow Optimization: If you are changing colors every 2 minutes, consider upgrading to embroidery hoops for brother machines that use magnetic clamping to speed up your reload time between runs.


The Drop-In Bobbin Check

The host notes the bobbin is a standard drop-in.

• Visual Rule of Thumb: Look at the bobbin case. If you see lint built up, blow it out. A single piece of lint can change your bobbin tension by 20%.
• The "H" Test: When you pull the bobbin thread, the bobbin should spin Counter-Clockwise (forming the letter 'P', not 'q').

The "Tie-Off" Hack: Change Colors Like a Factory Pro

This is the most valuable technique in the video. In commercial embroidery factories, operators rarely unthread a machine completely. They use the "Tie-Off" method to pull the new color through using the old color as a guide.

The Strategy: Change from Red to White without re-threading paths 1-6.

Step-by-Step Execution:

1. Cut the Red Thread: Snip it right at the spool pin (leaving the machine threaded).
2. Swap Spools: Remove Red, install White. Replace the cap securely.
3. The Knot: Tie the White thread to the end of the Red thread using a Square Knot (reef knot). Crucial: Keep the tails short and the knot tight/small.
4. The Pull-Through:
   • Lift the presser foot (releases tension discs).
   • Grab the Red thread at the needle area.
   • Pull gently.
5. Sensory Check: You will feel the knot pass through the tension path. If it gets stuck, don't yank. Wiggle it gently.
6. The Cut: When the White thread appears at the needle, cut off the knot.
7. Final Threading: Use the auto-threader for the final step through the eye.








Why Use The Tie-Off Method?

It eliminates 80% of human error. You aren't discouraged by complex threading paths, so you're less likely to make mistakes on guides 1-5. It is the secret to high-speed workflow.

However, if you are doing this high-speed changeover, you need your hooping to keep up. Professional shops use magnetic embroidery hoops precisely because they allow you to mount the next garment in seconds while the machine is still stitching the previous one.

The "Go" Sequence: Presser Foot & Start

1. Press the Presser Foot Button (Light turns Green).
2. Press Start/Stop.




Operation Checklist: The "First 30 Seconds" Audit

• Sound Check: Listen for a rhythmic thump-thump-thump. A high-pitched click-click or grinding noise means stop immediately (likely a needle hit or bird nesting).
• Tail Management: After the first 5-10 stitches, pause and trim the starting tail flush to the fabric to prevent it from being stitched over later.
• Time Audit: If you find yourself spending more time hooping than stitching, your process is upside down. Look into optimizing your hooping for embroidery machine process to match the machine's speed.

Hooping Strategy: The Foundation of Quality

The video shows stable brown woven fabric, which is "Embroidery Mode: Easy." But real life involves knits, slippery silks, and thick jackets. The best threading in the world won't save a bad hoop job.

Decision Tree: Fabric vs. Stabilization vs. Hoop

Use this logic flow to avoid puckering:

• Scenario A: Stable Woven (Cotton, Denim, Canvas)
  • Risk: Low.
  • Stabilizer: Tearaway (Medium weight).
  • Hoop: Standard Hoop is usually fine.
• Scenario B: Stretchy knit (T-Shirts, Polos)
  • Risk: High (Distortion/Puckering).
  • Stabilizer: Cutaway (Must hold the stitches forever).
  • Hoop: Be careful not to stretch the fabric while hooping. This is where "Hoop Burn" happens using standard frames.
• Scenario C: Thick/Bulky (Towels, Jackets)
  • Risk: "Popping" out of the hoop.
  • Stabilizer: Water Soluble Topper (on top) + Tearaway (bottom).
  • Hoop: Standard hoops often fail to close. This is the prime use case for a magnetic hoop for brother stellaire. The magnets clamp thick layers without forcing a screw mechanism, preventing damage to the machine's pantograph.

Warning: Magnetic Safety
Magnetic embroidery hoops use industrial-strength magnets (often N52 grade).
1. Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surfaces.
2. Medical Devices: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place directly on top of the Stellaire's LCD screen or your phone.

Troubleshooting: From "Panic" to "Fixed"

The Logical Upgrade Path: Tools vs. Talent

When should you practice more, and when should you open your wallet?

Stage 1: The Learner (0-3 Months)

• Focus: Perfecting the threading path, understanding tension, learning stabilizers.
• Tools: Standard Brother hoops, basic thread.

Stage 2: The Hobbyist (3-12 Months)

• Pain Point: "I hate hooping," or "My wrists hurt from tightening screws."
• The Upgrade: Invest in brother stellaire hoops that utilize magnetic tech. This removes the friction of hooping and protects your garments from hoop burn.

Stage 3: The Side Hustle (12 Months+)

• Pain Point: "I'm turning down orders because I'm too slow."
• The Upgrade: If you are mastering the Stellaire but the single-needle color changes are killing your profit margin, this is when you look at Multi-Needle machines. But before you drop $10k on a new machine, maximize your Stellaire with a magnetic hoop system to see if workflow efficiency solves the problem first.

Master the text on the screen, respect the physics of the spool, and trust the 1-7 path. Once those basics are muscle memory, your only limit is how fast you can load the next garment.

FAQ

• Q: Why does the Brother Stellaire automatic needle threader snap the thread or fail to catch the needle eye?
  A: Re-seat the thread in Brother Stellaire Guide 7 and re-cut the tail with the built-in side cutter before pressing the needle threader button—misalignment is the usual cause, not a “broken” machine.
  • Press the thread firmly into Guide 7 (the plastic guide above the needle) so the thread is held straight across the front of the needle.
  • Cut the thread using the Stellaire side cutter (avoid leaving a long tail from scissors).
  • Hold the thread lightly against Guide 7 with a finger while pressing the automatic threading button (keep fingers clear of moving parts).
  • Success check: The threader makes a whir-click and a clean loop is pulled through the needle eye.
  • If it still fails… Replace the needle and try again; a damaged/bent needle eye can prevent the hook from grabbing.
• Q: How can Brother Stellaire users tell if the upper thread is correctly seated in the tension path (steps 1–6) to prevent bird nesting?
  A: Re-thread the Brother Stellaire upper path in the printed 1–6 order and confirm the “flossing” resistance—bird nesting often happens when the thread misses the tension discs.
  • Follow the casing numbers: under guide 1 → down channel 2 → wrap/U-turn at 3 → into the take-up lever at 4 → down channel 5 → behind the needle bar guide at 6.
  • Visually confirm the thread is inside the take-up lever eyelet at step 4 (not just riding next to it).
  • Pull the thread down through channel 5 and feel for smooth, slight drag (the “dental floss” sensation).
  • Success check: The thread feels evenly resisted when pulled, not completely loose and free-falling.
  • If it still fails… Re-thread again with the presser foot up (releases tension discs so the thread can seat properly).
• Q: How tight should the spool cap be on the Brother Stellaire horizontal spool pin to avoid random snaps and tension spikes?
  A: Use a spool cap that locks the spool solidly on the Brother Stellaire horizontal pin—any wobble can create tension spikes and tangles.
  • Slide the spool fully onto the horizontal spool pin.
  • Press the spool cap firmly against the spool until the spool has no lateral play.
  • Do the “shake test” by wiggling the spool gently to confirm it does not click or slide.
  • Success check: The spool feels solid with zero side-to-side movement during the shake test.
  • If it still fails… Re-seat the cap and confirm the spool is not free-spinning too loosely; unstable delivery can mimic “mystery” thread breaks.
• Q: What is the correct drop-in bobbin direction for Brother Stellaire, and how can Brother Stellaire users confirm it quickly?
  A: Install the Brother Stellaire drop-in bobbin so the thread pulls counter-clockwise (the “P, not q” rule), and keep the bobbin area lint-free.
  • Remove the bobbin cover and check for lint buildup; clean it out before threading.
  • Insert the bobbin and pull the thread to confirm the bobbin spins counter-clockwise when the thread is drawn.
  • Re-seat the bobbin if the direction is wrong before starting a design.
  • Success check: Pulling the bobbin thread makes the bobbin rotate counter-clockwise consistently.
  • If it still fails… Stop and re-check for lint or debris in the bobbin area; even one piece can affect stitching behavior.
• Q: How can Brother Stellaire users change thread colors faster without re-threading steps 1–6 (Brother Stellaire tie-off method)?
  A: Use the Brother Stellaire “tie-off” pull-through to bring the new color through the existing path—this often saves time and reduces threading mistakes.
  • Cut the old color at the spool pin (leave the machine threaded).
  • Install the new spool and cap it securely, then tie new thread to old thread with a small, tight square knot.
  • Lift the presser foot, then gently pull the old thread from the needle area until the new color reaches the needle.
  • Cut off the knot when it appears, then use the automatic needle threader to finish through the needle eye.
  • Success check: The knot passes through with gentle, steady pulling and the new color appears at the needle without snagging.
  • If it still fails… Do not yank; re-tie a smaller knot and try again, or fully re-thread if the knot keeps hanging up.
• Q: What should Brother Stellaire users do in the first 30 seconds of stitching to catch needle hits and bird nesting early?
  A: Pause early and audit sound and thread tails on the Brother Stellaire—most preventable damage happens right at startup.
  • Listen immediately: stop if there is high-pitched clicking or grinding (often a needle hit or nesting), not the normal rhythmic thump.
  • After 5–10 stitches, pause and trim the starting thread tail flush so it does not get stitched into the design.
  • Check that fabric is staying flat and stable in the hoop before letting the machine run unattended.
  • Success check: The machine sound is steady and rhythmic, and the start tail is cleanly trimmed without being sewn over.
  • If it still fails… Stop, remove the hoop, clear any thread wad underneath, then re-thread the upper path and restart.
• Q: What are the key safety risks when using the Brother Stellaire automatic needle threader and magnetic embroidery hoops?
  A: Keep fingers clear of moving needle mechanisms on the Brother Stellaire, and treat magnetic embroidery hoops as pinch-hazard tools with strong magnets.
  • Keep fingers, long nails, and loose jewelry away from the needle area when pressing the automatic threader button or Start/Stop.
  • Handle magnetic hoops by the outer frame and keep fingertips away from mating surfaces because magnets can snap together instantly.
  • Keep magnetic hoops at least 6 inches away from pacemakers and avoid placing magnets directly on electronics like phones or the Stellaire LCD.
  • Success check: Threading and hoop changes are done without hands entering the needle travel zone and without any “snap pinch” moments during hoop assembly.
  • If it still fails… Slow the workflow down and reset the work area; rushing is the most common cause of needle-area injuries and magnet pinches.
