Threading the YunFu HM-1501 15-Needle Machine Without Tears: Fast Tie-On Changes, Full Re-Threading, and the Sensor Gap Everyone Misses

Mastering the YunFu HM-1501: The Ultimate Threading Guide for Production & Peace of Mind

If you’ve ever stared at a commercial multi-needle embroidery head full of guides, springs, and wheels thinking, "One wrong move and I’ll snap something," you are not alone. Transitioning from a single-needle home machine to a commercial beast like the YunFu HM-1501 is a leap.

But here is the truth experienced operators know: The machine is just a series of logical checkpoints. It is straightforward once you respect the geometry of the thread path—and once you stop skipping the tiny details that cause 90% of "mystery" thread breaks.

This guide rebuilds the exact threading flow shown in the video, filters it through 20 years of shop-floor experience, and adds the professional habits that keep your caps running clean.

1. The Calm-Down Primer: Why Your Machine Arrived "Messy"

When you unbox a commercial machine, the thread stand often looks like a bird's nest. The video notes that thread is left on the machine for packing testing, and shipping vibration tangles it.

This is not a defect. It is a reality of logistics.

The fix shown is simple: Reset Zero. Cut the messy threads within the cone area, pull the excess out, and prepare to re-thread using the numbered system on the thread base.

The "Don't Do It" Rule

Pro Tip: Never try to "save" tangled shipping thread by pulling knots through the tension disks.

• The Risk: You will drag lint, wax, and fuzz deep into the tension springs, ruining your calibration before you stitch your first design.
• The Fix: Cut it. Waste 5 yards of thread to save 5 hours of frustration.

Warning: (Physical Safety) Keep fingers and loose thread away from the needle bar area when you are pulling thread down near the presser foot. Needles are sharp, and even when the machine is off, a slip can drive your hand into the needle point.

2. The "Hidden" Prep: The 30-Second Pre-Flight Check

Amateurs rush to thread. Professionals audit their tools first. The video starts with three essentials: high-quality embroidery thread, a long wire threading tool, and a trimmer (scissors).

The Hidden Consumables List

Before you start, ensure you have these within arm's reach. Searching for them mid-process breaks your flow:

• Long Wire Threader: Essential for the anti-wind tubes.
• Precision Trimmers: Dull scissors cause frayed ends that won't go through the needle eye.
• Tweezers: For catching thread at the needle bar.
• Stabilizer (Backing): Have your cutaway or tearaway ready so you don't leave the machine threaded and idle.

If you are running a 15 needle embroidery machine for production, this tiny "pre-flight check" is the difference between a smooth operator and a stressed one.

Checklist 1: The Prep Audit

• Identify Needle Position: Confirm which number (1-15) you are threading on the thread base.
• Cone Check: Place the new cone on the stand. Sensory Check: Spin it by hand—does it wobble? If yes, reseat it.
• Clear the Path: Cut and remove any old shipping thread. Do not pull tangles through the system.
• Tool Readiness: Locate your wire guide and trimmers.
• Access Check: Ensure you can reach the needle bar comfortably without leaning dangerously over the machine.


3. Method 1: The "Tie-On" Trick (The Speed Method)

Scenario: You are swapping colors on a needle that is already threaded correctly. Goal: Change color without re-routing the entire path.

This is the standard for high-volume shops.

The Steps

1. Cut & Tie: Cut the old thread near the cone. Tie the new thread to the old end using a secure, small knot (Square Knot or Weaver's Knot).
2. Pull Through: Go to the needle area. Grab the old thread end.
3. The Sensory Pull: Pull the thread downward gently.
   • Sensory Anchor: You should feel a slight resistance as the knot passes the tension discs (like flossing teeth), but it should not snag hard.
4. The Cut: Pull until the knot is visible at the needle. Cut the knot off.
5. Final Threading: Thread the needle eye manually.


Why this matters for scaling

If you are operating an embroidery machine 15 needle setup, you might change colors 20 times a day. Saving 2 minutes per change equals 40 minutes of extra production time.

Watch out: If the knot is bulky, it will jam at the needle eye or sensors. Never force a knot through the needle eye itself—you will bend the needle.

4. Method 2: The Full Standard Threading (The "Scratch" Method)

Scenario: The thread broke, you ran out, or you don't trust the current path. Goal: A theoretically perfect thread path from scratch.

Phase A: The Upper Assembly

1. Rack & Guide: Go from the cone, up through the overhead rack hole, and down into the tension adjustment knob area.
2. The Tension Discs: Floss the thread between the tension discs.
   • Sensory Anchor: Pull the thread. It should feel "firm" but smooth, not loose.
3. The Sensor Wheel (Critical): The video highlights a gap inside the break-sensor wheel.
   • Visual Anchor: The thread must pass through the gap, causing the wheel to spin when pulled. If it rides on the outside, the machine thinks the thread is broken.

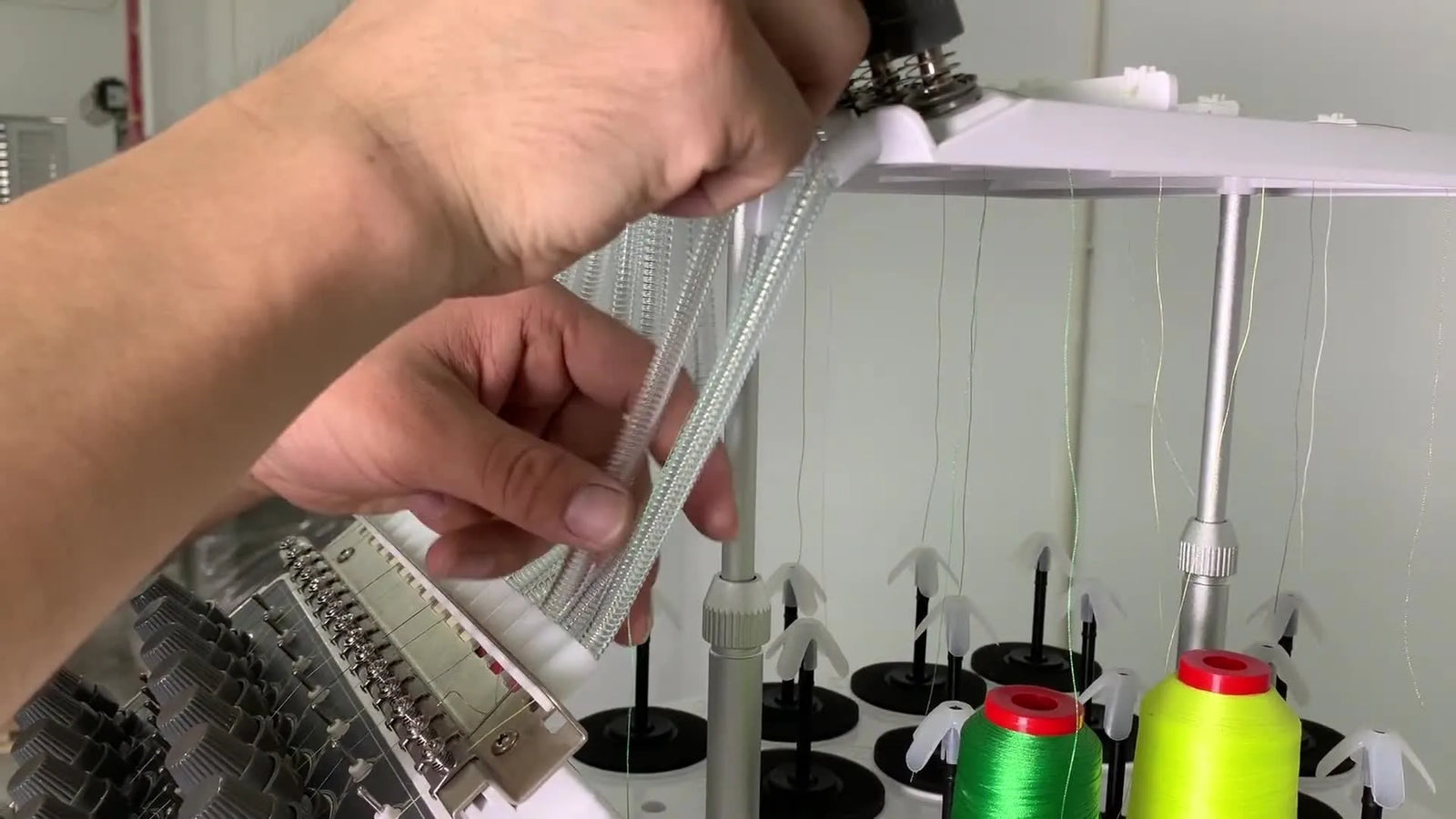

Phase B: The Anti-Wind Tube

This is where beginners get stuck. The HM-1501 uses tubes to prevent thread whipping during high-speed operation (800-1000 SPM).

1. Detach: Unclip the top of the white anti-wind tube.
2. Insert & Hook: Push the long wire threading tool up through the tube. Hook the thread.
3. Retrieve: Pull the wire down, bringing the thread with it.
4. Reconnect: Snap the tube back into place.






Phase C: The Needle Bar Assembly

1. Take-Up Lever: Route thread down and loop through the eye of the take-up lever (the metal arm that moves up and down).
2. Guides: Follow the vertical guides down the needle bar.
3. The Eye: Thread the needle from front to back.








Checklist 2: Setup Verification

• Rack Correct: Thread goes straight up from cone to rack (no wrapping around the stand).
• Sensor Seated: Thread is inside the gap of the sensor wheel, not resting on top.
• Tube Clear: Thread exits the anti-wind tube freely (no slack trapped at the entrance).
• Lever Looped: Thread passes through the take-up lever eye.
• Front-to-Back: Needle is threaded front to back (not side to side).

5. The Decision Matrix: Which Method Should I Use?

Don't guess. Use this logic tree to decide in under 10 seconds.

START: Is the current thread path intact (no breaks, tangles, or missing sensors)?

• NO → STOP. Use Method 2 (Standard Threading) immediately.
• YES → Are you simply changing the color on this specific needle?
  • YES → Use Method 1 (Tie-On).
  • NO → (e.g., Changing thread type/weight) → Use Method 2.

6. Troubleshooting: The "Why Is It Still Breaking?" Guide

The video shows the ideal path. Here is the reality of what goes wrong, organized by symptom.

7. Beyond Threading: Upgrading Your Workflow

Threading is the mechanics; Hooping is where you make money.

New operators often blame the thread path when the real issue is how the garment is held. If you are struggling with "hoop burn" (the ring marks left on shirts) or uneven stitching on caps, your tools might be holding you back.

The "Hoop Burn" Solution

Traditional plastic hoops require hand strength and can pinch fabric.

• The Upgrade: magnetic embroidery hoop.
• Why: They use magnetic force to hold fabric without friction rings. This eliminates hoop burn and reduces wrist strain significantly.
• Context: Experienced shops transition to magnetic items like the MaggieFrame to speed up production on thick items like jackets or delicate items like performance wear.

Warning: (Magnet Safety) Magnetic hoops contain powerful industrial magnets. Pinch Hazard: Do not let the two frames snap together on your fingers. Medical: Keep away from pacemakers and sensitive electronics.

The Cap Consistency Fix

If you are doing caps on a driver attachment, stability is king. A dedicated cap hoop for embroidery machine setup combined with a proper hooping station ensures the cap is centered every time. If your thread breaks only on caps, it’s usually because the cap acts like a trampoline—tight hooping solves this.

When to Scale Up?

If you find yourself spending 50% of your day re-threading colors, you have outgrown your machine's capacity. People look for multi needle embroidery machines for sale or even dual-head machines not just for speed, but to have multiple jobs threaded and ready to go (e.g., dedicated needles for black/white text).

Checklist 3: Operation (The First 60 Seconds)

• Tail Check: Pull 3 inches of thread through the needle. Hold it gently for the first stitch.
• Bobbin Check: Open the bobbin case. Is the bobbin full? Is the pigtail tail proper?
• Clear Deck: Ensure no tools (scissors, wire guides) are left on the pantograph table.
• Speed Ramp: Start the machine at a lower speed (400-600 SPM) to ensure flow, then ramp up to production speed (800+ SPM).
• Listen: Listen for the rhythmic thump-thump of the needle. A sharp clack or grinding noise means stop immediately.

Mastering the thread path is the first step to commercial embroidery freedom. Respect the path, verify your tools, and when in doubt—cut it and re-thread.

FAQ

• Q: Why does the YunFu HM-1501 arrive with tangled thread on the thread stand, and should YunFu HM-1501 shipping thread be pulled through the tension discs?
  A: This is common after factory testing and shipping vibration—do not pull tangled shipping thread through the tension discs; cut it and re-thread cleanly.
  • Cut the messy thread near the cone area and remove the excess.
  • Reset the path using the numbered position system on the thread base.
  • Re-thread using the full standard path if anything feels snaggy.
  • Success check: the thread pulls smoothly with firm, even resistance (no gritty drag) through the tension area.
  • If it still fails: suspect lint/contamination in the tension system and re-check the entire path from cone to needle.
• Q: What hidden tools and consumables should be within reach before threading a YunFu HM-1501 15-needle embroidery machine?
  A: Set up a 30-second pre-flight kit first: long wire threader, sharp trimmers, tweezers, and stabilizer—this prevents mid-threading mistakes and breaks.
  • Place a long wire threading tool ready for the anti-wind tubes.
  • Prepare precision trimmers (dull scissors fray thread ends).
  • Keep tweezers for catching thread near the needle bar.
  • Stage stabilizer (cutaway/tearaway) so the machine is not left threaded and idle.
  • Success check: the thread end stays clean (not fuzzy) and feeds through guides without repeated retries.
  • If it still fails: replace the trimmers or re-cut the thread end cleanly before attempting the needle eye again.
• Q: How do I choose between the YunFu HM-1501 tie-on threading method and the YunFu HM-1501 full standard threading method after a color change or thread break?
  A: Use tie-on only when the existing thread path is intact; use full standard threading whenever there is any break, tangle, or doubt.
  • Confirm the current path is unbroken and correctly seated in all guides and sensors.
  • Use the tie-on method for a simple color swap on a correctly threaded needle, then cut the knot off before the needle eye.
  • Use the full standard threading method after thread breaks, run-outs, or when changing thread type/weight.
  • Success check: during the “sensory pull,” the knot passes the tension discs with slight resistance but does not hard-snag.
  • If it still fails: stop forcing the pull and re-thread from scratch to avoid dragging debris into the tension discs.
• Q: How do I prevent YunFu HM-1501 false thread break warnings caused by the YunFu HM-1501 break-sensor wheel gap?
  A: Seat the thread inside the sensor wheel gap so the wheel spins—if the thread rides outside the gap, the machine will report a false break.
  • Locate the break-sensor wheel and identify the internal gap.
  • Re-route the thread through the gap (not over the outside edge).
  • Pull the thread by hand to confirm the wheel rotates freely.
  • Success check: the sensor wheel visibly spins when the thread is pulled.
  • If it still fails: re-check upstream routing (cone → rack → tension discs) because misrouting can pull the thread out of the gap during sewing.
• Q: How do I fix YunFu HM-1501 birdnesting (bobbin nesting) when threading looks correct but stitches collapse underneath?
  A: Birdnesting on the YunFu HM-1501 usually means the upper path missed a critical checkpoint—most often the tension discs or the take-up lever—so retrace the path.
  • Re-floss the thread between the upper tension discs (do not skim the edges).
  • Re-check that the thread is looped through the take-up lever eye.
  • Follow every vertical needle-bar guide in order before threading the needle front-to-back.
  • Success check: the thread feels “firm but smooth” when pulled by hand, not loose and floppy.
  • If it still fails: stop and re-thread from cone to needle using the full standard method to eliminate a skipped guide.
• Q: What causes YunFu HM-1501 thread shredding, and how do I confirm a YunFu HM-1501 needle burr quickly?
  A: Thread shredding is commonly a damaged needle—check for a burr and replace the needle immediately if it catches.
  • Stop the machine and remove the suspect needle.
  • Run a fingernail lightly down the needle tip area to feel for a catch.
  • Install a new needle and re-thread front-to-back.
  • Success check: the new needle produces clean stitches without fuzzy thread buildup near the eye.
  • If it still fails: re-check the thread path for snag points (guides, tube entry/exit) that can mimic a needle burr.
• Q: What are the key YunFu HM-1501 start-up checks for the first 60 seconds to prevent immediate thread breaks, tool strikes, and noisy stops?
  A: Do a fast “first 60 seconds” routine: secure the thread tail, verify the bobbin, clear tools, and ramp speed up gradually while listening.
  • Pull about 3 inches of thread tail through the needle and hold it gently for the first stitches.
  • Open the bobbin area and confirm the bobbin is adequately filled and seated correctly.
  • Remove all tools (scissors, wire threader) from the pantograph/table before starting.
  • Start at a lower speed (about 400–600 SPM) and only then ramp up to production speed (often 800+ SPM).
  • Success check: the machine sound stays rhythmic (steady “thump-thump”), not sharp clacking or grinding.
  • If it still fails: stop immediately and re-check threading through the tension discs, sensor wheel gap, and take-up lever before restarting.
• Q: What safety rules should new operators follow when threading near the YunFu HM-1501 needle bar and when using magnetic embroidery hoops to reduce hoop burn?
  A: Keep hands clear of needle points when pulling thread near the presser foot, and treat magnetic hoops as pinch-hazard tools that must be handled deliberately.
  • Keep fingers and loose thread away from the needle bar area when pulling thread down near the presser foot (even when power is off).
  • Use controlled movements—do not lean awkwardly over the head; reposition for safe access.
  • Handle magnetic hoops by lowering frames together slowly; do not let magnets snap shut on fingers.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: threading is completed without hands passing under or between needles, and magnetic frames close without sudden snapping.
  • If it still fails: pause the task, reposition the work height/stance, and only continue when hand placement is clearly outside pinch and puncture zones.
