Topaz 40 On-Screen Editing That Actually Works: Combine Design #19 + a Centered Monogram (and Skip the “Fill” Without Ruining Your Stitchout)

Mastering the Monogram: Precise Positioning & Custom Borders on the Husqvarna Viking Topaz 40

If you have ever watched your Husqvarna Viking Topaz 40 load a monogram letter almost in the middle—then realized with a sinking feeling that it is visibly off-center—you are not alone. That momentary drop in your stomach is a shared experience among embroiderers.

Here is the truth: Nothing is wrong with your machine.

The machine does this by design to ensure new elements are visible on the screen. However, knowing why it happens doesn't fix your project. To get professional results, you need to master the on-screen rhythm: Resize → Verify → Nudge → Verify.

This guide rebuilds the entire workflow from the demonstration video. We will combine built-in Design #19 with a standard monogram font, resize it to fit the 120x120 optional hoop, and use coordinate geometry to correct the default 5.0 mm offset. More importantly, we will address the "gap" in the manual: how to create a custom "frame" look by strategically skipping stitch blocks—turning a dense floral motif into an elegant, airy border.

Pick Built-In Design #19 on the Husqvarna Viking Topaz 40—Start With a Motif That Can Become a Frame

On the Topaz 40, the fastest route to a custom border isn't digitizing from scratch; it is "asset repurposing." In the video, we start by navigating to Start Menu → Built-in Designs and selecting Design #19.

Why Design #19? From a digitizing perspective, Design #19 is excellent because it has a distinct hierarchy: a strong outer satin-stitch edge and a separate inner fill. This structure allows us to "hack" the design later by stitching only the outline, effectively creating a frame out of a solid shape.

Commercial Insight: If you are building consistent products for an Etsy shop or local team, look for designs like this. They offer two products in one file: a full-stitch version for heavy fabrics (totes, denim) and an outline-only version for delicate items (napkins, linen).

Make the 120x120 Optional Hoop Your Hard Boundary—Resize Before You Touch Lettering

In the demonstration, the machine is set up with the 120x120 optional hoop. Immediately, you will see the design sitting outside the grey dotted hoop boundary on the screen.

The Golden Rule: The grey dotted line is a physical cliff edge. If your design touches or crosses it, the machine will refuse to sew (or worse, the needle bar will strike the frame).

Action Steps:

1. Select the Hoop: Tell the machine you are using the 120x120 hoop.
2. Visual Check: Note the design clipping the boundary.
3. Open Edit Menu: Go to the Alt menu.
4. Select Scale: Tap the Scale icon.
5. Engage Lock: Ensure the padlock icon is fast (closed). This maintains the aspect ratio so your square doesn't become a rectangle.
6. Reduce: Tap the minus button systematically until the entire design sits comfortably inside the grey boundary.

Why Order Matters: Resize the frame before adding the letter. If you add the letter first and then scale the whole group, you might shrink the letter to an unreadable size.

If you are currently shopping for husqvarna viking topaz 40 embroidery hoops, treat hoop size as a strategic decision. A 120x120 hoop is ideal for left-chest logos and cocktail napkins because the smaller surface area maintains fabric tension better than larger hoops, reducing the risk of puckering.

Prep Checklist: The "Pre-Flight" Safety Check

Perform these checks before adding the letter.

• Hoop Selection: Is the machine screen set to 120x120?
• Visual Clearance: Is there visible white space between your design and the grey dotted boundary?
• Aspect Ratio: Is the padlock icon closed during scaling?
• Consumables: Do you have a Size 75/11 Embroidery Needle installed? (Sharp, new needles prevent pull/pucker on outlines).
• Goal Definition: Are you stitching the full fill or just the outline? (Decide now, as this dictates stabilizer choice).

Warning: Mechanical Safety. Keep fingers, hair, and loose clothing (like drawstrings) well away from the needle bar and take-up lever during operation. A digitized design moves the hoop rapidly and unpredictably; reaching under the presser foot while the machine is running can result in severe needle-stick injuries.

Add Clarendon Lettering Size 30 on the Topaz 40—Then Expect the 5.0 mm “Why Is It Off?” Moment

Next, we add the personalization.

1. Open the Lettering menu.
2. Select the Clarendon font (a serif font with good readability).
3. Set size to 30 mm.
4. Type a capital “S”.
5. Confirm with the green checkmark.

The "Glitch" That Isn't a Glitch: You will immediately notice the "S" is not centered. If you look at the position coordinates on the screen, the X-axis likely reads 5.0 mm (or similar).

Software engineers program this offset primarily so the new object doesn't paste directly on top of the old one, which would make it hard to select. It is intended to help visibility, even though it hurts alignment. Do not panic; we will fix it with math.

The Calm, Repeatable Fix: Box Zoom + Move Tool Until X=0.0 and Y=0.0

Eyeballing alignment on a small screen is a recipe for crooked embroidery. To get professional centering, we use two tools in tandem: Box Zoom for visibility and Coordinates for truth.

Step-by-Step Precision:

1. Engage Box Zoom: Select the Box Zoom tool and draw a tight square around the center of the design. The screen will jump to roughly 200%+ magnification.
2. Select the Move Tool: Go back to the Alt menu and select Move.
3. Watch the Coordinates: Ignore the visual "center" for a moment. Look at the X and Y numbers.
4. Tap to Zero: Tap the directional arrows until X=0.0 and Y=0.0.

Success Metric: When the coordinates read 0.0/0.0, the center of your letter is mathematically aligned with the center of the hoop.

The Physics of Alignment: Why Screen Center ≠ Fabric Center

On the screen, your design is perfect. However, digital perfection means nothing if the fabric is hooped poorly.

Sensory Hooping Check:

• Touch: Tap the fabric in the hoop. It should sound like a dull drum—taut, but not stretched like a trampoline.
• Texture: If you pull the fabric so tight that the weave distorts (curves), the embroidery will pucker when you un-hoop it.

This is where the hardware limits the software. Standard thumb-screw hoops are notorious for "hoop burn" (crushed fabric fibers) and uneven tension, which causes the fabric to drift slightly during stitching. This physical drift can make a mathematically centered design look crooked.

If you are fighting slippery fabrics or experience hand fatigue from tightening screws, many professionals switch to a hooping for embroidery machine workflow involving magnetic frames. These use clamping force rather than friction, keeping the fabric grain perfectly straight without the "tug of war."

The “Skip the Fill” Look: Plan to Omit Color Stops So the Motif Becomes an Outline Border

This is the "secret sauce" of the video. The user converts a heavy, solid patch into a delicate frame by simply not stitching the fill.

The Concept: You aren't using a "Delete" tool (which often removes the whole design on basic machines). You are acting as the conductor of an orchestra, telling the "woodwinds" (the fill stitches) to stay silent while the "strings" (the outline) play.

How to Execute This:

• Analyze: Identify the color blocks. Usually, one block is the underlay/fill, and another is the satin outline.
• Sequence: The presenter notes the turquoise color block is the outline. The blue block is the fill.
• Action: When the machine stops to change thread for the blue fill section, you will simply skip that color stop and move to the next one (the monogram).

Commenter Insight: A savvy user in the comments noted a workaround: "I just hit the 'Forward to Next Color' button when the fill color comes up." This is exactly right. You are bypassing the data instructions you don't need.

Read the Color Block List Like a Pro—Confirm Outline vs. Fill Before You Commit Thread

Before you press the Start/Stop button, you must audit the flight plan.

Step-by-Step Audit:

1. Open the Color Block List (or Stitch Editor).
2. Locate Design #19. It will likely be split into 2 or 3 color stops.
3. Locate your Monogram ("S"). It should be Design #2 (or the final color stop) because you added it last.
4. Confirm the Pathfinder: Verify that the outline stitches before the monogram, or vice-versa. As long as they don't overlap, the order is flexible, but generally, we stitch the border first to stabilize the fabric.


Setup Checklist: The "Commit" Check

Perform this right before lowering the presser foot.

• Sequence Check: Have you identified exactly which color number corresponds to the Fill (the one to skip)?
• Layering: Is the Monogram listed as the last item in the stitch order?
• Thread Check: Is the correct color threaded for the Outline?
• Bobbin Check: Open the bobbin cover. Is the bobbin at least 50% full? (Running out of bobbin thread on a satin border is a nightmare to fix).
• Constraint: Is the embroidery arm clear of walls or coffee mugs?


Stitching Strategy Without Regret: Skip Color Blocks Cleanly (and Avoid the “Half-Frame” Disaster)

Here is the operational sequence to get the "Outline Only" look without errors:

1. Start the Machine: Allow it to stitch Color 1 (The Turquoise Outline).
2. Listen: The machine creates the frame. Listen for a rhythmic, smooth stitching sound. A loud "clack-clack" usually means the needle is dull or hitting a knot in the stabilizer.
3. The Pause: The machine stops and asks for Color 2 (The Blue Fill).
4. The Skip:
   • Do NOT re-thread.
   • Press the Forward to Next Color button (usually an arrow icon with a color block).
   • The hoop will move to the start position of the Monogram.
5. The Finish: The screen now shows the Monogram. Thread your contrast color and press Start.

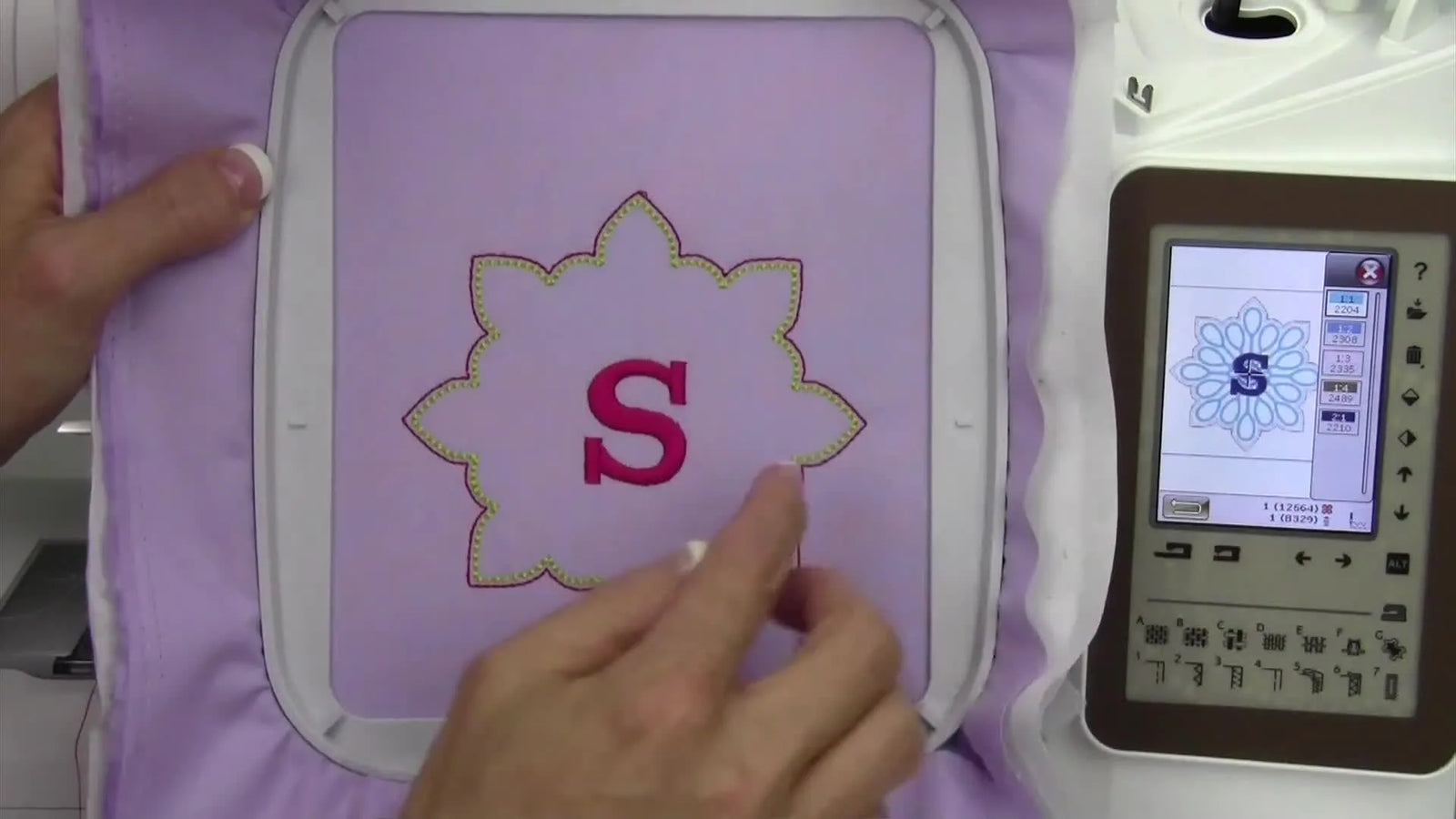

Expected Outcome: A crisp floral outline surrounding a centered letter, with zero density in the background.

Material Science Note: Skipping the fill significantly reduces the "stitch count." Lower stitch count means less distortion on the fabric. This method is safer for lighter fabrics like linen or cotton shirts.

If you are running a hooping station for embroidery machine for a small business, this "skip strategy" increases your profit margin. You get the visual impact of a large design but save 10 minutes of machine run-time and 20 yards of thread per unit.

Save “border mono” to My Files—So You Don’t Have to Rebuild It Next Time

Do not rely on your memory to recreate this next week. Save the engineered file.

1. Tap the Save icon (folder symbol).
2. Select My Files (machine memory) or USB.
3. Name it clearly: “border mono”.
4. Confirm.

Next time, you open this file, delete the "S", add a "T", and center it. The border logic remains intact.

The "Hidden" Prep That Prevents Puckers and Hoop Marks on a 120x120 Hoop

The video creates a clean result on purple woven cotton. Achieving this flatness requires the right "sandwich" (Fabric + Stabilizer).

Decision Tree: Stabilizer & Hoop Strategy

Use this logic flow to determine your setup:

1. What is your base fabric?

• Standard Woven Cotton (Quilting weight):
  • Solution: Tearaway Stabilizer (Medium Weight). The outline isn't too heavy, so tearaway adds crispness without bulk.
• Stretchy Knit (T-Shirt/Polo):
  • Solution: Cutaway Stabilizer (No exceptions). Knits need permanent support. If you use tearaway, the outline will distort into an oval.
• High-Pile Fabric (Towel/Velvet):
  • Solution: Water Soluble Topper (Solvy) + Magnetic Hoop. The topper stops stitches sinking; the magnet prevents "hoop burn" marks on the pile.

2. Are you producing ONE or FIFTY?

• Just One: The standard screw hoop is fine. Take your time.
• Batch of 50: Screw hoops will hurt your wrists and slow you down.
  • Upgrade: Switch to a magnetic hoop for husqvarna viking. These allow you to "slap and stick" the fabric in seconds without adjusting screws.

Warning: Magnetic Safety. Powerful magnetic hoops (like the SEWTECH MaggieFrame) generate strong pinch forces. Do not place fingers between the brackets when snapping them together. Users with pacemakers or ICDs should maintain a safe distance (usually 6+ inches) from the magnets—consult your device manual.

Comment-Driven Pro Tips: What Viewers Got Stuck On

Q: "How do I actually delete the fill?"

• A: On the Topaz 40, you generally don't delete the data; you skip the execution. Think of it as "Program Management" rather than "File Editing."

Q: "My letter is still crooked even though X=0.0."

• A: This is almost always a hooping error. The fabric is twisted in the frame.
  • Fix: Draw a crosshair on your fabric with a water-soluble pen. Align the pen lines with the grid marks on your hoop.

The Upgrade Path: Faster Hooping, Cleaner Results, and Real Production Efficiency

If you successfully stitched this project, you have mastered the basics of editing. However, if you found yourself frustrated by the physical act of hooping, or if your fabric has ring marks (hoop burn) that won't iron out, the limitation is your tools, not your skill.

Level 1: Skill Optimization Use the Box Zoom and Coordinate method described here. Use the correct needle (75/11) and stabilizer.

Level 2: Tool Upgrade (Quality & Comfort) If you hate the "tug and screw" method, standard hoops are your bottleneck. A magnetic embroidery hoop solves two problems:

1. No Burn: Since it clamps flat, it doesn't crush the fabric fibers against a plastic ring.
2. Speed: You can hoop a garment in 5 seconds versus 30 seconds.

Search term for research: "SEWTECH Magnetic Hoop for Topaz 40".

Level 3: Production Upgrade (Scale) If you are receiving orders for 20+ monogrammed polos, a single-needle machine will slow you down because of the constant thread changes (stopping to switch from Turquoise to Blue).

• The Shift: Commercial shops use Multi-Needle machines (like SEWTECH models) that hold 10-15 colors at once. They switch colors automatically, allowing you to run the "Outline + Monogram" workflow non-stop.

Operation Checklist: Final Consistency Verification

• File Loaded: Is "border mono" active?
• Global Center: Is the move coordinate at 0.0/0.0?
• Hidden Consumable: Do you have temporary spray adhesive (like 505 Spray) or a hooping station to keep the stabilizer attached to the fabric while loading?
• Test Run: Always run a scrap test if you change the fabric type.

By mastering the coordinate system and understanding how to manipulate color stops, you turn a standard domestic machine into a precision customization tool. Happy stitching!

FAQ

• Q: Why does the Husqvarna Viking Topaz 40 place new monogram lettering off-center with an X value around 5.0 mm?
  A: This is normal behavior on the Husqvarna Viking Topaz 40—new elements are intentionally offset for visibility, and the fix is to reposition using coordinates.
  • Open Box Zoom and zoom tightly around the design center for clear visibility.
  • Go to Alt → Move and adjust with arrows while watching the X/Y readout.
  • Set the lettering position to X=0.0 and Y=0.0.
  • Success check: the screen shows 0.0/0.0 and the letter looks centered within the border.
  • If it still fails: re-check hooping alignment because fabric can drift even when screen coordinates are perfect.
• Q: How do I center monogram lettering precisely on the Husqvarna Viking Topaz 40 without eyeballing the screen?
  A: Use the Husqvarna Viking Topaz 40 Box Zoom + Coordinates method—center by numbers, not by eye.
  • Zoom in using Box Zoom so the center area is magnified.
  • Select Alt → Move and use the arrow keys in small steps.
  • Stop only when the coordinate readout reaches X=0.0 and Y=0.0.
  • Success check: coordinates read 0.0/0.0 and the design is symmetrically placed in the hoop boundary.
  • If it still fails: mark a crosshair on the fabric with a water-soluble pen and align it to the hoop grid marks before stitching.
• Q: How do I resize Husqvarna Viking Topaz 40 Built-In Design #19 to fit the 120x120 optional hoop without distorting the shape?
  A: Resize the border first and keep the padlock closed so the Husqvarna Viking Topaz 40 scales proportionally inside the 120x120 boundary.
  • Confirm the machine hoop setting is 120x120 before editing.
  • Go to Alt → Scale and verify the padlock icon is closed.
  • Tap minus until the entire design sits comfortably inside the grey dotted hoop boundary.
  • Success check: there is visible white space between the design and the grey dotted boundary all the way around.
  • If it still fails: reduce scale further—touching or crossing the grey dotted line risks a sew-out refusal or a frame strike.
• Q: How do I create an outline-only border on the Husqvarna Viking Topaz 40 using Built-In Design #19 by skipping the fill color block?
  A: Do not delete stitches on the Husqvarna Viking Topaz 40—skip the fill by advancing to the next color stop when the fill block comes up.
  • Stitch the first color block that forms the outline (the video example identifies turquoise as outline).
  • When the machine stops for the fill block (the example identifies blue as fill), do not re-thread.
  • Press Forward to Next Color to bypass the fill and go straight to the monogram.
  • Success check: the stitched result shows a crisp outline frame with no dense fill behind the letter.
  • If it still fails: open the Color Block List/Stitch Editor first and confirm which color number is the fill before you start.
• Q: What pre-flight checks prevent hoop strikes and stitching failures on a Husqvarna Viking Topaz 40 using the 120x120 optional hoop?
  A: Treat the Husqvarna Viking Topaz 40 grey dotted line as a hard safety boundary and verify needle/sequence before pressing Start.
  • Confirm the screen hoop selection is 120x120 and the design is fully inside the grey dotted boundary.
  • Keep the padlock closed during scaling to avoid accidental distortion.
  • Install a fresh 75/11 embroidery needle before stitching outlines.
  • Success check: the design preview shows clear boundary clearance and the machine runs without sudden clacking or hesitation.
  • If it still fails: stop and re-check the design size/placement—do not “try anyway” if the design is near the hoop edge.
• Q: How can I tell if fabric is hooped correctly on the Husqvarna Viking Topaz 40 when the monogram is centered but still stitches crooked?
  A: Correct coordinates cannot compensate for twisted or over-stretched hooping—re-hoop using a tactile tension check and alignment marks.
  • Tap the hooped fabric; aim for a dull drum feel—taut but not stretched like a trampoline.
  • Avoid pulling so tight that the weave distorts or curves.
  • Draw a crosshair with a water-soluble pen and align it with the hoop grid marks before loading.
  • Success check: the fabric grain stays straight during stitching and the finished monogram looks square to the border.
  • If it still fails: consider hardware limitations—uneven screw-hoop tension can allow drift, especially on slippery fabrics.
• Q: What are the key safety risks when operating a Husqvarna Viking Topaz 40 embroidery machine, and how do I reduce needle-stick injury risk?
  A: Keep hands and loose items away from the moving needle bar and take-up lever—Topaz 40 hoop motion can be fast and unpredictable.
  • Keep fingers, hair, and drawstrings clear before pressing Start/Stop.
  • Do not reach under the presser foot while the machine is running.
  • Pause the machine fully before making any adjustments near the needle area.
  • Success check: you can complete a color block change without any hand entering the needle/lever zone during motion.
  • If it still fails: slow down the workflow—stop, raise awareness of moving parts, and resume only when the area is clear.
• Q: If screw hooping causes hoop burn and slow production on the Husqvarna Viking Topaz 40, when should I switch to a magnetic embroidery hoop or a multi-needle machine?
  A: Use a staged approach—optimize technique first, upgrade hooping hardware for comfort/consistency, and consider multi-needle only when thread changes become the bottleneck.
  • Start with Level 1: use Box Zoom + coordinates to 0.0/0.0, correct needle (75/11), and the right stabilizer for the fabric type.
  • Move to Level 2: switch to a magnetic embroidery hoop when hoop burn, fabric drift, or wrist fatigue from screw tightening is recurring.
  • Move to Level 3: consider a multi-needle machine when frequent color changes and higher order volume slow output.
  • Success check: hooping time drops and repeat runs stay aligned without visible ring marks or shifting.
  • If it still fails: verify safety—magnetic frames can pinch fingers, and users with pacemakers/ICDs should follow device guidance and keep a safe distance from strong magnets.
