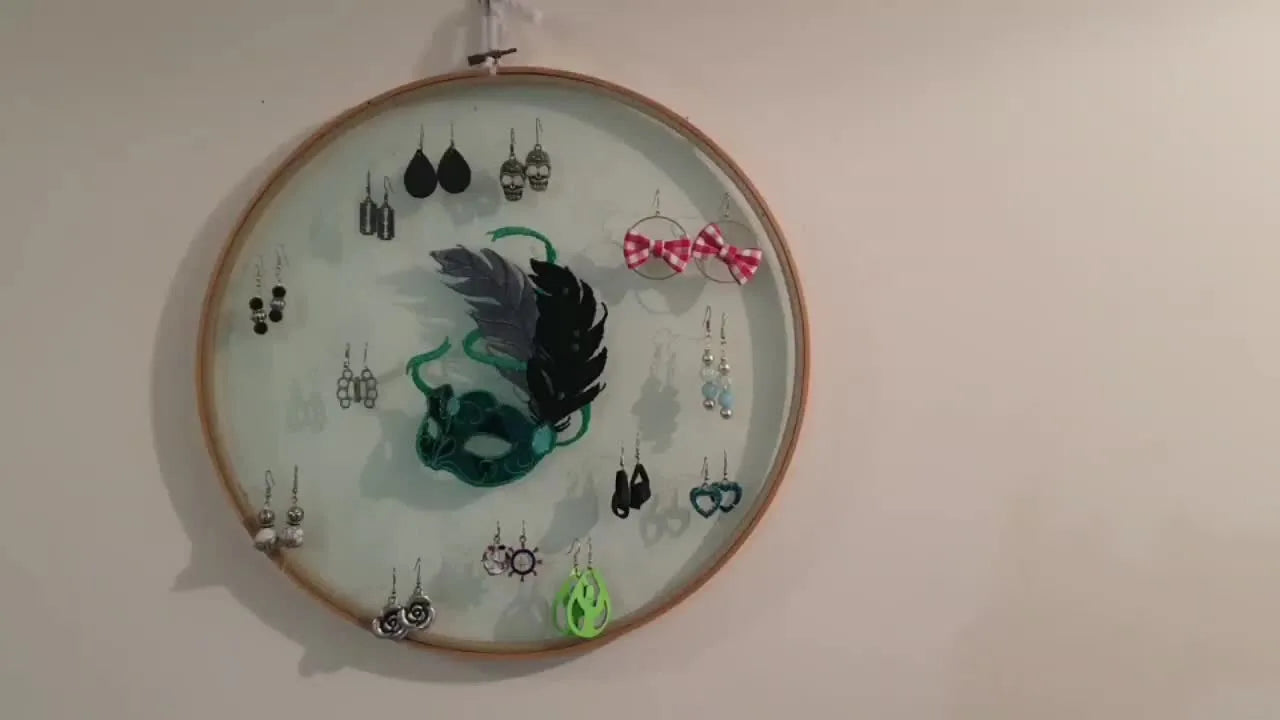

Tulle Without Tears: A Drum-Tight DIY Machine-Embroidered Earring Holder (Brother 5x7 Hoop Sandwich Method)

Don’t Panic—Tulle Can Stitch Beautifully (Even If It Feels Like It Has a Mind of Its Own)

If you have ever tried stitching on tulle, organza, or fine mesh, you know the specific sinking feeling of watching it ripple, snag, or vanish into the needle plate. It is a deceptively difficult material because it lacks the structural integrity of cotton or denim. However, the project shown here—a DIY machine-embroidered earring holder—is an excellent entry point into mastering sheer fabrics.

The concept is simple: a dense 5x7 design stitched onto pale green tulle using a water-soluble stabilizer "sandwich," then framed in a wooden hoop. But as your Chief Embroidery Education Officer, I need to adjust your expectations: Tulle is an unstable variable.

Success here isn't about hope; it's about physics. You need to control three forces: the pull of the thread, the slippery nature of the mesh, and the shrinking action of the drying stabilizer.

This guide will move you from "crossing your fingers" to a repeatable engineering process. We will cover how to stabilize without bulletproof stiffness, how to manage the "hoop burn" risk, and why the drying phase is actually the most critical step for a professional finish.

Gather the Exact Supplies (and One “Hidden” Prep That Saves the Whole Project)

Embroidery is 80% preparation and 20% execution. If you compromise on the setup, no amount of machine setting adjustments will save the stitch-out.

Required Physical Supplies:

• Substrate: Pale green tulle or fine mesh (Non-stretch netting is preferred for beginners).
• Machine: Brother Innov-is Quattro 2 (6700D) or equivalent single-needle/multi-needle machine.
• Hoops:
  • Standard plastic 5x7 hoop (machine side).
  • Wooden hand embroidery hoop (display side).
• Stabilizer: Heavy-duty water-soluble stabilizer (WSS). You need a plastic-like film (like Solvy or Badgemaster), not the fibrous wash-away paper. You will need enough for two layers.
• Thread:
  • Top Thread: 40wt Rayon or Polyester (Green).
  • Bobbin Thread: Matching Green 60wt or 90wt. Do not use standard white bobbin thread for reversible sheer projects.
• Needle: Size 75/11 Embroidery Needle (Sharp or light ballpoint).
• Hidden Consumables:
  • Fresh Needle: Tulle deflects easily; a dull needle will cause skipped stitches immediately.
  • Micro-tip Scissors: For trimming delicate jump stitches without snipping the mesh.

The "Hidden" Intellectual Prep: Design Integrity Analysis Before you even cut your stabilizer, you must validate your digital file. Tulle cannot support low-density running stitches effectively once the stabilizer is washed away.

• Reject: Sketchy, open line-art designs. The lines will droop and distort.
• Select: Designs with connected satin columns or light fill patterns that are self-supporting. The design acts as its own skeleton.
• Size Check: Ensure the design is strictly within the 5x7 field but leaves at least 1.5 inches of negative space around the edges for the earring hanging zone.

Mastering the "Hooping Mental Model" When you approach hooping for embroidery machine tasks involving mesh, visualize the goal: you are not trying to stretch the fabric; you are trying to suspend it. If you pull tulle tight like canvas, the holes elongate. When you unhoop, they snap back, and your perfect circle becomes an oval.

Prep Checklist:
* [ ] Design Audit: Is the pattern dense enough to support itself without stabilizer?
* [ ] Needle Check: Is a fresh 75/11 needle installed? (Dull needles can push mesh into the throat plate).
* [ ] Bobbin Strategy: Have you wound a bobbin that matches the top thread exactly?
* [ ] Hardware Inspection: Check your plastic hoop's screw. If it feels stripped or gritty, you will struggle to secure the slippery sandwich.
* [ ] Workspace: Clear a flat drying surface or prepare a "blocking station."

Cut the Wash-Away Stabilizer “Oversized” on Purpose (This Is Not Waste—It’s Control)

In professional production, we often talk about minimizing waste. However, with slippage-prone materials like tulle, excess material is your handle.

Cut two sheets of heavy-duty water-soluble stabilizer. Ensure they are at least 2 inches larger than your hoop on all sides. This "oversized" cut implies you can grip the stabilizer during the hooping process without your fingers touching the delicate mesh in the center.

The Physics of the "Sandwich" You are building a composite material. Tulle by itself has almost zero shear strength (it distorts diagonally).

• Layer 1 (Bottom): Stabilizer.
• Layer 2 (Middle): Tulle.
• Layer 3 (Top): Stabilizer.

Why the top layer? The presser foot of an embroidery machine can easily catch a toe in the honeycomb holes of the tulle, ripping it instantly. The top layer of film acts as a "gliding surface" for the foot, ensuring smooth travel.

Build the Tulle Sandwich in the Brother 5x7 Hoop Without Stretching the Stabilizer

This is the failure point for 50% of beginners. Standard plastic hoops rely on friction and friction alone. Tulle is slippery; plastic stabilizer is slippery.

The "Floating" Hooping Technique:

1. Place the outer hoop ring on a hard, flat surface. loosening the screw until the inner ring inserts with zero resistance.
2. Lay your sandwich (Stab/Tulle/Stab) over the outer ring.
3. Gently press the inner ring down.
4. Sensory Check: Do not pull the tulle. Instead, smooth the stabilizer layers outwards gently.
5. Tighten the screw partially. Check the mesh. The grid lines of the tulle should be perfectly square, not diamond-shaped.
6. Tighten fully.

If you are using a standard brother 5x7 hoop, you often have to use significant hand strength to combat the "pop out" effect where the inner ring slips up. This mechanical struggle is where distortion happens.

Expert Insight: The stabilizer should be taut—tapping it should produce a sound like a dull drum thud. However, the tulle inside must remain relaxed within that taut sandwich. If the tulle grid is warped, unhoop and start over. Never stitch on warped grain.

Warning: Mechanical Safety
Never place your fingers underneath the hoop while the machine is active to "check clearance." Standard embroidery machines operate with high torque; a needle strike through a finger is a severe medical emergency. Always pause the machine before inspecting the underside.

The Hoop Screw Problem: When “Old Hoop Drama” Starts Costing You Time

In the reference video, the creator struggles with a broken hoop screw, resorting to manual force. While this "works" for a one-off hobby project, it is a non-starter for repeatability or business production.

The Hidden Cost of Bad Hoops If you have to tighten, loosen, and re-tighten three times to get it straight, you have tripled your labor cost. Furthermore, standard hoops create "hoop burn" (permanent creases) on delicate fabrics like velvet or sensitive mesh because they rely on crushing the fibers to hold them.

Trigger: Are your wrists sore after a session? Are you seeing white stress marks on your fabric? Criteria: If you are hooping more than 5 items a week or working with expensive, delicate garments. Solution: This is the logical point to upgrade to a magnetic hoop for brother machines.

Magnetic hoops use vertical clamping force rather than horizontal friction.

• Benefit 1: No "tug of war" with the fabric. You simply lay the sandwich down and snap the top frame on.
• Benefit 2: Zero distortion. The magnet clamps straight down, preserving the grain of the tulle instantly.

Warning: Magnetic Field Safety
Magnetic embroidery hoops contain neodymium magnets that are incredibly powerful.
* Pinch Hazard: They can snap together with enough force to bruise skin or break fingernails. Handle with deliberate movements.
* Medical Devices: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Store away from credit cards and mechanical hard drives.

Set Up the Brother Innov-is Quattro 2 (6700D): Slow the Speed and Clear the Underside

Machine setup for delicate materials requires a "Low and Slow" approach.

1. Speed Calibration (SPM) Modern machines can stitch at 800-1000 Stitches Per Minute (SPM). For tulle, this is dangerous. High speed creates vibration and heat, which can actually melt the plastic stabilizer or cause the needle to deflect off the thin mesh strands.

• Beginner Sweet Spot: 400 - 600 SPM.
• Why: Lower speed reduces the "flagging" (bouncing) of the fabric, ensuring the needle penetrates exactly where the software intended.

2. The Clearance Protocol Tulle is transparent. You can see everything, but you can also catch everything. Ensure no loose tail threads, scissors, or spare stabilizer scraps are under the hoop. The presser foot will grab them and sew them permanently into your see-through design.

3. Thread Tension Check Before you hit start, pull a few inches of top thread. It should flow smoothy with moderate resistance (like flossing precision teeth). If it jerks, your tension disks may be clogged.

Setup Checklist:
* [ ] Speed Limiter: Reduce machine speed to ~600 SPM or "Eco Mode."
* [ ] Clearance: Visually inspect the underside of the hoop arm.
* [ ] Foot Height: If your machine allows, set the presser foot height slightly lower (to "Standard" or 0.2mm) to clamp the sandwich better, as tulle is very thin.
[ ] Color Match: Double-check that the bobbin thread is the exact* color of the top thread.
* [ ] Emergency Stop: Keep your hand near the stop button for the first 100 stitches.

The “Sheer Fabric Reality Check”: Fix Bobbin Show-Through Before It Ruins the Look

Mid-operation, the creator notices white bobbin thread peeking through the green satin stitches. On denim, you can hide this. On tulle, there is no hiding.

The Tension Balancing Act In standard embroidery, we want 1/3 bobbin showing on the back. On sheer items where the back is visible (like this earring holder), we want a "reversible" look.

• The Fix: Use the same thread in the bobbin as on top.
• The Consequence: This changes the tension balance! Top and bottom threads are now equal weight. You may need to slightly loosen top tension (lower the number by 1-2 clicks) to prevent the top thread from being pulled to the bottom.

Operational Efficiency Stopping to change bobbins disrupts flow. If you are doing this commercially, embroidery machine hoops that allow for quick interchangeability can save time, but the real productivity hack is batching. Wind all your matching bobbins before you start the project day.

If you find yourself constantly battling thread breaks or tension issues on productive runs, consider that consumer single-needle machines require manual thread changes for every color. Upgrading to a multi-needle machine (like the SEWTECH series) allows you to preset tensions for specific needles, drastically reducing the "fiddle factor" on complex jobs.

Remove the Bulk Stabilizer First—Tear With the Stitching, Not Against It

Once the stitch-out is complete, unhoop the material. Now you have a stiff, plastic-encased sheet.

The "Rough Cut" Technique Do not rush to the sink. Manually remove as much stabilizer as possible dry.

1. Shear Stress: Support the stitches with your thumb. Tear the stabilizer limits away from the stitch line using a horizontal motion, not a vertical yank.
2. Perforation: A well-digitized design creates a perforated line. It should tear like a stamp.
3. The Trap: If you pull too hard against a delicate satin column, you can distort the column or run the tulle.

By removing 90% of the stabilizer dry, you prevent the formation of "stabilizer goop" (a thick, glue-like gel) during the water phase.

Dissolve the Remaining Wash-Away in Warm Water (and Know What “Gummy” Means)

This step is chemistry. You are turning the solid PVA (Polyvinyl Alcohol) film into a liquid solution.

Temperature Matters

• Cold Water: Dissolves slowly. Good if you want to retain stiffness.
• Warm Water: Dissolves quickly. Best for complete removal.

The Tactile Test Submerge the design in a bowl of warm water. Agitate gently. Use your fingers to rub the stitch lines.

• Stage 1 - Slimy: It feels like raw egg whites. Keep rinsing.
• Stage 2 - Sticky: It feels like weak tape.
• Stage 3 - Squeaky: It feels like wet fabric.

Crucial Decision: For this earring holder, do not go to Stage 3. Stop at Stage 2 (slightly sticky/gummy). Why? The remaining stabilizer residue acts as a starch/stiffener. When it dries, it will lock the tulle into a rigid plane, making it a better holder for heavy earrings.

The Wet-Hoop Drying Trick: Re-Hoop While Damp So It Dries Flat, Not Wavy

This is the "Secret Sauce" of the tutorial. If you lay the wet tulle on a towel, it will dry wrinkled.

The Blocking Technique

1. Pat the design with a towel to remove dripping water. It should be damp/humid.
2. Take a clean hoop (or your magnetic hooping station).
3. Hoop the damp tulle.
4. Pull it gently until it is perfectly flat and drum-tight.
5. Let it dry completely in the hoop.

As the stabilizer residue dries, it hardens. Because the mesh is held under tension in the hoop, it hardens into a perfectly flat, glass-like sheet. This technique is non-negotiable for professional results on tulle.

For users exploring a hooping station for embroidery machine setup, this "blocking" phase is a great secondary use for your station. It holds the frame steady while you align the damp fabric, preventing the wet mesh from sticking to itself.

Frame It in a Wooden Hand Embroidery Hoop Without “Waves”: Tighten in Stages, Pull Opposites

Now we transfer the stiffened, dried embroidery to the wooden display frame. Wood hoops are imperfect ovals; they have gaps and varying pressure points.

The "Clock Face" Tightening Method Do not tighten the screw immediately.

1. Center the design.
2. Tighten the screw to 50% tension.
3. Inspect: Look for ripples.
4. Correct: If there is a ripple at 12 o'clock, gently pull the mesh at 6 o'clock. If there is a ripple at 3 o'clock, pull at 9 o'clock. Always work in opposing pairs.
5. Tighten the screw to 80%. Repeat inspection.
6. Tighten to 100%.

Note on Hardware: If you struggle with hand strength or consistency, professional magnetic embroidery hoops are excellent for the stitching phase, but for this specific framing step, the wooden hoop is aesthetic. However, understanding how professionals search for embroidery hoops magnetic options can give you insight into how to solve tension issues in your actual production runs.

Trim the Back Like a Pro: Angle the Scissors and Leave a Margin So It Can’t Slip

The final cut determines the longevity of the object. Do not cut flush against the wood ring.

The Safety Margin Angle your scissors so the blade rests against the wood hoop, pointing slightly away from the center.

• Goal: Leave a 3mm to 5mm "tab" or fringe of tulle extending beyond the grip point.
• Why: Over time, humidity changes will expanding and shrink the wood. If you cut the mesh flush (zero margin), a slight expansion of the hoop will cause the mesh to pop out, and you cannot put it back in. The small margin acts as a safety anchor.


Decision Tree: Pick the Right Stabilizer-and-Hoop Strategy for Tulle Mesh

Use this logic flow to avoid ruining materials.

1. Is the final object purely decorative (Wall Art) or functional (Earring Holder)?

• Functional: Use 2 layers of Heavy WSS. Leave residue "gummy" to stiffen.
• Decorative: Use 1 layer WSS (if design is light) or 2 layers (if dense). Rinse thoroughly for a soft drape.

2. Is the fabric stretchy (Netting) or stable (Tulle)?

• Stretchy: You must float the material or use a magnetic hoop for brother to prevent stretching during hooping. Stretching net while hooping guarantees puckers later.
• Stable: Standard hooping is acceptable if handled gently.

3. Is the back visible?

• Yes: Wind matching bobbins. Lower top tension slightly.
• No: Standard white bobbin is fine.

4. Are you producing volume (10+ items)?

• Yes: Stop manual screw hooping. Invest in magnetic frames to prevent repetitive strain injury (RSI) and increase throughput.
• No: Standard hoops are sufficient for hobby use.

Troubleshooting the Three Most Common “It Looked Fine… Until” Problems

The Upgrade Path: Moving from DIY to Pro

This project demonstrates that skill can overcome basic tool limitations—but better tools remove the struggle.

• For the Hobbyist: Stick to the "Wet Hooping" technique. It is the single biggest quality upgrade that costs $0.
• For the Side Hustler: If you battle with hoop screws or slippery fabrics daily, Magnetic Hoops are your first investment. They turn a 5-minute frustration into a 10-second "snap."
• For the Entrepreneur: If your designs require frequent color changes or you are making these holders in batches of 50, a SEWTECH Multi-Needle Machine eliminates the manual threading bottleneck and offers superior tension control for delicate substrates.

Operation Checklist (Finish Strong)

• Stitch: Run the design at 600 SPM. Watch for flagging.
• Inspect: Check back of loop for bird-nesting early on.
• Tear: Remove bulk stabilizer dry to minimize mess.
• Dissolve: Warm water rinse until "tacky/gummy" (do not over-rinse).
• Block: Hoop damp mesh immediately into a drying frame.
• Wait: Allow to air dry 100% until stiff.
• Mount: Center in wood frame, tighten in "clock face" opposites.
• Trim: Cut excess mesh leaving a 3mm safety margin.

FAQ

• Q: What is the correct stabilizer “sandwich” setup for embroidering tulle with heavy-duty water-soluble stabilizer film?
  A: Use a 3-layer Film/Tulle/Film sandwich cut oversized to control slippage and protect the mesh.
  • Cut: Prepare two sheets of heavy-duty water-soluble stabilizer film at least 2 inches larger than the hoop on all sides.
  • Layer: Place stabilizer on bottom, tulle in the middle, stabilizer on top before hooping.
  • Hoop: Smooth outward on the stabilizer layers; do not stretch the tulle itself.
  • Success check: The stabilizer feels taut like a dull drum thud, and the tulle grid looks square (not diamond-shaped).
  • If it still fails: Re-hoop from scratch if the tulle grain is warped—never stitch on warped mesh.
• Q: How can Brother Innov-is Quattro 2 (6700D) users prevent tulle from being pushed into the needle plate or skipping stitches?
  A: Start with a fresh 75/11 embroidery needle and run “low and slow” to reduce deflection and flagging.
  • Replace: Install a fresh size 75/11 embroidery needle (sharp or light ballpoint), especially if the current needle is not new.
  • Slow: Reduce stitch speed to about 400–600 SPM for tulle work.
  • Clear: Remove any loose thread tails or scraps under/around the hoop area before starting.
  • Success check: The first 100 stitches run smoothly with no skipped stitches and no fabric bounce/flagging.
  • If it still fails: Pause and re-check threading flow and tension-disk cleanliness if the top thread jerks when pulled.
• Q: What is the success standard for hooping tulle in a standard Brother 5x7 plastic hoop without distortion?
  A: Suspend the tulle inside a taut stabilizer sandwich—do not “stretch-tight” the mesh like canvas.
  • Place: Set the outer hoop ring on a hard flat surface and loosen the screw so the inner ring drops in with minimal resistance.
  • Press: Insert the inner ring gently; smooth the stabilizer outward instead of pulling on the tulle.
  • Inspect: Check the tulle grid lines before final tightening; they must remain square.
  • Success check: The tulle grid stays square and relaxed while the stabilizer layers are evenly tight.
  • If it still fails: Unhoop and redo—forcing a slipping inner ring is a common cause of permanent distortion.
• Q: How do I stop white bobbin thread from showing through green satin stitches on reversible tulle embroidery?
  A: Use matching bobbin thread (same color as the top) and slightly loosen top tension if needed.
  • Wind: Put matching green bobbin thread in the bobbin (avoid standard white bobbin for sheer/reversible projects).
  • Adjust: Lower the top tension by 1–2 clicks if the top thread is being pulled to the underside.
  • Verify: Check early—do not wait until the design is halfway done.
  • Success check: The satin stitches look solid green from the front with no white “peek-through.”
  • If it still fails: Stop and re-test tension on scrap mesh with the same film/tulle/film sandwich.
• Q: What is the safest way to inspect embroidery hoop clearance on a Brother Innov-is Quattro 2 (6700D) during stitching on tulle?
  A: Always pause/stop the machine before checking the underside—never put fingers under an active hoop.
  • Pause: Hit stop before inspecting thread tails, stabilizer scraps, or hoop clearance.
  • Remove: Clear any loose items under the hoop arm so the presser foot cannot stitch them into the design.
  • Monitor: Keep a hand near the stop button for the first 100 stitches on delicate mesh.
  • Success check: No accidental stitching of stray threads/scraps occurs, and hands never enter the needle path while running.
  • If it still fails: Re-start only after the entire hoop path is visibly clear from all sides.
• Q: What does “gummy” stabilizer mean when dissolving heavy water-soluble stabilizer for a tulle earring holder, and when should I stop rinsing?
  A: For a functional earring holder, stop rinsing at the slightly sticky/tacky stage so residue dries as a stiffener.
  • Rinse: Use warm water and gently agitate to dissolve remaining film after you tear away most stabilizer dry.
  • Feel: Stop at the “sticky/tacky” stage rather than rinsing until fully squeaky-clean.
  • Avoid: Do not over-rub delicate satin columns while the mesh is unsupported.
  • Success check: The embroidery feels a little tacky when wet and dries into a flatter, more rigid sheet.
  • If it still fails: If the piece dries wavy, re-wet and move to damp re-hooping (blocking) to dry under tension.
• Q: When should I switch from a standard Brother 5x7 hoop to a magnetic embroidery hoop for tulle to reduce hoop screw struggle and hoop burn?
  A: Upgrade to a magnetic hoop when frequent hooping causes distortion, sore wrists, or visible stress marks on delicate mesh.
  • Level 1 (Technique): Improve hooping by smoothing stabilizer outward and rejecting any warped tulle grain before stitching.
  • Level 2 (Tool): Use a magnetic hoop to apply straight-down clamping force and reduce “tug of war” hooping on slippery film/tulle/film stacks.
  • Level 3 (Production): If volume and color changes become the bottleneck, consider a multi-needle setup to reduce repeated manual rethreading and tension fiddling.
  • Success check: Hooping becomes fast and repeatable, and the tulle grain stays undistorted with fewer creases/pressure marks.
  • If it still fails: Treat magnets as a pinch hazard and keep them away from pacemakers/insulin pumps and sensitive items; handle frames with deliberate, controlled placement.
