1. Introduction: Understanding Bobbin Thread Tangling

Nothing derails a project faster than a sudden “bird’s nest” of thread under your fabric, whether you use the best sewing machine for embroidery and sewing or a basic model. Bobbin thread tangling wastes time, breaks momentum, and can even damage fabric or your machine. This guide gives you the full playbook: the real root causes (tension, mechanical, and operational), step-by-step fixes, smart maintenance, and prevention that works on virtually all domestic and industrial machines. If you sew garments, quilts, or home décor, the principles are the same—balance the system, handle the fabric right, and your stitches run smooth.

Table of Contents

• 1. Introduction: Understanding Bobbin Thread Tangling
• 2. Root Causes of Bobbin Thread Tangling
• 3. Step-by-Step Troubleshooting Guide
• 4. Preventive Maintenance Practices
• 5. Machine-Specific Solutions
• 6. Long-Term Prevention Strategies
• 7. Visual Guides & Advanced Diagnostics
• 8. Conclusion: Mastering Tangle-Free Sewing
• 9. FAQ: Bobbin Thread Tangling Questions Answered

2. Root Causes of Bobbin Thread Tangling

2.1 Tension Imbalances: The Primary Culprit

Balanced stitch formation depends on upper and bobbin tensions meeting inside the fabric. When that equilibrium slips, you get loops, bunches, and the classic thread pile-up underneath.

• Upper/bobbin mismatch: If the upper thread loses tension, the bobbin thread gets pulled up or the top thread forms loose loops that snag below. If bobbin tension overpowers the top, it drags the top thread down and bunches under the needle plate. The symptom often includes rattling and halted fabric feed.
• Tension disc contamination: Lint or stray thread inside the upper tension discs prevents them from closing, so the upper thread runs nearly free—exactly what causes the “birds’ nest.” A referenced video shows thread fragments wedged between discs; removing them with tweezers restores tension.
• Bobbin tension—micro moves only: Small, clock-like “hour position” changes are the safe way to adjust bobbin tension. One Brother maintenance tutorial recommends moving the slotted screw forward in 15-minute increments (clockwise to tighten), testing after each tiny change. Another expert protocol advises even finer micro-adjustments (as little as five-minute clock positions).
• Practical tension tests:
  • Drop test: Hold the bobbin case by its thread and gently bounce; a controlled drop of roughly half to one inch correlates with workable bobbin tension.
  • Stitch test strip: Use contrasting top/bobbin thread to see exactly which side is misbehaving.

Key reminder: Always start by re-threading the top with the presser foot up so the thread seats between the tension discs, then calibrate the bobbin if needed.

2.2 Mechanical Errors: Insertion & Alignment Issues

Even perfect tension won’t help if the bobbin system isn’t installed correctly.

• Wrong bobbin direction or seating: Top-loading vs. front-loading machines have specific directions. Insert per the machine’s diagram and ensure the bobbin “clicks” or seats fully.
• Case alignment matters: Some machines (e.g., Brother models in the tutorial) use alignment marks—drop the bobbin case with the arrow lined up to the machine’s dot before replacing the cover. Misalignment disrupts thread pickup.
• Damaged bobbin case: A “bird’s nest not always tension” demo shows hairline splits or grooves in the case that catch and cut thread, causing repeat jams. Inspect under bright light; replace a nicked case.
• Debris in the raceway: Lint buildup under the needle plate/bobbin area changes thread path geometry. Clean with a brush (never compressed air or a hair dryer, especially on models with sensors).
• After a needle strike: If a project binds and snaps a needle, the hook timing or the rotating bobbin mechanism can be knocked slightly out of position. One walkthrough shows a machine failing to pick up bobbin thread until the hook “window” was re-aligned to meet the needle on its upstroke. This is a classic cause of “it sews a stitch or two, then tangles.”

2.3 Operational Factors: Fabric Handling & Thread Quality

What you do at the pedal and handwheel matters, especially when operating embroidery sewing machines with dense stitching patterns.

• Thread tails at startup: Multiple tutorials stress holding both the top and bobbin tails for the first stitches. Starting with short tails or right at the fabric’s very edge invites nests.
• Handwheel direction and finish position: Turn the wheel only in the correct direction for your machine (commonly toward you). Turning it backward introduces slack into the top thread loop and sets up a tangle. Stop with the take-up lever at its highest position before you pull out your work to avoid doubling thread inside the machine.
• Fabric feed and presser foot pressure: If fabric stops feeding and you keep sewing, a jam is almost guaranteed. Ensure adequate presser foot pressure for consistent contact.
• Thread and needle quality: Inconsistent or old thread increases random tension spikes. A dull or bent needle also disrupts loop formation. Try a known-good quilting cotton and fresh needle to isolate variables before chasing settings.

3. Step-by-Step Troubleshooting Guide

3.1 Immediate Response Protocol

• Stop immediately and power off.
• Raise the needle and presser foot. Gently remove the fabric; snip threads if needed.
• Open the bobbin area. Remove the bobbin and cover; clear every strand of thread. A video tip: ensure “every single little bit is out” or the jam returns.
• Brush out lint in the race and around the case. Do not use compressed air or hair dryers; on some models, blasting air can damage or blind sensors.
• If your manual permits, remove the needle plate to access embedded thread. On sensor-equipped models, follow the brand’s guidance—some tutorials advise avoiding plate removal and fishing out thread from the front opening instead.
• Reinstall the bobbin case correctly (use alignment marks), replace covers, and then re-thread top and bobbin systems from scratch.

3.2 Tension Calibration Techniques

• Set a baseline:
  • Re-thread the upper path with the presser foot up so the thread slips between the tension discs.
  • Start with a mid-range upper tension; test on scrap with contrasting threads.
• Bobbin tension—adjust with care:
  • Find the slotted bobbin-case screw (not the cross-head). Use the “lefty loosey, righty tighty” rule in tiny steps—about 1/8 turn or as fine as five-minute clock moves. Test after each adjustment.
  • Use the drop test (about 1/2–1 inch) to confirm ballpark bobbin tension.
• Go pro when needed:
  • A TOWA bobbin tension gauge assigns numeric targets so you can document settings across thread types and repeat them consistently.
• Thread weight matters:
  • Heavier thread may need a touch less bobbin tension; lighter thread may need slightly more to form a clean lock.
• Garment embroidery note—magnetic machine embroidery hoop support: Magnetic embroidery hoops hold garments evenly and reduce fabric distortion, which minimizes variables while you dial in tension. Brands such as Sewtalent are often cited in this context. If you need a high-quality option, MaggieFrame magnetic machine embroidery hoops are designed for garment hooping, hold fabric securely with even pressure distribution, and help minimize hoop marks. They’re quick to set, which makes tension testing faster and more consistent across multiple samples. (Not for caps/hats.) Important: A hoop doesn’t replace machine tension calibration—but stable, even fabric tension makes calibration far easier and more repeatable.

3.3 Re-threading & System Reset

• Reset the system:
  • Remove all thread. Raise the presser foot. Re-thread the upper path in the exact order: guides, tension discs, take-up lever, down to the needle.
  • Install the bobbin in the correct direction and seat it fully; verify smooth, gentle pull.
• Engage the mechanics:
  • Manually turn the handwheel in the correct direction to pick up the bobbin thread. Pull both tails to the back under the presser foot.
• Start smart:
  • Hold both tails for the first few stitches and avoid starting on the absolute fabric edge.
  • Lower the presser foot before sewing; begin with a few slow stitches.
  • When stopping, ensure the take-up lever is at its highest point before removing the fabric.
• Diagnose with contrast:
  • Use different top/bobbin colors so you can instantly see which side needs adjustment during test stitches.

4. Preventive Maintenance Practices

4.1 Weekly Cleaning & Debris Management

Lint is the silent saboteur, particularly for users of the best beginner embroidery machine who may overlook maintenance. It packs into the hook race, lifts the bobbin case, and throws tension off—exactly the environment where bird’s nests begin.

• Power off first. Remove the bobbin cover, bobbin, and the front/gray cover to access the hook race.
• Use a soft brush (or small paintbrush) to sweep out lint from the bobbin area, hook race, and around the case. Do not use compressed air or hair dryers—on sensor-equipped models, blasts of air or heat can damage sensors and drive debris deeper.
• If your machine has an "eye" for low-bobbin detection, turn the handwheel until the access slot opens, then gently sweep the sensor window. Reinstall the gray cover (leave the bobbin case out), power on, and press needle up/down twice to let the machine re-index before powering off and reinstalling the case.
• Keep the brush clean too—swish bristles in warm soapy water, dry thoroughly, then resume.
• Inspect the bobbin case under bright light. Replace if you see nicks, grooves, or splits that can snag or cut thread.
• Follow your manual for lubrication intervals (especially around the shuttle race). Also check for loose hardware; vibration-induced looseness can disturb thread flow.

Tip: Embroidery generates heavy lint. Clean more often when stitching dense designs or fuzz-prone fabrics.

4.2 Tension Calibration Schedules

Make tension checks a routine, not a rescue.

• Monthly checks: Stitch on scraps with contrasting top/bobbin colors. Start from your normal upper tension and adjust until the lock forms inside the fabric without loops on either side. If you use a bobbin tension gauge, document the readings so you can repeat successful settings across thread types.
• Track variables: Record upper tension numbers, bobbin measurements (if gauged), thread brand/weight, needle size/point, fabric type, and stabilizer. This becomes your fast-reference playbook.
• Environmental awareness: Humidity and temperature change how threads behave and can shift tension sweet spots. Re-verify after seasonal changes or a long break.
• Re-test after you change thread, needle, or fabric category. A 60-second test strip is cheaper than unpicking an entire seam.

4.3 Thread & Needle Best Practices

Threads and needles are consumables—treat them like precision parts.

• Thread quality and storage:
  • Use consistent, high-quality machine thread. Inferior or aged thread sheds, frays, and breaks, feeding tangles.
  • Store spools away from dust and moisture; rotate inventory so older thread gets used first.
• Bobbin winding:
  • Wind evenly. Avoid overfilling and cross-winding that cause jerky release or binding in the case.
• Needle selection and replacement:
  • Replace regularly and after any needle strike. A dull or bent needle frays thread, disrupts loop formation, and invites nests.
  • Match needle size and point to thread weight and fabric (e.g., finer needles for light wovens; appropriate points for knits vs. wovens).
• Compatibility counts:
  • Keep top and bobbin thread weights compatible for predictable tension balance.
  • If troubleshooting, switch to a known-good quilting cotton and fresh needle to isolate variables quickly.

5. Machine-Specific Solutions

5.1 Universal Fixes for All Brands

Before you chase exotic causes, lock down the basics that trip up every machine, from mechanical models to embroidery sewing machine computerized systems.

• Verify bobbin size and type:
  • Use the bobbin your manufacturer specifies. Incompatible bobbins can sit loose in the housing and cause erratic delivery.
  • Material matters: plastic bobbins can wear and loosen over time; metal bobbins typically hold dimensions more consistently. Choose what your machine was designed around.
• Direction and seating:
  • Install the bobbin in the correct direction for your model. Make sure it seats fully and pulls with smooth, light resistance.
• Even bobbin winding:
  • Wind level layers without overfill or cross-overs. Uneven wind equals unpredictable feed.
• Upper path accuracy:
  • Re-thread with the presser foot up so the thread seats between tension discs. Confirm the take-up lever is threaded—missing it nearly guarantees tangles.
• Start-up handling:
  • Hold both thread tails for the first stitches and avoid starting on the extreme fabric edge.
• If the machine won’t pick up the bobbin thread (especially after a needle break):
  • Timing may be off. That’s a mechanical alignment issue between needle and hook—time to consult your manual’s guidance or a technician.

5.2 Brother Machine Case Study

Brother’s bobbin architecture and access sequence reward careful, methodical maintenance. Here’s a practical, brand-consistent workflow:

• Power-down clearing:
  • Turn the machine off. Remove the bobbin cover, bobbin, and the gray front cover to access the hook race.
• Brush cleaning only:
  • Sweep out lint with a soft brush. Do not use compressed air or hair dryers—there are sensors beneath the plate.
• Bobbin case care:
  • Clean the bobbin case, including the small “furry” guide strip that helps feed bobbin thread evenly. Replace that strip if worn.
  • If needed, adjust bobbin tension using the slotted screw (not the cross-head). Turn clockwise in tiny, clock-face “15-minute” steps, testing after each nudge. If you run out of adjustment range, replace the case.
• Case alignment:
  • Reinstall the bobbin case with the white arrow on the case aligned to the white dot on the machine so it drops in correctly.
• Sensor window cleaning and re-index:
  • If the low-bobbin sensor stops working, rotate the handwheel until the access slot opens, then gently sweep the sensor window. Install the gray cover (leave the case out), power on, and press needle down/up twice to re-index. Power off, reinstall the case and covers, then restart.
• Plate removal caution:
  • Avoid removing the needle plate unless your manual explicitly permits it. Misplacing the plate or bumping sensors can disable the machine; many cleaning tasks can be done from the front opening.

This protocol mirrors Brother maintenance tutorials: brush, no blasts of air, micro-adjust bobbin tension in “15-minute” steps, align marks on reinstall, and re-index the mechanism when you’ve cleaned around the sensor.

6. Long-Term Prevention Strategies

6.1 Maintenance Scheduling Framework

Stability comes from systems. Set a schedule and stick to it:

• Weekly:
  • Brush-clean the hook race, bobbin area, feed dogs, and tension-disc entry points. Inspect the bobbin case for nicks. Verify correct bobbin direction and smooth pull.
  • Spot-lube per your manual (especially the shuttle race), and tighten any loose screws you’re authorized to service.
• Monthly:
  • Full tension check on test strips across your common fabrics and threads. Document upper settings and bobbin gauge readings (if you use one).
  • Inspect the entire thread path—guides, take-up lever, and discs—for residue; remove any thread fragments.
• Quarterly (or after heavy runs):
  • Review thread inventory and storage. Retire suspect spools. Replace frequently used needles and bobbin cases showing wear.
• Why it pays:
  • Systematic cleaning and calibration reduce defects and thread waste while extending machine life. Over time, that consistency means fewer stops, less unpicking, and steadier stitch formation.

6.2 Equipment Optimization

Accessories can make or break tension stability at the fabric level.

• Stabilize the fabric platform:

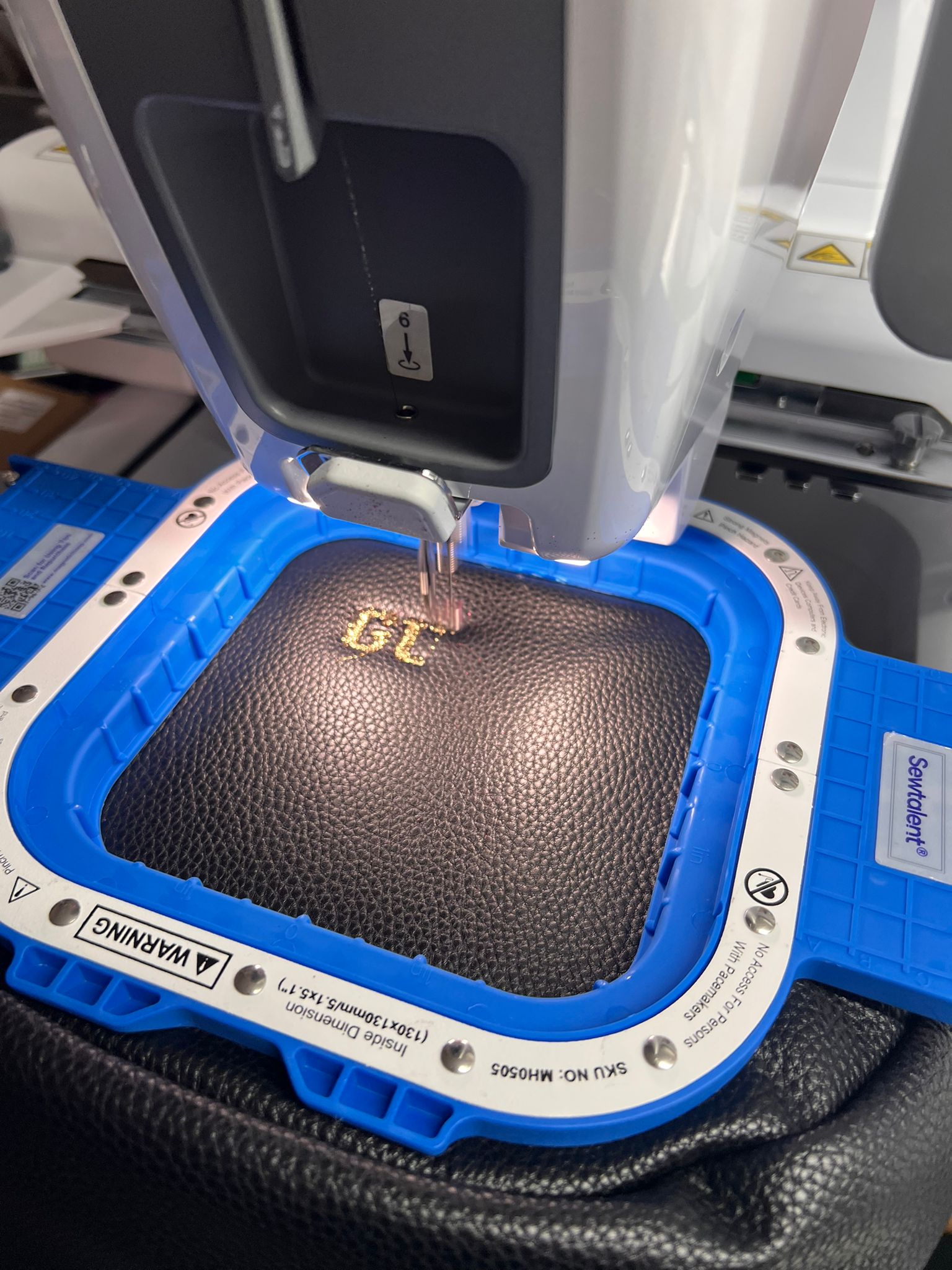

  • High-quality garment hoops help hold fabric evenly, reducing distortion that masquerades as tension trouble. Many sewists rely on magnetic embroidery hoops for garment hooping to keep layers steady while dialing in tensions.
  • A practical option for garment hooping:
    • MaggieFrame magnetic embroidery hoops are designed for garment hooping (not for caps/hats). Their even holding pressure and quick setup help minimize fabric shift and hoop marks, so your tension tests become faster and more repeatable across samples. Users value the wide size range and compatibility with many commercial/industrial machines.
  • Over time, consistent fabric support can cut misalignment-related defects and help you maintain stable thread delivery under the needle.
• Bobbin and consumable control:
  • Standardize bobbins across operators and projects—use the exact model your machine requires and retire worn bobbins. Keep a winding checklist so fill level and winding quality stay consistent shift to shift.

Note: A quality hoop won’t “fix” machine tension—but by keeping fabric flat and stable, it takes one major variable off the table so your tension settings actually hold.

7. Visual Guides & Advanced Diagnostics

7.1 Video Tutorial Highlights

Prefer to see it done? These videos show exactly where tangles start and how to stop them—fast.

• Why does thread get TANGLED in the BOBBIN when sewing (YouTube)
• What you’ll see: The upper tension dial changes do nothing because thread debris is stuck between the tension discs, leaving the top thread with no tension—classic “bird’s nest” underneath.
• Fix shown: Remove the thread fragment with tweezers, reseat the thread through the spring, discs, take-up lever, and needle; stitches return to normal.
• Watch: https://www.youtube.com/watch?v=Q8xUaidHg24
• 3 Reasons Your Bobbin Thread Keeps Jamming (and How to Stop It!)
• What you’ll see: Three operational musts—hold both thread tails for the first stitches, turn the handwheel only in the correct direction (commonly toward you; check your manual), and stop with the take-up lever at its highest point before removing fabric to avoid doubling loops inside.
• Watch: https://www.youtube.com/watch?v=y8IaVMf4e08
• 10 Reasons… “Why does my thread keep jamming in my sewing machine?”
• What you’ll see: A practical elimination order—re-thread top, then bobbin; change the needle; test on plain quilting cotton; deep clean the bobbin area (get every last strand out); confirm the correct bobbin type; and, if all fails, it’s time for professional service.
• Watch: https://www.youtube.com/watch?v=EyEPaC-C2ks
• Tension setting and maintenance of bobbin case (Brother)
• What you’ll see: Correct bobbin-area cleaning with a brush (no compressed air/hair dryers), how to clean the bobbin case including the “furry” guide strip, safe bobbin tension tweaks using the slotted screw in small “15-minute” clock moves, and proper case alignment (white arrow to white dot). It also demonstrates re-indexing the mechanism using the needle up/down button after sensor cleaning.
• Watch: https://www.youtube.com/watch?v=kj0wSsEbm4E
• Bird’s nest not always tension
• What you’ll see: A nicked/split bobbin case that catches and cuts thread, causing repeated nests—even when tensions and threading are correct. Replacing the damaged case resolves the issue.
• Watch: https://www.youtube.com/watch?v=b6LfcAB7pn0
• Singer Heavy Duty 4423… not grabbing bobbin thread
• What you’ll see: After a needle strike, the rotating hook “window” drifts out of position (timing-related), so the needle thread isn’t picked up. This is a textbook sign of timing trouble and a strong cue to involve a technician.
• Watch: https://www.youtube.com/watch?v=97a45CchRBg

What these show in common:

• Visual confirmation that debris in tension discs or bobbin races wreaks havoc.
• How incorrect handwheel direction creates slack—and tangles.
• Why tiny bobbin tension moves (and correct case alignment) matter.
• When persistent problems point beyond DIY into timing/service territory.

7.2 When to Seek Professional Help

DIY got you most of the way, but some symptoms point to deeper mechanical issues. Consider a technician if you notice:

• The machine won’t pick up the bobbin thread after you’ve correctly re-threaded top/bobbin, changed the needle, and cleaned the bobbin area (seen after needle strikes; a timing red flag).
• Persistent bird’s nests continue despite verified threading, tension calibration, correct bobbin type/size, and a clean, undamaged bobbin case.
• Unusual noises or repeated needle strikes, especially following fabric jams or thick seam transitions.
• Sensor-related quirks you can’t resolve after careful brush cleaning and the re-index step (as shown in the Brother video).
• You’re tempted to remove covers/plates your manual warns against, or to force adjustments beyond tiny, documented increments.

Safety-first notes from the tutorials:

• Clean with a brush only—no compressed air or hair dryers—especially on sensor-equipped models.
• Avoid removing the needle plate unless your manual explicitly allows it; mis-seating or disturbing sensors can disable the machine.
• Make only tiny “hour-position” bobbin tension moves on the slotted screw, testing after each change.

If your checklist (re-thread, clean, needle, test fabric, bobbin verification, tension tests) doesn’t fix it, timing or alignment likely needs professional attention.

8. Conclusion: Mastering Tangle-Free Sewing

Beat bobbin tangles by balancing the system, whether using dedicated machines or a sewing and embroidery machine combo. seat the top thread through the tension discs and take-up lever, set tensions methodically, install the bobbin in the correct direction, and keep the hook race clean. Handle starts smart—hold thread tails and avoid the fabric’s edge—and turn the handwheel only in the proper direction. Build a weekly cleaning habit and log your tension tests. Do this, and your stitches will lock neatly in the fabric instead of nesting underneath.

9. FAQ: Bobbin Thread Tangling Questions Answered

9.1 Q: Why does tangling happen mid-stitch?

- A: Fabric stalls, reversing the handwheel, or stopping with the take-up lever down can introduce slack that bunches below. Ensure consistent feed, turn the handwheel only in the correct direction (commonly toward you; check your manual), and stop with the take-up lever at its highest point before pulling your work.

9.2 Q: Can cheap or old thread cause jams?

- A: Yes. Inconsistent or degraded thread sheds and frays, disrupting tension and loop formation. Use quality thread like Brothreads and store spools away from dust and moisture.

9.3 Q: How often should I clean my machine to prevent nests?

- A: Make it weekly. Brush out the hook race/bobbin area and remove every stray thread. Clean more often during lint-heavy sewing (dense embroidery, fuzzy fabrics). Do not use compressed air or hair dryers.

9.4 Q: Should I ever turn the handwheel backward?

- A: No. Tutorials show that reversing the wheel creates slack in the top thread loop, inviting tangles or jams. Turn it only in your machine’s specified direction (commonly toward you).

9.5 Q: Do I really need to hold thread tails at the start?

- A: Yes. Hold both top and bobbin tails for the first stitches and avoid starting on the fabric’s extreme edge. This prevents the free ends from being pulled under and knotted.

9.6 Q: What if my machine suddenly won’t pick up the bobbin thread?

- A: After a needle strike or jam, the hook timing can drift so the needle thread isn’t captured. If re-threading, cleaning, a fresh needle, and correct bobbin installation don’t fix it, seek professional service.

9.7 Q: Is compressed air okay for cleaning the bobbin area?

- A: No. Use a brush only. Blasts of air can force debris deeper and may damage or misalign sensors, especially on models with detection systems.
