18th-Century Embroidered Buttons on a Baby Lock Valiant: Digitize Smarter, Hoop Cleaner, Assemble Faster (Without Ruining Silk)

Court-suit buttons look innocent—until you realize you may need dozens of them, and every single one has to match in size, sit centered on the dome, and survive wear.

If you’re feeling that mix of excitement and dread, you’re in good company. This method is absolutely doable, but it rewards a production mindset: control the digitizing, control the hooping, then control the hand-finishing so every button comes out consistent.

The “I Need 30 Buttons” Reality Check: Why 18th-Century Court Suit Buttons Demand a System

Sewstine’s approach is modern where it counts (digitizing + multi-needle embroidery) and historical where it shows (silk thread sheen, domed wooden molds, hand-sewn backs). The trap most people fall into is treating each button like a one-off craft project.

When you’re making buttons for a frock coat, waistcoat, and breeches, the real enemy isn’t skill—it’s variation. Variation in hoop tension, variation in shrinkage, variation in where you cut, variation in how tight you draw the back. Those tiny differences add up fast.

So we’ll rebuild the workflow into three controlled stages: 1) Digitize for the dome geometry and fabric shrinkage. 2) Hoop and Stitch in batches using consistent tension. 3) Assemble with repeatable measuring and a secure back.

PE Design 10 Digitizing for a Button Dome: The 1.3" Trick That Lands You at a 1 1/8" Finish

The video starts in PE Design 10, loading a reference image and building the design in layers. The key sizing detail is non-negotiable and counter-intuitive for beginners:

• The original artifact button is 1 1/8 inch.
• The digitized design is made larger—about 1.3 inches—to compensate for the domed mold and natural embroidery shrinkage.

That “oversize on purpose” decision is what keeps your finished buttons from looking cramped or undersized once they’re pulled over the mold. The dome eats up fabric diameter.

A helpful comment pointed out you can correct the slant of a photographed button using perspective correction in graphics software (even free tools like GIMP). That’s worth doing if your reference image is angled—because a slightly skewed circle becomes a very obvious wobble once it’s repeated across 20+ buttons.

To keep your stitch plan historically “hand-like,” Sewstine uses a zigzag circle outline to mimic hand stitching.

Build the outline first (and hide your jumps like a pro)

In the video, the circle outline is created as a zigzag stitch at 140 stitches per inch density.

Warning: Small circular designs magnify mistakes. If your outline is too dense for your thread weight, you may get puckering or a stiff edge that refuses to sit smoothly on the dome.

Sewstine also shares a practical workaround: if your machine doesn’t have a great cutter, you can connect edges along the border area that will be covered, so jump stitches are less of a problem.

Workstation Note: If you’re digitizing and then immediately stitching, keep a written “button recipe” next to your machine—diameter, density, thread choice, stabilizer choice—so you don’t reinvent the wheel every time you return to the project.

Digitize the petals with satin stitch (and match density to thread weight)

The petals are drawn and filled with satin stitch, again at 140 stitches per inch. Sewstine explicitly notes the density may need to change depending on thread thickness:

• Thinner thread (e.g., 60wt Silk): You may want to go up in density to ensure coverage.
• Thicker thread (e.g., 40wt Rayon): You may want to go down in density to prevent bullet-proof stiffness.

That’s a classic digitizing truth: density isn’t a “quality slider,” it’s a material compatibility setting.

If you’re planning to experiment with different thread types, do it in a controlled way: keep the design identical and only change one variable at a time (top thread type, then needle, then stabilizer). Generally, specialty threads may require slower speeds (Start at 600 SPM) and more conservative density.

To keep your workflow searchable and repeatable later, it helps to label your file versions clearly (for example: “Button_1.3in_140den_silk”). If you’re using a hooping station for machine embroidery, that same “repeatability mindset” is what turns a fiddly craft into a reliable batch process.

The 9-Up Layout on Baby Lock Valiant: Batch Your Buttons Without Losing Alignment

Once the design is complete, Sewstine lays out 9 buttons per page for batch production.

This is where intermediate embroiderers either save hours—or create nine identical problems at once.

The "Rule of One": Before you commit to a 9-up run, stitch one button and assemble it onto a mold. Confirm:

• Finished diameter looks right.
• Petals don’t distort badly on the dome.
• Outline still reads as a clean circle.

If it passes, then go to 9-up.

From a shop-owner perspective, batching is also where upgrades start paying for themselves. If you’re repeatedly hooping delicate silk/taffeta, using embroidery magnetic hoops can reduce handling time and help avoid clamp marks—especially when you’re doing the same hooping motion over and over.

Hooping Silk/Taffeta on a Standard Embroidery Hoop: Get “Taut,” Not “Stretched”

In the video, the fabric is hooped “really taut” with tearaway interfacing/stabilizer, then stitched on a Baby Lock Valiant (10-needle embroidery machine) using silk thread.

Here’s the nuance experienced operators learn the hard way: “taut” is not the same as “drum-tight at any cost.” With fine silk/taffeta, over-tensioning in the hoop can permanently distort the weave (creating "hoop burn"), and it can also make the embroidery relax softly and pucker once unhooped.

Tactile Check:

• Smoothness: The surface has no ripples.
• Resistance: You can tap it and feel tension, but you are not forcing the grain off-square.
• The Sound: Tapping the fabric should sound like a dull thud, not a high-pitched ping.

If you’re doing repeated hooping for production, high-quality babylock valiant hoops become a workflow decision, not just an accessory. The more consistent your hooping pressure (often achieved easier with magnetic frames), the more consistent your finished button size and centering will be.

Warning: Needles and small hoops are a risky combination for fingers. Keep hands clear when the machine is running, and use proper curved embroidery shears for trimming—never “snip close” while the fabric is still under the needle area.

Prep Checklist (Do this *before* you press start)

• Stabilizer: Tearaway stabilizer cut large enough to fully support the hooping area.
• Fabric: Dark blue silk/taffeta pressed flat (no creases that will “lock in” under stitches).
• Needle: Correct needle installed (Size 75/11 is a safe start for standard thread; go smaller 65/9 for fine silk).
• Thread: Top thread loaded (Sewstine uses Tyrel silk thread).
• Bobbin: Wound, installed, and tested for smooth pull (listen for smooth unwinding, no catches).
• Test: One test stitch-out planned (single button) before committing to 9-up.
• Tools: Curved embroidery shears ready for later cutting.


Running the Baby Lock Valiant with Silk Thread: What to Watch While It Stitches

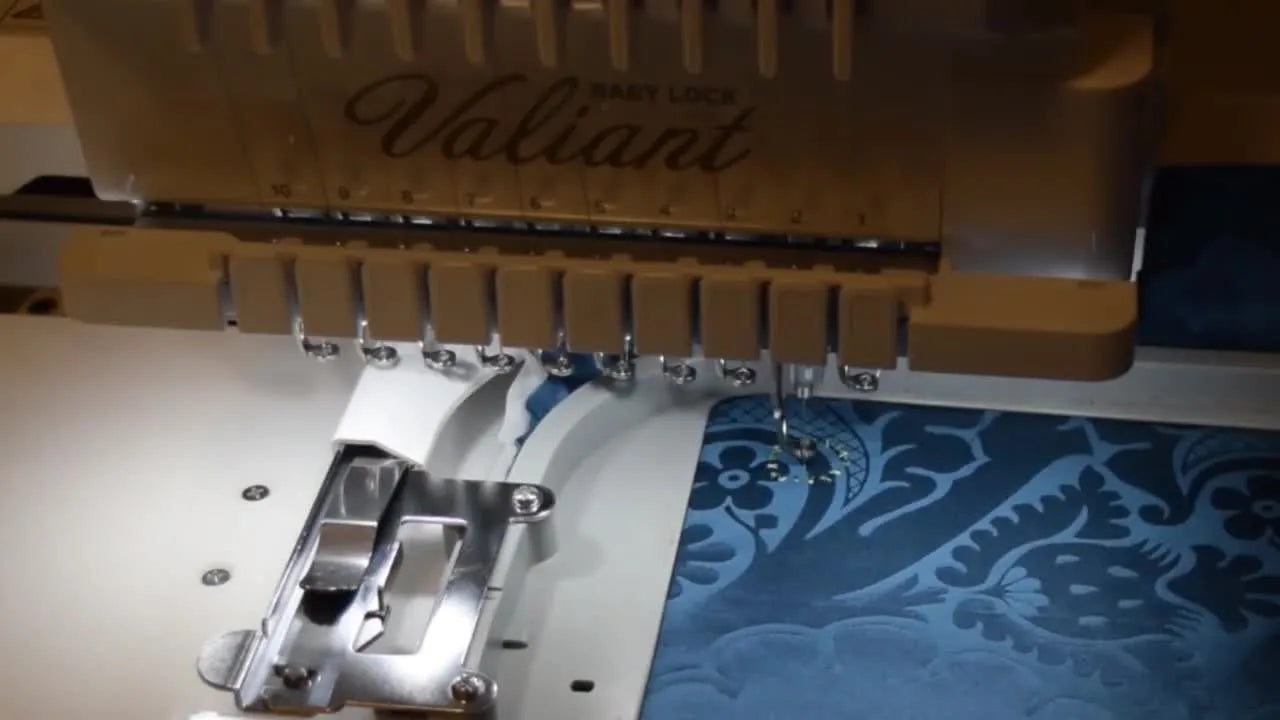

Sewstine stitches the floral design on the multi-needle machine, letting the silk thread do the visual heavy lifting.

A viewer mentioned the machine looks relaxing on screen—until you remember what it actually sounds like in real life. That’s a good reminder: your ears are a diagnostic tool.

Generally, when you stitch dense, small satin elements:

• Good Sound: A clean, steady rhythmic hum.
• Bad Sound: Sudden clicking, thumping, or “punching” sounds. These indicate needle deflection, a snag, or excessive resistance (perhaps the needle is dull or the stabilizer is too thick).

Speed Control: If you’re chasing a premium finish, slow down. While your machine might do 1000 SPM, a speed of 600-700 SPM is the "sweet spot" for tiny satins on fine fabric.

If you’re considering a hoop upgrade for delicate fabric and repeat runs, babylock magnetic embroidery hoops are often chosen specifically to reduce hoop marks and speed up re-hooping. For studios producing batches, magnetic systems can also reduce wrist strain compared to repeatedly forcing an outer ring over tight fabric.

The “Hidden” Prep Before Cutting: Mark Your Gather Line So You Don’t Lose Center

After embroidery, Sewstine moves into hand prep. This is where most button projects go sideways—because cutting is irreversible.

The video’s measuring method is specific and crucial for centering:

1. Measure a distance slightly less than half the button diameter away from the embroidery edge.
2. Sewstine uses about 40% away from the edge.
3. Sew a large running stitch around the perimeter with about 1/4 inch stitch length.

This running stitch serves two purposes: it marks your cutting zone and acts as your drawstring to cinch the fabric over the mold.

A comment suggested using a paper circle pattern to speed cutting. Sewstine notes that for embroidered buttons, centering the design under an opaque paper template can be annoying. A clever follow-up suggestion was to make the template donut-shaped so you can see the embroidery center while still getting a consistent cut.

That donut template idea is excellent for batch work because it reduces “eyeballing,” which is the #1 cause of off-center domes.

Cutting with Curved Embroidery Shears: The One Slip That Ruins the Whole Button

Sewstine cuts the fabric circle just outside the gathering thread line using curved embroidery shears.

This is the moment to slow down. One slip here ruins the embroidery you just spent time creating.

Warning: Do not cut the gathering thread. If you nick it, the drawstring can snap under tension later, and you will be forcing yourself to redo the entire button front.

Practical Technique: Rotate the fabric, not your wrist. Keep the scissors stable and move the workpiece in small increments. Curved shears help you “hug” the circle without creating jagged edges that might fray later.

Setup Checklist (Before you cut a whole batch)

• Lighting: Good lighting aimed directly at the gather thread line.
• Shears: Curved embroidery shears, checked for sharpness and cleanliness.
• Organization: A small tray or dish for finished cut circles (prevents losing pieces).
• Template: Optional donut template ready if you struggle with consistent margins.
• Protection: Leather thimble ready (Sewstine uses one) to protect your finger during the tough sewing phase.


Wooden Button Molds vs Bone: Why Friction Matters When You Pull the Drawstring Tight

Sewstine uses wooden button molds and explicitly prefers wood over bone because wood has higher friction (grip).

That friction matters because the fabric is being tensioned over a dome. A slicker mold (like bone or smooth plastic) can encourage the fabric to creep or slide while you’re tightening and lacing the back, leading to a loose fit.

Orientation Check:

• Insert the mold with the dome facing outward toward the embroidery.

If you’re making many buttons, keep molds sorted by size and don’t mix them mid-batch. Even small differences in dome height can change how the embroidery reads once stretched.

If you’re trying to scale this for a small business (costume commissions, cosplay runs, historical reproduction), this is where time adds up. Re-hooping and re-centering are the slowest parts. For production, magnetic hoops for babylock embroidery machines can be a practical upgrade because they reduce the “fight” of hooping and help keep delicate fabric looking clean.

The Star-Laced Back (12 Passes): The Fastest Way to Lock the Gathers Without Bulk

After pulling the running stitch like a drawstring bag, Sewstine secures the back by sewing side-to-side about 12 times, changing the angle each time to create a star/spoke pattern.

This does two things:

1. Distributes Tension: It pulls evenly across the diameter, so one side doesn’t pucker harder than the other.
2. Locks the Form: It creates a stable “web” that resists loosening over time.

A common beginner mistake is to cinch hard, knot immediately, and call it done. That often leads to a lopsided dome or a back that relaxes after a few wears.

The Routine:

• Cinch gradually.
• Turn it over and check the front for centering.
• Then lace the back in multiple directions.

If you’re wondering about thread choice for this stage (another comment theme), Sewstine later mentions using polyester upholstery weight thread. For the gathering and lacing, the video shows a strong hand-sewing approach; generally, you want a thread that can take heavy tension without snapping (like a Gutermann Top Stitch or heavy poly), but always test with your specific fabric and mold.

Sewing the Button On: Use the Back Fabric, Not the Button Face

To attach the button, Sewstine threads a needle with that same polyester upholstery weight thread and sews through the back fabric portion of the button.

Important Detail: You are not sewing through the button face. You’re anchoring through the gathered back area, which holds very well due to the "star lacing" you just created.

This is also where finishing standards matter. A professional-looking button isn’t just the front—it’s:

• A back that lies flat enough not to create a hard lump under the garment.
• A secure attachment that doesn’t wobble or droop.
• Consistent orientation across a row (flowers all pointing up).

Quality Control (QC): If you’re producing for clients, build a quick inspection habit: line up 10 finished buttons and check that the flower centers sit similarly on the dome. Small inconsistencies are easier to catch in a group/row than looking at one interaction at a time.

Operation Checklist (During assembly and final QC)

• Measurement: Measure the gather line consistently (Sewstine uses ~40% from the embroidery edge).
• Stitching: Keep running stitches large and even (about 1/4 inch).
• Cutting: Cut just outside the gather line without nicking the thread.
• Mold: Insert mold dome toward embroidery every time.
• Tension: Cinch gradually and re-check centering before locking the back.
• Lacing: Lace side-to-side about 12 passes, changing angle to form a star.
• Knots: Knot securely and trim tails cleanly.
• Final Inspect: Inspect front centering and edge smoothness before moving to the next button.


Decision Tree: Fabric + Stabilizer Choices for Tiny Satin Petals (So Your Buttons Don’t Pucker)

The video uses tearaway stabilizer with silk/taffeta. That’s a solid baseline for a clean finish with minimal leftover bulk suitable for buttons.

Use this decision tree to choose your stabilizing approach (and always test first):

• Is your fabric stable woven silk/taffeta?
  • YES: Start with Tearaway Stabilizer (Medium Weight) + Size 75/11 Needle.
  • NO: See below.
• Is your fabric lightweight/sheer and showing ripples around petals?
  • YES: Switch to No-Show Mesh (Cutaway) for support, or add a layer of water-soluble topping to keep stitches "lofty."
• Is your fabric slippery and shifting in the hoop?
  • YES: Focus on hooping consistency. Many embroiderers choose baby lock magnetic embroidery hoops for delicate materials to help avoid hoop burn while maintaining maximum grip.
• Do your stitches look overly tight or is the edge stiff like cardboard?
  • YES: Reduce density by 10-15% or double-check that your thread weight isn't too heavy for the design (Sewstine uses 140 stitches per inch).

This isn’t about just buying more supplies—it’s about matching support to stitch structure. Tiny satins behave like little tension bands; they will pull the fabric if the foundation isn’t stable.

Troubleshooting the Stuff That Makes You Want to Quit: Size Drift, Off-Center Domes, and Ugly Backs

Here are the most common failure modes for this exact workflow, mapped to causes and fixes.

The Upgrade Path When You’re Done Making “Just a Few”: Faster Hooping, Cleaner Silk, Real Production Output

A commenter joked this looks like a tutorial done on a thousand-dollar machine—because yes, a multi-needle setup makes batch embroidery feel effortless. But you don't need to break the bank to improve your process.

Here’s the practical way to think about upgrades based on where you feel the most pain:

1. If your pain is hooping speed and repeatability (especially when you’re doing 9-up layouts repeatedly):
   Consider Magnetic Hoops as a workflow tool. Many studios adopt hooping for embroidery machine systems (like the MaggieFrame) that reduce re-hooping time and help protect delicate fabrics from the crushing force of standard screw-hoops.
2. If your pain is scaling from “one costume” to “client orders”:
   A high-productivity multi-needle machine becomes a business decision. Our customers often move into SEWTECH multi-needle embroidery machines (like the 15-needle models) when they want consistent output and the ability to embroider finished garments without constant thread changes.
3. If your pain is thread performance and finish quality:
   Focus on consumables. A stable thread + correct density + correct stabilizer is what makes small satin petals look crisp instead of crunchy.

Warning: Magnet Safety. Magnetic hoops use strong industrial magnets. Keep them away from pacemakers, implanted medical devices, and mechanical watches. Be mindful around phones and credit cards. Also, watch your fingers—these magnets can pinch hard if they snap together unexpectedly.

If you only take one thing from this whole process, take this: buttons are a batch product. Once your digitizing size compensation, hooping method, and assembly rhythm are locked in, you can make 30 buttons that look like they came from the same original panel—because functionally, they did.

FAQ

• Q: In PE Design 10, why should the embroidered court suit button design be digitized at about 1.3 inches when the target finished button is 1 1/8 inch?
  A: Digitize the design larger (about 1.3") because the domed mold and natural embroidery shrinkage consume diameter during shaping.
  • Digitize: Set the artwork circle/outline to ~1.3" even if the historical reference button measures 1 1/8".
  • Test: Stitch one sample and pull it over the actual wooden mold before committing to a 9-up layout.
  • Adjust: If coverage looks cramped on the dome, increase size slightly; if the motif looks too open, reduce slightly.
  • Success check: The stitched outline still reads as a clean circle and the petals do not look “squeezed” after the fabric is stretched over the dome.
  • If it still fails… Re-check the reference image for camera angle distortion and correct the perspective before tracing.
• Q: On a Baby Lock Valiant 10-needle embroidery machine, how should silk/taffeta be hooped in a standard hoop to avoid hoop burn and puckering?
  A: Hoop silk/taffeta “taut, not stretched” so the fabric is smooth and supported without distorting the weave.
  • Hoop: Smooth the fabric until ripples disappear, then stop before the grain is forced off-square.
  • Stabilize: Use tearaway stabilizer cut large enough to fully support the hooping area.
  • Check: Tap the fabric surface to confirm firm tension without over-tightening.
  • Success check: The fabric looks flat with no ripples, and tapping sounds like a dull thud (not a high-pitched “ping”).
  • If it still fails… Reduce hooping force and consider a magnetic hoop system for more consistent pressure on delicate fabric.
• Q: On a Baby Lock Valiant using silk thread, what stitching sound indicates small satin petals are too dense or the needle is deflecting?
  A: Clicking, thumping, or “punching” sounds usually mean the stitch area is under too much resistance (often density/speed/needle-related), so slow down and re-check setup.
  • Slow: Run small dense satins at about 600–700 SPM for control (even if the machine can go faster).
  • Inspect: Confirm the needle is appropriate (75/11 is a safe start; 65/9 for fine silk) and not dull.
  • Support: Verify stabilizer choice matches the fabric so the satin elements don’t act like tension bands and pull.
  • Success check: The machine returns to a steady, clean rhythmic hum with no sudden impact sounds during satin segments.
  • If it still fails… Reduce satin density modestly (often 10–15%) or reassess thread weight versus the chosen density.
• Q: For PE Design 10 button petals digitized as satin stitch at 140 stitches per inch, how should density be adjusted for 60wt silk thread versus 40wt rayon thread?
  A: Match density to thread thickness: generally increase density for thinner 60wt silk for coverage, and decrease density for thicker 40wt rayon to avoid stiffness and puckering.
  • Keep: Hold the design constant and change only one variable at a time (thread type, then needle, then stabilizer).
  • Stitch: Start specialty thread tests at slower speed (often around 600 SPM) to reduce stress on tiny satins.
  • Evaluate: If the edge feels “bullet-proof,” lower density; if you see fabric peeking through, raise density slightly.
  • Success check: Petals look fully covered but remain flexible enough to sit smoothly on the dome without a stiff ridge.
  • If it still fails… Confirm the hooping is taut-not-stretched and consider adding more supportive stabilizer for lightweight or rippling fabric.
• Q: When making domed embroidered buttons, how does the 40% gather-line method prevent off-center domes during cutting and assembly?
  A: Mark and sew the gather line consistently (about 40% away from the embroidery edge) so the cut margin and drawstring tension stay even around the center.
  • Measure: Mark a distance slightly less than half the button diameter from the embroidery edge (about 40% from the edge as used in the method).
  • Sew: Stitch a large running stitch around the perimeter (about 1/4" stitch length) to create a reliable drawstring path.
  • Cut: Trim just outside the gather line, not by “eyeballing” the margin.
  • Success check: After cinching, the embroidered center remains visually centered on the dome before the back is locked.
  • If it still fails… Use a donut-shaped cutting template so the embroidery center stays visible while maintaining a consistent margin.
• Q: Why does a snapped gather thread during curved-shear cutting force a full redo of the embroidered button front?
  A: If the gather thread is nicked or cut, the drawstring can snap under tension later, so the only reliable fix is to redo the button front.
  • Stop: Do not try to “patch” the gather line after it’s damaged—re-cutting usually shifts center and weakens the hold.
  • Cut: Rotate the fabric, not your wrist, and keep curved embroidery shears stable to avoid accidental nicks.
  • Prepare: Use strong lighting and keep the gather line clearly visible before cutting a whole batch.
  • Success check: The gather thread pulls smoothly and cinches evenly without fraying, popping, or sudden weak spots.
  • If it still fails… Replace or sharpen the shears and slow down; a single slip is the common cause.
• Q: What is the safest way to avoid finger injury when trimming near small hoops on a Baby Lock Valiant during button production?
  A: Keep hands completely clear while the machine is running and only trim with proper curved embroidery shears when the needle area is safe.
  • Pause: Stop the machine before placing fingers near the needle/hoop area—never “snip close” while the needle zone is active.
  • Tool: Use curved embroidery shears for controlled cutting rather than trying to trim with straight scissors in tight spaces.
  • Plan: Stage tools (shears, tray for cut circles) so you don’t reach into the hoop area repeatedly.
  • Success check: Trimming is done with stable hand position outside the needle path, with no need to brace fabric near moving parts.
  • If it still fails… Change the workflow to trim after removing the hoop from the machine to eliminate proximity risk.
• Q: When making 30+ embroidered buttons, how should a production workflow decide between Level 1 technique optimization, Level 2 magnetic hoop upgrade, and Level 3 upgrading to a SEWTECH multi-needle embroidery machine?
  A: Choose the upgrade based on the bottleneck: first lock repeatable digitizing/hooping/assembly, then upgrade hooping if re-hooping is the pain, and upgrade to multi-needle output if order volume is the pain.
  • Level 1 (Technique): Run the “Rule of One”—stitch and assemble one button on the mold before any 9-up batch, and keep a written button recipe (size, density, thread, stabilizer).
  • Level 2 (Tool): If repeated hooping causes hoop burn, inconsistent tension, or slow re-hooping, move to magnetic hoops for more consistent pressure and faster resets.
  • Level 3 (Capacity): If the real issue is scaling from one project to client orders, a SEWTECH multi-needle machine reduces thread-change downtime and supports consistent batch output.
  • Success check: A 9-up run produces buttons with consistent size and centering, and the re-hooping step no longer dominates total labor time.
  • If it still fails… Identify whether the variation is coming from cutting margin/gathering (assembly) or from hoop tension/density (stitching) and fix that stage before upgrading further.
