1940s-Style Free-Standing Lace Appliqués on a Brother Quattro: The Tulle “Sandwich” Method That Actually Stitches Clean

Mastering the 1940s Vintage Lace Appliqué: The "Soft Drape" Protocol

If you have ever attempted free-standing lace (FSL) only to end up with a stiff, bulletproof "doily" or a bird’s nest of tangled thread underneath, stop blaming yourself. You are not "bad at embroidery." You are simply battling physics without the right protocol.

Lace is the "extreme sport" of machine embroidery. Unlike standard embroidery, where a stable fabric foundation forgives minor tension errors, lace relies entirely on the interplay between thread, stabilizer, and tension to create its own structure. There is no safety net.

In this guide, we are rebuilding Joanne Banko’s methodology for 1940s-inspired lace appliqués using a Brother Quattro 3 Innov-is (though the physics apply to almost any single-needle or multi-needle machine). Our goal is not just a finished product; it is a lace piece with "liquid drape"—soft, flexible, and indistinguishable from vintage hand-made lace.

The 1940s Lace Logic: "Float," Don't Starch

The hallmark of 1940s lingerie and loungewear is the drape. The lace must move with the silk or satin, not sit atop it like a piece of glued-on cardboard. Joanne demonstrates this on a slip made from crepe back satin—a synthetic that mimics the shimmer of vintage silk but remains washable.

To achieve this, we must abandon the "stiff is safe" mentality often taught to beginners. Your choice of netting (the base) defines the final hand-feel of the product.

The "Non-Negotiable" Supply Chain

Embroidery is 80% preparation and 20% execution. If you compromise on these materials, no amount of machine tuning will save the project.

The Essential Bill of Materials:

• Bridal Tulle (The Critical Variable): Do not use craft netting or "crinoline" style net. You need Soft Bridal Tulle. It collapses when stitched, creating a supple finish. Stiff netting will result in a scratchy appliqué that irritates the skin.
• Fibrous Water-Soluble Stabilizer (WSS): Avoid the clear, plastic-wrap style "film" (Solvy). You need the fabric-type / fibrous water-soluble stabilizer (often called "Vilene"). It looks like fabric and provides the grip necessary to prevent the tulle from sliding.
• Thread: 40wt Embroidery Thread. Crucially, you need the same thread for the bobbin as you have on top.
• Curved-Tip Embroidery Scissors: Essential for "surgical" trimming closer to the satin edge without snipping the structure.
• Needle: A fresh 75/11 Embroidery or Ballpoint needle. (Old needles with burrs will shred tulle instantly).


The Physics of Stabilizer Choice

Why fibrous over film? Friction. Clear film is slippery. When a needle penetrates tulle on top of film at 600 stitches per minute, the layers slide microsopcially. This causes "registration errors," where the outline misses the fill. Fibrous stabilizer grips the tulle, locking the geometry in place.

Warning: The "Surgical" Hazard
Curved-tip scissors are your best friend and worst enemy. They are designed to cut flush against fabric. One slip can sever your satin edge, causing the entire lace structure to unravel. Always cut with the curve pointing AWAY from the stitch column, and rotate the hoop rather than contorting your wrist.

Phase 1: Pre-Flight Checklist

Perform this check before the hoop touches the machine.

• Material Audit: Is the tulle soft to the touch? Is the stabilizer fibrous/cloth-like?
• Needle Check: Is the needle fresh? (Run your fingernail down the tip; if it clicks, it has a burr—replace it).
• Thread Match: Do you have a bobbin wound with the exact same top-thread color?
• Design: Is the file specifically digitized for FSL (Free Standing Lace)? Standard designs will fall apart without fabric.

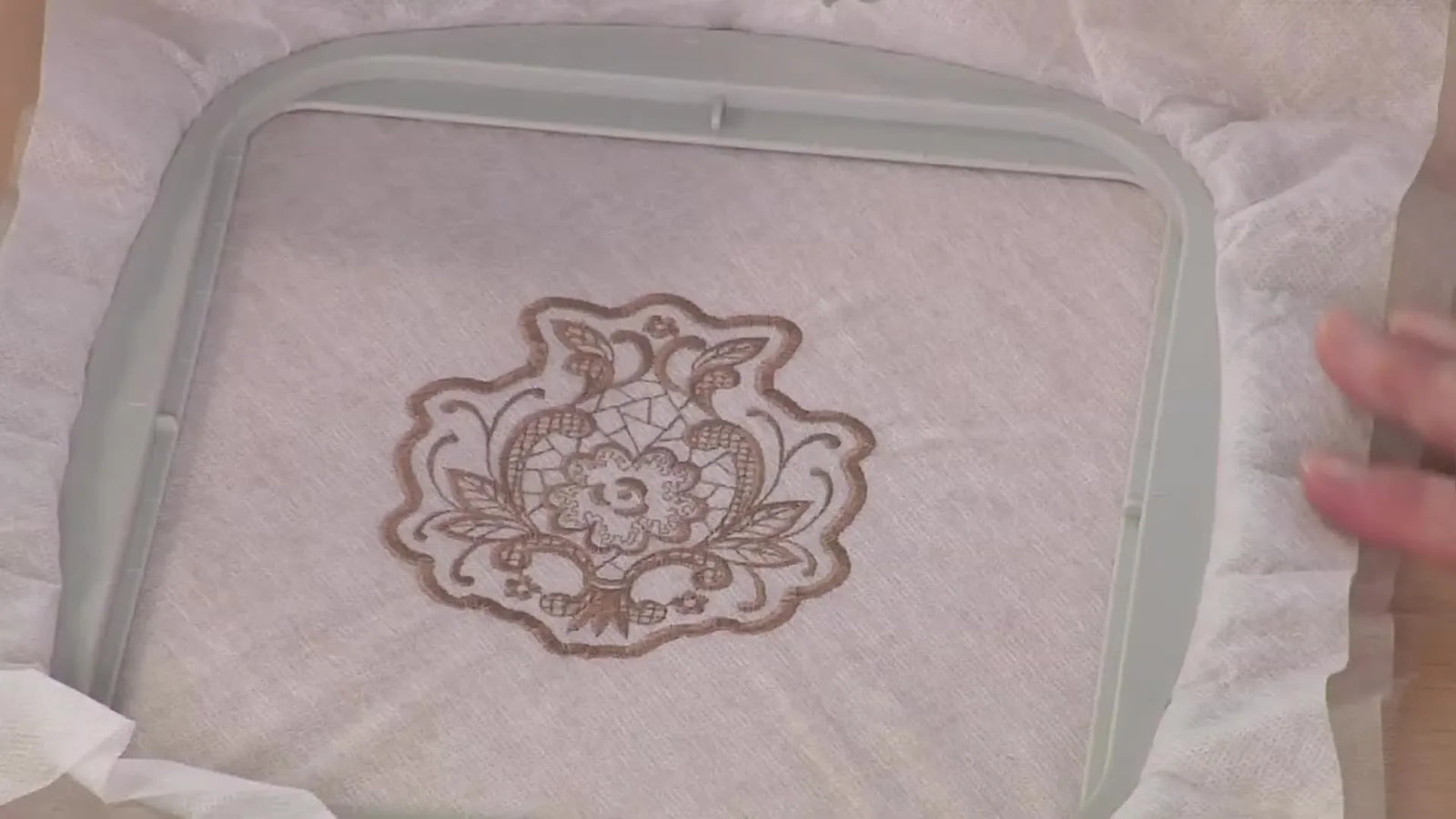

The "Sandwich" Protocol: Controlling Material Shift

Hooping is where most lace projects fail. Tulle is slippery; stabilizer is thin. If they are not held under "drum-tight" tension evenly around the perimeter, the lace will distort.

The Joanne Banko Layering Order:

1. Bottom: 1 layer Fibrous Water-Soluble Stabilizer.
2. Middle: 2 layers Bridal Tulle.
3. Top: 1 layer Fibrous Water-Soluble Stabilizer.


Why this specific stack?

The top layer of stabilizer acts as a friction plate. It prevents the presser foot from snagging the delicate hexagonal holes of the tulle. The bottom layer supports the stitch formation.

We often see beginners struggle here. They tighten the hoop screw, but the tulle slips as they push the inner ring down. This is called "hooping creep."

Production Note: If you are fighting to get this stack tight, or if you are producing these in batches, the mechanical stress on your wrists is real. This is why professional shops often transition to magnetic systems. When hooping for embroidery machine production runs involving slippery substrates like tulle, a magnetic frame snaps straight down, eliminating the "push-and-drag" distortion of traditional friction hoops.

Warning: Magnetic Field Safety
If you upgrade to High-Yield Magnetic Hoops (like Sewtech), be aware they use industrial-grade magnets. Do not place them near pacemakers or sensitive electronics. Keep fingers clear of the snap-zone to avoid painful pinches.

The Digital Architecture: Editing for Structural Integrity

Raw lace designs sometimes lack a sealed edge. Joanne uses the Brother Quattro’s built-in editing features to add a structural perimeter.

The design initially reads 3.61" x 3.21" with 3911 stitches.

By selecting the "Appliqué/Shield" icon, the machine generates a satin border.

The machine adds two critical distinct steps:

1. Placement Line (Straight Stitch): Tacks the layers together.
2. Satin Border (Zig-Zag): Encases the raw edge of the tulle.

Without this satin border, your lace has no "frame" and will fray immediately after washing.

Machine Configuration: The "Sweet Spot" Settings

Lace requires a gentler touch than denim or twill. We are not aiming for maximum speed; we are aiming for maximum precision.

1. Speed Control (RPM/SPM)

While not explicitly stated in the video, the industry consensus for FSL is slow down. High speeds create vibration.

• Guidance: Set your machine to 400 - 600 SPM (Stitches Per Minute). This reduces the risk of the needle deflecting and missing the bobbin thread.

2. Thread Matching

Install the bobbin with the same 40wt embroidery thread used on top. Lace is visible from both sides (it has no "wrong" side). You do not want white bobbin thread showing on a black lace appliqué.

3. Disable Jump Stitch Cutting

Navigate to your machine's settings and turn Jump Stitch Cutting to OFF.

• The Logic: Automatic trimmers often leave small, messy "tails" on the underside (the bobbin side). On a towel, these are hidden. On lace, they are visible defects. It is cleaner to trim the jumps manually at the end.

If you are struggling with messy backs even after adjusting tension, verify this setting. Note also that accessories like a specific brother embroidery machine hoop won't fix software settings—you must configure the machine logic first.

Phase 2: Setup Checklist

Verify these settings on the LCD screen before stitching.

• Border Check: Does the preview show the thick satin outline?
• Bobbin: Is the bobbin thread matched to the top thread color?
• Speed: Is the machine speed reduced to the "Safe Zone" (approx. 600 SPM)?
• Jump Cuts: Is "Jump Stitch Cutting" set to OFF?
• Hoop Check: Is the hoop locked? Listen for the "click."

The "Clean-Start" Ritual: No Bird Nests Allowed

This step separates the pros from the frustrated beginners. Do not just hit "Start."

1. Press the "Needle Down" button, then "Needle Up."
2. Gently pull the top thread. It will Fish the bobbin loop up through the plate.
3. Pull both threads (top and bobbin) to the side, holding them with light tension.


Why? If you don't pull the bobbin tail up, the first few stitches can tangle underneath, creating a "bird nest" that sucks the tulle down into the needle plate hole, potentially tearing your project instantly.

The "Red Light" Frustration: If your Start/Stop button is red, your hoop is likely not seated correcty. The machine has a safety sensor. Push the hoop firmly into the carriage connector until it clicks and the light turns green. A secure connection is vital for registration. The smallest wobble in the hoop attachment results in a distorted design.

Pro-Tip: In high-volume environments, alignment fatigue is common. Using tools like a magnetic embroidery hoop can reduce the physical force needed to secure the fabric, but the hoop-to-machine connection always requires a firm, positive lock.

Execution: The "Stop & Clip" Technique

Start the machine. Let it stitch 3-5 stitches, then STOP.

Clip the long starter tails close to the fabric. If you don't do this now, these tails will get stitched over, trapping them forever and ruining the clean look of your lace.

Once cleared, resume stitching. Monitor the sound of the machine.

• Normal Sound: Rhythmical, soft clicking.
• Danger Sound: Loud "thunk-thunk" or grinding. This means the needle is struggling to penetrate (dull needle) or the hoop is hitting something.


Phase 3: Operation Checklist

Monitor these variables during the 15-minute runtime.

• Start: Hold thread tails for first 3 stitches -> Stop -> Clip tails.
• Sound: Listen for rhythmic consistency.
• Visual: Watch the bobbin supply. Lace is thread-hungry; running out mid-border is a disaster.
• Observation: Ensure the stabilizer isn't tearing away from the hoop edge (a sign of poor hooping).

The "Surgery": Trimming and Washing

When the machine stops, remove the hoop. Do not pop the material out yet. Inspect it. If it looks good, un-hoop.

Use your curved scissors to trim the excess stabilizer and tulle. The Golden Rule: Cut reasonably close, but do not nick the satin stitches. The water will dissolve the rest. You do not need to cut perfectly flush; the water does the final "trimming" for you.

Wash the piece in warm water.

• Stiff Lace Desired? Rinse quickly (leave some stabilizer residue).
• Soft Drape Desired? Rinse thoroughly (remove all residue).

Decision Tree: Fabric, Volume, and Tooling

Use this logic flow to determine your workflow changes.

Q1: What is your production volume?

• A: Hobby / Single Piece: Use the standard Brother 5x7 friction hoop. Stick to the "Sandwich" method exactly.
• B: Batch Production / Etsy Shop: Time moves from "relaxation" to "money." Friction hooping becomes a bottleneck.

Q2: Are you experiencing "Hoop Burn" or slippage?

• A: No: Continue with current setup.
• B: Yes: Tulle is delicate. Traditional hoops require squeezing friction that can mark fabrics or fail to hold slippery layers.
  • Solution: Investigate embroidery hoops magnetic. These clamp flat, reducing fabric distortion and eliminating "burn" marks on delicate bridal tulle.

Q3: Is the lace distorted (outline doesn't match the fill)?

• A: No: Your stabilizer choice is correct.
• B: Yes: You are likely using "Film" stabilizer or your hoop is loose.
  • Fix: Switch to Fibrous WSS. If problem persists, upgrade to magnetic embroidery hoops for brother to ensure the "sandwich" cannot physically shift during high-speed stitching.

Troubleshooting Logic: The Layout

When things go wrong, don't guess. Follow this diagnostic path (Least Expensive to Most Expensive).

The Master's Conclusion

Lace requires respect for the materials. It demands that you slow down, hoop with intention, and verify your settings.

If you plan to scale this technique—making lace appliqués for a line of products—you will eventually find that the standard hoop is your speed limit. Upgrading to a magnetic clamping system isn't just about convenience; it's about the consistency of tension on slippery materials like tulle. But for your first attempt? Trust the "Sandwich," slow your speed to 600 SPM, and match that bobbin thread.

The result will be a piece of vintage glamour that floats in your hand, proof that you have mastered the physics of the machine.

FAQ

• Q: How do I prevent bird nesting on a Brother Quattro 3 Innov-is when stitching free-standing lace on tulle?
  A: Pull the bobbin thread up and control both thread tails before the first stitches—this is the fastest way to stop underside tangles.
  • Rethread with the presser foot UP so the upper thread seats in the tension discs.
  • Press Needle Down, then Needle Up, then pull the top thread to bring the bobbin loop up through the needle plate.
  • Hold both thread tails to the side for the first 3–5 stitches, then STOP and clip the long tails close.
  • Success check: The underside shows clean, flat stitches at the start (no “puff” of tangled thread under the first stitches).
  • If it still fails: Re-check threading path and confirm the bobbin is inserted correctly; then consider checking bobbin-case tension with a gauge.
• Q: What stabilizer should be used for 1940s-style soft-drape lace appliqué so the outline does not miss the fill (registration error)?
  A: Use fabric-type (fibrous) water-soluble stabilizer, not clear film—fibrous stabilizer grips tulle and reduces layer slip.
  • Switch to a cloth-like fibrous water-soluble stabilizer for both top and bottom layers.
  • Stack the “sandwich” in this order: 1 layer fibrous WSS (bottom) + 2 layers bridal tulle (middle) + 1 layer fibrous WSS (top).
  • Hoop evenly and drum-tight around the perimeter to prevent shifting.
  • Success check: The placement/outline lines land directly on top of the intended path with no visible offset.
  • If it still fails: Tighten hooping technique (avoid “hooping creep” while inserting the inner ring) and slow the stitch speed into the 400–600 SPM range.
• Q: What is the correct hooping layer order for tulle lace appliqué on a Brother Quattro 3 Innov-is to reduce slipping and presser-foot snagging?
  A: Use the stabilizer–tulle–stabilizer “sandwich” so the top stabilizer acts as a friction plate and protects the tulle holes.
  • Place 1 layer fibrous water-soluble stabilizer on the bottom.
  • Add 2 layers of soft bridal tulle in the middle.
  • Add 1 layer fibrous water-soluble stabilizer on top before stitching.
  • Success check: The tulle stays flat with no ripples, and the presser foot does not catch or distort the hex holes during stitching.
  • If it still fails: Re-hoop for drum-tight tension and make sure the hoop is fully locked into the machine carriage.
• Q: Why does the Brother Quattro 3 Innov-is Start/Stop button stay red (E1 / red light) after installing the embroidery hoop?
  A: The hoop is not fully seated—push the hoop into the carriage connector until it clicks and the light turns green.
  • Remove and reinsert the hoop, pushing firmly straight into the connector.
  • Listen/feel for a positive “click” that indicates the lock engaged.
  • Inspect the hoop connector area for lint or debris if the hoop feels blocked.
  • Success check: The Start/Stop light turns green and the hoop does not wobble when gently tested.
  • If it still fails: Clean the connector area and re-test; persistent issues may indicate a worn/obstructed hoop connection that needs service-level inspection.
• Q: What Brother Quattro 3 Innov-is setting should be changed to stop messy thread tails on the backside of free-standing lace?
  A: Turn Jump Stitch Cutting OFF so the machine does not leave visible trimmed tails on the bobbin side of lace.
  • Open the machine settings menu and set Jump Stitch Cutting to OFF.
  • Stitch the lace and trim jump threads manually at the end for a cleaner finish.
  • Keep bobbin thread matched to the top thread so both sides look intentional.
  • Success check: The back side shows fewer short “whisker” tails and looks clean enough to be the visible side.
  • If it still fails: Combine this with the clean-start ritual (pull bobbin tail up, hold tails for first stitches) to prevent start-up tangles.
• Q: How can curved-tip embroidery scissors damage a satin border on lace appliqué, and what is the safe trimming method?
  A: Curved-tip scissors can accidentally nick the satin edge and cause the lace structure to unravel—always cut with the curve pointing away from the stitch column.
  • Keep the scissor curve pointing AWAY from the satin stitch border while trimming.
  • Rotate the hoop/material instead of twisting your wrist into the stitch line.
  • Trim reasonably close but do not try to cut perfectly flush; let water dissolving finish the cleanup.
  • Success check: The satin border remains uncut and continuous all the way around with no loose sections after trimming.
  • If it still fails: Leave more margin next time and rely on dissolving to remove the last bits rather than cutting closer.
• Q: When making tulle lace appliqués in batches, how should the upgrade path be decided between hooping technique changes, magnetic hoops, and a multi-needle machine like SEWTECH?
  A: Start with technique fixes first, move to magnetic hoops for repeatability on slippery stacks, and only consider a machine upgrade when volume makes the standard hoop your bottleneck.
  • Level 1 (Technique): Re-hoop drum-tight, use the stabilizer–tulle–stabilizer sandwich, slow to 400–600 SPM, and do the clean-start thread-tail routine.
  • Level 2 (Tooling): If hoop burn, slippage, or hooping creep keeps happening on bridal tulle, switch to a magnetic hoop to clamp layers flat with less distortion.
  • Level 3 (Capacity): If output demand turns hooping time and stops into the main cost, consider a production-focused multi-needle workflow (for throughput and consistency).
  • Success check: Registration stays consistent across repeats, and start-up nesting/hoop shift stops being the main source of rejects.
  • If it still fails: Audit materials again (soft bridal tulle + fibrous WSS + fresh 75/11 needle + matched bobbin thread) before changing hardware.
• Q: What magnetic hoop safety precautions are required when using industrial-strength magnetic embroidery hoops during lace production?
  A: Keep magnetic hoops away from pacemakers and sensitive electronics, and keep fingers clear of the snap zone to avoid pinches.
  • Store and handle magnetic hoops away from medical implants and devices that can be affected by strong magnetic fields.
  • Lower the magnetic frame straight down; do not “slide” it into place with fingers underneath.
  • Keep hands to the sides and out of the clamping path when the magnets engage.
  • Success check: The hoop snaps closed cleanly without finger contact and the material stack stays flat without shifting.
  • If it still fails: Reposition hands and use a controlled, two-handed placement method; stop and reset if alignment feels forced.
