40wt Thread on a Longarm (King Tut, Omni, Omni-V, Magnifico, Fantastico): The Tension Moves That Stop Breaks and Make Your Stitching Pop

The "Master Tuning" Protocol: How to Calibrate Thread Tension for Perfect Stitches

From Cotton to High-Sheen Poly: An Expert’s Guide for Embroiderers & Quilters

If you’ve ever swapped thread, hit “Run,” and immediately felt that sharp spike of panic—Why is the loop loose? Why did it snap? Why does the sheen look dull?—you are experiencing the most common friction point in machine embroidery: The Variable Gap.

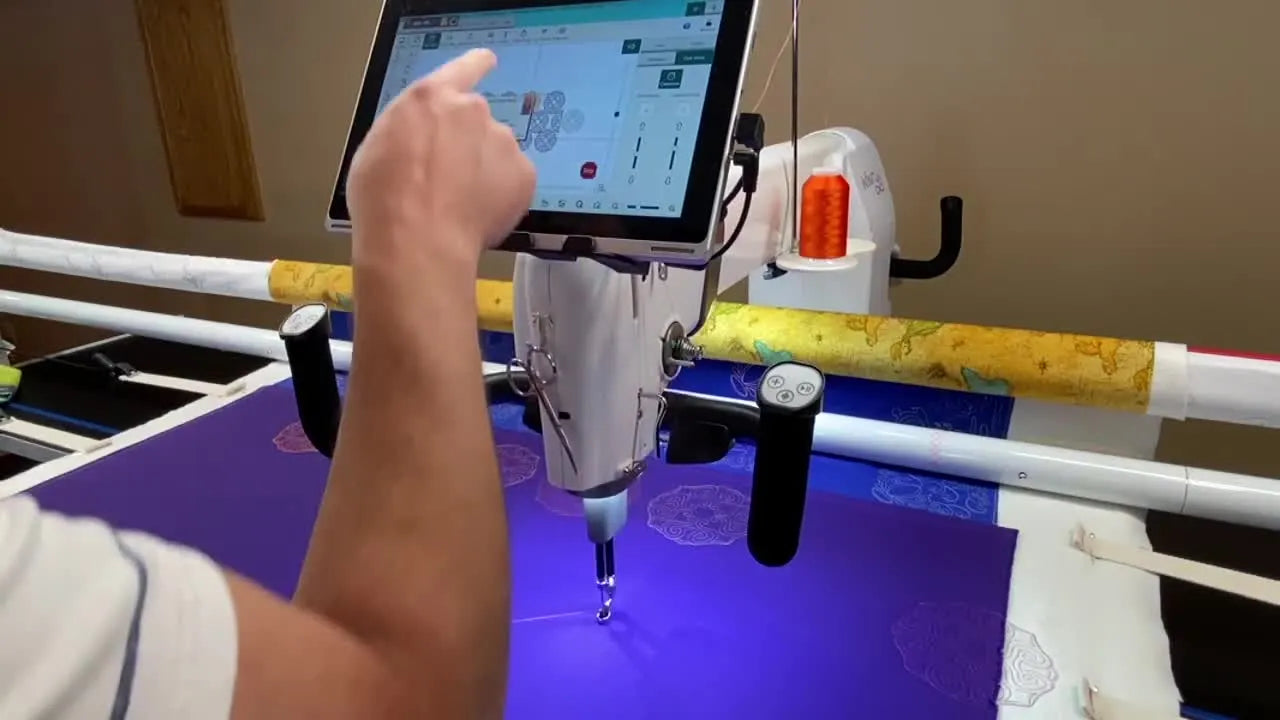

In a recent technical stitch-out, industry expert Adam ran five popular 40wt threads on a semi-industrial machine (Handi Quilter Amara). He tested King Tut (cotton), Omni (standard poly), and high-sheen Trilobal Polys (Magnifico/Fantastico) back-to-back.

The magic wasn’t the brand names—it was the behavioral physics of the fibers.

To the novice, thread happens by accident. To the operator, thread is a variable to be managed. This guide takes that raw data and rebuilds it into a Shop-Floor Standard Operating Procedure (SOP). Whether you are running a single-needle home machine or a SEWTECH multi-needle production beast, this is how you master tension without losing your mind.

The "Blind Spot" of Tension Numbers

Here is the first truth I tell every apprentice: Your machine’s tension screen is a guide, not a gospel.

Novices beg for a "Magic Chart" (e.g., "Set Thread A to 4.2 and Thread B to 5.0"). Experts know this chart doesn't exist. Why?

1. Calibration Drift: Two identical machines often read "4.0" differently due to spring fatigue.
2. Dye Drag: Black thread is often thicker/stiffer than White thread because it is saturated with pigment.
3. Spool Variance: Humidity and age change how thread flows.

The Expert Strategy: Adopt the "Foundation First" method. Set your bobbin tension once to a known standard, and do all your fine-tuning on the top tension knob. Think of the bobbin as the foundation of a house—pour it solid and don't touch it. Then, adjust the roof (top tension) to match the weather (thread type).

Phase 1: The "Hidden" Prep (Do Not Skip)

Adam’s test used a specific baseline: a Size 18 needle (Metric 110) and 10 Stitches Per Inch (SPI).

Critical Calibration Note: Size 18 is standard for longarm quilting with thick thread. For standard embroidery on garments, this is too large and will punch holes in your fabric.

• Embroidery Standard: Use a 75/11 or 90/14 Topstitch needle.
• The Lesson: Keep your needle consistent during testing. Don't blame the tension if you changed the needle type simultaneously.

Pre-Flight Checklist (Prep)

• Check the Needle: Is it fresh? Run your fingernail down the tip. If you feel a "catch" or burr, bin it. A burred needle shreds thread regardless of tension.
• The "Floss" Test: With the presser foot down, pull the thread near the needle. It should feel smooth but resistant, like pulling dental floss between tight teeth. If it jerks, the thread isn't seated in the discs.
• Consumables Check: Have you cleaned the lint from the bobbin area? (Hidden Consumable: Compressed Air or a Brush). Lint changes bobbin drag significantly.

Warning: Mechanical Safety. Keep fingers, scissors, and loose sleeves away from the needle bar when the machine is powered. A servo motor has high torque; if your finger is in the "danger zone" when you accidentally hit the start button on a touchscreen, the needle will pierce bone.

Phase 2: The Change-Over (Speed vs. Safety)

In production shops, we rarely unthread the whole machine. We use the Tie-On Method.

1. Cut the old thread at the spool pin.
2. Tie the new thread to the old thread (Square knot, tight tails).
3. Pull the old thread from the needle end until the new thread comes through.

The "Slippery" Risk: Slick threads (Trilobal Poly/Rayon) love to jump out of the tension discs during this pull-through. If you miss this, you will get a "bird's nest" instantly.

Workflow Upgrade: If you are struggling to manage spools while holding a heavy garment, this is where your physical setup matters. A messy workspace leads to snagged threads. Organizing your station with tools like a machine embroidery hooping station can stabilize your workflow, allowing you to focus purely on the threading path without wrestling with the fabric.

Phase 3: Fiber Behavior Analysis

1. Cotton (King Tut 40wt)

• Physics: Cotton has high surface friction (it's fuzzy). It grabs the tension discs.
• Visual: Matte finish. No shine.
• Adjustment: It usually requires a "standard" tension.
• The "Sensory" Check: It sounds louder going through the guides—a dry "shhh" sound. Expect lint buildup; clean your bobbin case every 2-3 bobbin changes.


2. Standard Polyester (Omni 40wt)

• Physics: Smooth, consistent, strong. The workhorse.
• Visual: "Eggshell" sheen. Clean definition.
• Adjustment: Often runs "looser" than cotton because it has less friction. You might need to tighten your top tension slightly (+5 to +10%) compared to cotton to pull the knot tight.
• Beginner Trap: Beginners love Poly because it rarely breaks. However, if your top tension is too loose, you see loops on top. If too tight, you see white bobbin thread on top (the "Railroad Track" effect).


3. The "Wild Card": Variegated & Dyed Threads

Adam notes that Black thread (heavy dye) acts differently than White thread.

• The Rule: Darker threads are often slightly thicker/stiffer. They add their own drag. You may need to lower mechanical tension slightly to compensate.
• Variegated: Watch the transition points. If the thread changes from dyed to un-eyed sections, tension availability can fluctuate micro-scopically.


Phase 4: The Trilobal Challenge (High-Sheen)

Threads like Magnifico and Fantastico are Trilobal Polyesters. They are triangular in cross-section to reflect light like a prism.

The Challenge: They are slippery and stretchy. The Symptom: If you use "Cotton Tension" on Trilobal, the thread stretches like a rubber band. When the needle retracts, the thread snaps back, puckering the fabric or breaking instantly.

The Fix:

1. Lower Top Tension: You typically need to loosen top tension by 10-15%.
2. Path check: Ensure it hasn't jumped out of the pretension guide.


The Vital "Seat check"

Adam emphasizes physically pulling the thread into the tension discs.

• Sensory Anchor (Sound): Listen for a distinct "Click" or "Thump" as the thread slides between the metal discs.
• Sensory Anchor (Touch): If the thread feels "weightless," it is NOT seated.

Production Reality: Often, tension issues are actually "Fabric Movement" issues. If your fabric is flagging (bouncing) in the hoop, it jerks the thread. This is why pros move away from traditional screw-hoops for bulk work. Using magnetic embroidery hoops provides consistent, clamping pressure that holds fabric flat like a drum skin, eliminating the "flagging" variable that mimics bad tension.

Phase 5: Troubleshooting & Stability

Decision Tree: Fabric + Thread → Stabilizer Choice

The lighter the fabric or the shinier the thread, the more support you need.

1. Scenario A: Woven Cotton + Standard Poly.
   • Solution: Medium Tearaway or Cutaway. Standard tension.
2. Scenario B: Stretchy Knit (T-Shirt) + Any Thread.
   • Solution: No-Show Mesh Cutaway. (Tearaway will result in broken stitches when the shirt stretches).
3. Scenario C: High-Sheen Trilobal + Any Fabric.
   • Solution: Use a smooth Top-Soluble topping (Solvy) to prevent the thin thread from sinking into the fabric pile.
4. Scenario D: Bulky Items (Bags/Jackets).
   • Solution: If you are fighting to close the hoop, you are distorting the fabric. Upgrade your tooling. An embroidery magnetic hoop removes the need to force inner and outer rings together, preserving fabric usage and reducing physical strain.

Troubleshooting: Symptom to Cure

Where to Go From Here: The Upgrade Path

Once you master tension, your next bottleneck will be Capacity.

If you are stitching for profit, "fighting the machine" costs you money.

1. Level 1 (Technique): Use the checklist below. Master the "Tie-on" method.
2. Level 2 (Workflow): If you are doing repeats (logos, patches), manual hooping consumes 50% of your time. Installing a magnetic hooping station dramatically reduces load time and ensures straight placement every time.
3. Level 3 (Scale): If you are producing 50+ items a week, a single-needle machine is your anchor. Moving to a SEWTECH Multi-Needle machine allows you to preset tensions for 15 different colors/types once, and then just run, removing the change-over downtime entirely.

Warning: Magnet Safety Protocols. Industrial-strength magnetic hoops are powerful. They can pinch skin severely causing blood blisters. Never place them near pacemakers or sensitive electronics. Always slide the magnets apart; do not pry them.

Final Operation Checklist (Post-flight)

• Visual: Check the back of the design. Ideally, you want to see 1/3 bobbin thread in the center of the column, with top thread wrapping slightly to the back.
• Tactile: Run your finger over the satin stitches. They should feel firm, not squishy (too loose) or bullet-hard (too tight).
• Path: Did the thread jump out of the take-up lever? (Common on high speeds).
• Speed: Start new threads at a lower SPM (e.g., 600 SPM) before ramping up to 1000+.

Thread tension isn't magic; it's just physics. Respect the fiber, clear the path, and stabilize your foundation. Now, go stitch with confidence.

For more insights on optimizing production workflows, many users search for how to use magnetic embroidery hoop guides to further reduce fabric distortion issues.

FAQ

• Q: On a Handi Quilter Amara or similar embroidery-capable machine, why do thread tension numbers not transfer reliably between two “identical” machines?
  A: Thread tension screen numbers are a reference, not a universal standard, so two machines can read the same number but pull differently.
  • Keep the bobbin tension as the fixed baseline and do fine-tuning with top tension only.
  • Re-test after any change in thread color (especially black) because dye load can add drag.
  • Standardize one test setup at a time (same needle, same stitch settings) to avoid false conclusions.
  • Success check: The stitch balance looks consistent even when the screen number stays the same from run to run.
  • If it still fails: Re-thread with presser foot raised, then repeat the “floss” pull test to confirm the thread is seated in the tension discs.
• Q: On an embroidery machine, how can the “floss test” confirm the top thread is seated in the tension discs before pressing Start?
  A: Do the floss test with the presser foot down; the thread should pull smoothly with firm, even resistance (not jerky, not weightless).
  • Lower the presser foot to engage the tension system, then pull the thread near the needle.
  • Re-thread the entire top path if the pull feels jerky or suddenly goes slack (common when the thread missed the discs).
  • Physically seat the thread into the discs until a distinct “click/thump” is felt or heard.
  • Success check: The pull feels like dental floss between tight teeth—smooth but resistant.
  • If it still fails: Inspect the path for a missed guide or take-up lever jump-out, especially at higher speeds.
• Q: For garment embroidery, why can a Size 18 / Metric 110 needle cause fabric holes even when thread tension looks “correct”?
  A: Size 18/110 is a quilting baseline and is often too large for standard garment embroidery, so it can punch holes regardless of tension settings.
  • Switch to a 75/11 or 90/14 Topstitch needle for typical embroidery on garments.
  • Replace the needle if a fingernail “catch” or burr is felt; a burred needle shreds thread and mimics bad tension.
  • Keep the needle type consistent while testing tension so the result reflects tension—not needle changes.
  • Success check: Satin stitches look clean without visible needle holes or shredded thread.
  • If it still fails: Re-check stabilizer choice and fabric movement in the hoop, since flagging can trigger repeated thread stress.
• Q: During the tie-on method on a multi-needle embroidery machine, why can Trilobal polyester or rayon instantly create a bird’s nest at the start?
  A: Slick threads can slip out of the tension discs during pull-through, so the machine starts sewing with no effective top tension and nests immediately.
  • Tie on carefully, then slow down and re-seat the thread into the tension discs before sewing.
  • Re-thread the top completely if there is any doubt (do not “hope it’s fine” with slippery thread).
  • Start the new thread at a lower speed (e.g., 600 SPM) before ramping up.
  • Success check: The first few stitches form normally with no looping or piling underneath.
  • If it still fails: Stop, raise presser foot, re-thread from spool to needle, and confirm the thread did not miss the pretension guide.
• Q: On an embroidery machine, what causes “white bobbin thread showing on top” (railroad tracks) and what is the quickest correction?
  A: White bobbin showing on top usually means the top tension is too tight, so loosen the top tension first before touching the bobbin.
  • Loosen top tension in small steps and run a short test section.
  • Check the backside balance target: about 1/3 bobbin thread centered in the stitch column with top thread wrapping slightly to the back.
  • Only evaluate bobbin tension after top tension corrections, using a controlled bobbin “drop test.”
  • Success check: The top surface no longer shows bobbin “tracks,” and the underside shows a clean, centered bobbin ratio.
  • If it still fails: Inspect for thread path snags or a tension-disc seating issue that can masquerade as “too tight.”
• Q: When Trilobal polyester thread (Magnifico/Fantastico) keeps puckering fabric or breaking, what top tension change is a safe starting point?
  A: Trilobal polyester is slippery and stretchy, so a safe starting point is to loosen top tension about 10–15% compared to a cotton baseline.
  • Loosen top tension, then confirm the thread has not jumped out of the pretension guide.
  • Add appropriate surface support (a smooth water-soluble topping) when needed so the fine, shiny thread doesn’t sink.
  • Reduce speed for the first test run before returning to higher SPM.
  • Success check: The stitch lays flat without puckering, and the thread runs without sudden snap-backs.
  • If it still fails: Check for fabric flagging in the hoop, because bouncing fabric can imitate tension problems.
• Q: For hoop burn, puckering, and fabric flagging during bulk embroidery on jackets or bags, when should operators move from technique fixes to magnetic embroidery hoops or SEWTECH multi-needle machines?
  A: Use a tiered approach: optimize technique first, upgrade to magnetic hoops when hooping force and distortion are the bottleneck, and consider a multi-needle machine when changeovers and volume become the main cost.
  • Level 1 (Technique): Stop forcing the hoop closed, stabilize correctly for the fabric, and verify stitch balance on the design back.
  • Level 2 (Tooling): Use magnetic hoops to apply consistent clamping pressure and reduce distortion/flagging that mimics bad tension.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when frequent thread changes and repeat jobs demand preset color setups and reduced downtime.
  • Success check: Fabric stays drum-flat in the hoop, stitch balance remains stable across repeats, and re-hooping time drops noticeably.
  • If it still fails: Reassess design density and confirm the item is not being distorted during hoop closure.
• Q: What are the key safety rules for servo-driven embroidery machines and industrial-strength magnetic embroidery hoops during tension testing and hooping?
  A: Treat the needle area and magnets as pinch-and-puncture hazards: keep hands clear of the needle bar when powered, and slide magnets apart—never pry them.
  • Keep fingers, scissors, and loose sleeves out of the needle “danger zone,” especially around touchscreen start controls.
  • Handle magnetic hoops by sliding components apart to avoid severe pinches and blood blisters.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: Hoop installation and test runs are completed without rushed hand placement near the needle or magnet pinch points.
  • If it still fails: Stop the machine, power down before re-threading or re-positioning, and restart at a reduced speed for the next test.
