A 10-Minute In-the-Hoop Luggage Handle Wrap on a Brother 5x7 Hoop (Plus the Floating Trick That Prevents Shifts)

If you’ve ever stared at an In-The-Hoop (ITH) project and felt that familiar tightening in your chest—thinking, “This is going to shift, pucker, or turn into a bird’s nest”—take a breath. We are going to deconstruct the fear.

This luggage handle wrap is not just a project; it is a masterclass in layer management. It is one of the friendliest ITH builds you can run on a home machine, and it stitches fast (about 10 minutes of active needle time).

What makes this workflow superior is the engineering: you hoop stabilizer only, stitch a "placement map," and then float your batting and fabric. When executed with the right parameters, it yields a clean, commercial-grade finish that is repeatable for high-volume gifting or sales.

The Calm-Down Primer: Why This ITH Luggage Wrap Is Easier Than It Looks on a Brother Embroidery Machine

Beginners often fear ITH projects because they feel "blind" once the layers stack up. Jerry’s method removes that blindness. The design literally teaches you where to put materials step-by-step. The first stitches strike directly onto the bare stabilizer to create a placement line, eliminating the guesswork of centering a fabric sandwich.

However, in my 20 years of analyzing embroidery failures, two specific variables trip people up on wraps like this:

1. Hoop Inertia & Drag: Hooping too much bulk (fabric + batting + stabilizer) creates a "trampoline effect" where the fabric bounces, causing registration errors.
2. Geometry Failure: Under-trimming curves results in a wrap that feels stiff, lumpy, and amateur, rather than crisp and ergonomic.

This tutorial solves the first by hooping stabilizer only, and solves the second with a precise clipping regimen.

The “Hidden” Prep Pros Do First: Stabilizer Choice, Fabric Cuts, and Thread Planning for an ITH Wrap

Before you power on the machine, we need to gather materials that ensure success. In professional embroidery, 90% of the quality is determined at the prep table.

The "Hidden" Consumables List:

• Needles: Start with a fresh 75/11 Embroidery Needle. If you are using thick batting or heavy canvas, have a 90/14 Topstitch Needle on standby for the final assembly pass.
• Adhesion: A can of temporary spray adhesive (like Odif 505) or embroidery tape (for holding floated layers).
• Marking: A water-soluble pen or chalk (just in case).

The Core Material List:

• Hoop: A 5x7 hoop or 6x10 hoop. (The 5x7 is the sweet spot for luggage handles).
• Stabilizer: Medium-weight Cutaway (2.5 - 3.0 oz). Do not use Tearaway. Luggage wraps endure constant friction and pulling; Tearaway will disintegrate inside the wrap, leaving it limp.
• Fabric: Two pieces of cotton woven fabric, cut to 7" x 9".
• Batting: One piece of low-loft cotton or polyester batting, 7" x 9".
• Threads:
  • Bobbin: Standard 60wt or 90wt embroidery bobbin thread (white).
  • Top 1: Yellow 40wt embroidery thread (for placement and quilting).
  • Top 2: Lime Green 40wt embroidery thread (for monograms).
  • Top 3: Regular sewing thread (polyester) for the final construction seam. This is crucial for durability.
• Hardware: Velcro hook-and-loop tape (sew-on type, not adhesive-backed), approx 3–5 inches.
• Tools: Small double-curved scissors and a point turner (or a chopstick).

Prep Checklist (The "Pre-Flight" Safety Check):

• Cut Check: Verify your two cotton pieces and one batting piece are at least 7" x 9". Skimping here leads to "hoop pop" later.
• Stabilizer Check: Cut your Cutaway stabilizer 2 inches larger than your hoop on all sides.
• Thread Queue: Line up your spools physically in order: Yellow -> Green -> Sewing Thread.
• Bobbin Check: Ensure your bobbin is at least 50% full. Running out during the quilting phase creates a visible splice.
• Hardware Ready: Have the Velcro cut now. Don't scramble for it later.


The Counter-Sink Trick on a Brother 5x7 Hoop: Hooping Stabilizer Only Without Wrinkles or Slack

Jerry hoops stabilizer only, which is the gold standard for ITH registration. But he adds a nuanced move: he "counter sinks" the stabilizer.

How to do it:

1. Hoop your stabilizer firmly.
2. Press the inner hoop down just past the lip of the outer hoop (about 1-2mm).

The Physics: This creates a microscopic "tray" that allows the stabilizer to sit flush against the machine's needle plate (bed). By reducing the gap between the bed and the material (a chaotic space called "flagging"), you reduce needle deflection and thread breakage.

Sensory Anchor - The Tension Check: Tap the hooped stabilizer with your fingernail.

• Correct Sound: A clear, sharp "thump" like a drum.
• Incorrect Sound: A dull, paper-like rattle (too loose) or a high-pitched "ping" (too tight).
• Correct Feel: Taut, but with a tiny bit of give. If you pull the edges and it deforms into an oval, it's too tight.

If you struggle with the standard brother 5x7 hoop mechanism—specifically the "Hoop Burn" (shiny ring marks) or hand fatigue from tightening the screw—this is the friction point where professionals upgrade.

Warning: Mechanical Safety. Keep fingers strictly on the outer rim of the hoop when locking the lever. The cam-lock mechanism snaps shut with force. Also, ensure the tightening screw is not obstructing the carriage arm path.

On-Screen Monogram Editing on a Brother Embroidery Machine: Centering Letters Inside the Wrap Outline

This step is purely cognitive setup. Jerry uses the machine’s Embroidery Edit function to add "PCG."

1. Input: Type your letters.
2. Alignment: Select the "Center" alignment icon.
3. Scale: Check the size. For a handle wrap, keep the monogram height under 1.5 inches.
4. Visual Centering: Nudge the design into the visual center of the wrap rectangle.

The "Visual Center" Trap: The physical center of the design file includes the tabs that overlap for the Velcro. The visual center (where the eye looks on a handle) is slightly offset from the Velcro tabs.

• Tip: If you plan to make dozens of these, take a photo of your screen coordinates once you find the perfect center. Use that as your standard operating procedure (SOP).

When mastering hooping for embroidery machine techniques, relying on software centering is safer than manually guessing fabric position. Trust the machine's grid.

The First Stitch That Saves the Whole Project: Running the Placement Line on Bare Stabilizer

Load your Yellow thread. Lower the presser foot. Run Color Stop #1.

The Action: The machine stitches a rectangle directly onto the stabilizer. The result: A perfect "map."

Troubleshooting - The "Birds Nest" Check: Look at the back of the hoop after this step. If you see a mess of loops, re-thread your top tension immediately. Catching tension issues on the placement line is cheap (waste of stabilizer); catching them on the final satin stitch is expensive (waste of fabric).

The Floating Sandwich Method: Placing Batting and Cotton Fabric So It Doesn’t Creep

This is the moment of highest risk for beginners: The Float.

The Method:

1. Layer 1: Place the Batting perfectly covering the stitched placement rectangle.
2. Layer 2: Place Fabric Piece A (Face Up) directly on top of the batting.
3. Secure: Jerry holds it by hand. Beginner recommendation: Use a light mist of 505 spray or two strips of painter's tape on the corners.

The Physics of Creep: As the foot moves, it pushes a "wave" of fabric ahead of it. If the fabric isn't secured, that wave builds up until it creates a pleat.

If you find yourself holding your breath trying to keep the fabric flat while the needle moves near your fingers, your toolset is limiting you. This dangerous friction is why production shops use a floating embroidery hoop setup (often magnetic), which clamps the stabilizer taut while leaving the top clear for safe, hands-free floating.

Quilting in the Hoop: Stitching the Yellow Cross-Hatch Without Panic Over Small Skips

The machine will now stitch the cross-hatch quilting pattern (Color Stop #2).

Speed Control: Do not run this at 1000 stitches per minute (SPM).

• Recommended Speed: 600 - 700 SPM.
• Why? You are stitching through Stabilizer + Batting + Fabric un-hooped. High speed creates vibration that shifts the un-hooped layers. Slow down for precision.

The Skip Reality: In the video, Jerry notes a small skip and ignores it. This is valid only for fill patterns.

• Safe Skips: Inside the quilting field where texture hides imperfections.
• Fatal Skips: On the border outline or lettering. If it skips here, stop the machine, back up 10 stitches, and re-stitch.


The Color-Stop Jump: Skipping Stop #4 to Stitch Lime Green Initials, Then Returning Safely

This specific design requires a "Logic Jump." The file has a sequence, but Jerry modifies it live.

1. The Skip: He uses the +/- key to skip the step that would sew the back on.
2. The Change: Switch to Lime Green thread.
3. The Action: Stitch the monogram (Initials) now, while the back of the wrap is still accessible (so the ugly bobbin threads of the letters will be hidden inside later).

Sensory Anchor - The "Burial" Sound: Listen to the sound of the monogram stitching. It should be a soft, rhythmic thud-thud-thud. If you hear a sharp slap-slap, your top tension is too loose, or the foot is too high.

If you plan to run batch orders (e.g., 50 wraps for a corporate retreat), manually jumping steps is an error-prone nightmare. This is the operational ceiling of basic machines. High-efficiency shops use magnetic embroidery hoops combined with multi-needle machines (like SEWTECH models) where color sequence is programmable, eliminating this human error risk entirely.

The Right-Sides-Together Moment: Adding the Backing Fabric and Switching to Regular Sewing Thread

Go Back: Use the +/- key to return to the previously skipped color stop.

The Critical Switch: Remove the embroidery thread. Thread the needle with Regular Polyester Sewing Thread.

• Why? Embroidery thread (rayon/poly) has high sheen but lower tensile strength. Seams stitched with embroidery thread can pop when the luggage handle is gripped tightly.

The Placement: Place Fabric Piece B (Backing) Right Side Down (Right-Sides-Together/RST) on top of the stack. Ensure it covers the entire design including the seam allowance.

Checkpoint: Smooth it flat. Any wrinkle here becomes a permanent pucker.

Unhoop, Then Trim Like You Mean It: 1/4" Seam Allowance, Inner Corners, and V-Notches That Remove Bulk

Pop the project out of the hoop. Now, we sculpt.

1. Gross Trim: Cut around the entire perimeter, leaving a 1/4 inch seam allowance. Do not leave 1/2 inch—it’s too bulky.
2. Clip Curves: On the rounded ends, make small snips perpendicular to the seam (every 1/2 inch).
3. V-Notch: Cut small triangles out of the convex (outward) curves. This removes material that would otherwise bunch up inside.
4. Inner Corners: Clip diagonally almost to the stitch line at any inner corners.

Sensory Check: Squeeze the seam allowance. If it feels thick and ropey, you haven't trimmed enough batting. Peel back the layers and trim the batting only all the way down to 1/8 inch from the seam.

Turning and Pressing Without Lumps: Batting Trim, Point Turner Control, and Glue Basting the Opening

Turn the wrap right-side out through the turning gap. Use a point turner to gently push the curves out.

The "Pro" Glue Trick: Instead of pinning the raw edges of the turning gap closed (which distorts the fabric), use a tiny smear of Elmer’s School Glue or a fabric glue stick.

1. Fold the raw edges inside.
2. Apply glue.
3. Finger press for 10 seconds.
4. Iron: Press the entire wrap flat with steam. This sets the glue and compresses the batting.

Expected Outcome: The gap should be invisible, and the wrap should lie flat as a pancake.

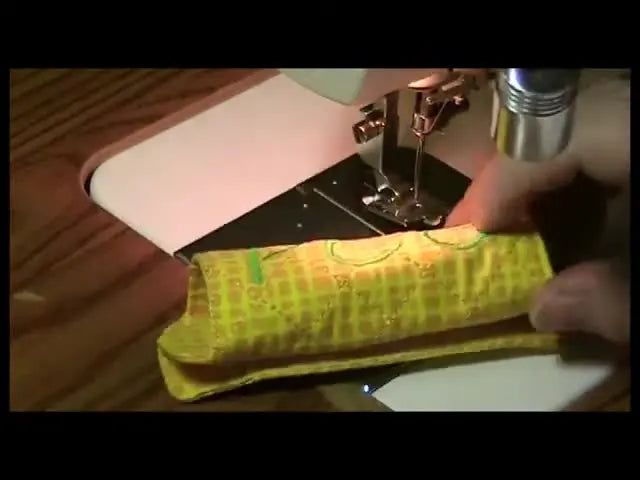

The Crisp Edge Finish: Top-Stitching a Scant 1/8" and Closing the Turning Opening in One Pass

Move to your sewing machine (or switch your embroidery machine to sewing mode if it’s a combo).

The Task: Top-stitch around the entire perimeter at 1/8 inch (3mm) from the edge.

• Function 1: It looks professional.
• Function 2: It permanently closes the glue-basted gap.
• Function 3: It prevents the layers from shifting during use.

Ergonomics Check: If you are fighting to hold this small item flat while guiding it, your wrist position is wrong. Lower your chair so your elbows are at 90 degrees. Fatigue leads to crooked stitches.

Velcro Placement That Actually Wraps a Handle: Centering the Hook-and-Loop and Stitching It Down Securely

Cut your Sew-On Velcro (approx 4 inches).

1. Hook Side (Rough): Stitch to the underside of one tab.
2. Loop Side (Soft): Stitch to the top side of the opposing tab.

Why Sew-On Velcro? Never use adhesive-backed Velcro on a sewing machine. The adhesive gums up the needle, causing skipped stitches and thread shredding instantly.

Checkpoint: Before sewing, physically wrap the handle into a cylinder. Ensure the Velcro strips align perfectly.

The “Will This Fit My Small Hoop?” Reality Check: 4x4 Limits and a Smart Workaround

A common question: "Can I do this in a 4x4 hoop?"

The Hard Truth: Strictly speaking, you can shrink the file to fit 4x4, but the result will be too short to comfortably grip a heavy suitcase handle. Splitting the design is technically possible but mathematically painful to align.

The Workaround: Use your 4x4 hoop to embroider the monogram onto a piece of fabric. Then, switch to "analog mode"—cut your layers, make a sandwich, and sew the wrap entirely on your sewing machine using a paper pattern.

Decision Point: If you find yourself constantly hacking patterns to fit a small hoop, calculate the value of your time. Upgrading to a machine with a 5x7 or 6x10 field isn't just about size; it's about workflow. For existing 5x7 owners, adding a brother 5x7 magnetic hoop is a cheaper bridge step that drastically reduces the frustration of hooping stabilizer for projects like this.

A Stabilizer Decision Tree for This ITH Wrap: Cutaway vs Tearaway (and When to Change Your Mind)

Follow this logic path to ensure structural integrity:

Start → Is this wrap for heavy travel or light decorative use?

• Heavy Travel (Standard):
  • Decision: Medium Weight Cutaway (2.5oz).
  • Why: Keeps the wrap stiff; withstands handle torque; stitches won't distort over time.
• Light/Gift Use (Soft feel preferred):
  • Decision: Tearaway (Only if using stiff fabric like canvas).
  • Risk: Quilting stitches may pull loose after several uses.
• Mass Production (Selling):
  • Decision: Fusible Cutaway.
  • Why: Ironing the stabilizer to the fabric eliminates shifting completely, guaranteeing every unit is identical.

Troubleshooting the Scary Stuff: Shifting Fabric, Bulky Curves, and “Why Did My Letters Look Off?”

Diagnose your failures using this Symptom-Cause-Fix matrix.

Symptom: The fabric creeps and the quilting looks skewed (pleats)

• Likely Cause: The floated fabric wasn't "anchored" before the needle hit it.
• Quick Fix: Use spray adhesive or tape.
• Pro Fix: Upgrade to a hooping station for embroidery workflow to ensure your stabilizer tension is drum-tight every time, reducing the bounce that causes creep.

Symptom: The wrap corners are square/lumpy instead of round

• Likely Cause: Failure to V-notch the convex curves.
• Quick Fix: Turn it back inside out and cut notches every 1cm around the curve.
• Prevention: Trim batting out of the seam allowance entirely.

Symptom: "Hoop Burn" (Shiny rings) on the fabric

• Likely Cause: Over-tightening a standard friction hoop on delicate cotton.
• Quick Fix: Steam/rub with a damp cloth (doesn't always work).
• Prevention: This is the primary trigger for buying a magnetic hoop for brother pe770 or magnetic hoop for brother pe800. Magnets hold simply by vertical force, eliminating the friction burn caused by shoving inner/outer rings together.

The Upgrade Path That Actually Makes Sense: When Magnetic Hoops and Multi-Needle Capacity Pay Off

We have just walked through a manual, single-needle process. It works, but it has friction points. Here is when you should stop "making do" and start "upgrading tools."

Upgrade Trigger #1: The Safety & Speed Limit

If re-hooping stabilizer hurts your wrists or takes longer than the embroidery itself, a magnetic hoop is your Level 1 upgrade. It allows you to clamp stabilizer in 2 seconds without unscrewing anything.

Warning: Magnet Safety. SEWTECH magnetic hoops are industrial strength. They can pinch fingers severely if allowed to snap together. Never place them near pacemakers, credit cards, or hard drives. Handle with respect.

Upgrade Trigger #2: Scaling from 5 to 50 Units

If you get an order for a wedding party or a corporate team, the single-needle method (Stop -> Snip -> Change Thread -> Thread Needle -> Go) becomes an unscalable bottleneck.

• The Diagnosis: If you spend more time changing thread than stitching.
• The Solution: This is where SEWTECH multi-needle machines enter the conversation. They hold all 6-10 colors at once. You program the sequence (including the pauses for placement), press start, and walk away.

Operation Checklist (Sequential Execution):

1. [ ] Hoop: Stabilizer Only (Counter-sink technique).
2. [ ] Run Step 1: Placement Line (Yellow).
3. [ ] Float: Batting + Facric (Face Up). Secure with tape/hands.
4. [ ] Run Step 2: Quilt Stitch (Yellow). Monitor for creep.
5. [ ] Manual Override: Skip next step -> Switch to Green Thread -> Run Monogram.
6. [ ] Manual Override: Return to skipped step -> Switch to Sewing Thread.
7. [ ] Float: Backing Fabric (Face Down/RST).
8. [ ] Run Step 3: Final Seam Stitch.
9. [ ] Finish: Unhoop -> Trim 1/4" -> Notch -> Turn -> Glue -> Topstitch.


FAQ

• Q: What needle size should a Brother embroidery machine use for an ITH luggage handle wrap with batting and cotton?
  A: Start with a fresh 75/11 embroidery needle, and switch to a 90/14 topstitch needle only if the final seam pass struggles through thick layers.
  • Change: Install a new 75/11 needle before stitching the placement line.
  • Switch: Move to 90/14 only when using thicker batting or heavy canvas, especially for the construction seam.
  • Slow down: Run the quilting phase at about 600–700 SPM to reduce deflection through floated layers.
  • Success check: The needle penetrates cleanly with no repeated thumping or thread shredding.
  • If it still fails… Re-thread the top path and reduce speed before assuming the design file is the problem.
• Q: How can a Brother 5x7 embroidery hoop be hooped with stabilizer only using the counter-sink technique without wrinkles or slack?
  A: Hoop medium-weight cutaway stabilizer firmly, then press the inner hoop 1–2 mm past the outer hoop lip to “counter-sink” and reduce flagging.
  • Hoop: Tighten stabilizer only (no fabric or batting in the hoop).
  • Press: Push the inner ring slightly downward past the rim to form a shallow “tray.”
  • Tap-test: Check tension before stitching.
  • Success check: The stabilizer sounds like a clear drum “thump” when tapped and feels taut with a tiny bit of give (not ovaling when pulled).
  • If it still fails… Re-hoop and avoid over-tightening; excessive tightness can cause distortion and hoop-burn on later steps.
• Q: How do I check and fix a Brother embroidery machine bird’s nest after stitching the ITH placement line on bare stabilizer?
  A: Stop immediately and re-thread the top thread when loops appear on the back after Color Stop #1, because catching tension issues on stabilizer is the cheapest point to fix.
  • Inspect: Flip the hoop right after the placement rectangle stitches.
  • Re-thread: Completely re-thread the upper path with presser foot up, then lower the foot to stitch.
  • Restart: Re-run the placement line only after the back looks clean.
  • Success check: The back shows controlled stitches (not a wad of loose loops) and the machine sound becomes steady instead of “slappy.”
  • If it still fails… Replace the needle and confirm the bobbin is properly seated and has sufficient thread.
• Q: How can floated batting and cotton fabric be secured in an ITH luggage handle wrap so the quilting does not creep or pleat on a Brother embroidery machine?
  A: Float the batting and fabric over the stitched placement map and lightly anchor the corners with temporary spray adhesive or tape so the presser foot cannot push a fabric “wave.”
  • Place: Cover the placement rectangle fully with batting, then add Fabric Piece A face up.
  • Anchor: Use a light mist of temporary spray adhesive or two small pieces of tape on corners (beginner-safe approach).
  • Reduce vibration: Stitch quilting around 600–700 SPM instead of full speed.
  • Success check: The cross-hatch quilting stays square to the placement outline with no diagonal skew or trapped pleats.
  • If it still fails… Re-do the float and anchor more securely before the first quilting stitches land.
• Q: Why does an ITH luggage handle wrap look square or lumpy on the rounded ends after turning, and how do I fix the curve bulk?
  A: Trim to a true 1/4" seam allowance, clip the curves, and V-notch convex curves—then trim batting out of the seam allowance so the round ends can roll smoothly.
  • Trim: Cut the perimeter to 1/4" seam allowance (avoid leaving 1/2" bulk).
  • Clip: Snip perpendicular into rounded seams about every 1/2" and clip inner corners diagonally close to the stitch line.
  • Notch: Remove small V-shaped triangles from outward curves to eliminate bunching.
  • Success check: When squeezed, the seam allowance feels flat (not ropey), and the curve turns without hard lumps.
  • If it still fails… Turn it back inside out and trim batting only down to about 1/8" from the seam, then turn and press again.
• Q: What mechanical safety steps should be followed when locking a Brother embroidery hoop lever during ITH embroidery?
  A: Keep fingers on the outer rim only and confirm the tightening screw will not hit the carriage arm, because the cam-lock lever can snap shut with force.
  • Position: Hold the hoop by the outer rim while closing the lever—never between inner/outer rings.
  • Clear: Rotate/position the tightening screw so it cannot obstruct the carriage movement.
  • Pause: Stop the machine before touching the hoop area.
  • Success check: The lever closes smoothly without pinching, and the carriage moves freely without striking the screw.
  • If it still fails… Re-mount the hoop and re-check clearance before pressing start again.
• Q: What magnet safety rules should be followed when using SEWTECH magnetic embroidery hoops for stabilizer-only hooping in ITH projects?
  A: Treat SEWTECH magnetic hoops as industrial-strength clamps—control the snap to avoid finger pinches and keep magnets away from sensitive medical devices and magnetic media.
  • Control: Lower the magnetic frame halves together slowly; do not let them slam shut.
  • Protect: Keep hands clear of pinch points when the magnets engage.
  • Separate: Store and handle away from pacemakers, credit cards, hard drives, and similar items.
  • Success check: The hoop closes without a sudden snap, and the stabilizer is held evenly with no warping.
  • If it still fails… Use a slower, two-handed closing method and re-seat the stabilizer so the magnet force is distributed evenly.
