A 5-Minute ITH Heart Coin Pouch on Glitter Vinyl: Clean Edges, No Shifting, and Snaps That Actually Close

The ITH (In-The-Hoop) heart pouch is the definitive "gateway project" I recommend to every student moving from standard flat embroidery to structural construction. Ideally, it takes less than 15 minutes, consumes scraps you would otherwise throw away, and instills the fundamental rhythm of ITH logic: Placement → Tackdown → Backing → Final Assembly.

However, simple projects often mask complex physics. If you have ever pulled a vinyl project off the machine only to find the shape distorted or the edges rippled, you haven’t failed—you’ve just encountered the specific behavior of non-woven synthetics. Vinyl has "memory" but no elasticity; once you punch a hole or stretch it, there is no going back.

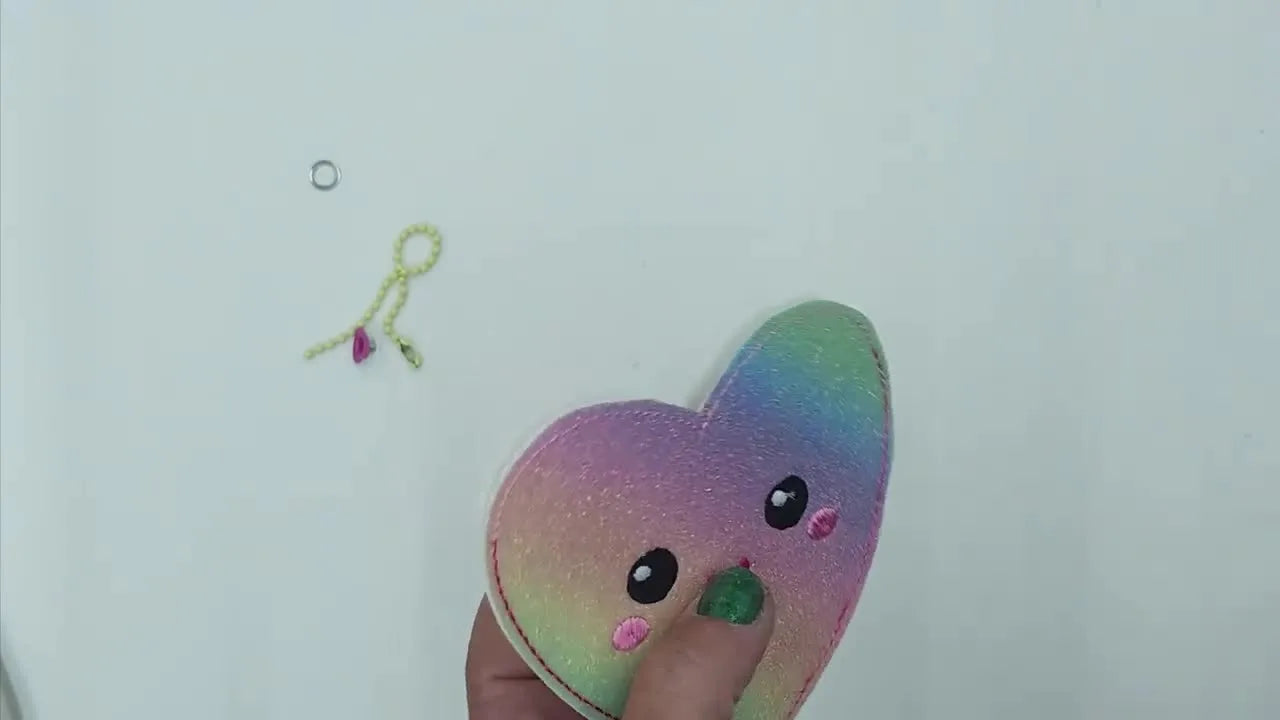

In this guide, we will reverse-engineer Rebecca’s heart pouch. We will move beyond just "following steps" to understanding the tension mechanics that create a professional finish. You will make a palm-sized (3–4 inch) pouch perfect for coins or earbuds, but more importantly, you will master the tactile skills required to handle unforgiving materials.

Gather the Exact Supplies for an ITH Heart Coin Pouch (Vinyl + Tear-Away + Snaps)

In my twenty years of shop experience, 80% of "machine errors" are actually "setup errors." Because we are working with vinyl—a material that creates high friction against the needle—your supply choice dictates your success rate.

The "Must-Have" Table Setup:

• Standard Embroidery Hoop: A 4x4 or 5x7 plastic grid hoop (or a magnetic frame if available).
• Stabilizer: Medium-weight Tear-Away. (Note: While I usually stress Cut-Away for wearables, Tear-Away is acceptable here because the vinyl is self-supporting and we need clean edges).
• Material: Rainbow glitter vinyl scraps (ensure they are pliable, not stiff upholstery grade).
• Needle: 75/11 Sharp or Titanium. Do not use a Ballpoint needle; it will struggle to pierce vinyl, causing drag and potential timing issues.
• Thread: 40wt Polyester.
• Hardware: Plastic KAM-style snaps (Size 20 is standard) + Awl.

The "Hidden" Consumables (The Pro Kit):

• Non-Permanent Tape: Painter’s tape or specific embroidery tape. Scotch tape leaves residue on the needle; avoid it if possible.
• Appliqué Scissors: Double-curved scissors allow you to trim inside the hoop without contorting your wrist.
• Micro-Tip Oiler: Just in case the needle bar gets dry from high-speed friction.


The “Hidden” Prep That Prevents Vinyl Shifting (Before You Stitch Anything)

Vinyl is unforgiving. Unlike cotton, which has a symbiotic relationship with thread, vinyl resists it. If you hoop vinyl directly in a standard hoop, the friction of the inner and outer rings creates "hoop burn"—permanent creases that ruin the aesthetic.

Therefore, we use the Floating Method. This means we hoop only the stabilizer, and the vinyl sits on top, secured by friction and stitches.

The Cognitive Shift: Do not think of "floating" as a shortcut. Think of it as "tension isolation." You are isolating the hoop tension to the stabilizer, allowing the vinyl to relax naturally on top. This prevents the "pucker" effect that happens when a stretched material snaps back after un-hooping.

One keyword you’ll hear in the community for this method is floating embroidery hoop, and its success relies on physics: the coefficient of friction between the vinyl and the stabilizer must be high enough to stop lateral movement until the tackdown stitch fires.

Prep Checklist (Do this BEFORE touching the machine)

• The "Bending" Test: Flex your vinyl scrap. If it feels like stiff cardboard, it will put too much stress on your hoop motors. It should flex easily.
• Bobbin Audit: Check your bobbin level. Running out of bobbin thread during an ITH final seam is a nightmare to fix without ruining alignment.
• Design Orientation: Ensure the heart is centered on your screen.
• Needle Clearance: Run your finger over the needle tip. If you feel any burr, change it. A burred needle acts like a saw blade on vinyl.


Hoop Tear-Away Stabilizer Tight, Then Run the Placement Stitch (Standard Embroidery Hoop)

The foundation of your pouch is the stabilizer tension. If your stabilizer is loose, your outline will register perfectly, but your fill stitches will pull the stabilizer inward, causing the infamous "white gap" misalignment.

The Process:

1. Loosen the hoop screw significantly.
2. Lay the Tear-Away stabilizer over the outer ring.
3. Press the inner ring down.
4. The Sensory Check: Tighten the screw. Pull the stabilizer gently from the corners to remove wrinkles. Tighten again. Tap the stabilizer with your fingernail. You should hear a drum-like "thump," not a paper-like rustle.
5. Load the hoop and run Step 1: The Placement Line.

Checkpoint: Inspect the stitched outline. Loops on top? Your top tension is too loose. White bobbin thread showing on top? Your top tension is too tight.

Why tight hooping matters (The Physics)

When the needle penetrates the stabilizer, it pushes down before it pulls up. This phenomenon is called "flagging"—the material bounces up and down with the needle.

• Loose Hooping = High Flagging. This causes skipped stitches and bird nesting.
• Tight Hooping = Zero Flagging. The needle enters clean and exits clean.

If you struggle with hand strength or consistency, this is where professional shops upgrade their infrastructure. Many use a hooping station for embroidery to use leverage rather than grip strength, ensuring every single hoop is "drum-tight" without causing Repetitive Strain Injury (RSI).

Float the Rainbow Glitter Vinyl Over the Placement Line (Cover Every Millimeter)

The Action: Place the vinyl right side up, completely covering the placement stitches.

The "Safe Zone" Rule: You need a margin of safety. Ensure the vinyl extends at least 0.5 inches (12mm) past the placement line on all sides. Vinyl can microscopicall "walk" or shift under the foot pressure; this margin is your insurance policy.

Pro Tip: The "Neutral Hand" Technique

When smoothing the vinyl down, use a "neutral hand." Do not pull or stretch the vinyl.

• Wrong: Stretching the vinyl like a bedsheet. (Result: When un-hooped, the vinyl retracts and the pouch warps).
• Right: Pat it down gently, ensuring contact, but let it lie in its natural resting state.

Stitch the Heart Tackdown and the Kawaii Face Details (Eyes, Mouth, Cheeks)

Machine Setting Adjustment: Before you press start, lower your speed. Vinyl heats up due to friction. If you run at 1000 SPM (Stitches Per Minute), the needle can heat up enough to melt the vinyl coating, gumming up the eye of the needle.

• Beginner Sweet Spot: 600 SPM.
• Expert Zone: 800 SPM (with titanium needles).

The Action: Run the tackdown stitch (secures the vinyl) and the decorative face details.

Sensory Check: Sound

Listen to your machine.

• Rhythmic "Thump-Thump": Good penetration.
• Sharp "Slap" or "Pop": The material is flagging (lifting up). Pause and press the material down near the foot (keep fingers safe!) or add tape to the edges.

Watch out: The Density Trap

Vinyl perforates like paper; it does not heal like fabric. If your design has extremely dense satin stitches for the eyes, it might essentially "cut" the vinyl out, leaving a hole. If you notice the vinyl tearing around the eyes, your density is too high—stop and use a lighter design or a thinner needle.

Flip the Hoop and Tape the Backing Vinyl So It Can’t Creep (Backing Layer Setup)

This is the single most common failure point for beginners. You must secure the back piece without seeing what you are doing.

The Sequence:

1. Remove the hoop from the machine arm (DO NOT remove the fabric from the hoop).
2. Flip the hoop over.
3. Place your second vinyl piece (the back of the pouch) right side facing out (covering the stabilizer).
4. Tape aggressively. Even if you think it's secure, add more tape.




Why tape matters here

Gravity is working against you. As the hoop moves rapidly on the X/Y axis (the pantograph), inertia will try to slide that backing vinyl off.

If you find yourself using yards of tape and still getting slippage, your tool might be the bottleneck. This is a classic scenario where magnetic hoops offer a massive Return on Investment. A magnetic system clamps both the top and bottom layers magnetically, often eliminating the need for sticky tape entirely because the clamping force is distributed 360 degrees, not just at the edges.

Warning (Safety): When re-attaching the hoop, ensure the "backing vinyl" isn't folded over under the hoop. Also, verify your tape is NOT in the path of the needle. If the needle hits the tape, it gums up instantly, leading to shredded thread.

Run the Final Seam Stitch to Build the Pouch (The Moment of Truth)

This stitch creates the structural integrity of the pouch.

The Action: Run the final "Bean Stitch" or Triple Stitch. Ideally, use a matching thread color for the bobbin now, as this stitch will be visible on the back.

Setup Checklist (Pre-Flight for Final Seam)

• Clearance Check: Lift the hoop slightly. visually confirm the backing vinyl hasn't peeled off.
• Flatness Check: Ensure the hoop is snapped firmly into the pantograph.
• Speed Check: Reduce speed to 600 SPM. This final stitch goes through: Stabilizer + Vinyl (Front) + Vinyl (Back). That is a dense sandwich. Slower speed equals higher needle penetration force.

Unhoop Without Warping the Seam, Then Tear Away Stabilizer Cleanly

The Action: Remove the hoop. To release the project, push the inner ring OUT rather than pulling the project UP. Pulling the project up can distort the warm vinyl.

Stabilizer Strategy: Rebecca suggests leaving the stabilizer inside. From an engineering standpoint, this adds necessary rigidity to the vinyl, preventing the snaps from tearing through the single layer of vinyl over time.

• Rule of Thumb: If it's a structural item (pouch), keep the stabilizer. If it's a draping item (shirt), remove it.

Trim the Heart Cleanly: Follow the Bean Stitch and Leave a Tiny Margin

Trimming is where "Homemade" becomes "Handmade."

The Technique: Using sharp embroidery scissors (curved tips help avoid snipping the stitches), trim around the pouch.

• The Margin: Leave exactly 1/8th of an inch (3mm). Too close? The seam unravels. Too far? It looks amateur.
• The Movement: Do not move the scissors. Move the project. Feed the heart into the cutting blades, rotating the vinyl with your left hand while lightly squeezing with your right. This ensures a fluid curve rather than jagged "stop-start" cuts.






Warning (Personal Safety): Keep your fingers behind the blade direction. Vinyl is tough to cut; if the scissors slip, they slip with force.

Install Plastic Snaps (and Optional Eyelet + Ball Chain) Without Cracking Vinyl

The snap is the mechanical stress point. A poorly installed snap will rip the vinyl after ten uses.

The mechanics of a good snap:

1. The Hole: Use an awl. Twist it to create a clean hole; don't just stab it. The hole should be tight on the snap prong.
2. The Press: Whether using hand pliers or a table press, ensure the cap (the smooth part) and the socket/stud are perfectly vertical. If you press at an angle, the internal plastic spike bends, and the snap won't close.


Operation Checklist (Hardware Installation)

• Verify Orientation: Before crimping, check twice: Cap on the outside? Socket on the inside?
• The "Click" Test: Once installed, snap and unsnap it 5 times immediately. It should click crisply. If it feels mushy, the internal spike didn't flatten correctly—remove and replace.
• Eyelet Placement: If adding a chain, place the hole near the edge but not through the stitch line.

A Fast Decision Tree: Stabilizer + Hooping Choices for Glitter Vinyl ITH Projects

Beginners often ask: "When do I need to upgrade my tools?" Use this logic path to decide.

Start here → What is your volume?

• Scenario A: The Hobbyist (1-5 pouches/month)
  • Method: Standard plastic hoop + Tear-Away + Heavy Taping.
  • Verdict: Cost-effective. Focus on manual technique and "floating" to avoid hoop burn.
• Scenario B: The Enthusiast (Gifting sets, 20+ pouches)
  • Pain Point: Hand strain from tightening screws; hoop burn marks on sensitive vinyl.
  • Solution: Upgrade to a magnetic embroidery hoop.
  • Why: Magnetic frames self-adjust to the thickness of the vinyl. You simply lay the top frame down, and it clamps. Zero hoop burn, zero screw-tightening fatigue. Best for fragile or thick materials.
• Scenario C: The Side Hustle (50+ pouches for Craft Fairs)
  • Pain Point: Production speed. Hooping takes longer than stitching.
  • Solution: Consider a magnetic hooping station paired with multiple magnetic frames.
  • Why: This standardizes placement. You hoop the next item while the machine stitches the current one, doubling your throughput. At this volume, consistency is your product.

Warning (Magnetic Safety): Professional magnetic hoops use Neodymium magnets. They snap together with immense force (some over 20lbs of pressure). Keep fingers clear of the pinch zone and keep away from pacemakers or sensitive electronics.

Troubleshooting the “Little Things” That Ruin ITH Pouches (Structured Diagnostics)

Use this Low-Cost to High-Cost table to fix issues. Always start at the top.

The Upgrade Path That Actually Makes Sense (When You’re Ready to Go Faster)

This heart pouch is a deceptively simple teacher. It teaches you that stabilization is everything.

If you enjoyed this project but found the hooping process frustrating, or if you plan to sell these, look at your workflow bottlenecks first.

• Problem: "I hate struggling with the screw and the thick vinyl popping out."
  • Solution: Magnetic Hoops. They are the industry standard for thick/delicate materials because they rely on vertical clamping force, not lateral friction.
• Problem: "I can't change threads fast enough for the face details."
  • Solution: This is the sign you are outgrowing a single-needle machine. Multi-needle machines (likethe SEWTECH ecosystem) allow you to set the colors once and let the machine run the entire sequence automatically.

Master the manual hoop first. Develop the "feel" for the tension. Once you understand the "why," the tools will help you scale the "how."

FAQ

• Q: Which stabilizer should be used for an ITH heart coin pouch made with glitter vinyl: medium-weight Tear-Away or Cut-Away stabilizer?
  A: Use medium-weight Tear-Away stabilizer as the default for this glitter vinyl ITH pouch, because vinyl is self-supporting and clean edges matter.
  • Hoop only the Tear-Away stabilizer drum-tight, then float the vinyl on top.
  • Keep the stabilizer inside the finished pouch if extra rigidity is needed for snap durability.
  • Success check: the placement line and tackdown stay aligned with no “white gaps” and the pouch feels firm, not floppy.
  • If it still fails, tighten hooping (reduce flagging) and confirm the vinyl is pliable (not stiff upholstery-grade).
• Q: How can a standard embroidery hoop be used on glitter vinyl without causing hoop burn ring marks on the vinyl?
  A: Do not hoop the glitter vinyl directly; float the glitter vinyl on top of hooped stabilizer to prevent hoop burn.
  • Hoop medium-weight Tear-Away stabilizer only, then stitch the placement line first.
  • Lay the vinyl right-side up over the placement line with at least a 0.5 in (12 mm) margin past the outline.
  • Secure edges as needed (painter’s tape/embroidery tape), but keep tape out of the needle path.
  • Success check: after unhooping, the vinyl shows no ring creases and the heart shape is not distorted.
  • If it still fails, stop stretching while smoothing (use a “neutral hand”) and add more margin so minor “walking” does not expose edges.
• Q: What is the correct “drum-tight” hooping standard for Tear-Away stabilizer in a 4x4 or 5x7 embroidery hoop to prevent flagging and “white gaps” on ITH vinyl projects?
  A: Hoop the Tear-Away stabilizer so tight it sounds like a drum when tapped, because loose stabilizer causes flagging and registration gaps.
  • Loosen the hoop screw, place stabilizer over the outer ring, then press the inner ring in evenly.
  • Tighten the screw, pull stabilizer gently from corners to remove wrinkles, then tighten again.
  • Run the placement line and inspect it immediately before adding vinyl.
  • Success check: tapping the hooped stabilizer makes a “thump” (not a papery rustle), and outlines do not shift into “white gaps.”
  • If it still fails, slow the machine down and re-check for flagging sounds (“slap/pop”) during stitching.
• Q: How should top thread tension be diagnosed on an ITH heart pouch placement stitch when loops appear on top or white bobbin thread shows on top?
  A: Use the placement stitch as the tension test: loops on top mean top tension is too loose; white bobbin thread showing on top means top tension is too tight.
  • Stitch only the placement line first, then pause and inspect the line before continuing.
  • Adjust top tension in small steps, then re-test on the next outline area or a test run.
  • Keep speed conservative on vinyl to reduce heat and drag while diagnosing.
  • Success check: the placement line looks even with no top loops and no bobbin “white” peeking on the front.
  • If it still fails, change to a fresh 75/11 sharp or titanium needle and confirm the needle tip has no burr.
• Q: Why does glitter vinyl gum up the embroidery needle or cause thread breaks during ITH stitching, and what machine settings and needle choice reduce the problem?
  A: Glitter vinyl can melt from needle friction; reduce speed to about 600 SPM and use a 75/11 sharp or titanium needle to cut heat and drag.
  • Lower machine speed before tackdown and details; avoid running vinyl at very high SPM.
  • Replace the needle if any burr is felt—burrs act like a saw and increase friction.
  • Avoid ballpoint needles on vinyl because penetration drag increases.
  • Success check: stitching sounds rhythmic (“thump-thump”) and thread runs without repeated breaks or gummy buildup.
  • If it still fails, pause and let the needle cool, then continue slower; confirm vinyl is pliable and not overly stiff.
• Q: How can backing vinyl be prevented from creeping or peeling during the final seam on an ITH heart pouch when the hoop is flipped over?
  A: Flip the hoop and tape the backing vinyl aggressively so inertia cannot slide it during fast X/Y movement.
  • Remove the hoop from the machine arm without unhooping, then flip it over.
  • Place the backing vinyl right-side facing out, fully covering the stabilizer, then tape heavily.
  • Re-attach the hoop and verify tape is not in the needle path and backing is not folded under the hoop.
  • Success check: before the final seam, lift the hoop slightly and visually confirm backing has not lifted or shifted.
  • If it still fails, tape closer to the design center (safely) and clear any machine-bed obstacles that may drag the vinyl.
• Q: What safety checks prevent needle damage, sticky residue, or finger injury when taping vinyl and stitching the final seam on an ITH heart pouch?
  A: Keep tape out of the needle path, keep fingers clear of the presser-foot area, and slow to 600 SPM for the final multi-layer seam.
  • Verify the hoop is snapped firmly into the machine and the backing layer is not folded under the hoop.
  • Use painter’s tape or embroidery tape rather than residue-heavy household tape when possible.
  • Reduce speed for the final seam because the needle is penetrating stabilizer + front vinyl + back vinyl.
  • Success check: the needle never strikes tape, thread does not shred suddenly, and the machine sound stays steady without sharp “pops.”
  • If it still fails, stop immediately, clean needle/tip area if residue is present, and switch to a fresh needle before restarting.
