A Big Patch Without the Headache: Dialing In the Brother Innov-is Duetta 4500D for Thick Duck Cloth (and Zero Hoop Slip)

Making a large custom patch can feel like a wrestling match—thick fabric won’t sit flat, hoops fight back, and one tiny threading mistake can turn the underside into a bird’s-nest mess. It triggers that universal sinking feeling: Did I just waste expensive material? Do I need to buy a better machine?

If you’re working on a Brother Innov-is Duetta 4500D (or any similar single-needle powerhouse), the good news is: this project is absolutely repeatable. The even better news is: once you understand why each step matters (not just what to do), you’ll stop wasting blanks and start producing patches you can confidently ship.

We are going to move beyond simple instructions and look at the "feel" of the process—the tension in your hands during hooping, the specific sound of a happy machine, and the exact data points that keep you safe.

The Calm-Down Moment: The Brother Innov-is Duetta 4500D Can Stitch Big Patches—If You Respect Thick Duck Cloth

The video’s patch is stitched on black duck cloth (canvas) with two layers of garden fabric used as cutaway backing. That stack is tough. Thickness changes everything in embroidery physics: hoop grip, fabric distortion, and how forgiving your tension is.

A lot of beginners panic when they see puckering, shifting, or a messy underside. They assume the machine is “too old” or “not good enough.” One commenter asked whether the Duetta is any good and worried it might break under pressure. The creator’s reply was practical: if you’re buying today, a newer, non-discontinued machine is often easier to service if something goes wrong.

However, from an engineering perspective, older machines like the Duetta are often built like tanks. If you already own this machine, you can get professional results by tightening your process—specifically your hooping mechanics and your first-minute audio-visual checks.

The “Hidden” Prep That Saves Patches: Duck Cloth + Garden Fabric Backing Cut to 17" x 11" (So the Hoop Isn’t Doing the Measuring)

In the video, the blank is cut to 17 inches by 11 inches so it fits the large hoop nicely with ample margin. Two layers of garden fabric (which acts similar to heavy-duty cutaway stabilizer) are cut first, then used as a template to cut the duck cloth.

This is one of those veteran moves that looks simple but prevents a chain reaction of mechanical failures:

• Uneven Clamping: If your backing is undersized, the hoop clamps unevenly. You might hear the hoop "creak" during stitching, which is the sound of fabric slipping.
• Grain Distortion: If your top fabric is undersized, you will subconsciously tug harder to make it fit, distorting the fabric grain. When you release the hoop later, the patch will warp.
• Hoop Torque: If your layers aren’t square, you’ll “tighten” the hoop into a twist, preventing it from snapping into the machine carriage smoothly.


Prep Checklist (Do this BEFORE you touch the hoop)

• Material Audit: Ensure you have two layers of stabilizer (Garden fabric or Heavy Cutaway).
• Size Verification: Confirm your blank is cut to 17" x 11" (or at least 2 inches larger than your hoop on all sides).
• Gravity Check: Lay everything on a flat surface (cutting mat). Do not hoop in your lap; gravity will fight you.
• Hidden Consumables: Have your Fray Check, sharp appliqué scissors, and a fresh needle (Size 90/14 or 75/11 depending on detail) ready.
• Safety Zone: Clear your workspace. Large hoops swing wide—ensure no coffee cups or scissors are within the carriage arm's radius.


The Screwdriver Hooping Ritual: Locking Thick Layers Into a Standard Brother Large Hoop Without Warping the Fabric

The creator loosens the tension screws on both sides of the hoop, stacks duck cloth over the two backing layers, presses the top hoop into the frame, then tugs the edges taut and tightens the screws using a small screwdriver.

Let's break down the physical mechanics of this step, because this is where 90% of failures happen.

• Loosen Both Sides: If one side is tight and the other is loose, you press the inner ring in at an angle. This creates a "pinch point" where fabric bunches, and a "slack point" where it will flag.
• Press, Then Tension: Seat the hoop fully before you start tightening screws. You should hear a dull thud as it seats, not a scrape.
• Sensory Check - The "Tautness": Thick duck cloth doesn’t stretch like a T-shirt. Do not aim for "drum tight" (which can damage the hoop on thick fabric). Aim for "Flat and Immoveable." When you run your hand over it, the fabric should not ripple.

If you are currently researching hooping for embroidery machine, understand this core principle: friction is your friend. The hoop must hold the fabric stack firmly enough that the needle’s repeated punches (up to 800 times a minute) cannot "walk" the material inward.

Pro Tip from the Field (The "Hoop Burn" Reality)

Using a screwdriver to crank down a standard plastic hoop works—but it comes at a cost. It creates "hoop burn" (permanent creases) and puts stress on your wrists. In a production environment, this friction is the enemy.

This is exactly where magnetic hoops/frames earn their keep. Unlike screw-based hoops that rely on lateral friction, magnetic hoops use vertical clamping force. This allows for faster loading, zero hoop bun (no friction burn), and massive reduction in hand strain.

If you are considering upgrading to a magnetic hoop for brother, use this simple ROI (Return on Investment) calculation: If you spend more than 2 minutes struggling to hoop a thick garment, or if you ruin 1 in 10 shirts due to hoop marks, the magnetic frame pays for itself in saved time and inventory.

Warning: Physical Safety
Keep fingers clear of the needle area when seating the hoop and when test-running the first stitches. A sudden start or a mis-seated hoop can cause needle strikes—shattering the needle and sending metal fragments flying. Always wear eye protection when stitching heavy canvas.

USB Loading on the Duetta 4500D: Find the Custom Folder Fast, Then Confirm the Design Size (11.66" x 4.17")

The video loads the design via USB, taps the USB button, then opens the custom folder where the file is stored. Before stitching, the machine screen shows the design preview and dimensions: 11.66" x 4.17", with three colors.

This is your "Pilot's Check." Stop for 10 seconds. On large patches, a wrong file or wrong orientation wastes a massive blank.

1. Check Orientation: Does the "top" of the design match the "top" of your hoop?
2. Check Size: Is the design inside the safety border?

If you are utilizing a specialized hoop for brother embroidery machine, such as a larger aftermarket frame, ensure the machine knows that frame is attached. If the machine thinks it has a 4x4 hoop attached but you are using a 5x7, it will refuse to sew or (worse) crash the carriage.

The Tension Move That Changes Everything: Dropping the Duetta Setting From 4.0 Down to 1.2

In the video, the creator explicitly lowers the on-screen tension from the default 4.0 down to 1.2.

This is a controversial move, but here is the logic. Canvas (Duck Cloth) is thick and creates high friction on the thread as it passes through. If your upper tension is too tight (standard 4.0), the thread will snap or pull the bobbin thread to the top. Dropping it to 1.2 relaxes the upper thread, allowing it to lay flat over the thick fabric grain.

Expert Calibration: Tension numbers are not universal. A "1.2" on a Brother Duetta might be a "2.5" on a Baby Lock.

• The Tactile Test: Thread your machine but don't put it through the needle. Pull the thread. It should feel like pulling dental floss—smooth usage resistance, not a struggle. If you have to wrap it around your hand to pull it, it's too tight.

If you are building a Standard Operating Procedure (SOP) for your brother embroidery machine large hoop projects, write down the tension value that worked for that exact fabric/backing combo. Don't guess next time.

Setup Checklist (Right BEFORE you press start)

• Digital Verification: Design shows three colors; size reads 11.66" x 4.17".
• Tension Dial: Set to 1.2 (or your machine's equivalent for heavy fabric).
• Hoop Security: Slide the hoop into the carriage until it clicks. Wiggle it gently. It should not move.
• Thread Path: Ensure the thread is not caught on the thread stand or spool pin.
• Clearance: Check that the excess fabric is not tucked under the hoop.


The Bobbin Winding Hack: A Binder Clip Thread Guide When You Don’t Have a Spool Stand

The creator notices the bobbin is low and winds a new one. Lacking a spool stand, he clips a red binder clip to the machine flap and routes the bobbin thread through the clip handles.

This is a smart “MacGyver” fix. Bobbin winding issues usually stem from slack. If the thread goes into the tension disk loosely, the bobbin will be spongy. Spongy bobbins cause bird nests. The clip adds necessary drag/tension.

He uses metal bobbins, winds a full bobbin, snips the thread, then drops the bobbin into the housing following the printed diagrams.

If you are shopping for embroidery machine hoops and accessories, do not ignore the basics: a dedicated thread stand is cheap and prevents the need for binder clips. Consistent delivery equals consistent stitches.

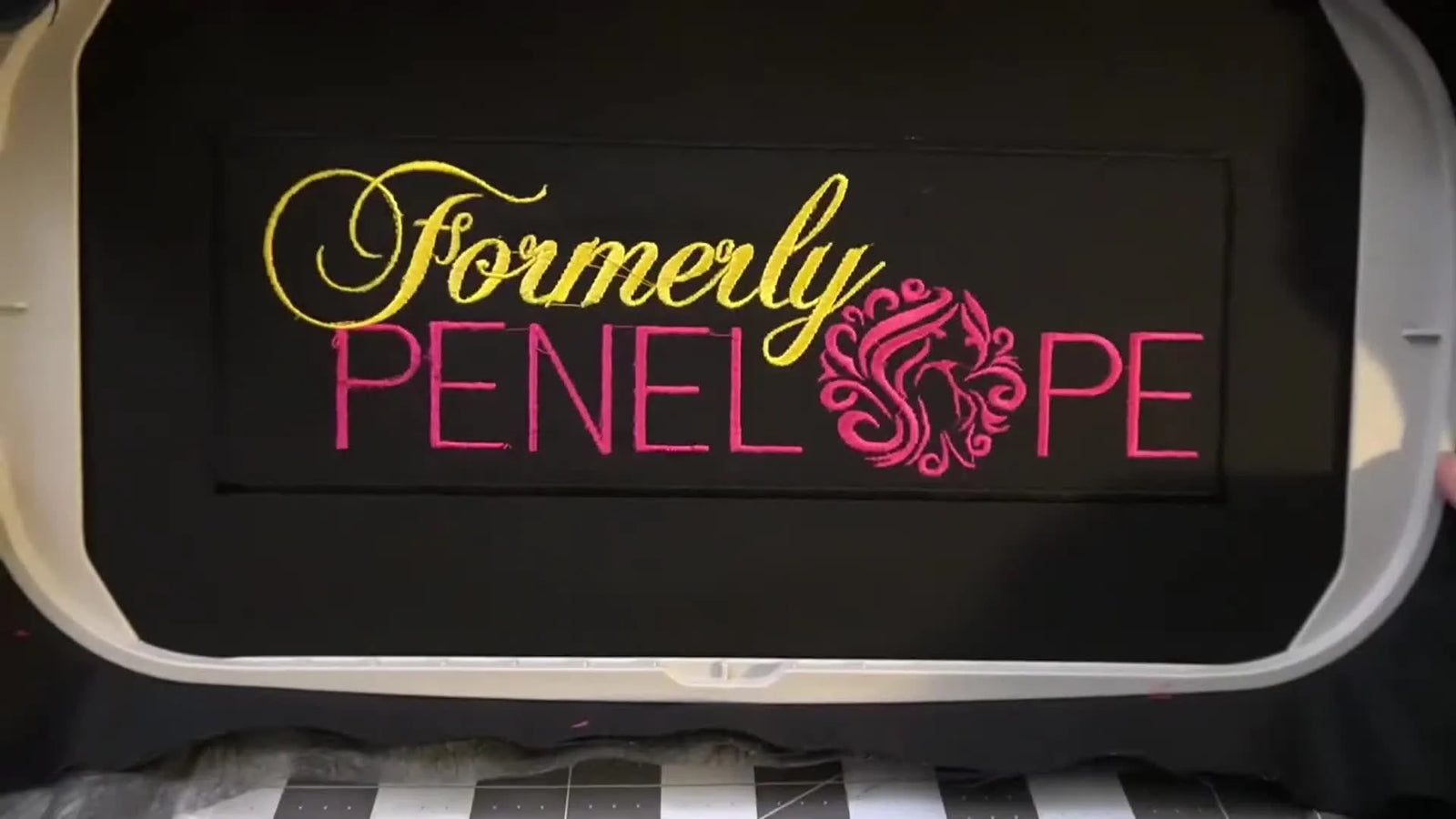

Stitching the Patch: Black → Pink → Yellow, With a First-Minute Check That Prevents Hours of Rework

The stitch-out sequence in the video is:

1. Black (Background/Outline)
2. Pink (Text - Preloaded font)
3. Yellow (Text - Block tool digitized)




The “First-Minute Audit”

Do not walk away to get coffee. Stay for the first 500 stitches. Listen.

• Good Sound: A rhythmic chug-chug-chug.
• Bad Sound: A sharp slap, a grunt, or a grinding noise.
• Visual Check: Watch the fabric surface. Is it bubbling? That means your hoop wasn't tight enough.

If you are running a commercial large hoop embroidery machine job for a paying client, this audit is your insurance policy. It is better to stop at stitch 100 and re-hoop than to finish a ruined patch at stitch 15,000.

A Reality Check on Files

Viewers asked about the files. The creator sells them on Etsy. If you plan to sell patches, remember: Digitizing is the skeleton of embroidery. No amount of machine tweaking can fix a bad file.

When Bird Nests Hit Early Letters: How to Clean Up, Re-Stitch, and Stop It From Coming Back

The video documents a panic moment: bird nests on the bottom of the first three letters. The creator cleaned them up and re-stitched those sections.

This is a classic "False Start."

Structured Troubleshooting: Bird Nesting

• Symptom: A ball of tangled thread under the throat plate. Machine jams.
• Likely Cause (Low Cost): The upper thread jumped out of the take-up lever.
• Likely Cause (Medium Cost): The bobbin wasn't seated in the tension spring.
• Fix: Cut the nest carefully (don't cut the fabric!). Re-thread the top completely. Ensure the presser foot is UP when threading (to open tension disks) and DOWN when sewing.
• Prevention: hold the thread tails for the first 3-4 stitches to prevent them being sucked down.

The Finish That Makes It “Sellable”: Fray Check on the Border, Dry Time, Then Cut Clean

After stitching, the creator removes the fabric from the hoop, applies Fray Check along the embroidered edging, waits for it to dry, and cuts the patch.

The Chemistry of the Finish: Fray Check is a liquid adhesive. It locks the fiber ends of the duck cloth.

• Steps: Apply -> Wait (10-15 mins) -> Cut.
• Why wait? Cutting wet Fray Check smears glue onto your scissors and the patch edge, creating a jagged, gummy finish.

If you are setting up a professional hooping station for machine embroidery, include a drying rack. Standardized drying times mean standardized edge quality.

Operation Checklist (End-of-Job)

• Trim Jump Stitches: Do this before unhooping for easier tension.
• Unhoop Gently: Do not pop the inner ring out violently; it can distort the warm fibers.
• Seal: Apply Fray Check to the raw edge perimeter.
• Cut: Use "Duckbill" or sharp appliqué scissors for a controlled cut.
• Package: Bag the patch immediately to prevent dust attraction.

The Upgrade Path: Why Patch Makers Leave Standard Hoops Behind

If you’re making one patch for fun, the screwdriver method is fine. But if you are making 20 patches, your wrists will hurt, and your quality will drift.

Here is the Tool Upgrade Ladder for scaling your business:

1. Stage 1 (Hobby): Standard Hoops + Screwdriver key.
   • Limit: Slow, physically demanding, risk of hoop burn.
2. Stage 2 (Prosumer): Magnetic Hoops.
   • Benefit: Rapid magnetic clamping. No screw adjustment needed for different fabric thicknesses.
   • Trigger: Upgrade when you start doing runs of 10+ items or struggle with thick items like bags/jackets.
3. Stage 3 (Commercial): Multi-Needle Machines (e.g., SEWTECH/Brother PR series).
   • Benefit: No thread changes (color stops). Tubular arm for caps and bags. High speed (1000+ SPM).
   • Trigger: Upgrade when you are turning down orders because you can't sew fast enough.

Warning: Magnetic Safety
Magnetic hoops use rare-earth magnets. They are incredibly strong.
1. Pinch Hazard: They can crush fingers instantly. Handle with respect.
2. Medical Danger: Keep at least 6 inches away from pacemakers or insulin pumps.

A Simple Decision Tree: Fabric Type → Backing Choice → Hooping Strategy

Don't guess. Use this framework to make decisions.

1) What is your fabric?

• Canvas/Duck Cloth (Rigid):
  • Backing: Cutaway (2 layers).
  • Note: Needs strong clamping force. Magnetic hoops excel here.
• T-Shirt / Jersey (Stretchy):
  • Backing: Fusible Poly-mesh (No Show Mesh) + Tearaway.
  • Note: Do not stretch in hoop. Float method or Magnetic hoop recommended to avoid "bacon neck."
• Towel / Fleece (Fluffy):
  • Backing: Tearaway.
  • Topping: Water Soluble (Solvy) to keep stitches on top.

2) Are you making 1 patch or 50?

• 1–5 patches: Standard hoop + careful tightening.
• 10+ patches/week: Invest in magnetic frames to reduce setup time by ~40%.

Final Notes From the Bench

This video demonstrates that older machines like the Duetta 4500D are capable of industrial-grade work if you respect the physics of the material.

• Respect the "Sandwich": Fabric + Backing must be stable.
• Respect the Tension: 1.2 might seem low, but for heavy canvas, it prevents puckering.
• Respect the Start: Watch the first minute to catch nests early.

Embroidery is a game of variables. Control the variables you can (hooping, clean threading, sharp needles), and your machine will handle the rest.

FAQ

• Q: What stabilizer stack should be used for large patches on thick duck cloth with a Brother Innov-is Duetta 4500D large hoop?
  A: Use two layers of heavy cutaway-style backing (the blog example uses two layers of garden fabric) to keep thick duck cloth from shifting and puckering.
  • Cut two backing layers first, then use them as a template to cut the duck cloth.
  • Verify the blank size is about 17" x 11" (or at least 2" larger than the hoop on all sides) before hooping.
  • Hoop on a flat table, not in a lap, so gravity does not distort the “sandwich.”
  • Success check: the fabric stack stays flat and does not “bubble” during the first stitches.
  • If it still fails: increase backing support (keep two layers) and re-hoop to remove any grain distortion.
• Q: How can thick duck cloth be hooped in a standard Brother large hoop using a screwdriver without warping the fabric on a Brother Innov-is Duetta 4500D?
  A: Loosen both side screws first, seat the inner ring fully, then tension evenly to get “flat and immoveable” (not drum-tight).
  • Loosen both screws so the inner ring presses in straight, not at an angle.
  • Press the hoop together first, then tighten gradually while tugging edges to remove slack.
  • Avoid over-cranking thick canvas; aim for flatness and stability, not maximum stretch.
  • Success check: the hoop seats with a dull “thud,” the fabric surface feels flat under your hand, and the hoop does not creak during stitching.
  • If it still fails: re-hoop and make sure the backing/top fabric are cut square and generously oversized so the hoop is not “doing the measuring.”
• Q: Why would the Brother Innov-is Duetta 4500D on-screen tension be lowered from 4.0 to 1.2 for thick canvas (duck cloth) patches?
  A: Lowering the Duetta 4500D tension setting to 1.2 is a practical way to reduce top-thread pulling and snapping on high-friction, thick canvas stacks.
  • Set the on-screen tension to 1.2 before starting the design on duck cloth with heavy backing.
  • Re-thread the upper path carefully so the thread is seated correctly before testing.
  • Record the tension value that works for that exact fabric + backing combo for repeatability.
  • Success check: stitches lay flat without bobbin thread being pulled to the top and without frequent thread breaks.
  • If it still fails: treat 1.2 as a starting point—adjust in small steps and confirm threading is correct with presser foot UP during threading and DOWN while stitching.
• Q: What should be checked on the Brother Innov-is Duetta 4500D screen after loading a design by USB to avoid ruining a large patch blank?
  A: Confirm the exact design orientation and the displayed design size (the example shows 11.66" x 4.17") before pressing start.
  • Open the USB location and select the correct file from the custom folder.
  • Verify the “top” of the design matches the “top” of the hooped fabric.
  • Confirm the design fits inside the hoop’s safe stitching area before stitching.
  • Success check: the preview and dimensions match the intended patch layout, and the hoop can move freely without hitting fabric excess.
  • If it still fails: stop and re-load the correct file rather than “testing” on the blank—large patches are expensive to re-do.
• Q: How can bird nesting under the first letters be fixed on a Brother Innov-is Duetta 4500D during a patch stitch-out?
  A: Stop immediately, remove the nest carefully, then completely re-thread the upper thread and re-seat the bobbin before re-stitching the affected section.
  • Cut away the tangled thread under the throat plate without cutting the fabric.
  • Re-thread the top from the spool to the needle with the presser foot UP (to open the tension discs).
  • Confirm the bobbin is seated correctly in the tension spring following the printed diagram, then sew with presser foot DOWN.
  • Success check: the underside shows controlled stitching (not a growing thread ball) within the first few stitches of the restart.
  • If it still fails: hold the thread tails for the first 3–4 stitches so the machine does not pull them down and start another false nest.
• Q: What first-minute checks prevent hours of rework when stitching a large patch on a Brother Innov-is Duetta 4500D?
  A: Stay with the machine for the first ~500 stitches and audit sound + fabric movement before walking away.
  • Listen for a steady rhythmic “chug-chug-chug,” not slapping, grunting, or grinding.
  • Watch the fabric surface for bubbling, which signals hoop slippage or insufficient clamping.
  • Verify the hoop is fully clicked into the carriage and does not wiggle when gently tested.
  • Success check: smooth sound, stable fabric surface, and clean stitch formation from the start.
  • If it still fails: stop at stitch 100–500, re-hoop, and re-thread—early intervention is faster than finishing a ruined 15,000-stitch patch.
• Q: What needle-strike safety steps should be followed when seating a large hoop and test-running thick canvas on a Brother Innov-is Duetta 4500D?
  A: Keep hands clear and treat the first start as a hazard zone—mis-seated hoops can cause needle strikes and shattered needles.
  • Keep fingers away from the needle area while seating the hoop and during the first stitches.
  • Clear the workspace so the large hoop swing cannot hit tools, cups, or fabric piles.
  • Wear eye protection when stitching heavy canvas where a needle strike is more likely.
  • Success check: the hoop moves freely without contact, and there is no sudden “hit” sound at start-up.
  • If it still fails: stop immediately, power down, check hoop seating and fabric clearance, and replace any bent/damaged needle before restarting.
• Q: When should a patch maker upgrade from a standard screw-tightened Brother hoop to a magnetic hoop or to a multi-needle machine like a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: optimize technique first, move to magnetic hoops when hooping time/marks become the limiter, and move to a multi-needle machine when color changes and speed limit orders.
  • Level 1 (Technique): tighten hooping mechanics, do the first-minute audit, and document working tension (example setting: 1.2 for thick canvas on the Duetta 4500D).
  • Level 2 (Tool): choose magnetic hoops if hooping thick items takes more than ~2 minutes or if hoop burn/hand strain is recurring.
  • Level 3 (Capacity): choose a multi-needle machine (such as SEWTECH) when thread changes and throughput prevent taking more jobs.
  • Success check: setup time drops and stitch-outs become repeatable without hoop marks or frequent stoppages.
  • If it still fails: standardize one fabric+backing “recipe” and one design test procedure before adding new variables (new fabrics, new designs, new hoop styles).
