A Clean 5-Color Mardi Gras Jester Mask on the Brother SE1900 (4x4 Hoop) — The Fast, Flat, Sellable Stitch-Out

If you’ve ever watched a YouTube video where a design stitches out perfectly, only to turn around and find your own attempt looks like a topographical map of rippling hills—or worse, has a “bird’s nest” of thread underneath—you are not alone. A standard 4x4 multi-color design might look innocent, but 19,000+ stitches in that small area is a stress test. It exposes every weakness in your stabilization, your hooping tension, and your patience.

In Jamel’s video, he runs a dense Mardi Gras Jester mask on a Brother SE1900. To the untrained eye, it’s just colorful thread going down. To an expert, it’s a seminar on density management. The machine cycles through gold, green, orange, and purple, finishing with fine details. The real victory isn't the colors; it's the fact that the final mask sits flat and the fabric isn't puckered.

Below, we are going to disassemble this stitch-out and rebuild it into a White Paper for Home Embroiderers. We will move beyond "hope it works" into "know it works," utilizing the data from the screen and the physics of the hoop.

Calm the Panic First: What the Brother SE1900 Screen Is Really Telling You (19,966 Stitches, 36 Minutes, 5 Colors)

Before you thread a needle, you must perform a "Pre-Flight Risk Assessment." Do not just hit 'Start'. Read the data on your LCD screen; it is your roadmap for potential failure points.

Jamel reveals the stats:

• Format: 4x4 Hoop size.
• Count: 19,966 stitches.
• Time: ~36 minutes (machine estimate).
• Changes: 5 Color Stops.

Here is the "Expert Translation" of those numbers:

1. Stitch Density Danger: Nearly 20,000 stitches in a 4x4 square is dense. This is not a light sketch; it is a heavy patch. It will pull the fabric inward from all directions. Risk: Puckering.
2. The "Drift" Factor: 5 color changes means you will touch the hoop 5 times to trim threads. Every touch is a micro-opportunity to shift the hoop if it isn't secured perfectly. Risk: Misalignment.
3. Tension Duration: 36 minutes is a long time for fabric to be stretched. If you pulled the fabric too tight (the "drum head" fallacy), it will want to shrink back the moment you unhoop it, creating wrinkles. Risk: Distortion.

When you purchase a design, verifying these stats is crucial. This is why professional digitizers often provide a technical spec sheet along with the PES embroidery file, allowing you to choose the right fabric weight before you even download the file.

The “Hidden” Prep Pros Do: Fabric + Stabilizer Choices That Keep a 4x4 Design Flat

Stabilization is not an accessory; it is the foundation. In the video, we see a woven fabric swatch. However, "woven" does not mean "stable" when facing 20,000 stitches.

The Physics of Stabilization: Your needle is punching thousands of holes. If the fabric fibers can move, they will. The stabilizer's job is to freeze those fibers in place.

Stabilizer Decision Tree (Diagnostic Path)

Stop guessing. Use this logic flow to determine your backing.

1. Is the fabric a knit (T-shirt, Hoodie, Stretchy material)?
   • YES: Cut-Away is mandatory. Validated industry standard. Tear-away will disintegrate under 20k stitches, leaving a hole.
   • NO: Go to Step 2.
2. Is the design density High (>10k stitches) or Low (<5k stitches)?
   • HIGH (Like this mask): Cut-Away or Fused Poly-Mesh. Even on woven cotton, heavy stitching needs permanent support to prevent "cupping" after washing.
   • LOW: Tear-Away is acceptable.
3. Does the fabric have "Loft" (Towels, Fleece, Velvet)?
   • YES: You need a Water Soluble Topper on top to keep stitches from sinking, AND Cut-Away on the bottom.
   • NO: Standard backing applies.
4. Is this for commercial sale (Will it be washed repeatedly)?
   • YES: Cut-Away provides the longest life. Tear-away often softens and bunches up after three wash cycles.

Hidden Consumable Alert: Use a temporary spray adhesive (like 505) to bond your fabric to the stabilizer. This creates a single "plywood-like" unit rather than two slippery layers. This is the cheapest insurance policy you can buy when shopping for stabilizer for machine embroidery.

Prep Checklist (The "Zero-Fail" Protocol)

• Needle Check: Is the needle fresh? A dull needle pushes fabric down rather than piercing it, causing "flagging" and birdnests. Change it if it has run >8 hours.
• Bobbin Check: Is the bobbin wobbly? Clean the shuttle race of lint. A speck of dust here causes tension havoc.
• Design Orientation: confirm the image on the screen matches the orientation of your garment in the hoop.
• Thread Staging: Line up your gold, green, orange, and purple cones in order. Scrambling for thread mid-project leads to mistakes.
• Tool Check: Locate your curved snips and tweezers.


Hooping the Brother 4x4 Hoop Without Distortion: Tension, Grain, and “Don’t Over-Tighten” Reality

This is where 80% of beginners fail. In the video, the fabric remains taut, but "taut" is a sensation you must learn.

The "Goldilocks" Tension Zone:

• Too Loose: Fabric ripples ahead of the foot.
• Too Tight: You have stretched the fibers. The design looks perfect in the hoop, but looks like a raisin when removed.
• Just Right: The fabric should be neutral. When you tap it, it should make a dull thud sound, not a high-pitched ping. It should feel firm, like a well-made bed sheet, not like a trampoline.

The Hoop Burn Problem: To hold fabric this securely in a standard plastic hoop often requires tightening the screw until your fingers hurt. This pressure crushes delicate fibers (velvet, performance wear), leaving a permanent "hoop burn" ring.

If you are facing wrist fatigue or ruining garments with hoop marks, this is the Trigger Point to upgrade your tools. High-volume shops tackle this by using a hooping station for embroidery to ensure consistent placement, or they switch to a magnetic hooping station system which uses magnets to clamp fabric without the friction-burn of standard hoops.

Warning: Mechanical Safety
Keep your fingers, loose hair, hood drawstrings, and jewelry away from the embroidery foot. The needle moves faster than your reaction time. If you need to adjust fabric, STOP the machine first. Never reach inside a moving hoop.

The First Stitches Matter: Starting the Gold/Yellow Layer Cleanly on the Brother SE1900

Jamel hits start on the Gold/Yellow layer. Do not walk away to get coffee. The first 30 seconds are critical.

Sensory Audit:

1. Listen: You want a rhythmic "chug-chug-chug." A sharp "slap" sound means tension is loose. A grinding noise means the needle is hitting the plate.
2. Watch: Look at the thread feeding off the spool. Is it catching on a nick in the spool cap?
3. Touch (Gently): Place a finger on the hoop frame (not the fabric). Vibration is normal; violent shaking is not.

If the thread shreds immediately, your top tension is likely too tight for the speed, or the needle eye is clogged. Stop immediately.

Clean Color Changes with Curved Embroidery Scissors: How to Trim Jump Stitches Without Nicking Fabric

The machine stops after the yellow layer. Jamel reaches in with curved scissors. This is a "Pro Habit."

The "Jump Stitch" Risk: If you do not trim the connecting threads (jump stitches) between color blocks now, the next layer of stitching will sew over them. You will never be able to remove them later, leaving your design looking messy and amateur.

Technique:

1. Lift: Pull the jump thread gently to create tension.
2. Curve Down: Use curved scissors (essential tool) so the tips point up and away from the fabric. Flat scissors act like daggers and risking snipping a hole in your shirt.
3. Snip: Cut close to the knot.

Why not auto-trim? The Brother SE1900 has auto-cutters, but for critical overlays, manual trimming often yields a cleaner result (fewer "birdnest" tails on the back).

Running the Green Fill Layer Without Puckers: What “Taut in the Hoop” Should Look Like

The Green layer is a "Fill Stitch"—rows of stitching covering a large area. This is a stress test for your stabilizer.

The "Push/Pull" Effect: Stitches pull fabric in the direction the thread runs and push it out at the sides. If your hoop grip is weak, you will see a gap form between the outline and the fill (register error).

Observation: Watch the video. The green fill meets the yellow outline perfectly. This confirms the fabric has not shifted. If you constantly see gaps in your designs (white fabric showing between colors), your hoop is slipping. This is the number one reason users abandon standard plastic hoops and search for brother se1900 hoops that offer better gripping surfaces, or upgrade to magnetic frames that hold uniform tension on all four sides.

Orange Layer at High Speed: When to Let the Brother SE1900 “Do Its Thing” (and When Not To)

Jamel runs the orange section. The machine sounds faster here.

Speed vs. Quality: The SE1900 can stitch up to 650 SPM (Stitches Per Minute). However, just because your car can go 120mph doesn't mean you should drive that fast in a parking lot.

• Expert Recommendation: For dense, multi-layer designs like this mask, turn the speed down to 350-450 SPM.
• Why? Slower speeds reduce friction heat (which snaps thread) and give the stabilizer time to recover from the needle penetration. If you are breaking thread on this orange layer, slow down.


Purple-on-Purple Texture: How Tone-on-Tone Stitching Shows Digitizing Quality

The purple layer introduces "Tone-on-Tone" texture. This creates a subtle, embossed look.

The Danger of "Bulletproof" Patches: If you layer fill stitch on top of fill stitch on top of fill stitch, you create a "bulletproof" patch—stiff, hard, and needle-breaking. Jamel’s result looks pliable. This means the file was digitized correctly (using "knockout" areas so layers don't stack up endlessly).

Visual Check: Look at the purple area. Is it "mounding" up? If so, your tension is too loose. The bobbin thread should be pulling the top thread slightly to the back, keeping the profile low and flat.

Final Detail Stitches (Green/Yellow Return): The Moment Thread Nests Usually Happen

The design cycles back for the fine details—the eyes and mask points.

Why Experts Fail Here: We get complacent near the end. We stop watching.

• The Risk: A small detail area creates a knot (nest) instantly because the machine makes many lock stitches in one tiny spot.
• The Fix: Hold the thread tail for the first 3 stitches of these detail elements. This prevents the tail from being sucked into the bobbin case, which causes the dreaded "bird's nest" jam.

Efficiency in Production: If you were making 50 of these masks for a Mardi Gras krewe, the start-stop-trim process for 5 colors becomes a nightmare on a single-needle machine. This is the natural ceiling of home equipment. When efficiency becomes your bottleneck (not skill), shops transition to multi-needle machines or invest in rapid-load magnetic embroidery hoops for brother to shave 2 minutes off every hooping cycle.

The Quality Check That Actually Matters: Smooth Backing, Flat Side Profile, Comfortable Wear

Jamel flips the hoop. The timestamp of truth.

The "3-Point Inspection" Protocol:

1. The Back (The Engine Room): You should see white bobbin thread running down the center of satin columns (covering about 1/3 of the width). If you see only color thread on the back, your top tension is too loose. If you see only white bobbin thread on top, your top tension is too tight.
2. The Side Profile (The Landscape): Hold it at eye level. Is the embroidery humped up like a mountain? It should be relatively flat. Humps indicate poor stabilization or density issues.
3. The Feel (The Customer Test): Run your hand over the back. Is it scratchy? If so, you need to trim your knots closer or use a fusible soft backing (like Cloud Coverover) to protect the skin.


Fix the 5 Most Common “My Stitch-Out Doesn’t Look Like the Video” Problems (Symptoms → Causes → Fixes)

Why did yours fail? Use this diagnostic table to troubleshoot based on symptoms, starting with the easiest fixes first.

If you are consistently fighting hoop slippage (Gaps) or hoop burn (Puckering), standard plastic hoops are likely your limitation. A magnetic hoop for brother se1900 eliminates the need to "crank" a screw, clamping fabric evenly and solving both issues instantly.

Setup Habits That Make This Design Repeatable on Shirts, Towels, and Hats (Not Just a Swatch)

Stitching on a swatch is easy. Stitching on a finished $40 hoodie is high-pressure.

Fabric-Specific Adjustments:

• T-Shirts: Do not pull the shirt. Lay it flat. Use Cut-away. If you pull it, you will stitch a permanent pucker into the chest.
• Towels: You MUST use a Water Soluble Topper (Solvy) or the stitches will disappear into the loops of the terry cloth.
• Hats: The 4x4 hoop cannot do a structured cap easily. You must flatten the cap bill. This is difficult. (Note: This is where dedicated hat frames or multi-needle machines excel).

Scalability Tip: If you plan to sell these, standardize your placement. "3 inches down from the collar" is a standard. Mark it with a water-soluble pen or chalk every time. Without standard placement, you cannot look professional. Many users seeking consistency look for a brother 4x4 embroidery hoop template or fixture to help align garments perfectly every time.

Setup Checklist (The "Live Fire" Check)

• Clearance: Is the wall behind the machine clear? The carriage moves back—don't let it hit the wall.
• Excess Fabric: Is the rest of the shirt tucked away? Ensure no sleeve is folded under the hoop area, or you will sew the sleeve to the chest (we have all done it).
• Final Thread Path: Check for snags one last time.


The Upgrade Path That Feels Natural: When Better Hoops or a Multi-Needle Machine Actually Saves You Money

There comes a breaking point. If you spend more time fighting the hoop or changing thread than actually stitching, your equipment is costing you profit.

Level 1: The Essential Tool Upgrade (Magnetic Frames) When you are doing production runs of 10+ shirts, the physical act of unscrewing and re-screwing a plastic hoop causes hand strain and hoop burn. A brother magnetic frame or third-party magnetic embroidery hoop allows you to "Click and Stick."

• The Gain: Faster hooping, zero hoop burn, better tension on thick items (towels).

Warning: Magnet Safety
Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely causing blood blisters. Never place them near pacemakers, credit cards, or mechanical hard drives. Slide the magnets on and off; do not let them "slam" together.

Level 2: The Production Upgrade (Multi-Needle Machines) If this 5-color mask takes you 45 minutes (stitching + thread changes), but you have an order for 100 of them, you are in trouble.

• The Gain: A multi-needle machine holds all 5 colors at once. It trims automatically. It stitches at 1000 SPM. It turns a 45-minute job into a 20-minute job while you do something else. This is the difference between a hobby and a business.


The “Sellable Finish” Standard: What to Photograph, What to Feel, and What to Fix Before Shipping

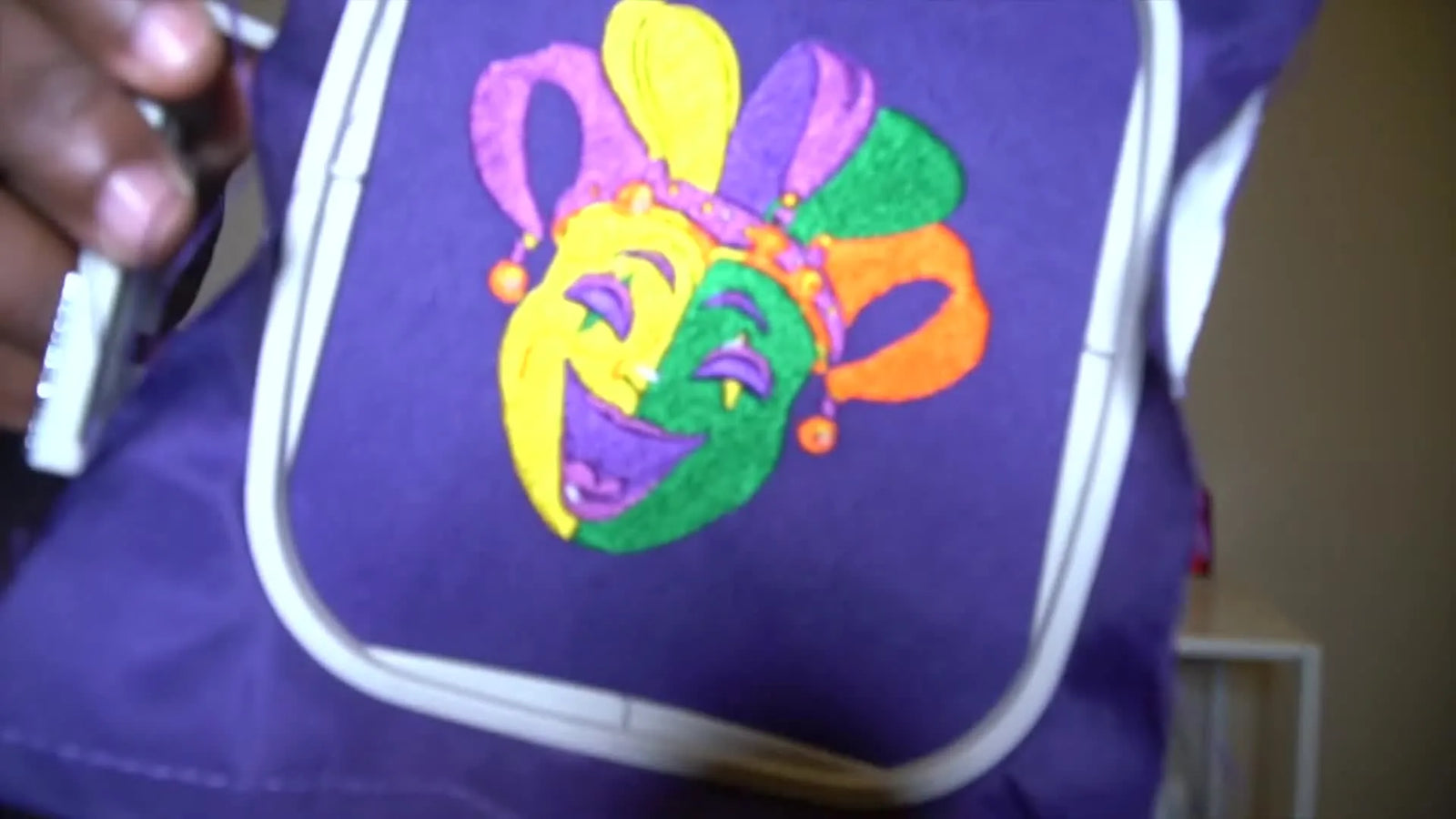

Jamel shows the final product. It passes the test.

The Commercial Audit:

1. Trim Check: Are there any "eyelashes" (tiny thread tails) left? Use tweezers and fine snips to remove them.
2. Stabilizer Trim: Cut the backing away cleanly, leaving about 1/2 inch around the design. Do not hack at it; rounded corners look professional.
3. Steam: A quick burst of steam (from an iron held above the design, not pressing on it) can relax the fibers and remove hoop marks.

Operation Checklist (Post-Production)

• Inspect Back: No birdnests?
• Inspect Front: No loops or gaps?
• Hoop Mark Check: Did the hoop leave a ring? Remove with steam or "Magic Spray."
• Photography: Take a photo in natural light for your portfolio.


Quick Recap: The Exact Workflow from the Video, Plus the Two Habits That Prevent 80% of Problems

Jamel’s success wasn’t magic; it was method.

1. Analyze: Checked the 20k count and 5 colors.
2. Prep: Stabilized firmly (assumed cut-away).
3. Stitch: Watched the first layer; trimmed jumps religiously.
4. Inspect: Verified the flat side profile.

The Takeaway: Embroidery is a game of variables. You control the Hoop, the Stabilizer, and the Speed. If you lock those three down—perhaps leveraging better tools like magnetic frames or heavier backing—the machine will do the rest. Stop hoping for a good result, and start engineering one.

FAQ

• Q: How should Brother SE1900 users interpret the LCD stitch count (19,966 stitches), time estimate (~36 minutes), and 5 color stops before stitching a dense 4x4 design?
  A: Treat those numbers as a risk map—high stitch count + long run time + multiple stops usually means puckering, shifting, and tension issues unless prep is upgraded.
  • Check: Flag the design as “dense” when a 4x4 shows nearly 20,000 stitches and plan stronger stabilization and slower speed.
  • Plan: Expect to touch the hoop at every color stop for trimming; set up tools (curved snips/tweezers) so the hoop is not bumped.
  • Avoid: Do not “drum-tight” hoop for a long run; neutral hooping prevents distortion after unhooping.
  • Success check: After stitching, the design sits flat with no ripples and color blocks still align cleanly.
  • If it still fails… Move to cut-away or fused poly-mesh support and reduce stitch speed for dense layers.
• Q: What stabilizer setup should home embroiderers use to prevent puckering on a dense 4x4 design (around 20,000 stitches) like the Mardi Gras mask stitch-out?
  A: For dense designs, use cut-away (or fused poly-mesh) as the safe baseline, and add a water-soluble topper only when fabric has loft.
  • Choose: Use cut-away for knits, and also for high-density designs even on woven fabric when long-term wash durability matters.
  • Add: Place a water-soluble topper on towels/fleece/velvet to prevent stitches from sinking into the pile.
  • Bond: Use temporary spray adhesive to bond fabric to stabilizer so the layers act like one unit and don’t slip.
  • Success check: The fill stitches meet outlines with no gaps and the fabric around the design stays smooth after unhooping.
  • If it still fails… Re-check hoop grip and avoid stretching fabric during hooping; density may be too high for the fabric choice.
• Q: How can Brother SE1900 users hoop fabric in a standard 4x4 plastic hoop without distortion, puckering, or hoop burn marks?
  A: Hoop to “neutral tension,” not “drum tight,” and stop cranking the screw to the point it crushes fibers.
  • Align: Keep fabric on grain and lay it flat; do not pull or stretch while tightening the hoop.
  • Set: Aim for the “Goldilocks” zone—firm but not trampoline-tight to reduce post-unhoop shrink-back wrinkles.
  • Protect: If hoop marks are happening, reduce pressure and consider clamping solutions that don’t rely on friction.
  • Success check: A light tap on the hooped fabric gives a dull “thud,” and the fabric stays flat after removal.
  • If it still fails… Float the fabric on adhesive-backed stabilizer instead of stretching it in the hoop.
• Q: What is the fastest way to stop Brother SE1900 “birdnest” thread balls underneath at the start of a color block?
  A: Stop immediately, rethread correctly with the presser foot UP, and control the thread tail for the first stitches.
  • Rethread: Raise the presser foot so the upper thread seats in the tension discs; then rethread fully.
  • Replace: Change to a fresh needle if it has many hours on it; dull needles can cause flagging and nesting.
  • Hold: Hold the thread tail for the first 3 stitches on small detail elements to prevent it being pulled into the bobbin area.
  • Success check: The underside shows controlled bobbin lines (not a tangled wad) and the machine sound returns to a steady “chug-chug.”
  • If it still fails… Clean lint from the bobbin/shuttle area and inspect for burrs that can snag thread.
• Q: How can Brother SE1900 users set thread tension correctly using the “front vs. back” appearance check after stitching?
  A: Use the back-of-embroidery balance as the rule—about 1/3 bobbin thread showing down the center of satin columns is the target.
  • Inspect: Flip the hoop and look for balanced tension (not all top thread on the back, and not bobbin thread pulled to the front).
  • Adjust: If bobbin thread shows on top, lower top tension slightly and remove lint from the bobbin area.
  • Confirm: Watch for “mounding” in dense areas; excess bulk often pairs with loose top tension.
  • Success check: Satin columns show a centered bobbin “railroad track” on the back and the front stitches lie flat, not ropey.
  • If it still fails… Re-check threading path and needle condition before chasing advanced settings.
• Q: What stitch speed should Brother SE1900 owners use to reduce thread breaks on dense multi-layer fill areas (like the orange section of a 5-color 4x4 design)?
  A: Slow down—350–450 SPM is a safe working range for dense multi-layer designs when thread breaks appear.
  • Reduce: Turn speed down when stitching dense fills to reduce friction heat and stress on thread and stabilizer.
  • Listen: Stop if you hear slapping, grinding, or sudden pitch changes; those often precede breaks or jams.
  • Swap: Use a fresh needle and quality thread if breaks repeat in the same area.
  • Success check: The machine runs with a steady rhythm and completes the fill without repeated snaps or shredding.
  • If it still fails… Check for burrs on the needle plate/bobbin area and re-evaluate stabilization for the design density.
• Q: What safety steps should Brother SE1900 users follow to avoid needle/hoop injuries during trimming and adjustments?
  A: Keep hands and loose items away from a moving embroidery foot—stop the machine before reaching into the hoop area.
  • Stop: Pause/stop before trimming jump stitches or touching fabric near the needle path.
  • Secure: Tie back hair and remove dangling jewelry; keep hood drawstrings and sleeves away from the moving hoop.
  • Trim: Use curved embroidery scissors to trim jumps with tips oriented away from fabric to reduce accidental snips.
  • Success check: Trimming is done with the machine fully stopped and fingers never entering the active needle zone.
  • If it still fails… Slow down the workflow and stage tools within reach so there’s no rushed reaching during motion.
• Q: When should home embroiderers upgrade from standard Brother-style plastic hoops to magnetic embroidery hoops or a multi-needle machine for 5-color dense designs?
  A: Upgrade when the bottleneck becomes hooping strain, hoop slip/hoop burn, or repeated thread-change downtime—not when skill is the only issue.
  • Level 1: Optimize technique first (neutral hooping, cut-away for dense designs, slower speed, trim jumps at each stop).
  • Level 2: Move to magnetic hoops when screw-tightening causes hoop burn, wrist fatigue, or fabric keeps slipping during color changes.
  • Level 3: Move to a multi-needle machine when frequent color changes make production runs impractical and you need consistent throughput.
  • Success check: Hooping becomes repeatable without marks, registration stays tight across colors, and total job time drops predictably.
  • If it still fails… Standardize placement and process (marking, staging thread/tools) before adding more speed or capacity.
