A Clean Appliqué Awareness Ribbon on a Sweatshirt Sleeve (Brother PR1055X + Magnetic Hoop): The Trim-First Details That Make It Look Pro

Appliqué on a sweatshirt sleeve looks simple—until you’re 90% done and realize the ribbed cuff is stretched, the ribbon tails look mushy, or you nicked the garment while trimming. The good news: the workflow in this project is solid, and with a few “old hand” habits you can make it repeatable enough for paid orders.

This tutorial rebuilds Rebecca’s process for stitching an appliqué awareness ribbon on a black sweatshirt sleeve using a Brother multi-needle machine and a magnetic frame. I’ll keep the steps faithful to the video, then add the missing guardrails: how to keep ribbing from distorting, how to trim vinyl cleanly without cutting the sweatshirt, and how to think about stabilizer choices when you’re doing sleeves all day.

The Calm-Down Moment: Why a Sweatshirt Sleeve Appliqué Goes Wrong (and Why This One Works)

Sweatshirt sleeves combine three things that love to fight you: bulky seams, stretchy ribbing, and a narrow tube that wants to twist as soon as the hoop clamps down. If you’ve ever hooped a sleeve and watched the cuff “grow” or fan out, you already know the specific panic of realizing you can't fixing it without ripping stitches.

The physics here are tricky. You are trying to apply a rigid design (vinyl + satin stitch) onto a flexible cylinder (the sleeve). Most beginners fail because they treat the sleeve like a flat t-shirt. They pull the cuff into the hoop to get it straight, stretching the elastic fibers. When the hoop comes off, the fibers snap back, but the embroidery doesn't. The result? A puckered, wavy mess.

Rebecca’s key move is deceptively simple: she keeps the ribbed cuff completely out of the clamping area and lets it “just lay there,” while hooping the sleeve fabric above it. That single choice prevents the ribbing from being stretched and permanently distorted.

If you’re running a magnetic embroidery hoop on heavy garments, this is exactly the kind of job where the consistent clamping pressure helps. Unlike screw hoops that require manual tightening (often leading to "hoop burn" or crushed fibers), a magnetic frame snaps down with uniform vertical pressure. This allows the fabric to stay put while you trim close to stitches, which is essential for professional appliqué.

The “Hidden” Prep Before You Hoop: Vinyl, Stabilizer, and Sleeve Reality Checks

Rebecca uses a sparkly pink vinyl as the appliqué fabric, pink embroidery thread, and a black cutaway stabilizer on a black sweatshirt. That’s a sensible baseline for a sleeve that will be worn, washed, and flexed. However, there are invisible consumables and prep steps that separate a "craft" project from a "commercial" one.

A few prep checks make the rest of the process feel easy instead of stressful:

• Pre-cut your vinyl: You only need a rectangle large enough to cover the placement outline completely. Don't try to use a massive sheet and trim later; the weight of the excess vinyl can pull the design.
• Confirm your stabilizer coverage: Cutaway is non-negotiable here. Use a medium-weight (2.5 oz or 3.0 oz) cutaway. It must extend at least 1 inch beyond the design area on all sides to prevent the satin stitches from "hinging" or collapsing the knit fabric.
• Plan your cuff clearance: The design’s bottom should land about 1 inch above the ribbed seam (Rebecca’s placement gap). Any closer, and the presser foot usually hits the bulky seam, causing flagged stitches.
• The "Hidden" Consumable - Temporary Spray Adhesive: While not explicitly highlighted, a light mist of temporary spray adhesive (like KK100 or 505) on your stabilizer helps bond it to the inside of the sweatshirt sleeve. This prevents the stabilizer from sliding around inside the tube while you struggle to hoop it.


Prep Checklist (do this before the hoop touches the garment)

• Sleeve Orientation Check: The sleeve is turned so the seam runs along the bottom (or where you want it), and the design area is flat, not twisted.
• Cuff Clearance Check: You have identified exactly where the hoop will stop (cuff must stay outside the clamp).
• Stabilizer sizing: Black cutaway stabilizer is cut large enough to support the full design area plus a 1-inch safety margin.
• Vinyl Sizing: Vinyl appliqué piece is cut as a rectangle that will fully cover the placement outline.
• Tool Readiness: Curved appliqué scissors are placed on the right side of your workspace (don't cross your body to reach them).
• Lighting: You have a focused task light ready for the trimming stage—shadows cause accidents.

Warning: Hoop Burn & Fabric Damage. Thick sweatshirt fleece crushes easily. If using a standard screw hoop, do not overtighten the screw before hooping. If using a magnetic hoop, watch your fingers. The snap force required to hold thick fleece is significant and can pinch skin severely.

Hooping a Sweatshirt Sleeve in a 5.5" Magnetic Frame Without Stretching the Ribbing

Rebecca hoops the sleeve in a 5.5 x 5.5 inch magnetic frame and keeps the ribbing outside the clamping area. The cuff sits immediately below the bottom edge of the frame, but it is not clamped.

That detail matters because ribbing behaves like a spring: clamp it under tension and it will relax later—leaving a wavy cuff and a design that looks like it’s creeping downward.

Practical hooping notes (based on what’s shown):

• Slide the bottom magnet inside the sleeve. Ensure it sits flat against the bed of the stabilizer/sleeve sandwich.
• Align the top frame. Look for the "North" or top markings on your hoop to ensure it's not upside down.
• The "Drum Skin" Test. Hoop the sleeve fabric so it’s taut and smooth, but not stretched. Tap it with your finger. It should sound like a dull thud, not a high-pitched ping (too tight) and not a rustle (too loose).
• Keep the ribbing loose and outside the clamp.
• Aim the ribbon so the bottom portion starts about 1 inch up from the ribbed seam.

If you’re specifically using a mighty hoop 5.5 size or a compatible high-quality magnetic frame, the square footprint is a nice match for a ribbon motif. It gives you maximum sewing field relative to the sleeve width, allowing you to keep the cuff just outside the bottom edge while still having room for the satin border.

Warning: Magnetic Safety. High-strength magnetic frames are powerful industrial tools. Keep fingers clear of the "snap zone" when the top ring comes down. Always slide the magnets apart to separate them; do not try to pry them. Keep magnets away from pacemakers, implanted medical devices, and sensitive electronics like hard drives or credit cards.

Setup on the Brother PR1055X: Centering the Sleeve and Choosing the Needle

Rebecca mounts the hooped sleeve on her Brother Entrepreneur Pro X PR1055X and centers it where she wants it before stitching. She also shows selecting Needle #1 in the machine settings.

On multi-needle machines, the “simple” part is stitching; the real win is repeatable setup. For sleeves, repeatability comes from two habits:

1. Center visually, then re-check clearance: Make sure the hoop edge isn’t forcing the sleeve to twist or torque. The sleeve should hang naturally from the machine arm.
2. Think about stitch sequence: This file runs placement, tack-down, then a center detail before trimming, and finally satin. That order reduces shifting during trimming.

If you’re searching for a reliable brother pr1055x sleeve workflow, this is a clean, production-friendly sequence because you’re not stitching safely until the machine arm is clear.

One critical check here is the Emergency Stop test. Before you hit start, trace the design. Watch specifically where the needle bar travels near the plastic edges of the hoop. On sleeves, the fabric bulk can push the hoop slightly higher than usual; you want to ensure the presser foot doesn't collide with the frame.

Setup Checklist (right before you press Start)

• Lock Check: Hoop is fully seated on the machine arm and the locking mechanism has clicked.
• Drape Check: Sleeve is not being pulled by the free-hanging cuff (no twisting torque).
• Clearance Check: Design is centered, with the bottom at least 1 inch above the ribbed seam overlap.
• Trace Check: You have run a trace/trial to ensure the presser foot does not hit the magnetic frame.
• Needle/Thread: Needle selection matches your plan (Rebecca uses Needle 1), and the thread path is clear.
• Bobbin Check: You have enough bobbin thread to complete the heavy satin stitch without a change (satin consumes thread rapidly).

The Placement Stitch: Your “Dry Run” That Saves Vinyl and Sweatshirts

The first stitch sequence is a placement stitch: a single running outline that marks exactly where the appliqué material will sit.

Treat this like a dry run or a "contract" with your machine. This stitch tells you exactly where the final design will live.

• Action: Watch the stitch as it forms.
• Sensory Check: Is the line straight relative to the fabric grain?
• Decision: If the outline lands too close to the cuff, too high, or slightly rotated, stop and fix it now. This is your last chance to abort without damage. Once you lay vinyl down, the commitment is made.




Tack-Down Stitch: Lock the Vinyl Before You Even Think About Scissors

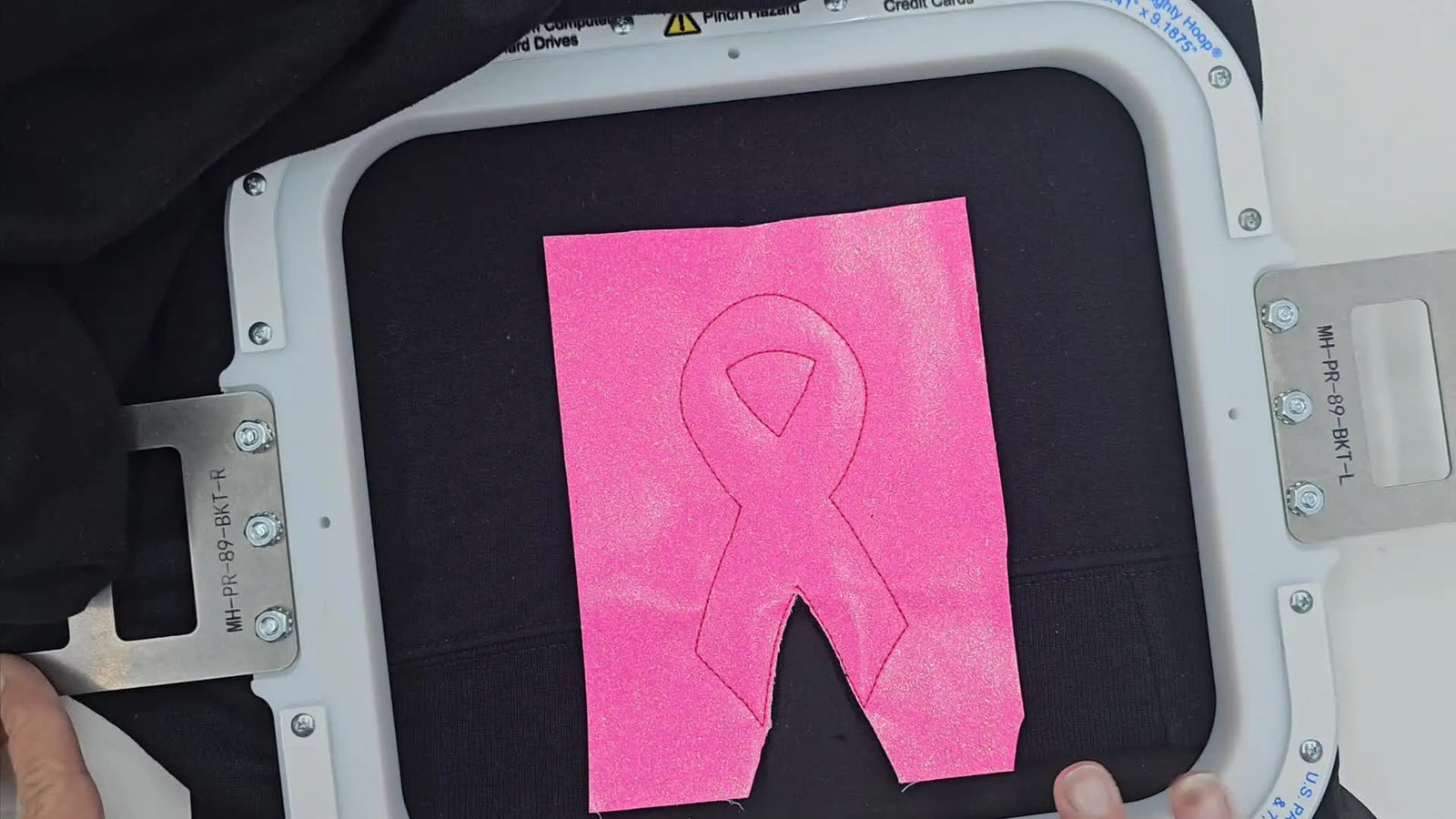

After the placement outline is stitched, Rebecca places a rectangle of sparkly pink vinyl over the entire outline. Then the machine runs the tack-down stitch to secure the vinyl.

Two pro habits here:

• Cover the outline completely: Don’t “just barely” cover it—vinyl can shift a millimeter as the needle penetrates. Give yourself at least 0.5 cm of excess on all sides.
• Smooth, don’t stretch: Vinyl doesn’t behave like fabric. If you pull it tight while taping or holding it, it will retract later and pucker the sweatshirt. You want it flat, floating, and neutral.

If you’re experimenting with different textures in vinyl applique embroidery on garments, remember that vinyl shows needle holes permanently. Unlike cotton where steam can hide a mistake, a perforation in vinyl is forever. Avoid repositioning it repeatedly once it’s laid down.

The Center Detail Stitch Before Trimming: A Small Sequence Choice With Big Payoff

Next, the machine stitches the center detail of the ribbon (the inner loop/teardrop area) before trimming the outer edge.

This is a smart sequencing choice often overlooked by novice digitizers. By stitching the center detail through the untrimmed vinyl, the machine uses the tension of the full vinyl sheet to keep the material flat. If you trimmed the outside first, the vinyl inside the loop might bubble or shift during the detail stitching. This sequence keeps the appliqué fully stabilized while the machine adds internal structure.

Trimming the Appliqué With Curved Scissors: The V-Notch Trick That Makes the Ribbon Tails Look Sharp

Rebecca moves to the table and trims the excess vinyl close to the tack-down stitches using curved Fiskars scissors or double-curved appliqué scissors. This is the make-or-break stage.

Here’s the trimming method shown, translated into a repeatable routine:

1. Remove the hoop, but NEVER un-hoop the fabric. Support the magnetic frame on a flat, clean table so the fabric stays stable.
2. Trim close to the tack-down stitches all the way around. Ideal distance is 1mm to 2mm. Too close and you cut the thread (disaster); too far and the satin stitch won't cover the raw edge (messy).
3. Decide on the center cutout: Rebecca chooses not to cut out the center hole area, leaving it solid pink. This is faster and safer for beginners.
4. The Critical V-Notch: Cut the V-shaped notch between ribbon tails by following the stitch path closely.

The V-notch is where most appliqué ribbons look “home made.” If you round that notch even slightly, the satin stitch will soften it further and the tails will look like one blob. You need a crisp, sharp angle.

• Technique: Cut down one side of the V, stop at the bottom point, pull the scissors out, and cut down the other side to meet the point. Do not try to turn the scissors at the sharp corner.

If you’re doing a job using a mighty hoop sleeve setup on a narrow tube, the magnetic frame’s stability during trimming is a real advantage. The hoop doesn't flex, meaning less shifting, so you can trim closer without fear.

Why trimming feels scary (and how to make it boring)

Trimming is scary because you’re cutting a finished garment, not a scrap. The goal is to turn it into a boring, repeatable motion:

• Anchor your elbows: Keep your elbows on the table for stability.
• Curve away: Use the curve of the scissors to lift the vinyl away from the sweatshirt fabric.
• Rotate the hoop: Rotate the hoop, not your wrist, to maintain a consistent cutting angle.
• Sight line: Look precisely where the blades meet, not at the handles.
• The "Snip" Sound: You want a crisp slicing sound. If the scissors are "chewing" or folding the vinyl, sharpen them or get a new pair instantly.

Warning: The Dreaded Snip. Curved appliqué scissors are incredibly sharp. When trimming, ensure the sweatshirt fabric underneath is pulled flat and away from your scissor path. A common error is bunching the sleeve material up under the area you are cutting. Check underneath the hoop with your hand before every single cut.

Satin Stitch Finish: Cover the Edge, Hide the Trim Line, and Let the File Do Its Job

After trimming, Rebecca puts the hoop back on the machine and runs the final wide satin stitch border. She notes the satin is wide enough to cover the trim line, which is exactly what you want: the satin should seal the raw vinyl edge and visually clean up any micro-wobbles from trimming.

Since stitches pull the fabric in, the satin stitch will slightly compress the sleeve. This is why your initial hooping needed to be taut. If the hooping was loose, this step causes "tunneling" (gaps between the vinyl and the satin border).

Backside Cleanup on Cutaway Stabilizer: The Fast Finish That Still Looks Professional

Once stitching is complete, Rebecca trims the stabilizer on the back as close as she can get to the stitched area. She also mentions you can use a lighter to melt the fuzz slightly, but her core instruction is simple: trim around the project on the back and you’re done.

For shop-quality finishing, the goal is: no bulky stabilizer corners that catch during wear, and no over-trimming that risks cutting stitches. Use rounded-tip scissors here to avoid snagging the knit loops of the sweatshirt.

Decision Tree: Sweatshirt Sleeve Stabilizer Choices (So You Don’t Get Puckers After Washing)

Use this as a practical starting point, then adjust based on your garment and your machine manual. The goal is to balance support with comfort.

Start: What’s the sweatshirt fabric doing?

• If it’s a stable, thick sweatshirt knit (minimal stretch, high cotton content):
  • Recommnedation: One layer of 2.5 oz Cutaway stabilizer.
  • Why: It provides enough structure for the satin stitches without creating a "bulletproof vest" feel on the arm.
• If it’s stretchy, thin, or “spongy” (high polyester/spandex blend):
  • Recommendation: One layer of 3.0 oz Cutaway OR two layers of 2.0 oz Mesh Cutaway (floated firmly).
  • Why: Stretchy fabrics need absolute rigidity during stitching to prevent distortion. Mesh is softer against the skin but strong.
• If the sleeve is very bulky and wants to shift in the hoop (e.g., Carhartt style):
  • Recommendation: Magnetic Frame + Adhesive Spray.
  • Why: The magnet handles the bulk; the spray prevents internal sliding between the fleece and the backing.
• If you’re seeing edge waviness after stitching (The "Bacon" Effect):
  • Diagnosis: This is rarely a stabilizer issue alone. It is almost always Hooping Stress. You likely stretched the sleeve while hooping.
  • Fix: Hoop looser/more neutrally next time, but use spray adhesive to secure the bond.

The “Why” Behind the Video’s Best Tip: Keeping Ribbing Out of the Hoop Prevents Permanent Distortion

Ribbing is engineered to stretch and recover. It is a mechanical spring made of yarn. When you clamp it in a hoop, you’re applying uneven tension across a knit structure that’s already under stress from seams and thickness changes.

What often happens (The Failure Chain):

1. The ribbing stretches under the hoop pressure.
2. You stitch the design while the fabric is in this expanded state.
3. After unhooping, the ribbing tries to relax back to its original size—but the non-stretch vinyl and satin stitches lock it in the expanded state.
4. The result is a design that looks like it’s pulling, puckering, or tilting, plus a cuff that never sits the same again.

Leaving the ribbing “just laying there,” as Rebecca does, avoids that entire chain reaction. It decouples the design area from the elastic cuff.

Operation Checklist (the repeatable run that prevents rework)

• Placement Accuracy: Placement stitch lands correctly straight and 1 inch above the cuff.
• Vinyl Coverage: Vinyl rectangle fully covers the placement outline with safety margin.
• Secure Tack-down: Tack-down stitch completes cleanly without bubbling the vinyl.
• Sequence Logic: Center detail stitch runs before any cutting happens.
• Trimming Proficiency: Trimming is close (1-2mm) to tack-down stitches, with a crisp V-notch between tails.
• Satin Finish: Satin stitch covers the trim line all the way around; no raw vinyl edges showing.
• Backside Hygiene: Backside cutaway stabilizer is trimmed neatly (round edges) without nicking stitches or the sleeve itself.

“Watch Out” Notes From Real Shop Floors (Common Questions People Don’t Ask Until It’s Too Late)

Even though the comments on this video aren’t available, these are the exact failure points that show up when professionals try this technique on sleeves:

Pro tip: If the ribbon looks slightly rotated after the placement stitch Stop immediately. Remove the hoop (carefully) and fix the sleeve alignment. Do not try to rotate the design in the software to match a crooked sleeve—it will always look crooked when worn.

Watch out: If your satin border looks like it’s “walking” off the edge That’s often trimming that’s too far away from the tack-down line (leaving a flap the needle can't cover), or the sleeve shifting because it’s torqued in the hoop. Ensure your machine speed is reasonable—slow down to 600-700 SPM for the satin border if you notice registration issues.

Pro tip: If you’re tempted to cut out the center hole Test on a scrap first. Leaving it solid (Rebecca’s choice) is faster and drastically reduces the chance of accidentally snipping the back of the sleeve sleeve while trying to isolate the tiny center hole.

The Upgrade Path When You Start Selling These: Speed, Consistency, and Less Hand Strain

If you’re making one ribbon for a friend, almost any setup can work. If you’re making 20 for a fundraiser, the bottleneck shifts. The pain points become hooping speed, hand fatigue, and machine downtime.

Here’s a practical “tool upgrade” logic to help you decide when to invest:

• Scenario 1: Hooping sleeves is slow, difficult, or leaving marks.
  • The Fix: A quality magnetic frame is the first productivity upgrade. If you’re comparing options like a magnetic hoop for brother, look for consistent clamping force (to hold thick fleece) and a size that matches your design (like 5.5" square) to minimize wasted backing. SEWTECH offers robust magnetic frames compatible with these machines that solve the "hoop burn" issue instantly.
• Scenario 2: Your wrists are sore from repeated clamping and micro-adjustments.
  • The Fix: Magnetic hoops significantly reduce the grip strength required compared with traditional screw hoops. This ergonomic benefit is crucial when you’re doing sleeves all day.
• Scenario 3: You are outgrowing single-piece workflows and want real throughput.
  • The Fix: A multi-needle platform (like the Brother PR used here) plus standardized hooping can turn a “craft” process into a small production line. If you are ready to scale, a high-value multi-needle machine like those from SEWTECH can drastically increase your profit margin by allowing you to queue colors without manual thread changes. Keep your single-needle for samples, and move production to the multi-needle.
• Scenario 4: Your setup time is the real problem (getting the sleeve straight takes longer than sewing).
  • The Fix: Consider whether a hooping station for embroidery machine would help. These stations hold the outer hoop and stabilizer in place, allowing you to slide the sleeve on and align it perfectly using grid lines before dropping the top magnet. This eliminates the "hoop and pray" approach.

Final Reality Check: What “Good” Looks Like on a Sleeve Ribbon

A professional-looking sleeve appliqué ribbon has specific success metrics:

• Placement: It sits centered on the outer arm, about 1 inch above the ribbed seam.
• Sharpness: The V-notch between tails is distinct, not a rounded blob.
• Coverage: The satin stitch fully hides the raw vinyl edge; no white cut lines or vinyl flaps are visible.
• Comfort: The backside stabilizer is trimmed close and round, so it doesn't scratch the wearer's arm.

If you nail those four, the project stops being a one-off panic attack and becomes a repeatable product you can confidently stitch again tomorrow.

FAQ

• Q: How do I hoop a sweatshirt sleeve in a 5.5" magnetic embroidery frame without stretching the ribbed cuff?
  A: Keep the ribbed cuff completely outside the clamping area and hoop only the sleeve fabric above the cuff.
  • Slide the bottom magnet inside the sleeve and flatten the stabilizer/sleeve sandwich before dropping the top ring.
  • Align the hoop orientation marks so the frame is not upside down, then smooth the sleeve fabric—do not pull the cuff to “straighten” it.
  • Do the “drum skin” test: taut and smooth, not stretched.
  • Success check: the cuff below the frame looks relaxed (not fanned out), and tapping the hooped area sounds like a dull thud (not a high-pitched ping).
  • If it still fails: reduce hooping stress (less pull) and use a light mist of temporary spray adhesive to prevent the stabilizer from sliding inside the tube.
• Q: What stabilizer should be used for a satin-stitch vinyl appliqué awareness ribbon on a sweatshirt sleeve?
  A: Use cutaway stabilizer as a safe starting point, sized with a margin so the sleeve knit cannot hinge under satin stitches.
  • Choose medium-weight cutaway (2.5 oz or 3.0 oz) depending on how stretchy/spongy the sweatshirt feels.
  • Cut the stabilizer so it extends at least 1 inch beyond the design area on all sides.
  • Lightly bond the stabilizer to the inside of the sleeve with temporary spray adhesive to stop shifting while hooping.
  • Success check: after stitching, the satin border sits flat with minimal tunneling and the sleeve does not ripple into a “bacon” edge.
  • If it still fails: treat edge waviness as a hooping-stress issue first (the sleeve was likely stretched during hooping), then re-test with more neutral hooping.
• Q: How can I prevent the Brother PR1055X presser foot from hitting a magnetic embroidery frame when stitching a sweatshirt sleeve?
  A: Always run a trace/trial on the Brother PR1055X before stitching because sleeve bulk can lift the hoop higher than expected.
  • Mount the hooped sleeve and let the cuff hang naturally so it is not twisting the hoop on the arm.
  • Run the machine’s trace and watch the needle bar travel near the hoop edges—especially at the bottom where sleeve bulk stacks up.
  • Re-center the design if needed and keep the design bottom about 1 inch above the ribbed seam to avoid the bulky seam area.
  • Success check: the trace completes with visible clearance—no contact or “tick” against the frame.
  • If it still fails: re-hoop to reduce bulk under the frame edge and verify the hoop is fully seated/locked on the machine arm.
• Q: How do I know the placement stitch is correct before committing vinyl appliqué on a sweatshirt sleeve?
  A: Treat the placement stitch as the last safe stop—fix alignment immediately if the outline lands crooked or too close to the cuff.
  • Watch the placement outline stitch in real time and compare it to the sleeve orientation (seam position and how the sleeve will sit when worn).
  • Stop if the outline is rotated, too high, or too close to the ribbed seam; remove the hoop carefully and realign the sleeve.
  • Keep the intended bottom gap about 1 inch above the ribbed seam for clearance and to avoid flagged stitches near bulk.
  • Success check: the outline looks straight relative to the sleeve and sits clearly above the ribbed seam without forcing the sleeve to twist.
  • If it still fails: re-check that the sleeve is not torqued by the hanging cuff and that the ribbing is not clamped in the hoop.
• Q: How do I trim sparkly vinyl appliqué on a sweatshirt sleeve without cutting the sweatshirt fabric underneath?
  A: Remove the hoop from the machine but keep the fabric hooped, then trim the vinyl 1–2 mm from the tack-down stitches using curved appliqué scissors.
  • Support the magnetic frame flat on a table and rotate the hoop as you cut (do not twist your wrist through tight corners).
  • Lift the vinyl slightly with the scissors curve so the blades ride against the vinyl, not the sweatshirt.
  • Use the V-notch method for ribbon tails: cut one side to the point, stop, then cut the other side to meet the point—do not “turn” at the corner.
  • Success check: the trimmed edge is consistently close (about 1–2 mm), and the V-notch point looks crisp (not rounded).
  • If it still fails: improve visibility with a focused task light and replace/refresh scissors if they “chew” the vinyl instead of slicing cleanly.
• Q: Why does the satin stitch border “walk” off the vinyl edge on a sweatshirt sleeve appliqué, and how do I fix it?
  A: Most satin-border drift comes from trimming too far away or sleeve shifting/torque in the hoop—correct those before changing anything else.
  • Trim closer to the tack-down line so the satin stitch can fully cover the edge without chasing a loose flap.
  • Re-check that the sleeve is hanging naturally on the machine arm and not twisting the hoop during stitching.
  • Slow the machine down for the satin border if registration looks unstable (a common shop-floor fix is running about 600–700 SPM for that finish pass).
  • Success check: the satin stitch fully hides the trim line all the way around with no raw vinyl showing.
  • If it still fails: re-hoop with more neutral tension (avoid stretching) and confirm the vinyl was laid flat (not pulled tight) before tack-down.
• Q: What safety precautions should be followed when using a high-strength magnetic embroidery frame on thick sweatshirt fleece?
  A: Treat the magnetic frame like an industrial clamp—keep fingers out of the snap zone and separate magnets by sliding, not prying.
  • Keep fingertips away from the closing edge when the top ring drops onto the bottom magnet, especially on thick fleece where snap force is higher.
  • Slide magnets apart to separate them; do not pry upward.
  • Keep magnetic frames away from pacemakers/implanted medical devices and sensitive items like credit cards or hard drives.
  • Success check: the frame closes without pinching, and opening the frame is controlled and repeatable (no sudden “pop” toward your hand).
  • If it still fails: slow down the hooping motion, reposition hands to the outer edges only, and consider using a hooping station to reduce hand-in-the-clamp handling.
