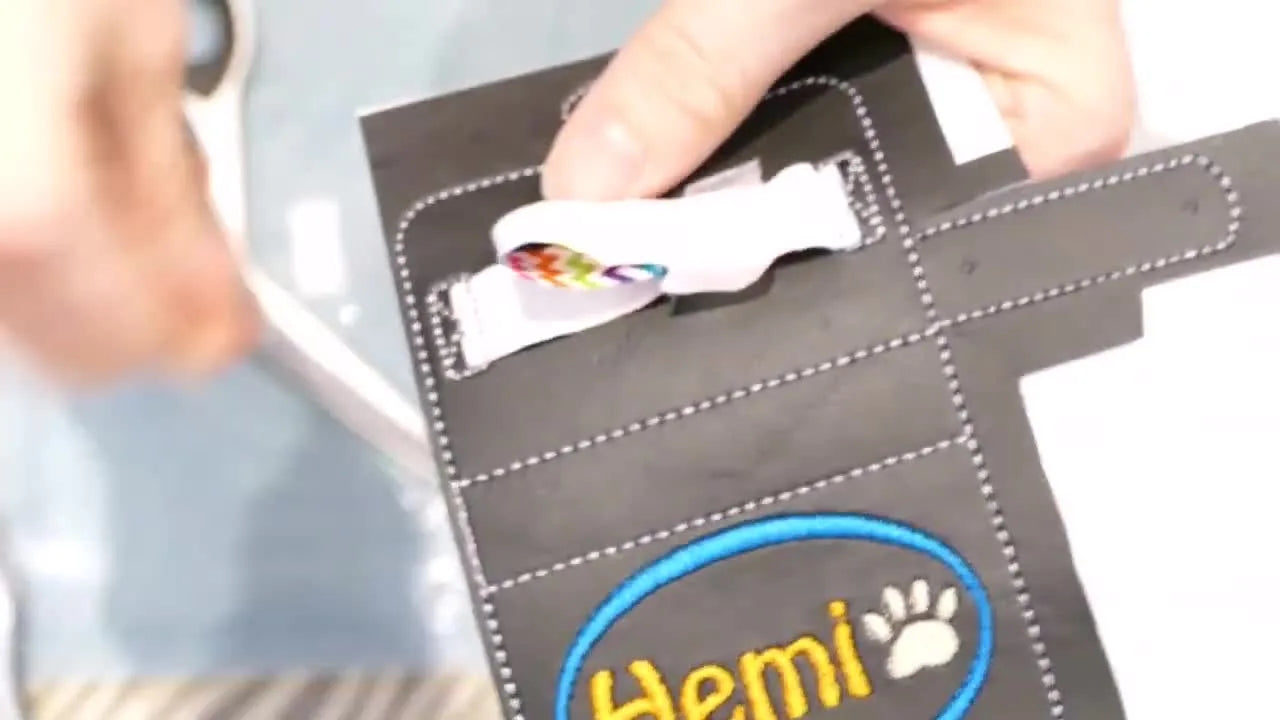

A Clean ITH Vinyl Tic-Tac Holder (Without Sticky Foot Drama): Elastic Slits, Tracing Paper, and Pro-Level Rivets

If you’ve ever started an In-The-Hoop (ITH) vinyl project feeling confident—then watched it go sideways because the vinyl shifted, the foot dragged, or you nicked the elastic while trimming—take a breath. This isn’t a failure of talent; it’s a failure of physics management.

This Tic-Tac holder project is genuinely “one hooping,” but it demands a calm, engineering-style mindset. You are constructing a vinyl (or faux leather) cover stitched entirely in the hoop, then trimmed and finished with hardware. The logic is sound, but the material—vinyl—is unforgiving.

As the Chief Embroidery Education Officer, my job is to take you from "hoping it works" to "knowing it will." We will focus on controlling friction, tension, and alignment to make this repeatable, cleaner, and impossible to mess up.

The “Don’t Panic” Primer: Why ITH Vinyl Projects Fail (and Why This One Works)

Vinyl is strictly different from woven fabric in two ways: it doesn’t self-heal (every needle hole is permanent), and it generates high friction (grip) against metal machine parts.

Most novices fail because they treat vinyl like cotton. When a metal presser foot drags across sticky vinyl, it pushes the top layer, causing registration errors (misalignment) or birdnesting underneath.

This project succeeds because we implement three "Engineering Controls":

1. The Anchor: A placement outline stitched on stabilizer so you never guess positioning.
2. The Friction Barrier: A tracing-paper layer on the back to stop the machine bed from grabbing the material.
3. The Slit-Lock: A specific cut-and-thread method for the fold-over elastic (FOE) that keeps the front presentation immaculate.


The “Hidden” Prep That Saves the Whole Project: Vinyl, Stabilizer, Adhesive, and a Clean Hoop

Before you touch the machine, we need to stabilize your environment. Amateur results come from rushing this stage. Professional results come from gathering the right consumables.

The Essentials (and Why You Need Them):

• Machine: Standard 5x7 hoop capability (Husqvarna Viking, Brother, Janome, or SEWTECH).
• Stabilizer: Medium-weight Tear-away.
  • Expert Note: While Cut-away offers more support, for ITH items where you want clean raw edges, Tear-away is the industry standard. It provides rigidity during stitching but removes cleanly later.
• Vinyl / Faux Leather: Choose a pliable vinyl. Rigid, upholstery-grade vinyls are harder to turn right-side out.
• Adhesive: 505 Temporary Spray Adhesive. Do not skip this. Tape is not enough for the center of the design.
• Fold-Over Elastic (FOE): 5.5 inches long, 0.5 inch wide.
• Friction Barrier: Tracing paper (or plain tissue paper).
• Cutting Tools:
  • Rotary Cutter + Acrylic Ruler: For long, laser-straight edges.
  • Kai Serrated Shears: For gripping vinyl without slipping on tabs.
  • Curved Embroidery Scissors (Gingher/Snip-Eze): For trimming threads flush.
  • Exacto/Craft Knife: With a fresh blade. A dull blade drags vinyl; a sharp one slices it.
• Hardware: 9mm double cap rivets + swivel clasp.
• Japanese Screw Punch: The gold standard for clean holes in leather/vinyl.

The "Hidden" Consumables Check:

• Masking Tape / Painters Tape: For securing elastic.
• Needle: Size 75/11 Embroidery or Sharp. Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
• Thread: 40wt Polyester. Rayon is too weak for functional items like keychains.

A Note on Hoop Burn & Efficiency: If you look at the arms of professional embroiderers, you won't see carpal tunnel braces—you'll see them using better tools. Hooping thick vinyl in standard plastic hoops often leaves permanent "hoop burn" (crushed texture rings) and strains your wrists. This is exactly the kind of job where magnetic embroidery hoops can reduce hoop burn, reduce wrist strain, and speed up repeat runs. By clamping magnetically rather than forcing an inner ring into an outer ring, you preserve the texture of your expensive faux leather.

Prep Checklist (Do this BEFORE powering on)

• Bobbin Check: Is your bobbin at least 50% full? Running out mid-design on vinyl creates a visible seam.
• Needle Check: Run your finger down the needle tip. If you feel any burr, change it. A burred needle shreds vinyl.
• Stabilizer Drum Test: Hoop your tear-away. Tap it. It should sound like a drum ( thump-thump ). If it sounds like paper rustling, it's too loose.
• Vinyl Sizing: Cut vinyl pieces large enough to cover the placement outline plus 0.5 inches on all sides, including tabs.
• Spray Zone: 505 spray can ready (spray the vinyl back, NEVER the machine).
• Blade Safety: Confirm your clean X-Acto blade is capped until the exact moment of use.


Lock the Foundation: Placement Stitch on Stabilizer (and Why “Tight” Actually Matters)

Start by hooping your tear-away stabilizer. For this step, standard plastic hoops work fine, but ensure the screw is tightened significantly after hooping to prevent slippage.

Run Color Stop 1 (Placement Stitch) directly onto the stabilizer.

The Sensory Check:

• Visual: Look at the outline. Is it distorted? Rectangles should have perfectly 90-degree corners. If they look rounded or wavy, your stabilizer is too loose.
• Tactile: Press the center of the stabilizer. It should not deflect more than a few millimeters.

This outline is your "Ground Truth." If this is wrong, every subsequent step will be wrong.

If you find yourself struggling to get stabilizer taut, or if your design is coming out crooked, a hooping station for embroidery can help you keep hoop tension consistent. It acts as a third hand, holding the outer hoop while you press the inner hoop, ensuring perfect alignment every time.

Float the Front Vinyl Like a Pro: 505 Spray Placement That Won’t Shift Mid-Run

We are using the "Floating" technique here. Instead of hooping the vinyl (which damages it), we stick it on top of the stabilizer.

1. Take your layout to a separate table (away from your machine).
2. Spray the wrong side (back) of your front vinyl piece with a light mist of 505 adhesive.
3. Action: Place the vinyl over the stitched outline on the stabilizer.
4. Verification: Run your fingers firmly over the vinyl from the center outward. You are bonding the adhesive and pushing out air bubbles.

The Failure Mode: The most common error is covering the main body but missing the side tabs. Vinyl is opaque; you cannot see the outline once you place the material.

• Fix: Use your fingers to feel the ridge of the placement stitch through the vinyl to ensure you have equal allowance on all sides.

Checkpoint: Vinyl fully covers the outline and tabs; no corners lifting. Expected Outcome: The vinyl sits flat and doesn’t "creep" (slide) when you touch the hoop.

Pro Tip: In higher-volume setups, floating embroidery hoop workflows pair well with magnetic frames because you can reposition thick floating materials instantly without fighting hoop screws.

Stitch the Design + Elastic Guides: Make the Marks Disappear (Unless You’re Teaching)

Return the hoop to the machine.

Machine Setting Adjustment (Crucial for Novices):

• Speed: Reduce your machine speed to 600 SPM (Stitches Per Minute). Vinyl generates heat from needle friction. High speeds (800+) can cause the vinyl to melt slightly and grip the needle, leading to shredded thread.
• Tension: Drop your top tension slightly (e.g., from 4.0 to 3.0). Vinyl is thick; tight tension will cause puckering.

Run the decorative design (logo/pattern) and the elastic placement markers.

Checkpoint: You should see the design plus two vertical parallel guide lines for the elastic. Visual Cue: These lines should be distinct. If you are stitching a production run, match the thread color to the vinyl so these lines vanish later. For your first attempt, use a contrasting color to see them clearly.

Warning: Mechanical Safety
Keep fingers clear of the needle area specifically during the "travel" moves. Vinyl projects often tempt users to "hold the material down" with their fingers. Do not do this. Use the eraser end of a pencil or a chopstick if you must stabilize the fabric. A needle through the finger is a career-ending injury for a hand model, and a painful lesson for a hobbyist.

The Clean-Front Elastic Trick: Two Tiny Slits (Top Above, Bottom Below)

This step requires surgical precision. Remove the hoop from the machine, but do not unhoop the material. Place the hoop on a flat, cutting-safe surface.

The "Slit-Lock" Method:

1. Identify the two stitched vertical lines for the elastic.
2. Top Line: Make a horizontal slit ABOVE the stitch line.
3. Bottom Line: Make a horizontal slit BELOW the stitch line.
4. Width Rule: The slit should be exactly the width of your elastic (0.5"). Do not cut a "hole." Just a line.

Why Precision Matters: Vinyl tears under tension. A clean cut with a sharp X-Acto knife distributes stress evenly. A jagged, sawing cut creates a weak point where the elastic will eventually rip through.

Thread the FOE Without Twists: Flip It Upside Down First, Then Tape the Tails Flat

Take your 5.5-inch Fold-Over Elastic (FOE).

Geometric Logic:

1. Invert: Turn the elastic upside down (wrong side facing you).
2. Thread: Feed one end through the top slit and one through the bottom slit.
3. Flip: Because you started upside down, when the elastic loops through to the back, the "front" of the loop on the face of the holder will be right-side up.

Securing the Tails (The Back Side): Flip the hoop over. You will see the elastic tails poking through the stabilizer. Pull them snug so the front loop is flat (no bubbling). Tape these tails aggressively to the back of the stabilizer/vinyl.

Checkpoint: On the front, the elastic lies flat against the vinyl between the slits. On the back, tails are taped down and not obstructing the outer edge of the design.

The “Sticky Foot” Fix: Back Vinyl + Tracing Paper Barrier (Yes, It’s That Simple)

Now we add the lining (back vinyl) to hide the elastic tails and stabilizer.

1. Fix the Front: On the front of the hoop, tape the elastic loop into a tight bundle in the center so the needle doesn't hit it.
2. Attach Back Vinyl: Flip the hoop over. Place your backing vinyl (Right Side Facing Out) to cover the sew field. Tape the corners securely.
3. The Magic Step (Friction Reduction): Tape a sheet of Tracing Paper or tissue paper over the entire back vinyl piece.

The Physics of Friction: Your machine's needle plate is metal. Your vinyl is plastic. Metal + Plastic = Drag. This drag prevents the feed dogs or pantograph from moving the hoop smoothly, resulting in distorted shapes (ovals instead of circles) or short stitch lengths. The tracing paper acts as a dry lubricant, allowing the vinyl to glide over the machine bed effortlessly.

Setup Checklist (The "Pre-Flight" Check):

• Front elastic loop is taped center, clear of the perimeter stitch path.
• Back elastic tails are taped flat.
• Back vinyl is secured.
• Tracing paper barrier is taped tight (no sag).
• Hoop is reattached to the machine arm securely (listen for the click).
• Bobbin thread is still sufficient for the final outline.


Final Stitch + Tear-Away Cleanup: Pull Close to the Stitch Line

Run Color Stop 3 (Final Bean Stitch or Triple Stitch). This stitches the visible perimeter, locking the front vinyl, elastic, and back vinyl together.

The Sound of Success: You should hear a rhythmic thump-thump-thump as the needle penetrates all layers. If you hear a grinding noise or a high-pitched whine, your needle may be struggling -> Pause and check for adhesive buildup on the needle.

Cleanup: Remove the hoop. Tear away the tracing paper.

• Technique: Place your thumb strictly on the stitches to support them, and tear the paper away from the stitch line. This prevents you from distorting the fresh stitches.


Cut It Like You Mean It: Rotary for Long Runs, Kai for Tabs (Rotate the Item, Not the Scissors)

Unhoop the project. You now have a raw vinyl sandwich.

The "Product, Not Craft" Cutting Method:

1. Rough Cut: Cut the excess material away, leaving about 1 inch.
2. Precision Cut (Straight Lines): Use your Rotary Cutter and Ruler. Place the ruler exactly 1/8th inch (3mm) from the stitch line. Slice firmly. This gives a factory-perfect edge that hand scissors cannot match.
3. Precision Cut (Curves & Tabs): Switch to your Kai shears or Gingher curved scissors.
   • Rule: Rotate the vinyl object in your left hand; keep your scissor hand stationary and vertical. This creates a fluid curve rather than a jagged "stop-start" polygon.

Warning: Blade Safety
Rotary cutters are essentially razor blades on wheels. They will slice through vinyl, bone, and tendon with equal ease. Always cut away from your body. Keep your stabilizing hand well away from the ruler's edge. Retract the blade immediately after the cut.

Operation Checklist (The Finish Line)

• Elastic loop was taped center during cutting (didn't get snipped!).
• Margin is consistent (1/8") all around.
• No stabilizer tufts sticking out (singe carefully with a lighter if needed, but be fast!).

Hardware That Doesn’t Pop Off: Punch Clean Holes

Do not try to force a rivet through intact vinyl. Ideally, your pattern included tiny placement circles.

1. Punch: Use the Japanese Screw Punch (size 2.5mm or 3mm) to clear the material from the hole.
2. Install: Insert the male rivet piece from the bottom, snap the female cap on top.
3. Set: Use a rivet press or a hand setter and hammer on a solid surface (concrete floor or sturdy bench, avoiding the bounce of a kitchen table).
   • Tactile Cue: You should feel a solid "crunch" as the rivet internals compress. If it spins freely, it’s not set tight enough.
   • Spec: 9mm double cap rivets (Post length 8-10mm depending on vinyl thickness).


The “Why” Behind the Workflow: Friction, Layer Control, and Repeatability

This workflow wasn't designed to be "fast"—it was designed to be failsafe. By controlling the friction with tracing paper and controlling the movement with stabilizer, you eliminate the variables that cause beginners to fail.

However, if you start making these in batches of 10, 20, or 50, you will hit a new bottleneck: Physical Fatigue.

The Commercial Reality: If you find that hooping thick vinyl layers is causing hand pain, or if you are discarding 20% of your product due to hoop burn marks, look at your tools. Terms like embroidery hoops magnetic are your gateways to understanding efficient production. Unlike mechanical clamps, magnetic frames snap on instantly and hold material without crushing the grain.

Quick Decision Tree: Stabilizer + Hooping Choices for Vinyl ITH

Use this logic to streamline your setup:

• Scenario A: One-off Gift or Hobby Project
  • Hoop: Standard Plastic Hoop.
  • Stabilizer: Tear-away clamped tight.
  • Method: Float vinyl with spray.
  • Risk: Moderate hoop burn risk on edges; slower setup.
• Scenario B: Small Batch (Etsy Shop / Craft Fair)
  • Hoop: Magnetic Hoop (5x7 size).
  • Stabilizer: Tear-away or Cut-away.
  • Method: Float or magnetically clamp instructions.
  • Benefit: Zero hoop burn, 3x faster reloading.
  • Search Intent: Many users look for hooping for embroidery machine tutorials specifically to solve the "hoop burn" problem.
• Scenario C: High Volume Production
  • Machine: SEWTECH Multi-Needle.
  • Hoop: magnetic hooping station + Industrial Frames.
  • Method: Assembly line (Hoop 5 frames -> Stitch 5 runs).

Troubleshooting the Three Most Common “Why Is This Happening?” Moments

The Upgrade Path: From Hobbyist to Professional

If you are making one holder, your sewing machine is fine. If you are making inventory, time is your most expensive cost.

When to upgrade tools:

1. Pain Audit: If your wrists hurt after an hour, you are fighting your equipment. Magnetic hoops solve this.
2. Quality Audit: If you lose items to slippage or hoop burn, your scrap rate is eating your profit. Magnetic hoops solve this.
3. Speed Audit: If you spend more time changing thread colors than stitching, a multi-needle machine (like SEWTECH models) is the next logical step.

Warning: Magnetic Hoop Safety
High-quality magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together with enough force to bruise fingers or blood blisters. Handle with respect.
* Medical Devices: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Do not place credit cards or phones directly on the magnets.

Final Reality Check: What “Done” Looks Like

A professional finish is defined by clean edges (no jagged scissor cuts), set hardware (rivets that don't spin), and a front face free of distortions.

When you fold the elastic over, it should feel secure, engaging the vinyl with a reassuring resistance. If you’ve achieved this, you haven’t just followed a tutorial; you’ve mastered the material properties of vinyl. That is the cornerstone of embroidery craftsmanship.

FAQ

• Q: How do I prevent shifting and misalignment when floating vinyl for an ITH keychain on a Brother 5x7 embroidery machine using 505 temporary spray adhesive?
  A: Lightly spray the back of the front vinyl with 505 and bond it firmly to the hooped tear-away before stitching the design.
  • Spray away from the machine, then place vinyl over the stitched placement outline.
  • Press from center outward with firm strokes to push out air and “lock” the adhesive.
  • Feel for the raised placement-stitch ridge through the vinyl to confirm equal allowance on all sides (including tabs).
  • Success check: Vinyl lies flat with no lifting corners, and it does not “creep” when you rub the surface.
  • If it still fails: Re-hoop stabilizer tighter (drum-tight) and re-run the placement stitch before reapplying vinyl.
• Q: What is the “drum-tight” stabilizer test for hooping medium-weight tear-away in a 5x7 plastic hoop for ITH vinyl projects on a Janome embroidery machine?
  A: Hoop the tear-away so it is taut enough to sound and behave like a drum, because the placement outline becomes the alignment “ground truth.”
  • Tighten the hoop screw significantly after hooping to prevent slippage.
  • Tap the hooped stabilizer and listen for a firm “thump-thump,” not a loose paper rustle.
  • Inspect the placement outline corners after stitching; rectangles should have crisp 90° corners, not rounded or wavy.
  • Success check: Press the center—deflection should be only a few millimeters.
  • If it still fails: Use a hooping station to keep tension consistent while seating the inner ring.
• Q: How do I stop vinyl drag and distorted shapes during the final perimeter stitch when using a Husqvarna Viking 5x7 hoop for ITH vinyl with a backing piece?
  A: Add a full-sheet tracing paper (or tissue paper) barrier over the back vinyl so the vinyl glides on the metal needle plate instead of gripping it.
  • Tape the back vinyl down securely first (corners stable, no shifting).
  • Tape tracing paper over the entire back vinyl area with no sagging.
  • Reattach the hoop and confirm it clicks in firmly before running the final bean/triple stitch.
  • Success check: The perimeter stitch runs smoothly and shapes stay true (no ovals-from-circles, no shortened/distorted stitches).
  • If it still fails: Pause and check for adhesive buildup on the needle and confirm the paper barrier fully covers the contact area.
• Q: How do I prevent birdnesting (thread nests under the hoop) on ITH vinyl projects when stitching on a SEWTECH embroidery machine?
  A: Stop immediately, clear the nest, and re-check threading and movement control—vinyl drag and unstable layers commonly trigger birdnesting.
  • Stop the machine, cut away the thread nest carefully, and remove tangled bobbin thread.
  • Re-thread the top path completely (do not “guess” where it jumped out).
  • Re-apply the tracing paper barrier on the underside to reduce drag and “bounce.”
  • Success check: The underside returns to clean, even stitch formation without a growing thread wad.
  • If it still fails: Reduce speed to 600 SPM as a safer starting point for vinyl and slightly lower top tension (then confirm with the machine manual).
• Q: How do I stop vinyl from tearing along the stitch line (“perforation cutting”) when making an ITH Tic-Tac holder using a 75/11 embroidery needle and 40wt polyester thread?
  A: Use the smaller 75/11 needle and reduce stitch density so the needle holes don’t turn into a tear line.
  • Switch to a 75/11 Embroidery or Sharp needle (avoid ballpoint for vinyl).
  • Lengthen stitches in software to 3.0 mm+ for perimeter-style seams (a safe starting point for vinyl).
  • If a tear starts, apply fray check glue to stabilize the damaged area before it propagates.
  • Success check: The seam holds under gentle flexing without the vinyl splitting between holes.
  • If it still fails: Verify the vinyl is pliable (not rigid upholstery-grade) and confirm you are cutting clean slits (not oversized holes) for elastic.
• Q: What is the safest way to cut the two FOE slits and trim vinyl on an ITH keychain without nicking the fold-over elastic on a Brother embroidery setup?
  A: Keep the project hooped for the slit step, cut only thin horizontal slits with a fresh blade, and tape the elastic into the center before any perimeter trimming.
  • Cut the top slit ABOVE the stitched guide line and the bottom slit BELOW the stitched guide line (slit width = elastic width, not a hole).
  • Thread FOE upside down first, then tape elastic tails flat on the back; tape the front loop into a tight center bundle before final stitching and cutting.
  • When trimming, rotate the item—not the scissors—and use rotary cutter + ruler for long straight edges at about 1/8" (3 mm) from the stitch line.
  • Success check: Elastic loop on the front lies flat with no twists, and the perimeter edge is consistent without accidental elastic cuts.
  • If it still fails: Replace the X-Acto blade (dull blades drag and tear vinyl) and re-check that the elastic is fully taped away from the stitch path.
• Q: What needle-area safety rule should beginners follow during travel stitches on ITH vinyl projects on a Janome or SEWTECH embroidery machine?
  A: Never hold vinyl down with fingers near the needle during travel moves—use a tool if stabilization is needed.
  • Keep hands outside the needle zone whenever the machine is moving, especially during jump/travel stitches.
  • If you must guide material, use the eraser end of a pencil or a chopstick instead of fingertips.
  • Slow the machine to 600 SPM as a safer starting point for vinyl to reduce heat and sudden pulls.
  • Success check: Hands remain clear for the entire stitch cycle, and there are no “near misses” when the hoop shifts direction.
  • If it still fails: Pause the machine and re-secure layers with tape/adhesive rather than trying to hand-hold the vinyl.
• Q: When should an Etsy seller switch from a standard 5x7 plastic hoop to a magnetic embroidery hoop for ITH vinyl production to reduce hoop burn and wrist strain?
  A: Upgrade to a magnetic hoop when hoop burn marks, hand fatigue, or slow reloading become repeatable bottlenecks—this is common in small-batch runs.
  • Diagnose: Track scrap rate from hoop burn and note wrist/hand pain after an hour of hooping thick vinyl.
  • Try Level 1: Improve prep—drum-tight stabilizer, float vinyl with 505, and use tracing paper to reduce drag.
  • Move to Level 2: Use a magnetic hoop to clamp without crushing texture and to reload faster between runs.
  • Success check: Fewer crushed rings on vinyl, faster reloads, and less hand strain while maintaining consistent alignment.
  • If it still fails: Consider a multi-needle workflow for higher volume after hooping time and color-change time become the dominant cost.
