A No-Bind ITH Flower Mug Rug on a BERNINA: The Painter’s Tape Trick That Saves Your Presser Foot (and Your Sanity)

If you’ve ever watched an in-the-hoop project stitch beautifully… right up until the backing seam flips up and the presser foot snags, destroying an hour of work, you’re not alone. This flower mug rug is a "beginner-friendly" ITH (In-The-Hoop) win, but it has one specific mechanical "gotcha" regarding layer thickness that can ruin the last 60 seconds of stitching.

In this white-paper-style walkthrough, I will strip away the fluff. We will focus on the physics of the machine, the tactile feedback of proper hooping, and the production-grade habits that prevent puckers, frayed edges, and wasted stabilizer.

The Calm-Down Moment: Yes, a BERNINA Embroidery Machine Really Does “Sew by Itself”

One comment I hear constantly from students is: “Wait… the machine sews by itself? Do I just walk away?”

Here is the professional reality: The embroidery module executes the X-Y axis movement, but you remain the engineer. Your machine is a robot that lacks eyes. It cannot see if a thread tail is caught or if fabric is bunching.

Your Role:

• Listen: A happy machine hums rhythmically. A loud clank-clank means a needle strike is imminent. A grinding noise often means a thread nest (bird's nest) is forming in the bobbin area.
• Watch: Keep your eyes on the "danger zone"—the 1-inch radius around the needle.
• Verify: Ensure the thread path is clear before hitting "Start" on every color change.

That said, “hands-off” stitching doesn’t mean “risk-free.” Your job is to keep the project flat, ensure seams don't lift, and minimize vibration.

The Supply Layout That Prevents Mid-Project Panic (Batting, Wonder Tape, No-Show Mesh Stabilizer)

In professional embroidery, downtime kills momentum. Christine lays everything out not just for the camera, but to create a "zero-friction" workflow. You do not want to be hunting for scissors while your machine idles.

The "Mise-en-place" (Setup):

• Batting: 5 x 6.5 in (Cotton or Poly-blend low loft).
• Side strip: 5 x 2 in.
• Background fabric: 5 x 5 in.
• Flower fabric: 4.5 x 4.5 in scrap.
• Pocket back pieces: Two 5 x 4.5 in pieces.
• Stabilizer: 15 x 12 in No-Show Mesh. Why Mesh? It is soft against the skin (unlike tearaway) but strong enough to support the stitch density of the flower.
• Hoop: Large Oval Hoop (or equivalent 5x7" / 130x180mm field).
• Adhesives: Wash-Away Wonder Tape (1/4 in) and Painter’s tape.
• Tools: Curved embroidery scissors (Non-negotiable for ITH), Chopstick/point turner.

Hidden Consumables:

• Needle: Organ or Schmetz 75/11 Embroidery Needle (Sharp point prevents snagging batting).
• Spray Starch: Optional, but stiffening your fabric before cutting makes placement 50% easier.

If you plan to do ITH projects in batches (e.g., 20 for a craft fair), standard screw hooping becomes a bottleneck. This is where tools like hooping stations become relevant. They hold the outer ring static, allowing you to press the inner ring down using body weight rather than wrist strength, ensuring consistent tension every time.

Prep Checklist (Go/No-Go):

• Fabrics cut to exact dimensions (precision matters in ITH).
• Thread colors queued: Green (Construction), Pink (Flower), Yellow (Center).
• Bobbin check: Is it at least 50% full? (Running out during a perimeter stitch is a nightmare).
• 15x12" Mesh stabilizer is hooped "drum-tight" (tap it—it should sound like a drum).
• Curved scissors placed at your right hand.


The “Hidden” Prep That Makes the Envelope Backing Behave: Wonder Tape Hems That Stay Consistent

The envelope backing functions mechanically: two pieces of fabric overlap to create a turning hole. If these hems are bulky or crooked, the final project won't lie flat.

The Protocol:

1. Cut a 5-inch strip of Wonder Tape.
2. Apply along the 5-inch edge of the backing fabric.
3. Tactile Check: Run your fingernail along the tape to bond it. Peel the paper.
4. Fold the fabric over exactly 1/4 inch.
5. Repeat: Add a second layer of tape on the fold, peel, and fold again for a clean finish.

Why Wonder Tape? Pins distort the fabric and can break needles if forgotten. Wonder Tape stabilizes the hem and washes out completely.

Pro tip from the comments: The design file is available on WeAllSew. Always check the file format (.EXP, .PES, .DST) matches your machine before loading.

The First Stitch-Out Sequence on a BERNINA Large Oval Hoop: Placement Line → Batting Tack-Down

Thread the machine with Green. Set your speed to Medium (approx. 500-600 SPM). High speed here can drag the batting.

Phase 1: The Anchor

1. Placement: Machine stitches a rectangle on the stabilizer.
2. Act: Lay the 5 x 6.5 in batting centered over these lines.
3. Secure: Run the tack-down stitch.

Checkpoint - The "Shift" Test: After the tack-down, gently push the batting with your finger. Does the stabilizer ripple or buckle?

• No: Good tension.
• Yes: Your hoop was too loose.

This is where hooping technique becomes quality control. If you’re practicing hooping for embroidery machine projects, remember the "Finger-Tight Plus" rule: Tighten the screw finger-tight, then give it one half-turn with a screwdriver. Do not pull the stabilizer after the hoop is tightened, as this warps the weave.

The Clean Piecing Trick: Attaching the 5 x 2 Side Strip Right-Sides-Together (RST)

Precision Step:

1. Machine stitches placement line for the side strip.
2. Place the 5 x 2 in strip Right Sides Together (RST). Ideally, the raw edge of the strip should align perfectly with the placement line.
3. Stitch the seam.
4. Action: Flip the strip open.
5. Finger Press: Run your nail firmly along the seam to flatten it. Use a mini-iron if available for a crisp edge.


The “Don’t Let Anything Shift” Perimeter Stitch: Why This One Pass Saves the Whole Project

After flipping the side strip and background fabric open, the machine runs a full perimeter stitch.

Expert Insight (Physics of Pull Compensation): Why this step? As you add dense satin stitches later, the fabric naturally shrinks inward (pull). If the base layers aren't mechanically locked to the stabilizer before the heavy stitching starts, your square mug rug will turn into a rhombus. This perimeter run is your structural foundation.

Sensory Check: watch for "flagging"—if the fabric bounces up and down with the needle, your hoop tension is too low.

The Flower Applique That Won’t Peel: Placement Outline → Fabric Cover → Zig-Zag Tack Stitch

Switch to Pink thread.

The Sequence:

1. Placement: Machine outlines the flower shape.
2. Position: Cover the outline completely with your 4.5" square scrap.
3. Tack: Machine runs a Zig-Zag tack stitch.

Why Zig-Zag? A straight stitch might allow the raw edge to fray and pull out closer to the satin stitch. The zig-zag grabs more surface area, essential for longevity.

Commercial Layout Note: If you notice your fabric slipping during this step despite using tape, or if you struggle to get the hoop screw tight enough, you might be fighting the mechanics of a standard hoop. Many commercial shops use a dedicated embroidery hooping station not just for speed, but to ensure the inner hoop is seated instantly and evenly, trapping the fabric securely without the need for manual tugging.

The Trim That Separates “Handmade Cute” from “Store-Quality”: Curved Scissors, Flat Surface, No Thread Cuts

This is the High Risk moment. Beginners often cut the stabilizer or the stitches.

The Protocol:

1. Remove the hoop from the machine. (Do NOT trim on the machine; you will damage the pantograph arms).
2. Place on a flat, hard surface.
3. Use Double-Curved Scissors. Hold them so the curve lifts the blades away from the stabilizer.
4. Trim close (1-2mm) to the zig-zag.

Warning: Mechanical Safety. Keep your fingers away from the scissor blades while cutting under tension. The fabric cuts easily, but so does the stabilizer. If you slice the stabilizer, the project is unstable and likely ruined.

Success Metric: You should see no "whiskers" of fabric sticking out more than 2mm.

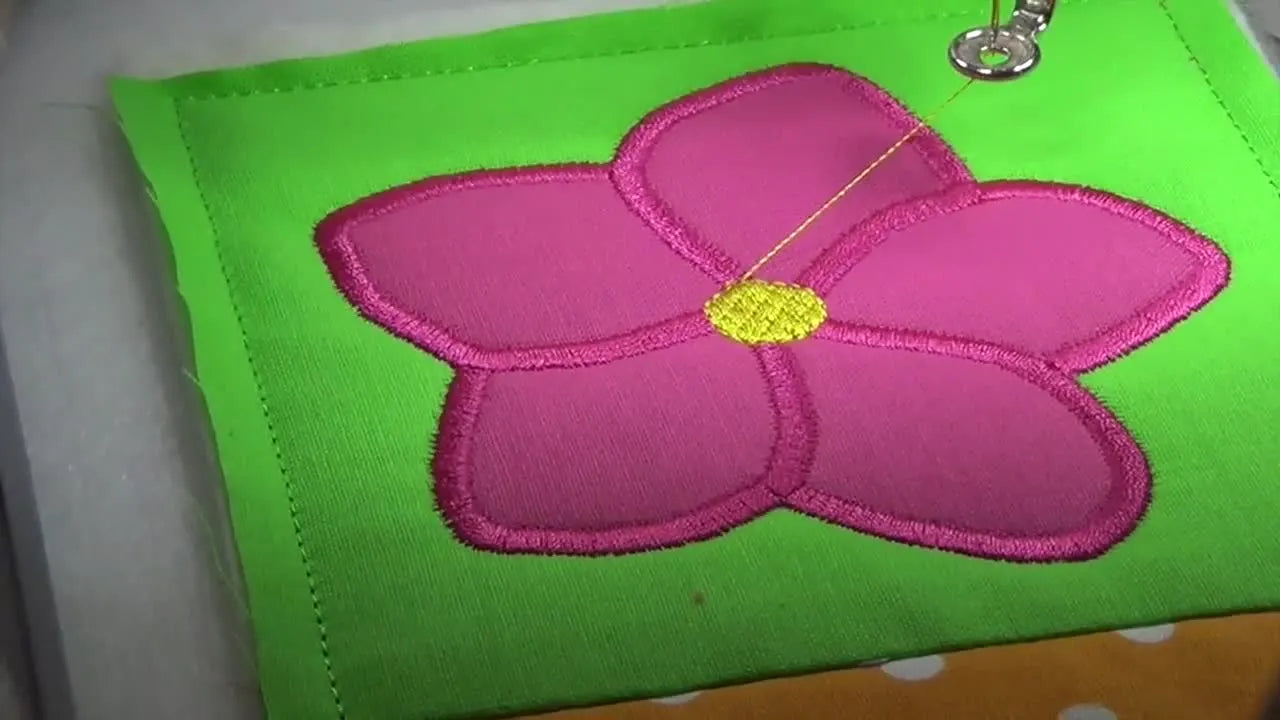

The Satin Stitch Payoff (and the Yellow Center Fill): How to Keep Dense Stitches Looking Smooth

Re-attach the hoop. Ensure it "clicks" firmly into the carriage.

The Sequence:

1. Satin Border (Pink): The machine covers the raw edges with a dense column stitch.
2. Center Fill (Yellow): Changes to a fill pattern.

Expert Insight (Material Science): Satin stitches exert immense tension on the fabric. If your backing is too light (e.g., tearaway), the satin stitch will tear it, causing gaps to appear between the outline and the fill. This is why we used Poly Mesh—it resists the "cookie cutter" effect.

The Green Stippling Quilting Pass: Texture Without Bulk on the Background Fabric

Switch back to Green.

The machine will "meander" (stipple).

• Speed Check: You can increase speed here (700+ SPM) as these are low-density running stitches.
• Visual Check: Ensure the bobbin thread isn't pulling up to the top (look for white dots). If it is, slightly lower your top tension.


The Painter’s Tape “Seatbelt” for Envelope Backing Seams: Stop the Presser Foot from Diving Under the Hem

This is the single most common failure point in ITH pouches and rugs.

The Setup:

1. Place pocket back pieces RST (Right Sides Together) on top of the project.
2. Ensure they overlap in the center to form the envelope.

The Threat: As the presser foot travels over the project, it will eventually cross the folded hem of the backing fabric. The layout creates a "cliff." The foot loves to hook under this cliff, instantly jamming the machine.

The Solution: Apply a strip of painter’s tape (or medical paper tape) vertically over the seam overlap. This creates a "ramp" for the foot to slide over.

Warning: Magnet Safety. If you choose to upgrade to magnetic hoops later to avoid hoop burn, handle them with extreme care. magnetic embroidery hoops use industrial-strength magnets (N52 usually). They can pinch fingers severely or damage pacemakers/electronics if brought too close. Always slide the magnets apart; never pry them.

Tool Upgrade Path: If you find the process of screwing tight a thick "sandwich" (stabilizer + batting + 3 layers of cotton) physically painful for your wrists, or if you see "hoop burn" (shiny crushed rings) on your fabric, this is the trigger to switch tools. A magnetic hoop for bernina clamps vertically. It holds thick layers instantly without the need to unscrew/rescrew the hoop, and it eliminates hoop burn completely.

The Final Perimeter Seam + Edge Zig-Zag: Why This Two-Pass Finish Holds Up to Real Life

With the tape "seatbelt" in place:

1. Perimeter Stitch: Joins front and back.
2. Edge Finish: Zig-zag stitch prevents fraying inside the turned project.

Operation Note: Monitor the machine closely as it sews over the tape. Stitches will go through the tape. This is fine.

The Cut Line Discipline: Trim Close to the Zig-Zag Without Nicking It

The Final Trim:

1. Remove hoop. Un-hoop the project.
2. Tear away the tape. Some bits will be trapped in the stitch—leave them, they are inside the rug.
3. Trim: Cut the exterior excess fabric/batting/stabilizer 1/8" away from the zig-zag stitch.

Critical: Do not cut the thread knots at the start/stop points yet. Secure the structure first.

The Turnout and Press That Makes It Look Professional: Square Corners, Flat Edges, No Melted Thread

1. Turn right-side out through the envelope slot.
2. Point Turning: Use a chopstick. Push gently. If you push too hard, you will poke through the corner.
3. Pressing: Iron carefully.

Expert Warning: Most embroidery thread is Polyester, which melts at high temperatures.

• Rule: Use a pressing cloth (cotton scrap) between the iron and the embroidery.
• Setting: Set iron by "Silk/Wool" settings, not max cotton heat.


A Stabilizer Decision Tree for ITH Mug Rugs

Use this logic to avoid puckering in future projects.

Troubleshooting the “Scary” Moment: Presser Foot Gets Stuck

Symptom: Machine makes a grinding noise; fabric is stuck to the foot near the center overlap. Likely Cause: Foot hooked under the envelope hem. Quick Fix:

1. STOP immediately. Do NOT pull the fabric.
2. Raise the presser foot.
3. Use the handwheel to raise the needle.
4. If stuck, cut the thread tangles carefully.

Prevention: Use the "Painter's Tape Seatbelt" technique described above.

The Upgrade Path After You Nail One Mug Rug

Once you master the technique, two things usually happen: You want to make them faster, or your hands get tired.

The Efficiency Ladder:

1. Level 1 (Technique): Use Wonder Tape and painter's tape to prevent stopping for errors.
2. Level 2 (Ergonomics): If you struggle with hoop screws or own a BERNINA, a bernina magnetic embroidery hoop significantly reduces hand strain and setup time.
3. Level 3 (Scale): If you are receiving orders for 50+ items, hooping and single-needle color changes become the bottleneck. This is when upgrading to a multi-needle machine (like our SEWTECH 15-needle series) moves you from "hobbyist" to "business owner," allowing you to hoop the next project while the machine runs uninterrupted.

Setup Checklist (Final Pre-Flight):

• Envelope backs placed RST (Right Sides Together).
• Tape Seatbelt applied over the center seam.
• Hoop is clicking into the machine securely.
• Speed reduced to 600 SPM for safety over the hump.

Operation Checklist (The Finish):

• Watch the foot as it crosses the tape.
• Remove project from hoop immediately to relax fibers.
• Trim 1/8" from edge (measure twice, cut once).
• Corners pushed out gently.
• Final press using a protective cloth.

FAQ

• Q: What is the safest stitch speed on a BERNINA embroidery machine for an in-the-hoop mug rug when stitching over batting and multiple fabric layers?
  A: Use a medium speed around 500–600 SPM for the thick “sandwich,” then speed up only for low-density quilting lines.
  • Set speed to ~500–600 SPM for placement, tack-down, seams, and perimeter passes where batting can drag.
  • Increase speed (often 700+ SPM) only for the green stippling/meander because it is low-density running stitch.
  • Success check: The machine sound stays rhythmic (no clank-clank), and the batting/fabric does not creep as stitching starts.
  • If it still fails: Stop immediately and re-check hoop tightness and whether any layer is lifting near the needle area.
• Q: How can a BERNINA Large Oval Hoop be hooped correctly for No-Show Poly Mesh stabilizer to prevent puckers on an ITH mug rug?
  A: Hoop the 15×12" No-Show Poly Mesh “drum-tight” and do not stretch/pull the stabilizer after tightening the hoop.
  • Hoop the mesh so it feels tight and even across the entire window.
  • Tap the hooped stabilizer and aim for a drum-like sound/feel.
  • Avoid tugging the stabilizer once the hoop is tightened (this can warp the weave and cause distortion later).
  • Success check: After batting tack-down, push the batting lightly—there should be no rippling or buckling in the stabilizer.
  • If it still fails: Re-hoop and focus on even tension all around rather than over-tightening one side.
• Q: What should be prepared and checked before starting an in-the-hoop mug rug on a BERNINA embroidery machine to avoid mid-design stops?
  A: Pre-stage consumables and run a quick “go/no-go” check so the machine never idles while you hunt for tools.
  • Install an Organ or Schmetz 75/11 Embroidery needle and place curved embroidery scissors within reach.
  • Check the bobbin is at least 50% full before starting perimeter stitching steps.
  • Confirm fabric pieces are cut to the exact dimensions and thread colors are queued (Green, Pink, Yellow).
  • Success check: You can complete each color change without pausing to refill bobbin, find scissors, or re-cut fabric.
  • If it still fails: Stop and reset the workspace (“mise-en-place”) before restarting—rushing usually causes trimming or placement mistakes.
• Q: How can the envelope backing seam be prevented from flipping up and jamming the presser foot on a BERNINA embroidery machine during an ITH mug rug finish?
  A: Tape the envelope overlap like a “seatbelt” so the presser foot rides over the hem instead of diving under it.
  • Place the two pocket back pieces right-sides-together (RST) and overlap them to form the envelope opening.
  • Apply painter’s tape (or medical paper tape) vertically across the center overlap to create a smooth ramp.
  • Reduce speed to about 600 SPM when sewing the final perimeter over the hump.
  • Success check: The presser foot glides over the overlapped hem without grabbing, and the machine does not grind or stall.
  • If it still fails: Stop immediately, raise the presser foot, use the handwheel to lift the needle, and carefully cut tangles—do not pull the fabric.
• Q: What is the safest way to trim applique fabric on an in-the-hoop mug rug to avoid cutting stabilizer or stitches on a BERNINA embroidery project?
  A: Remove the hoop from the machine and trim on a flat surface using double-curved scissors, cutting 1–2 mm from the zig-zag tack stitch.
  • Take the hoop off the machine before trimming to avoid damaging the embroidery module/pantograph movement.
  • Hold curved scissors so the curve lifts the blades away from the stabilizer while trimming close.
  • Trim slowly and keep fingers clear; the stabilizer can slice easily if tension changes.
  • Success check: No fabric “whiskers” extend more than ~2 mm beyond the tack stitch, and the stabilizer remains intact.
  • If it still fails: If stabilizer is nicked, expect instability—re-stabilize and re-stitch if possible rather than forcing the satin stitch to cover damage.
• Q: What is the best stabilizer choice for an ITH mug rug satin stitch border on a BERNINA embroidery machine to avoid gaps and distortion?
  A: Use No-Show Poly Mesh for quilting cotton because it supports satin density without tearing like light tearaway can.
  • Choose No-Show Poly Mesh for standard quilting cotton when the design includes dense satin borders.
  • Watch for “cookie-cutter” tearing or gaps when using overly light backing under satin stitches.
  • Keep an eye on bobbin showing on stippling; slightly lower top tension if white dots appear on the top.
  • Success check: Satin stitches look smooth and fully cover the raw edge without gaps between outline and fill.
  • If it still fails: Re-evaluate stabilizer type using a fabric-based decision approach (knits often need fusible mesh + floating tearaway).
• Q: What magnetic embroidery hoop safety rules should be followed when upgrading from a screw hoop to a magnetic hoop for a BERNINA embroidery machine?
  A: Treat magnetic embroidery hoops as industrial magnets and handle by sliding magnets apart—never prying—while keeping them away from sensitive items.
  • Slide magnets apart to separate; do not pull straight up or pry (pinch risk is high).
  • Keep magnets away from pacemakers and electronics; store magnets with spacers so they do not snap together unexpectedly.
  • Clamp thick layer “sandwiches” evenly to reduce hoop burn and wrist strain compared with repeated screw tightening.
  • Success check: Fingers never enter the pinch zone, and the magnetic frame seats layers instantly without crushing rings on fabric.
  • If it still fails: If handling feels unsafe or uncontrolled, return to a standard hoop and focus on technique improvements before switching tools.
