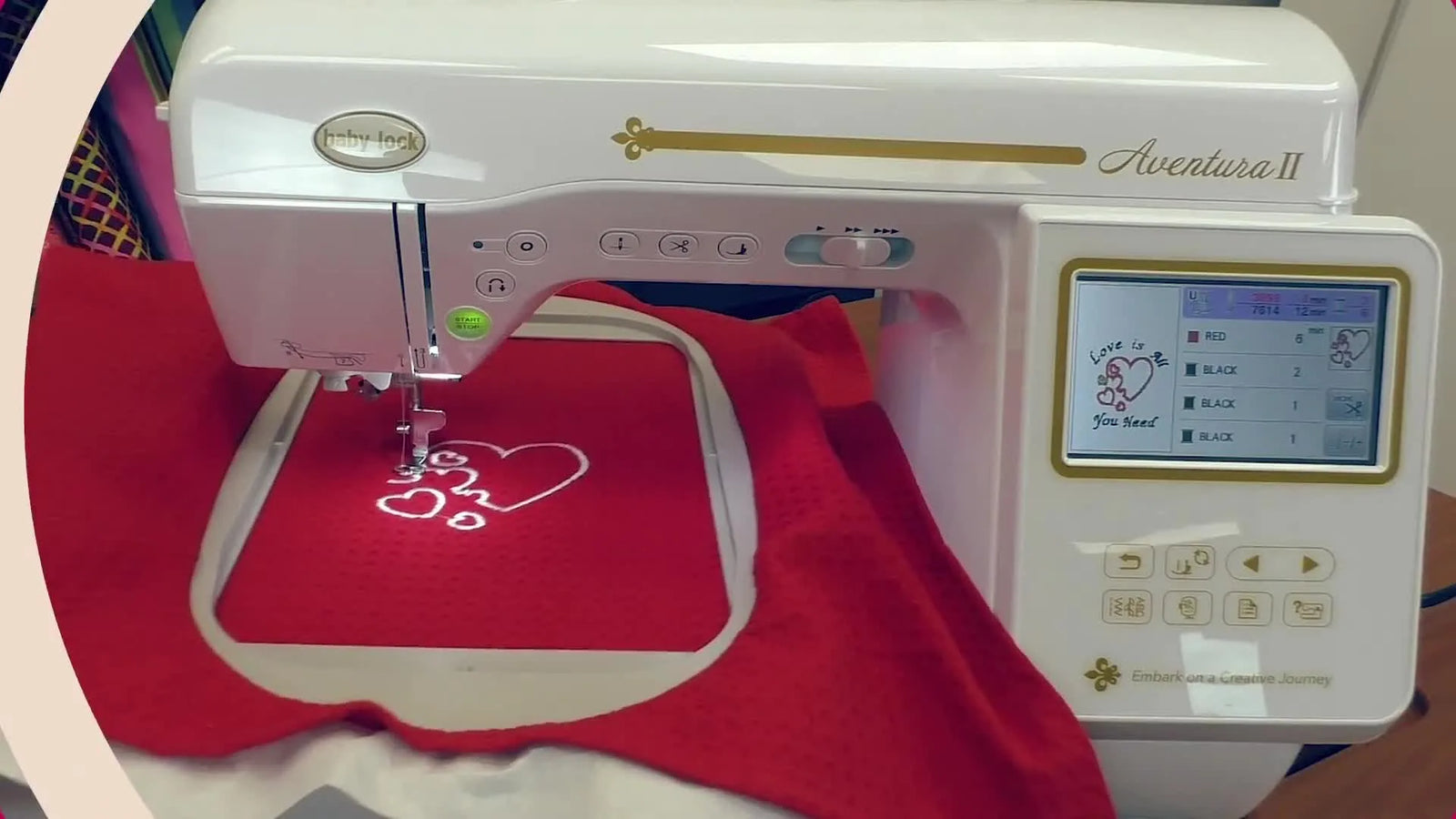

Baby Lock Aventura II On-Screen Editing That Actually Stitches Right: Hoop Boundaries, Text Tricks, and the “Why Is It Asking for a Bigger Hoop?” Fix

If your Baby Lock Aventura II ever made you feel like you’re “fighting the screen” instead of crafting, stop. Take a breath. You are not alone. Machine embroidery is an experience-based science, and the Aventura II is a powerful tool—if you respect its physics and stop guessing at its logic.

In this guide, we are moving beyond the manual. We are rebuilding the workflow demonstrated by Allyson from Thomas Sewing Center into a "Shop-Class" Standard Operating Procedure. We will cover the sensory checks pros use, the specific numbers that keep you safe, and the logical upgrade paths when your skills outgrow your tools.

Calm the Panic: The "Physics" of the Baby Lock Aventura II

Before you touch the screen, you must understand the "sandbox" you are playing in. Frustration usually comes from trying to force the machine to do something physically impossible.

Here are the hard boundaries:

• Max Field: 6-1/4" x 10-1/4". (Physics dictates you cannot stitch outside this).
• Speed: While the machine can go faster, the Sweet Spot for Beginners is 600 SPM (Stitches Per Minute). Expert users might push to 800+, but if you want clean lettering, slow down.
• The Grid: This is your map. It is not packaging; it is a calibrator.

If you are trying to speed up hooping for embroidery machine routines at home, the secret isn't moving faster—it's stopping the "un-hooping" caused by mistakes.

The Grid Insert: Your Analog Backup in a Digital World

The screen lies; the grid does not. In the demo, the grid insert is highlighted, but here is how a 20-year veteran uses it:

The Visual Center vs. The Mathematical Center Fabric isn't perfect. A quilt block might be sewn slightly crooked. If you align to the fabric's math center, the design will look crooked to the eye.

1. Place the Grid: Lay the plastic grid over your garment.
2. Find "Optical Center": Shift it until it looks right relative to pockets or seams.
3. Mark It: Use a water-soluble pen or chalk to mark the crosshairs through the grid slots.

Choosing Your Weapon (Hoop Selection)

• 6-1/4" x 10-1/4": Your canvas for layouts (multiple lines, combined motifs).
• 5" x 7": The production workhorse. Use this for single logos or dense patches.

Pro Tip: If you are shopping for babylock hoops, always buy the size closest to your design size. Too much empty space in a hoop creates "flagging" (fabric bouncing), which ruins registration.

The "Pre-Flight" Check: 80% of Errors Happen Before You Press Start

The video shows on-screen editing, but editing cannot fix a physical setup error. Before importing, you must stabilize the variable: The Physics of the Stitch.

Pre-Flight Checklist (The "Do Not Skip" List)

• [ ] Needle Check (Tactile): Run your fingernail down the front of the needle. If it catches at all, throw it away. A burred needle shreds thread. Use a 75/11 Embroidery Needle for standard cotton/wovens.
• [ ] Bobbin Area (Visual): Open the slide plate. Is there lint? Is the bobbin seated so it spins counter-clockwise?
• [ ] Thread Path: Floss the thread through the tension discs. You should feel a slight resistance—like pulling a hair through tight teeth. No resistance = no tension = bird's nest.
• [ ] Obstruction Check: Ensure the embroidery arm has clear clearance behind the machine.

Warning: Mechanical Hazard. Never place your hands inside the hoop area while the machine is calibrating or stitching. A needle moving at 600 SPM is invisible to the eye and can cause serious puncture wounds.

USB Import: How to Move Designs Without Losing Center

Allyson demonstrates importing via USB. Once the design is on screen, you have two movement modes. Knowing when to use which saves your sanity.

1. Touch & Drag: Use this for rough placement. Get it in the general zip code.
2. Arrow Keys: Use this for the final mile. This shifts the design in tiny increments (often 0.1mm).

The "Hooping Station" Concept Many professionals search for a hooping station for machine embroidery to ensure their fabric is straight before it hits the machine. If your fabric is hooped straight, you only need the arrow keys for minor tweaks. If you hooped crooked, you are fighting a losing battle with the screen.

Resize, Mirror, Rotate: The Toolset for "Saving" a Project

The Aventura II allows you to manipulate the design file.

• Scaling: You are generally safe scaling ±10%. Anything more than 20% usually requires software re-digitizing to adjust stitch density. (Shrinking a design 50% without reducing stitch count is a recipe for a bulletproof patch that breaks needles).
• Rotation: 1-degree rotation is your best friend. Use the grid crosshairs you marked earlier. If your hoop is slightly crooked, rotate the design 1° or 2° to match your chalk lines.


The "Hoop Limit" Panic: Solving the 90° Problem

In the video, the text “Love is all you need” triggers an error. It doesn't fit. The novice panics; the pro rotates.

The Workflow:

1. Type Text: Machine yells "Cannot fit in hoop."
2. Don't Erase: Acknowledge the error.
3. Rotate 90°: Align the long axis of your text with the long axis of the hoop/module.
4. Check: Does the error disappear?

If you are constantly hitting this wall and comparing embroidery machine 6x10 hoop limitations against larger industrial frames, realize that often the issue isn't size—it's Orientation.

Multi-Line Text: treating Letters as Objects

Don't just type a paragraph. Treat every line as a separate architectural element.

Spacing Rules of Thumb:

• Gap: Leave at least 1/2" to 3/4" of negative space between a dense motif and your text to prevent visual crowding.
• Margin: Never place text closer than 1/2" from the plastic edge of the hoop. The presser foot needs clearance, and tension is worst near the edges.


The "Hidden" Geometry: Why the Machine Says 'No' (Even When It Looks Like 'Yes')

This is the most common support ticket. "My design is only 4 inches wide! Why does the 5x7 hoop reject it?"

The Center-Out Rule The machine calculates from the absolute center crosshair. It does not care about empty space on the left if the right side is out of bounds.

The Math (Safe Zones):

• 5x7 Hoop: Your design cannot extend more than ~2.5" from the center in width or ~3.5" in height.
• If you are off-center by just 1 inch, you lose that inch of available space on the opposite side.

The Fix:

1. Select Hoop Size on Screen.
2. Press "Center" Alignment Key.
3. Nudge gently from there.


Font Edit: The Art of the Curve (Array)

Curved text (Array) separates the pros from the amateurs. The video shows text curving around a heart.

Pro Tips for Arrays:

• Satin vs. Fill: Small text is usually satin stitch. If you curve it too tightly, the satin stitches overlap on the inside of the curve, creating a "knot."
• Check the Baseline: Ensure the bottom of the letters follows the curve, not the middle.

If you are using baby lock magnetic hoops, be aware that they hold fabric very flat. This makes curved text easier to align because you don't have the "dish" effect of traditional hoops distorting the fabric surface.

The Power-User Move: Using the "Split" Function to Manage Density

Allyson splits the phrase so "Love is all" and "You Need" become separate entities.

Why do this? (The "Why" behind the "How")

1. Density Management: You might want the main word in a bold, heavy font, but the secondary words in a lighter script to prevent the fabric from becoming stiff.
2. Risk Mitigation: If the machine jams on the first word, you haven't ruined the file for the second word. You can recover easier.


Character Sizing: Creating Emphasis

Enlarging the "L" and "A" individually.

• Constraint: Do not enlarge a single letter more than 20% on the machine screen. The machine spreads the stitches out, and you will lose coverage (seeing fabric through the thread).


The Preview Screen: The "Last Cheap Mistake"

Stitching is expensive (time + materials). Previewing is free.

• Visual Check: Does the design touch the grey boundary box? If yes, move it.
• Color Verify: This is your chance to line up your thread spools in order.

Even if you upgrade to a babylock magnetic embroidery hoop, the physics of the machine arm remains the same. The preview is your final safety net.

Setup: The Decision Tree (Stabilizer & Hooping)

The video skips this, but you cannot. This is where you prevent puckering.

Decision Tree: Fabric vs. Strategy

The "Hoop Burn" problem: Traditional hoops require you to screw the inner ring tight. This crushes velvet or delicate fibers.

• The Fix: If you struggle with hoop marks or wrist pain, this is the trigger to investigate Magnetic Hoops. They clamp flat, hold tight without "unscrewing," and are standard in most professional shops.

Warning: Magnet Safety. SEWTECH and other magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surface.
* Medical: Keep away from pacemakers and sensitive electronics.

Operation: The Sensory Stitch-Out

Pressing the green button is not the end; it is the beginning of active monitoring.

Operation Checklist (Sensory)

• [ ] Sound: Listen for a rhythmic thump-thump-thump. A sharp clack-clack usually means the top thread is caught on the spool pin. A grinding noise means the needle is hitting the hoop (Stop immediately!).
• [ ] Sight: Watch the first 100 stitches. Is the fabric "flagging" (bouncing up and down)? If so, pause and float a piece of tear-away under the hoop for support.
• [ ] Touch: Gently touch the hoop frame (not near the needle). It should feel vibration-free.


The Upgrade Path: Moving From Hobby to Production

How do you know when you have outgrown the Aventura II's screen or hoops?

Level 1: The Optimization Stage

• Symptom: "I hate the marks hoops leave on my shirts."
• Solution: Magnetic Hoops. They allow you to hoop faster and safer. Keywords like magnetic hoops for babylock embroidery machines will lead you to compatible frames (often 5x7 or 6x10 sizes) that snap right onto your existing module.

Level 2: The Production Stage

• Symptom: "I spend more time changing thread colors than stitching."
• Solution: Multi-Needle Machines (e.g., SEWTECH). If you are making 50 team hats, a single-needle machine is a bottleneck. Multi-needle machines hold 10-15 colors, trim automatically, and run faster.

Level 3: The Scale Stage

• Symptom: "I need to hoop the next shirt while this one stitches."
• Solution: Hooping Stations + Extra Magnetic Hoops. This allows continuous workflow.


Troubleshooting Guide: "Why is it doing that?"

Final Consumables You Forgot

• Spray Adhesive (e.g., 505): Essential for floating fabric on stabilizer.
• Curved Snips: For trimming jump stitches flush to the fabric.
• Spare Bobbin Case: One set for 60wt thread, one set for specialty bobbin work.

Master the grid, respect the physics, and let the machine do the heavy lifting. Happy stitching.

FAQ

• Q: What is the safest stitch speed setting for clean lettering on the Baby Lock Aventura II?
  A: Set the Baby Lock Aventura II to about 600 SPM as a safe starting point for clean, controlled stitching (especially lettering).
  • Lower speed before running dense fonts, small satin text, or tight curves.
  • Increase gradually only after the first stitch-out is stable and you are not seeing fabric bounce.
  • Success check: The machine sound stays rhythmic and steady, and the lettering edges look crisp without wobble.
  • If it still fails… reduce speed further and re-check needle condition and hoop stability before changing tension.
• Q: How do I prevent bird’s nests on the bottom of a Baby Lock Aventura II during embroidery?
  A: Re-thread the Baby Lock Aventura II completely with the presser foot UP, because most bottom bird’s nests start with an upper-threading mistake.
  • Rethread from the spool to the needle and confirm the take-up lever is not missed.
  • Floss the thread through the tension discs and confirm you feel slight resistance (no resistance usually means no tension).
  • Success check: The first 100 stitches form a clean underside with no wad of thread collecting under the hoop.
  • If it still fails… inspect for burrs on the needle plate or bobbin area and replace the needle immediately.
• Q: Why does the Baby Lock Aventura II show a “Cannot fit in hoop” or frame/hoop limit error when the design looks small?
  A: Center the design first on the Baby Lock Aventura II screen, because the machine calculates hoop limits from the absolute center crosshair, not from the design’s “empty space.”
  • Select the correct hoop size on screen before adjusting placement.
  • Press the “Center” alignment key, then use arrow keys for small nudges instead of dragging.
  • Success check: The hoop limit warning disappears and the preview no longer touches the grey boundary box.
  • If it still fails… rotate the design (often 90° for long text) or resize within safe limits (generally ±10%) before considering software re-digitizing.
• Q: How do I use the Baby Lock Aventura II grid insert to center embroidery on uneven quilt blocks or garments?
  A: Use the Baby Lock Aventura II grid insert to find optical center (what looks right), then mark crosshairs on the fabric before hooping.
  • Lay the plastic grid over the fabric and shift it until alignment looks correct relative to seams, pockets, or blocks.
  • Mark the crosshairs through the grid slots using a water-soluble pen or chalk.
  • Success check: When the hooped fabric is mounted, the on-screen center aligns with the marked crosshair without “fighting the screen.”
  • If it still fails… re-hoop straighter; on-screen movement should be for small corrections, not fixing a crooked hooping job.
• Q: What needle and quick pre-flight checks prevent thread shredding on the Baby Lock Aventura II?
  A: Start with a fresh 75/11 embroidery needle and do a tactile needle check, because a tiny burr can shred thread immediately.
  • Run a fingernail down the front of the needle; replace the needle if it catches at all.
  • Open the bobbin area and remove lint; confirm the bobbin is seated correctly and spins counter-clockwise.
  • Success check: Thread stops fraying and stitches form smoothly without repeated breaks in the first minute.
  • If it still fails… re-check the entire thread path and ensure the embroidery arm has clear clearance behind the machine.
• Q: What stabilizer and hooping method should be used on T-shirts (stretch jersey) with a Baby Lock Aventura II to prevent puckering?
  A: Use cut-away stabilizer (mandatory) and avoid stretching the fabric during hooping; floating or using a magnetic hoop approach often helps keep tension even.
  • Pair cut-away stabilizer with spray adhesive to control movement without pulling the knit out of shape.
  • Hoop gently (or float) so the shirt stays relaxed; do not “drum-tight” stretch.
  • Success check: After stitching, the design lies flat and the shirt fabric does not ripple around the edges.
  • If it still fails… reassess whether the fabric was stretched while hooping and add better support rather than increasing stitch speed.
• Q: What safety rules prevent needle injuries and pinch injuries when using a Baby Lock Aventura II and magnetic embroidery hoops?
  A: Keep hands out of the hoop/needle area during calibration and stitching, and treat magnetic hoops as a snap-shut pinch hazard.
  • Never reach into the hoop area while the Baby Lock Aventura II is calibrating or running (a 600 SPM needle is effectively invisible).
  • Keep fingers clear of the mating surfaces when closing magnetic hoops; let the magnets clamp flat instead of guiding with fingertips.
  • Success check: Setup can be completed without hands near moving parts, and magnetic frames close without any finger contact at the clamp edge.
  • If it still fails… pause, power down before clearing thread or repositioning, and keep magnetic hoops away from pacemakers and sensitive electronics.
