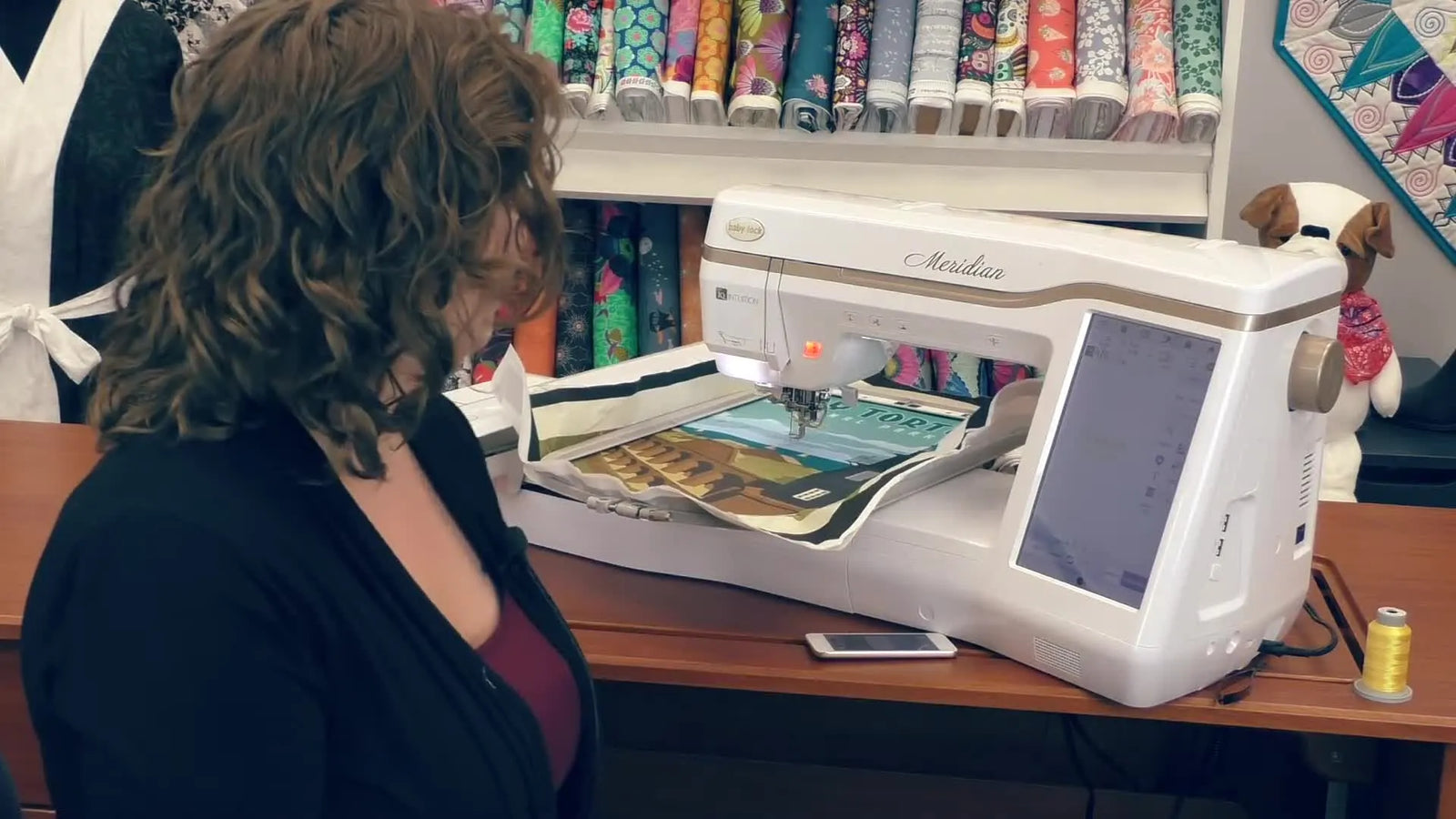

Baby Lock Meridian Editing + IQ Intuition Positioning + IQ Designer: The Real-World Workflow for Perfect Placement (Without the Solaris Camera)

If you have ever stared at a pre-printed pillow panel and felt that specific knot of anxiety—thinking, “I think this is centered, but I’m terrified to press ‘Start’”—you are experiencing the exact friction point the Baby Lock Meridian was engineered to eliminate.

In my 20 years of embroidery education, I’ve found that fear of ruining the blank is the number one reason beginners stop stitching. The Meridian is an embroidery-only platform designed to bridge the gap between "guesswork" and "precision."

In the demo, we analyze three core competencies that separate this machine from entry-level units:

1. On-screen Digitizing Logic: It recalculates stitch density when you resize (so your design doesn’t turn into a bulletproof patch).
2. IQ Intuition Positioning: It uses your smartphone to create a "Digital Augmented Reality" of your hoop on the screen.
3. IQ Designer: A built-in digitizing suite for creating custom assets without a laptop.

The video example tackles a classic "high-stakes" project: a thick pillow panel in a 9.5" x 14" hoop, requiring text to be curved perfectly inside a printed cloud. Let’s break down exactly how to execute this without the stress.

The Baby Lock Meridian “Don’t Panic” Primer: What This Machine Actually Gives You on Day One

The Meridian sits just below the top-tier Solaris. It lacks the built-in camera of the flagship, but it compensates with a massive embroidery field and smart device integration.

The Hardware Reality:

• Embroidery Field: 9.5" x 14" (Included hoop).
• Secondary Field: 5" x 7" (Included hoop).
• Interface: 10.1" High-Definition LCD Touchscreen.
• Connectivity: 2x USB ports (Type A and B) for importing custom designs.

If you are upgrading from a 4"x4" or 5"x7" machine, the immediate emotional win is the screen real estate. You aren't squinting at a pixelated preview; you are working on a canvas that feels like a high-end tablet. This clarity is the first step in reducing mistakes.

The Hidden Prep Pros Do First: Hooping a Thick Pillow Panel Without Distortion or Hoop Burn

The video shows a pillow panel hooped in the large 9.5" x 14" frame. This looks simple on camera, but in the real world, hooping thick, seamed panels is where 60% of failures happen before the machine even starts.

The Physics of Hooping: To get a clean stitch, your fabric must be taut like a drum skin (you should hear a rhythmic thump-thump when you tap it), but not stretched so tight that the weave distorts.

The Friction Point: Standard screw-tightened hoops struggle with thick seams. You often have to wrestle the inner ring, which leads to:

1. Hoop Burn: Permanent creases on delicate velvets or cottons.
2. Wrist Strain: repetitive tightening motion.
3. "Pop-out": The fabric slipping mid-stitch because the screw couldn't hold the thickness.

The Professional Solution: If you plan to embroider thick items (towels, quilts, lined bags) frequently, this is the moment to consider upgrading your tooling. magnetic hoops for babylock embroidery machines are the industry standard solution here. Instead of forcing a ring inside a ring, they use top-down magnetic force to clamp the fabric. This eliminates hoop burn and ensures even tension without the wrestling match.

Prep Checklist (Do not skip this)

• Hoop Check: Confirm you are using the 9.5" x 14" hoop (or a compatible magnetic frame).
• Surface Check: The hoop must be able to lie 100% flat on a table for the scanning step.
• Consumable Check: If this is a knit or loose weave, apply a fusible stabilizer (like No-Show Mesh) so the fabric doesn’t distort.
• Visual Check: Smooth the panel inside the hoop. Ensure the printed motif (the cloud) is not skewed.
• Tech Check: Ensure your phone is charged and connected to the same Wi-Fi as the machine for the IQ data transfer.

Hidden Consumable: Always keep a lint roller and temporary spray adhesive handy. A light mist of spray adhesive helps float the backing on the hoop if you are using a magnetic frame.

On-Screen Editing on the Baby Lock Meridian: Resize, Move, Rotate—Without Wrecking Density

Novice users often fear resizing because, on older machines, making a design bigger meant spreading the stitches out (creating gaps), and making it smaller meant jamming them together (breaking needles).

The Tech Upgrade: The Meridian uses Smart Recalculation.

• Scale Up: You can increase up to 200%. The machine adds stitches to maintain density.
• Scale Down: You can decrease to 60%. The machine removes stitches to prevent bulletproof stiffness.

The Workflow:

1. Move: Drag with your finger for coarse movement. Use arrows for 0.1mm micro-adjustments.
2. Rotate: Use 90° for orientation, but use 0.1° or 1° increments for aligning with printed lines.

This capability reduces the pressure to hoop perfectly straight. If your fabric is crooked by 3 degrees, you simply rotate the design by 3 degrees. This forgiveness factor is why learning proper hooping for embroidery machine techniques is important, but modern tech gives you a safety net when human hands aren't perfect.

Setup Checklist (The "Safe Edit" Protocol)

• Density Check: After resizing, look at the stitch count on the screen. Did it change? (It should).
• Boundary Check: Move the design to the four corners of your desired area to ensure it fits the hoop limits.
• Rotation Check: If aligning to a print, rotate in 1° increments. Watch the screen update relative to the grid.
• Reset Button: Know where the "Reset" key is. If you over-edit and the design looks distorted, start fresh rather than trying to undo multiple steps.

Warning: Mechanical Safety. Keep fingers, scissors, and loose backing away from the moving pantograph arm when the machine is calibrating or moving to the start position. It moves faster than you think.

Meridian Text Editing That Looks Custom (Not Template): Curving Text and Resizing One Letter at a Time

Nothing screams "amateur" like straight text slapped onto a curved object. The demo illustrates how to elevate a project using the "Smith Family Vacation" example.

The "High-End" text recipe:

1. Curve It: Use the Array tool to bend the text. Match the curve to the printed cloud line.
2. Spacing: Adjust the kerning (space between letters) so the curve doesn't squish the letters together at the bottom.
3. Drop Caps: Select only the first letter (e.g., "S" or "V") and resize it independently.

Commercial Context: This level of customization is what allows home businesses to charge a premium. If you find yourself doing this for 50+ team shirts, however, editing on-screen becomes a bottleneck. That is the Trigger Point where businesses usually upgrade to PC-based software (like Wilcom) or high-speed SEWTECH multi-needle machines to handle the volume, leaving the Meridian for one-off custom pieces.

IQ Intuition Positioning App on iPhone: The “No Camera? Still Perfect Placement” Workflow

The Meridian does not have a camera above the needle. Instead, it "borrows" the superior camera in your pocket.

The Process (Mental Model): Think of this as scanning a QR code, but the code is your hoop.

1. Hoop & Flatten: Place the hooped fabric on a flat table.
2. Capture: Open the IQ Intuition Positioning app. Hold the phone parallel to the hoop.
3. Transfer: The app maps the hoop's internal grid and sends the image to the Meridian via Wi-Fi.
4. Display: The machine screen now shows your fabric as the wallpaper.

Sensory Check: When taking the photo, your phone should be level. If you are tilting, the app usually gives a visual warning or grid misalignment. Listen for the shutter sound to confirm capture.

Pro tip: The "Parallax" Trap

The video emphasizes placing the hoop on a table. Do not holds it in your hands. Hand-holding introduces angles (parallax) that make the image look correct on screen but result in the needle landing 2mm–5mm off target.

Placing Text Inside a Printed Cloud on the Meridian Screen: Grouping, Dragging, and Micro-Nudging

With the background image loaded, you are no longer flying blind.

The Tactile Workflow:

• Group First: Select all lines of text and press Group. Why? If you don't, you might drag the word "Family" and leave "Smith" behind, ruining your alignment.
• Drag & Drop: Touch the grouped text and slide it over the cloud in the background image.
• Micro-Nudge: Switch to the arrow keys. Tap firmly. Watch the text move pixel by pixel until it sits centered in the cloud.

If you struggle with the fabric shifting during this process (often caused by the weight of the garment hanging off the machine), magnetic embroidery hoops provide a massive advantage. Their grip strength is continuous, meaning the fabric won't slip even if the pillow cover is heavy and drags slightly against the table.

Threading Speed Matters When You’re Producing: The Meridian Automatic Needle Threader Demo

The video highlights the automatic needle threader.

• Sensory Anchor: You push the button, hear a whir-click, and the thread is through the eye.
• Production Logic: If you change threads 20 times a project, and manual threading takes 30 seconds versus 5 seconds for auto, you save ~8 minutes per pillow. Over a year, that’s hours of life reclaimed.


IQ Designer on the Baby Lock Meridian: Creating a Flower with Outline + Fill (The Simple Way That Actually Works)

IQ Designer is the on-board digitization tool. It is perfect for simple shapes, quilt blocks, and patches.

The Construction:

1. Shape: Select a flower outline.
2. Outline Property: "Pink Candlewicking" (a knobby, decorative stitch).
3. Fill Property: "Brick" pattern.
4. Apply: Use the "Paint Bucket" icon to pour the properties into the shape.

This creates a raw file. It exists, but it hasn't been refined yet.

The “Why It Looked Too Rigid” Fix: Changing Brick Fill Direction to 45° and Relaxing Candlewicking Density

This is the "Master Class" portion of the demo. The default brick pattern looks stiff—like a wall, not a flower.

The Fix (Rule of Thumb): Straight lines on fabric often conflict with the weave.

1. Angle: Change fill direction to 45 degrees. Bio-organic shapes almost always look better with angled fills.
2. Scale: Increase pattern size. This opens up the design, making the pillow softer to the touch.
3. Spacing: Increase the candlewicking spacing.
   • Why? If knots are too close, they form a hard ridge that breaks needles. Spacing them out makes the "hand" (feel) of the embroidery softer.

Even with perfect digitizing, if your hoop slips, the outline won't match the fill. This alignment error (Gaposis) is a common novice nightmare. While stabilizers help, using magnetic hoops for embroidery machines is the mechanical fix to prevent the "push-pull" effect from distorting your perfect flower.

Decision Tree: Choosing a Hooping Method for Thick Panels vs. “Normal” Cotton

Stop guessing. Use this logic flow to decide your hooping strategy.

Start: What is the Material?

• A) Standard woven cotton / T-shirt material
  • Action: Use Standard Hoop + Stabilizer (Tear-away or Cut-away).
  • Pro: Free with machine.
  • Con: Leaves "hoop burn" marks if overtightened.
• B) Thick Towel / Pillow / Canvas Tote / Quilt Sandwich
  • Action: Check thickness.
  • If < 2mm: Try Standard Hoop (loosen screw significantly).
  • If > 2mm: STOP. Do not force the screw. Use a Magnetic Hoop.
  • Why? Forcing a screw hoop on thick items damages the hoop’s inner teeth and hurts your wrists. A magnetic hoop snaps shut instantly.
• C) High Volume Production (Same logo, same spot, 50 times)
  • Action: You need a template system.
  • Tool: Look into a hooping station for embroidery like the HoopMaster system. This ensures every left-chest logo lands in the exact same spot without measuring every single shirt.

Troubleshooting the Meridian Workflow: Symptoms → Likely Cause → Fix

When things go wrong, don't panic. Consult this table.

The Upgrade Path That Actually Saves Time: From Better Hooping to Production-Ready Consistency

Every embroiderer hits a "Ceiling of Frustration." Here is how to break through it based on your specific pain point.

1. Pain: "My wrists hurt / I ruin items with hoop burn."
   • Solution: babylock magnetic hoops.
   • Logic: Speed, safety for fabric, and zero physical strain. This is the first accessory you should buy.
2. Pain: "I spend more time measuring shirts than sewing."
   • Solution: hoop master embroidery hooping station.
   • Logic: It turns hooping into an assembly line process. Critical for small businesses.
3. Pain: "I can't keep up with orders / I hate changing thread colors."
   • Solution: Upgrade to a SEWTECH Multi-Needle Machine.
   • Logic: Moving from a single-needle (like the Meridian) to a multi-needle machine increases output by 40-60% because you eliminate the manual thread-change downtime.

Warning: Magnetic Hazard. The magnets in professional hoops are industrial strength. They can pinch fingers severely. Do not place them near pacemakers, magnetic storage media, or credit cards. Learners should handle them by sliding the magnet off, not prying it up.

Operation Checklist (The "Pre-Flight" Safety Check)

• Parallax Check: Verify screen background matches hooped reality (Scan again if unsure).
• Clearance: Double-check that the "Smith Family" text is not hitting the hard plastic edge of the hoop boundary on screen.
• Thread Path: Tug the thread near the needle. You should feel resistance (like flossing teeth). No resistance = missed tension disc.
• Hoop Security: Ensure the hoop leverages are locked into the carriage carriage firmly (Listen for the Click).
• GO: Press the Green button. Don't walk away for the first 50 stitches.


The Payoff: When Editing + Positioning + IQ Designer Clicks

The Meridian is a powerhouse, but only if you trust the workflow.

Your new standard operating procedure:

1. Hoop Smart: Use the right stabilizer and hoop (consider magnetic for bulk) to get a drum-tight surface.
2. Scan Flat: Use the phone app on a flat surface to capture reality.
3. Edit Fearlessly: Use the 200%/60% scaling and 45° fill angles to make the design yours.

When you combine these three habits, you stop looking at a pre-printed panel as a risk, and start seeing it as an opportunity.

FAQ

• Q: How do I hoop a thick pillow panel on a Baby Lock Meridian without fabric distortion or hoop burn?
  A: Hoop the pillow panel drum-tight but not stretched, and avoid forcing a screw hoop over thick seams.
  • Tap-test the hooped fabric and aim for a rhythmic “thump-thump” without visible weave distortion.
  • Keep the hooped panel perfectly flat on a table before scanning/positioning so the fabric is not being pulled by its own weight.
  • Add fusible stabilizer (often No-Show Mesh) if the fabric is knit or a loose weave to reduce shifting and distortion.
  • Success check: The hoop sits flat on the table, the print is not skewed, and the fabric stays taut when you smooth it with your palm.
  • If it still fails: If the item is very thick (often >2mm) or keeps slipping, switch to a magnetic hoop to clamp evenly without over-tightening.
• Q: What is the correct setup to prevent parallax placement errors when using the Baby Lock Meridian IQ Intuition Positioning app on an iPhone?
  A: Place the Baby Lock Meridian hoop flat on a table and hold the iPhone parallel to the hoop—do not hand-hold the hoop.
  • Set the hooped fabric on a hard, flat surface so it lies 100% flat before capturing the image.
  • Stand directly over the hoop and keep the phone level to avoid tilting during the capture.
  • Re-scan immediately if the grid/background looks “off” or misaligned on the Meridian screen.
  • Success check: The on-screen background image matches the real print orientation (lines and motifs look square, not skewed).
  • If it still fails: Repeat the scan with better lighting and a flatter setup; small tilts can cause 2–5 mm placement drift.
• Q: How do I resize and rotate a design on the Baby Lock Meridian without ruining stitch density or breaking needles?
  A: Use Baby Lock Meridian Smart Recalculation and confirm the stitch count changes after resizing.
  • Resize within the on-screen ranges (up to 200% larger or down to 60% smaller) and then check the stitch count on the screen.
  • Rotate in small increments (0.1° or 1°) to match printed lines instead of re-hooping the fabric.
  • Boundary-test by moving the design to the edges/corners of the intended area to confirm hoop clearance.
  • Success check: Stitch count updates after resize and the design preview still looks filled (not overly dense or gappy).
  • If it still fails: Hit Reset and start over rather than stacking multiple edits that visually distort the design.
• Q: How do I stop the Baby Lock Meridian embroidery design from shifting while positioning text on the screen (especially with a heavy pillow cover)?
  A: Support the project weight and keep continuous hoop grip so the fabric cannot slip during positioning.
  • Group all text lines before dragging so nothing shifts out of alignment when moving the layout.
  • Use micro-nudge arrow keys for final placement instead of repeated finger-drags that can bump the fabric.
  • Reduce drag from the project by keeping the hooped piece supported/flat rather than hanging and pulling.
  • Success check: After nudging, the text stays centered relative to the background image and does not “creep” when you re-check position.
  • If it still fails: Upgrade to a magnetic embroidery hoop for continuous clamping pressure that resists slip under load.
• Q: What should I do when a Baby Lock Meridian needle breaks while stitching over a thick seam on a pillow panel?
  A: Reduce needle deflection by changing to a 90/14 needle and slowing the Baby Lock Meridian to about 600 SPM.
  • Install a #90/14 needle and re-start at a slower speed to minimize impact at the seam.
  • Avoid forcing bulky seams into an over-tightened hoop; aim for even clamping across the area.
  • Watch the first stitches as the needle approaches the seam and stop if you hear sharp “popping” impacts.
  • Success check: The needle penetrates the seam without a snap and stitches form cleanly without sudden thread fraying.
  • If it still fails: Use a magnetic hoop to flatten/clamp the seam area more evenly so the fabric bulk doesn’t push the needle off line.
• Q: How do I fix white bobbin thread showing on top when embroidering on a Baby Lock Meridian?
  A: Re-thread the top thread and re-seat the bobbin, confirming the bobbin is inserted with an audible/feelable “click.”
  • Remove and re-thread the upper path carefully to ensure the thread is seated in the tension discs.
  • Reinsert the bobbin and listen/feel for the “click” that indicates correct seating.
  • Run a short test area or the first few stitches and inspect the top surface before committing to the full design.
  • Success check: The top thread fully covers on the front and the bobbin thread is not visibly pulled to the surface.
  • If it still fails: Check tension more precisely (advanced users often use a TOWA gauge) and consult the Baby Lock Meridian manual for thread path and bobbin setup.
• Q: What safety checks should I do before pressing Start on a Baby Lock Meridian, and what is the magnetic hoop safety rule?
  A: Keep hands/loose items clear during calibration, and handle magnetic hoops by sliding magnets off to avoid pinches.
  • Verify clearance on-screen so the design does not hit the hard plastic hoop boundary when the carriage moves.
  • Keep fingers, scissors, and loose backing away from the pantograph/arm during calibration and positioning moves.
  • Lock the hoop into the carriage firmly and listen for the “click” before starting.
  • Success check: The hoop is fully seated, the carriage moves freely without striking the hoop edge, and the first ~50 stitches run cleanly.
  • If it still fails: Stop immediately, re-check hoop seating and design boundary, and re-scan/reposition if the background alignment is questionable; keep magnetic hoops away from pacemakers and magnetic-sensitive items.
