Beanie Embroidery on a Melco EMT16X: Magnetic Hoops, Knockdown Stitch, and a Pricing Reality Check

Knit beanies look “simple” until you’re staring at a stretched cuff, a crooked logo, and a customer who wants 30 pieces by Friday.

If you’re feeling that pressure, good—because it means you’re taking quality seriously. Beanies are deceptive; they are elastic, puffy, and unforgiving. The workflow below is an exacting production rhythm: invert the beanie, lock stabilizer into a magnetic hooping station, manage slack (do not stretch!), clamp hard, laser-align, trace, run a knockdown stitch, then clean up.

This guide converts the "feel" of embroidery into concrete data points and sensory checks.

The Calm-Down Moment: Why Knit Beanies Distort (and Why It’s Not “Your Machine Being Weird”)

Beanies are a loose knit, puffy substrate. Understanding the physics helps you defeat the two main enemies:

1. Elastic Memory (The "Snap-Back" Effect): If you stretch the beanie while hooping, you store potential energy in the fabric. When you unhoop, the fabric relaxes, but your stitches do not. The result? Warping and puckering.
2. Texture Swallowing: The "loft" (puffiness) of the knit will devour stitch definition. Satin edges and small lettering sink into the grooves and look fuzzy.

The solutions detailed below rely on two specific levers:

• Controlled Slack Management: Hooping so the beanie sits in a "neutral state" rather than a "stretched state."
• Structural Digitizing: Using a knockdown stitch to flatten the terrain before the design lands.

If you’re running a melco emt16x embroidery machine or similar professional gear, this is the kind of job where process discipline beats brute force.

The “Hidden” Prep That Saves the Whole Batch: Beanie Inversion + Tag-as-Back Consistency

Before you touch the hooping station, prep the beanies the same way every time to create a "zero-thinking" zone during production.

The Professional Standard:

• Invert the Beanie: Pull the inside out, but keep the cuff (the embroidery area) folded naturally facing outward.
• Establish "True North": Use the manufacturer tag as a consistent "back" reference.

This prevents the most expensive mistake in beanie work: a logo stitched upside down or on the wrong side of the head because one beanie was rotated 180° in the stack.

Prep Checklist: The "Zero-Thinking" Setup

Perform this before hooping to ensure physical consistency.

• Action: Invert every beanie in the batch. Success Metric: Cuff is outward, body is inverted.
• Action: Locate the tag. Success Metric: Every tag is positioned at the "Back" relative to the sewing field.
• Action: Pre-cut your stabilizer. Success Metric: You have a stack of 60 sheets (for 30 beanies) ready, so you don't stop the machine.
• Action: Check for "Muscle Memory" errors. Sensory Check: Pause and explicitly look at the design orientation on screen—don't just assume it's right.

Warning: Keep fingers clear when clamping magnetic hoops. The magnetic snap is instantaneous and powerful. Pinched skin is the fastest way to turn a profit day into a hospital trip.

Locking in Stabilizer on a Mighty Hoop Freestyle Station Without Fighting Curl or Drift

A stable beanie starts with a stable foundation. We use a Freestyle Station and a 5.5" magnetic hoop setup to eliminate hoop burn and ensure repeatability.

The Station Setup:

1. Place the bottom magnetic hoop into the station fixture. Listen for the distinct click of it seating.
2. Open the station’s magnetic tabs/wings.
3. Lay down two sheets of 3 oz cutaway stabilizer.
4. Clamp the stabilizer down using the station magnets.

Material Note: We use black cutaway for dark beanies. White works mechanically, but black hides better if the backing peeks through the knit.

For shops building a scalable workflow, a mighty hoop station removes the variable of "human hands shaking" from the equation.

Why two sheets of 3 oz cutaway matters (The Physics)

Why 6 oz total? Beanies are unstable.

• Layer 1: Provides structure for the stitches to grip.
• Layer 2: Prevents "tunneling" (where the fabric pulls inward between needle penetrations).

The Rule of Thumb: If you are tempted to save 10 cents by using one sheet, realize you are risking a $5 blank and $10 in revenue. The stabilizer is cheaper than the mistake.

The No-Distortion Hooping Move: Pull Slack to the Top Before You Clamp the Magnetic Hoop

This is the single most critical technique in this guide.

The Hooping Execution:

1. Slide the inverted beanie over the station arms.
2. Align the tag to the back.
3. Pull the cuff down so the sewing area is centered.
4. The "Slack Move": Push the excess fabric slack toward the front/top of the station.

Sensory Check: The fabric over the hoop area should feel relaxed, not tight like a drumskin. You want it to lay flat, but with zero stored elastic energy.

The Physics of "Slack Management"

When you use traditional screw hoops, you often have to pull the fabric taut to get the ring on. This creates hoop burn and distortion.

The Magnetic Advantage: With a magnetic hooping station, you can arrange the fabric in a relaxed state and then "freeze" it in place with the magnets. This eliminates the "Snap-Back" effect entirely. If you are struggling with pain in your wrists or hoop burn on delicate knits, this is your trigger to upgrade to magnetic systems.

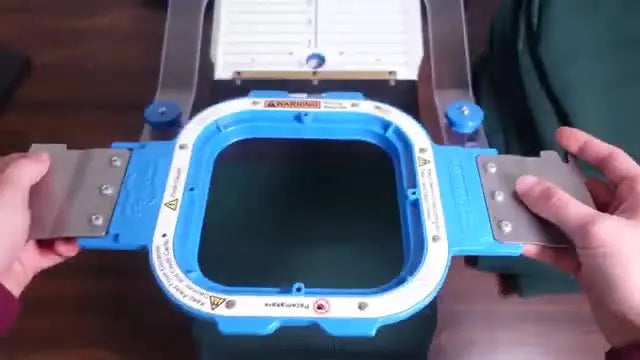

The “Snap” That Matters: Correct Magnetic Hoop Orientation and a Clean Clamp

The Clamping Sequence:

• Identify the top hoop orientation (ensure the warning label serves as your visual guide for "Top").
• Align the top hoop over the bottom.
• The Action: Press down firmly.
• The Sound: You want a solid, simultaneous clack of magnets engaging. If it sounds like click... click, you clamped unevenly.

Using magnetic embroidery hoops guarantees that the clamping pressure is identical on Beanie #1 and Beanie #30.

Warning (Magnetic Safety): These magnets are industrial strength. They can interfere with pacemakers. Never leave them on the floor where they can snap together unexpectedly or pinch children/pets.

Mounting the Hoop on the Melco EMT16X Without Catching the Beanie Body

The Mounting Sequence:

1. Slide the hooped beanie onto the machine arm.
2. Crucial Check: Ensure the "body" of the beanie (the inverted part) is hanging below or around the embroidery arm, not tucked underneath the needle plate.
3. Snap the hoop arms into the carriage.

This step feels obvious until you inadvertently sew the front of the hat to the back of the hat.

Laser Centering + Trace on the Melco: Get Close to the Cuff Edge Without Stitching Off

The Alignment Process:

• Centering: Use the laser to center left-to-right.
• Y-Axis Placement: Move the design as close to the cuff edge/fold as possible, leaving a safety margin (approx. 5-10mm).
• The Trace: Run the trace function. Watch the laser light travel the perimeter.

Expert Rule: Measure until you are boringly consistent. Once you have done 500 hats, you earn the right to eyeball it. Until then, use your laser trace.

Setup Checklist: The "Pre-Flight" Safety Check

Perform this right before hitting the green Start button.

• Action: Run your hand under the hoop. Sensory Check: Confirm no extra fabric (beanie body) is trapped in the stitch path.
• Action: Check centering. Visual Check: Laser is centered left-to-right on the cuff.
• Action: Run the Trace. Success Metric: The laser stays on the cuff with at least 5mm clearance from the fold.
• Action: Verify Thread Colors. Visual Check: The physically loaded thread matches the screen instructions.

Knockdown Stitch on Beanies: The Cross-Hatch Layer That Makes Logos Look “Crisp”

The Secret Weapon: A knockdown stitch (or "nap tack") is a foundational layer of stitching that goes down before the design.

Settings for Beanies:

• Style: Cross-hatch (X pattern), NOT a full fill.
• Why Cross-hatch? A full fill adds too much stiffness and "bulletproofs" the hat. A cross-hatch mats down the yarn fibers just enough to create a smooth surface without adding unnecessary bulk or run-time.

If you are looking for a workflow that leverages the precision of a 5.5 mighty hoop, pairing it with proper digitizing is the difference between "homemade" and "retail ready."

Melco Acti-Feed Explained: What “6 to 8” Really Means

The video references "Acti-Feed," which is Melco's proprietary auto-tensioning system.

• Melco Users: The presenter suggests a range of 6 to 8. The machine may default lower (e.g., 6), but bumping it to 8 provides more thread slack.
• Universal Translation: If you are not using a Melco:
  • Loosen Top Tension: Beanies are thick. If tension is too tight, it will bury the tread and cause breaks.
  • Sensory Check: Look at the back of the embroidery. You should see about 1/3 bobbin thread in the center of satin columns. If you see no bobbin thread (all top thread), your top tension is too loose. If you see only bobbin thread, your top tension is too tight.

Batch Strategy: Pre-Hooping for "Continuous Fire"

The presenter uses multiple hoops (four 5.5" hoops) to keep the machine running.

The Production Mindset:

• Hobby Pace: Hoop → Stitch → Unhoop → Repeat. (Machine is idle 50% of the time).
• Profit Pace: Pre-hoop a queue of 3-5 hats while the machine stitches. (Machine is idle 0% of the time).

If you’re using hooping stations, buy enough hoops to keep your rotation flowing. The station pays for itself by keeping the needle moving.

Cleanup: The "Last 5%" Rule

The Quality Standard:

1. Trim Stabilizer: Cut closely, leaving about a 1/4 inch margin. Do not leave massive flaps of backing inside the hat—it itches the customer’s forehead.
2. Thread Snips: Trim jump threads flush to the fabric.
3. Inversion: Turn the beanie right-side out.

Operation Checklist: End-of-Run Quality Control

• Action: Inspect the inside. Success Metric: Stabilizer is trimmed smoothly; no rough corners.
• Action: Inspect the front. Visual Check: No visible thread tails ("whiskers").
• Action: Check distortion. Success Metric: The cuff sits flat and natural; the rectangle doesn't look like a trapezoid.
• Action: Stack. Visual Check: All designs face the same way for easy counting.

Stabilizer Sizing Decision Tree

Use this logic to minimize waste and storage headaches.

Decision Point: What size stabilizer to buy?
1. Are you running a 5.5" station exclusively?
* YES: Buy 8" x 8" Pre-cuts. Speed is king here. The time saved cutting rolls pays for the slight premium.
* NO: Go to step 2.
2. Do you stitch varied items (Jackets + Hats)?
* YES: Buy heavy 3oz rolls or 15" sheets. You can cut these down for hats or use full sheets for jacket backs. This reduces your SKU count.
3. Is your primary goal preventing operator fatigue?
* YES: Stick to Pre-cuts. Fighting curling rolls of stabilizer adds friction to every single hoop.

Pricing: The Real Cost of "Easy" Beanies

The video breakdown suggests great margins ($36.98/hr profit), but beginners often miss the hidden costs.

Video Stats:

• Revenue: ~$9.83/hat
• Hard Costs: ~$4.28/hat (Beanie, Stabilizer, Bobbin, Thread)
• Profit: ~$5.55/hat

Expert Reality Check: Your pricing must also cover:

• Digitizing fees.
• Machine depreciation.
• The "Risk Tax": Beanie knits can develop holes. You will ruin a few. Factor a 2% spoilage rate into your pricing.

The Upgrade Path: When to Switch Tools

You can start with a single-needle machine and screw hoops. But as you scale, physical bottlenecks will hurt your profitability. Use this "Tool Upgrade Logic" to decide when to invest.

1. The Bottleneck: "Hooping is hurting my hands / leaving marks."

• Use Case: You are doing 10+ hats a day.
• The Fix: Magnetic Hoops.
• Why: Eliminates wrist strain and completely removes "hoop burn" (the shiny ring left by crushed fabric). Brands like SEWTECH offer high-quality magnetic hoops compatible with most machines (Generic, Brother, etc.) that solve this instantly.

2. The Bottleneck: "My machine is too slow / changing thread takes forever."

• Use Case: You are rejecting orders of 50+ pieces because you can't meet the deadline.
• The Fix: Multi-Needle Machine.
• Why: A single-needle machine requires a manual thread change for every color. A machine like the SEWTECH Multi-Needle series allows you to load 10-15 colors at once. Combined with higher IPM (Inches Per Minute) speeds, this doubles or triples your daily output.

3. The Bottleneck: "Placement is inconsistent."

• The Fix: Hooping Station.
• Why: If you are using a generic mighty hoop for melco or similar setup, ensuring you have the matching station allows you to use the "platen logic" (tabs and markings) to get the same result every single time.

Quick Troubleshooting: Symptom → Diagnosis → Cure

Use this Low-Cost to High-Cost table to fix issues fast.

Final Verdict

Embroidery is 20% art and 80% process. The "secret" to perfect beanies isn't a magic setting—it's the discipline of inversion, slack management, and stabilizer density.

Master these physical inputs, and the machine will give you a perfect output, whether you are sewing one unique piece or a batch of 500.

FAQ

• Q: How do I hoop a knit beanie in a magnetic hooping station without stretching the cuff and causing puckering after unhooping?
  A: Hoop the beanie in a relaxed “neutral state” by pushing slack toward the top/front before clamping, not by pulling the cuff tight.
  • Invert the beanie and keep the cuff naturally folded outward before it touches the station.
  • Slide the beanie over the station arms, align the tag to the back, and center the cuff in the sewing field.
  • Push excess fabric slack toward the top/front of the station, then clamp the magnetic hoop.
  • Success check: The hoop area feels flat but not drum-tight; the cuff looks natural (not stretched) before stitching.
  • If it still fails: Add structure by using two sheets of 3 oz cutaway stabilizer and confirm the beanie was not stretched during the clamp.
• Q: What stabilizer setup works best for embroidery on knit beanies using a 5.5-inch magnetic hoop, and how do I know it is enough?
  A: Use two sheets of 3 oz cutaway stabilizer (6 oz total) to prevent tunneling and distortion on unstable knit beanies.
  • Place the bottom hoop in the station fixture and open the station’s magnetic tabs/wings.
  • Lay down two sheets of 3 oz cutaway, then clamp the stabilizer down with the station magnets.
  • Choose black cutaway for dark beanies if backing show-through is a concern.
  • Success check: During stitching, the beanie stays stable and the design area does not “draw inward” between needle penetrations.
  • If it still fails: Re-check slack management (do not stretch the cuff while hooping) and consider adding a knockdown stitch for better surface control.
• Q: How do I prevent stitching the front of a beanie to the back when mounting a hooped beanie on a Melco EMT16X embroidery machine?
  A: Keep the inverted beanie body hanging clear of the needle plate and stitch path before starting the Melco EMT16X.
  • Slide the hooped beanie onto the machine arm and pause before snapping into the carriage.
  • Pull the beanie “body” (the inverted part) down and away so it hangs below/around the embroidery arm.
  • Run a hand under the hoop area to confirm nothing is trapped in the stitch path.
  • Success check: No extra fabric is under the hoop/needle plate area, and the beanie body moves freely when you tug it gently.
  • If it still fails: Add a pre-flight routine—hand-check under the hoop every time right before pressing Start.
• Q: How do I use laser centering and trace on a Melco EMT16X to place a beanie design close to the cuff edge without stitching off the fold?
  A: Laser-center left-to-right, keep a 5–10 mm safety margin from the cuff fold, and always run Trace before stitching on the Melco EMT16X.
  • Use the laser to center the design left-to-right on the cuff.
  • Move the design on the Y-axis close to the cuff edge/fold, keeping approximately 5–10 mm clearance.
  • Run the Trace function and watch the laser travel the perimeter of the design.
  • Success check: The traced perimeter stays fully on the cuff and maintains at least ~5 mm clearance from the fold the entire way.
  • If it still fails: Stop and re-center using the tag as the consistent “back” reference so orientation and placement stay repeatable across the batch.
• Q: What is the correct knockdown stitch setting for knit beanie embroidery to stop fuzzy edges and sinking stitches on logos?
  A: Use a cross-hatch knockdown stitch (nap tack) under the design to flatten knit loft without making the beanie overly stiff.
  • Add a knockdown stitch layer before the main design runs.
  • Choose a cross-hatch (X pattern) rather than a full fill to avoid excessive stiffness and run-time.
  • Keep the workflow consistent: hoop correctly first, then rely on the knockdown to improve definition.
  • Success check: Satin edges and small lettering look crisper and sit on a smoother surface instead of sinking into the knit grooves.
  • If it still fails: Add a water-soluble topper on the surface and confirm the beanie was hooped without stored stretch.
• Q: How should Melco EMT16X Acti-Feed be set for thick knit beanies, and what thread-tension check confirms the setting is usable?
  A: On a Melco system, Acti-Feed 6–8 is a practical working range for beanies, and the back-of-design thread balance is the real confirmation.
  • Start within the 6–8 range (the example increases toward 8 to provide more thread slack).
  • Stitch a test and inspect the underside for balanced thread formation.
  • Use the “1/3 bobbin thread in the center of satin columns” visual check as the target indicator.
  • Success check: You see roughly 1/3 bobbin thread showing in the center of satin columns (not all top thread, not all bobbin thread).
  • If it still fails: Rethread and check the thread path for snags/burrs, then adjust tension gradually per the machine manual.
• Q: What are the two key safety rules for industrial magnetic embroidery hoops and magnetic hooping stations during beanie production?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical implants—clamping is fast and forceful.
  • Keep fingers clear when clamping; the magnetic snap is instantaneous and can pinch skin.
  • Never leave magnetic hoops on the floor or loose where they can snap together unexpectedly.
  • Keep magnetic systems away from pacemakers and similar medical devices.
  • Success check: Operators can clamp consistently without “near-miss” finger pinches, and hoops are always stored in a controlled place between uses.
  • If it still fails: Slow the clamp sequence down (aim for a solid simultaneous clack) and reorganize the workstation so hoops are never handled one-handed or from awkward angles.
• Q: If hooping knit beanies causes hoop burn and hand pain, what is the upgrade path from technique fixes to magnetic hoops to a SEWTECH multi-needle embroidery machine?
  A: Start by fixing slack management and workflow discipline, then move to magnetic hoops for repeatable no-stretch clamping, and consider a multi-needle machine when order volume makes single-needle color changes the bottleneck.
  • Level 1 (Technique): Invert beanies, use the tag as the back reference, manage slack (do not stretch), and run a consistent pre-flight check (hand under hoop + trace).
  • Level 2 (Tool): Switch to magnetic hoops/hooping stations to eliminate hoop burn, reduce wrist strain, and standardize clamp pressure from piece to piece.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when frequent thread changes and speed limits force you to reject 50+ piece deadlines.
  • Success check: Placement is consistent across the batch, the cuff returns flat after unhooping, and the machine spends more time stitching than waiting on hooping/thread changes.
  • If it still fails: Add a batch rotation (pre-hoop 3–5 beanies) and verify stabilizer density (two sheets of 3 oz cutaway) before investing further.
