BERNINA 880 Plus Appliqué Quilt Block, Done Calmly: The In-the-Hoop Butterfly Method That Actually Stays Flat

If you own a premium machine like the BERNINA 880 Plus and you’ve been staring at appliqué digital files thinking, “I’m going to mess this up,” you’re in good company. The fear is valid: you are combining expensive hardware, unforgiving fabric, and a digital file that feels out of your control. The first time you attempt in-the-hoop (ITH) appliqué quilting, the cognitive load is heavy—hoop, stitch, float batting, stitch again, remove, trim, reattach, quilt, place fabric, stitch, remove, trim again, satin stitch…

Here’s the truth from the production floor: this butterfly block isn't just a pretty design; it is a structural engineering lesson. It teaches you the rhythm of layering (the "sandwich method") that professionals use for everything from patches to quilt blocks. The design has built-in safety nets: the placement lines act as your blueprint, keeping you honest, while the satin stitch is the architectural cladding that hides tiny trimming imperfections.

Below is the full process, calibrated for success on the BERNINA 880 Plus using the Oval Hoop (145×255). We will break this down not just by "what to do," but by "what it should feel like," ensuring you have total control over the needle, the thread, and the outcome.

The “Don’t Panic” Primer for BERNINA 880 Plus Appliqué: What You’re Making (and Why It Feels Like Magic)

Let's demystify the process. This block is essentially a mini quilt sandwich built inside the hoop. Instead of wrestling with a large quilt on a table, you are building it vertically:

1. Stabilizer: Acts as the foundation (concrete slab).
2. Batting: Adds loft and texture (insulation).
3. Background Fabric: Becomes your quilt top (flooring).
4. Stitching: The machine performs "Stippling" to bolt these layers together.
5. Appliqué: The decoration added only after the structure is secure.

If you’re apprehensive about trying appliqué on the 880 Plus, realize that most confusion comes from losing track of the sequence. You aren't afraid of the needle; you are afraid of trimming at the wrong time or trapping the wrong layer. This method solves both by using "Stop Codes"—the machine will physically stop and wait for you.

The Mindset Shift: You are not an artist freehanding a sketch; you are a machine operator executing a program. You are following a controlled sequence of placement lines (blueprints), tackdown stitches (anchors), and a final satin stitch (finish carpentry) that seals the raw edge.

Load the Appliqué Block on the B 880 Screen and Let the Machine Call the Shots (Oval Hoop 145×255)

Start by powering up. On the BERNINA 880 Plus screen, select the appliqué block design from your USB stick. The machine checks the file header and explicitly requests the Oval Hoop (145×255).

This is your first physical check. If you try to use a Midi or Maxi hoop when the machine expects an Oval, the centering center will be off.

The "Click" Test: When attaching the hoop to the embroidery arm, listen for an audible, solid click. Give the hoop a gentle wiggle—there should be zero play. If it rattles, re-seat it.

Checkpoint: Wait until the machine screen prompts you to attach the hoop. Do not attach it before the machine is ready to calibrate.

Expected Outcome: Once recognized, the machine will likely move the hoop to the starting position (center or first stitch).

Warning: Mechanical Safety Hazard. Keep fingers, sleeves, and loose thread tails away from the needle area when the machine is calibrating or moving to the start position. The embroidery arm moves fast and with significant torque. Treat curved embroidery scissors like a surgical scalpel—never leave them on the bed of the machine where vibrations can rattle them into the moving hoop.

The “Hidden” Prep Pros Do First: No-Show Mesh Stabilizer, Bobbin Prompt, and a Clean Work Surface

Professional results start with the "ingredients" you don't see. This project utilizes No-Show Mesh (essentially a soft, sheer verification of Cutaway stabilizer). Unlike Tearaway, which gets brittle and essentially disappears, Mesh remains soft against the skin but provides permanent structural support for the thousands of stitches in the satin border.

Why Mesh? It has a multi-directional weave that prevents the "push-pull" distortion common in appliqué.

You may also see a prompt to thread the bobbin case for embroidery mode. On the 880 Plus, this involves threading the pigtail guide on the bobbin case to increase tension slightly, ensuring the top thread is pulled down for a clean finish.

Hidden Consumables List:

• Needle: Use a fresh 75/11 Embroidery or Topstitch needle. A dull needle will hammer the fabric into the throat plate rather than piercing it.
• Bobbin Fill: Use 60wt bobbin thread (usually white) for a balanced stitch.
• Spray (Optional): A light mist of temporary adhesive (like 505) can help, but this tutorial relies on friction.

Prep Checklist (do this before the first stitch)

• Design Check: Confirm design is loaded and the machine explicitly displays the Oval Hoop (145×255) icon.
• Hooping: Hoop one layer of No-Show Mesh Stabilizer tightly. It should sound like a tight drum skin when tapped.
• Bobbin: Insert a full bobbin and route through the embroidery pigtail if prompted by the machine manual.
• Staging: Place batting scrap, background fabric, appliqué fabric, and double-curved appliqué scissors within arm's reach.
• Workspace: Clear a 2x2 foot flat area on your table. You will be removing the hoop to trim, and you need a flat surface—trimming on your lap is a recipe for disaster.


Stitch the Green Placement Square on No-Show Mesh, Then Cover It Fully with Batting (No Spray Needed)

Press the green "Start" button (or use the foot pedal). The machine will run the Placement Line (Color Stop 1, often Green). This stitches a simple running stitch square directly onto your stabilizer.

This square is your target. It shows you exactly where the batting needs to go.

Next, take your scrap of batting. It must be larger than the stitched square by at least 1 inch on all sides. Place it over the square.

The "Float" Technique: In this video, the batting is "floated"—meaning it is not hooped, but simply laid on top. Smooth it by hand. The texture of the batting will naturally grip the mesh stabilizer.

Checkpoint: Ensure the batting covers the entire placement line visibility. If you miss a corner, that corner of your quilt block will be flat and lifeless.

Expected Outcome: The machine will stitch the "Tackdown" line (Color Stop 2), securing the batting to the stabilizer. It should lay flat without ripples.

The Trim That Makes or Breaks the Block: Remove the Hoop and Cut Batting Right on the Stitch Line

This determines the crispness of your final block. When the machine stops, remove the hoop from the embroidery module. Do not try to trim while the hoop is attached; you risk torquing the embroidery arm or snipping the mesh.

Place the hoop on your flat table. Using your double-curved appliqué scissors, lift the excess batting slightly and trim extremely close to the stitching line (within 1mm).

The Tactile Goal: You want to cut away the batting outside the box so that when you lay your top fabric down, there is no "step" or ridge at the seam allowance.

Checkpoint: You should end up with a neat batting square inside the stitched boundary. The stabilizer outside the box should be clear.

Expected Outcome: No fuzzy overhang beyond the stitch line. If you cut the stabilizer by accident, you must patch it with tape or restart.

Efficiency Note: If you have large batting scraps, align a corner of the batting with a corner of the placement box to save one side of trimming.

Lay the Background Fabric Over Batting with Extra Extension, Then Let the Stippling Quilting Lock Everything Together

Reattach the hoop with the satisfying "click." Now, lay your choice of Background Fabric (e.g., White Quilting Cotton) over the trimmed batting.

Crucial Step: Ensure the fabric extends at least 1/2 inch to 1 inch past the batting edge on all sides. This extra seam allowance is vital for assembling quilt blocks later.

Smooth the fabric from the center out. The inherent friction between the cotton and the batting acts like Velcro. This is why you don't always need spray adhesive—physics is holding it in place.

Speed Tip: Lower the presser foot and run the "Stippling" or "Quilting" step. Watch the first few stitches. If the fabric pushes (forming a wave), pause and smooth it out.

Checkpoint: The fabric should remain taut and flat.

Expected Outcome: The stippling pattern (meandering stitches) creates a textured "quilted" look. There should be no puckers or folds trapped under the stitches.

Setup Like a Production Stitcher: Thread Changes, Speed Control, and a Realistic Time Expectation on BERNINA 880 Plus

Now we switch from structural work to decorative work. Change your thread color to match your butterfly (or the placement line).

Understanding Speed (SPM - Stitches Per Minute): The 880 Plus is a beast that can run at 1000 SPM. However, speed creates vibration and friction.

• Stippling/Travel Stitches: Safe to run at 850-1000 SPM.
• Satin Stitches (Later): Slow down to 600-700 SPM. High speed on wide satin stitches can cause thread breakage or "railroading" (looping edges).

In the video, the machine estimates 11 minutes remaining. Speeding it up drops it to 8 minutes. Ask yourself: Is saving 3 minutes worth the risk of a thread break? In production, consistency beats raw speed.

Setup Checklist (right before quilting/appliqué begins)

• Hoop Check: Confirm hoop is locked in and recognized.
• Thread Path: Ensure top thread is seated in the tension discs (floss it in!).
• Clearance: Ensure the fabric draping outside the hoop isn't caught under the needle bar.
• Tool Safety: Place curved scissors on the table, not on your lap.
• Speed Dial: Set to 60-70% for the initial tackdown stitches to ensure precision.


Don’t “Jump the Gun”: Stitch the Butterfly Placement Line First, Then Place the Pink Appliqué Fabric

The machine will now stitch the outline of the butterfly shape (Color Stop 4). This is a single running stitch on top of your quilted background.

Beginner Trap: Do not place your pink appliqué fabric yet! You must see this outline first. It tells you exactly how large of a piece of fabric you need and exactly where to put it.

Once stitched, cover the butterfly outline with your Pink Polka Dot fabric. Again, smooth it down.

The "Hoop Burn" & Stability Factor: If you are working with thick fabrics or find that your material is popping out of the hoop during these repeated generic manipulations, standard hoops can struggle. The friction layout works for cotton, but for slippery materials, the layers can shift. This is where advanced users search for terms like bernina magnetic embroidery hoop. These tools clamp down vertically on the sandwich, preventing the "trampoline effect" where the fabric bounces and causes misalignment between the placement line and the tackdown.

Tack It Down, Then Do the Second Precision Trim: 1/8" Max Outside the Stitch Line (Curved Scissors, Flat Table)

Run the Tackdown Stitch (Color Stop 5). This is usually a double-running stitch or a zigzag that secures the pink fabric to the quilt block.

The High-Stakes Trim: Remove the hoop again. Place on a flat surface. This is the most critical skill in appliqué. You need to trim the excess pink fabric without cutting the background fabric or the stitches you just made.

Visual Anchor: You want to leave a margin about the width of a grain of rice (1mm to 2mm).

• Too Close: You cut the containment threads, and the appliqué lifts.
• Too Far (1/8 inch+): The satin stitch won't cover the raw edge, leaving "whiskers" (ugly tufts of fabric) poking out.

Technique: Pull the pink fabric up and away from the stitches with your non-dominant hand. Slide the curved blade of the scissors parallel to the stitch line. The tension you create by pulling makes the fabric cut cleanly like butter.

Expert Note: If you nip a tackdown stitch, don't panic. Put a tiny drop of fray check on it. The satin stitch is dense enough to hide the crime.

Satin Stitch Finish on the BERNINA 880 Plus: Let Density Hide Tiny Mistakes (and Watch the Edge Quality)

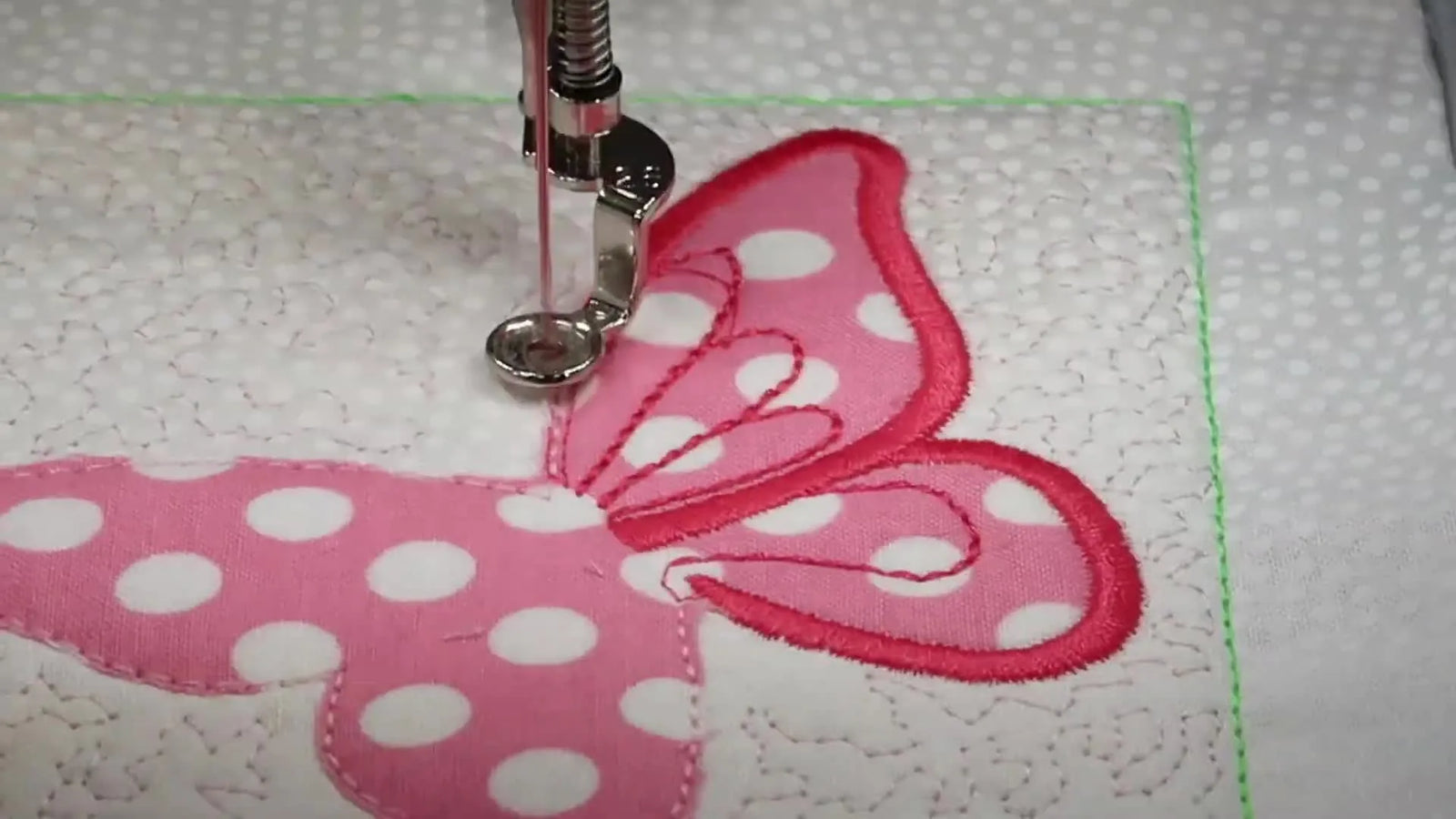

Reattach the hoop. The final step is the Satin Stitch (Color Stop 6). This is a dense column of zigzag stitches that encapsulates the raw edge of your appliqué.

Density Dynamics: The satin stitch relies on "pull compensation." The stitches pull the fabric in slightly. If your stabilizer is loose, the fabric will pucker here. This is why we used Mesh stabilizer back in Step 3.

Checkpoint: Watch the needle penetration. It should be hitting just outside the raw edge of the pink fabric on the outside, and piercing the pink fabric on the inside.

Expected Outcome: A raised, glossy, architectural border that looks like it was painted on. If you see bobbin thread (white) on top, your top tension is too tight or your bobbin is too loose.

Decision Tree: Stabilizer + Batting + Fabric Choices for In-the-Hoop Quilting Blocks (So You Don’t Waste a Saturday)

Choosing the right "sandwich" avoids 90% of failures.

Start: What is your Background Fabric?

• Option A: Quilting Cotton (Standard)
  • Stabilizer: No-show Mesh (soft cutaway).
  • Batting: Standard cotton or 80/20 blend.
  • Method: Float batting and fabric. Friction holds it.
• Option B: Knit / Jersey / Stretchy Material
  • Stabilizer: Heavy Cutaway or Fusible No-Show Mesh (iron-on).
  • Batting: Low-loft polyester.
  • Method: You must control the stretch. Do not pull the fabric when hooping.
• Option C: Thick Materials (Denim, Canvas, Minky)
  • Stabilizer: Medium Tearaway (since fabric supports itself) or Float on Mesh.
  • Challenge: The standard inner hoop ring may pop out or "burn" (bruise) the velvet/minky pile.
  • Solution: Heavy fabrics are the primary reason professionals switch to a magnetic hoop for bernina. The flat magnetic force holds thick piles without crushing them or forcing you to wrestle the inner ring screw.

Next: Production Volume?

• One-off Gift: Prioritize precision. Take your time trimming.
• Batch of 20 Blocks: Prioritize workflow. Set up a trimming station distinct from the sewing station.


Troubleshooting the Two Most Common “880 Plus Appliqué” Pain Points (Before You Blame the Design)

Symptom: Machine prompts to "Check Upper Thread" repeatedly

• Likely Cause: The thread has jumped out of the take-up lever, or the spool cap is too tight causing drag.
• Quick Fix: Re-thread completely with the presser foot UP (this opens the tension discs). Use a spool net for slippery threads.

Symptom: Trimming is jagged or you snipped the background fabric

• Likely Cause: Trimming inside the embroidery module (bad angle) or dull scissors.
• Prevention: Always remove the hoop. Invest in high-quality double-curved scissors.

Symptom: Satin borders have gaps or fabric "whiskers" showing

• Likely Cause: You trimmed too far away from the tackdown line (more than 2mm).
• Quick Fix: Before the satin stitch runs, trim again. If already stitched, use a permanent marker matching the thread color to touch up the whiskers (the "Sharpie fix").

Symptom: Design is slanted or crooked on the block

• Likely Cause: The stabilizer was hooped crookedly, or the fabric was floated off-grain.
• Prevention: Use a hooping station for embroidery. These devices hold the outer hoop and stabilizer static while you align your fabric markings using a laser or grid, ensuring perfect 90-degree alignment every time.


The Upgrade Path That Actually Matters: Faster Hooping, Less Hoop Burn, and Less Wrist Fatigue

Once you have mastered the technique of appliqué, your bottleneck will shift from "how to stitch" to "how to handle the materials." The repetitive stress of tightening hoop screws and the risk of "hoop burn" (permanent shine marks on delicate fabric) are real issues for enthusiasts.

Here is the logical progression for tool upgrades based on your pain points:

1. Level 1: The Stability Fix. If you struggle to hoop thick sandwiches (Stabilizer + Batting + Fabric) without the inner ring popping out, bernina magnetic hoops are the industry solution. They utilize strong magnets to clamp the sandwich instantly without the friction-fit struggle, saving your wrists and your fabric grain.
2. Level 2: The Alignment Fix. If you are making a 12-block quilt and need every butterfly to be perfectly centered, a magnetic hooping station ensures consistency that is hard to achieve by hand-eye coordination alone.
3. Level 3: The Production Fix. For those scaling up to small business production, systems like the hoop master embroidery hooping station integrate with magnetic frames to reduce hooping time from minutes to seconds.

Warning: Magnetic Field Safety. Magnetic frames use powerful Neodymium magnets. Keep them away from pacemakers, insulin pumps, and other implanted medical devices. They create a pinch hazard—keep fingers clear when letting the magnets snap together. Store them away from computerized machine screens and credit cards.

If you find yourself spending more time changing thread colors than stitching, or if you are turning away orders because you can't stitch fast enough on a single needle, that is the trigger to evaluate a Multi-Needle Machine. But for now, mastering your 880 Plus with the right hooping tools is your most profitable step.

Run the Block Like a Pro: Operation Rhythm, Quality Checks, and the “Stop Points” You Should Never Skip

You are now ready to run this block. Remember the rhythm: Placement (Map) → Tack (Anchor) → Trim (Shape) → Satin (Seal).

Do not skip the quality checks. It is better to catch a loose thread now than after the block is sewn into a king-size quilt.

Operation Checklist (End-of-Run Quality Control)

• Structure: Is the batting fully caught in the seam allowance (no gaps at edges)?
• Flatness: Is the block square and flat? (If it bowls like a potato chip, your stabilizer was too loose or tension too tight).
• Edge Quality: Is the appliqué fabric fully trapped under the satin stitch?
• Cleanliness: Have you trimmed all jump stitches and "tails" on the back?
• Security: run your finger over the satin edge—it should feel smooth, not rough.

Repeat this block three times on scrap fabric. The first one is for learning the buttons. The second is for refining your trim. The third is where you enter the flow state. Happy stitching!

FAQ

• Q: What stabilizer and needle setup works best for BERNINA 880 Plus in-the-hoop (ITH) appliqué quilting blocks?
  A: Use No-Show Mesh (soft cutaway) hooped drum-tight with a fresh 75/11 Embroidery or Topstitch needle as a safe starting point for clean satin edges.
  • Hoop: Hoop 1 layer of No-Show Mesh tightly before any stitching.
  • Prep: Insert a full 60wt bobbin and route the bobbin case through the embroidery pigtail if the BERNINA 880 Plus prompts it (follow the manual).
  • Stage: Keep batting, background fabric, appliqué fabric, and double-curved appliqué scissors within reach.
  • Success check: Tap the hooped mesh— it should feel and sound like a tight drum skin.
  • If it still fails… If puckering shows up at the satin stitch, re-check that the stabilizer was hooped tight and that the hoop is fully locked and recognized.
• Q: How can BERNINA 880 Plus owners confirm the Oval Hoop (145×255) is attached correctly before starting an appliqué design?
  A: Wait for the BERNINA 880 Plus to prompt hoop attachment, then seat the Oval Hoop (145×255) until a solid “click” with zero play.
  • Verify: Confirm the screen explicitly requests the Oval Hoop (145×255) icon for the loaded design.
  • Attach: Push the hoop onto the embroidery arm until the audible click.
  • Test: Wiggle the hoop gently to confirm there is no rattling or looseness.
  • Success check: The hoop feels rigid (no movement) and the machine moves it to the start position without hesitation.
  • If it still fails… Remove and re-seat the hoop; do not force-start if the machine has not recognized the hoop.
• Q: How do BERNINA 880 Plus users trim batting and appliqué fabric safely without damaging stabilizer or background fabric during ITH appliqué?
  A: Always remove the hoop from the embroidery module and trim on a flat table using double-curved appliqué scissors for control.
  • Trim batting: After batting tackdown, trim batting extremely close to the stitch line (about within 1 mm) without cutting the mesh.
  • Trim appliqué: After appliqué tackdown, trim pink appliqué fabric to about 1–2 mm outside the stitch line (about a grain-of-rice margin).
  • Control: Lift the excess fabric slightly and slide the curved blade parallel to the stitch line.
  • Success check: No fuzzy overhang beyond the batting stitch line, and the appliqué margin is small enough that the satin stitch fully covers the raw edge.
  • If it still fails… If trimming looks jagged, replace dull scissors; if stabilizer is nicked, patch with tape or restart that block.
• Q: Why does the BERNINA 880 Plus show “Check Upper Thread” repeatedly during appliqué or satin stitching, and what is the fastest fix?
  A: Re-thread the BERNINA 880 Plus completely with the presser foot UP to re-seat thread in the tension discs, and check take-up lever routing.
  • Re-thread: Raise presser foot, remove thread, and re-thread the full path (do not “half-thread”).
  • Inspect: Confirm thread is correctly seated through the take-up lever and guides.
  • Reduce drag: Loosen spool cap pressure if it is gripping the spool; use a spool net for slippery threads.
  • Success check: The machine runs several color-stop stitches without stopping or prompting “Check Upper Thread.”
  • If it still fails… Try a fresh 75/11 Embroidery or Topstitch needle and confirm the thread is “flossed” into the tension discs.
• Q: How can BERNINA 880 Plus owners prevent satin stitch gaps, railroading, or fabric “whiskers” on appliqué borders?
  A: Trim the appliqué close enough (1–2 mm margin) and slow down for satin stitches to about 600–700 SPM to keep coverage clean.
  • Trim: Before the satin stitch runs, re-trim any areas that are more than ~2 mm outside the tackdown line.
  • Control speed: Run travel/stippling faster (about 850–1000 SPM) but reduce speed for wide satin columns (about 600–700 SPM).
  • Watch edge: Monitor needle penetration so stitches land just outside the raw edge on the outside and into the appliqué on the inside.
  • Success check: The satin border fully encapsulates the raw edge with no tufts showing and no visible bobbin thread on top.
  • If it still fails… If whiskers remain after stitching, touch up carefully with a permanent marker matching the thread color (test first).
• Q: What are the key safety rules for operating a BERNINA 880 Plus embroidery arm during hoop calibration and stitch-out?
  A: Keep hands, sleeves, and loose thread tails away from the needle area whenever the BERNINA 880 Plus calibrates or moves the hoop, because the embroidery arm moves fast with torque.
  • Clear area: Remove scissors and tools from the machine bed before pressing start.
  • Pause smart: Only adjust fabric when the machine is fully stopped; do not reach in during movement to the start position.
  • Trim safely: Remove the hoop to trim—never trim while attached to the embroidery module.
  • Success check: Nothing can contact the moving hoop path, and the hoop travels freely without striking tools or fabric drape.
  • If it still fails… If fabric or tools keep getting in the way, reduce clutter and manage fabric drape outside the hoop before restarting.
• Q: When should BERNINA 880 Plus appliqué users switch from standard hoops to magnetic embroidery hoops, and what magnetic hoop safety precautions matter?
  A: Switch to magnetic hoops when thick or slippery layers shift, pop out, or cause hoop burn; handle magnets as a pinch hazard and keep them away from implanted medical devices.
  • Diagnose: If placement lines and tackdown lines stop matching due to layer bounce/shift, clamp force may be insufficient.
  • Level 1 (technique): Re-check drum-tight hooping, adequate fabric extension, and smoothing before stitches.
  • Level 2 (tool): Use a magnetic hoop to clamp the stabilizer/batting/fabric sandwich vertically to reduce “trampoline effect” and hoop burn.
  • Safety: Keep magnetic hoops away from pacemakers, insulin pumps, and implanted medical devices; keep fingers clear when magnets snap together.
  • Success check: Fabric layers stay aligned from placement to tackdown, and the hoop holds without crushing or shining delicate pile fabrics.
  • If it still fails… If output volume or time pressure becomes the bottleneck, consider a workflow upgrade (hooping station) and only then evaluate a multi-needle machine for production needs.
