BES 4 + PE-Design 11 Power Moves: Export Clean SVG Appliqué Cut Lines, Trace Backdrops Fast, and Tame Auto Punch Before It Wastes Your Thread

Mastering Brother Software: A Field Guide to BES 4 & PE-Design 11 for Real-World Production

If you’ve ever stared at a "perfect" appliqué file on your screen, only to have it export as a useless mess—or worse, stitch out backwards—you aren’t just frustrated. You are experiencing the friction between digital logic and physical embroidery reality.

As someone who has spent two decades standing in front of humming machines, I can tell you this: Software like BES 4 and PE-Design 11 aren't broken. They are just incredibly literal. They demand you speak their specific dialect of color palettes, drawing order, and node management.

This guide rebuilds Cynthia’s expert workflows into a production-ready protocol. We are moving beyond "how to click buttons" into "how to guarantee a safe, clean sew-out." Whether you are running a single brother embroidery machine at home or managing a fleet of multi-needles, these rules are universal.

The Mental Shift: Calm Down to Speed Up

When a blanket stitch faces inward or an SVG won't cut, your instinct is to click faster. Stop. Embroidering is an engineering discipline. One wrong color name or a reversed vector path can snowball into wasted stabilizer, a "bird's nest" of thread, and a ruined garment.

We will cover the specific, verified steps to:

• Force BES 4 to generate true SVG cut lines (using the Palette Trick).
• Engineer Safety Buffers using Power Pack 2 (The 2mm Rule).
• Trace Like a Pro using Backdrop and strict node management.
• Control Stitch Direction (Why your blanket stitch is flipped).
• Clean Auto-Digitized Files in PE-Design 11 without losing your mind.

Warning: Physical Safety Alert. Digitizing errors (like overlapping density) are the #1 cause of needle deflection. If your file commands the machine to stitch 20,000 stitches in a 1-inch area, the needle will strike the throat plate and shatter. Shards of metal can fly at high velocity. Always review your design's density map before pressing start.

Phase 1: The "Hidden Prep" & Safety Checks

Before you touch the mouse, you must define the output. A file destined for a vinyl cutter (SVG) has different DNA than a file destined for your needle.

The "Pre-Flight" Decision

• Is this for a Cut File (SVG)? You need strict color coding.
• Is this for a Stitch File? You need overlap and direction control to prevent gaps.

Hidden Consumables You Will Need

Beginners often focus on the software and forget the physical supplies required to test the file. Ensure you have:

• Temporary Spray Adhesive (e.g., 505): Essential for holding appliqué fabric during the "placement" phase.
• Curved Appliqué Scissors: For trimming tight corners if you aren't using a cutter.
• Water Soluble Pen: For marking alignment points on the hoop.

Prep Checklist (Do this OR Fail)

• Set Objective: Am I exporting an SVG for cutting, or just a PES for stitching?
• Hoop Check: Have I selected the correct hoop size in software? (Resizing later ruins density).
• Image Quality: Is my source image high-contrast? (Low contrast = Auto Punch failure).
• Physics Check: If the design has heavy satin stitches, do I have the right stabilizer (e.g., Cutaway for knits) ready?

BES 4 Appliqué SVG Export: The Palette Protocol

Cynthia’s breakthrough advice centers on one non-negotiable rule: BES 4 is color-blind to your intentions unless you use the specific trigger color. It doesn't know "Appliqué" from "Fill" until you flag it.

The Step-by-Step Protocol

1. Merge/Open your design in BES 4.
2. Select the Palette: Click the "tic-tac-toe" icon to switch to the Brother Embroidery thread palette.
3. The "Fourth from Last" Rule: Scroll to the absolute bottom of the color list. Select your appliqué segment. Assign it the color labeled "Applique Material" (this is the 4th color from the bottom).
4. Avoid the Void: Do NOT choose the very last color labeled "not defined."


Sensory Check: How do I know it worked?

• Visual: The segment on screen will shift to a specific, often dull, yellow/tan shade (depending on your version).
• Data: In the "All Items" list, the object properties will clearly reflect the material tag.

Why this matters

This specific color index triggers the software's internal "Cut Line" logic. Use any other yellow, and it's just a yellow stitch.

Exporting the SVG (The Base-Level Feature)

You do not need expensive upgrades to export files. This is native to BES 4.

1. Navigate to Tools tab.
2. Select ScanNCut.
3. Choose Export -> Export SVG.
4. Save with a version name (e.g., Logo_Applique_CUT_v1.svg).


Production Reality Check

If you are running a business, you might use magnetic embroidery hoops for brother machines to speed up the actual stitching. However, a magnetic hoop cannot fix a bad cut file. If your SVG is wrong, your fabric won't fit the stitch line, no matter how fast you hoop.

Setup Checklist (Post-Export Verification)

• Open the SVG in your cutter software (CanvasWorkspace, Silhouette, etc.).
• Visual Audit: Do you see a single, clean cut line? (Double lines mean you exported the satin stitch, not the placement).
• Scale Verification: Measure the width in millimeters. Does it match the embroidery file EXACTLY?

The 2mm Safety Buffer (Power Pack 2)

Here is a harsh reality: Fabric shrinks. Thread pulls. If your cut fabric matches the stitch line exactly (0mm offset), the satin stitch will miss the edge eventually, leaving raw fabric fraying.

Cynthia recommends a 2mm offset. This is your "Safety Margin."

The Workflow

1. Select Tools -> Offset.
2. Choose Create an Offset.
3. Direction: Outside.
4. Distance: 2.0 mm (The "Sweet Spot").
5. Clean Up: Check "Remove original object" to keep only the new cut line.


The "Why" (Physics of Embroidery)

When a needle penetrates fabric 1,000 times a minute, it draws the material inward (the "Push/Pull" effect). A 2mm excess provides enough material for the Tackdown Stitch to grab securely without peeking out from under the Cover Stitch.

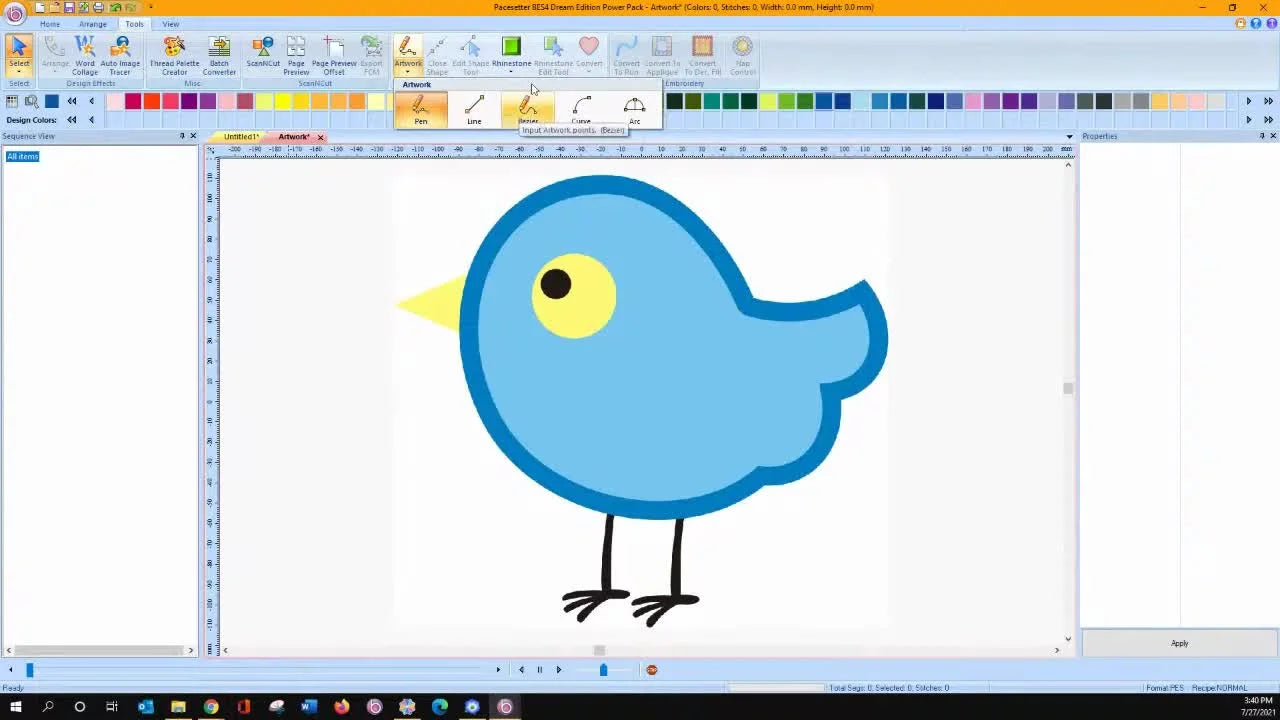

Backdrop Tracing: The Law of Minimum Nodes

When auto-digitizing fails, you must trace. The temptation is to click, click, click every millimeter. Do not do this.

The Sensory Instructional Approach

• Visual: Zoom in so the pixels of the background image are large blocks.
• Action: Click to place a point.
• The "CTRL" Anchor: Hold the CTRL key on your keyboard. This transforms your next click into a Curve. Release CTRL for straight lines.
• Technique: Think of it like bending a wire. Place a node only where the wire needs to change direction.


Transparency Management

Use the Backdrop opacity slider. Dim the image to 50% or 25% so your bright blue vector line stands out against the background.

Stitch Direction: The "Teeth" Conundrum

Nothing screams "amateur" louder than a blanket stitch where the "teeth" (the vertical bite) point into the empty fabric instead of onto the appliqué.

The Diagnostic

• Symptom: The comb-like teeth of the blanket stitch are facing the wrong way.
• Root Cause: Vectors have direction (Start -> End). BES 4 calculates "Left" and "Right" based on the direction you drew the line.
• The Fix: You must redraw the shape in the opposite direction (e.g., Clockwise vs. Counter-Clockwise).




PE-Design 11: Taming Auto Punch

Auto-digitizing is a "Rough Draft" tool, not a "Final Polish" tool.

The "4-Color" Discipline

1. Crop Aggressively: Remove any text or messy borders in an image editor first.
2. The Filter: When Auto Punching, locate Max Number of Colors.
3. The Action: Drop this number to 4 or 5.
4. The Result: The software is forced to merge similar pixel shades, reducing the "confetti" stitches that cause thread breaks.




Cleaning the Junk: The "Alt-Key" Laser

After Auto Punching, grouped objects are stubborn. You try to delete a stray speck, and the whole design vanishes.

The Professional Shortcut

• Hold ALT key + Click Object.
• Visual Feedback: Only that specific sub-element (the weird white background block) is highlighted.
• Action: Press Delete.


Operation Checklist (The "Clean Up" Phase)

• Artifact Check: Did I remove all the "white" background stitches?
• Jump Stitch Audit: Are there jump stitches longer than 5mm that haven't been trimmed?
• Sequence Logic: Does the design stitch from the center out (to prevent puckering)?

Variable Adjustment: Inset 85% & Tackdown -1.0mm

Cynthia introduces a sophisticated tweak for advanced fit.

• Inset Percentage: 85%
• Tack Down Offset: -1.0 mm




Expert Interpretation

This setup pulls the placement line slightly inward (Inset) and forces the Tackdown stitch to bite deeper into the fabric (Negative Offset).

• Result: The cover stitch (Satin) has a much higher chance of completely answering the raw edge. It creates a "domed" effect that looks incredibly professional.

Decision Tree: The Digitizer's Flowchart

Stuck on how to start? Follow this logic path.

START: Analyze Artwork Source

1. Is the image simple (High contrast, solid colors, <5 colors)?

YES: Go to PE-Design Auto Punch.
Constraint:* Set Max Colors to 5. Clean with ALT-Delete.
NO: Go to Step 2.

2. Does the design require precise appliqué edges (Blanket/Satin)?

YES: Go to BES 4 Backdrop.
Action:* Trace manually using CTRL for curves. Control Start/End points to fix stitch direction.
NO: Go to Step 3.

3. Do you require a Physical Cut File (Cutter)?

YES: Use BES 4 Palette Logic.
Action:* Assign "Applique Material" color (4th from bottom). Export SVG.
NO: Standard digitization. Focus on density and pull compensation.

The Production Bottleneck: From Software to Hardware

You have mastered the software. Your file is clean, your offsets are safe. But now you face a new enemy: Mechanical Friction.

If you are producing 50 shirts for a client, the time spent "hooping" (fitting fabric into ring frames) is where your profit dies. Traditional hoops cause "Hoop Burn" (permanent ring marks) and force you to wrestle with thick seams.

The Criteria for Upgrading

When should you stop fighting the hoop and upgrade your tools?

1. Volume: You are doing more than 10 items a week.
2. Materials: You are stitching thick towels, heavy jackets, or bags that standard hoops pop off of.
3. Pain: You are experiencing wrist fatigue from tightening hoop screws.

The Solution: Magnetic Systems

Keywords like magnetic embroidery frame aren't just buzzwords; they are productivity multipliers.

• Level 1 (Technique): Use better spray adhesive.
• Level 2 (Tool Upgrade): Switch to a magnetic hoop for brother. These use high-power magnets to clamp fabric instantly without screws. They reduce hoop burn and allow you to hoop uneven items (like zippers) without damaging the frame.

Warning: Magnetic Safety. Industrial magnetic hoops generate massive force (often 10+ lbs/inch). They can pinch fingers severely. Never place fingers between the brackets. Keep away from pacemakers and sensitive electronics.

For those scaling up, searching for hooping for embroidery machine efficiencies often leads to the ultimate realization: a single-needle machine is a hobby, but a multi-needle machine (like the SEWTECH-compatible platforms) paired with magnetic hoops is a business.

Troubleshooting: The "Quick Fix" Matrix

Final Thoughts: The Cycle of Improvement

Great digitizing is a loop: Design -> Test -> Analyze -> Refinement.

Do not trust the screen blindly. The screen doesn't know that your sweatshirt fleece is 3mm thick. The screen doesn't know your needle is dull. Always run a test stitch on a scrap of similar fabric.

If the file is perfect but the process is painful, look at your hardware. Whether it's adding a 2mm offset in software or snapping on a magnetic embroidery frame to save your wrists, the goal is the same: effortless, professional results that you can repeat a thousand times.

FAQ

• Q: What hidden consumables should be prepared before using Brother BES 4 or Brother PE-Design 11 to test an appliqué design?
  A: Prepare the physical supplies first, because software tests are meaningless if the appliqué cannot be placed, trimmed, and aligned cleanly.
  • Use temporary spray adhesive (e.g., 505) to hold appliqué fabric during the placement phase.
  • Keep curved appliqué scissors ready if a cutter is not being used.
  • Mark alignment points with a water-soluble pen before stitching.
  • Success check: the appliqué fabric stays flat during placement and trimming is controlled at tight corners without shifting.
  • If it still fails: re-check the design objective (cut file SVG vs stitch file PES) and confirm the hoop size was selected correctly before any resizing.
• Q: How do Brother BES 4 users fix “SVG won’t cut / No data” when exporting an appliqué SVG for Brother ScanNCut?
  A: Assign the appliqué segment to the Brother thread palette color named “Applique Material” (4th from the bottom), because that specific color index triggers cut-line logic.
  • Switch to the Brother Embroidery thread palette using the palette icon.
  • Select the appliqué segment and set its color to “Applique Material” (4th from last).
  • Avoid selecting the last color labeled “not defined,” then export via Tools → ScanNCut → Export → Export SVG.
  • Success check: the exported SVG opens in cutter software and shows a single clean cut line (not doubled).
  • If it still fails: open the SVG in the cutter software and verify the scale in millimeters matches the embroidery file exactly.
• Q: How can Brother BES 4 users confirm an appliqué SVG export is correct before cutting fabric (scale and line quality)?
  A: Verify the SVG in cutter software immediately, because a wrong cut line will never match the stitch line on fabric.
  • Open the SVG in CanvasWorkspace, Silhouette, or similar cutter software.
  • Visually audit for one clean cut line (double lines often indicate the satin stitch path was exported instead of the placement/cut line).
  • Measure the design width in millimeters and confirm it matches the embroidery file exactly.
  • Success check: the SVG shows one outline and the measured width matches the embroidery design without “mystery” scaling.
  • If it still fails: return to the design and re-check the palette assignment and which object (placement vs cover stitch) was selected for export.
• Q: What is the Brother BES 4 Power Pack 2 “2.0 mm offset” appliqué rule, and how do Brother BES 4 users know the offset worked?
  A: Use a 2.0 mm outside offset for the cut piece to prevent raw fabric edges from peeking out due to push/pull.
  • Go to Tools → Offset → Create an Offset.
  • Set Direction to Outside and Distance to 2.0 mm.
  • Enable “Remove original object” to keep only the new cut line.
  • Success check: the cut fabric is slightly larger than the stitch line, so the tackdown grabs securely and the satin cover stitch reliably covers the edge.
  • If it still fails: confirm the cut file and stitch file are the exact same scale before stitching.
• Q: How do Brother BES 4 users fix an inverted blanket stitch where the “teeth” point inward instead of onto the appliqué fabric?
  A: Redraw the outline in the opposite direction (clockwise vs counter-clockwise), because stitch “left/right” is calculated from path direction.
  • Identify the object producing the blanket stitch and locate its start/end direction.
  • Redraw the same shape in the opposite direction to flip the blanket stitch orientation.
  • Re-run a small test stitch-out on scrap before committing to a garment.
  • Success check: the blanket stitch “teeth” bite onto the appliqué fabric edge rather than pointing into empty background fabric.
  • If it still fails: check that the correct outline object is being used for the blanket stitch (not a duplicated or offset line).
• Q: How do Brother PE-Design 11 users reduce “confetti stitches” and excessive thread breaks caused by Auto Punch on noisy artwork?
  A: Limit Auto Punch to 4–5 colors and crop aggressively first, because too many similar pixel shades get interpreted as stitchable objects.
  • Crop the source image to remove text, messy borders, and background clutter before importing.
  • In Auto Punch, set “Max Number of Colors” to 4 or 5.
  • Clean leftovers by holding ALT and clicking a single sub-element, then delete only that junk piece.
  • Success check: the design no longer “machine-guns” tiny stitches in one spot and the color blocks look simplified and intentional.
  • If it still fails: inspect for long jump stitches (over ~5 mm) and clean sequencing so the design stitches from the center outward.
• Q: What embroidery safety check should Brother BES 4 and Brother PE-Design 11 users do to reduce needle breakage from overly dense digitizing?
  A: Review density and layering before stitching, because extreme density in a small area can deflect and shatter a needle.
  • Inspect the design for overlapping heavy fills or satin-over-satin stacking in the same small zone.
  • Reduce or redesign areas that cram extremely high stitch counts into tight spaces before pressing start.
  • Run a test stitch on similar scrap material, not directly on the final garment.
  • Success check: the machine runs smoothly without “CRACK” sounds or repeated impacts, and needle penetration looks consistent rather than forced.
  • If it still fails: stop immediately and re-digitize the problem area (do not keep running), then confirm stabilizer choice matches the fabric type.
• Q: When should embroidery production switch from screw hoops to a magnetic embroidery hoop system for faster hooping and less hoop burn?
  A: If hooping is the profit-killer (volume, thick materials, wrist fatigue), start with technique, then consider magnetic hoops as a tool upgrade, and only then consider multi-needle capacity.
  • Diagnose the trigger: more than ~10 items per week, frequent hoop burn/ring marks, thick towels/jackets/bags popping out, or wrist fatigue from hoop screws.
  • Try Level 1 technique: improve holding with spray adhesive and reduce over-tightening to minimize ring marks.
  • Upgrade to Level 2 tool: use a magnetic embroidery hoop system to clamp fabric quickly without screws and reduce hoop burn on many materials.
  • Success check: hooping time drops noticeably and fabric shows fewer crushed rings while staying secure during stitching.
  • If it still fails: treat it as a workflow bottleneck—evaluate whether multi-needle production capacity is needed for the order volume rather than forcing a single-needle process.
