BES 4 to CanvasWorkspace & Cricut Design Space: Export the Right File, Keep Your Layout, and Stop Wasting Vinyl

You’ve mastered the embroidery machine—you know your stabilizers, you can thread a needle in the dark, and you know the rhythmic thump-thump of a perfect satin stitch. But now you’re entering the hybrid crafting arena: combining embroidery with vinyl cutting.

This is where many crafters hit a wall. You did the design work in your embroidery software (Brother BES 4), but the moment you move it into a cutter workflow (Cricut or ScanNCut), the file "mysteriously" breaks.

If you’ve ever watched Cricut Design Space scatter your carefully placed lettering like confetti across the cutting mat, or imported an SVG into CanvasWorkspace only to find the cut lines have vanished, take a breath. Nothing is wrong with your talent or your machine. This is purely a translation error between file types and one critical layout command.

This guide rebuilds the exact workflow for exporting from Brother BES 4 Dream Edition (with Power Pack 2) and importing into CanvasWorkspace and Cricut Design Space. We aren't just clicking buttons; we are building a shop-tested guardrail system to stop you from wasting expensive vinyl and losing your patience.

The “Don’t Panic” Primer: When BES 4 Exports Look Fine but Your Cutter App Acts Possessed

The scary part of this process is how normal everything looks inside BES 4. Your design—perhaps a dog-bone shape with a name, including those tricky little inside pieces of letters (counters) like the center of an 'A', 'S', or 'e'—sits perfectly where you placed it.

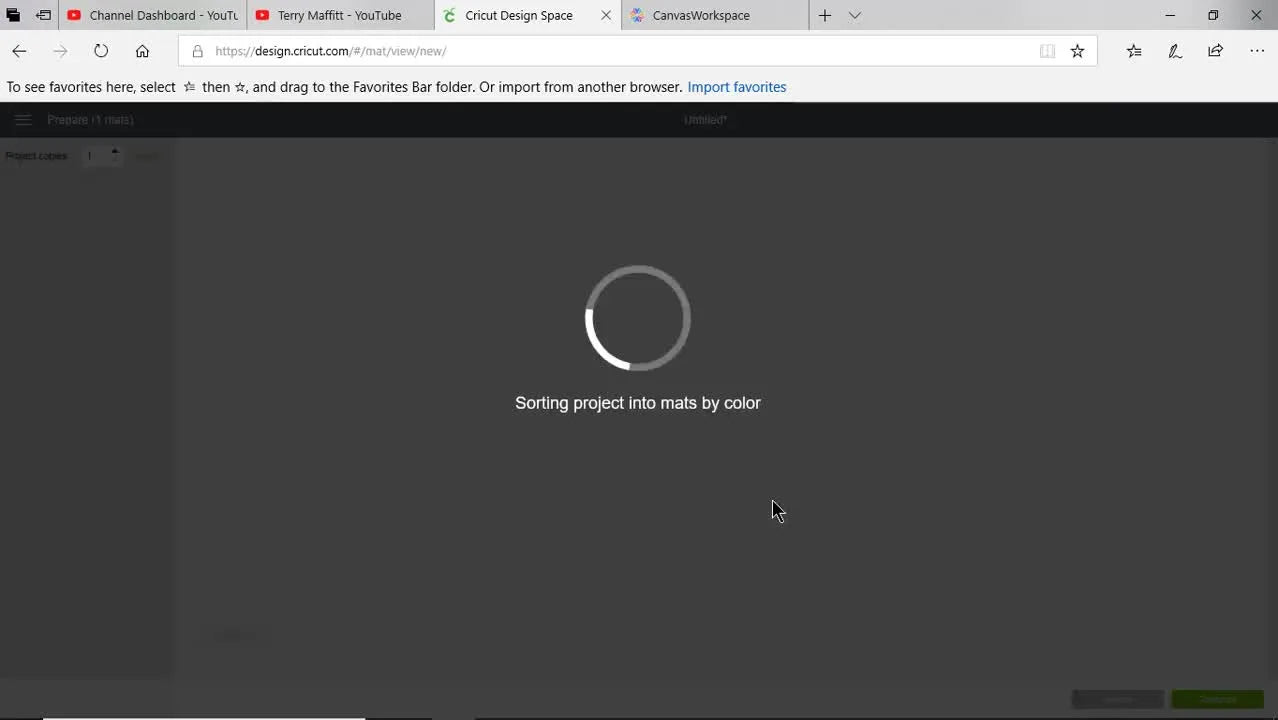

Then you click Make It in Cricut, and the preview looks like a ransom note. The letters are jumbled, the spacing is gone, and the bone shape is floating in a corner.

Here is the reality check: That is not a design failure. It is the software doing exactly what it was programmed to do: optimize material usage. Unless you explicitly command it, "No—keep my layout exactly as-is," the software will shove every element into the tightest possible space to save you two inches of vinyl.

On the Brother side, CanvasWorkspace can occasionally display imported SVG paths in a way that makes you think cut lines are missing—when they are simply not being highlighted in the current view mode.

Vector vs Raster in BES 4 Export: Pick SVG/FCM First, or You’ll Be Tracing Later

Inside BES 4, you generally have three export directions. Understanding the physics of these files is the key to a clean cut:

1. Export SVG (Scalable Vector Graphics): The universal language of cutting machines. It uses mathematical paths, not pixels.
2. Export FCM (File Create Machine): The native language of Brother ScanNCut.
3. Export Image (PNG/JPG/GIF/Bitmap): These are raster images made of colored pixels.

The Golden Rule of Hybrid Crafting

• If you want ready-to-cut lines that your blade will follow perfectly: Choose a vector export (SVG or FCM).
• If you export a raster image (like PNG), you serve the cutter a "picture" of the shape. You will then have to trace that picture in the cutting software to recreate lines.

Why avoid tracing? Tracing introduces "digital noise." It can create jagged edges on smooth curves, alter the kerning (spacing) between your letters, or miss tiny details. When you weed the vinyl later (peeling away the excess), a vector file peels smoothly like butter. A traced raster file often snags, tears, or has "ghost cuts" that ruin the finish.

If you are building a repeatable workflow for names, team orders, or customer personalization, using a vector export is the difference between "smooth production" and "every job is a rescue mission."

The Physical Parallel

Think of this "clean digital setup" like your physical embroidery setup. You want stability. One common upgrade path I see in real shops is pairing clean vector exports with a faster physical setup on the embroidery side—especially if you’re doing batches. If you’re currently fighting slow, inconsistent hooping or fabric slippage, a hooping station for embroidery acts just like a vector file: it creates a standardized, error-free foundation so you don't have to "trace" or guess your placement every single time.

Exporting SVG and FCM from Brother BES 4 Dream Edition (Power Pack 2) Without Guesswork

The on-screen flow in BES 4 is straightforward: navigate to the export options and save the design as either SVG or FCM. However, the decision relies on your destination.

The Decision Logic

• SVG: The best "universal" choice. Use this if you work in Cricut Design Space, Silhouette Studio (Designer Edition), or generic plotters.
• FCM: The purpose-built choice for Brother ScanNCut workflows. It eliminates translation errors because it speaks the machine's native tongue.

Note: BES 4 also offers Export Image where you can pick bitmap/JPEG/PNG/GIF. Just because you can doesn't mean you should.

Warning: If you export as PNG/JPG and then trace in your cutter software, you risk altering the geometry of your font. You might accidentally thicken a serif or close up the loop in an 'e'. If you are selling finished work, those tiny distortions are the difference between "handmade premium" and "homemade amateur."

Prep Checklist (Before you export)

• Vector Verification: Confirm you are selecting SVG or FCM.
• Naming Convention: Use a file name that describes the project and the medium (e.g., Smith_DogBone_Vinyl_V1.svg).
• Scale Check: Ensure your design in BES 4 is the actual size you want to cut. While vectors scale without quality loss, resizing later invites "it doesn't fit the hoop" errors.
• Consumables Check: Do you have the right stickiness of transfer tape? (Standard grip for adhesive vinyl, strong grip for glitter vinyl).


CanvasWorkspace SVG Import “Invisible Lines” Fix: Use View > Show Only Cutting Lines

If you import the SVG into CanvasWorkspace using the SVG import button on the toolbar, you might encounter a heart-stopping moment: the screen looks blank, or parts of the design seem missing.

Here is the "gotcha": Sometimes, the paths are there, but the software's View Mode doesn't render them with a visible stroke color.

The Sensory Fix

Don't re-export. Don't reinstall.

1. Go to the View menu at the top.
2. Select Show Only Cutting Lines (or Show Only Drawing Lines).

Snap. That view toggle usually makes the paths visible instantly. It’s like turning on a UV light—the structure was there the whole time; you just needed the right lens.

Pro Tip: If you do this hybrid workflow often, build a "two-minute sanity check" habit: Verify vector format -> Verify import -> Verify view mode.

CanvasWorkspace FCM Import: The Cleanest Path for Brother ScanNCut Cutting Lines

After demonstrating the SVG quirk, the workflow often favors the .FCM version if you own a ScanNCut.

In the demo, the FCM import appears clearly, and the cutting lines are immediately readable. There is zero interpretation required by the software. If your end goal is the Brother ecosystem, this is the path of least resistance.

From Digital to Physical Efficiency

A lot of embroiderers use this workflow to create matching vinyl names, appliqué placement templates, or coordinating decals for gift sets. When you start doing that repeatedly, the bottleneck often shifts away from software and back to physical production—specifically hooping.

You might find that while your file is ready in seconds, your physical prep takes minutes. This is where tools like hooping stations make a massive impact. It’s not that you can't hoop without them, but they offer mechanical consistency. Just as the FCM file guarantees the cutter knows where to cut, a station guarantees the needle lands exactly where you planned, shirt after shirt.

Cricut Design Space “Scattered Letters” Problem: Why Make It Rearranges Your Layout

Now, let's switch to the Cricut environment. This is where the panic usually sets in.

The Scenario:

• Your design contains a name (e.g., "BUSTER") inside a shape.
• The letters are separate objects.
• The centers of the letters (counters) are separate objects.

If you click Make It without locking the layout, Cricut’s algorithm takes over. It looks at that big empty space on your vinyl mat and thinks, "I can save 30% vinyl if I move this 'B' over here and put the center of the 'A' down there."

On the mat preview, the name pieces scatter.

The Practical Consequence

If you cut this "optimized" mess, you will be left with a puzzle. You would have to transfer each letter individually to your blank, eyeballing the spacing and alignment.

• Result: Crooked letters, varied kerning, and a project that looks unprofessional.
• Goal: You want to cut the design exactly as it looks on screen, so you can apply one piece of transfer tape and lift the whole name at once.


The Paperclip That Saves Your Sanity: Using Attach in Cricut Design Space to Preserve Layout

The fix is one button. It is the most important button in Cricut Design Space for hybrid crafters.

The Fix Procedure

1. Select Everything: Use your mouse to drag a bounding box around the entire design (the bone shape + the name + the counters).
2. Locate the Paperclip: At the bottom right of the layers panel (or in the actions menu on mobile), find the Attach icon. It looks like a paperclip.
3. Click Attach.

Sensory Confirmation: When you click Attach, watch the layers panel. The separate layers will group under a heading labeled "Attached Set." Now, click Make It again. The mat preview will show the design frozen in place—the name centered in the bone, the tiny pieces perfectly aligned.

The Philosophy of Locking Down "Attaching" in software is identical to "Stabilizing" in embroidery. You are preventing shifting during the violent process of production.

• Digital Shift: Corrected by Attach.
• Physical Shift: Corrected by proper hooping.
  If you find that your embroidery fabric shifts despite your best efforts (resulting in "puckering" or registration errors), consider your physical tools. Many commercial shops verify their hooping using a hoopmaster hooping station workflow to mechanically lock the fabric tension, similar to how Attach locks the pixel tension.


Setup Checklist (Right before you cut)

• Selection Check: Did you capture every tiny dot of the 'i' and center of the 'e' in your selection box?
• The Attach Action: Did you click the Paperclip? (Don't just Group; Grouping is for moving things on the canvas. Attach is for the cutting mat).
• Preview Verification: Look at the cutting mat preview. Does it look exactly like your finished product?
• Blade Check: Run your finger carefully over your blade housing. Is there a piece of vinyl stuck in it?
• Consumables: Do you have your weeding tool and scraper ready?

Warning: Cutting blades and weeding hooks are deceptively sharp. Always retract blades or use caps when not in use. When you are rushing to meet a deadline, it is easy to reach into a chaotic workstation and puncture a finger. Keep your "sharp zone" organized.

Uploading SVG into Cricut Design Space (and Tagging Files So Customer Reorders Don’t Hurt)

The upload workflow is standard, but the organization is what separates pros from amateurs.

1. Go to Upload.
2. Choose Upload Image -> Browse -> Select your SVG.

The Tagging Secret: When the upload screen asks for distinct tags, do not skip this. Add the Customer Name, the Project Type (e.g., "DogBone"), and the Date. Why? Because six months from now, when that customer wants "another one just like the last one," you don't want to spend 45 minutes redesigning it. You search their name, find the file, and cut.

A Note on Power Pack 2: Terry, the expert in this workflow, notes that obtaining the specific Power Pack for BES 4 usually involves contacting a dealer. This is a good reminder for the industry: Software add-ons often require dealer support. Build a relationship with your dealer; they are your tech support lifeline.

Cricut Design Space UI Changes: Where Layers and Line Type Moved

Software updates are inevitable. Cricut Design Space changes its specific button locations frequently.

• Layers/Color Sync: Often moves between the right sidebar and top headers depending on version.
• Line Type (Operation): This dropdown (where you tell the machine to Cut, Draw, or Score) has moved to the top toolbar in recent versions.

Key Takeaway: Do not memorize the position of the button; memorize the name of the function. You are looking for Operation or Line Type. If you haven't opened the app in a month, give yourself 5 minutes of "re-orientation time" before you start a paid job to avoid stress.

The Fast Decision Tree: SVG vs FCM vs PNG

Use this logic flow to stop guessing during export.

1) What cutting ecosystem are you targeting?

• Brother ScanNCut: → Export FCM (Native language, zero risk).
• Cricut / Silhouette / Other: → Export SVG (Universal vector).

2) Do you need clean cut lines without tracing?

• Yes: → Stay with SVG or FCM.
• No (I just need a printable picture): → Export PNG/JPG (Raster). Warning: You will have to trace this to cut it.

3) Are you cutting multi-part lettering that must stay aligned?

• Yes: → In Cricut, you MUST select all and click Attach before cutting.

Troubleshooting the Two Most Common Fail States

If things go wrong, start here. Do not skip steps.

Symptom 1: I imported the SVG into CanvasWorkspace, but the screen is blank.

• Likely Cause: The software is set to a View Mode that hides cutting paths.
• Immediate Fix: Click View > Show Only Cutting Lines.
• Prevention: Default your view to showing properties.

Symptom 2: My letters act like "confetti" on the Cricut mat preview.

• Likely Cause: Cricut optimized the layout to save vinyl because you didn't lock the relative positions.
• Immediate Fix: Cancel the cut. Go back to canvas. Select All. Click Attach.
• Prevention: Make "Attaching" the very last thing you do before clicking "Make It."

The Upgrade Path That Feels Natural: From One-Off Crafts to Repeatable Orders

Terry’s workflow proves something important: BES 4 isn’t just for stitch files—it can be a command center for multi-tool personalization.

Once you have mastered the digital side—exporting vectors and using Attach—you will find your production capacity increases. You can take on more orders. Suddenly, the bottleneck isn't the software; it's your hands.

Recognizing the Physical Bottlenecks:

• Pain Point: "I spend too long ensuring the shirt is straight in the hoop."
  • Solution: Commercial shops use a hoopmaster or similar alignment fixture. It turns a 2-minute struggle into a 10-second "click."
• Pain Point: "My hands hurt from tightening screws," or "The hoop leaves 'hoop burn' marks on delicate velvet/performance wear."
  • Solution: This is the trigger to investigate magnetic embroidery hoops. Unlike traditional screw-hoops, magnetic hoops use powerful magnets to clamp fabric instantly without friction abrasion (hoop burn). They are faster to load and gentler on fabric.

Warning: Magnetic Hoop Safety
If you decide to upgrade to magnetic hoops, treat them with respect.
1. Pinch Hazard: These magnets are industrial strength. They can crush fingers if they snap together unexpectedly. Keep fingers clear of the clamping zone.
2. Medical Devices: The strong magnetic fields can interfere with pacemakers. Keep them at a safe distance from medical implants and electronic storage devices.

Operation Checklist (The "No Waste" Run)

• Export: BES 4 -> SVG (Cricut) or FCM (ScanNCut).
• Import Check: CanvasWorkspace -> View -> Show Cutting Lines.
• Layout Lock: Cricut -> Select All -> Attach.
• Physical Prep: Vinyl on mat confirmed flat. Blade depth check.
• Embroidery Prep: If doing the matching stitch file, hoop your fabric securely (Consider Magnetic Hoops for speed/safety).
• Execution: Cut -> Weed -> Apply Transfer Tape -> Done.

Run this sequence. Respect the "Attach" button. And watch your hybrid crafting go from a frustrating experiment to a profitable, repeatable workflow.

FAQ

• Q: Why does Cricut Design Space “Make It” scatter letters and inside pieces after importing an SVG from Brother BES 4 Dream Edition?
  A: Use Attach (not just Group) to lock the exact layout before cutting—this is the intended Cricut behavior to save vinyl.
  • Select the entire design on the canvas (shape + letters + every counter/inside piece).
  • Click the Attach paperclip icon, then click Make It again.
  • Success check: The mat preview shows the design frozen exactly like the canvas (no “confetti” rearranging).
  • If it still fails: Cancel the cut and re-select—usually one tiny layer (like the dot of an “i” or center of an “e”) was missed.
• Q: How do I fix “blank” or “missing cut lines” when importing an SVG into Brother CanvasWorkspace from Brother BES 4?
  A: Switch CanvasWorkspace to a cutting-line view mode—often the paths imported, but the current view is hiding them.
  • Open View in the top menu.
  • Choose Show Only Cutting Lines (or Show Only Drawing Lines).
  • Success check: The cut paths appear immediately without re-exporting the file.
  • If it still fails: Reconfirm the export was SVG (vector) rather than PNG/JPG, because raster images won’t contain true cut paths.
• Q: In Brother BES 4 Dream Edition (Power Pack 2), should I export SVG, FCM, or PNG for Cricut Design Space or Brother ScanNCut?
  A: Export SVG for Cricut/Silhouette/generic cutters, export FCM for Brother ScanNCut, and avoid PNG/JPG if you want clean cut lines without tracing.
  • Choose FCM when the target is Brother ScanNCut (native format, least translation risk).
  • Choose SVG when the target is Cricut Design Space (universal vector format).
  • Success check: The cutter software shows editable cut paths (not a single “picture” that needs tracing).
  • If it still fails: If the file behaves like an image, you likely exported PNG/JPG—re-export as SVG/FCM and re-import.
• Q: Why should hybrid crafters avoid exporting PNG/JPG from Brother BES 4 when the goal is vinyl cutting in Cricut Design Space or CanvasWorkspace?
  A: PNG/JPG exports are raster “pictures,” so the cutter must trace them—tracing often creates jagged edges or altered font geometry.
  • Export SVG or FCM when you need blade-ready paths.
  • Avoid tracing for multi-letter names where kerning and smooth curves matter.
  • Success check: Weeding feels smooth and consistent, and curves look clean (not stair-stepped).
  • If it still fails: Re-check that the cutter software is using the vector file you uploaded (not an older PNG version with a similar name).
• Q: What is the fastest pre-cut checklist for preventing wasted vinyl when moving a design from Brother BES 4 to Cricut Design Space?
  A: Do a 60-second “export–import–preview” sanity check before cutting to catch the two biggest failure points (wrong file type and unlocked layout).
  • Export from Brother BES 4 as SVG (for Cricut).
  • Upload the SVG, then Select All → Attach as the last step before Make It.
  • Success check: The Cricut mat preview matches the intended finished layout exactly (spacing and alignment preserved).
  • If it still fails: Inspect the blade housing for stuck vinyl debris and re-run the preview—small obstructions can cause messy cuts even with perfect files.
• Q: What safety steps should be followed when handling Cricut cutting blades and weeding tools during vinyl projects?
  A: Treat blades and hooks as “sharp-zone” tools—slow down and keep the workstation organized to prevent puncture injuries.
  • Retract blades or cap them when not in use.
  • Keep weeding hooks and blade housings in a dedicated spot, not loose on the table.
  • Success check: Hands never reach into clutter to search for tools; tools are returned to the same location every time.
  • If it still fails: Pause the job, clear the workspace, and restart—rushing is when most fingertip accidents happen.
• Q: When do magnetic embroidery hoops or a multi-needle embroidery machine make sense after mastering Brother BES 4 + Cricut/ScanNCut hybrid personalization?
  A: Upgrade in levels based on the real bottleneck: technique first, then faster fixtures (magnetic hoops), then capacity (multi-needle machine) when orders demand it.
  • Level 1 (Technique): Standardize the workflow (vector export + view mode check + Cricut Attach) to remove rework.
  • Level 2 (Tooling): Consider magnetic embroidery hoops if hooping is slow, inconsistent, painful, or leaving hoop marks—magnets clamp fast and reduce friction (results vary by fabric, so follow machine guidance).
  • Level 3 (Capacity): Consider a multi-needle embroidery machine when your limiting factor is throughput, thread-change time, or batch efficiency.
  • Success check: The slowest step in the job shifts from “fixing problems” to “repeatable production” (less wasted vinyl, faster prep, consistent results).
  • If it still fails: Track where time is spent for 10 jobs—upgrade only the step that repeatedly consumes the most minutes.
