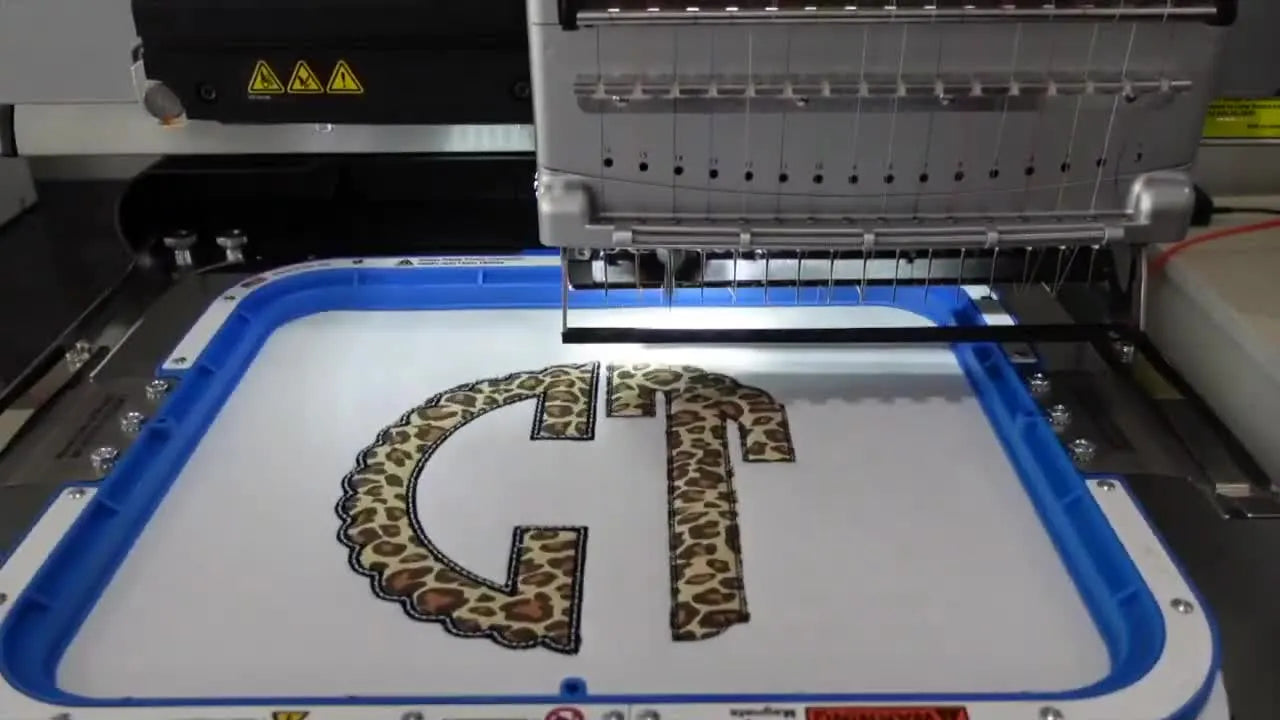

Boutique Appliqué on a Melco Embroidery Machine: Clean Flocked HTV Edges, Perfect Placement, and Zero-Panic Stops

Boutique-style appliqué on sweatshirts is a high-stakes game. On Etsy and Shopify, it looks deceptively simple. But when you are standing at the machine with a $30 premium blank, a slippery piece of flocked vinyl, and a schedule to keep, the fear is real. One placement error or one slip of the hoop, and that garment becomes an expensive shop rag.

This guide acts as your safety protocol. We are taking the workflow shown in the source video—measuring, laser alignment, MOS appliqué stops, tack/trim, and heat finishing—and fortifying it with production-grade safeguards. Our goal is to move you from "guessing and hoping" to a repeatable, retail-ready process.

The “Don’t Panic” Primer: Why Melco Appliqué Stops Make Sweatshirts Feel Easy Again

A finished garment is unforgiving. Unlike a flat piece of fabric, you cannot hide a crooked monogram on the chest of a bulky sweatshirt. The good news is that the Melco Operating System (MOS) appliqué command is engineered specifically for this controlled workflow. It breaks the stitch path into distinct, safe phases: stitch a placement line, STOP (and push the hoop out), place material, stitch a tack-down, STOP, trim, then finish with a satin border.

If you are running melco embroidery machines, the strategic advantage here isn’t just speed—it is predictability.

When the machine stops and pushes the hoop forward automatically, you aren't fighting to hit the emergency stop button. You aren't trying to trim fabric while your scissors are dangerously close to the needle bar. You have space, light, and control.

What you’re making in this tutorial:

• The Look: A boutique-style sweatshirt appliqué using flocked HTV (the leopard print material).
• The edge: A satin stitch border that completely encapsulates the raw edge of the vinyl.
• The Finish: A heat-pressed bond using a Cricut EasyPress to lock the design permanently.


The “Hidden” Prep Pros Never Skip: Placement Math, Garment Control, and a Clean Work Surface

Before you even touch your distinct software, you must govern the physics of the sweatshirt. Sweatshirts are thick, stretchy (knits), and notorious for shifting. If you hoop a sweatshirt like a woven dress shirt, you will get puckering.

The Hidden Consumables List

Beginners often miss these silent heroes. Ensure you have:

• Cutaway Stabilizer: Crucial. Tearaway is not strong enough for the stretch of a sweatshirt. You need 2.5oz to 3.0oz cutaway to support the stitch density.
• Temporary Spray Adhesive (e.g., KK100): To adhere the stabilizer to the inside of the shirt before hooping, preventing "stabilizer drift."
• Disappearing Ink Pen / Chalk: For marking without permanent damage.

Placement method: The "Centerline" Protocol

1. The Crease (Tactile Anchor): Fold the sweatshirt in half vertically. Use your heat press to create a crisp, visible center crease. This is more accurate than any chalk mark because it follows the grain of the fabric.
2. The Vertical Landing: Use a ruler (or the shop floor “three-finger rule” from the collar seam) to decide the vertical start point.
3. The Pin System:
   • Place a pin at the top of the design location.
   • The design height in the video is 7 inches, so measure 7 inches down from that top pin.
   • Place a second pin at the exact center point.

Expert Note: The specific measurement (7 inches) depends heavily on size (S vs 2XL). The non-negotiable rule is that you establish a physical centerline (the crease) and a crosshair (the pin) that you can reproduce on the next 50 shirts.

Prep Checklist (Do this PRE-Flight)

• Fabric Check: Sweatshirt folded and heat-pressed; center crease is visible and sharp.
• Marking: Top-of-design and Center-point marked with pins.
• Stabilizer: Cutaway stabilizer adhered to the inside of the garment (floating or hooped depending on method).
• Material Layout: HTV piece is pre-cut, carrier sheet peeled (if applicable), and within arm's reach.
• Tool Staging: Small, double-curved embroidery scissors are placed on the workbench—not buried under scrap fabric.


Hooping a Bulky Sweatshirt in a Magnetic Hoop: Get Alignment Without Hoop Burn or Wrestling

In the tutorial, the sweatshirt is secured using a square magnetic hoop. This is the moment most beginners struggle with when using traditional friction hoops (the inner/outer ring style). Traditional hoops require you to force thick seams and fleece into a tight gap, often causing "hoop burn" (permanent pressure rings) or forcing you to stretch the fabric to get it locked in.

This is why upgrading to a magnetic embroidery hoop is often the first step in a shop's evolution from hobby to production.

The Physics of Hooping Sweatshirts

• Neutral Tension is King: Unlike drums, you do not want a sweatshirt "drum tight." Stretching a knit fabric during hooping means it will snap back when unhooped, causing your appliqué to pucker. A magnetic hoop holds the fabric firmly without distorting the grain.
• Seam Clearance: Bulky seams (like the kangaroo pocket or side seams) can destroy alignment in a plastic hoop. Magnetic frames simply snap over them.
• The "Click" Confirmation: When using a high-quality magnetic frame, listen for the solid clack of the magnets engaging. This auditory feedback tells you the fabric is secure.

How to Hoop for Success

1. Smooth, Don't Pull: Lay the stabilizer and sweatshirt over the bottom frame. Smooth it out so the center crease aligns with the hoop's center markers.
2. Support the Weight: Ensure the rest of the sweatshirt isn't dragging off the table. Gravity will pull your design off-center.
3. Snap and Smooth: Drop the top frame. Check the perimeter. If you see ripples, gently tuple the fabric outside the hoop—do not yank it.

If you are shopping for magnetic hoops for embroidery machines, your decision criteria should be: Does this hold thick fleece without me having to tighten a screw with a screwdriver? The goal is ergonomic safety and fabric integrity.

Warning: Magnet Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut with significant force.
* Medical Safety: Keep magnets away from pacemakers or insulin pumps.
* Electronics: Do not rest your phone or credit cards directly on the magnets.

Warning: Physical Safety
Keep pins out of the stitch path! The video explicitly removes the pins before stitching. A needle striking a steel pin can shatter the needle over 1,000 RPM, sending metal shards toward your eyes. Always wear safety glasses or remove pins religiously.

Laser Alignment on a Melco: Match the Center Pin to the Trace Before You Commit Thread

Once the sweatshirt is hooped, do not trust your eyes alone. The video demonstrates using the Melco’s built-in laser feature to trace the design boundary.

The Alignment Routine

1. Load: Slide the hoop onto the machine arms. Listen for the click of the hoop arms locking in.
2. Trace: Turn on the laser trace. Watch the red dot travel the perimeter of your design.
3. Verify: The laser should center exactly where your pin creates a crosshair on the fabric crease.
4. Pin Removal: Only after the trace confirms the location is safe and centered, remove the marking pins.

This minute of checking prevents the "belly print" error (printing too low) or the "choking print" (printing too high).

MOS Color Sequence “Appliqué” Command: The One Click That Controls Every Stop (and the Easy Mistake)

In the Melco Operating System (MOS), the software controls the physical behavior of the machine. The video navigates to the Color Sequence tab to insert the Applique command.

The "If-This-Then-That" Logic

The machine needs to know when to stop.

• The Golden Rule: Add the Applique command AFTER the stitch color, not before.

If you add it before, the machine stops before it has stitched the guidelines, leaving you staring at a blank shirt wondering where to put the vinyl.

The Sequence Strategy shown:

• Stop 1 (Color 1 - Brown): Placement Line (Straight stitch). Command: Applique (Machine will stop + pushing hoop out).
• Stop 2 (Action): Operator places the HTV. Press Start.
• Stop 3 (Color 2 - Tan): Tack-down Line (Zig-zag or double run). Command: Applique (Machine will stop + pushing hoop out).
• Stop 4 (Action): Operator trims the excess HTV. Press Start.
• Stop 5 (Color 3/4): Satin Finish and remaining details. (No stops).

Pro Tip: Beginners often rush this setup. Read the sequence outline on screen aloud before hitting start: "Stitch brown, stop and push. Stitch tan, stop and push." If the visual sequence doesn't match your verbal check, fix it now.

If you are building a workflow around embroidery hoops for melco, standardizing this software setup ensures that any operator in your shop—even the new hire—gets the same stops at the same moments.

Stitching the Placement Line: What You Should See After the First Tack-Down

Press the green button. The machine stitches the outline directly onto the sweatshirt.

Sensory Check:

• Visual: Look for a clean, single-run outline that matches your design files.
• Audio: The machine should stop automatically, and the pantograph (the arm moving the hoop) should slide toward you smoothly.
• Correction Window: If this outline is crooked or off-center relative to your crease, STOP. This is your last chance to abort without ruining the $30 garment. You can pick out these stitches. You cannot pick out the next step.


Flocked HTV for Appliqué: Peel the Carrier First, Then Place It Like a Pro

The tutorial uses flocked HTV (Leopard print with a velvet texture). A critical material handling step is highlighted here.

The "Carrier Sheet" Trap: Most HTV comes with a clear plastic carrier sheet on top. For embroidery appliqué, you must peel this off BEFORE stitching.

• Why? If you leave it on, the needle will perforate the plastic, trapping it under the stitches. It will be impossible to remove cleanly later, leaving jagged plastictufts sticking out of your beautiful satin stitch.

Placement Execution:

1. Peel: Remove the clear plastic layer.
2. Target: Lay the flocked HTV directly over the stitched placement guide.
3. Margin: Ensure the HTV extends at least 5mm-10mm past the stitch line on all sides.
4. Adhesion (Optional but recommended): A light mist of temporary adhesive spray on the back of the HTV prevents it from shifting as the machine moves.

Does HTV shrink? A common fear. HTV is stable, but high stitch density can pull fabric in. The solution is not to pre-shrink the vinyl, but to ensure your stabilizer (Cutaway) is doing its job holding the fabric firm.

Tack-Down, Pop-Out, Trim: The Clean-Edge Routine That Makes Boutique Appliqué Look Expensive

After placement, the machine stitches the "Tack-down" (usually a zig-zag or running stitch) to lock the vinyl to the shirt. Then, it obeys the MOS command and pushes the hoop out to you.

Precision Trimming: The "Gliding" Technique

You are now performing surgery.

1. Tool: Use sharp, curved-tip embroidery scissors (double-curved are best).
2. Action: Lift the edge of the excess vinyl gently. Slide the lower blade of the scissors along the fabric surface.
3. The Cut: Trim as close to the stitching as possible without cutting the thread. A 1mm margin is acceptable; the satin stitch will cover it.

The video addresses the reality of complex shapes (scallops).

• Reality Check: You will not get every microscopic corner perfectly. That is okay. If you leave a tiny nub, the satin stitch (usually 3mm-4mm wide) is your forgiveness factor.

Warning: The "Snip of Death"
Be hyper-aware of your scissors' tip. Do not poke the sweatshirt fabric below. Do not snip the tack-down thread (if you do, the vinyl will curl up later). Keep your non-cutting hand visible and away from the blades.

Operation Checklist (The "Point of No Return")

• Carrier Sheet: Verified removed.
• Coverage: HTV covers the entire placement box.
• Trimming: Excess trimmed close (1-2mm max).
• Debris: No loose scraps of vinyl falling into the hook assembly area.
• Thread: No tack-down stitches cut by accident.


The Satin Border Pass: What “Good Coverage” Looks Like on Flocked HTV

Resume the machine. It will now run the heavy satin border.

Success Metrics:

• Coverage: Use a flashlight to inspect the edges. You should see only thread, no raw vinyl edges.
• Density: The stitches should be tight enough to cover the material but not so tight they create a "bulletproof vest" stiffness.
• Registration: The satin stitch acts as a bridge between the fabric and the vinyl. It should sit 50% on the vinyl and 50% on the sweatshirt fabric.

If you see gaps (fabric showing between satin and vinyl), it means either you trimmed too aggressively, or the stabilizer wasn't efficient, allowing the fabric to shift.

Heat Press Finishing with a Cricut EasyPress: Lock the HTV Down Without Crushing the Stitching

Embroidery holds the vinyl edges, but the heat press bonds the vinyl to the fibers. This duality is what makes the appliqué durable.

The Protocol (Cricut EasyPress)

• Temp: 315°F (157°C).
• Time: 30 seconds (Front) / 15 seconds (Back).
• Protection: Always use a Teflon sheet or parchment paper. Direct heat can melt polyester embroidery thread or scorch the flocking.

Technique:

1. Insert the pressing mat inside the sweatshirt. This provides a solid backstop and protects the back of the shirt from thread impression marks.
2. Press in sections if the design is large. Do not slide the iron (which can warp the design); verify, lift, move, press.
3. Flip inside out and press the back to pull the adhesive into the fabric weave.


Troubleshooting the “Scary” Moments: Symptoms → Likely Cause → Fix

Stop guessing. Use this logic flow to solve problems efficiently.

The Upgrade Path That Actually Pays Off: Faster Hooping, Cleaner Output, and a Real Production Workflow

If you are crafting a single sweatshirt for a gift, the method above is perfect. However, if you have an order for 20 hoodies, the bottlenecks will crush you: hand fatigue from hooping, slow color changes, and misalignment.

Here is how to calculate when to invest in your infrastructure.

Decision Tree: What should you upgrade first?

1. Is your placement inconsistent?
   • Solution: Standardize the Marking Routine. Use the crease + template method. Use the Laser Trace every single time.
2. Is hooping causing wrist pain or leaving "burn" marks?
   • Solution: This is the trigger for a magnetic hooping station or a high-grip Sewtech Magnetic Hoop.
   • Why: You eliminate the "unscrew-tighten-unscrew" cycle. You gain the ability to hoop thick seams without physical struggle, reducing rejection rates significantly.
3. Are you fighting garment bulk constantly?
   • Solution: Establish a dedicated how to use magnetic embroidery hoop workflow. Train your muscle memory: Lay, Snap, Smooth, Stitch.
4. Is the single-needle machine too slow?
   • Solution: Compare melco embroidery hoops ecosystems and consider moving to a multi-needle machine (like the Sewtech 15-needle series). This allows you to set up 15 colors at once, eliminating the manual thread changes required on smaller domestic machines.

For many growing shops, Magnetic Hoops are the high-ROI "bridge" upgrade. They act like an extra set of hands during the difficult hooping process, instantly increasing your output of defect-free garments.

A Quick Note on “Can I Do This on a Brother PE800?” (Yes—With One Practical Adjustment)

A viewer asked if this workflow applies to smaller, single-needle machines like the Brother PE800. The answer is Yes, but with expectations management.

Boutique appliqué is a methodology, not a machine exclusive.

• The Shared Truth: Both machines use coordinates to stitch, stop, and trim.
• The Difference: Speed and Workspace. A multi-needle machine with a free-arm (like Melco or Sewtech) allows the sweatshirt to hang freely. On a flatbed PE800, you must manage the bulk of the sweatshirt to prevent it from getting stitched to itself.

Efficiency Tip: A multi-needle setup combined with magnetic hooping makes this effortless production. A single-needle setup requires patience and careful fabric management.

The Result You’re Chasing: Crisp Placement, Clean Edges, and a Sweatshirt You Can Sell Confidently

Success in machine embroidery isn't magic; it is the accumulation of small, correct choices.

• The Choice to Prep: Using the crease and pins.
• The Choice of Tools: Using Cutaway stabilizer and Magnetic Hoops to control the physics of the fabric.
• The Choice of Workflow: Using the MOS Appliqué command to script your stops.

When you combine these, you get that boutique result: bold texture from the flocked HTV, a satin border that hides every raw edge, and a sweatshirt that looks intentional—not homemade. Build this into a repeatable routine, and you turn a scary process into your shop's most profitable product line.

FAQ

• Q: Which stabilizer should be used for sweatshirt appliqué with flocked HTV to prevent puckering on knit garments?
  A: Use 2.5 oz–3.0 oz cutaway stabilizer, because tearaway is usually not strong enough for stretchy sweatshirt knits.
  • Apply temporary spray adhesive to attach the cutaway to the inside of the sweatshirt before hooping to prevent stabilizer drift.
  • Hoop with neutral tension (do not pull the sweatshirt drum-tight).
  • Manage garment bulk so the sweatshirt weight is not hanging and pulling the hooped area.
  • Success check: After stitching and unhooping, the area around the satin border stays flat with minimal rippling.
  • If it still fails: Re-check hooping tension and confirm the sweatshirt was not stretched during hooping.
• Q: How do you confirm correct placement on a Melco embroidery machine using the built-in laser trace before stitching a sweatshirt appliqué?
  A: Run the Melco laser trace and confirm the trace center matches the physical center marking before removing pins or starting the design.
  • Fold and heat-press a sharp vertical center crease, then mark the design location using pins as reference points.
  • Load the hoop and listen for the hoop arms locking in place.
  • Turn on laser trace and watch the red dot travel the design perimeter; verify it aligns to the crease/crosshair location.
  • Success check: The traced boundary sits evenly around the intended placement area, not drifting high (“choking print”) or low (“belly print”).
  • If it still fails: Re-hoop with the crease aligned to hoop center markers and ensure the sweatshirt is supported on the table (not dragging).
• Q: Why does the Melco Operating System (MOS) Applique command stop at the wrong time, and where should the Applique command be placed in the MOS Color Sequence?
  A: Place the MOS Applique command after the stitch color it should follow, not before, so the machine stitches the guideline first and then stops/pushes the hoop out.
  • Open the Color Sequence and confirm the first stop comes after the placement-line color, and the second stop comes after the tack-down color.
  • Read the sequence out loud before starting (for example: “Placement line, stop; tack-down, stop; satin finish, no stop”).
  • Test-run the first color on the actual garment only after the sequence visually matches the intended stop points.
  • Success check: The machine stitches the placement line, then stops automatically and slides the hoop toward the operator.
  • If it still fails: Re-check that the Applique command was not inserted one step early in the sequence.
• Q: What is the safest way to trim appliqué material after the Melco appliqué stop without cutting tack-down stitches or damaging the sweatshirt?
  A: Trim with sharp curved-tip embroidery scissors using a gliding cut, leaving about a 1 mm margin without cutting the tack-down thread.
  • Wait for the machine to stop and push the hoop forward before bringing scissors near the needle area.
  • Lift the excess material edge slightly and slide the lower scissor blade along the fabric surface.
  • Trim close to the tack-down line; accept tiny corners because the satin stitch typically covers small imperfections.
  • Success check: After trimming, the vinyl edge sits cleanly just outside the tack-down line with no lifted sections.
  • If it still fails: If tack-down stitches were snipped, re-run the tack-down step if possible; otherwise expect edge lift later and adjust trimming technique on the next garment.
• Q: Why must the clear carrier sheet be removed from flocked HTV before machine embroidery appliqué stitching?
  A: Peel off the clear carrier sheet before stitching, or the needle will perforate plastic and trap it under the satin border, making it impossible to remove cleanly.
  • Peel the carrier completely, then place flocked HTV directly on the stitched placement guide.
  • Ensure the HTV extends 5–10 mm beyond the placement line on all sides.
  • Optionally mist the back of the HTV with temporary adhesive to prevent shifting during tack-down.
  • Success check: No plastic film is visible under the stitches, and the satin border shows only thread at the edge.
  • If it still fails: If plastic is already stitched in, stopping early is safer; removing trapped film later can leave jagged remnants.
• Q: How can a magnetic embroidery hoop reduce hoop burn and alignment struggles when hooping bulky sweatshirts for appliqué?
  A: Use a magnetic embroidery hoop to hold thick fleece firmly with neutral tension, reducing pressure rings (hoop burn) and preventing fabric distortion from over-tightening.
  • Lay the sweatshirt and stabilizer on the bottom frame and align the center crease to the hoop’s center markers.
  • Support the sweatshirt body on the table so gravity does not pull the hooped area off-center.
  • Snap the top frame down and smooth the fabric outside the hoop instead of yanking inside the hoop.
  • Success check: The fabric inside the hoop looks smooth (no ripples) and not stretched, and the hoop closes with a solid engagement “click/clack.”
  • If it still fails: Re-hoop and check for bulky seams sitting unevenly; reposition so seams are not twisting the hooped field.
• Q: What safety precautions are required when using neodymium magnetic hoops and marking pins during Melco appliqué on sweatshirts?
  A: Treat magnetic hoops as pinch hazards and remove steel pins before stitching, because magnets snap hard and needles can shatter if they hit a pin at high speed.
  • Keep fingers away from the mating surfaces when closing a magnetic hoop.
  • Keep magnetic hoops away from pacemakers/insulin pumps and avoid placing phones or credit cards directly on the magnets.
  • Remove all pins only after the laser trace confirms placement and before pressing Start.
  • Success check: No pins remain in the stitch path, and hands stay clear when the hoop snaps closed and when stitching begins.
  • If it still fails: If a needle strike occurs or a needle breaks, stop immediately, replace the needle, and inspect for fragments before resuming.
