Brother “Check Upper Thread” Error: The 15-Minute Fix for a Dirty Sensor Hook, a Sneaky Plastic Notch, and Spool Pin Snags

Troubleshooting the "Check Upper Thread" Error: An Expert's Guide to Sensor Physics and Machine Maintenance

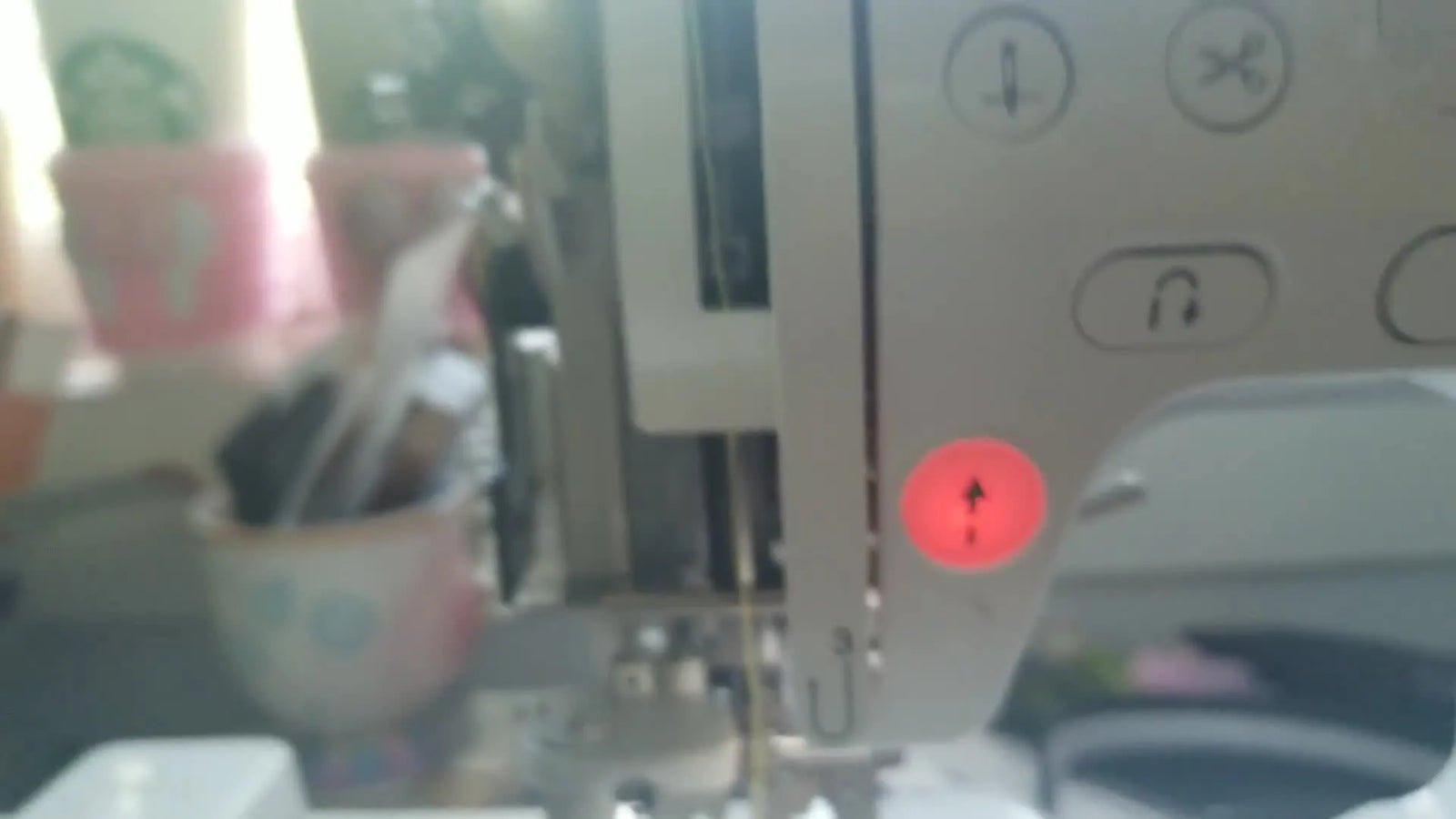

When your Brother machine throws the dreaded "Check Upper Thread / Rethread" message while the thread is still visibly in the needle, it feels personal. It usually happens on the last 500 stitches of a complex design, causing a spike in cortisol that every embroiderer knows too well. I have watched this specific scenario push otherwise calm creators to the brink of throwing their machines out the window.

Here is the professional reality check: In the vast majority of cases—verified by years of field repairs and thousands of user comments—this is not a catastrophic electronics failure. It is a mechanical false alarm caused by micro-variables in the thread path.

If you are working on a brother embroidery machine and you are seeing this error loop every few stitches, you do not need a new motherboard. You need to address one of three specific physical culprits:

1. Lint impaction around the internal check spring (the sensor's "eye").
2. Mechanical misalignment of the check spring hook.
3. Friction notches worn into the plastic thread guides.

This guide will walk you through the repair with the precision of a workshop manual, ensuring you understand not just what to do, but why your machine is behaving this way.

The Physics of False Alarms: Why It Feels Random (But Isn't)

To fix this, you must understand what the machine is "thinking." Brother home embroidery machines rely on a physical sensor—often a check spring located deep in the take-up lever assembly—to verify that thread is moving. It does not "see" the thread; it "feels" the tension and movement via a small metal hook.

When the machine runs, the thread pulls this hook up and down. If the hook is paralyzed by packed lint, or if it is bent out of the center channel, it stops moving. The sensors register "no movement," producing a logic error: Zero movement = Broken Thread.

The second trap is micro-friction. Over time, polyester and rayon threads act like a slow-motion saw, carving tiny grooves into the plastic casing at the entry point. These grooves snag the thread, creating milliseconds of high tension. The sensor interprets this drag as a tangle or break, stopping the machine to save itself.

You will see this pattern in forum comments repeatedly:

• Phase 1: User rethreads, changes needles, blasts canned air (which often pushes lint deeper), and power cycles. The error returns.
• Phase 2: User properly cleans the internal hook and smooths the plastic guide.
• Phase 3: The machine purrs instantly.


The "Surgeon's Table" Prep: Tools and Environment

This repair is minor, but it is not sloppy. You are working millimeters away from delicate sensors and moving gears. If you go in blind, you risk knocking springs loose or dropping screws into the chassis.

Set your workspace up like a technician. You need stability and visibility.

The Mandatory Tool Kit:

• High-Lumen Task Light: You need to see into a dark, inch-wide crevice. Phone flashlights are hard to aim; a desk lamp is better.
• Clean Makeup Brush (Mascara Wand or Shader): The nylon bristles are perfect for grabbing lint without scratching metal sensors.
• Precision Tweezers/Scissors: For extracting the "lint plugs" that brushes can't move.
• Nail File / Sanding Block: Medium to fine grit. This is critical for the plastic casing fix.

Hidden Consumables (Have these ready):

• New Needle (75/11): Never test a repair with an old needle.
• Compressed Air (Use with Caution): Only use short bursts and angle it outward, not inward.
• Small Magnetic Dish: Brother casing screws are tiny and have a habit of vanishing into carpet.

Warning: Electrical & Mechanical Hazard. Keep fingers, scissors, and metal tools away from the needle area and any moving mechanisms while the machine is powered. Always power off and unplug the machine before removing body covers.

Prep Checklist: The "Do Not Skip" List

• Machine is powered off and unplugged.
• Embroidery unit/hoop is removed to maximize left-hand workspace.
• Bobbin area is cleared (removes a variable).
• You have taken a photo of the side cover seams (reference for reassembly).
• You have mentally committed to slow hands—no forcing plastic tabs.


Surgical Entry: Removing the Left Side Head Cover

On the video demonstration, the left plastic cover pops off with minimal effort. In your studio, reality might be tougher. Different models have slightly different retaining clips or hidden screws.

The Safe Removal Protocol:

1. Locate the Anchor Screw: Most models have at least one screw securing the back or top of the head cover. Look behind small rubber plugs or plastic trapdoors.
2. The "Wiggle" Technique: Once the screws are out, the plastic is held by tension clips. Do not pry with a screwdriver—you will mar the casing. Instead, grip the cover and wiggle it gently side-to-side while pulling outward. Listen for the "pop" of the plastic clips releasing.
3. Inspect for Hidden Latches: If it feels stuck, stop. Check the manual or a specific teardown diagram for your model.

If you are a beginner, the fear of "breaking the machine" is real. This is normal. Plastic covers are designed to be removed for service, but they require firm, controlled pressure.

Locating "Number 3": The Check Spring Sensor

With the cover removed, you are looking at the skeleton of the thread path. Follow the path down to the area labeled "№ 3" (the take-up lever channel).

Deep inside the vertical slit where the take-up lever travels, you will see a small, U-shaped metal wire or hook. In the video, the creator refers to this as "that little hook guy." Technically, this is often part of the thread check spring assembly.

The Inspection Criteria:

• Visibility Check: Can you see the metal loop clearly, or is it obscured by a gray/blue fuzz?
• Centering Check: Is the hook sitting dead center in its vertical channel? It needs to "float" in the air gap. If it is touching the plastic wall on the left or right, it cannot move freely.

This is the hidden failure point. Users blow air into the top tension disks, but that rarely dislodges the lint packed deep in this specific hook.

Phase 1: Deep Cleaning the Sensor Area

This is where you remove the physical obstruction.

Step 1: Agitation: Insert your clean makeup brush into the channel. Use short, sweeping motions. You aren't just dusting; you are trying to snag the "felted" lint that has wrapped around the wire.

Step 2: Extraction: If you see a clump of lint that the brush won't grab, switch to your precision tweezers or small scissors (used as clamps). Gently grab the lint mass and pull.

Sensory Check: You might be shocked by what comes out. It is common to pull out a piece of compressed dust the size of a pea. This acts like a cast on a broken arm—it completely immobilizes the sensor wire.

Setup Checklist: Post-Cleaning Verification

• The sensor hook is visibly metallic and shiny (no fuzz halo).
• The channel corners are free of packed dust bunnies.
• You have verified that no tools were left inside the chassis.
• You did not accidentally bend the nearby take-up lever arm.


Phase 2: Callibrating the Hook (The "Dead Center" Rule)

Cleaning often reveals the second problem: misalignment. Sometimes the lint itself has pushed the hook aside; other times, an aggressive thread snag yanked it out of place.

If the hook is pressing against the side of the channel, the machine will throw errors because friction is preventing the sensor from bouncing back.

The Adjustment Technique:

1. Use the blunt nose of your closed scissors or tweezers.
2. Gently nudge the wire hook.
3. Your goal is Dead Center. It should look equidistant from both plastic walls.

How it should feel: The wire is a spring. When you nudge it, it should offer slight resistance and spring back. If it feels floppy or loose, the spring mechanism itself might be broken (which requires a pro technician). Usually, however, it just needs a graphical alignment.

A user commented that after every 20 stitches, their machine would error out. They found the hook was merely touching the wall. A 1mm nudge fixed it permanently.

Phase 3: The Plastic Notch (The Friction Killer)

Now, look at the plastic casing where the thread first enters the machine (usually at the top right). This is a high-stress contact point.

Run your fingernail along the plastic edge where the thread rides. Sensory Anchor: It should feel smooth like glass. If your fingernail "clicks" or catches in a tiny groove, you have found the notch.

The Physics of the Notch: Even a microscopic groove acts as a brake. As the thread passes through, it catches in the groove, causing tension to spike from 0 to 100 in a split second. The sensor sees this spike, assumes a tangle, and kills the motor.

The Fix: Take your nail file or sanding block. Gently sand the plastic until the groove is completely gone. You are not harming the machine; you are resurfacing the guide. Finish with a very fine grit to polish it.

Note: One commenter used electrical tape as a temporary patch, but filing is the permanent solution.

Phase 4: Thread Delivery and Spool Management

You have fixed the internal sensor and the entry guide. Now, look at the source: the spool pin.

The video highlights a critical setup error: Spool Drag. If the spool is too close to the machine body, or if the cap is too small, thread can wind around the spool pin shaft.

The "Spacer" Protocol:

1. Place a small spool cap on the pin first (backward). This acts as a spacer, pushing the thread spool away from the machine body.
2. Place your thread spool.
3. Secure it with a spool cap larger than the spool diameter.

Why this matters: If the thread drags against the raw edge of the spool or the machine body, it creates the same "micro-tension spikes" as the plastic notch. For users of machines like the brother nq1700e, usually workhorses, this subtle drag can be the difference between a clean run and a sensor error.

Verification: The "Smoke Test"

Reassemble the side cover. Do not force the clips—align everything and press until you hear the snap. Replace screws.

The Reset Protocol:

1. Power on.
2. Rethread completely. Do not just tie onto the old thread. Pull the old thread out (from the needle end, never yank backwards!) and thread from scratch. This ensures the thread seats properly in your newly centered checks spring.
3. Test stitch on a scrap piece of fabric similar to your project.

Operation Checklist: The Success Metrics

• Thread pulls from the spool with zero resistance or "tugging" sensation.
• The machine accelerates to full speed (e.g., 600-800 SPM) without hesitation.
• You can complete 500+ stitches without a false alarm.
• No thread shredding/fraying is visible at the needle eye.
• The sound is rhythmic and consistent, without the "chunk-chunk" of straining motors.


Troubleshooting Matrix: If the Error Persists

Sometimes, you do everything right, and the ghost remains. Do not panic. Use this logic matrix to isolate the remaining variables.

The "Invisible" Variable: Hooping and Stabilization

We have focused on the machine, but we must discuss the variable under the needle. The machine's sensor is fighting against the resistance of the fabric. If your fabric is poorly hooped (loose, flagging), the needle struggles to penetrate, creating drag that mimics a thread issue.

The Physics of Flagging: If your fabric bounces up and down with the needle (flagging), it creates slack in the thread loop. The check spring bounces erratically, confusing the sensor.

High-volume shops avoid this by using robust stabilization and professional hooping tools. Many home users find that standard plastic hoops struggle to grip slippery or thick garments (like hoodies). This is where users often search for terms like magnetic embroidery hoops for brother. These tools use continuous magnetic force to clamp fabric, significantly reducing flagging/bouncing. Less bounce = steady tension = happy sensors.

Warning: Magnet Safety. If you upgrade to a magnetic hoop, be aware they use industrial-strength magnets (N52). Keep them away from pacemakers, implanted medical devices, and credit cards. Watch your fingers—the "snap" can be powerful.

Decision Tree: Stabilizer Strategy to Reduce Sensor Stress

Reducing the workload on your thread path prevents false start errors. Use this logic flow to ensure your setup isn't fighting the machine.

Decision Tree (Fabric Type → Action):

1. Is the fabric stretchy? (T-shirts, Knits)
   • Risk: Fabric stretches under needle, causing drag.
   • Solution: Cut-away stabilizer (Mesh). Do not use Tear-away. Spray adhesive is recommended to bond fabric to stabilizer.
2. Is the fabric thick/lofty? (Towels, Fleece)
   • Risk: Stitches sink, creating false tension readings.
   • Solution: Use a Water Soluble Topper (Solvy) + Firm Tear-away backing. The topper keeps stitches floating.
3. Is the fabric slippery? (Satin, Performance Wear)
   • Risk: Hoop burn and shifting.
   • Solution: Use a magnetic embroidery hoop. The flat clamping mechanism prevents the "burn" marks caused by forcing inner rings into outer rings, and holds slippery material tighter than friction hoops.


Pro Habits from the Thread Trenches

After analyzing hundreds of user success stories, here are the non-negotiable habits of embroiderers who rarely see this error:

• The "Floss" Test: When threading the top tension disks, hold the thread at both ends and "floss" it into the disks. You should feel a distinct click or engagement. If it sits on top, you will get an error immediately.
• The Needle Ritual: Change your needle every 8 hours of stitching time or every major project. A microscopic burr on a needle eye will shred thread and trigger sensors instantly.
• The "full Reset": If a thread breaks, do not just rethread the needle. Unthread the entire path back to the spool and start over. Thread can jump out of the take-up lever during a snap, and you won't see it unless you start fresh.
• Respect the "Click": When inserting the bobbin case, listen for the audible click. If it sits high, the top thread will snag on it (often confusing the upper thread sensor).


The Productivity Ladder: When to Upgrade

You have fixed the sensor, smoothed the guides, and perfected your hooping. You are now running at 100% efficiency for a single-needle machine.

However, if you are hitting these errors because you are pushing "production run" volumes (50+ shirts) through a machine designed for hobby use, you will eventually hit a mechanical wall.

The Upgrade Logic:

• Level 1: Stability Upgrade. If you struggle with hoop burn or stiff wrists from tightening screws, a model-specific frame like a brother pe800 magnetic hoop or the larger brother luminaire magnetic hoop is the logical next step. It solves the physical handling issues that lead to bad tension.
• Level 2: Workflow Upgrade. If you are spending 50% of your time changing thread colors and fighting with manual threaders, this is the time to evaluate hooping for embroidery machine efficiency and multi-needle platforms.
• Level 3: Scale Upgrade. Moving to a system like a SEWTECH multi-needle machine isn't just about speed; it's about thread path architecture. Industrial-style machines have independent tensioners and open thread paths that are far less prone to the "internal lint jamming" that plagues enclosed home machines.


Final Thoughts: Ownership is Maintenance

Refixing a "Check Upper Thread" error is a rite of passage. It marks the transition from "someone who owns a machine" to "an embroiderer."

By following this guide, you have not just cleared a sensor; you have optimized the entire physical path of your thread. You checked the hook centering, smoothed the friction points, and stabilized your thread delivery.

Next time the error pops up—and it will, eventually—don't panic. Grab your makeup brush, check your "Number 3" hook, and get back to stitching. The machine isn't broken; it just needs you to be the mechanic.

FAQ

• Q: On a Brother home embroidery machine, why does the “Check Upper Thread / Rethread” error appear even when the upper thread is still in the needle?
  A: This is commonly a mechanical false alarm caused by lint jamming the check spring hook, the hook sitting off-center, or thread snagging on a worn plastic guide.
  • Power off and unplug, then remove the left side head cover to access the take-up lever channel area.
  • Clean the check spring sensor hook area with a clean makeup brush, then pull out packed lint with tweezers if needed.
  • Re-center the small wire hook so it “floats” dead center in the vertical channel without rubbing the plastic walls.
  • Success check: the hook looks shiny/clear of fuzz and springs lightly when nudged, and the machine runs 500+ stitches without a false alarm.
  • If it still fails: inspect and smooth the plastic thread-entry notch and correct spool cap spacing to eliminate micro-drag.
• Q: How do I safely open the left head cover on a Brother embroidery machine to access the check spring sensor without breaking plastic clips?
  A: Remove the anchor screw(s) first and release clips with controlled “wiggle” force—do not pry with a screwdriver.
  • Unplug the machine, remove the embroidery unit/hoop, and clear the bobbin area to reduce variables.
  • Locate and remove the anchor screw (often behind a rubber plug or small trapdoor), then pull the cover outward while gently wiggling side-to-side.
  • Stop immediately if the cover feels locked and re-check for hidden latches/screws before applying more force.
  • Success check: the cover comes off with audible clip “pops” and no white stress marks or cracked tabs.
  • If it still fails: check the model’s manual/teardown diagram for hidden fasteners before continuing.
• Q: On a Brother embroidery machine, how do I confirm the check spring sensor hook is correctly centered to stop “Check Upper Thread” errors every 10–20 stitches?
  A: The check spring sensor hook must sit dead center in its channel so it can move freely without touching either wall.
  • Open the left side cover and visually locate the small U-shaped wire/hook inside the vertical take-up lever channel.
  • Nudge the hook gently with the blunt nose of closed scissors or tweezers until it is equidistant from both plastic walls.
  • Avoid over-bending; the hook should feel springy, not floppy.
  • Success check: the hook “floats” in the air gap, springs back when nudged, and the error no longer repeats every few stitches.
  • If it still fails: re-clean for hidden lint plugs or verify the hook is not pushed too far back/forward in the thread path.
• Q: How do I fix a Brother embroidery machine “Check Upper Thread” error caused by a groove/notch worn into the plastic thread guide?
  A: Smooth the worn plastic notch so the thread cannot snag and create tension spikes that trip the sensor.
  • Locate the plastic entry point where the thread first rides and run a fingernail along the edge to feel for a “click” or catch.
  • Sand the groove gently with a nail file/sanding block until the catch is completely gone, then finish with finer grit to polish.
  • Rethread completely (do not tie-on) so the thread seats correctly through the now-smooth path.
  • Success check: the thread pulls with zero “tugging,” and there is no shredding/fraying at the needle eye during a test run.
  • If it still fails: check spool drag (spool cap sizing/spacer setup) and replace the needle before chasing electronics.
• Q: What spool cap setup prevents spool drag on a Brother embroidery machine that triggers “Check Upper Thread / Rethread” errors?
  A: Use a spacer + oversized cap arrangement to keep the spool from rubbing the machine body or winding around the spindle.
  • Place a small spool cap on the pin first (as a spacer), then place the thread spool.
  • Add a spool cap that is larger than the spool diameter to stabilize the spool and reduce wobble/drag.
  • Re-thread the full upper path after changing spool hardware.
  • Success check: the thread feeds smoothly off the spool with no resistance and does not wrap the spool pin shaft.
  • If it still fails: inspect for a plastic guide notch or re-check the check spring hook centering.
• Q: What needle and rethreading steps should be used when verifying a Brother “Check Upper Thread” repair?
  A: Test the repair with a fresh needle and a full rethread to eliminate hidden path errors.
  • Install a new 75/11 needle before the test (do not troubleshoot with an old needle).
  • Remove old thread by pulling it out from the needle end (never yank backward), then rethread from the spool through the full path.
  • Stitch a test on scrap fabric similar to the real project before restarting the design.
  • Success check: the machine reaches normal speed smoothly (no hesitation/straining sound) and completes 500+ stitches without a false stop.
  • If it still fails: listen for clicking (possible needle issue) and re-check the plastic notch and spool drag setup.
• Q: When does poor hooping or stabilization cause a Brother machine to falsely trigger “Check Upper Thread,” and when should a magnetic embroidery hoop be considered?
  A: If fabric flagging/bouncing adds resistance, the sensor can misread tension—improving stabilization is Level 1, and a magnetic hoop is a common Level 2 upgrade for grip and consistency.
  • Diagnose flagging by watching for fabric lifting with the needle; reduce bounce with appropriate stabilizer for the fabric (cut-away for knits; topper + firm backing for lofty towels/fleece).
  • Re-hoop to increase stability and remove excess movement that causes erratic thread tension at the sensor.
  • Consider a magnetic hoop when standard plastic hoops cannot grip slippery/thick garments well and hooping leads to shifting or “hoop burn.”
  • Success check: the fabric stays flat (minimal bounce), stitch formation is steady, and the machine stops throwing false upper-thread errors mid-run.
  • If it still fails: return to Level 1 machine-side checks (lint in check spring channel, hook centering, plastic notch smoothing) before assuming an electronics fault.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops to reduce fabric flagging on embroidery machines?
  A: Treat magnetic hoops as industrial-strength magnets and protect medical devices, cards, and fingers during handling.
  • Keep magnetic hoops away from pacemakers and implanted medical devices, and away from credit cards/magnetic storage items.
  • Control the “snap” when closing magnets; position fingers outside pinch zones before bringing magnets together.
  • Store magnets paired/secured so they cannot jump together unexpectedly on a worktable.
  • Success check: hooping feels controlled (no sudden slams), and there are no pinched fingers or damaged nearby items.
  • If it still fails: switch to slower, two-handed placement and re-check the hooping sequence to keep magnets aligned and stable.
