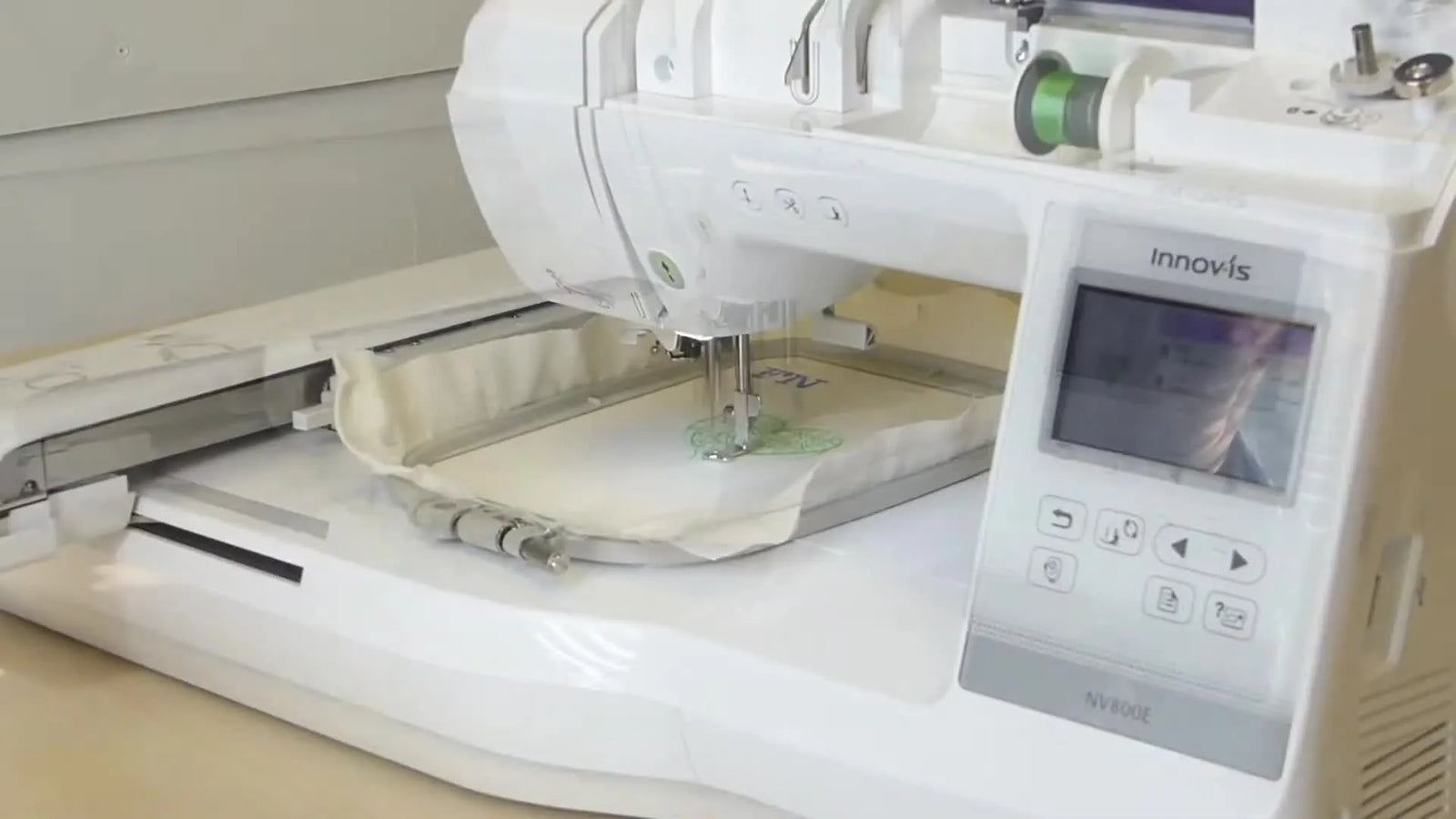

Brother Innov-is 800E (NV800E) From Threading to a Clean Monogram: The Calm, Repeatable Workflow That Stops Rookie Mistakes

If you are staring at your new Brother Innov-is 800E (NV800E), feeling a mix of excitement and sheer terror, you are not alone. Machine embroidery is a discipline that sits somewhere between art and engineering. The first few projects often feel like a test of nerves: cryptic thread warnings, the sickening snap of a broken needle, puckered fabric, and that sinking feeling when you realize your design is about to stitch right off the edge of the hoop.

As an embroidery educator, I tell my students: The machine is not judging you; it is just following physics.

Here is the good news: the 800E workflow is robust and forgiving, provided you stop guessing and start following a "Pilot’s Checklist." Below, I am rebuilding the exact process shown in the video—but I am adding the "Old Hand" sensory checks that manuals leave out. We will cover everything from threading and editing the built-in heart design to the critical "FN" monogram placement, all while establishing a safety routine that keeps your machine running smoothly.

Don’t Panic—The Brother Innov-is 800E (NV800E) Is Forgiving If You Follow a Repeatable Routine

The Brother NV800E is a dedicated embroidery-only workhorse. The video demonstrates a complete start-to-finish project using calico fabric and medium tearaway stabilizer. However, the difference between a disastrous bird’s nest and a perfect satin stitch usually isn't "talent"—it is rigorous preparation. 90% of embroidery failures happen before the start button is ever pressed.

One comment on the video joked about the machine repeatedly flashing the message: “Check and Re-thread the Upper Thread.” While annoying, this is your machine trying to save you. It means the tension sensor detects zero resistance. The thread isn't being "gripped." Most of the time, the fix isn't a repair mechanic; it's you learning the manual dexterity to seat the thread properly.

The Hidden Prep for Brother NV800E Embroidery: Thread, Bobbin Fill, Needle, and a 60-Second Sanity Check

Before you touch the touchscreen, we need to secure your physical environment. Machine embroidery is vibration-heavy; if your setup is shaky, your stitches will be too.

The "Invisible" Consumables: Beyond what the video shows (Brother top thread, bobbin fill, calico, tearaway), you need three things pros always have on hand:

1. Fresh Needles: Start with a 75/11 Embroidery Needle. If you don't know how old the needle in the machine is, throw it away.
2. Curved Scissors/Snips: For trimming jump stitches without slicing the fabric.
3. Appliqué or Embroidery Scissors: Sharp points are non-negotiable.

A viewer asked if you can stitch on "stabilizer only" to create a lace-like effect. Expert Note: This requires specific water-soluble stabilizer (WSS) and designs digitized specifically for "Free Standing Lace" (FSL). If you stitch a standard dense heart onto standard tearaway without fabric, you will punch a hole straight through it and potentially jam the bobbin case. Stick to fabric plus stabilizer until you have mastered the basics.

If you are setting up a dedicated corner for a hooping station for embroidery, ensure your table is rock solid. Wobble translates to needle deflection. Keep your layout consistent: scissors on the right, trash bin on the left.

Prep Checklist (Do this BEFORE threading):

• Bobbin Check: Confirm you have 60wt or 90wt Bobbin Fill (usually white) loaded, NOT standard sewing thread. Standard thread is too thick and will pile up on the back.
• Needle Check: Is the needle fully inserted? The flat side must face back. Tighten the screw with a screwdriver, not just your fingers.
• Path clearer: Remove the needle plate cover briefly. blow out any lint. A generic dust bunny is the enemy of tension.
• Stabilizer Math: Cut your stabilizer at least 1.5 inches larger than the hoop on all four sides. Skimping here causes "hoop slip."
• Spool Cap Anatomy: Match the cap size to the spool. If the cap is smaller than the spool diameter, thread will snag on the spool rim.

Warning: Mechanical Safety. Keep long hair tied back and loose jewelry removed. When the machine is running—especially at 850 stitches per minute (SPM)—the embroidery arm moves rapidly and unpredictably. Never reach inside the hoop boundary while the start button is green.

Thread the Brother Innov-is 800E Like You Mean It: The “Deep in the Tension Discs” Rule

Threading is where 50% of beginners fail. In the video, the user follows guides 1 through 6. This looks simple, but there is a tactile trick to it.

The "Dental Floss" Technique: When you pass the thread through the top channel (usually step 2 or 3 depending on model evolution), hold the thread with two hands. One hand holds the spool, the other pulls the thread down. You should feel a slight resistance, like snapping floss between teeth. This ensures the thread enters the tension discs. If it just lays on top, you will get loops on the bottom of your fabric immediately.

The Take-Up Lever Trap: Step 4 or 5 involves the metal arm that moves up and down (the take-up lever). Look inside the slit. You must physically see the thread inside the eyelet of that lever. If it slips out, the thread will unthread itself instantly upon starting.

A commenter suggested threading from the needle end backwards. Do not do this. Pulling thread backwards through the machine drags lint into the tension discs. Always snip at the spool and pull the excess out through the needle direction.

Use the Brother NV800E Touchscreen to Pick a Built-In Design, Then Match the Display Color to Your Real Thread

The video demonstrates selecting a built-in heart.

• Visual Data: The design is 70.0 mm x 67.6 mm.
• Action: The user changes the screen color to Brother Color 502 (Green).

Why bother changing the screen color if the machine doesn't know what thread is actually loaded? Cognitive Load Management. When you are 20 minutes into a complex design, you will forget which spool comes next. Matching the screen reality to physical reality reduces mistakes.

Resize and Rotate on the Brother 800E Screen Without Wrecking Placement: Small Moves, Then Re-Center

The 800E gives you powerful editing tools: proportional sizing, rotation (1, 10, or 90 degrees), and positioning.

The "Walk, Don't Run" Rule: Beginners often rotate, resize, and drag the design simultaneously. Then, they hit "Stitch" and realize the needle bar is going to hit the plastic hoop frame.

1. Rotate first. Get the orientation right.
2. Resize second. Note that standard machines usually only allow +/- 20% resizing. Go beyond that, and the stitch density becomes too thick (bulletproof) or too thin (gaps).
3. Move last.

Pro Tip: Always tap the "Center" button after resizing to ensure you haven't accidentally drifted off the printable area.

Add a Clean Monogram on the Brother Innov-is 800E: Building “FN” Inside the Heart (and Keeping It Readable)

The video shows using the Add function to insert "FN" in a cursive font, changing the color to 070 (Blue).

A viewer complained about "no floral letters." It is crucial to understand that built-in fonts are digitized for scalability. If you want highly decorative floral alphabets, those usually need to be purchased as designs, not typed as fonts.

Typography Physics: If you shrink a cursive font down to 10mm tall, the loops in the 'e' and 'l' may close up and become blobs.

• Test Stitch: On a scrap piece of similar fabric, check if the "F" connects to the "N" cleanly.
• Gap Management: You can split the letters to adjust kerning (space between letters) if the cursive flow looks awkward.

If your primary business model is putting initials on cuffs, pockets, and bags, you are essentially looking for a monogram machine workflow. Efficiency here comes from how fast you can type, center, and hoop.

Hooping Calico + Tearaway Stabilizer on a Standard Hoop: “Drum-Tight” Is a Feel, Not a Myth

The video shows the user hooping calico with medium tearaway. They tighten the screw and push the inner ring down.

The Tactile Check: Tap the fabric with your finger. It should sound like a drum—a dull thump.

• Too Loose: The fabric ripples. The needle will push the fabric into the bobbin plate.
• Too Tight: You have stretched the fabric grain (distorted the weave). When you unhoop, the fabric relaxes, and the embroidery puckers.

The Pain Point: Standard hoops require significant hand strength to tighten the screw while keeping the fabric taut. This leads to "Hoop Burn"—permanent shiny rings or crushed fibers on delicate fabrics like velvet or performance polos. It is also a leading cause of wrist fatigue (Carpal Tunnel) for embroiderers.

If you struggle with this, consider the Level 2 Tool Upgrade: A magnetic hoop for brother single-needle machines. These use strong magnets to sandwich the fabric without forcing it into a groove, eliminating hoop burn and saving your wrists.

Warning: Magnetic Field Hazard. Magnetic hoops are incredibly strong. Keep them away from pacemakers, insulin pumps, and magnetic storage media. Watch your fingers—when the magnets snap together, they can pinch severely.

Attach the Brother NV800E Hoop Correctly: Slide-On, Lock Down, Then Don’t Force Anything

The video shows locking the hoop into the embroidery arm (carriage).

Sensory Anchor: Align the pins on the hoop with the carriage slots. Slide it in. You should hear/feel a distinct mechanical CLICK or see the lock lever snap fully parallel to the arm.

• Red Flag: If you have to force it, stop. You are misaligned. Forcing this can strip the gears of the X-Y stepper motors.


The Trace Button on Brother Innov-is 800E: Your Last Chance to Save a Garment Before the First Stitch

The presenter calls Trace (the icon with an arrow tracing a square) "one of the most useful buttons." This is an understatement. It is your insurance policy.

What to look for: When the hoop moves to trace the perimeter:

1. Plastic Clearance: Does the needle bar come dangerously close to the plastic hoop edge?
2. Center Alignment: Does the design visually look centered on the garment?
3. Obstruction: Will the needle hit a bulky seam, a zipper, or a button?


Stitching on the Brother NV800E: Presser Foot Down, Start Button Green, Then Let the Machine Work

Sequence: Tension set to 4.0 (standard). Presser foot down. Start button turns Green. Speed set to 490 SPM.

Sound Analysis: A commenter mentioned the machine sounds loud. Embroidery machines are louder than sewing machines.

• Normal Sound: A rhythmic chug-chug-chug.
• Bad Sound: A sharp clack-clack, a grinding noise, or a sudden change in pitch.
• Action: If the sound changes, hit STOP immediately.

The "Expert Speed" Rule: Just because the machine can go 850 SPM doesn't mean it should on every fabric. For metallic threads or complex, dense designs, slow it down to 400-600 SPM. You trade 2 minutes of time for significantly higher stitch quality.

Thread Change Without Breaks: Point the Spool Notch Away From the Spool Cap (Yes, It Matters)

The machine stops and beeps for the Blue thread. The presenter gives a gold-standard tip: Check the Spool Notch. Most thread spools have a slit cut into the plastic rim to secure the thread for storage. If this slit faces the direction of the feed (towards the cap), the thread will snag on it every few rotations, causing tension jerks or snapping. Always face the notch away from the feed direction.

The “Plus/Minus Stitch” Recovery Trick: Back Up 10 or 100 Stitches After a Thread Break or Empty Bobbin

It’s happened. The thread snapped. Or the bobbin ran out 200 stitches ago. Do not restart the design.

Use the +/- Stitch navigation button.

1. Thread the machine again.
2. Press the button to back up the needle position.
3. Go back about 10-20 stitches past the break point (overlap ensures no gaps).
4. Resume stitching.


Fabric Reality Check: T-Shirts, Sweatshirt Knits, Baby Garments, and Scarves Can Work—If You Stabilize Like a Pro

The video uses Calico (Woven Cotton). But the comments are full of: "Can I do T-shirts?" "Can I do hoodies?"

The answer is yes, but not with Tearaway stabilizer. Tearaway is for stable fabrics. Knits stretch; if you tear the backing away, the stitches will distort when the shirt is worn.

The Stabilizer Decision Tree

Use this logic to avoid ruined garments:

The Production Upgrade: If you are doing 50 T-shirts, using standard hoops and screw-tightening is a nightmare. This is where brother magnetic embroidery frame options shine. They hold knits without stretching them out of shape, which is the #1 cause of "wavy" embroidery on T-shirts.

Setup Checklist: The 7 Things I Want Correct Before You Press Trace

Print this out and tape it to your wall.

Setup Checklist:

1. Needle: Is it fresh? Is it the right type (Ballpoint for knits, Sharp for wovens)?
2. Bobbin: Is it full? (Running out mid-design is a pain).
3. Threading: Is the top thread seated deep in tension discs? Is it through the take-up lever eye?
4. Hooping: Is the fabric "drum tight"? Is the inner ring pushed slightly past the outer ring?
5. Placement: Have you physically Traced the design area?
6. Clearance: Is the space behind the machine clear? (The arm moves backward; don't let it hit the wall).
7. Support: Is the fabric weight supported? (Don't let a heavy jacket drag on the hoop; support it with your hands gently).

If you are dealing with different sized logos, checking brother embroidery hoops sizes is vital. Use the smallest hoop that fits the design comfortably to save stabilizer and improve precision.

Operation Checklist: How to Run the Stitch-Out Cleanly (and What “Good” Looks Like on the Back)

Operation Checklist:

1. Start/Stop: Green light means go. Red light means presser foot is up or error.
2. Watch the First Layer: Don't walk away. If a bird's nest happens, it happens in the first 30 seconds.
3. Trim Jumps: The 800E (depending on exact firmware/region) may not auto-trim all jumps. Pause and trim long tails so they don't get stitched over.
4. Listen: Maintain the rhythmic thump-thump.
5. Finish: Remove hoop. Check the back. You should see about 1/3 bobbin thread (white) running down the center of satin columns. This is "perfect tension."


Common Brother NV800E Problems From the Comments: Symptoms → Likely Cause → Fix

<table> <thead> <tr> <th>Symptom</th> <th>Likely Cause</th> <th>Primary Fix (Low Cost)</th> </tr> </thead> <tbody> <tr> <td><strong>Needle breaks immediately</strong></td> <td>Needle loose / Bent / Hitting hoop</td> <td>Re-insert needle fully flat; Check Trace again.</td> </tr> <tr> <td><strong>"Check Upper Thread" Error</strong></td> <td>Thread not in tension discs</td> <td><strong>Rethread using two hands</strong> ("Dental Floss" move). Check take-up lever.</td> </tr> <tr> <td><strong>Loops on top of fabric</strong></td> <td>Top tension too loose</td> <td>Rethread top. Ensure presser foot is UP when threading.</td> </tr> <tr> <td><strong>Loops on bottom of fabric (Nesting)</strong></td> <td>Top tension ZERO (Not threaded)</td> <td>Rethread top. Tension discs were missed entirely.</td> </tr> <tr> <td><strong>Hoop Burn (Shiny marks)</strong></td> <td>Hoop screwed too tight</td> <td>Use steam to remove marks. Upgrade to <strong>Magnetic Hoops</strong>.</td> </tr> </tbody> </table>

5) “How can I add my own pattern that isn’t built in?”

The video briefly mentions USB. You can download .PES files (Brother's format) to a USB stick, plug it into the side, and tap the USB icon on the screen. Warning: Ensure the USB is formatted to FAT32 and is not larger than 32GB for older firmware versions.

The Upgrade Path That Actually Makes Sense: When to Stick With Standard Hoops vs. Go Magnetic vs. Go Multi-Needle

Eventually, every hobbyist hits a wall. Here is how to diagnose if you need to upgrade your skills or your tools.

Scenario A: The "One-Off" Gift Maker

• Volume: 1-5 items a week.
• Pain: Fear of ruining a shirt.
• Prescription: Stick with the standard 800E hoops. Focus on upgrading your stabilizer knowledge and practicing hooping tension.

Scenario B: The "Team Jersey" Volunteer

• Volume: 20+ shirts in a weekend.
• Pain: Wrist pain from screwing hoops; marks left on polyester shirts.
• Prescription: Upgrade to a Magnetic Hoop.
• Why: Terminology like hooping for embroidery machine takes on new meaning here. Magnetic hoops allow you to hoop a shirt in 10 seconds without distortion. It transforms the 800E workflow.

Scenario C: The "Side Hustle" Startup

• Volume: 50+ items; complex multi-color logos.
• Pain: You are spending more time changing thread colors than stitching. The 800E is a single-needle machine; it stops for every color change.
• Prescription: It is time to look at Multi-Needle Machines (like SEWTECH or Brother PR series).
• Why: These machines hold 6, 10, or 15 colors at once. You press start and walk away. Combined with industrial-grade magnetic frames, this is how you turn a hobby into profit. When researching brother innovis v3 hoops or similar upgrades, consider if the machine itself is the bottleneck.

Final Result: A Clean Two-Color Heart + “FN” Monogram, and a Workflow You Can Repeat Tomorrow

The video ends with a successful stitch-out: a green heart with crisp blue letters. But the real victory isn't the heart—it's the system.

If you take only three things from this guide:

1. Thread with resistance (feel the tension).
2. Match Stabilizer to Fabric (Stretch = Cutaway).
3. Trace before you Stitch (Safety first).

Master these, and your Brother NV800E will stop being a source of stress and become the creative powerhouse it was built to be. Happy stitching!

FAQ

• Q: Why does the Brother Innov-is 800E (NV800E) keep showing “Check and Re-thread the Upper Thread” right after starting embroidery?
  A: Re-thread the Brother Innov-is 800E upper thread with the presser foot up and make sure the thread is seated deep in the tension discs.
  • Re-thread from the spool through every guide using two hands and pull so you feel slight resistance (the “dental floss” feel).
  • Visually confirm the thread is actually inside the take-up lever eyelet (don’t assume).
  • Snip thread at the spool and pull thread out in the needle direction only (do not pull backwards through the machine).
  • Success check: When stitching starts, the machine should not alarm immediately and the stitch formation should not show instant looping.
  • If it still fails: Re-check spool cap size versus spool diameter and confirm the spool notch/slit is facing away from the feed direction.
• Q: How do I stop the Brother Innov-is 800E (NV800E) from making loops on the bottom of the fabric (bird’s nest/nesting) in the first 30 seconds?
  A: Treat nesting on the Brother Innov-is 800E as “top thread is not correctly threaded,” then stop and re-thread before continuing.
  • Stop immediately and remove the hoop so the nest does not tighten into the bobbin area.
  • Re-thread the upper thread slowly, ensuring the thread is pulled into the tension discs with resistance and passes through the take-up lever eye.
  • Re-start and watch the first layer instead of walking away.
  • Success check: The machine should form clean stitches without a growing wad of thread underneath.
  • If it still fails: Confirm bobbin is bobbin fill (60wt/90wt) rather than standard sewing thread, and clean lint from the needle plate area.
• Q: What is the correct hooping “drum-tight” standard for Brother Innov-is 800E (NV800E) embroidery on calico with tearaway stabilizer?
  A: Hoop calico + medium tearaway so the fabric is taut but not stretched, and cut stabilizer large enough to prevent hoop slip.
  • Cut stabilizer at least 1.5 inches larger than the hoop on all sides before hooping.
  • Tighten the hoop so the fabric is smooth and flat, then avoid over-tightening that distorts the fabric grain.
  • Tap the hooped fabric to confirm tension by feel (not by force).
  • Success check: The fabric makes a dull “drum” thump when tapped and shows no ripples or weave distortion.
  • If it still fails: If shiny marks or crushed fibers appear (hoop burn), reduce screw pressure and consider a magnetic hoop to clamp without forcing fabric into the hoop groove.
• Q: How can Brother Innov-is 800E (NV800E) users prevent the needle from hitting the hoop and breaking needles during embroidery?
  A: Use the Brother Innov-is 800E Trace function every time after positioning/resizing/rotating, and never force hoop attachment.
  • Attach the hoop by aligning pins to carriage slots and sliding in until a clear click/lock is fully engaged.
  • Press Trace to verify clearance from the plastic hoop edge and check for seams, zippers, buttons, or bulky layers.
  • Rotate first, resize second, move last, then re-center before tracing.
  • Success check: During Trace, the perimeter runs with safe clearance and nothing contacts the hoop frame.
  • If it still fails: Re-insert a fresh 75/11 embroidery needle fully (flat side to the back) and re-check placement before pressing Start.
• Q: What is the safest way to operate a Brother Innov-is 800E (NV800E) at speed, and what sounds mean “stop immediately”?
  A: Run the Brother Innov-is 800E at a controlled speed (often 400–600 SPM for tricky jobs) and stop instantly if the sound turns sharp, grinding, or changes pitch.
  • Tie back long hair and remove loose jewelry before running embroidery because the arm moves fast and unpredictably.
  • Start with the presser foot down and watch the first 30 seconds because most failures show up immediately.
  • Listen for a steady rhythmic “chug-chug”; treat clacking, grinding, or sudden pitch change as a hard stop.
  • Success check: The machine maintains a consistent rhythm and stitches form cleanly without new noise.
  • If it still fails: Slow the stitch speed and re-check threading path and hoop clearance before resuming.
• Q: How do I recover a Brother Innov-is 800E (NV800E) embroidery design after a thread break or after the bobbin ran out without restarting the whole design?
  A: Use the Brother Innov-is 800E +/- Stitch function to back up 10–20 stitches past the break point, then resume to overlap and close gaps.
  • Re-thread the top thread (and replace/refill the bobbin if needed) before moving stitch position.
  • Use +/- Stitch to move back about 10–20 stitches to cover the interruption cleanly.
  • Resume stitching and monitor the overlap area briefly.
  • Success check: The restart area shows no visible gap and the stitch coverage looks continuous.
  • If it still fails: Check whether the spool notch/slit snagged the thread (turn it away from the cap) and confirm the thread is fully seated in the tension discs.
• Q: When should Brother Innov-is 800E (NV800E) users upgrade from standard screw hoops to a magnetic hoop, or upgrade again to a multi-needle machine for production?
  A: Choose the upgrade based on the real bottleneck: hooping pain/marks → magnetic hoop; frequent color changes and volume → multi-needle machine.
  • Stay with standard hoops if volume is low and the main issue is technique (focus on stabilizer choice and repeatable threading/trace checks).
  • Move to a magnetic hoop if hoop burn, wrist fatigue, or knit distortion happens during hooping, especially on batches like team shirts.
  • Consider a multi-needle machine if production volume is high and single-needle color changes are the time sink (you are stopping for every color).
  • Success check: After the change, hooping becomes faster with fewer placement mistakes, or run time improves because color-change stops drop sharply.
  • If it still fails: Re-audit the basics first (needle type, bobbin fill, threading resistance, trace clearance), because most repeat problems start before pressing Start.
