Mastering the Brother Innov-is NQ3600D: A Field Guide to Precision & Production

If you’ve ever bought a combo sewing and embroidery machine, unboxed it, and then stared at it thinking, “I know this machine is capable of magic… but I’m terrified I’m going to break it,” you are not alone. This is the "Imposter Syndrome" of the embroidery world, and it hits everyone from hobbyists to shop owners.

The Brother Innov-is NQ3600D is a deceptive machine. On the surface, it feels incredibly friendly—big color screen, automated sensors, smooth plastic. But under that hood, it is a precision instrument that relies on physics, tension, and timing. It rewards operators who respect the "old-school" laws of sewing, and it punishes those who rely entirely on the "Auto" button.

In this guide, I am rebuilding the workflow shown in the demo video, but I am filtering it through 20 years of shop-floor experience. We are going to move beyond basic button-pushing and into Senory Operations—learning what the machine should feel and sound like when it's running perfectly. We will cover the hidden habits that prevent the most common nightmares: skipped stitches, hoop burn, birdnesting, and that sinking feeling when the bobbin thread shows on top.

The Button Panel: Stop Hunting for Tools and Start Controlling the Stitch

The video begins where every experienced operator starts: the front control panel. Beginners often ignore these buttons in favor of the foot pedal, but that is a mistake. These controls are your cockpit for consistency.

Here is how to use them to reduce variables:

• Start/Stop: This isn't just for lazy sewing. It provides a consistent speed that your foot cannot match. Uniform speed equals uniform stitch length.
• Automatic Tie-off: Use this to lock seams. Backstitching manually adds bulk; this feature keeps the garment flat.
• Needle Up/Down: This is your "pivot point." Keep it set to 'Down' for corners to prevent the fabric from drifting when you pause.
• Thread Cutter: A precise cut that leaves tails short enough to prevent tangling in the next seam.
• Speed Slider: This is your safety valve. When learning a new technique or handling thick material, slide this to 50%. It adds torque and precision.


The Golden Rule of Tension (The "Dental Floss" Check): When someone tells me “my stitches are loose” or “it’s skipping,” I ask one question first: Did you thread the machine with the presser foot DOWN?

Physics Check: When the presser foot is down, the tension discs assume "clamp mode." If you thread the machine in this state, the thread cannot slide between the discs. It sits on top, creating zero tension. The Fix: Always raise the presser foot before threading. When you pull the thread through the path, you should feel a slight resistance, similar to pulling dental floss from its container. If it pulls freely with zero drag, you have missed the tension discs.

The Automatic Fabric Sensor: Solving the "Thick-to-Thin" Nightmare

This is the moment in the demo that usually sells the machine. Kathy demonstrates the Automatic Fabric Sensor System (Aha!) by sewing across extreme terrain: very thick batting, immediately onto sheer fabric, and then onto vinyl.

Included in this sequence is a critical nuance: she lifts the presser foot to the extra-high position to clear the batting.

What you should watch for (Sensory Check)

• Visual: The presser foot should "float" slightly over the step-down, rather than slamming down.
• Auditory: Listen to the needle penetration. It should be a rhythmic thump-thump, not a labored crunch.
• Tactile: The fabric should feed itself.


Warning: Needle Deflection Hazard. When sewing thick layers (batting/vinyl), never push or pull the fabric from behind to "help" it. This bends the needle. A bent needle striking the throat plate can shatter, sending metal shards into the machine mechanism or towards your eyes. Let the feed dogs do 99% of the work.

The "Physics" Trap of Thick Fabrics

While the sensor is excellent, it cannot defy physics. If you are sewing vinyl or heavy batting, the sensor adjusts the pressure, but it cannot fix the puncture.

To ensure success on mixed-media projects:

1. Speed: Drop your slider to Medium (approx. 400-600 SPM). High speed creates heat and needle flex.
2. Needle: Use a fresh needle. A dull needle on vinyl will skip stitches regardless of sensor settings.
3. Support: If the heavy fabric drags off the table, it creates drag tension. Support the weight with your hands or an extension table.

Sideways Sewing: The "Free-Arm" Truth for Tubular Repairs

If you have ever tried to patch a child's knee or hem a pant leg, you know the struggle of stuffing the fabric under the arm. The NQ3600D offers Sideways (Directional) Sewing, which allows the feed dogs to move fabric left and right, not just forward and backward.

In the workflow:

1. Remove the accessory tray to expose the free arm.
2. Slide the pant leg or sleeve onto the arm.
3. Select Directional Sewing (Left Zigzag).
4. Hold the fabric steady; the machine does the lateral movement.






The Stability Check: If your sideways stitches look uneven, it is rarely a tension issue. It is a drag issue. Because the fabric is moving sideways, gravity pulls the pant leg down, distorting the path.

• Fix: Cup the garment gently with your hands to neutralize the weight.

Note: If you find yourself doing massive amounts of tubular work (like baby onesies or sleeves), this is where professionals often look for specialized tools. Concepts like a sleeve hoop exist in the embroidery world to mechanically hold tubes open, mirroring this sewing function.

Decorative Stitch #72: Understanding Data Density

The demo moves to a massive 40mm wide Wave Stitch (Category 6, Stitch 72). The machine prompts for Foot N (Monogramming Foot).

Why Foot N? Look at the underside. It has a hollowed-out tunnel that allows thick, satin-stitched ridges to pass under without getting stuck. Using the standard "J" foot here would cause the fabric to stall and knot.

Pro Tip: When running these complex "maxi-stitches," the feed dogs are doing a forward-backward-sideways dance. Do not interrupt the cycle. Let the machine finish the full pattern rep before stopping, otherwise, you will have an ugly, half-formed knot in your design.

The "Hidden" Pre-Flight Checklist: 60 Seconds That Save Hours

Before you even touch the embroidery unit, you must perform a "Pre-Flight Check." 80% of embroidery failures happen because the operator skipped this phase.

Phase 1: The Machine Prep Checklist

• Needle Check: Is the needle straight? Is it an Embroidery Needle (75/11 is the sweet spot)? Hidden Consumable: Always keep a pack of Titanium needles on hand.
• Clearance: Is there 12 inches of clear space to the left of the machine? The arm moves fast; if it hits a coffee mug or a wall, it can knock the carriage out of alignment.
• Bobbin Area: Open the clear cover. Is there lint? Is the bobbin nearly empty? Change it now.
• Thread Path: Raise the presser foot and ensure no stray thread tails are flossing the uptake lever.

Converting to Embroidery Mode: The Mechanics of Alignment

Kathy is clear here, but I will be rigid:

1. Turn the machine OFF.
2. Slide the embroidery unit onto the left side until you hear the mechanical CLICK.
3. Turn the machine ON.
4. Wait. The machine will buzz and move the arm. This is the calibration cycle.


Warning: Calibration Risk. Never attach or detach the embroidery unit while the machine is powered on. Doing so can cause a voltage spike to the sensors or cause the carriage to engage off-center, leading to permanent alignment issues where your design never stitches where the screen says it will.

Selecting Design & Color Analysis: The "Screen vs. Reality" Gap

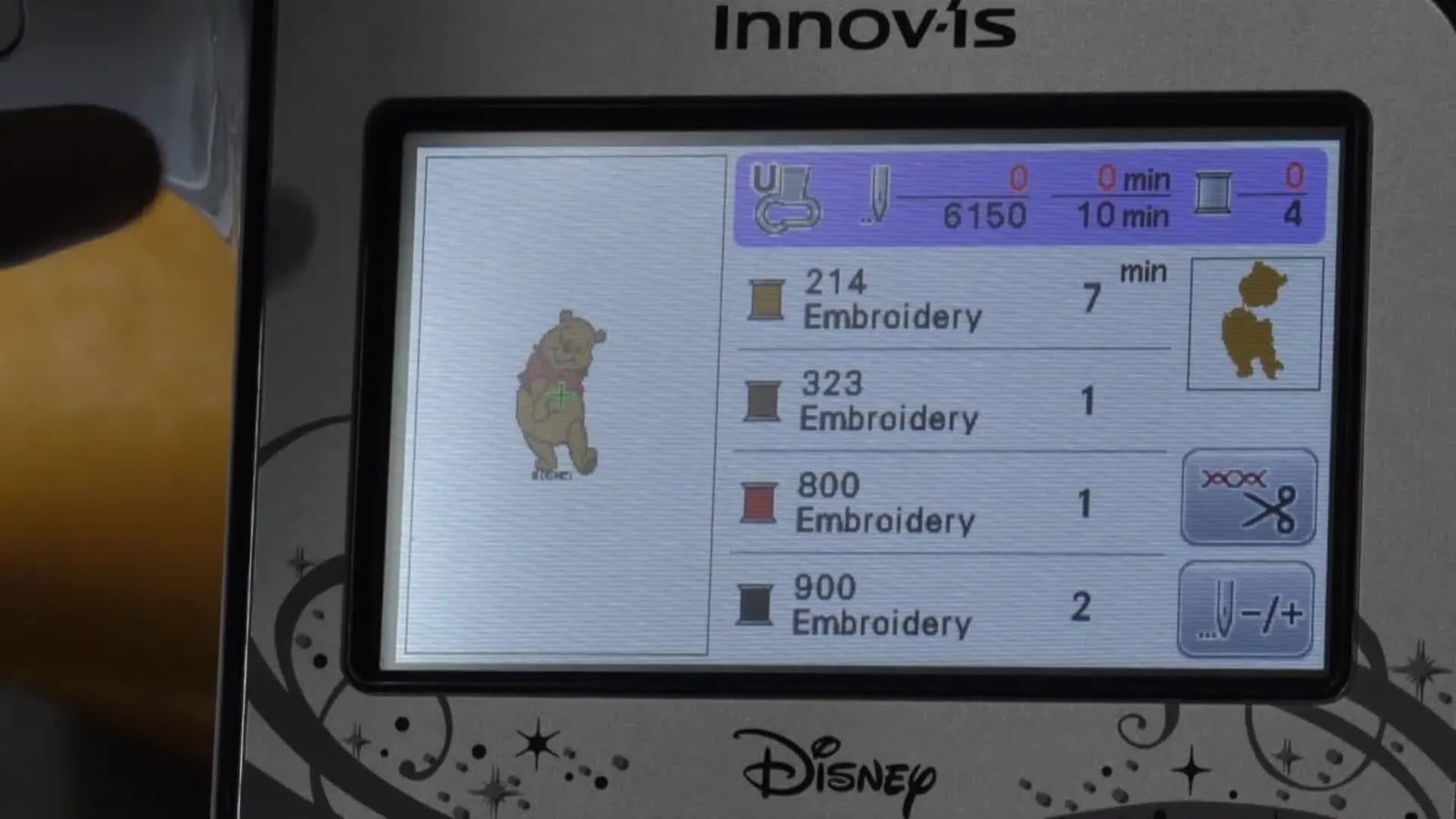

Kathy selects a built-in Winnie the Pooh design. The screen displays the colors required.

The Lighting Reality: The screen is backlit; your thread is not. A "Gold" on the LCD screen might look like "Mustard" in your hand.

• Standard: Use natural light or a high-CRI work lamp when selecting threads.
• System: If you plan to sell items, do not guess. Create a physical thread chart (stitch out samples) so you know exactly what your thread looks like on fabric.

Threading the NQ3600D: The #1 Source of "Bad Tension"

Kathy threads points 1 through 5. Threading for embroidery is more critical than sewing because the speed is higher (up to 850 SPM).

The "User Error" Bottleneck at Point #4: Several users comment about struggling to get the thread into the #4 guide (the uptake lever).

• The Cause: If the needle is not in the highest position, the uptake lever is hidden.
• The Fix: Press the "Needle Up/Down" button twice to ensure the machine is in the absolute "home" position.
• The Check: Hold the thread near the spool with your right hand to create tension, then guide it down with your left. You should hear/feel a subtle click or engagement as it enters the uptake lever eye.

Hooping & The "Green Light" Protocol

The video shows the 5x7 hoop sliding into the carriage.

The Green Button is a Safety Interlock. The Start/Stop button will not turn green unless:

1. The embroidery unit is calibrated.
2. A valid design is loaded.
3. The presser foot is DOWN.

Phase 2: The Operation Checklist (Before Pushing Green)

• Hoop Lock: Is the grey lever on the carriage locked down tight?
• Clearance: Is the fabric draped so it won't get caught under the needle plate?
• Tail Management: Hold the top thread tail for the first 3-4 stitches to prevent it from being sucked down into the bobbin case (which causes birdnesting).

The Hoop Burn Crisis: Why Good Fabric Gets Ruined

One of the most common questions in the embroidery community is: "How do I stop those ugly rings (hoop burn) on my fabric?"

Hoop burn is caused by Friction + Pressure + Shearing Force. The standard hoops included with the machine use friction (inner ring pressing against outer ring) to hold fabric. On delicate fabrics like velvet, performance wear, or dark cottons, this crushes the fibers permanently.

The Stabilizer Decision Tree

Using the right stabilizer prevents the need to "crank" the hoop screw so tight.

• Fabric: Stretchy (T-Shirt/Polo)
  • Solution: Cutaway Stabilizer. (Must use. Tearaway will allow stitches to distort).
• Fabric: Stable Woven (Canvas/Denim)
  • Solution: Tearaway Stabilizer.
• Fabric: High Pile (Towel/Velvet)
  • Solution: Water Soluble Topping on top + Tearaway/Cutaway on bottom.

The Tool Upgrade: Solving the Hoop Burn Problem

If you are struggling with hoop burn, or if hooping 50 shirts hurts your wrists, this is the limit of the "standard tool."

This is why many professionals switch to magnetic embroidery hoops for brother.

• Why? Unlike friction hoops, magnetic hoops use vertical magnetic force to sandwich the fabric. There is no "rubbing" or "forcing" the inner ring in.
• Result: Zero hoop burn, and hooping takes 5 seconds instead of 60 seconds.
• Keywords: Terms like magnetic embroidery hoop are your gateways to understanding efficient production without fabric damage.

Warning: Magnetic Hazard. Magnetic hoops use industrial-grade magnets. They can pinch fingers severely. Keep them away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives).

Troubleshooting: The "Doctor's Chart" for Stitches

When things go wrong, do not panic. Use this logic flow. Always troubleshoot from Lowest Cost (Free) to Highest Cost.

The Upgrade Path: From Hobbyist to Production

The NQ3600D is a workhorse, but it is a "single-needle" machine. This means for every color change, the machine stops, and you are the thread changer.

The Reality of Scale:

• Level 1 (Hobby): You embroider one shirt a week. The NQ3600D is perfect.
• Level 2 (Side Hustle): You have an order for 20 shirts. Hooping is your bottleneck.
  • Upgrade: Invest in a hoop master embroidery hooping station or magnetic hoops to standardize placement and speed up loading.
• Level 3 (Business): You have orders for 50+ items with 4 colors each.
  • Upgrade: The NQ3600D becomes your sample machine. You need a SEWTECH Multi-Needle Machine. This allows you to set up 10+ colors at once, press go, and walk away.

If you are currently using a brother 5x7 hoop and finding yourself constantly re-hooping larger designs, that is friction. Efficiency is profit.

Hoop Sizes: 5x7 vs. 6x10 and Real Estate

The NQ3600D supports a large field (6" x 10"). Do not underestimate this.

• The 5x7 Hoop: Perfect for left-chest logos and onesies.
• The 6x10 Hoop: Required for jacket backs and full-front quilt blocks.

People often search for embroidery machine 6x10 hoop capabilities because splitting designs (sewing half, re-hooping, sewing the other half) is a nightmare for alignment. Having the physical space to stitch a full design in one pass is worth the investment.

Conclusion: Use the Automation, But Trust Your Hands

The Brother Innov-is NQ3600D is a bridge between home sewing and professional embroidery. It offers incredible automation, but it requires you to be the pilot, not just a passenger.

• Respect the "Power Off" rule.
• Feel the tension like dental floss.
• Listen to the rhythm of the needle.

And when you hit the physical limits of the plastic hoops—when your wrists ache or the fabric marks—remember that the industry has solutions. Whether it's high-performance stabilizers or a brother embroidery hoop upgrade like magnetic frames, the tools exist to match your growing skills.

Now, check your green light, and press start.

FAQ

• Q: How do I fix loose tension or skipped stitches on the Brother Innov-is NQ3600D caused by threading with the presser foot down?
  A: Re-thread the Brother Innov-is NQ3600D with the presser foot UP so the thread seats between the tension discs.
  • Raise the presser foot fully, then completely re-thread the top path from spool to needle.
  • Pull the thread through the path and feel for slight “dental floss” resistance (not free-sliding).
  • Stitch a small test and watch for balanced stitches instead of loose loops.
  • Success check: The thread pull feels lightly resisted, and the stitch formation looks even without random skipping.
  • If it still fails: Replace the needle with a new 75/11 embroidery needle and re-check the thread path again.
• Q: How do I prevent birdnesting (thread tangles under the needle plate) on the Brother Innov-is NQ3600D when starting an embroidery design?
  A: Hold the top thread tail for the first 3–4 stitches and confirm the take-up lever is threaded to stop the thread from being pulled into the bobbin area.
  • Re-thread the top thread and make sure the thread is captured in the take-up lever (threading point #4).
  • Lower the presser foot before pressing Start so the green-light interlock conditions are met.
  • Hold the top thread tail gently for the first few stitches, then release once the design anchors.
  • Success check: The first stitches lay flat on top with no sudden “suction” of the top thread downward.
  • If it still fails: Stop, cut the tangle out completely, and re-thread again with the needle at the absolute highest position.
• Q: How do I thread the Brother Innov-is NQ3600D take-up lever (threading point #4) if the take-up lever eye is hidden?
  A: Move the needle to the absolute highest “home” position so the Brother Innov-is NQ3600D take-up lever is fully visible for threading.
  • Press the Needle Up/Down button twice to ensure the needle and take-up lever are at the top.
  • Keep light tension on the thread near the spool with one hand while guiding it into the lever with the other.
  • Listen/feel for a subtle “click” as the thread engages into the take-up lever eye.
  • Success check: You can clearly see the take-up lever eye and the thread sits inside it (not riding along the outside).
  • If it still fails: Re-check that the presser foot is raised before threading so the thread can enter the tension system correctly.
• Q: What is the safest way to sew thick batting or vinyl on the Brother Innov-is NQ3600D without needle deflection or broken needles?
  A: Slow down and let the feed dogs do the work—do not push or pull thick materials through the Brother Innov-is NQ3600D.
  • Drop the speed slider to medium (about 400–600 SPM) for more control and less needle flex.
  • Lift the presser foot to the extra-high position when needed to clear bulky layers.
  • Support heavy material so it does not drag off the table and create pull-tension.
  • Success check: Needle sound stays rhythmic (“thump-thump”), not labored or crunchy, and the fabric feeds itself.
  • If it still fails: Install a fresh needle (a dull needle can skip on vinyl) and re-test on a scrap sandwich.
• Q: How do I attach the Brother Innov-is NQ3600D embroidery unit correctly to avoid calibration and alignment problems?
  A: Power OFF before attaching the embroidery unit, then power ON and wait for the full calibration cycle.
  • Turn the machine OFF completely before sliding the embroidery unit onto the left side.
  • Slide until a clear mechanical “click” confirms the unit is seated.
  • Turn the machine ON and wait while the arm buzzes/moves through calibration.
  • Success check: The machine completes the calibration movement smoothly and then allows normal design selection/operation.
  • If it still fails: Remove the unit only with power OFF and re-seat it carefully; avoid forcing the connection.
• Q: How do I stop hoop burn (ugly hoop rings) on delicate fabric when using Brother Innov-is NQ3600D standard embroidery hoops?
  A: Reduce required hoop pressure by choosing the correct stabilizer, and avoid over-cranking the hoop screw on the Brother Innov-is NQ3600D.
  • Match stabilizer to fabric: stretchy shirts → cutaway; stable woven canvas/denim → tearaway; towels/velvet → water-soluble topping plus tearaway/cutaway underneath.
  • Hoop firmly but do not over-tighten; stabilizer should provide structure so the hoop doesn’t need excessive force.
  • Keep fabric smooth and supported so it doesn’t shear and rub inside the hoop during stitching.
  • Success check: After unhooping, fabric fibers rebound without a permanent ring or crushed nap.
  • If it still fails: Consider upgrading to a magnetic embroidery hoop system to reduce friction-based clamping that causes rings.
• Q: What safety precautions are required when using magnetic embroidery hoops to speed up hooping and reduce hoop burn?
  A: Treat magnetic embroidery hoops as industrial pinch hazards and keep them away from medical implants and magnetic-sensitive items.
  • Keep fingers clear when magnets snap together; close the hoop slowly and deliberately.
  • Keep magnetic hoops away from pacemakers/ICDs and away from credit cards, hard drives, and similar magnetic media.
  • Store magnetic hoops in a controlled spot so they cannot jump onto tools or each other unexpectedly.
  • Success check: Hooping feels controlled (no sudden snap/pinch), and the fabric is held securely without heavy screw pressure marks.
  • If it still fails: Switch back to standard hoops for high-risk situations and focus on stabilizer selection to reduce clamp pressure.
