Brother Innov-is NV180 vs NV180D Disney Model: The Real Difference, the Copyright Trap, and a Faster Hooping Workflow

If you’re staring at two nearly identical Brother machines and thinking, “Why does one have a ‘D’ and a higher price tag?”—you’re not alone. I’ve watched plenty of hobbyists (and brand-new small business owners) buy the “cute” version first, then feel blindsided later by licensing limits or workflow bottlenecks.

In my 20 years of teaching embroidery, I've seen that success isn't about the cartoon on the faceplate; it's about the physics of the stitch. This post rebuilds the key points from Gary at Echidna Sewing’s comparison of the Brother Innov-is NV180 and NV180D, but I am going to layer on the production-grade reality. We will cover how to sanity-check tension by feel, how to interpret design density like a pro, and how to use modern tools to speed up hooping without ruining your fabric.

NV180 vs NV180D: Same Brother Innov-is NV180 Mechanics, Different Disney License Price Tag

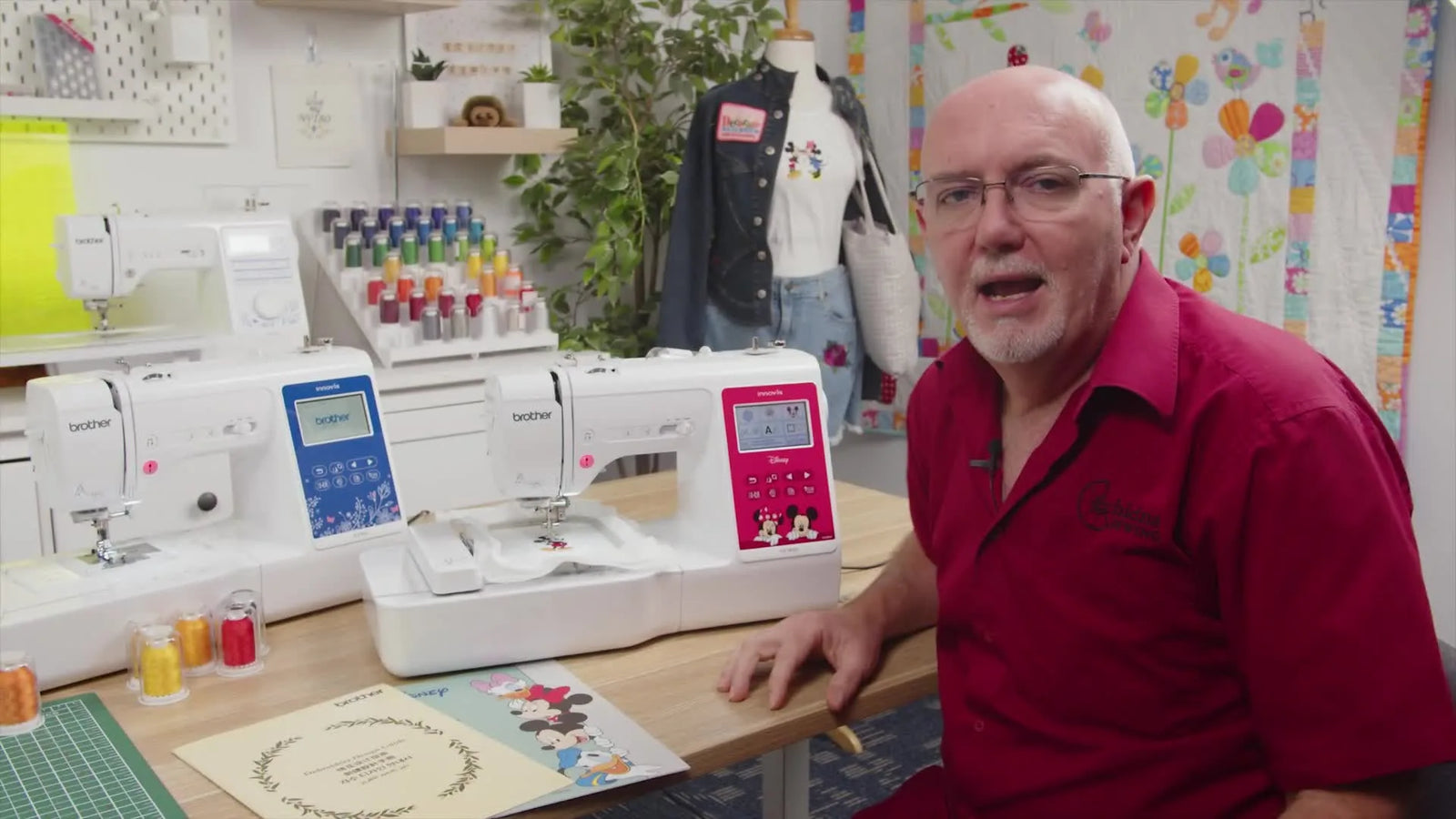

Gary’s core message is refreshingly simple: the Brother NV180 and the Brother Innov-is NV180D are exactly the same machines mechanically. The chassis, the motor torque, the maximum stitching speed (usually capped around 400-500 stitches per minute for these models in embroidery mode), and the sewing capabilities are identical.

So what are you paying extra for?

• The “D” stands for Disney.
• The NV180D has a different aesthetic faceplate featuring Mickey and Minnie artwork.
• The NV180D includes 45 built-in Disney embroidery designs hard-coded into the machine's memory.

That’s the difference. There is no hidden “industrial motor,” no secret larger hoop field (both are limited to the standard 100x100mm area), and no mechanical durability upgrade.

One comment asked a very real buyer question: “For a small business beginner, which one do you advise?” Here’s the straight answer based on studio economics: Do not let the Disney artwork drive your business purchase.

To keep your workflow flexible, think of the NV180D strictly as: “NV180 + a licensed digital folder + Disney cosmetics.” If your business plan involves scaling production, you should look at the machine's mechanics, not its mascot.

The NV180D Disney Faceplate: Cute Today, But Don’t Let Cosmetics Decide Your Workflow

Gary points out the obvious visual cue: the NV180D front panel has Mickey and Minnie graphics, while the standard NV180 has a blue panel.

Cosmetics are fun, but in professional embroidery, "fun" evaporates quickly when you are fighting physics. Your daily satisfaction will come from Workflow Ergonomics.

• The Hooping Fatigue Factor: On a single-needle domestic machine, you will spend 60% of your time hooping and changing threads, and only 40% of the time watching it stitch.
• The "Burn" Risk: Traditional two-piece plastic hoops require significant hand strength to tighten the screw. If you tighten too much, you leave "hoop burn" (permanent crush marks) on delicate fabrics like velvet or performance wear.

If you are constantly wrestling slippery activewear or thick towels into a standard plastic hoop, a magnetic embroidery hoop becomes more than a luxury—it’s a wrist-saver. By using magnetic force rather than friction to hold fabric, you reduce setup time and eliminate those dreaded hoop rings. This is the kind of practical upgrade that brings more joy than a printed faceplate ever will.

The Disney Design Guide Booklet: Read It Like a Production Sheet, Not a Picture Book

Gary flips through the included Disney design guide. To a novice, this is a catalog. To an expert, this is a Production Flight Plan.

Expert stitchers rarely just "wing it." Use the booklet to calculate your "Return on Time" (ROT) before you even turn the machine on.

1. Count the Thread Changes (The Stop-Loss Metric):
   • Look at the color chart. A design with 15 color changes on a single-needle machine means you will manually re-thread the machine 15 times.
   • Calculation: If it takes you 1 minute to change a thread, that's 15 minutes of "dead air" where the machine isn't stitching.
2. Analyze Density for Stabilization:
   • Look at the solid filled areas (Satins and Tatamis). High density requires "Heavy Duty" stabilization logic.
   • The "Paper Test": If the design looks like a solid patch, you cannot use a single layer of flimsy tearaway. You will need a strong cutaway stabilizer.
3. The Hidden Consumables Check:
   • Before you start, check your needle. Is it a fresh 75/11 for cotton, or a Ballpoint needle for knits?
   • Do you have enough Bobbin Thread? Running out of bobbin thread in the middle of a complex Disney character outline is a nightmare to repair.








Prep Checklist (Pre-Flight Protocol)

• Legal Check: Confirm the project is for personal use (gifts) only.
• Thread Audit: Line up all thread cones in order of use before hitting start to minimize confusion.
• Bobbin Status: Ensure the bobbin is at least 50% full. If in doubt, wind a new one.
• Consumable Audit: Have you selected the correct needle type (Sharp vs. Ballpoint)?
• Stabilizer Match: Have you paired the fabric with the correct SEWTECH backing (Stabilizer)? (See decision tree below).

The “Can I Sell This?” Moment: Brother NV180D Disney Copyright Rules Are Not Flexible

This is where Gary gets serious, and so must we. The question is constant: "Can I sell these cute Mickey patches on Etsy?"

The answer is a hard, litigious No.

Gary shows the manual's copyright disclaimer. The license is for personal, non-commercial use only. Disney is notoriously protective of their IP.

The Trap for New Business Owners: You generally cannot build a business model around the built-in NV180D designs.

• Safe Zone: Stitching a Winnie the Pooh bib for your niece.
• Danger Zone: Stitching 50 Pooh bibs and selling them at a craft fair.

If your goal is profit, you need "Business-Safe" designs. This means buying digitized files from independent artists where you purchase a commercial license, or learning to digitize your own logos.

Warning: Commercial Risk. Using built-in licensed characters for profit can result in your online shop being banned or legal action taken against you. Invest in royalty-free designs or custom digitizing services for your product line.

NV180D Touchscreen Walkthrough: Finding the Disney Icon and Loading a Built-In Design

Gary demonstrates the touchscreen workflow. On these compact machines, the screen is resistive and small.

Expert Tip for Small Screens: Because the screen is small, "Fat Finger Syndrome" is real. You might aim for Mickey and accidentally hit Minnie.

• Use a Stylus: Always use a plastic stylus (often included on the side of the machine) or a soft-tip stylus. The oil from your fingers can smudge the screen, making visibility worse over time.
• The "Beep" Verification: Listen for the confirmation beep when selecting designs. If you don't hear it, the machine hasn't registered the command.

For transferring your own designs (non-Disney), you will rely on the USB port. Crucial advice: Use a low-capacity USB drive (4GB or 8GB). These older-style operating systems often struggle to read massive 64GB+ drives, leading to freezing or crashing.

The Tiny Screen Complaint Is Real: How to Make the NV180/NV180D LCD Work for You

A commenter noted the screen size is a barrier. It is. When editing on a 3-inch screen, you can't see the fine details of jump stitches or bad overlaps.

Cognitive Offloading Strategy: Don't use the screen for design; use it only for execution.

1. Do your work on a PC: Use software (even free viewers) on your computer to check the design details, colors, and size.
2. Print a Template: Print the design at 100% scale on paper. Place this paper on your garment to check placement.
3. Trust the Center Point: Rely on the machine to center the needle, but rely on your eyes and the paper template for the layout.

If you find yourself squinting and frustrated, this is a sign you need a physical upgrade to your environment. A dedicated machine embroidery hooping station provides a grid and a stable surface, allowing you to align your fabric perfectly before you even bring it to the small-screened machine.

Tension Reality Check on the Brother NV180/NV180D: Start at 2, Then Test Like a Pro

The video mentions starting tension around 2. Let's calibrate this against industry standards. Brother domestic machines typically default to a "4" for standard sewing, but embroidery generally requires lower top tension (often 2-3) to pull the top thread slightly to the back.

The "H-Test" (Sensory Calibration): Numbers on a dial are relative. The "feel" and "look" are absolute.

1. The Stitch Test: Stitch a satin column (like the letter "I" or "H").
2. The Visual Check: Turn the hoop over. You should see a white column of bobbin thread taking up the middle 1/3 of the column, with the colored top thread visible on the outer 2/3.
   • If you see NO white bobbin thread: Top tension is too loose (Thread is looping). Tighten the top (Higher number).
   • If you see ONLY white bobbin thread: Top tension is too tight. Loosen the top (Lower number).
3. The Tactile Check: When pulling thread through the machine (with the foot UP), it should feel smooth, with slight resistance—like flossing your teeth. If it jerks or snags, check for debris in the tension discs.

Note on Hooping & Tension: Bad tension is often actually bad hooping. If your fabric is loose, the needle pushes it down (flagging), creating loops. Before you blame the machine, verify you have a "drum-tight" hoop. This is where a high-quality brother embroidery machine requires user discipline to shine.

Warning: Safety First. Keep fingers, hair, and drawstrings away from the take-up lever and needle bar. These move rapidly and can cause injury. Never attempt to "push" fabric under the foot while the machine is embroidering.

Hooping on the Brother 4x4 Hoop: The Physics That Prevents Puckers and Misalignment

The 4x4 (100mm) field is where beginners learn the hard lessons of physics. The smaller the hoop, the less margin for error you have with fabric slippage.

The "Drum Skin" Standard (Auditory Anchor): When you tap the hooped fabric, it should sound like a dull drum (thump-thump). If it sounds loose or creates ripples when you run your hand over it, you will get puckers.

If you are using a standard brother 4x4 embroidery hoop, follow this logic:

Decision Tree: Fabric → Stabilizer Choice

• Fabric: Stretchy (Tee-shirts, Polo, Jersey)
  • Stabilizer: Cutaway (Mesh). No exceptions. Tearaway will result in a distorted design because the fabric stretches while the stabilizer tears.
  • Needle: Ballpoint (75/11).
• Fabric: Stable Woven (Cotton, Denim, Canvas)
  • Stabilizer: Tearaway. Medium weight.
  • Needle: Sharp (75/11 or 90/14 for denim).
• Fabric: High Pile (Towels, Fleece, Velvet)
  • Stabilizer: Tearaway (Back) + Water Soluble Topper (Front). The topper prevents stitches from sinking into the fluff.
  • Hoop Risk: High risk of hoop burn. Consider a magnetic frame.

When hooping mechanics slow you down, remember that hooping for embroidery machine success is 80% preparation and 20% strength.

Magnetic Hoops on Domestic Brother Machines: When the Upgrade Pays Off (and When It Doesn’t)

Many users think magnetic hoops are only for industrial machines. This is false. Companies like SEWTECH produce magnetic hoops specifically calibrated for domestic machines like the NV180 series.

The Commercial/Ergonomic Argument: Why switch to magnets?

1. Speed: You eliminate the "loosen screw -> stuffing -> tighten screw -> pull fabric" cycle. You simply lay the fabric and snap the magnets.
2. Safety: No clamp marks (hoop burn) on expensive inventory.
3. Health: If you have arthritis or carpal tunnel, the screw motion of traditional hoops is painful.

The Upgrade Path:

• Phase 1 (Hobby): Master the included plastic hoop. Use "floating" techniques (hooping stabilizer only and spraying adhesive) if you struggle.
• Phase 2 (Pro-sumer): Upgrade to a magnetic embroidery hoop compatible with your machine. This is ideal if you are doing batches of 10+ items.
• Phase 3 (Production): If you graduate to a SEWTECH multi-needle machine, magnetic hoops are standard equipment for maximum ROI.

If you are searching for how to use magnetic embroidery hoop, the process is simple: Bottom frame -> Stabilizer -> Fabric -> Top Magnet Frame. Snap. Done.

Warning: Magnet Safety. Magnetic hoops contain powerful Neodymium magnets. Pinch Hazard: They can snap together with enough force to bruise or break skin. Medical Device Warning: Keep them at least 6 inches away from pacemakers and insulin pumps.

NV180D vs Other Brother Models (M370, Stellaire XJ1): Ask the Right Question First

Comments often ask about "Model Envy." "Should I get the Stellaire instead?"

This is the wrong question for a beginner. The question is: What is your Constraint?

• Is the constraint Space? The NV180 is portable.
• Is the constraint Speed/Business Volume?
  • If you have orders for 50 shirts, neither the NV180 nor the M370 is the right tool. You need a multi-needle machine (like a 10-needle or 15-needle) that can change colors automatically and hold larger spools.
  • Single-needle machines are "Project" machines. Multi-needle machines are "Profit" machines.

Don't upgrade to a slightly better single-needle machine if your goal is volume. Save that budget for a true leap in technology later. For now, optimize your NV180 with better stabilizers and hoops.

Setup Checklist (To Avoid First-Week Failures)

• Machine Environment: Is the machine on a sturdy, flat table? (Wobble = bad stitches).
• Needle Freshness: Insert a new needle. Ensure the flat side of the shank faces the correct direction (usually back).
• Threading Path: Thread with the presser foot UP. This opens the tension discs so the thread seats deep inside. Lower the foot only when ready to stitch.
• Bobbin Case: Check for lint. One piece of lint can throw off your tension entirely.
• Design Orientation: Double-check the screen. Is the design right-side up relative to how you hooped the fabric?

Operation Checklist (The "clean and calm" Stitch-out Routine)

• Clearance: Ensure the hoop has full range of motion. Nothing behind the machine (wall, coffee cup) that the hoop will hit.
• The "Trace" Function: Always run the "Trace" or "Trial" function on the screen to see the physical outline of where the needle will go. This prevents the needle from hitting the plastic hoop frame.
• First 100 Stitches: Do not walk away. Watch the first layer. If the fabric is flagging (bouncing), pause and fix the hooping.
• Scissor Hygiene: Trim jump stitches as you go (if the machine doesn't do it automatically) to prevent the foot from catching on loops.
• Completion: Remove the hoop, then remove the fabric from the hoop before tearing away stabilizer to avoid stretching the design.

The Smart Upgrade: Spend on What Removes Bottlenecks, Not What Adds Temptation

Gary’s video makes the decision clear: The NV180D is a cosmetic and content upgrade, not a mechanical one.

Here is my final advice as an educator:

1. If you love Disney: Buy the NV180D. The joy factor matters for hobbies.
2. If you are budget-conscious: Buy the standard NV180 and use the savings to buy high-quality embroidery thread and proper cutaway stabilizer.
3. If you handle specific pain points:
   • Struggling with thick items? Invest in hoops for brother embroidery machines that use magnetic technology.
   • Struggling with speed? Look at the SEWTECH multi-needle range to automate color changes.

Your skill is the software. The machine is just the hardware. Master the physics of hooping and tension, and you can make the NV180 sing. But when the machine becomes the bottleneck because you simply cannot change threads fast enough for your customers, that is when you know you are ready for the next level of equipment.

FAQ

• Q: Are the Brother Innov-is NV180 and Brother Innov-is NV180D mechanically different, or is the price difference only for Disney content?
  A: The Brother Innov-is NV180 and Brother Innov-is NV180D are mechanically the same; the price difference is for the Disney faceplate and built-in Disney designs.
  • Decide based on workflow needs, not cosmetics: both machines use the same 100×100mm (4×4) hoop field and similar embroidery speed limits.
  • Treat NV180D as “NV180 + licensed Disney design library” for personal projects.
  • Success check: buying decisions feel easier when the choice is based on hoop size limits, thread-change workload, and fabric types—not the front artwork.
  • If it still fails… (choice still unclear): list the top 3 items you will embroider most (tees, towels, denim) and choose based on hooping difficulty and stabilization needs.
• Q: What top tension setting is a safe starting point for embroidery on the Brother Innov-is NV180/NV180D, and how can tension be judged correctly?
  A: A safe starting point on the Brother Innov-is NV180/NV180D is top tension around 2–3, then adjust based on the stitch test result.
  • Stitch a small satin column test (like an “I” or “H”) before committing to a full design.
  • Flip the hoop and inspect the column: aim for bobbin thread showing in the middle 1/3, with top thread on the outer 2/3.
  • Success check: the back of the satin column shows a clean, centered “white bobbin lane,” not all color thread or all bobbin thread.
  • If it still fails… re-thread with the presser foot UP (to seat thread in tension discs) and check for lint in the bobbin area/tension path.
• Q: How can hooping be judged correctly on the Brother 4×4 (100mm) hoop to prevent puckers and design misalignment?
  A: Hoop fabric to a “drum-skin” standard on the Brother 4×4 hoop to prevent puckers and shifting.
  • Tighten and smooth until the fabric is flat with no ripples when you run a hand over it.
  • Tap the hooped fabric to confirm firmness before stitching.
  • Success check: the fabric gives a dull “thump-thump” sound when tapped and does not ripple under light finger pressure.
  • If it still fails… pause and re-hoop when early stitches show flagging/bouncing, because “bad tension” is often loose hooping.
• Q: What stabilizer should be used for stretchy knits vs stable woven fabrics vs towels/velvet on the Brother NV180/NV180D?
  A: Match stabilizer to fabric type on the Brother NV180/NV180D to prevent distortion and sinking stitches.
  • Use cutaway (mesh) for stretchy knits (T-shirts, polos, jersey); pair with a ballpoint needle.
  • Use medium tearaway for stable wovens (cotton, denim, canvas); pair with a sharp needle (size choice depends on fabric thickness).
  • Use tearaway backing plus water-soluble topper for high-pile fabrics (towels, fleece, velvet) to stop stitches sinking.
  • Success check: the finished design lies flat (no waviness) and details are visible on pile fabrics (not buried).
  • If it still fails… reduce design density choices (avoid “solid patch” looks) and upgrade stabilization strength before changing machine settings.
• Q: What pre-flight checklist prevents first-week failures on the Brother Innov-is NV180/NV180D (needle, bobbin, lint, threading)?
  A: A quick pre-flight routine prevents most “mystery” stitch issues on the Brother Innov-is NV180/NV180D.
  • Insert a fresh needle and confirm correct needle type (sharp for wovens, ballpoint for knits).
  • Thread the machine with the presser foot UP, then only lower the foot when ready to stitch.
  • Check bobbin thread supply (at least ~50% full is a practical target) and clean lint from the bobbin case area.
  • Success check: the machine stitches the first 100 stitches smoothly without loops, snapping, or sudden tension changes.
  • If it still fails… stop and re-check the threading path and bobbin area again—one piece of lint can throw off tension.
• Q: How can the Brother NV180/NV180D “Trace/Trial” function be used to prevent the needle hitting the hoop and to avoid crashes during operation?
  A: Always run the Brother NV180/NV180D Trace/Trial function before stitching to confirm the design stays inside the hoop path.
  • Clear the embroidery area so the hoop cannot hit a wall, table items, or anything behind the machine.
  • Run Trace/Trial and watch the hoop travel fully through its outline.
  • Stay for the first 100 stitches and pause immediately if fabric is flagging or the hoop movement looks restricted.
  • Success check: the traced outline clears the hoop frame with no contact and the hoop moves freely without bumping anything.
  • If it still fails… re-center/re-size the design on your computer (not the small screen) and confirm correct hooping orientation before re-testing.
• Q: Is it legal to sell items embroidered with the built-in Disney designs on the Brother Innov-is NV180D?
  A: Built-in Brother Innov-is NV180D Disney designs are intended for personal, non-commercial use, so selling items made with those designs is not a safe business plan.
  • Use built-in Disney designs for gifts/personal projects rather than for Etsy/craft-fair inventory.
  • Source “business-safe” designs from creators that sell commercial licenses, or use custom digitizing for logos.
  • Success check: the design source you use includes clear commercial-use terms you can document.
  • If it still fails… stop production and switch designs before listing products, because the risk is shop takedowns or legal action.
• Q: What are the safety rules for magnetic embroidery hoops, and how can pinch injuries and medical device risks be reduced?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from medical implants/devices.
  • Keep fingers clear when snapping the top magnetic frame onto the bottom frame—let magnets close under control, not “free slam.”
  • Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Stage the stack in order (bottom frame → stabilizer → fabric → top magnetic frame) to avoid fumbling.
  • Success check: the hoop closes without finger contact and the fabric is held firmly with no clamp rings/hoop burn.
  • If it still fails… slow down and separate the frames deliberately; never try to “catch” closing magnets with fingertips.
