Brother Luminaire XP1 Edit Screen Secrets: Stippling, One-Touch Appliqué, My Design Center Fills, and Text That Actually Fits the Hoop

The "Pilot’s Protocol" for the Brother Luminaire XP1: From Screen to Perfect Stitch

When you’re staring at the expansive 10.1-inch screen of the Brother Luminaire XP1, and the machine is happily inviting you to tap icons, it is easy to forget a fundamental production truth: the screen will let you design almost anything, but it will not protect you from the physical limitations of thread, fabric, and physics.

As embroiderers, we often fall into the trap of "screen optimism"—believing that if it looks good digitally, it will sew perfectly physically. This guide removes that optimism and replaces it with engineering certainty.

We are going to rebuild the workflow from the source video into a shop-ready routine. You will learn to preview designs to prevent expensive collisions, generate background quilting that doesn't stiffen your fabric, convert designs into appliqué patches efficiently, and master the often-misunderstood "Bucket Tool" in My Design Center.

Most importantly, we will address the "Silent Revenue Killer": bad hooping strategy.

1. The "Safety Catch" Protocol: Respecting the Set Button

On the Luminaire XP1, the interface is designed to be forgiving, but you must treat the Set button as a commitment trigger. In the video, the instructor emphasizes that nothing is locked in until you touch Set.

Think of the "Set" button like the safety catch on a power tool.

• Before "Set": You are browsing. You are safe.
• After "Set": You are in the build phase. Undoing mistakes here costs memory and processing steps.

The "2-Second Pause" Rule: Before you hit "Set," take two seconds to visually verify the design. Does it look like a cartoon? Does the "Minnie" bow look centered? A quick note from the comments reminds us that even experts forget tiny details (like the missing "i" in "Minnie"). This isn't a lack of skill; it's a lack of protocol. Slow down.

2. Reading the Info (i) Screen: Production Planning vs. Wishful Thinking

Before you edit a single pixel, press the Info (i) button. This is your flight plan.

Novices look at the picture. Professionals look at the data.

The Thread Change Trap

The screen lists the color changes.

• The Trap: You see 10 colors.
• The Reality: If you have a single-needle machine, that is 10 physical interruptions. You must manually stop, cut, re-thread, and restart.
• The Fix: Pull your thread cones now. Line them up physically in order. If you are missing "Light Pink #6," you prefer to know now, not when the machine is half-stitched and holding your customer’s garment hostage.

The "Ghost Time" Calculation

The instructor warns that the minutes shown are actual stitching time only.

• Displayed Time: 15 Minutes.
• Real World Time: 15 Minutes + (10 thread changes x 1 minute each) + (Hooping time) + (Trimming time).
• Total: ~35 Minutes.

If you are quoting a job, bill for 35 minutes, not 15.

Visual Anchor (The Contrast Toggle): Use the background toggle feature to switch the screen from white to black.

• Why? White thread on a white background is invisible.
• The Win: This instantly reveals if you have "invisible" details that will stitch over your dark fabric, or pale details that will vanish on a white shirt.

Phase 1: Preparation Checklist

Execute this BEFORE entering the Edit Screen.

• Hoop Match: Confirm the design size physically fits the intended hoop (do not rely on "fit to page").
• Thread Staging: Open Info (i) and physically line up thread cones in sequence.
• Bobbin Audit: Visual Check: Look at your bobbin. Is it at least 1/3 full? If not, change it now. A mid-design bobbin change on a precision alignment job is a risk you don't need.
• Ghost Time: Calculate total time (Stitch time + Thread changes + 5 mins buffer).
• Consumables: Locate your embroidery spray adhesive (if floating) or water-soluble pen now.

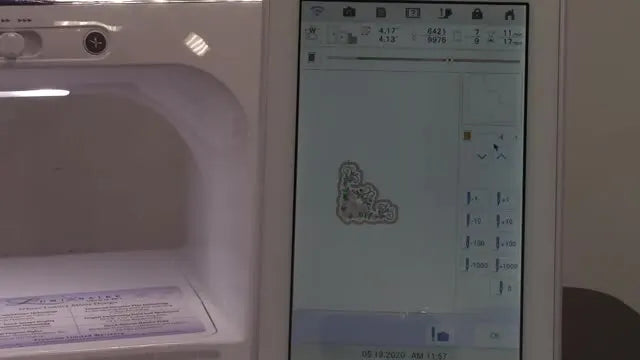

3. The Edit Screen: Zoom, Pan, and the "Hoop Crash" Prevention

Once you hit Set, you enter the tactical environment. The video demonstrates tools that prevent physical disasters.

• Zoom (200-400%): Use this to inspect the edges of the design. Are there tiny jumps or stray stitches?
• Hoop Preview: This places a digital boundary around your design.
• Stitch Simulator: This plays a video of the needle path.

The "4x4 Constraint": If you are working with a restricted field, such as a brother 4x4 embroidery hoop, the simulator is mandatory. Text arrays and borders often push just outside the stitchable field. The machine will beep eventually, but seeing where it fails allows you to adjust the size or angle before you get the error message.

4. Background Automations: Stippling & Echo Quilting (The Goldilocks Zone)

The Auto-Stippling tool turns a plain embroidery into a finished quilt block. However, the default settings can sometimes create a result that feels like "cardboard." You need the Beginner Sweet Spot settings.

In the video, the instructor adjusts two controls. Let's decode them with safe ranges:

• Distance (Margin): How far the stippling stays away from your central design.
  • Video Setting: 0.100" (approx. 2.5mm).
  • Recommendation: This is safe. Anything less than 0.080" risks the stippling biting into your main design.
• Spacing (Density): The gap between the squiggly lines.
  • Video Setting: 0.200"–0.224" (approx. 5.0mm - 5.7mm).
  • The Physics: Tight spacing (<0.100") creates a stiff patches desirable for art, but bad for quilts. Spacing of 0.200"+ is the "Sweet Spot" for soft, drapeable quilt blocks.


The Grouping Workflow (Crucial Step): The video highlights a common frustration: "Why is it only stippling the flower and not the text?"

• The 'Why': The Luminaire applies effects to the active selection.
• The Fix: You must use the Group tool to combine all objects (Flower + Text) into one logic unit. Then apply stippling.

Warning: Fabric Shrinkage Alert. Heavy stippling adds thousands of stitches. This causes "draw-in" (fabric shrinking inward). If you are using a standard tear-away stabilizer, your block will warp. For dense quilting, you must use a fusible stabilizer or a strong cut-away to resist the physics of the thread tension.

5. One-Touch Appliqué: The Patch-Maker

The Luminaire’s "Appliqué Creator" (Blue Shield Icon) converts any design into a patch.

The Sequence (Memorize the sounds):

1. Placement Line: Machine stops. (You place the fabric).
2. Tack-down Line: Machine stops. (You trim the fabric).
3. Satin Finish: Machine sews fast. (The final seal).

The video sets the Appliqué Distance to 0.120". This creates a wider satin border, which is incredibly forgiving if your hand-trimming isn't perfect.

Warning: The "Trimming Zone" Danger.
When trimming the fabric after the tack-down stitch, never angle your scissors tips down into the garment. Use Curved Duckbill Scissors (a hidden consumable you must own). The "bill" pushes the fabric down and lifts the cut edge, preventing you from snipping the base garment or the placement stitches.

6. My Design Center: The "Bucket vs. Brush" Confusion

In My Design Center (MDC), the instructor imports a "Minnie" outline. This is where 40% of new users fail.

They select a Brick pattern #8 fill.

The Critical Distinction:

• The Brush Tool: Draws lines. If you tap the shape with this, you just get dots or lines.
• The Bucket Tool (Flood Fill): Fills areas.


If you find yourself searching online for "why My Design Center fill stitches not working," stop. Look at your active tool icon. You likely have the Brush selected. Switch to the Bucket. Audit your screen: The icon must look like a tipping bucket, not a paintbrush.

Refining the Fill: The instructor changes the Fill Direction to 45 degrees.

• Why? A 45-degree angle usually drapes better on fabric than a straight 90-degree vertical stitch, which can stiffen the grain line of the fabric.


7. Commercial Layouts: Alignment & Selection

Stop eyeing it. Your eyes lie. The machine’s math does not.

Using the Alignment Tool (Center Vertical / Left Align) ensures your duplicates are mathematically perfect.

This is the bridge between "hobby" and "production." If you are making 10 uniform patches, relying on the grid ensures they are identical.

8. Typography: The "Micro-Font" Risk & Array Tools

Text is the most common reason for ruined garments.

The "Font 50/51" Trap

The instructor explicitly warns about specific fonts.

• Fonts 50 & 51: These are distinct micro-fonts (approx. 0.20" tall).
• The Risk: If you try to sew these large, they look spindly. If you try to sew standard fonts at this tiny size, they turn into a thread ball.
• Rule of Thumb: Only use 50/51 for cuff initials or collar tips.


The "Beep" of Boundaries

When manipulating text arrays (curving words), you will likely hear a beep.

• The Meaning: You have pushed a portion of the letter outside the printable safety zone.
• The Fix: Do not ignore it. Use the Size tool (not just the selection handles) to recalculate the density while shrinking the text to fit.


9. The Commercial Upgrade: Solving the "Hoop Burn" Bottleneck

We must discuss the physical reality of hooping. In the video, we see standard hoops. However, if you are moving into production—doing backs of jackets, thick towels, or delicate velvets—traditional hoops become a liability.

The "Hoop Burn" Scenario: You tighten a standard hoop on a delicate velvet. When you un-hoop it, the "ring" is permanently crushed into the fabric. No amount of steaming removes it. You have ruined the garment.

The Decision Logic:

• Trigger: You are struggling to hoop thick items (Carhartt jackets) or marking delicate items (velvet/performance wear).
• Criteria: Are you spending more than 2 minutes struggling to hoop a single item?
• The Solution: This is where a magnetic hoops for brother luminaire system pays for itself.
  • Speed: You just float the stabilizer and snap the garment in.
  • Safety: No "inner ring" friction to burn the fabric.
  • Consistency: For repeated layouts, magnetic frames often hold tension more evenly across the grain.

If you are frustrated with limited fields, standard hoops are fine. But if you are doing production runs, upgrading to a brother 5x7 magnetic hoop (or larger) transforms the workflow from a wrestle to a rhythm.

Warning: Magnet Safety.
Magnetic hoops use industrial-strength neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise or break fingers. Handle with extreme respect.
2. Medical Devices: Keep them at least 6 inches away from pacemakers.
3. Electronics: Do not place them on top of your Luminaire screen or near USB drives.

10. Stabilizer Decision Tree (Pre-Flight Logic)

The software can't fix bad stabilization. Use this logic gate before you hoop.

Decision Tree: Stabilizer Choice

1. Is the fabric Stretchy (T-Shirt/Jersey)?
   • YES: Use Cut-Away (Mesh or Standard). Sensory Check: If you pull the fabric and it stretches, the embroidery will distort without Cut-Away.
   • NO: Go to step 2.
2. Is the design Dense (Stippling/Full Background)?
   • YES: Use Medium/Heavy Cut-Away or Fused-on Stabilizer. Tear-away will punch out and the design will separate.
   • NO: Go to step 3.
3. Is the fabric Deep Pile (Towel/Velvet)?
   • YES: Use Tear-Away on bottom AND Water Soluble Topper on top. Visual Check: Can you sink your fingernail into the fabric loops? If yes, you need a topper to keep stitches from sinking.
   • NO: Standard Tear-Away is likely acceptable.

11. Final Operations Checklist

Execute this immediately before pressing the Green "Start" Button.

Phase 2: Setup Checklist

• Needle Check: Is the needle fresh? (Replace every 8 hours of stitching or after a needle strike).
• Selection State: Use the "Tap Background" trick [FIG-14] to ensure you haven't accidentally grouped items you wanted separate.
• Background Check: Did you turn OFF the background stippling preview (if you don't want it stitched)?
• Presser Foot Height: If using a magnetic hoop or thick jacket, have you adjusted the embroidery foot height in settings to avoid dragging?

Phase 3: The "Green Light" Checklist

• Hoop Upgrade: If doing a bulk run, have you switched to a hoop master embroidery hooping station workflow or magnetic frames to save your wrists?
• Clearance: Is the area behind the machine clear? (Don't let the moving arm hit the wall).
• Final Preview: [FIG-15] Does the screen match reality?

By following this protocol, you move from "hoping it works" to "knowing it will work." The Brother Luminaire XP1 is a precision instrument; when you treat it with an engineer’s mindset, it delivers an artist’s result.

FAQ

• Q: On the Brother Luminaire XP1, what is the safest way to use the Set button so a design edit does not lock in a mistake?
  A: Treat the Brother Luminaire XP1 Set button as a commitment trigger and use a 2-second visual pause before tapping it.
  • Pause: Wait two seconds and scan for obvious issues (off-center elements, missing letters) before pressing Set
  • Verify: Check the full design preview one last time before entering the build/edit phase
  • Success check: After tapping Set, the design on-screen matches exactly what was intended (no missing or shifted details)
  • If it still fails… Back out and re-open the design from the earlier screen state instead of stacking more edits on top
• Q: On the Brother Luminaire XP1, how do I use the Info (i) screen to avoid running out of thread or underquoting time on multi-color designs?
  A: Use the Brother Luminaire XP1 Info (i) screen as a pre-flight plan: stage threads in order and calculate real time beyond the displayed stitch time.
  • Stage: Pull the listed thread colors and line the cones up physically in the shown sequence
  • Audit: Check the bobbin visually and change it now if it is under about 1/3 full
  • Calculate: Add time for every color change plus hooping/trimming time to the displayed stitch minutes
  • Success check: The full color sequence is ready at the machine and no mid-design stop is needed due to missing thread or low bobbin
  • If it still fails… Reduce color changes in the design workflow or schedule the job assuming additional interruptions
• Q: On the Brother Luminaire XP1, how do I prevent a hoop boundary “beep” or a stitch-field failure when using a Brother 4x4 embroidery hoop?
  A: On the Brother Luminaire XP1, use Hoop Preview plus the Stitch Simulator before stitching—especially with a Brother 4x4 embroidery hoop where edges fail first.
  • Turn on: Enable the hoop boundary preview to see the stitchable area
  • Inspect: Zoom to 200–400% and pan along edges to find tiny jumps/stray stitches near the border
  • Simulate: Run the stitch simulator to catch out-of-bounds areas before the machine stops later
  • Success check: The simulated needle path stays fully inside the hoop boundary with no boundary warning/beep during layout
  • If it still fails… Resize or rotate using the machine’s sizing tool so density recalculates, then re-check with the simulator
• Q: On the Brother Luminaire XP1 Auto-Stippling, what settings help avoid “cardboard-stiff” quilting while still protecting the main design?
  A: A safe starting point on Brother Luminaire XP1 Auto-Stippling is to keep margin around 0.100" and spacing at 0.200" or higher for a softer, drapeable result.
  • Set margin: Keep the stippling distance around the design near 0.100" to reduce the risk of biting into the main embroidery
  • Loosen density: Keep spacing in the ~0.200"–0.224" range to avoid over-stiffening the fabric
  • Group first: Group all objects (for example, flower + text) so stippling applies to the full selection
  • Success check: The quilting stitches stay clear of the main design edge and the finished block still flexes instead of feeling rigid
  • If it still fails… Upgrade stabilization (often a stronger cut-away or a fusible option helps) because dense backgrounds can cause draw-in and warping
• Q: On the Brother Luminaire XP1 Appliqué Creator, what is the correct stitch sequence and what tool prevents trimming damage during the tack-down step?
  A: The Brother Luminaire XP1 appliqué workflow is placement line → tack-down line → satin finish, and curved duckbill scissors are the safest choice for trimming after tack-down.
  • Listen/expect stops: Stop after the placement line to place fabric, then stop after tack-down to trim, then let the satin finish run
  • Set forgiving border: Use a wider appliqué distance (the example shown is 0.120") if trimming accuracy is a concern
  • Trim safely: Use curved duckbill scissors and keep the scissor tips from angling down into the garment
  • Success check: The satin border fully covers the appliqué edge with no base fabric cuts or nicked placement stitches
  • If it still fails… Re-check that trimming happens only after the tack-down line, and slow down—most appliqué “fails” are timing/handling errors
• Q: In Brother Luminaire XP1 My Design Center, why do My Design Center fill stitches not work when tapping inside an outline, and how do I fix it?
  A: On Brother Luminaire XP1 My Design Center, fill usually fails because the Brush tool is active—switch to the Bucket (flood fill) tool and then tap the area to fill.
  • Confirm tool: Look at the active icon and select the Bucket tool (not the Brush tool)
  • Fill area: Tap inside the outline region to apply the selected fill pattern
  • Refine: Change fill direction (the example shown uses 45 degrees) if the fill looks too stiff or awkward on the fabric grain
  • Success check: The target shape becomes fully filled (not just dotted/outlined) and the fill preview matches the selected pattern
  • If it still fails… Check that the outline is fully closed; open gaps often prevent flood fill from applying correctly
• Q: How do magnetic embroidery hoops reduce hoop burn on the Brother Luminaire XP1, and what magnetic hoop safety rules must be followed?
  A: Magnetic embroidery hoops can reduce hoop burn on the Brother Luminaire XP1 by avoiding inner-ring friction and speeding hooping, but the magnets must be handled like industrial hardware.
  • Diagnose: If standard hooping leaves permanent rings on velvet/performance fabrics or takes over ~2 minutes per hooping, consider magnetic frames
  • Apply: Float stabilizer, position the garment, and snap the magnetic frame into place for more consistent tension
  • Handle safely: Keep fingers clear (pinch hazard), keep magnets away from pacemakers, and do not place magnets on/near the machine screen or USB devices
  • Success check: The garment unhoops without a crushed ring mark and the fabric holds evenly without excessive distortion
  • If it still fails… Improve technique first (stabilizer choice and careful placement), then consider a production workflow upgrade if volume demands it
