Brother NQ1700E vs VE2300 vs Stellaire XE1: Buy the Machine You Won’t Outgrow (and Save Your Wrists While You’re at It)

The 2025 Brother Embroidery Machine Roadmap: From "First Stitch" to Production Powerhouse

If you are staring at a lineup of Brother embroidery machines and thinking, "I just want to buy once and not regret it," you are asking the most expensive question in this hobby.

As an embroidery educator who has trained thousands of operators—from kitchen-table hobbyists to industrial shop floor managers—I see the same pattern repeatedly. You buy a "starter" machine, fall in love with the craft, and then six months later, you hit the "Frustration Wall."

The wall isn't usually the machine's motor; it's the physics of hooping, the limits of the stitch field, or the sheer time cost of changing threads on a single-needle machine.

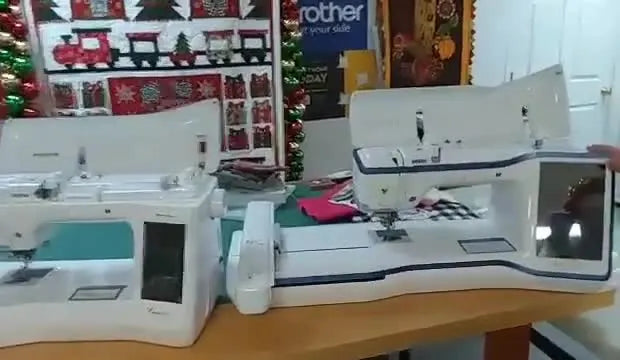

This guide isn't just a comparison of the Brother NQ1700E, VE2300, and Stellaire XE1. It is a "White Paper" for your embroidery journey, designed to help you choose the right tool, master the "feel" of the craft, and know exactly when to upgrade your workflow with industrial-grade solutions like SEWTECH’s magnetic frames or multi-needle beasts.

The "Growth Ladder" Strategy: NQ1700E, VE2300, and Stellaire XE1

Don't look at these as three random boxes on a shelf. In the professional world, we view them as tiers of capability. Your goal is to match the tier to your output ambition, not just your budget.

• The Practical Workhorse: Brother NQ1700E. This is the entry point for "serious" work because of its 6x10 field. Anything smaller (like 4x4) is a toy; 6x10 is where quilt blocks and jacket backs begin.
• The Specialist: Brother VE2300. If you already have a sewing machine, this is the pure-play embroidery upgrade. It offers more on-screen editing and a smoother interface for those who know they don't need sewing feed dogs.
• The Creative Studio: Brother Stellaire XE1. This is the "Cadillac" for artists. If your workflow involves taking a child's drawing or a logo printed on paper and scanning it into stitches, this machine buys you time and accuracy.


NQ1700E Analysis: Why Wireless and Hoop Size are Production Metrics

The NQ1700E is often marketed as "beginner-friendly," but let's translate that into shop terms.

1. Wireless Connectivity: In a production environment, USB sticks are liabilities. They get lost, corrupted, or stepped on. Sending a Design file wirelessly from your PC to the machine saves you about 2 minutes per setup. multiply that by 30 runs, and you've saved an hour.
2. The 6x10 Field: Many users search for the brother nq1700e specifically for this feature.
   • The Trap: Competitors often max out at 5x7.
   • The Reality: A standard adult chest logo fits in 5x7, but "In the Hoop" (ITH) projects, plushies, and large floral motifs demand 6x10. If you buy smaller, you will be splitting designs manually—a nightmare for beginners.


The Physics of Hoop Sizes: 5x7 vs. 6x10

The video mentions these hoops, but here is the Golden Rule of Tension:

• Smaller Hoop (5x7): Offers tighter "drum skin" tension. Use this for dense designs or stretchy fabrics like performance wear. The smaller surface area reduces fabric flagging (bouncing).
• Larger Hoop (6x10): Essential for scale, but requires better stabilization. The larger the gap between hoop walls, the more the fabric can sag in the middle.

When you upgrade to an embroidery machine 6x10 hoop, you must upgrade your stabilizer game. You cannot use the same "floating" technique you used on a 4x4.

VE2300: The Dedicated Path for Focused Creators

The VE2300 is the "Zero Distraction" machine. By removing sewing features, Brother optimized the embroidery path.

Who is this for? The user who has a dedicated sewing station. If you are doing "assembly line" work—sewing a tote bag on one machine while the VE2300 embroiders the pocket—this machine is your best efficiency partner before jumping to a multi-needle.

The "Big Box" Warning

Be very careful purchasing low-end models from general retailers. In embroidery, hardware limitations are absolute. If the machine's physical arm isn't long enough, no software update can give you a larger hoop.

When you compare models using terms like brother embroidery machine comparison, look at the "Throat Space" (the distance to the right of the needle). Space = Potential.

Stellaire XE1: Fixing the "Placement Anxiety"

For 90% of beginners, the biggest fear is not "will it stitch?" but "is it straight?"

The Stellaire XE1 uses a mobile app and camera scanning to overlay the design onto the fabric irl on your screen.

• The Sensory Check: instead of measuring three times with a ruler and holding your breath, you see the design on the fabric before the needle drops.
• The Value: If you are embroidering on expensive items (like Carhartt jackets or bridal robes) where a mistake costs $100+, this feature pays for itself by preventing ruins.






Connectivity: Wireless vs. USB (The "Friction" Test)

Friction kills creativity. If you have to find a USB drive, save a file, walk to the machine, plug it in, and navigate folders, you will hesitate to make "one quick edit."

With wireless, you fix a density issue on your PC and send it instantly.

• Pro Tip: If you choose a USB workflow, buy high-quality, low-capacity drives (8GB or 16GB). Modern 64GB+ drives are often formatted in ways embroidery machines struggle to read.


The "Hidden Consumables": What You Actually Need to Start

The video lists the basics, but let's build a Professional Start-Up Kit that prevents failure on Day 1.

1. The Needle Matrix

Using a dull or wrong needle is the #1 cause of thread breaks.

• 75/11 Embroidery Needle: Your daily driver for cotton and stabilizer.
• 75/11 Ballpoint Needle: Your mandatory tool for knits (T-shirts/Polos). Sharp needles cut knit fibers, creating holes that appear after the first wash.
• 90/14 Topstitch Needle: For metallic threads or thick canvas. The larger eye protects the thread.

2. Thread Weight

Standard embroidery thread is 40wt. If you buy "sewing thread" (usually 50wt or 60wt), your coverage will be thin, and you'll see the fabric through the satin stitches.

3. The "Secret" Adhesives

• Temporary Spray Adhesive (e.g., 505 or equivalent): Vital for floating fabric.
• Double-Sided Basting Tape: Great for holding ribbons or straps in place inside the hoop without gumming up the needle.


The Stabilizer Decision Tree (Your Safety Net)

Wrong stabilizer = ruined garment. Memorize this logic.

Pro Tip: If you are searching for a brother 5x7 hoop project, start with stable cotton and tearaway. It is the most forgiving combination for learning tension.

The Hooping Pain Point: When to Upgrade Your Tooling

Hooping is the most physical part of embroidery. Standard plastic hoops involve:

1. Loosening a screw.
2. Pushing an inner ring into an outer ring (requires force).
3. Tightening the screw while praying the fabric doesn't shift.
4. Hoop Burn: The friction leaves a "ring" on delicate fabrics (velvet/performance wear) that is permanent.

This is where the user experience often breaks down. If your wrists hurt, or if you can't get thick items (towels) hooped, it is not your fault—it is the limitation of the stock hoop.

The Magnetic Solution (Level 2 Upgrade)

Profitable shops rarely use screw hoops for everything. They use magnetic embroidery hoops.

• How it works: Strong magnets slam the fabric flat between two frames. No twisting, no friction rubbing.
• The Benefit:
  • Zero Hoop Burn: Ideal for velvet and performance polos.
  • Speed: Hooping takes 5 seconds instead of 45 seconds.
  • Thickness: Magnets self-adjust to hold a thick towel or a thin handkerchief equally well.

If you own a Brother machine, looking for magnetic hoops for brother is the single best fast-track to professional-looking results without the "ring of death" on your fabric.

Warning: Pinch Hazard. Magnetic hoops use industrial-strength magnets. Keep fingers clear of the mating surfaces—they snap together with significant force. Do not place near pacemakers or magnetic storage media.

Pre-Flight Setup: The "Beginner Sweet Spot"

Don't redline your machine immediately. While these machines can run fast, speed introduces vibration and tension issues.

The "Safe Mode" Settings for Your First Month

• Speed: Set to 600 SPM (Stitches Per Minute). This is the "Sweet Spot." It is fast enough to finish, but slow enough that you can stop the machine if you hear a strange noise.
• Tension: Do not touch the tension dial yet. Do the "H" Test. Stitch the letter "H". Look at the back. You should see 1/3 white bobbin thread in the center column, flaked by colored top thread.
  • Too much white? Top tension is too tight.
  • No white? Top tension is too loose.


Operation: The 5-Point "No-Fail" Checklist

Before you press the green button, perform this check every single time.

1. Bobbin Check: Is the bobbin full? Running out in the middle of a design is a pain.
2. Path Clear: Is there anything behind the hoop (wall, scissors, coffee cup)? The arm moves fast and far.
3. Foot Height: Is the embroidery foot low enough to skim the fabric but not drag? (Standard is "Default," but adjust for thick towels).
4. Needle Tight: Use the screwdriver to ensure the needle screw is tight. Finger-tight is not enough for 800 SPM vibrations.
5. Sensory Check: Pull the top thread near the needle. It should feel like pulling dental floss—smooth usage with slight resistance. If it jerks, re-thread.

Troubleshooting: Why Bad Things Happen to Good Machines

When specific problems arise, use this logic flow. Hardware first, Software last.

The Commercial Pivot: From Hobby to Production

Many of our readers start a "side hustle. The NQ1700E, VE2300, and Stellaire are fantastic single-needle machines. They are accurate and capable.

However, if you land an order for 50 Polos with a 3-color logo, here is the reality:

• Single Needle: You must stop the machine and manually change the thread for every color change. 50 shirts x 3 colors = 150 manual interventions. You are chained to the machine.
• The Trigger for Upgrade: When you physically cannot leave the machine to do other work, you have outgrown single-needle technology.

The "Level 3" Solution: Multi-Needle Machines

This is where brands like SEWTECH enter your radar. A Multi-Needle Machine (6 to 15 needles) holds all your colors at once. It stitches Color 1, trims, moves to Color 2, trims, moves to Color 3—all while you are drinking coffee or hooping the next shirt.

When to switch?

1. Volume: You are doing runs of 12+ items regularly.
2. Complexity: Your designs have 4+ color changes.
3. Tubular Goods: You need to embroider finished hats/caps (which are very difficult on flat-bed single-needle machines).

Use your Brother machine to learn the art of digitizing and stabilization. When the volume hurts, look at multi-needle solutions and industrial magnetic hoops for brother stellaire or generic multi-needle frames to reclaim your time.

Conclusion: Invest in Your Hands and Your Workflow

Whether you choose the NQ1700E for its value, the VE2300 for its focus, or the Stellaire XE1 for its creative freedom, remember that the machine is only the engine.

The tires (Hoops), the fuel (Thread), and the road (Stabilizer) determine the ride quality.

• Start Safe: Use the checklists above.
• Stabilize Correctly: Respect the Decision Tree.
• Upgrade Wisely: Solve physical pain with Magnetic Hoops and solve production bottlenecks with Multi-Needle machines.

The goal isn't just to buy a machine; it's to build a studio where you can create without fighting your equipment. Happy stitching.

Warning: Needle Safety. Never place your hands inside the hoop area while the machine is running. If a needle breaks, fragments can fly at high velocity. Protective eyewear is recommended for high-speed operation.

FAQ

• Q: How can Brother embroidery machine users stop permanent hoop burn marks on velvet or performance polos when using screw hoops?
  A: Reduce mechanical friction first, and switch to a magnetic embroidery hoop if hoop burn keeps returning.
  • Loosen: Stop over-tightening the screw hoop; tighten only enough to hold fabric without crushing fibers.
  • Float: Use temporary spray adhesive to secure fabric to stabilizer instead of forcing extreme hoop tension.
  • Upgrade: Use a magnetic hoop to clamp fabric flat without rubbing (this is common in production workflows).
  • Success check: No visible “ring” after unhooping, and the fabric surface recovers without a pressed outline.
  • If it still fails… Test on a scrap with the same fabric + stabilizer, and reduce handling time in the hooped area.
• Q: What is the correct embroidery tension “H test” result on Brother single-needle machines before changing any tension settings?
  A: Do not adjust the tension dial until the “H test” shows about 1/3 white bobbin thread centered on the back of the stitching.
  • Stitch: Run the letter “H” test at a moderate speed setting.
  • Inspect: Flip the fabric and look for a center column of bobbin thread with colored top thread flanking it.
  • Correct: Aim for roughly one-third white bobbin showing in the center area.
  • Success check: The stitch back looks balanced—white bobbin thread is visible but not dominating, and the front satin looks smooth.
  • If it still fails… Re-thread with the presser foot raised so the thread seats into the tension discs, then re-test.
• Q: How do Brother embroidery machine users fix birdnesting (a thread mess under the needle plate) at the start of a design?
  A: Re-thread the top thread correctly—birdnesting under the fabric usually means the top thread is not under proper tension.
  • Stop: Cut away the thread mess and remove the hoop if needed to clear the area safely.
  • Re-thread: Raise the presser foot, then re-thread the upper path so the thread snaps into the tension discs.
  • Check: Pull the top thread near the needle; it should feel smooth with slight resistance (not jerky).
  • Success check: The next start produces clean stitches with no looping or pile-up under the fabric.
  • If it still fails… Replace the needle and verify the bobbin is correctly installed and feeding smoothly.
• Q: What should Brother embroidery machine users do when embroidery needles keep breaking because the needle hits the hoop or needle plate?
  A: Treat repeated needle breaks as deflection—fix hooping and density pressure before blaming the motor or speed.
  • Re-hoop: Re-hoop with firm, even tension so the fabric does not pull and bounce during stitching.
  • Stabilize: Use stronger stabilization when using larger fields (larger hoops need better support to prevent sagging).
  • Slow: Run a safer speed (a common safe starting point is 600 stitches per minute for early learning).
  • Success check: The needle runs quietly without ticking, and the design stitches without impacts or sudden snaps.
  • If it still fails… Inspect for design density issues and switch to a smaller hoop when possible to reduce fabric flagging.
• Q: What stabilizer should Brother embroidery machine users choose for T-shirts, polos, towels, and denim to avoid puckering and stitch sink?
  A: Match stabilizer to fabric behavior: cutaway for knits, tearaway for stable wovens, and topper + backing for high pile.
  • Knit (T-shirts/Polos): Use cutaway (mesh or 2.5oz) because tearing backing away can let stitches pull fabric into a ball.
  • Woven (Denim/Canvas/Cotton): Use medium tearaway for clean edges and forgiving learning runs.
  • High pile (Towel/Fleece/Velvet): Use water-soluble topper on top plus tearaway backing underneath to prevent stitch sink.
  • Success check: The design stays flat after unhooping—no edge ripples on knits, and no missing detail in towel loops.
  • If it still fails… Increase stabilization (not tension), and reduce hoop size when the design allows for better control.
• Q: What are the safest beginner operating settings and pre-run checks for Brother single-needle embroidery machines to prevent avoidable failures?
  A: Start in “safe mode” and run a simple checklist every time before pressing start.
  • Set: Use a conservative speed (600 SPM is a safe starting point for the first month) and avoid changing the tension dial immediately.
  • Verify: Check bobbin fullness and confirm the needle screw is tightened with a screwdriver (finger-tight is often not enough at speed).
  • Clear: Ensure nothing is behind the hoop (wall, tools, cups) because the arm moves fast and far.
  • Success check: The machine runs smoothly without unusual noises, and stitches begin cleanly without loops or jerks.
  • If it still fails… Re-thread the top path with the presser foot raised and repeat the tension “H test” before changing settings.
• Q: What magnetic embroidery hoop safety rules should Brother embroidery machine users follow to avoid pinch injuries and device hazards?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear and keep magnets away from sensitive medical devices and magnetic media.
  • Keep clear: Hold magnets by the sides and never place fingertips between mating surfaces when closing the frame.
  • Control: Let magnets “snap” together deliberately—do not rush alignment near the fabric edge.
  • Separate: Do not place magnetic hoops near pacemakers or magnetic storage media.
  • Success check: Hooping is fast and controlled, with no finger contact in the closing gap and no sudden slips.
  • If it still fails… Use a slower, two-handed placement method and set the frame down on a stable table to align safely.
